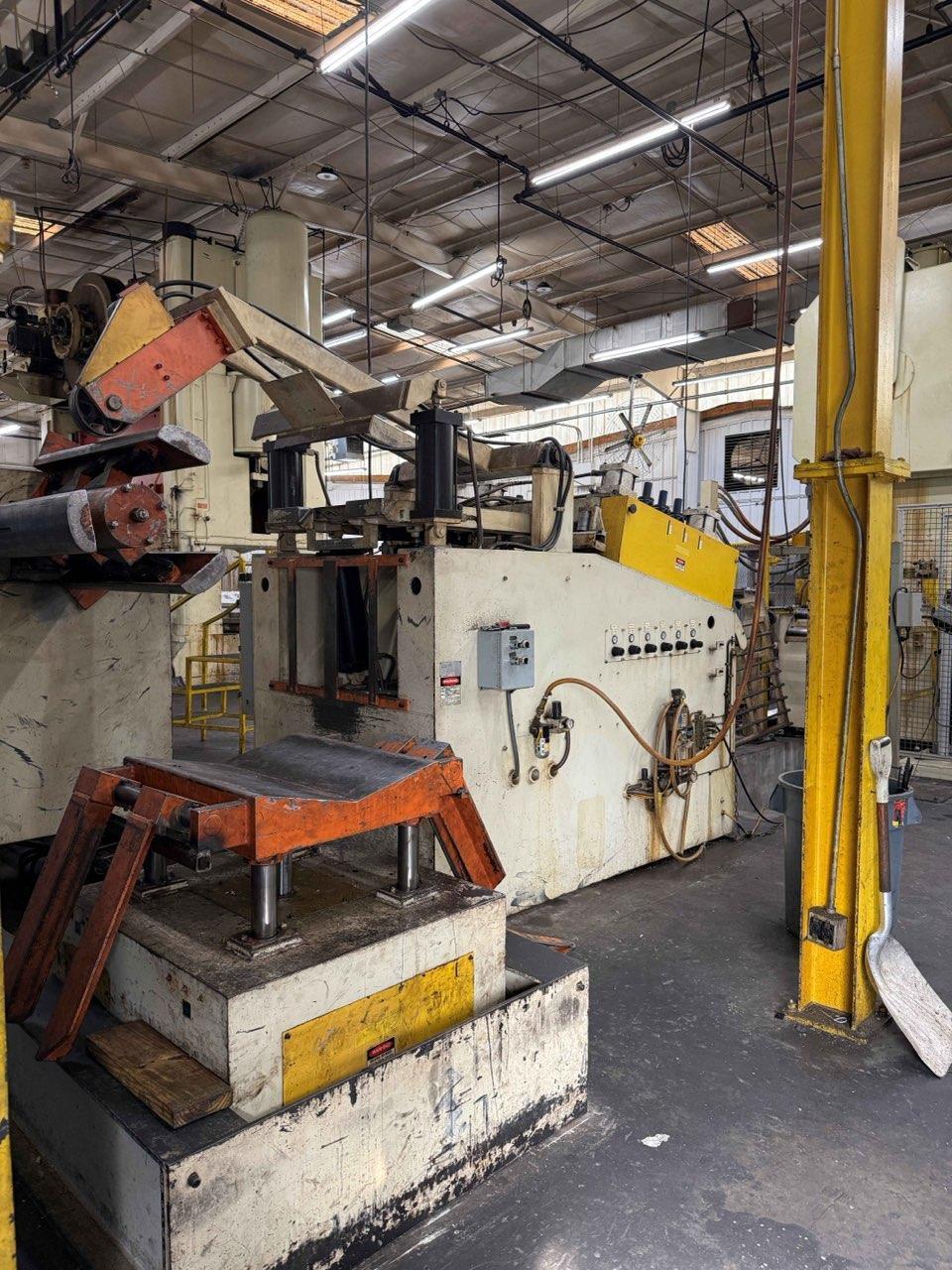

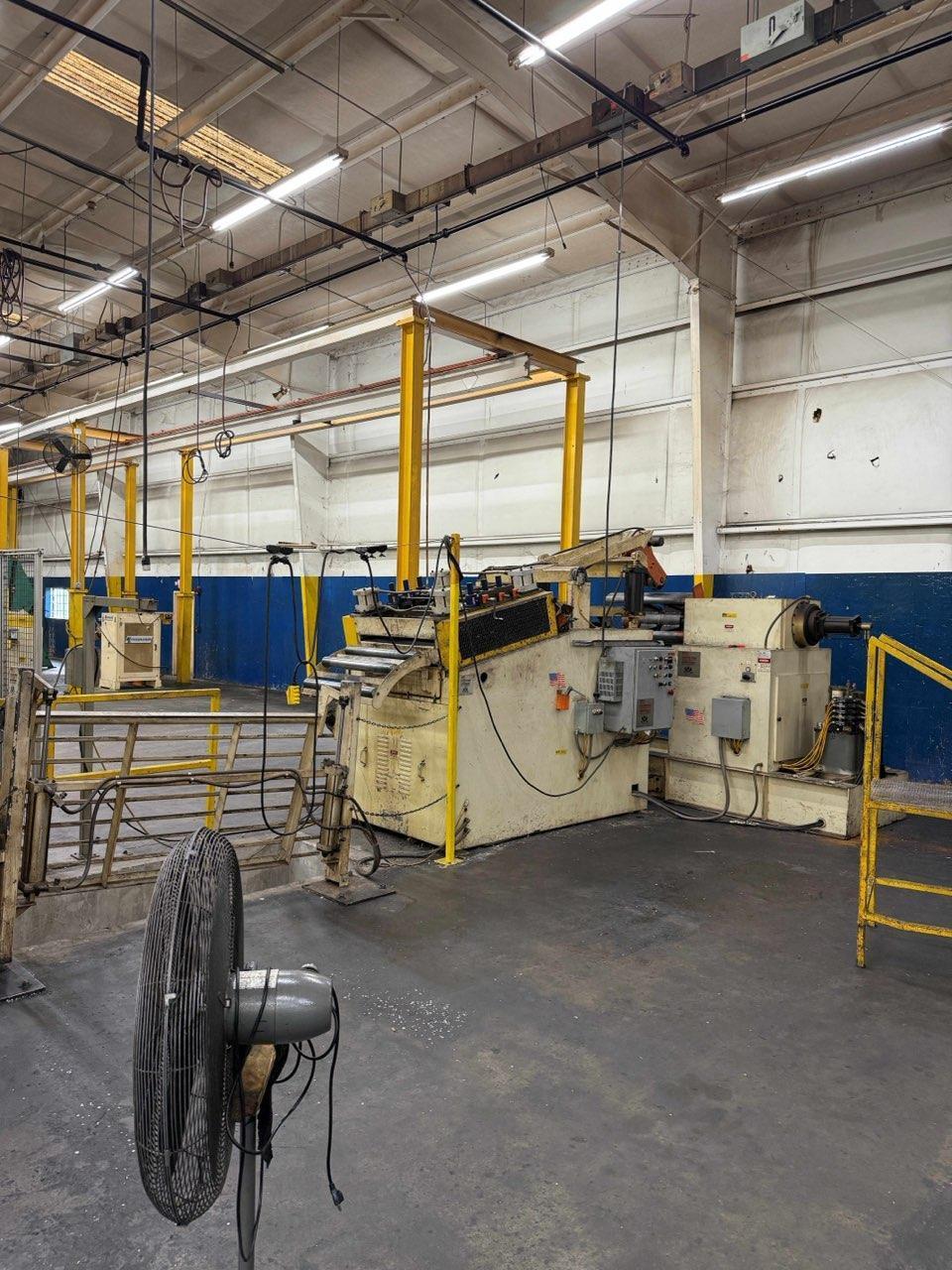

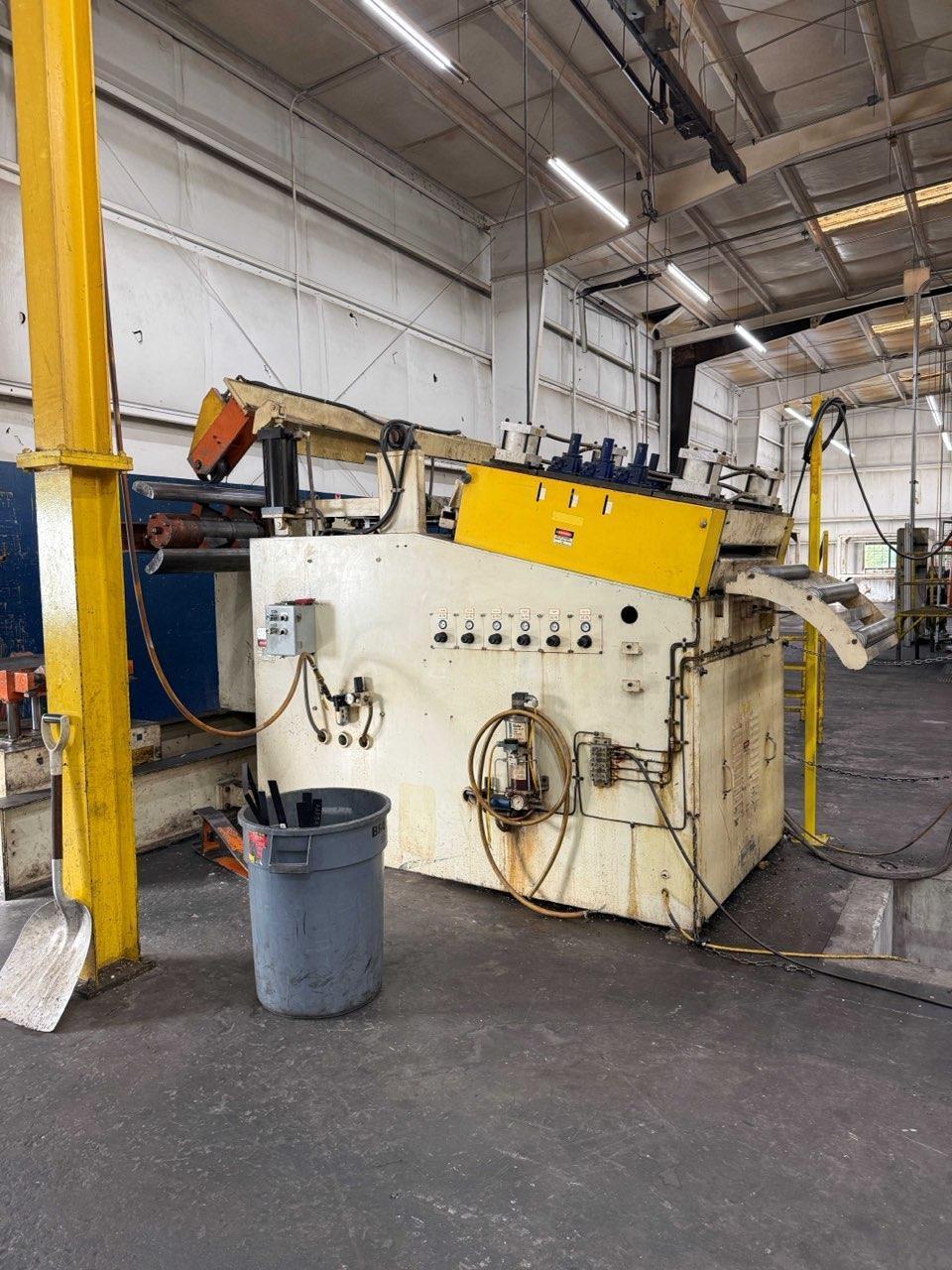

CHS Coil Feed Line 15,000 Lbs. x 36" Wide

Name: Used CHS R150 / PS-350 / DRF-536 For Sale 5576B
Brand: CHS
SKU: 5576B
Availability: PreOrder

Brand

CHS

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Coil Weight Capacity:	15000 pounds
Stock Width Capacity	36 inches
Max Stock Thickness Capacity At Full Width	.125 inches
CHS Coil Reel Model No.R150 Three leaf mandrel Hydraulic expansion Jog drive Air brake for tensioning Traveling coil load car CHS Powered Coil Straightener Model No. PS-350 Seven straightening rolls x 3.5" diameter rolls Entry and exit pinch rolls Stock width edge guides Coil hold down arm with motorized end wheel Stock peeler table Adjustable edge guides CHS Servo Roll Feed Model No. DRF-536 Four inch diameter upper and lower feed rolls Piloting upper feed roll Adjustable stock width edge guides Entry cascade loop support rollers Cabinet base mounted with adjustable pass line

No files or videos to display
