Koehring Prodex 1500-Gallon Jacketed Mixer with Westinghouse 100HP Multispeed Motor

Equipment Overview

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,High-capacity horizontal jacketed mixer designed for thermal and mechanical batch processing. Ideal for use in chemical, adhesive, and food-grade industrial systems. Jacket supports heating/cooling applications, and the robust Westinghouse drive motor supports dual-speed mixing for different viscosities or phase agitation cycles.

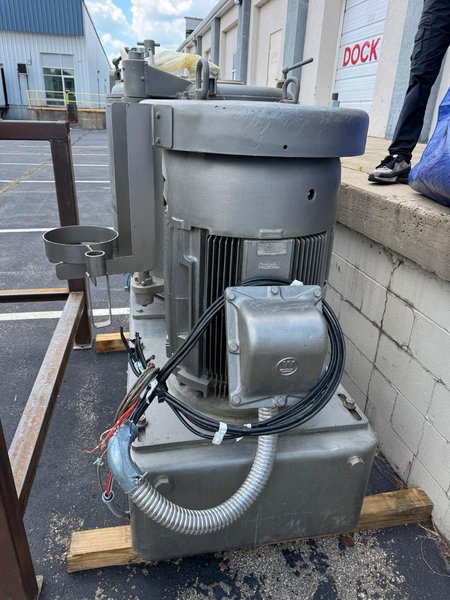

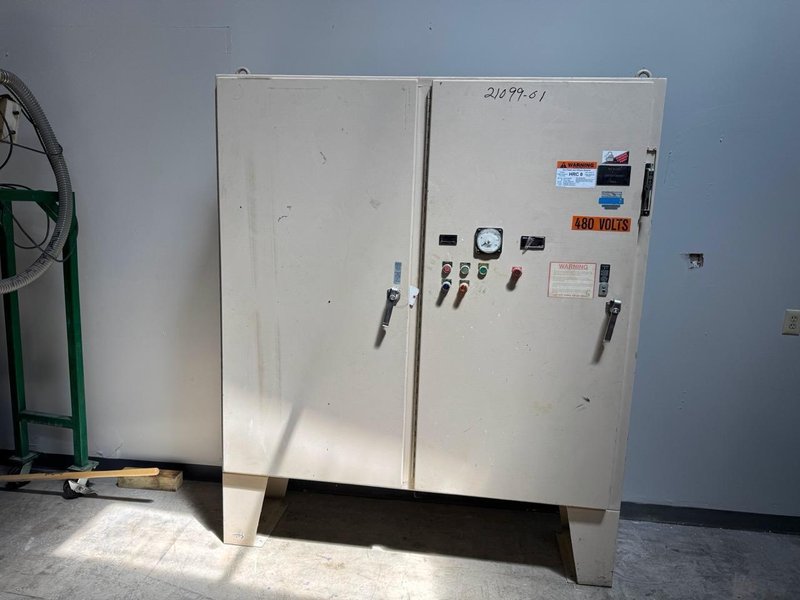

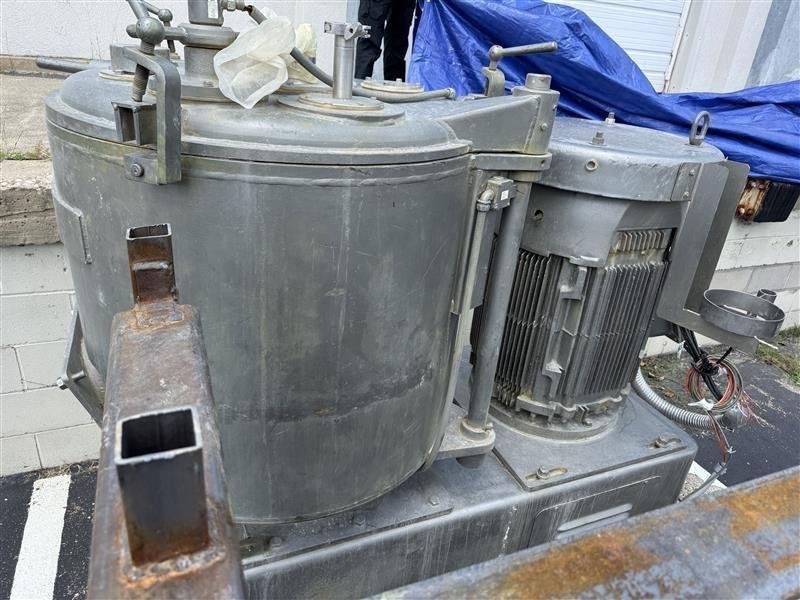

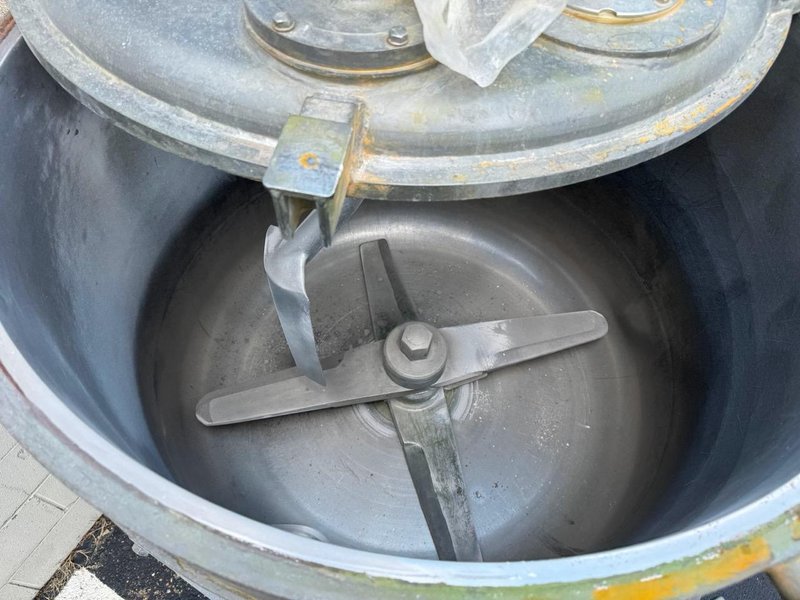

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Key Features and Specifications Mixer Assembly – Type: Horizontal jacketed paddle mixer – Tank Material: Stainless steel interior (based on visual inspection) – Jacket Rating: Not labeled; standard for steam or glycol circulation (est. 90 psi) – Volume: Approx. 1,500–2,000 gallons – Impeller Type: Paddle-blade + anchor style agitator – Agitation: Two-speed via motor tap – Lid: Hinged with clamp-locking – Cleanout: Manual side access and bottom drain assumed Motor Drive System – Make: Westinghouse – HP: 100 HP – Voltage: 460V – Phase: 3 – RPM: 1750 / 880 – Amps: 113 / 75 – Frame Size: 445T – Configuration: Multispeed motor with wiring plate – Hazardous Location Rating: Yes – UL listed Class I, Group G, Division 1 – Mount Type: Baseplate mount Control Panel – Voltage: 480V – Cabinet: Dual-door steel, floor-standing – Indicators: Pressure gauge, lockouts, rotary disconnects – Safety: High-voltage warning, operator labels intact – Condition: Cosmetic wear; all handles and gauges appear intact

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
