Premium 100‑Gl Steam‑Jacketed Tilting Kettle with Motorized Mixer

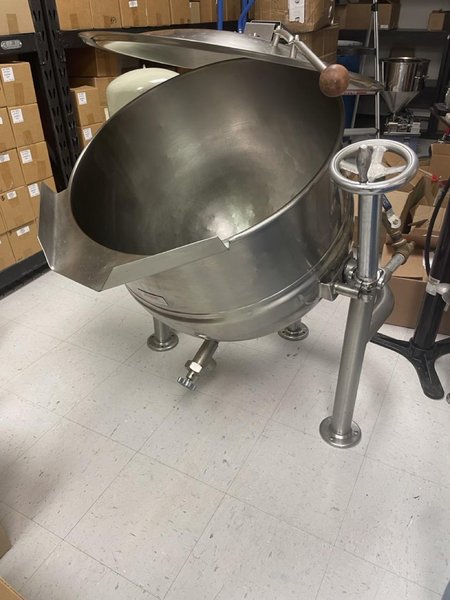

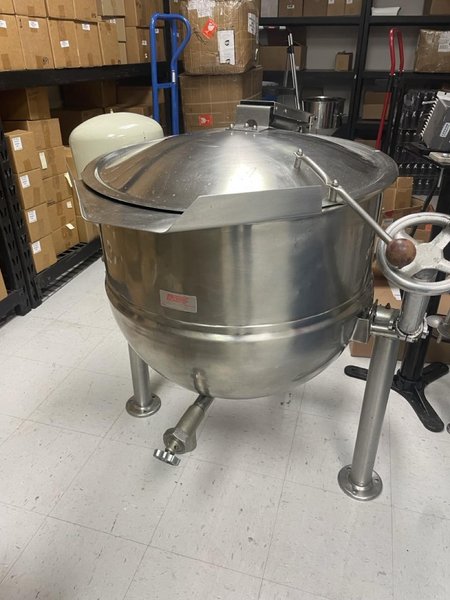

Equipment Overview Heavy-duty stainless steel steam-jacketed kettle, likely around 100 gallons. Equipped with a crank-tilt mechanism, hinged lid, bottom discharge valve, and independent pedestal-mounted electric mixer—rendering it suitable for high-throughput food or process environments.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Key Features and Specifications

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Capacity: 100 US gallons (≈379 liters)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Jacket Design: 2/3 steam-jacketed construction for even heat distribution

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Material: Interior is 316 stainless steel; Exterior is 304 stainless with No. 4 finish

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Operating Pressure: Approx. 50 PSI for jacketed operation

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Operating Temperature: 145–260 °F (63–127 °C)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Dimensions: 51″ W × 71.25″ D × 48.875″ H (to lip)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Weight (Empty): Approx. 520 lb

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Base / Support: Tri-leg base with floor flanges, boltable

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Tilt Mechanism: Crank with self-locking worm gear

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Controls & Indicators: Solid-state thermostat, ON/OFF switch, LED cycle indicators

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Discharge Valve: 2″ tangent draw-off valve, compatible with strainer insert

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Jacket Fill and Safety: Pre-filled treated water, safety relief valve, low-water cutoff

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Lid and Handling: Hinged spring-assisted lid, reinforced rolled rim

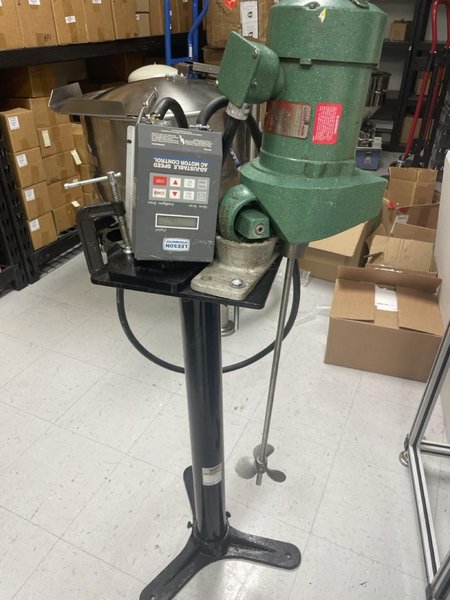

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Mixer: Leeson electric motor with stainless agitator shaft and control box

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
