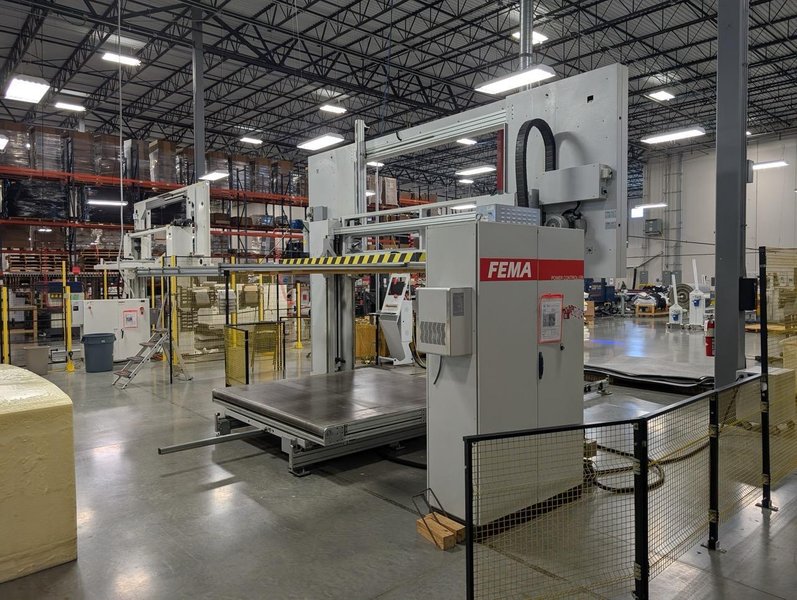

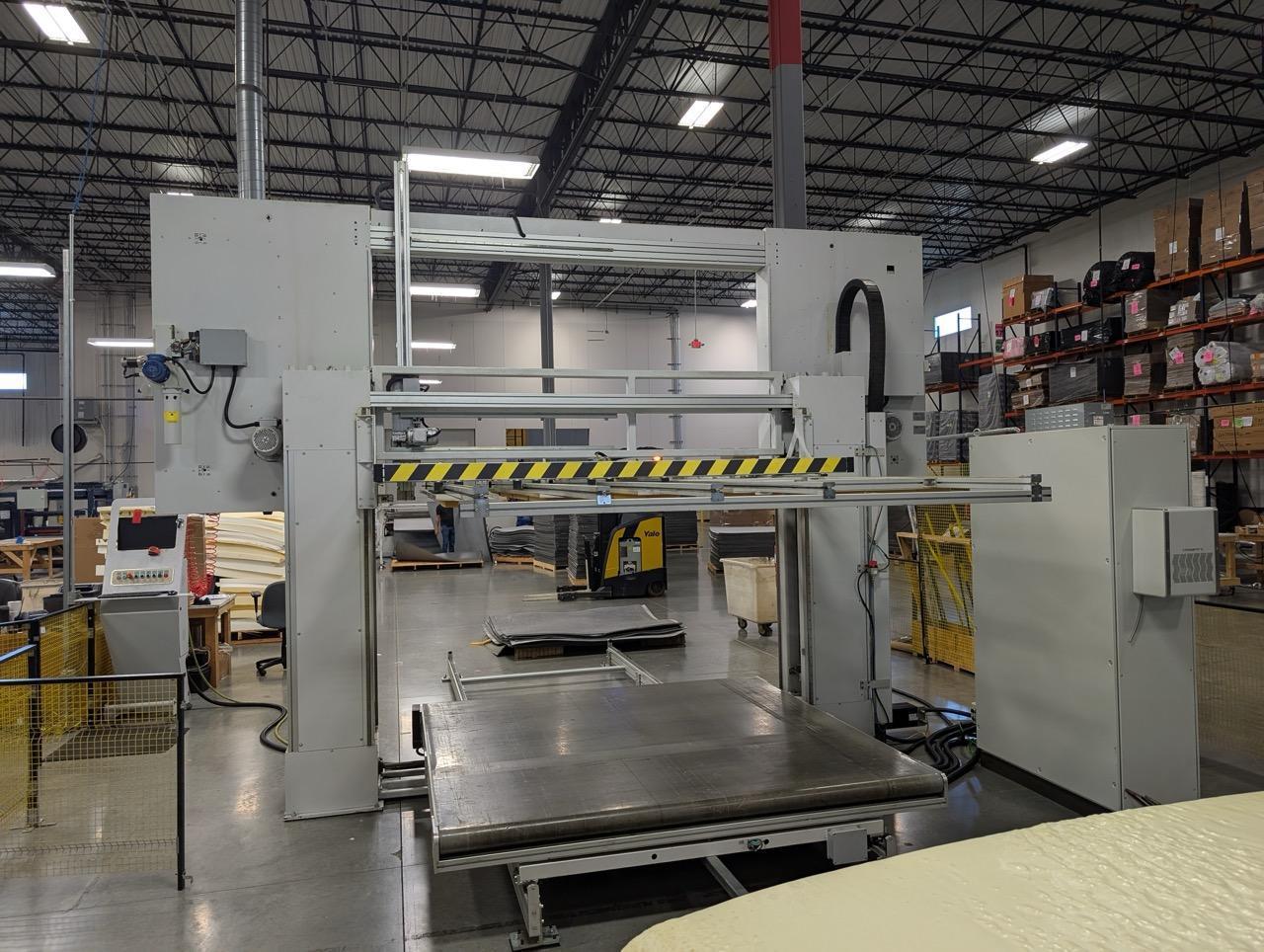

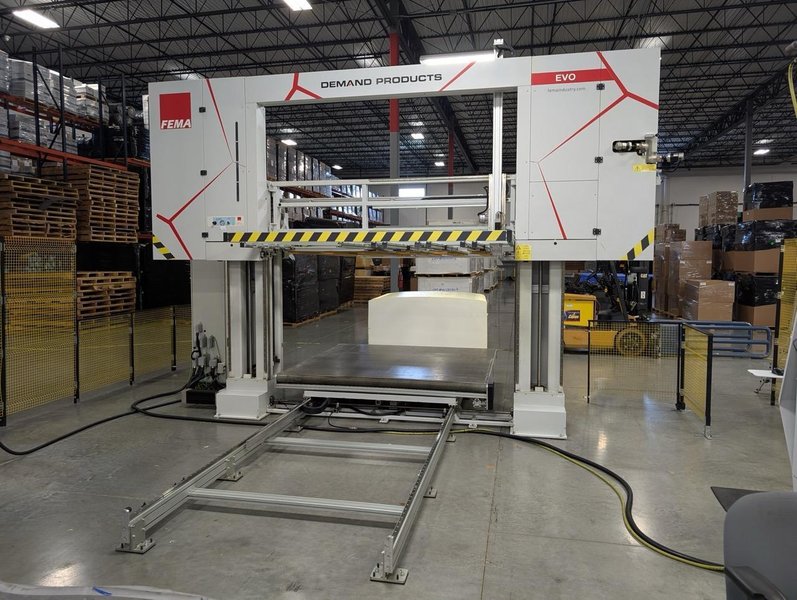

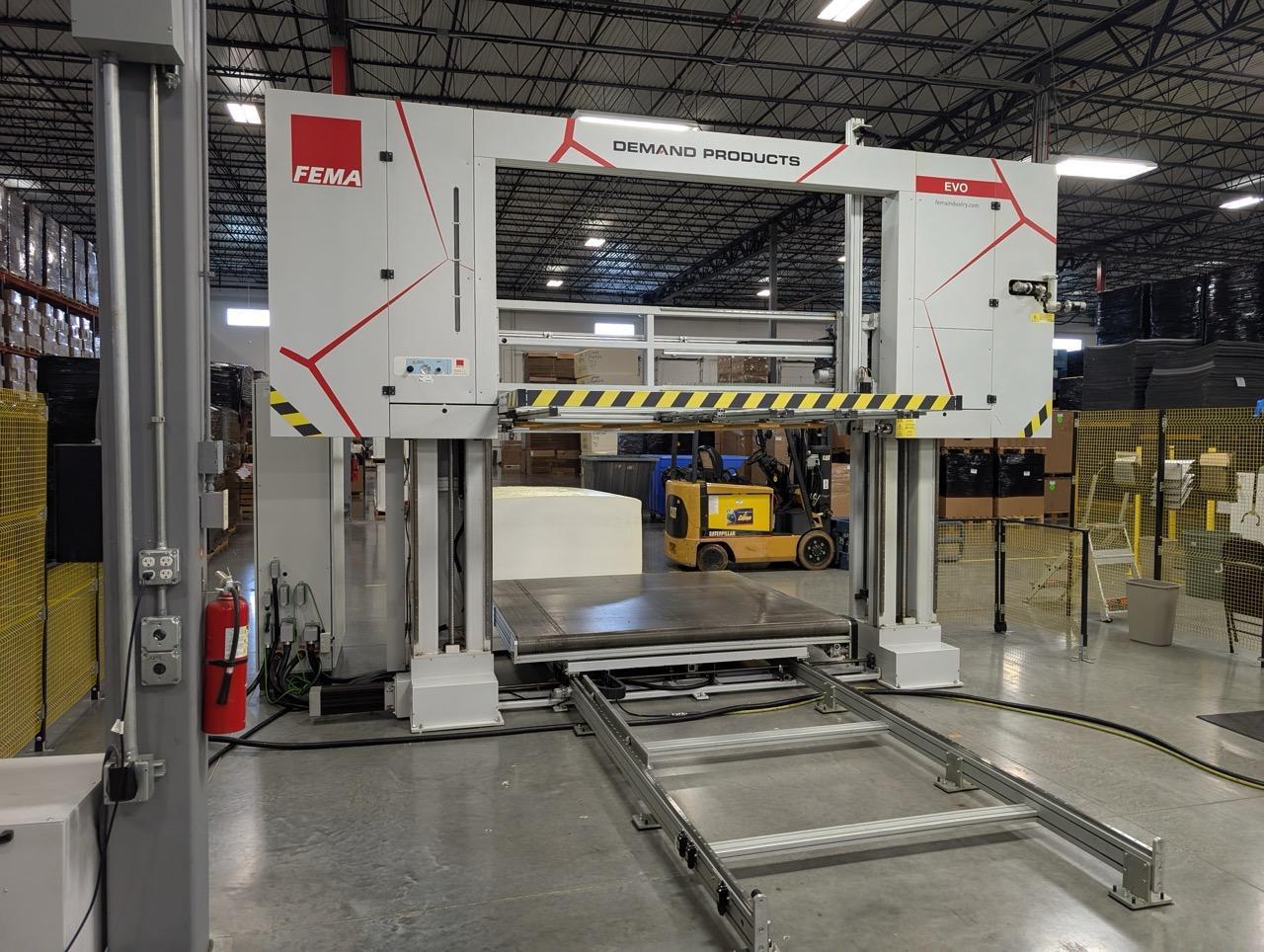

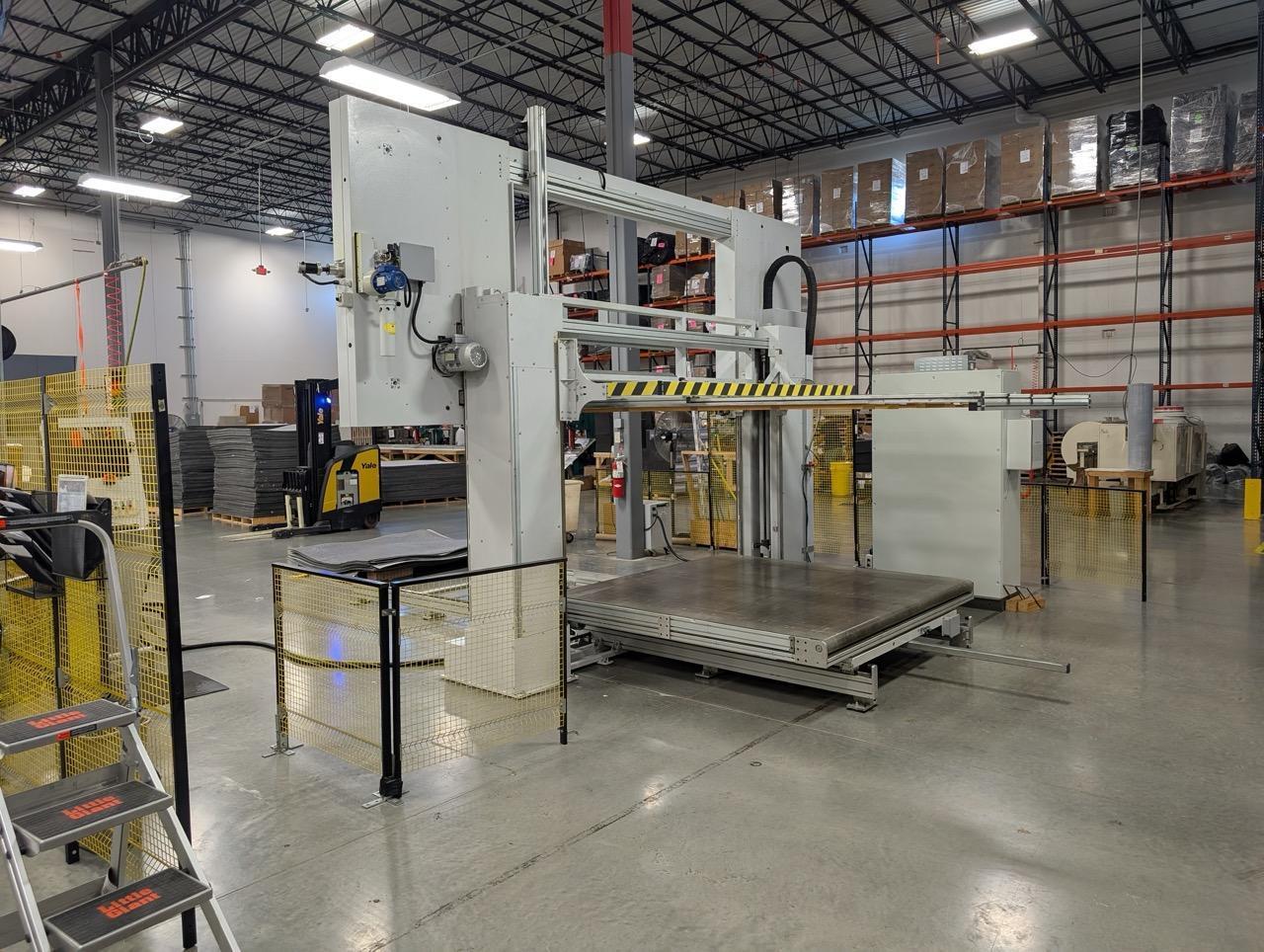

FEMA EVO 1.1 GIOTTO Horizontal Foam Cutting System, 2018 – Heavy-Duty Precision Block Cutter

Equipment Overview High-performance FEMA EVO 1.1 horizontal cutting system designed for slicing large foam blocks with speed and precision. Built in 2018, the system features dual blade configurations and a motorized conveyor table, ideal for industrial-scale foam conversion operations. Full safety fencing and operator control systems included.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Key Features and Specifications

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Machine Type: Horizontal block foam cutting system Manufacturer: FEMA – Italian Cutting Systems (Italy) Model: GIOTTO Version: EVO 1.1, CSDHDL Year: 2018

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Power Requirements: Voltage: 400V/230V Frequency: 50–60 Hz Power: 15 kW (22 A max draw)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Blade Configuration: Continuous Blade: 13,380 mm × 3.8 mm × 0.7 mm Oscillating Blade: 2,595 mm × 3.0 mm × 0.6 mm T24

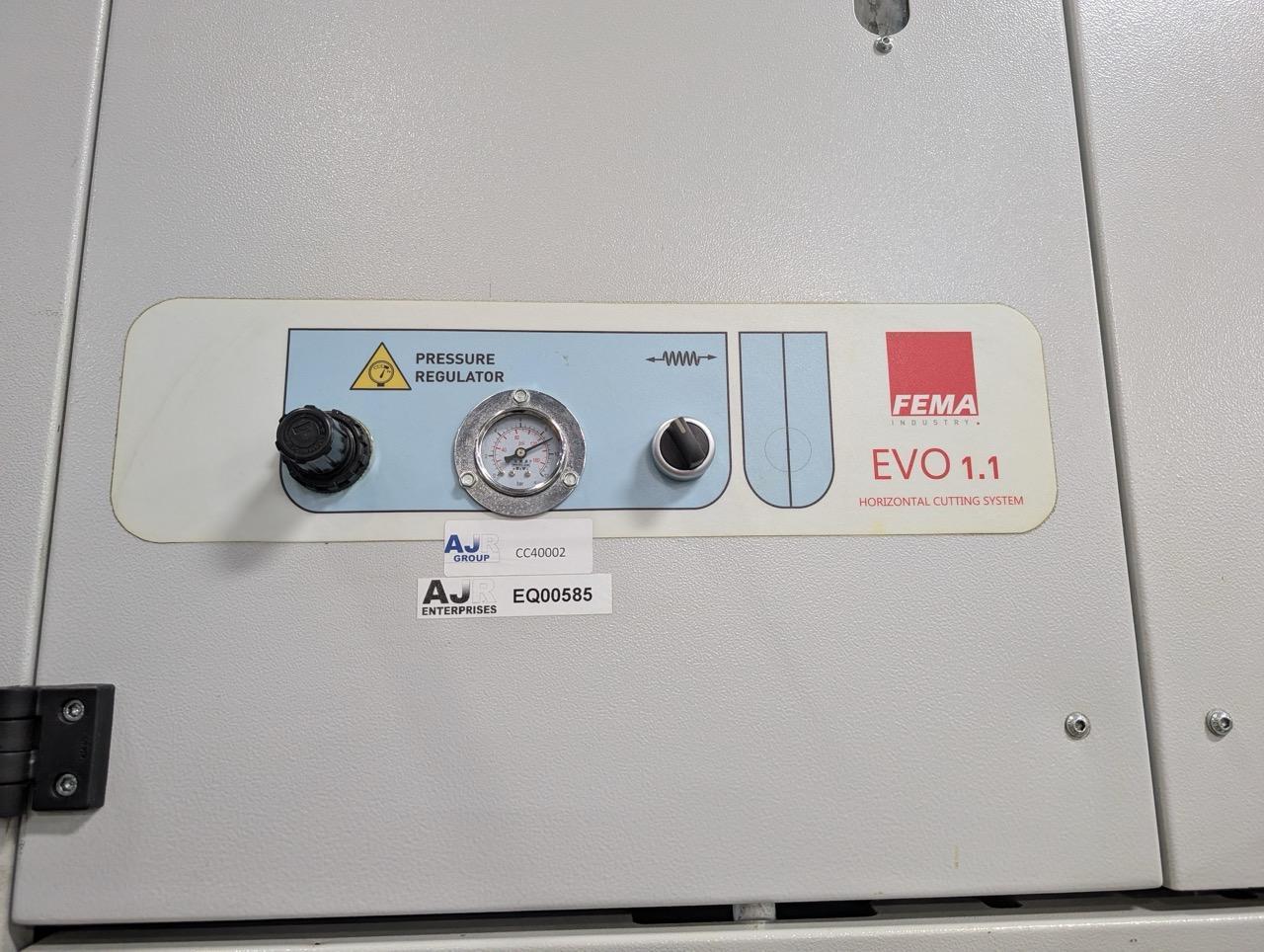

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Controls: Air pressure regulation Version: CSDHDL control logic (PLC-based) Machine Weight: ~3,600 kg Table / Feed: Motorized conveyor table with linear tracking

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Safety: Full perimeter guarding with mesh fencing Interlock gates Emergency stop mechanisms

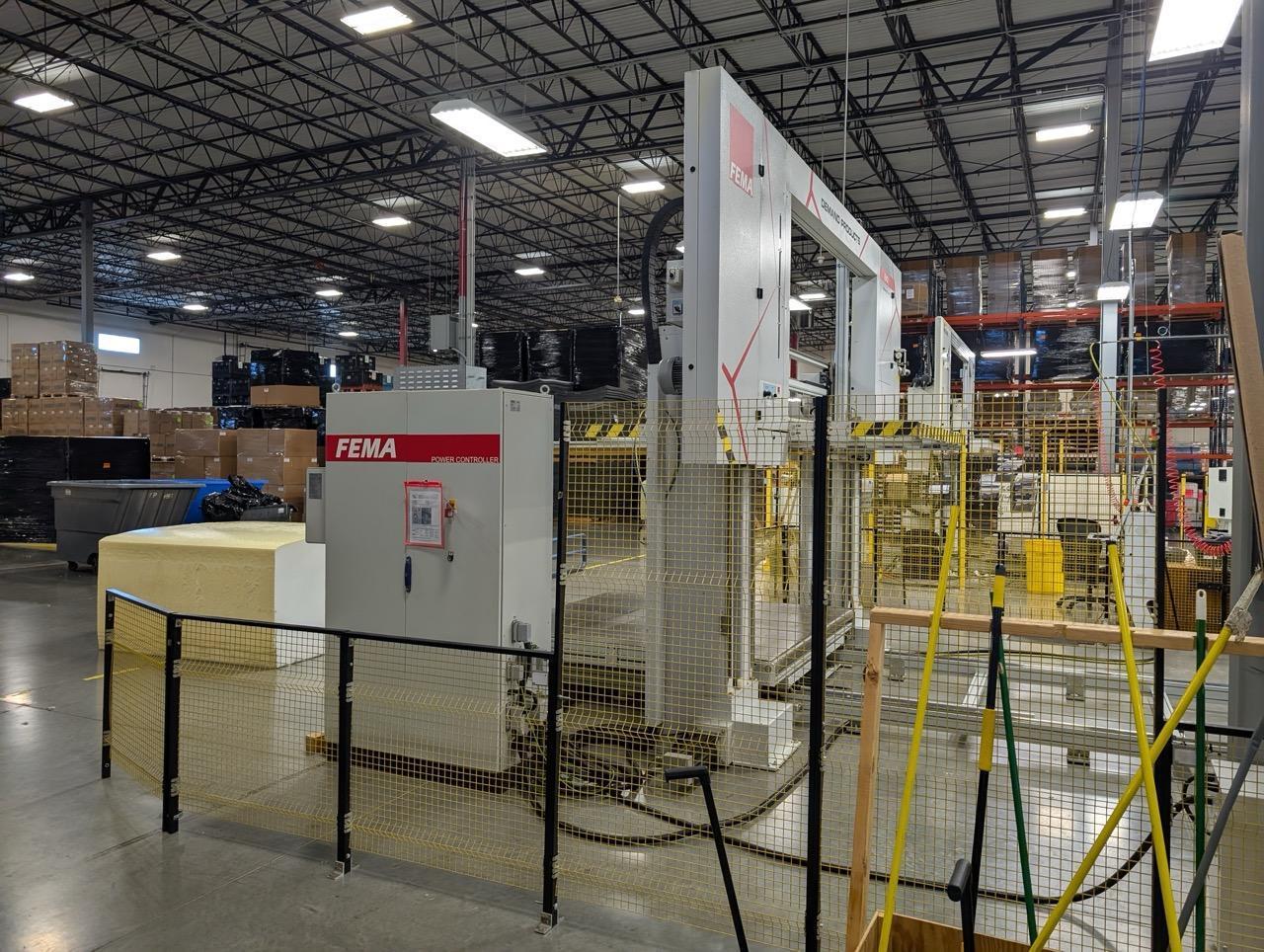

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Additional Components: External power/logic enclosure Blade drive units Pneumatic systems for blade tensioning and tracking

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
