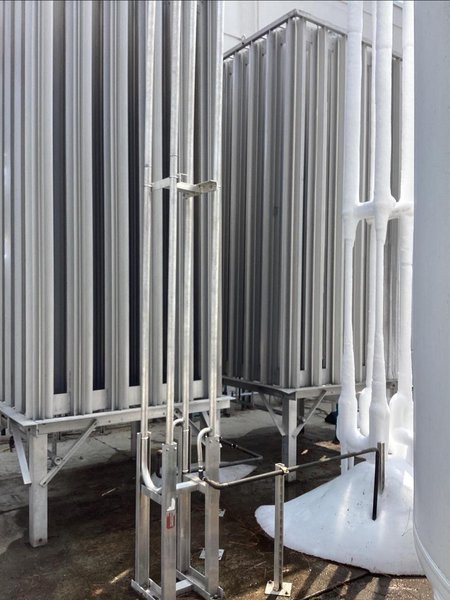

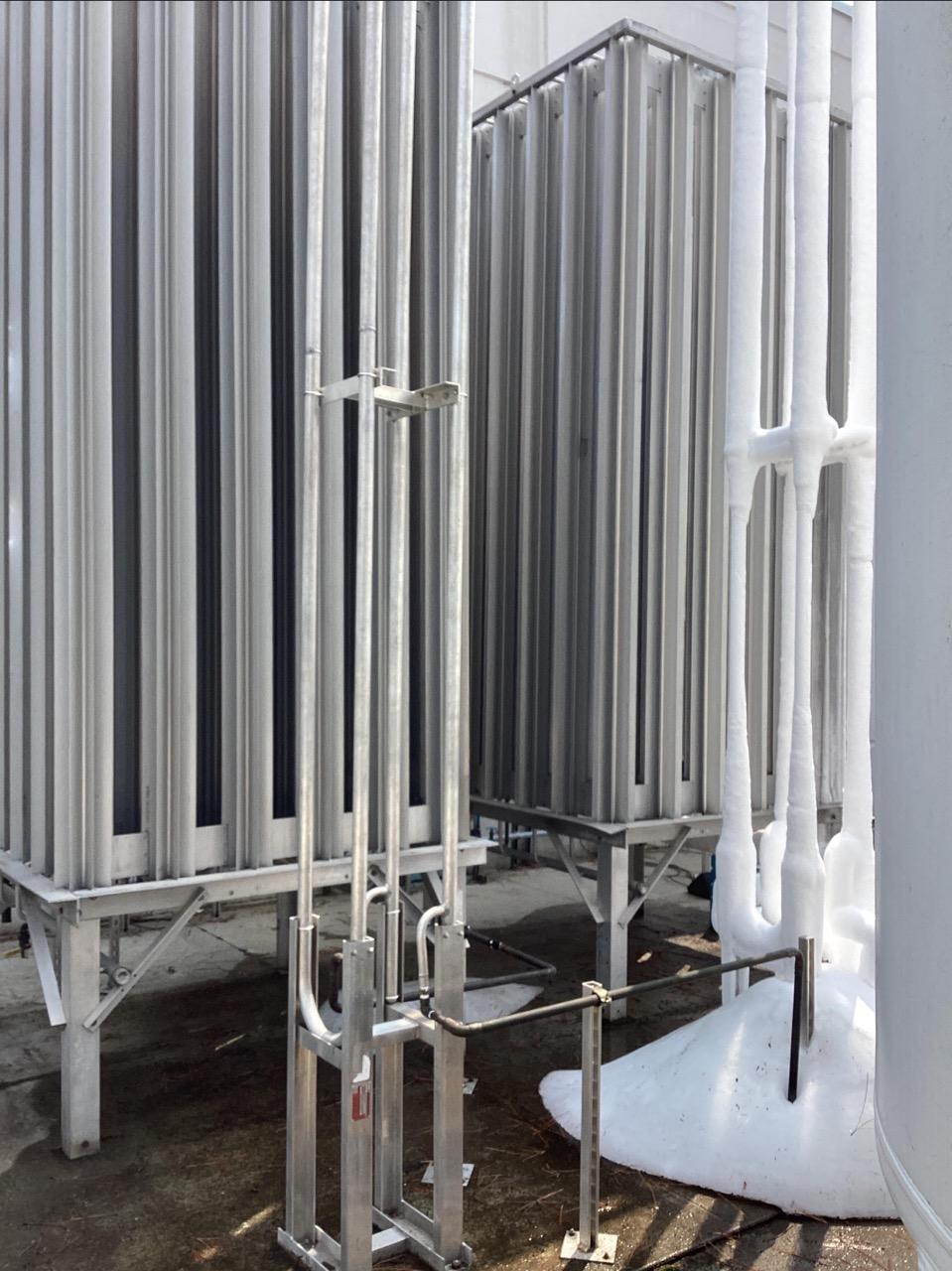

2020 Thermax OH375175RK Vaporizer | High-Efficiency LN2 System | CRN Certified

Design Type: Ambient Natural Convection Vaporizer Rated Pressure: 600 PSIG Construction Material: Aluminum Fins with Alloy Tube Liner Fin Spacing: 4.0 inches (SuperGap Configuration) Tube Center Spacing: 12 inches Frame Design: Modular Aluminum Structure Typical Flow Capacity: Up to 200,000 SCFH Wind Rating: 100 MPH Seismic Rating: Seismic Zone 4 Compliant Frost Handling Capability: Extended frost build-up tolerance with optimized defrost cycle intervals Certifications: CRN, ANSI B31.3 Application: LNG, Nitrogen, Oxygen, Argon, or other cryogenic gases Mounting Type: Vertical Stand-Alone Skid Finish: Industrial Outdoor-Grade Aluminum Location Use: Outdoor Duty – Ambient Air-Cooled Condition: Excellent – Structurally Sound and Operational

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
