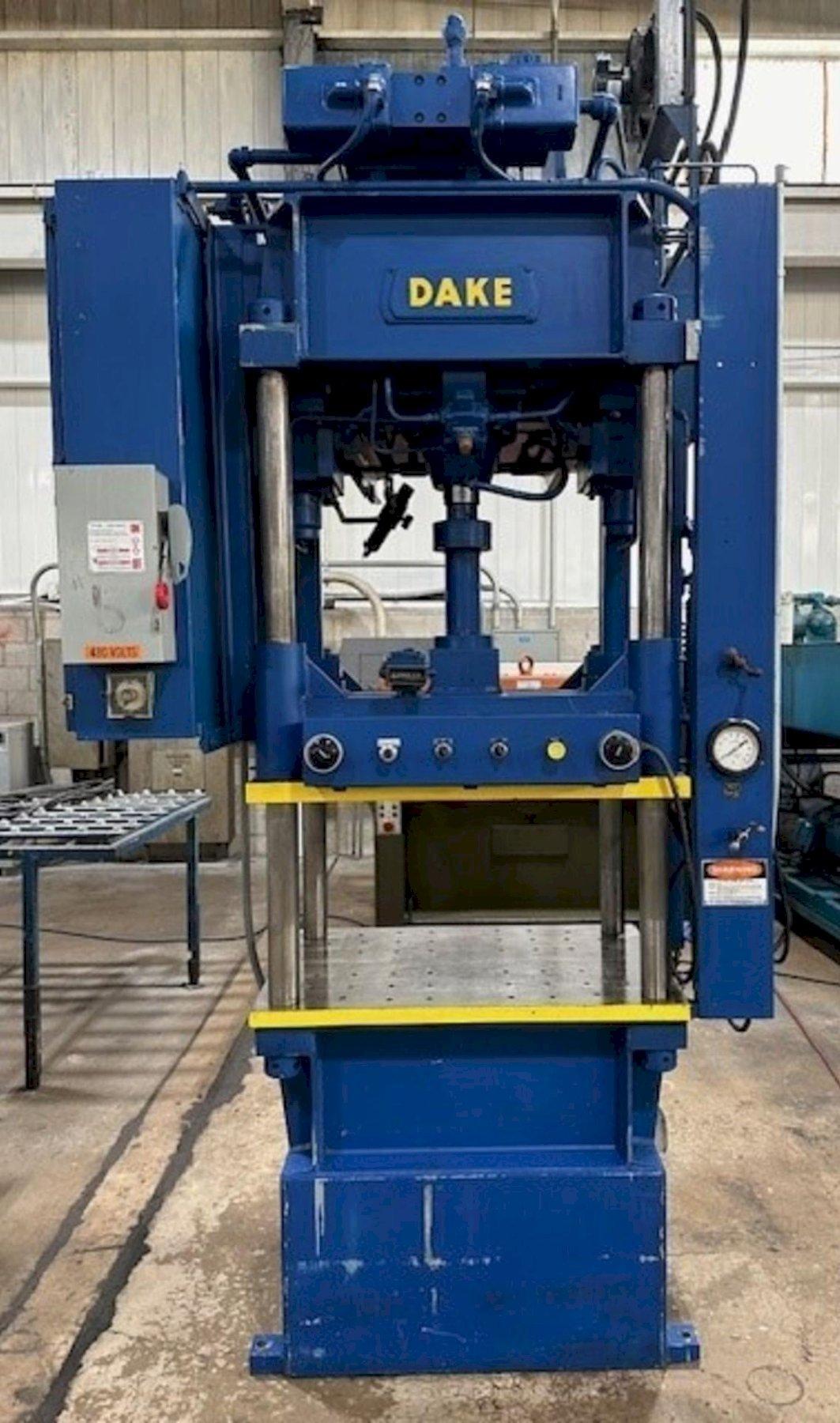

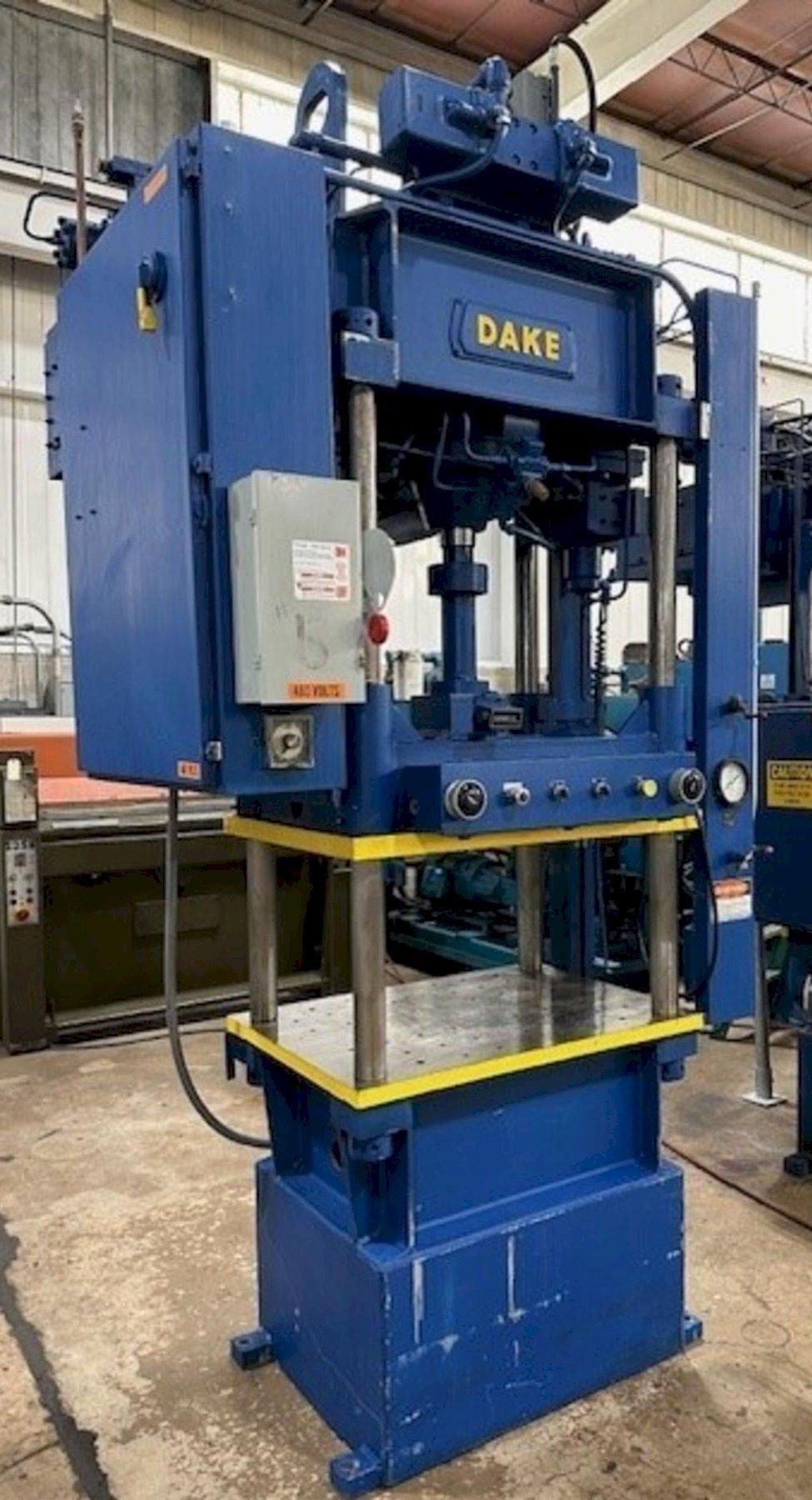

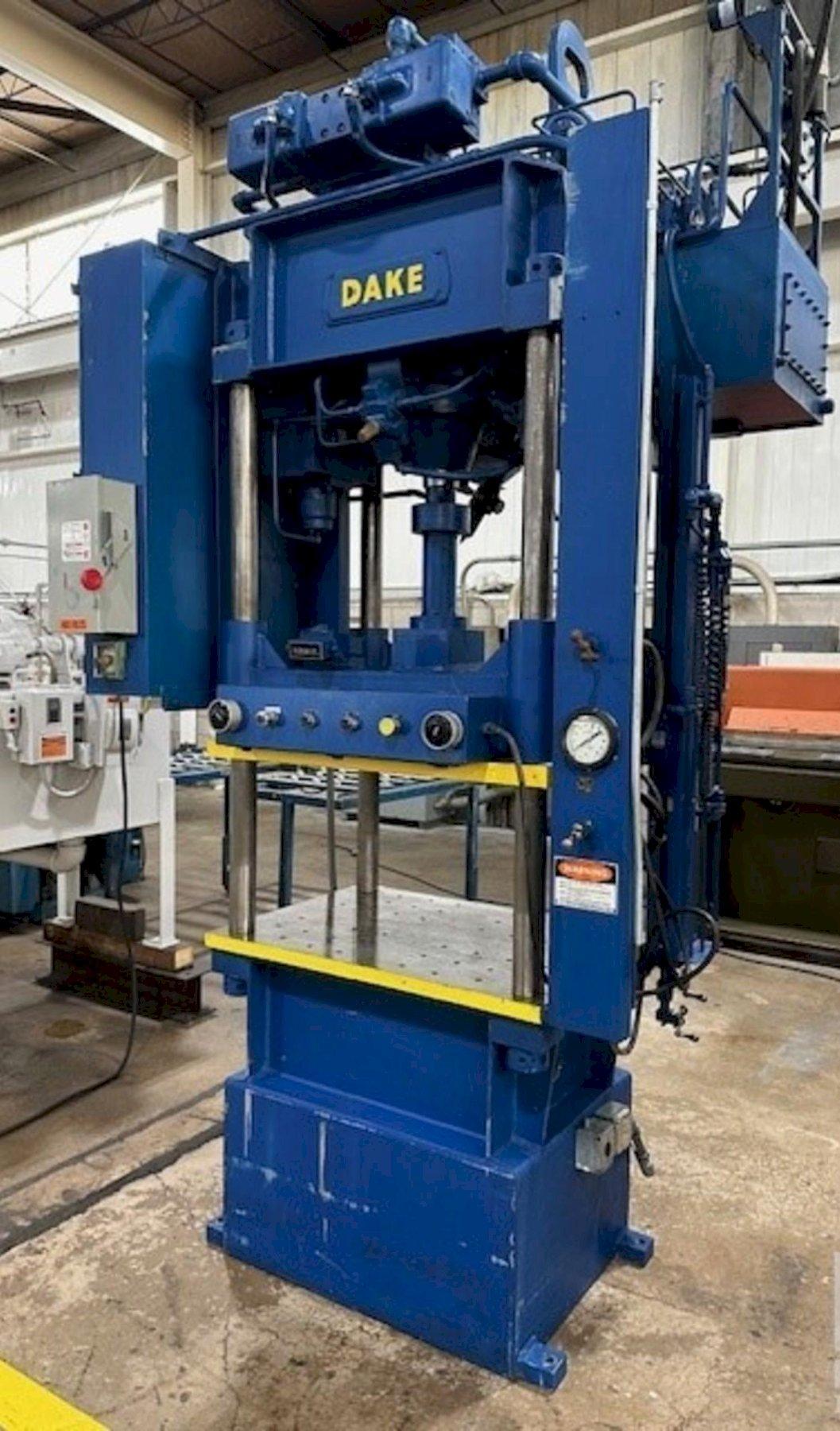

50 TON DAKE MODEL #27-783 HYDRAULIC 4 POST PRESS 14" STROKE: YOBRO #24083
Brand
Category
Type
Model
27-783
Stock #
24083
Year
Not specified
Condition
Good
Location
Ohio
|
SERIAL .................................. 178359
MODEL ................................... 27-783 TYPE: 4 POST DOWNSTROKE / FLOOR STANDING DIAMETER OF POSTS ....................... 3" DISTANCE BETWEEN POSTS .................. 33" L-R x 20" F-B NOMINAL AREA OF BED ..................... 33" L-R x 29" F-B OVERALL DIMENSIONS OF BED ............... 42" L-R x 29" F-B NOMINAL AREA OF SLIDE ................... 33" L-R x 29" F-B OVERALL DIMENSIONS OF SLIDE ............. 42" L-R x 29" F-B STROKE (FULLY GUIDED SLIDE) ............. 0 - 14" maximum DAYLIGHT OPENING ........................ 32" MAX DAYLIGHT OPENING WITH 12" SPACER ........ 20" MAX MAIN RAM DIAMETER ....................... 5"/4" @ 5090 PSI - 50 tons FLOOR TO TOP OF BED ..................... 36" POWER UNIT (TOP REAR OF PRESS): (2) HYDRAULIC PUMPS ..................... YES MOTOR ................................... 15HP/1755RPM/230/460V/3PH/60CY SPEEDS (APPROX): MINUTE CLOSING .......................... 215" MINUTE PRESSING TO 50 TONS .............. 42" MINUTE RETURN ........................... 600" PUSHBUTTON OPERATION CONTROLS: STROKE & PRESSURE CONTROL ............... YES DUAL PALM BUTTONS ....................... YES SELECTOR SWITCH ......................... MANUAL - SEMI AUTO OPERATION CYCLE TIMER ............................. YES SAFETY SLIDE LOCK ....................... YES PRESSURE GAUGE .......................... YES |
