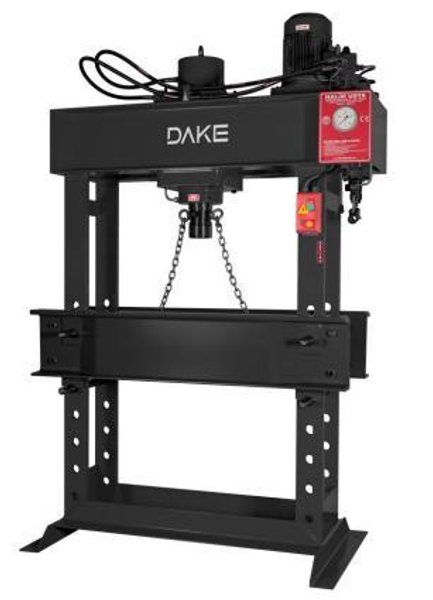

(1) NEW DAKE HYDRAULIC H-FRAME PRESS, MODEL #: EM-100
Brand
Category
Type
Model
EM-100
Stock #
86498
Year
Not specified
Condition
New
Location
Michigan
| Machine Type | H-frame hydraulic powered |
| Capacity | 100 tons |
| Maximum Operating Pressure | 400 bar |
| Minimum Operating Pressure | 30 bar |
| Ram Travel | 15.75 inches |
| Ram Pressing Speed | 19 i.p.m. |
| Horsepower | 7 HP |
| Hydraulic Pump | 4.5 Gal/Min |
| Controls | Panel mounted 24-volt CE approved with joystick operation |
| Oil Capacity | 8 U.S. gallons approx |
| Weight | 2250 pounds |
| Overall Height | 96.5 inches |
| Base Width | 75 inches |
| Depth | 39 inches |
| Width Between Uprights | 39.75 inches |
| Maximum Ram To Table | 35.5 inches |
| Minimum Ram To Table | 10 inches |
| Voltage | 220-volt 3-phase (Machine should be wired to main service by a qualified Electrician) |
| AMP | 25-amp |
| Operating Temperature | No special operating temperature level |
|
FEATURES:
• 220-volt 3-phase motor with plug makes for greater portability. • Welded steel frame for rigidity. • Pressure gauge • Double acting cylinder. • Fast, quiet, dependable, economical price, smooth operating press that is very simple to operate. • Heavy adjustable table can be set to a comfortable work height via lifting chains and Workhead. Massive table pins keep the table securely in place during the pressing operations. • Panel mounted 24-volt CE approved with joystick operation. • Head traverses left to right. • V-Blocks • Manual & Electric Operation NOTES: SPECIFICATIONS SUBJECT TO VERIFICATION DELIVERY: SUBJECT TO STOCK |
|
