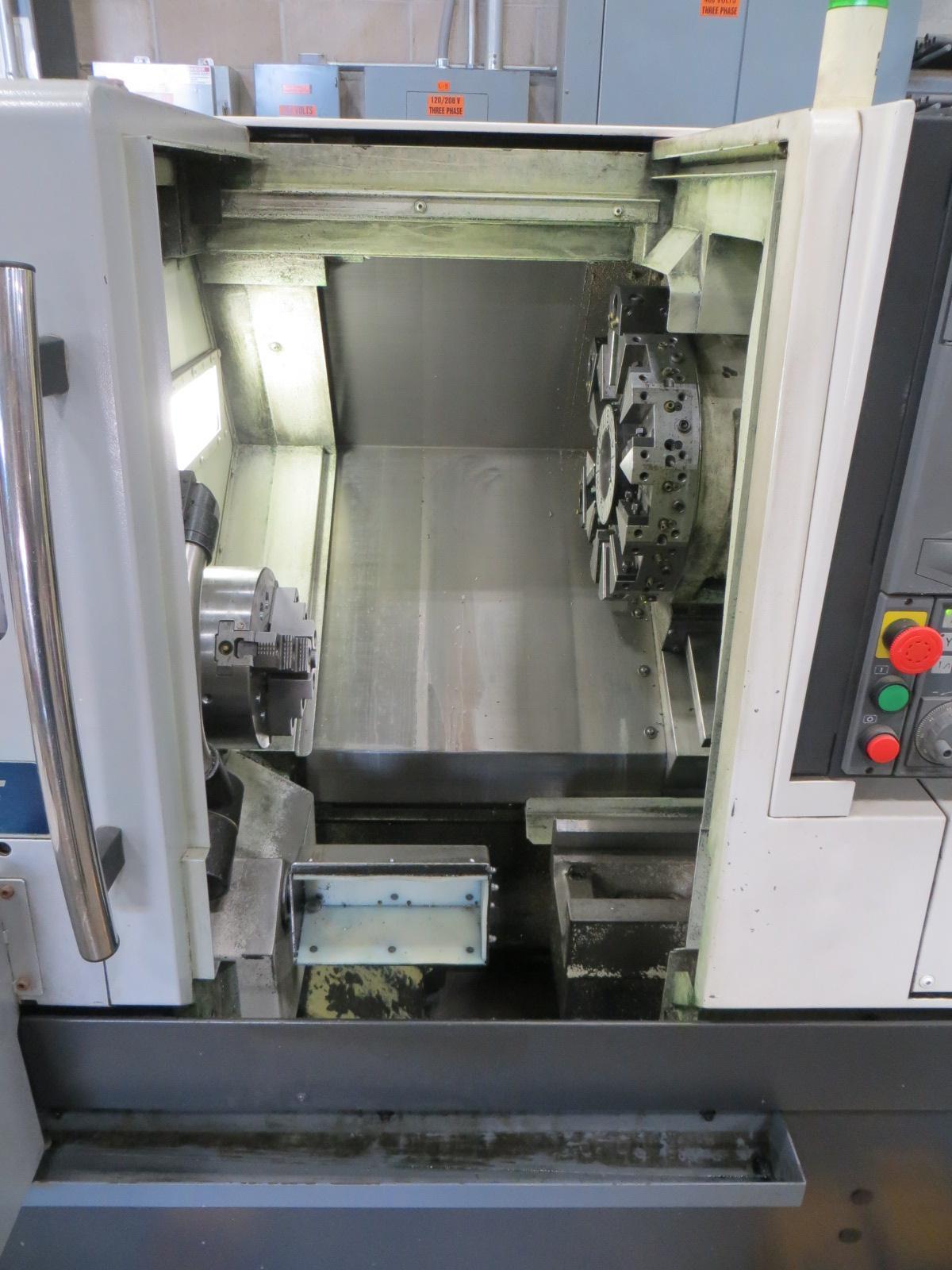

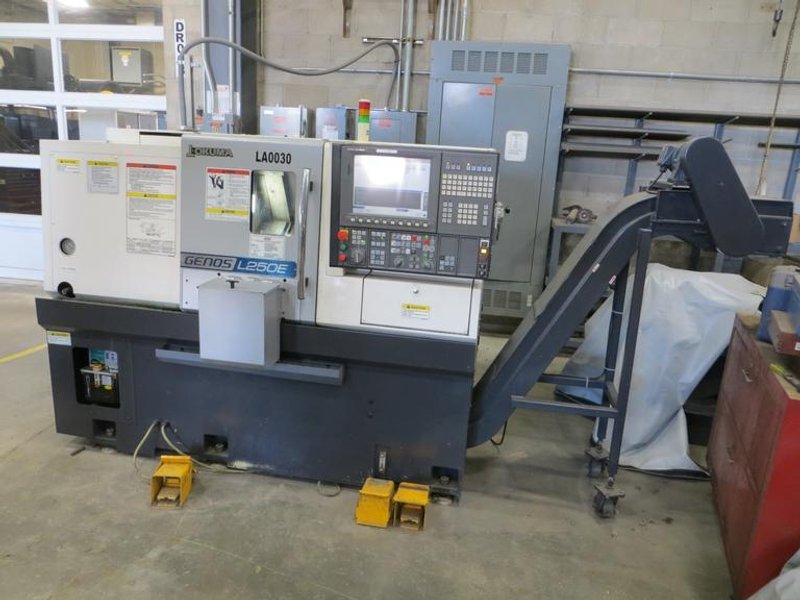

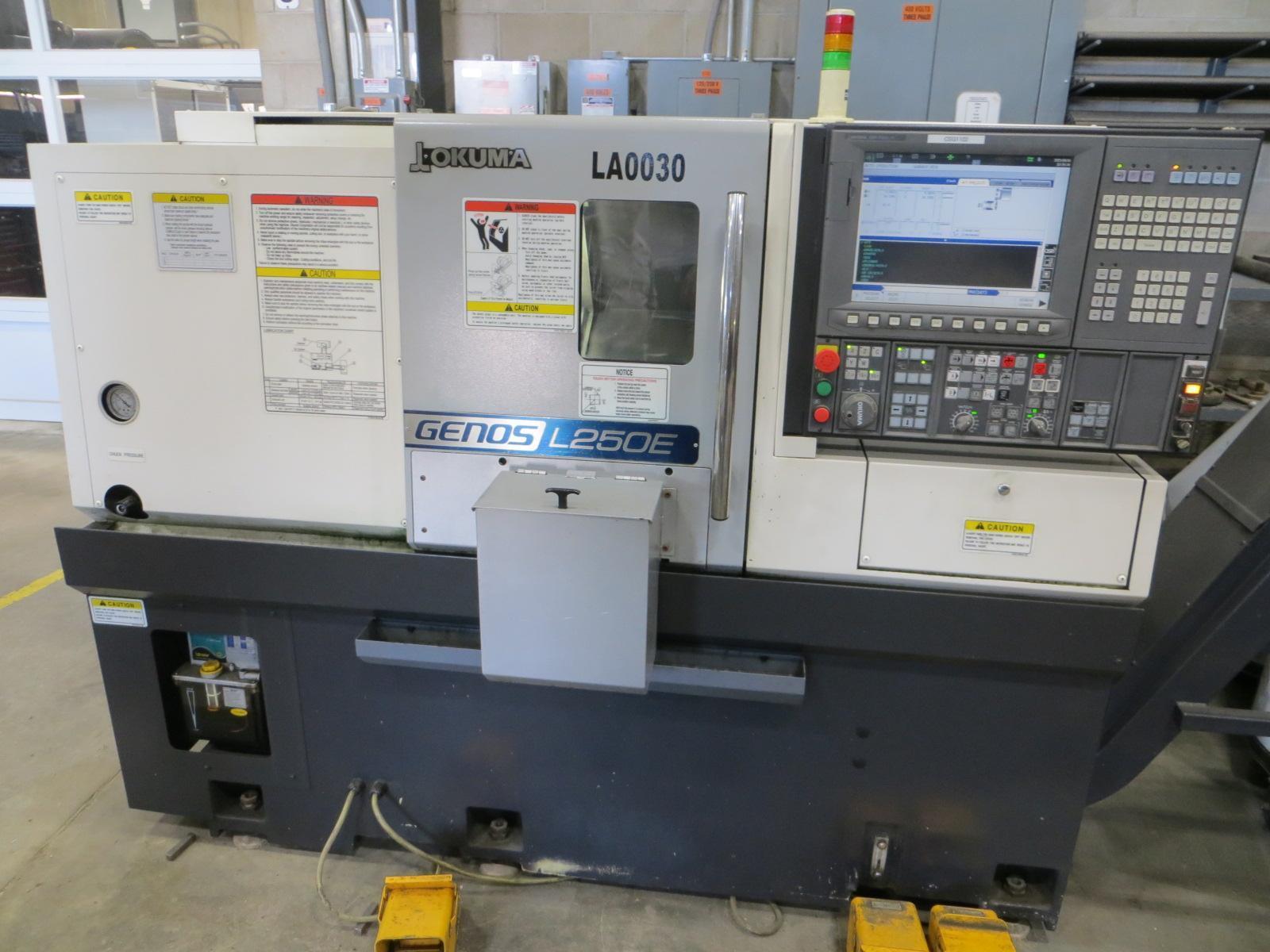

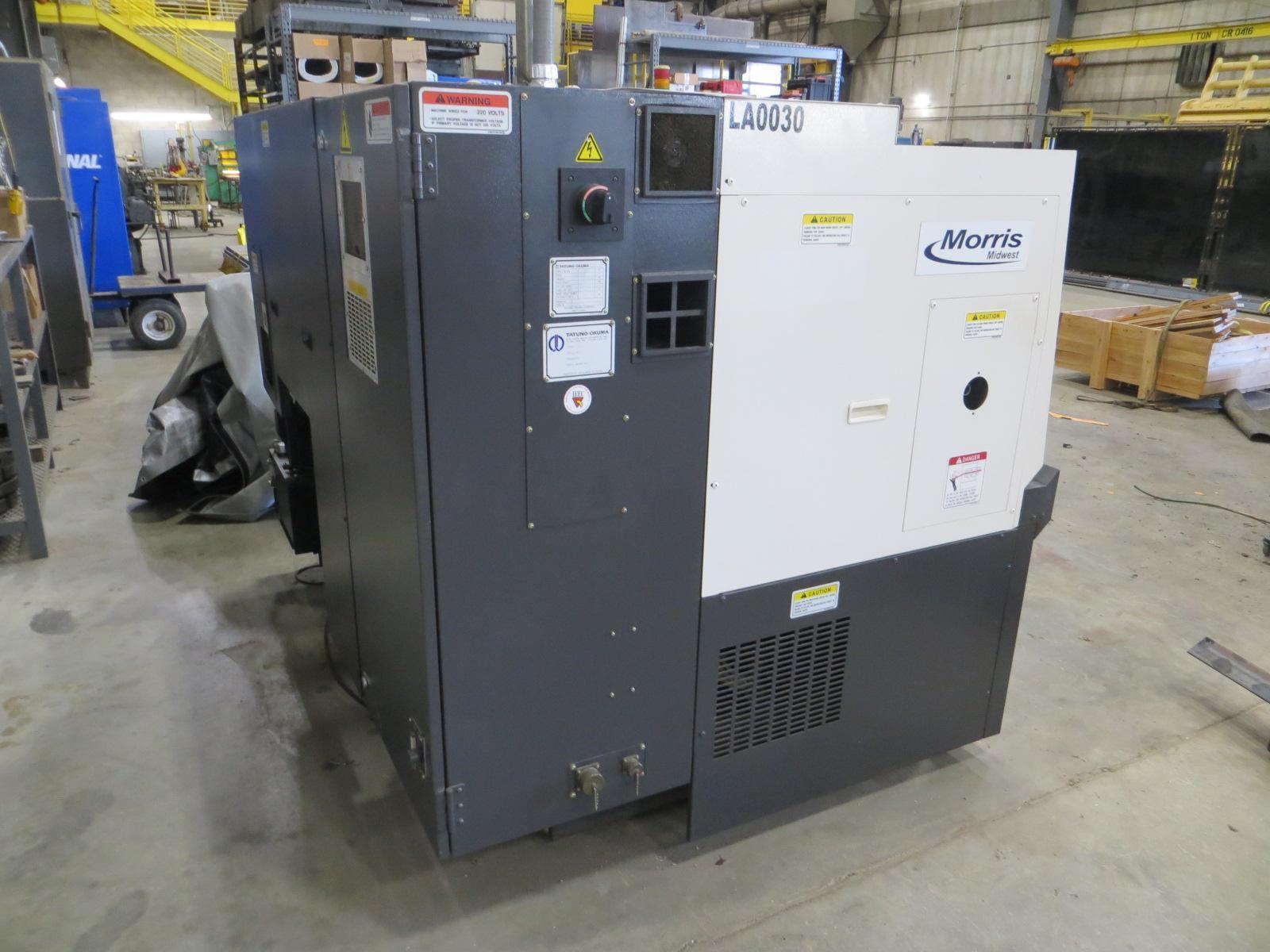

Okuma Genos L250E CNC Turning Center, OSP-P300L/R CNC Control, 8" Chuck, Tool Setter, Parts Catcher, 12-Station Turret, Tailstock, Chip Conveyor

Okuma Genos L250E CNC Turning Center, OSP-P300L/R CNC Control, 8" Chuck, Tool Setter, Parts Catcher, 12-Station Turret, Tailstock, Chip Conveyor

Name: Used OKUMA Genos L250E For Sale 7299
Brand: OKUMA
SKU: 7299
Availability: PreOrder

Brand

OKUMA

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

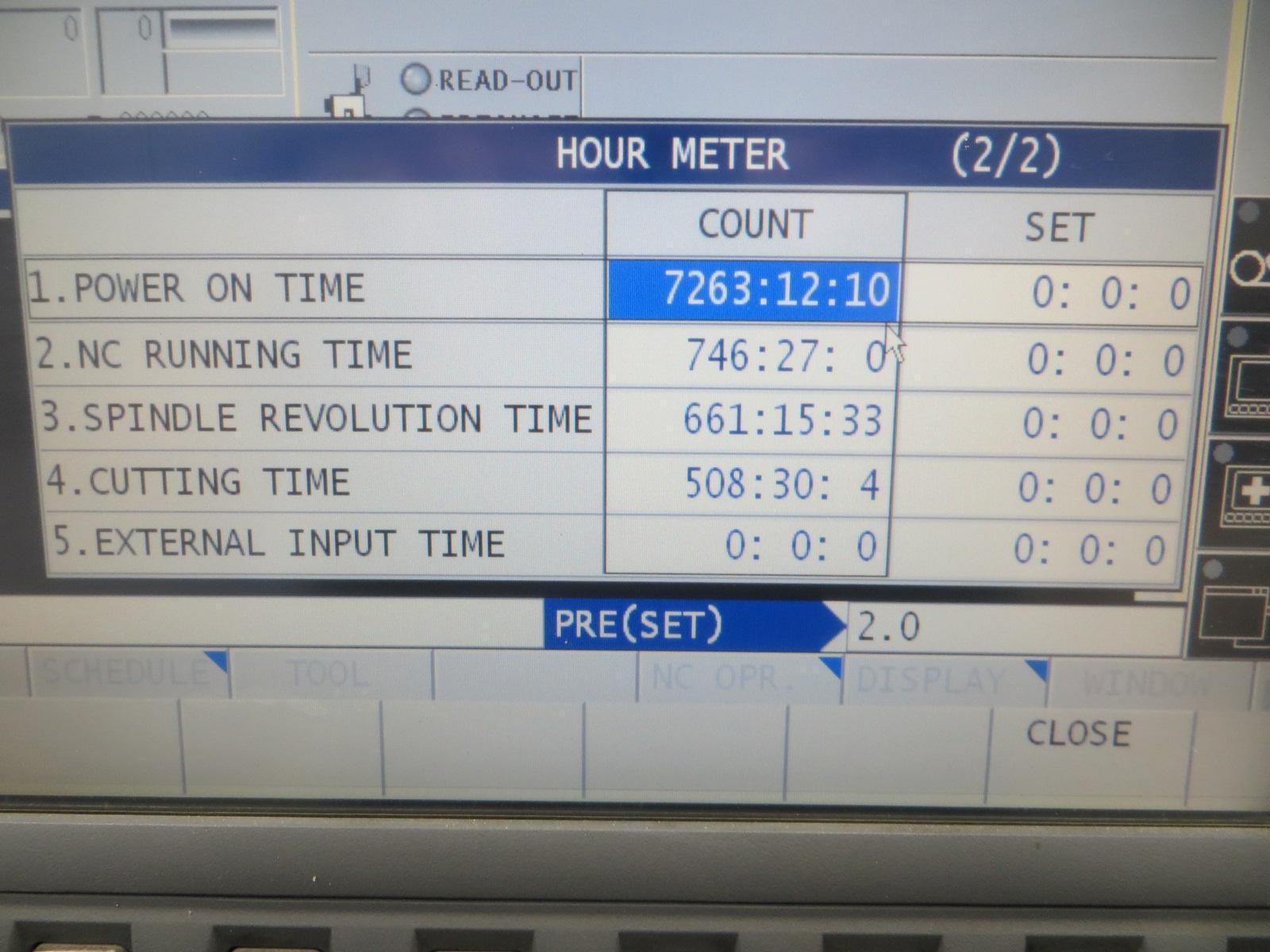

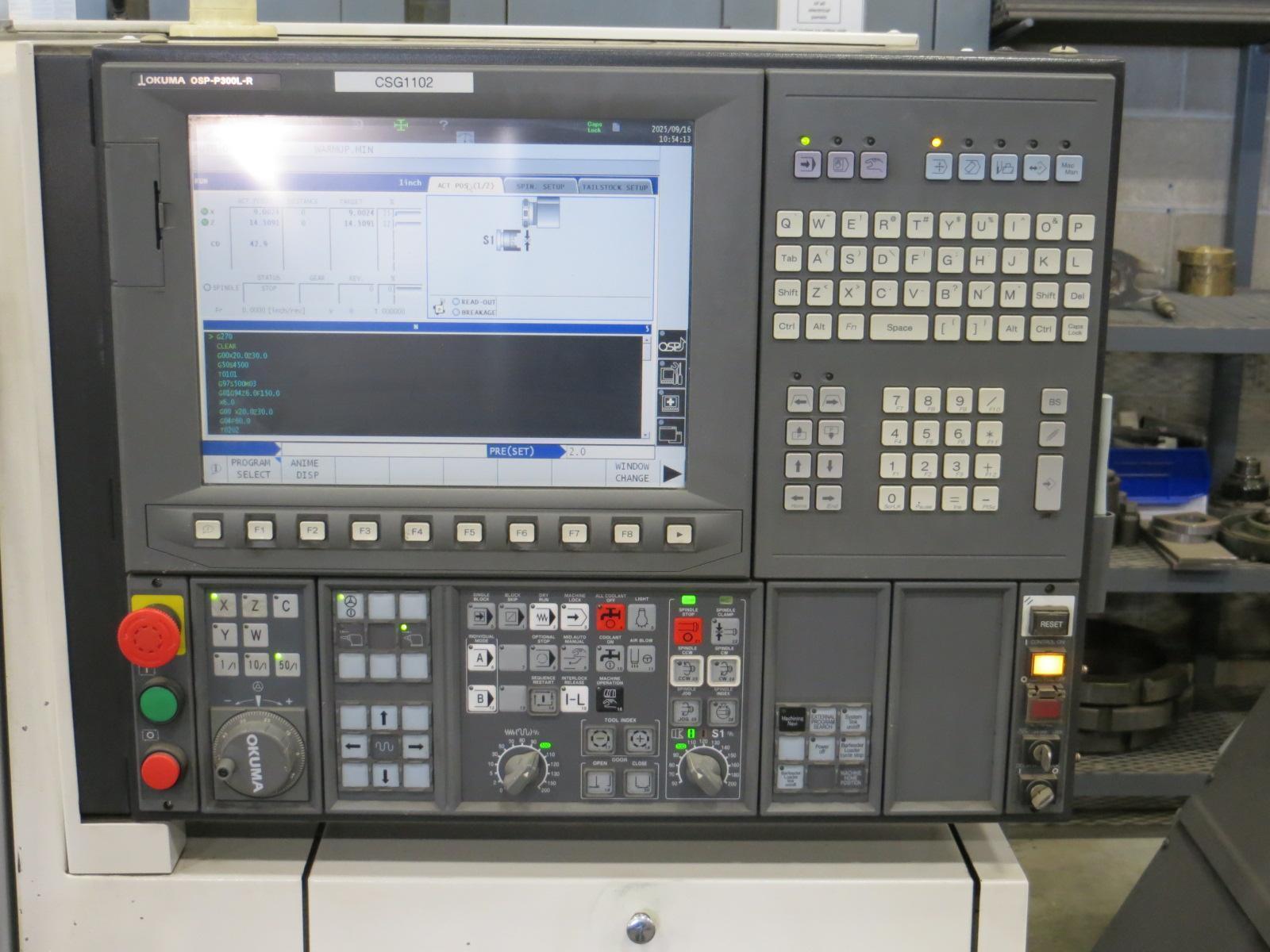

Control: Okuma OSP-P300L/R CNC Control

Max Swing Over Bed: 450mm (17.72")

Max Turning Diameter: 220mm (8.66")

Max Turning Length: 500mm (19.69")

Max Bar Capacity: 2"

Spindle Nose: A2-6

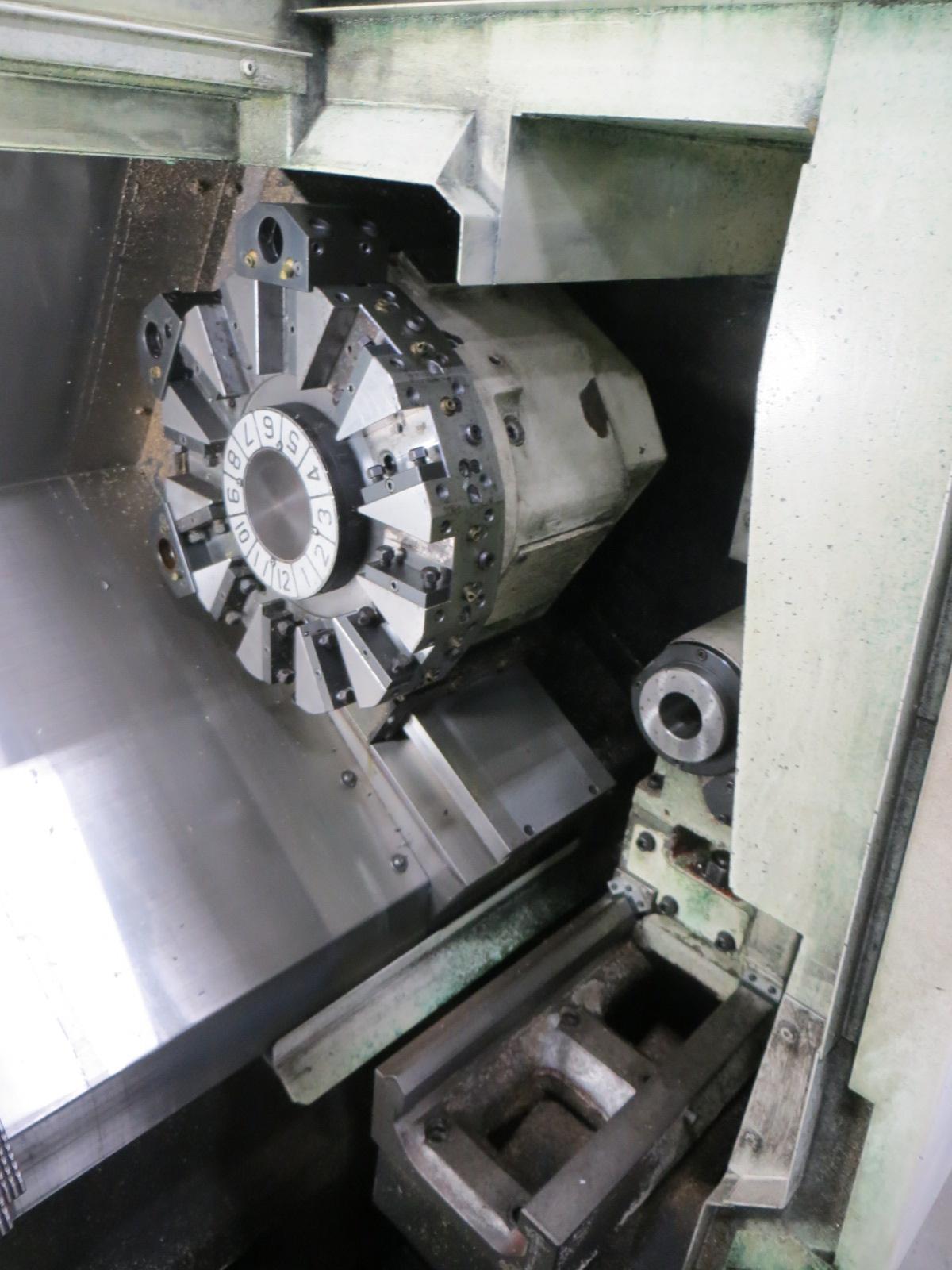

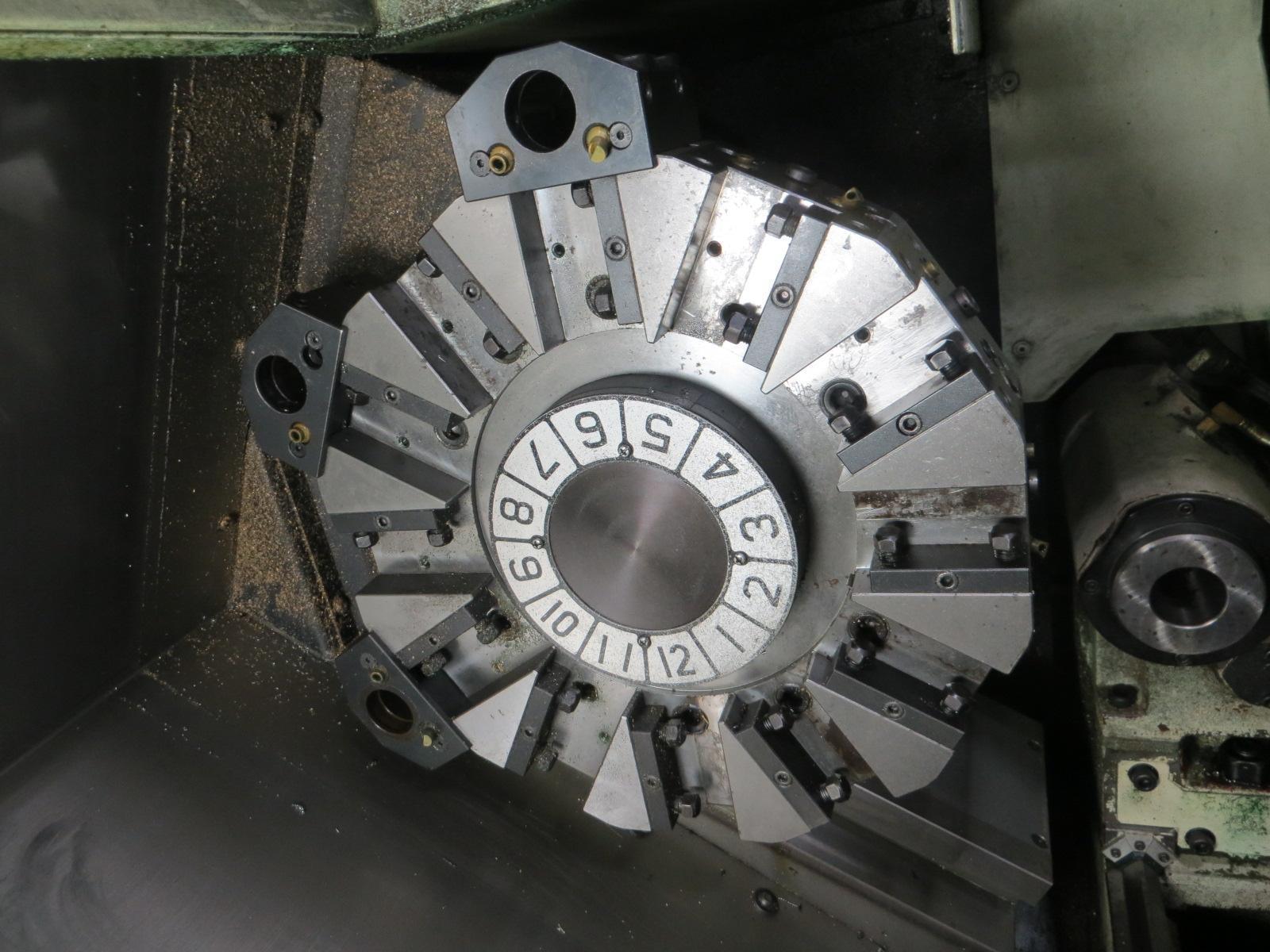

Turret Capacity: 12 Stations

Turret Index Time: .3 Seconds Per Station

Turret Travels (X,Z): 160mm (6.3") x 470mm (18.5")

Rapid Traverse Rate (X/Z): 787 / 984 IPM

Spindle Speeds: 107-4,500 RPM

Number of Steps: Infinitely Variable

Tailstock?: Yes

Tailstock Quill Diameter / Taper: 90mm (3.54") / MT 5 Taper

Tailstock Quill Travel: 100mm (3.94")

Spindle Drive: 11/7.5 kW (15/10 HP)

Description:

Okuma Genos L series cnc lathes are 'simple multitasking machines" with superior cost performance. They combine simple machine structures for high quality and ease of use with a rich array of spec variations to handle everything from chuck workpieces to bar material workpieces with complex shapes. They are machines to meet every customers needs.

Equipped With:

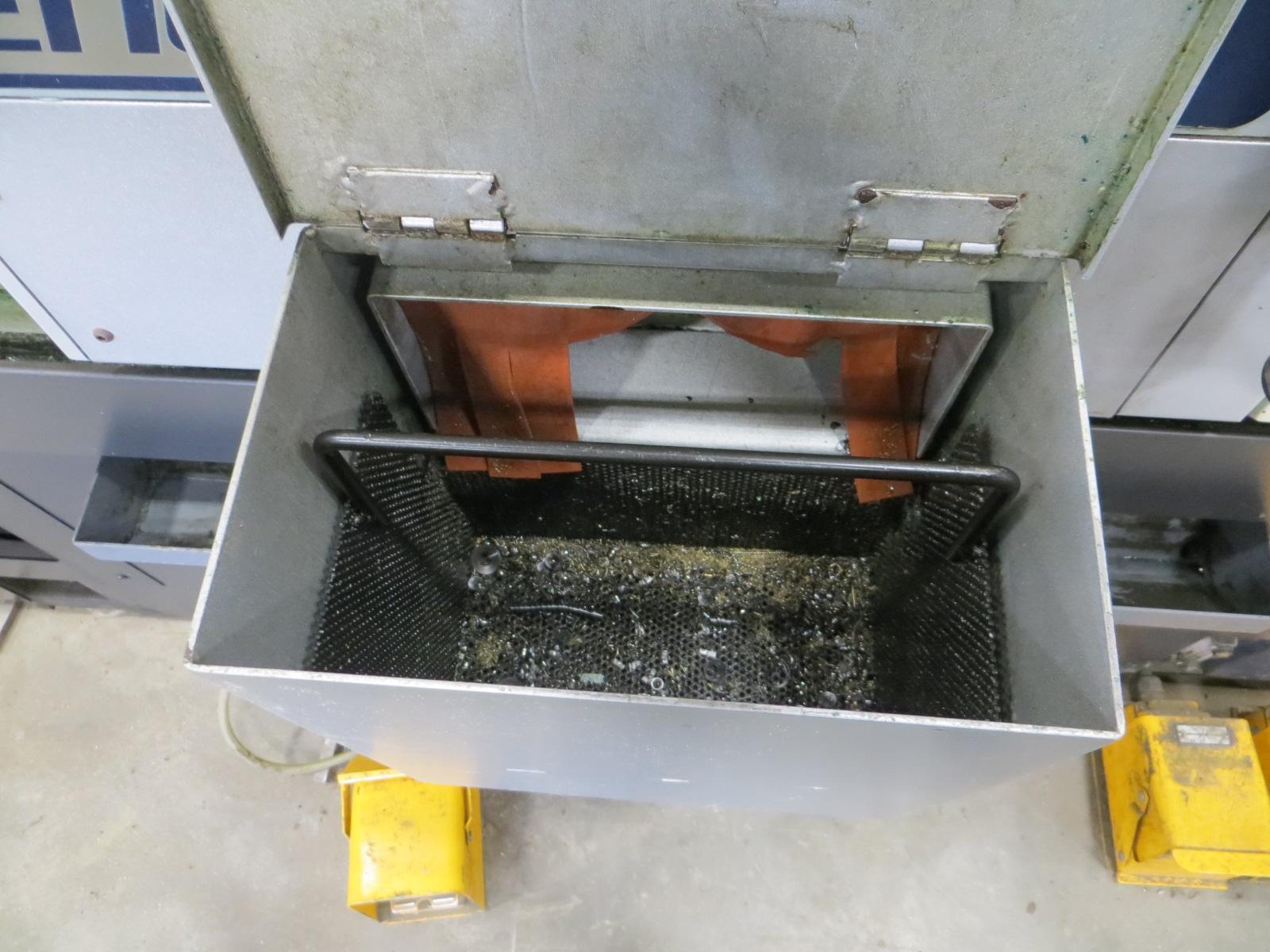

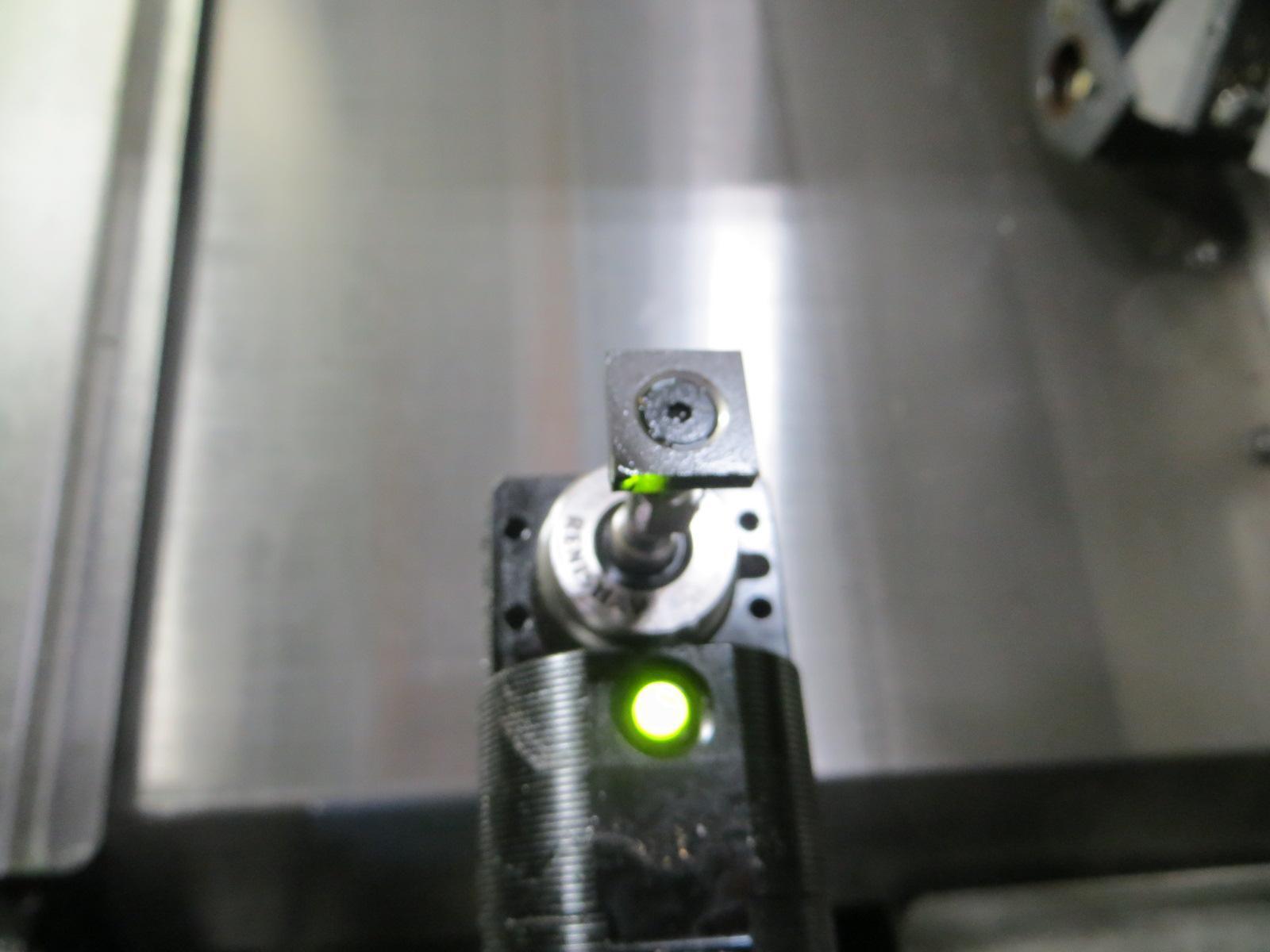

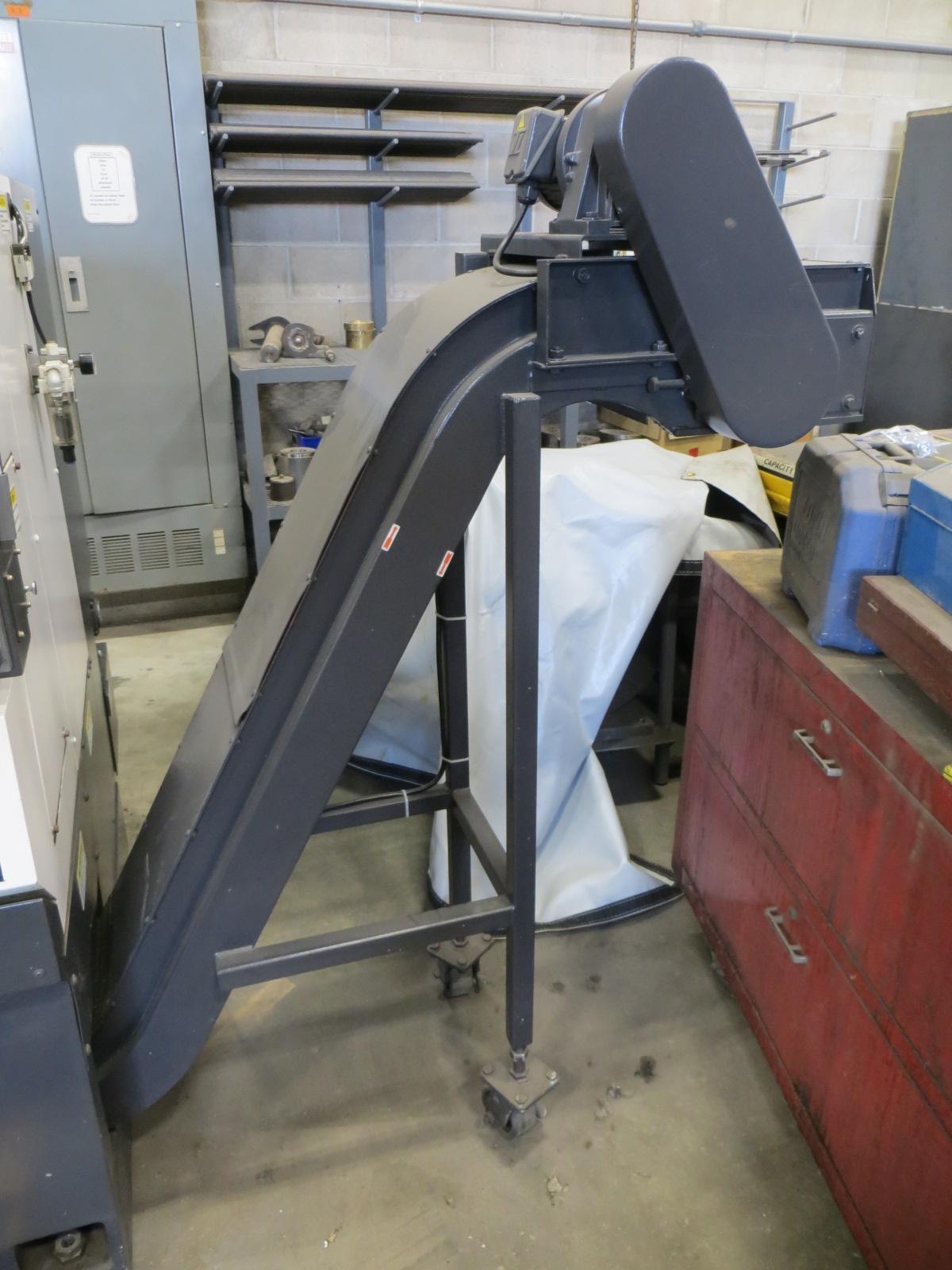

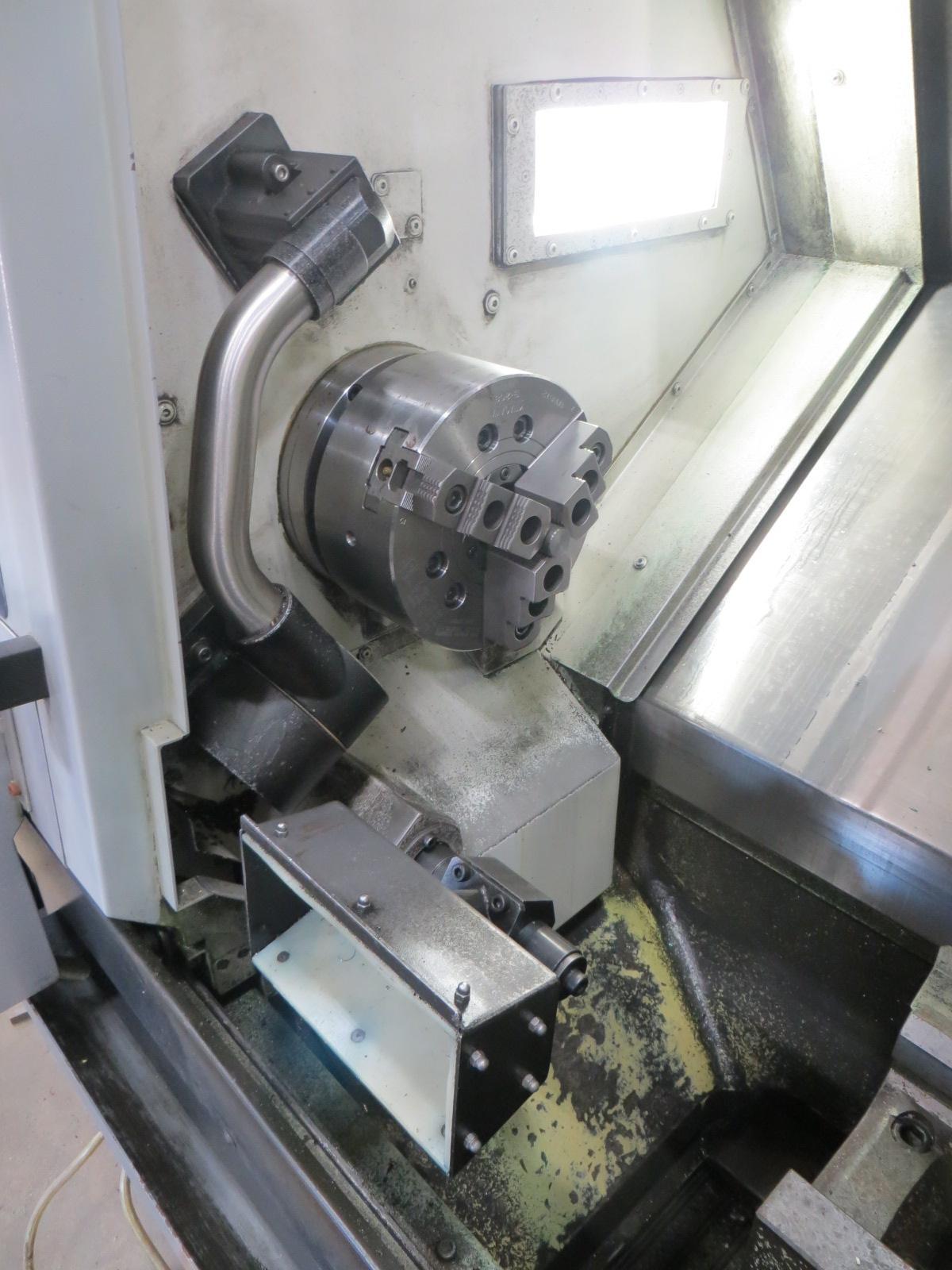

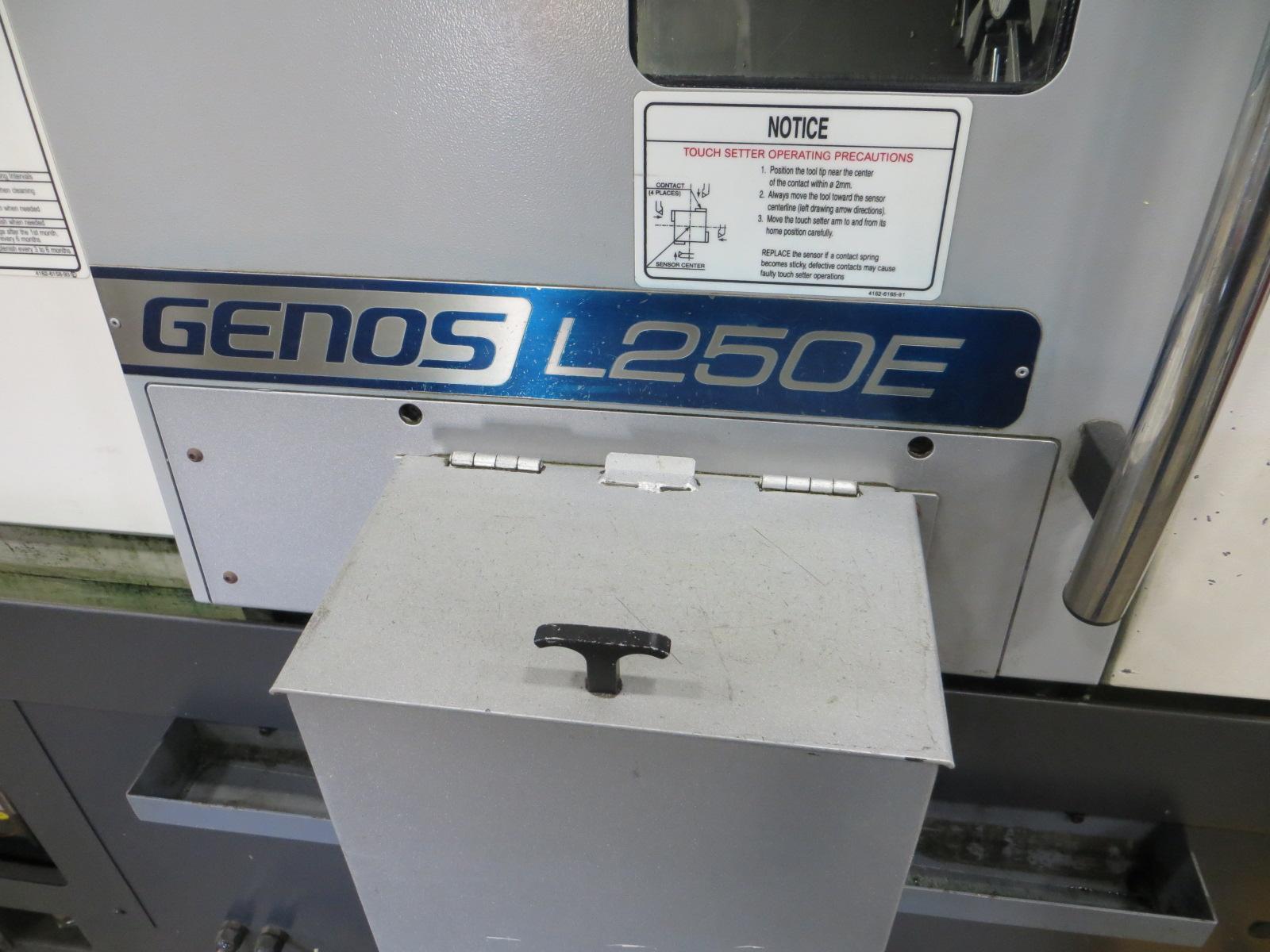

Okuma OSP-P300L/R CNC Control, Kitagawa B208 8” 3-Jaw Chuck, 12-Station Turret with Turning Clamps and Boring Bar Holders, Parts Catcher, Tool Setter, Tailstock, Chip Conveyor, Foot Pedals, Coolant Tank & Pump, Habor Chiller, Assorted Spindle Liners (1/4", 5/16", 3/8", 1/2", 5/8", 3/4", 1", 1-1/2"), Keys, Manuals and Documentation.

Electrics:

220 Volt, 3 Phase
