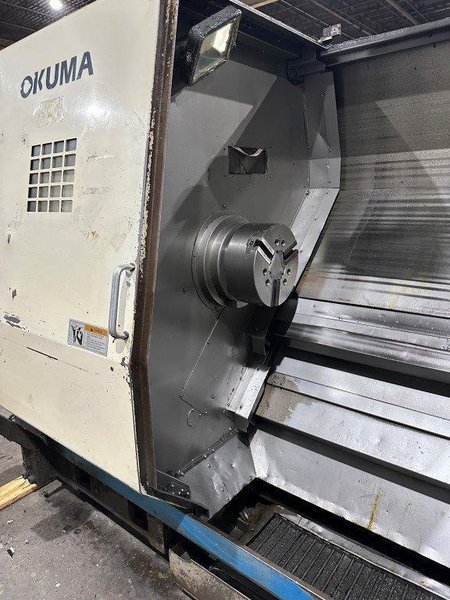

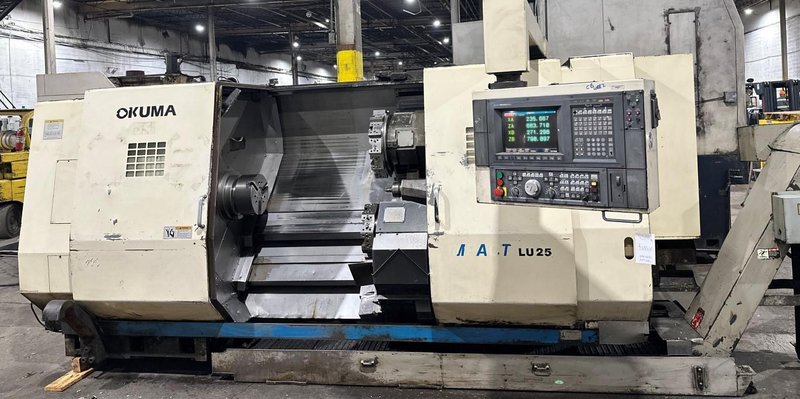

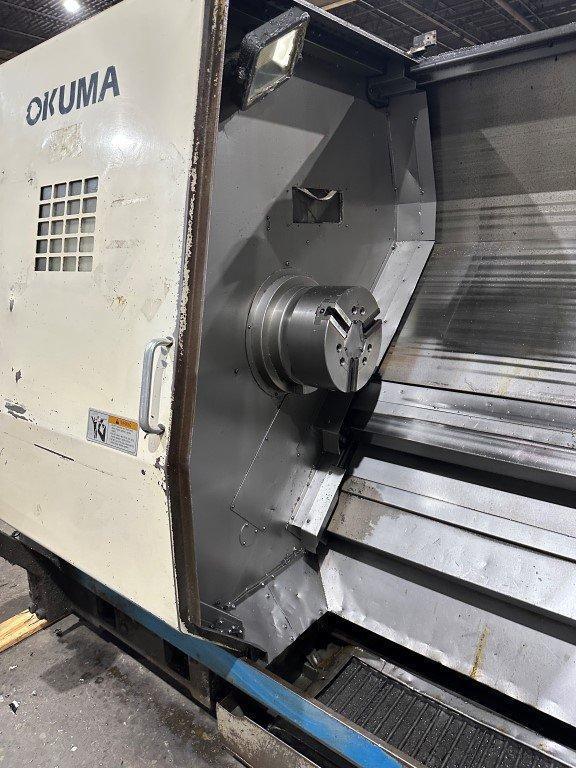

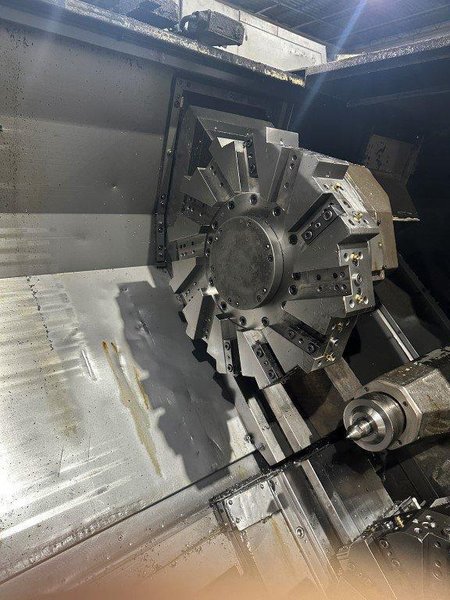

OKUMA IMPACT LU25-2SC/1250 4-AXIS SLANT BED CNC TURNING CENTER

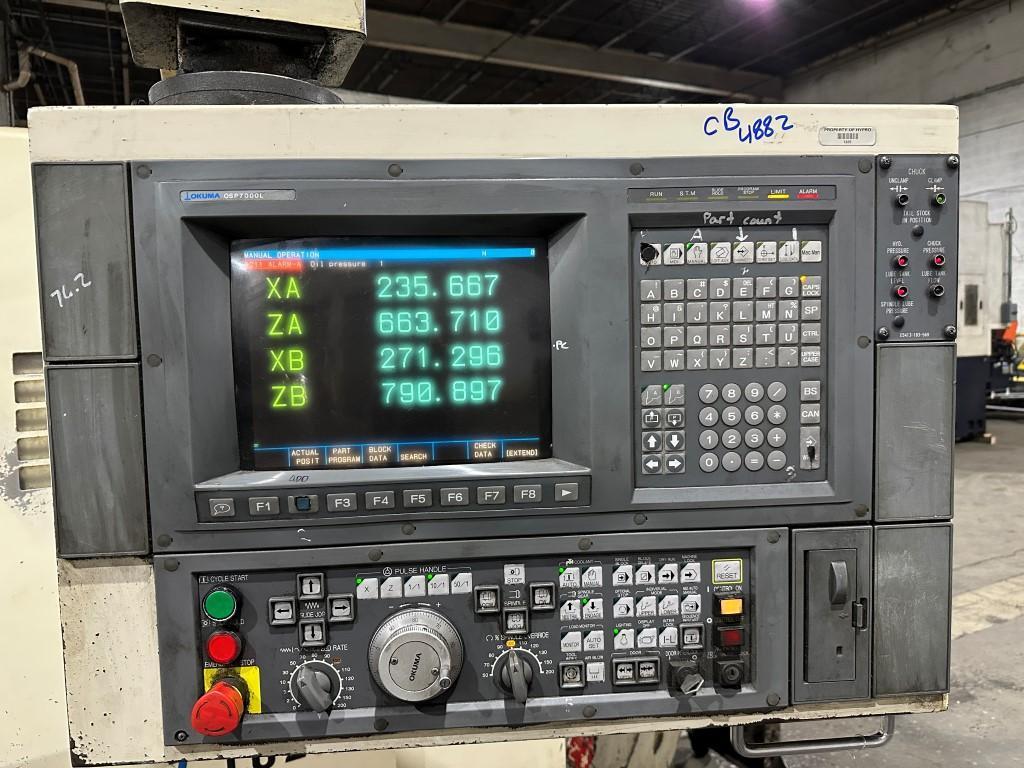

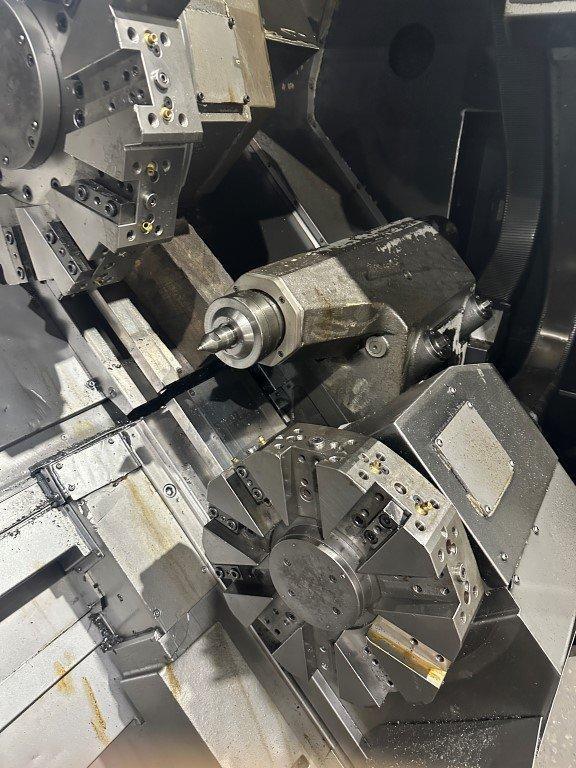

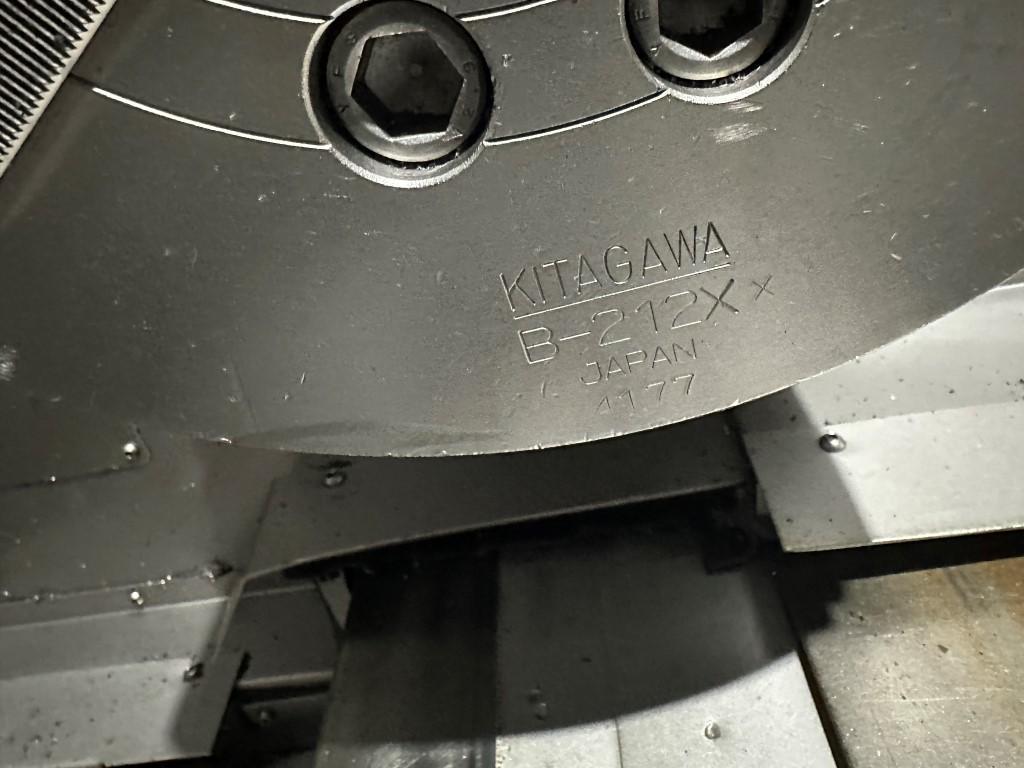

Equipped With: OSP7000L CNC Controls.  12" 3 Jaw Chuck.  Upper and Lower Turrets.  Programable Tailstock.  Coolant System and Chip Conveyor.

Specifications:
Chuck Diameter 12"
Maximum Swing over Bed 25.59"
Maximum Swing over Cross Slide 12.99"
Maximum Cutting Diameter 16.54"
Maximum Length between Centers 49.21"
X-Axis Travel Upper Turret 11.81"
X-Axis Travel Lower Turret 7.68"
Z-Axis Travel Upper Turret 52.16"
Z-Axis Travel Lower Turret 50"
Spindle Nose A2-8
Spindle Bore 3.15"
Maximum Bar Capacity 3"
Spindle Speed Ranges (4) 65-3500 RPM
Spindle Motor 30 min/Continuous 40 HP / 30 HP
Number and Type of Turret 2 -Turret / VDI
Number of Tool Positions Upper Turret 12-Position
Number of Tool Positions Lower Turret 10-Position
Rapid Traverse X-Axis 591 IPM
Rapid Traverse Z-Axis 787 IPM
Tailstock Taper 5 MT
Tailstock Spindle Travel 5.91"
Approximate Weight 18,000 lbs
