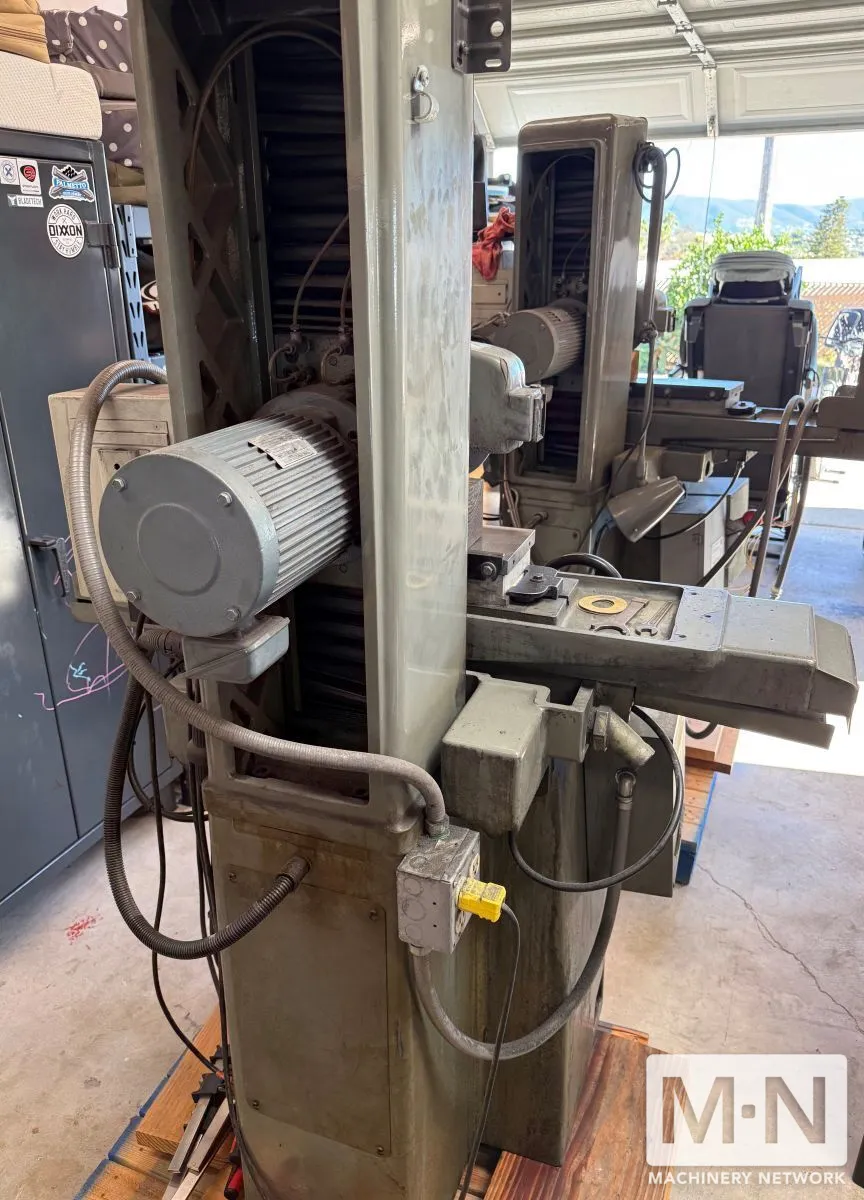

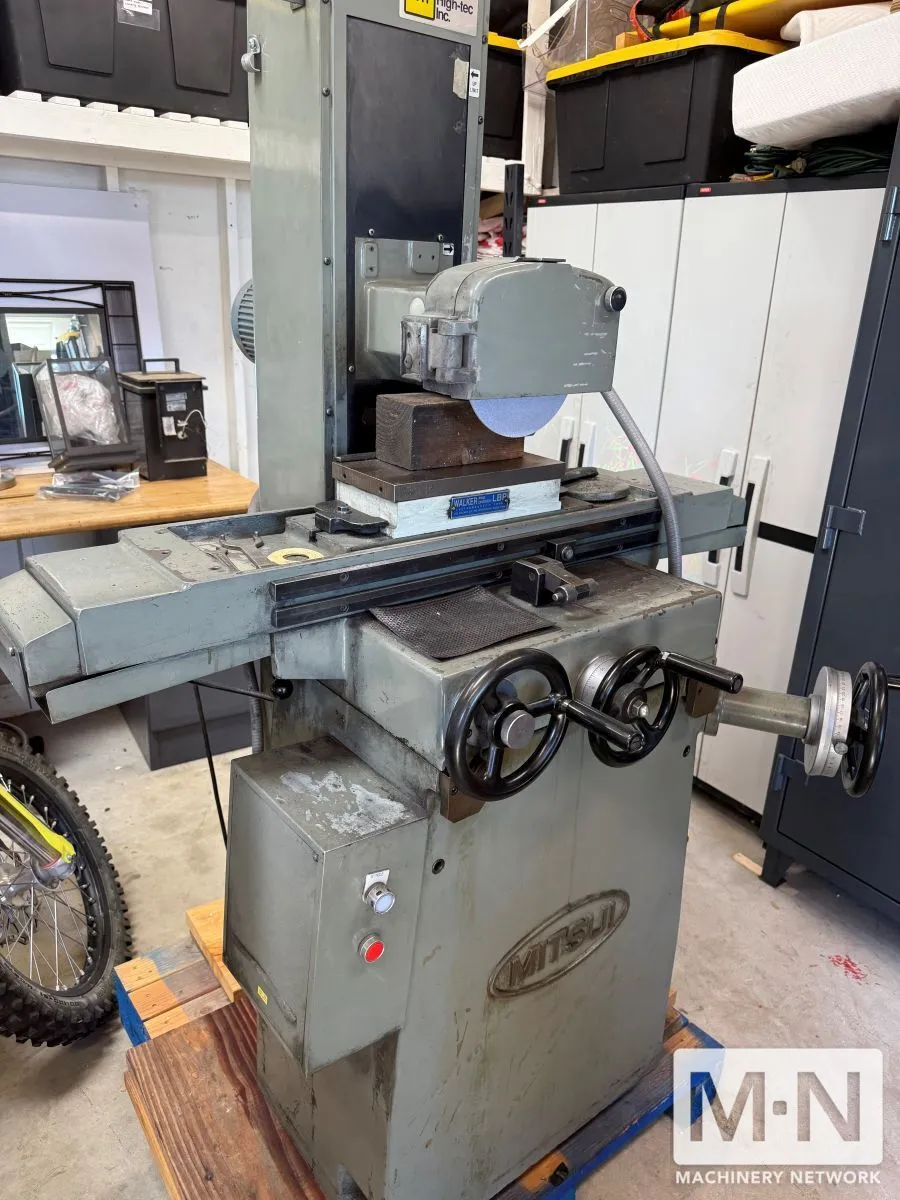

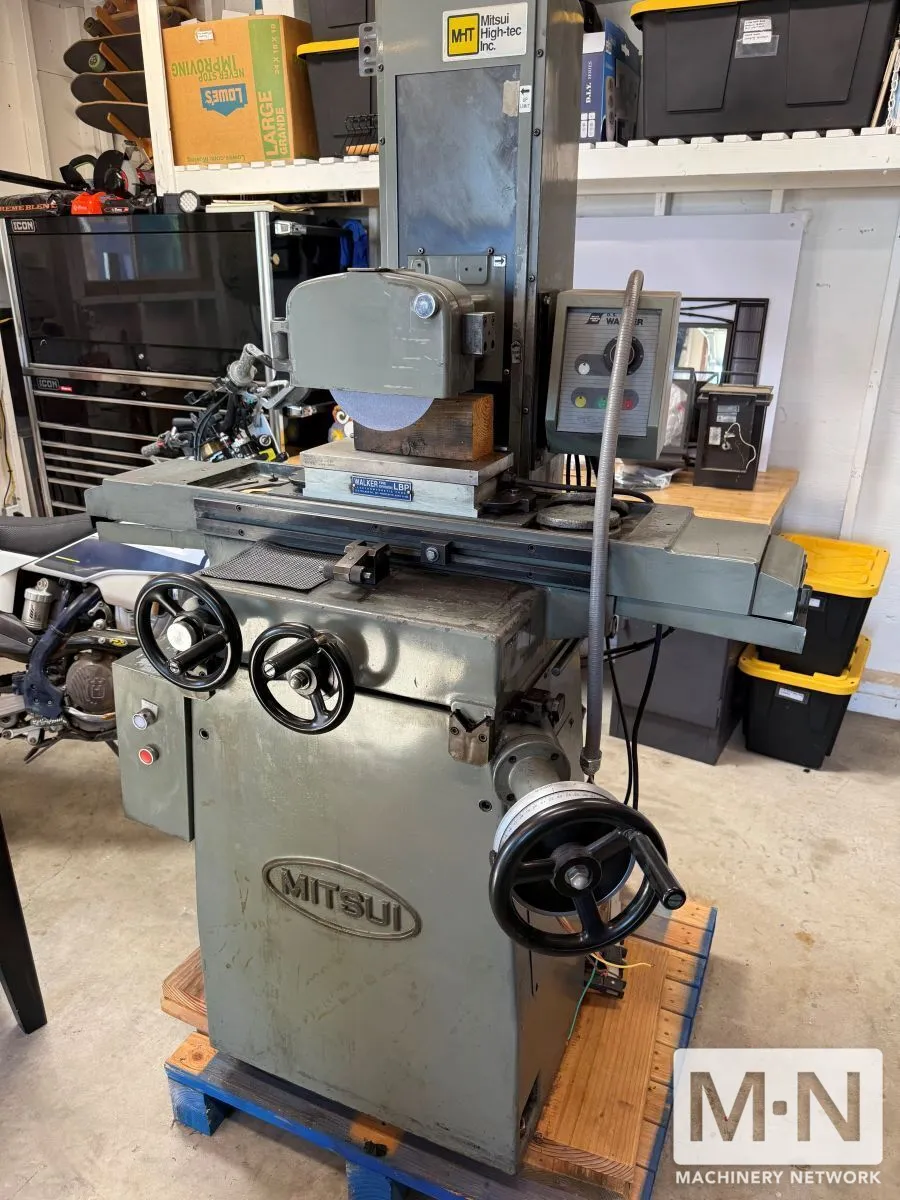

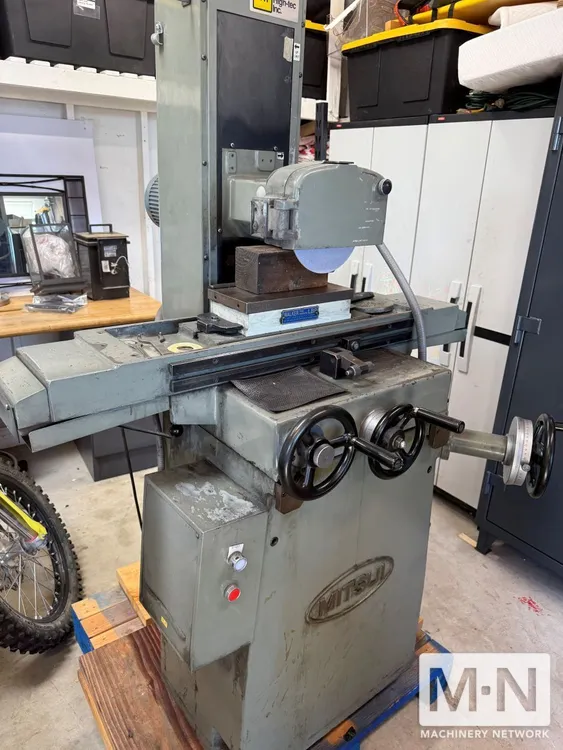

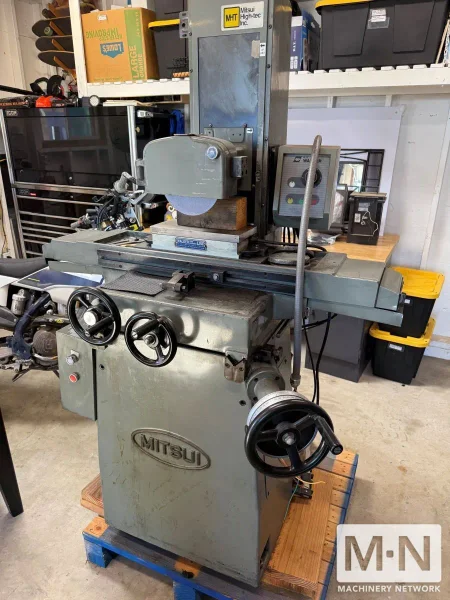

6" X 12" Mitsui High-tec MSG-200MH Precision Hand Feed Surface Grinder

SPECIFICATIONS
WIDTH & LENGTH GROUND ....................... 6" X 12"
TABLE TO SPINDLE CENTER ..................... 18"
HEIGHT UNDER 8" WHEEL TO CHUCK SURFACE ...... 11"
LONGITUDINAL TABLE TRAVEL ................... 15"
CROSS TRAVEL ................................ 8"
GRINDING WHEEL CAPACITY ..................... 8" X 3/4" X 1-1/4"
CROSS FEED PER HANDWHEEL REV. (.001" GRAD.).. 0.100"
CROSS FEED - FINE FEED ...................... 0.00005"
VERTICAL FEED PER HANDWHEEL REV (.0001" GRAD) 0.0500"
VERTICAL FEED - FINE FFED ................... 0.00005"
SPINDLE MOTOR ............................... 1 1/3 HP
APPROX. WEIGHT .............................. 1,500 LBS.
APPROX. DIMENSIONS .......................... 58"L x 44"W x 71"H

EQUIPPED WITH:
6" X 12" O.S. WALKER LBP FINE POLE ELECTOR MAGNETIC CHUCK
LINEAR BALL-BEARING WAYS
1 1/3 HP SPINDLE MOTOR
