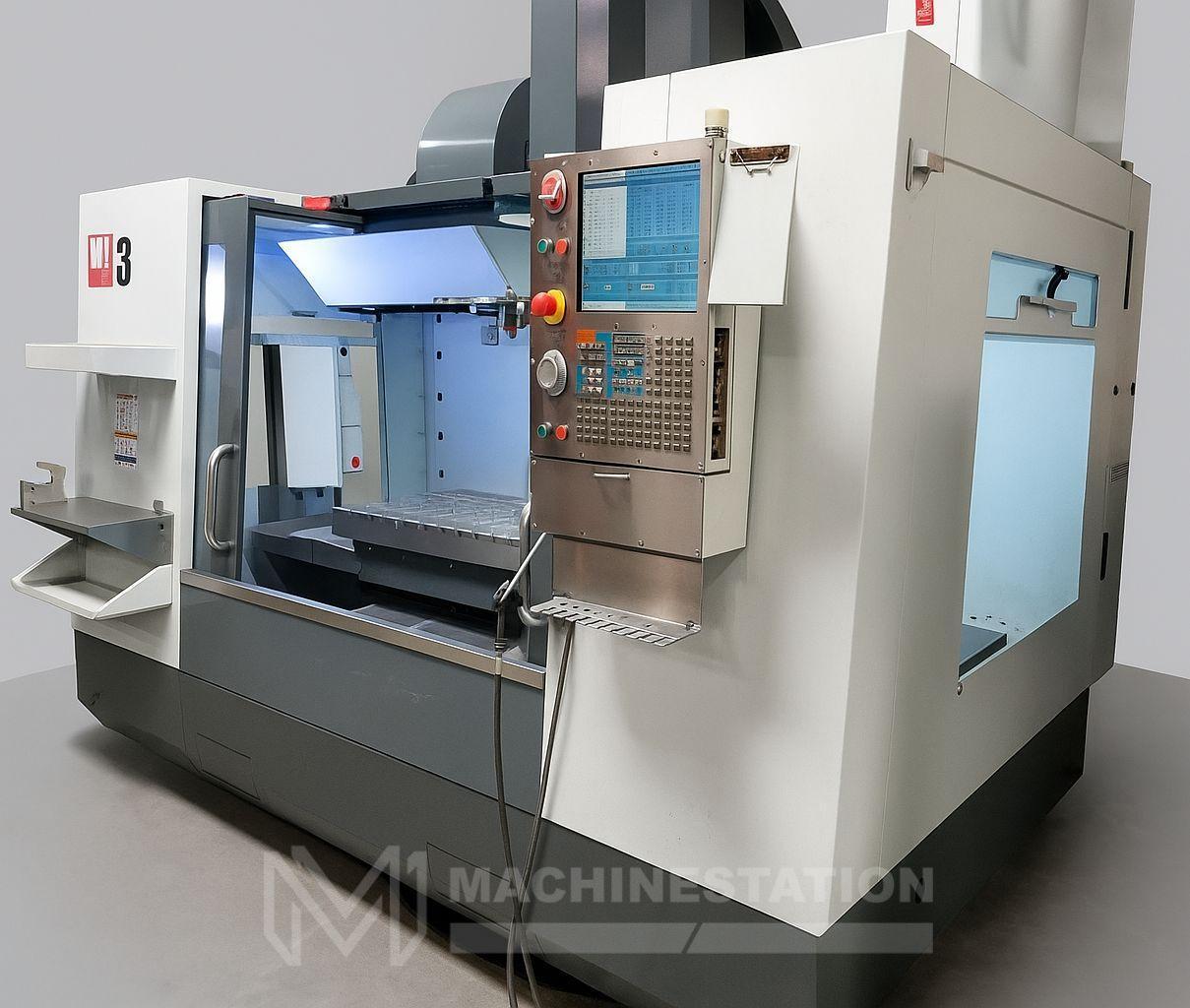

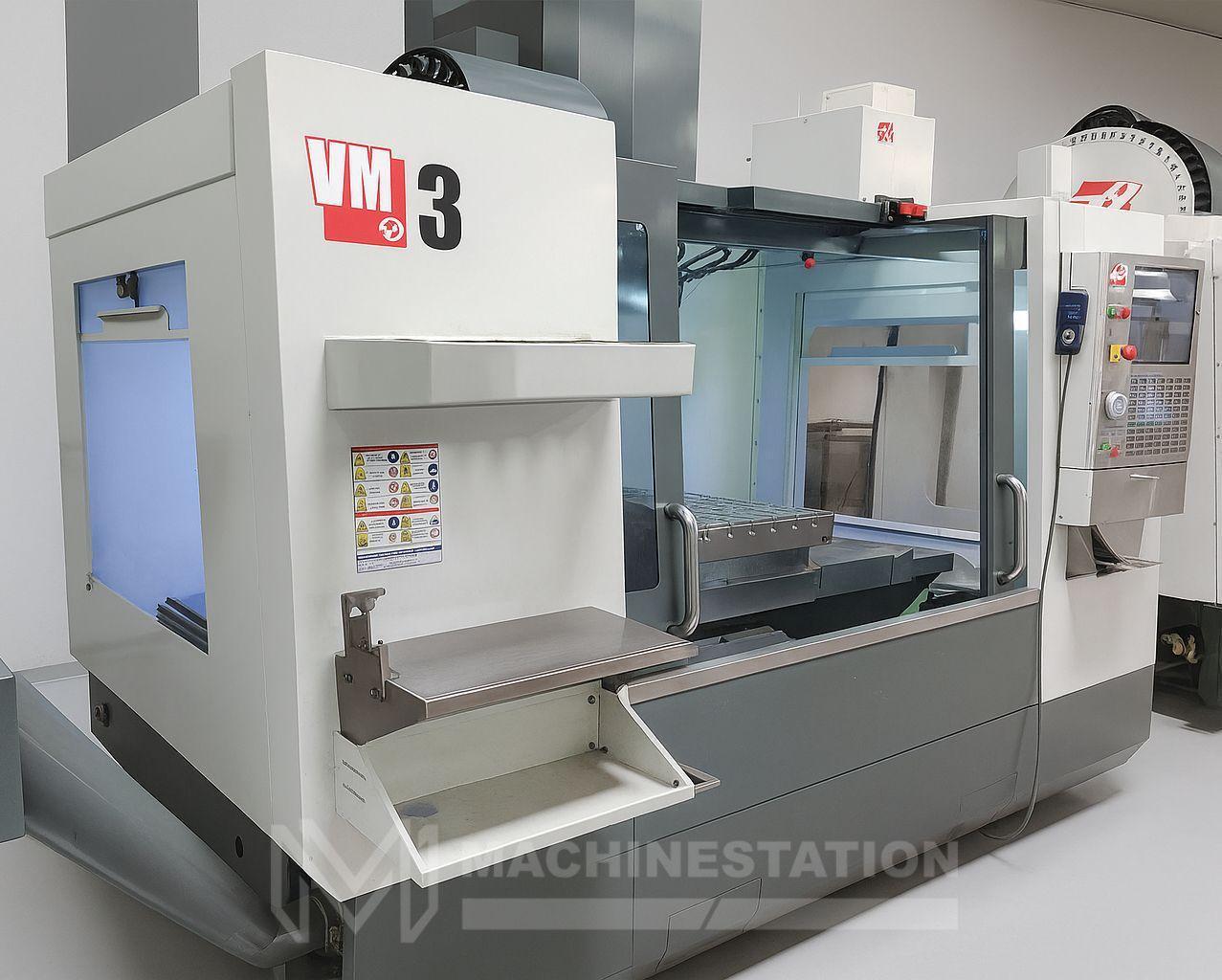

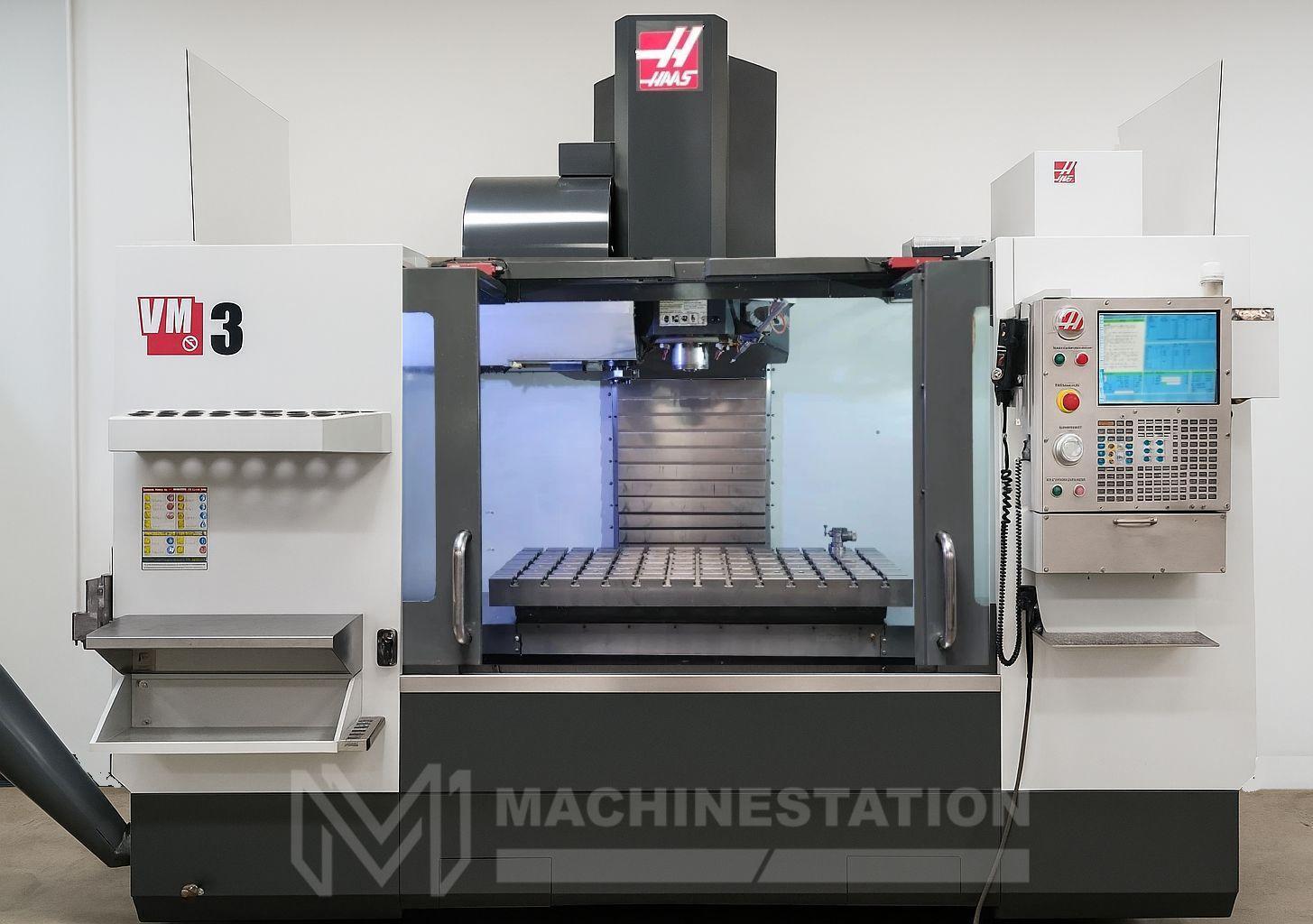

Haas VM-3 CNC Vertical Machining Center – 4th Axis Ready HSM WIPS 12,000 RPM Mill

Brand
HAAS
Category
Machining Centers
Type
Vertical Machining Centers
Model
Haas VM-3
Stock #
115097
Year
2015
Condition
Not specified

Location

Not specified
REQUEST FINANCING

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make: Haas
Model: VM-3
Year: 2015
Condition: Used – Good
Key Features of the Haas VM-3:

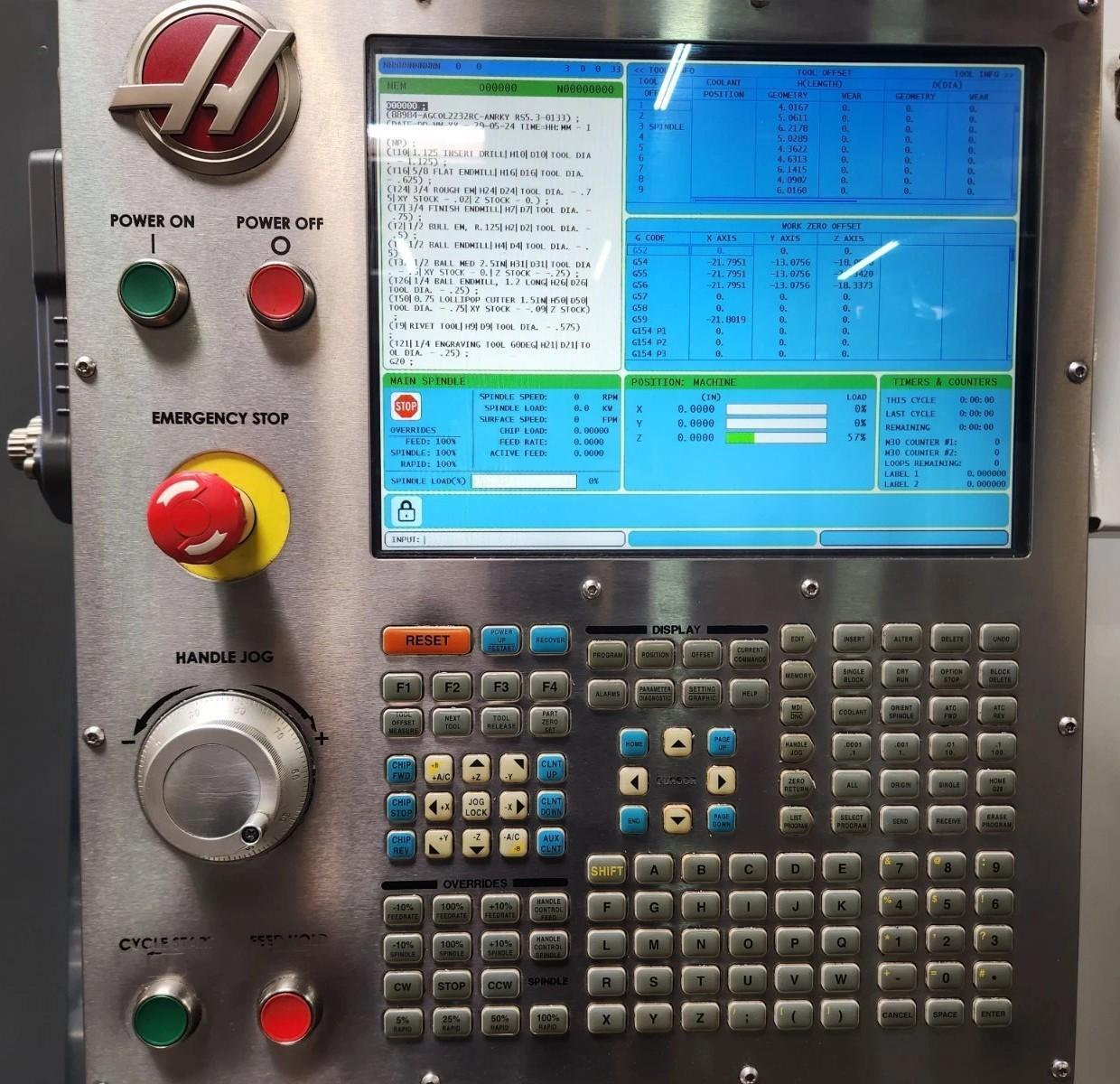

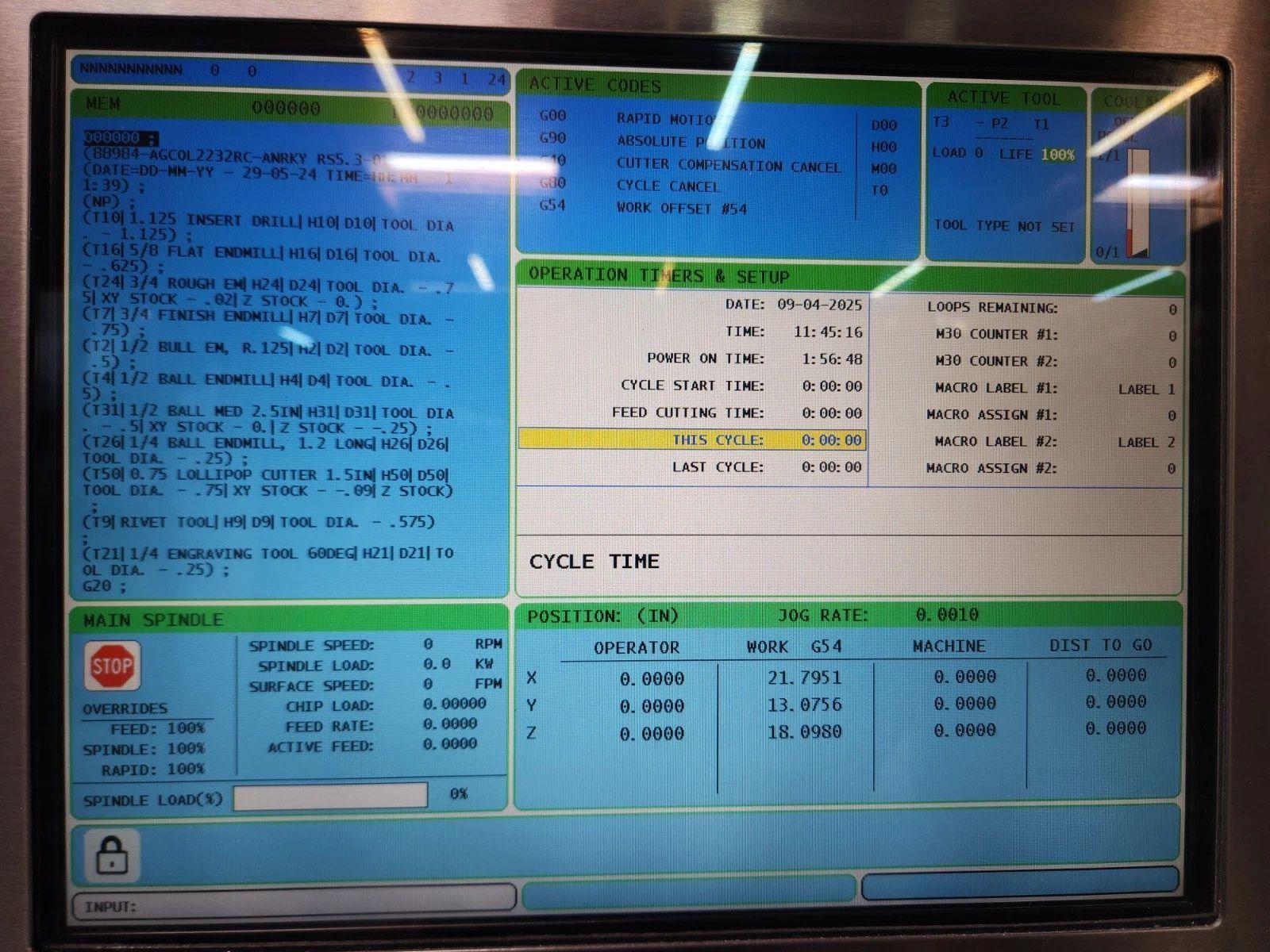

Haas CNC Control
4th-Axis Drive and Wiring – (Upgraded $3,595 value Included)
12,000 RPM High-Speed Spindle
High Speed Machining
Wireless Intuitive Probing System (Probe Needed) – (Upgraded $6,395 value Included)
Probe Riser Block – (Upgraded $695 value Included)
Programmable Coolant Nozzle
Visual Part Programming System
30 HP Spindle Drive
24 Station Automatic Tool Changer
Rigid Tapping
Spindle Orientation
Coolant System
Chip Auger
Travel:
X-Axis: 40″
Y-Axis: 26″
Z-Axis: 25″
Rapid Traverse Rates: 710 Inch Per Minute
Cutting Feed Rates: 500 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4.2″ – 29.2″

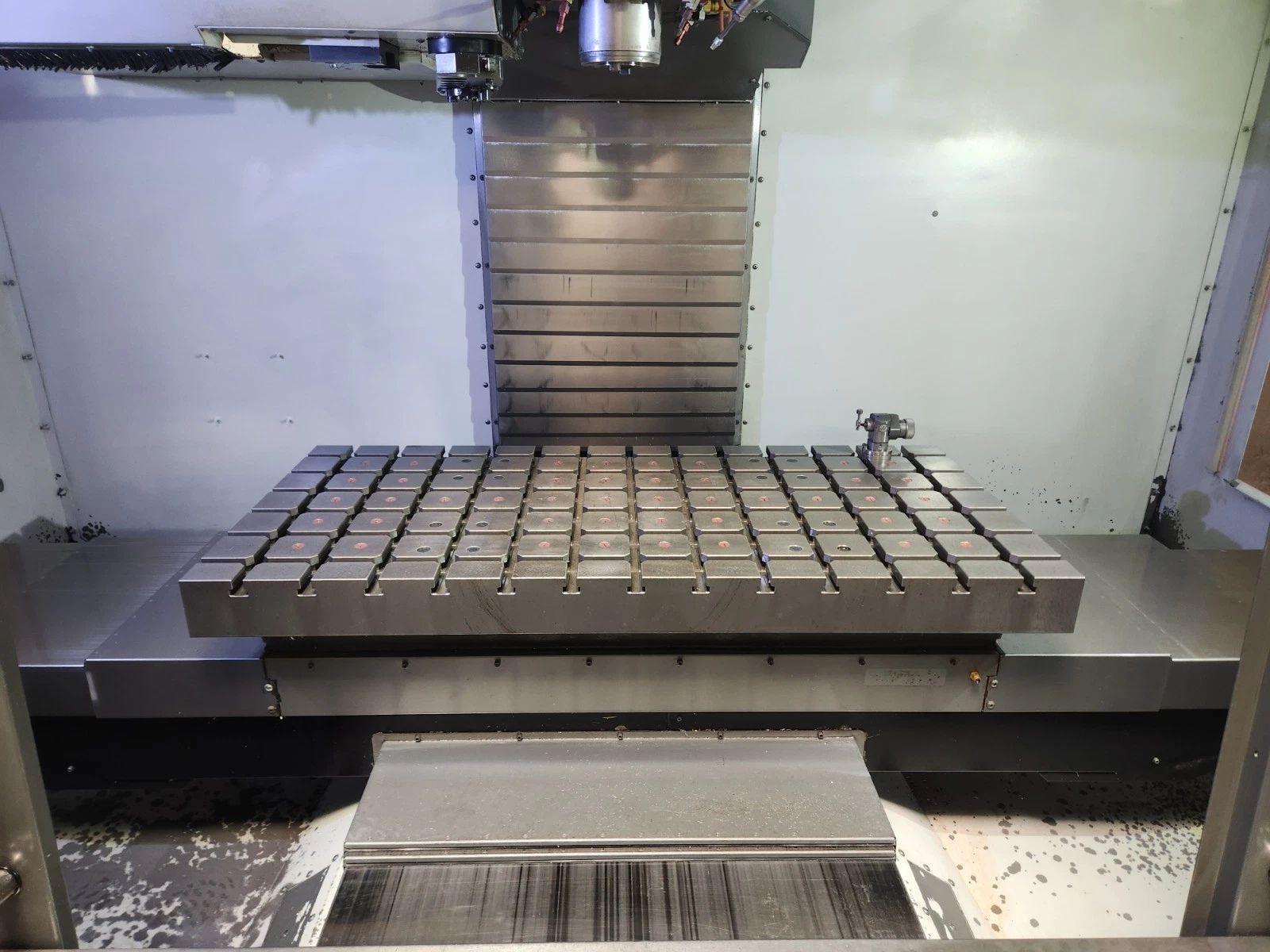

Table:
Length: 54″
Width: 24″
Max Weight on Table: 4000 lbs
Spindle:
Taper Size: CAT-40
Speed Range: 12,000 RPM
Spindle Power: 30 HP
Automatic Tool Changer:
Capacity: 24 Tools
Max Tool Weight: 12 lbs
Max Tool Dia: 2.5″ – 5.0″
Max Tool Length: 13″
Tool Changing Time: 2.80 Seconds
General:
Air Required: 100 psi 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 156″ x 102″ x 105″ High Approx.
Weight: 12,720 lbs Approx.
No files or videos to display

Want to request a quote from the owner of this listing?
