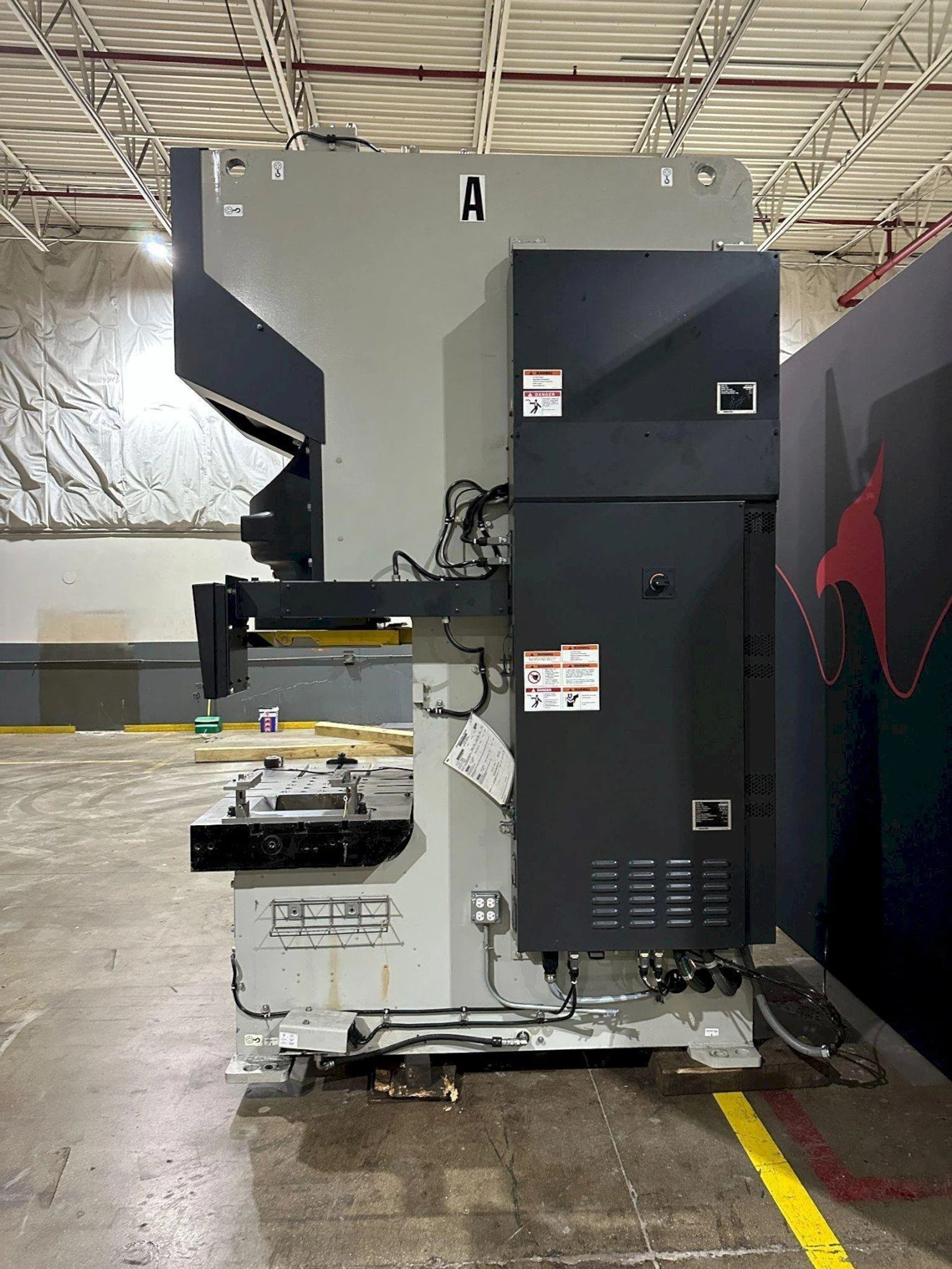

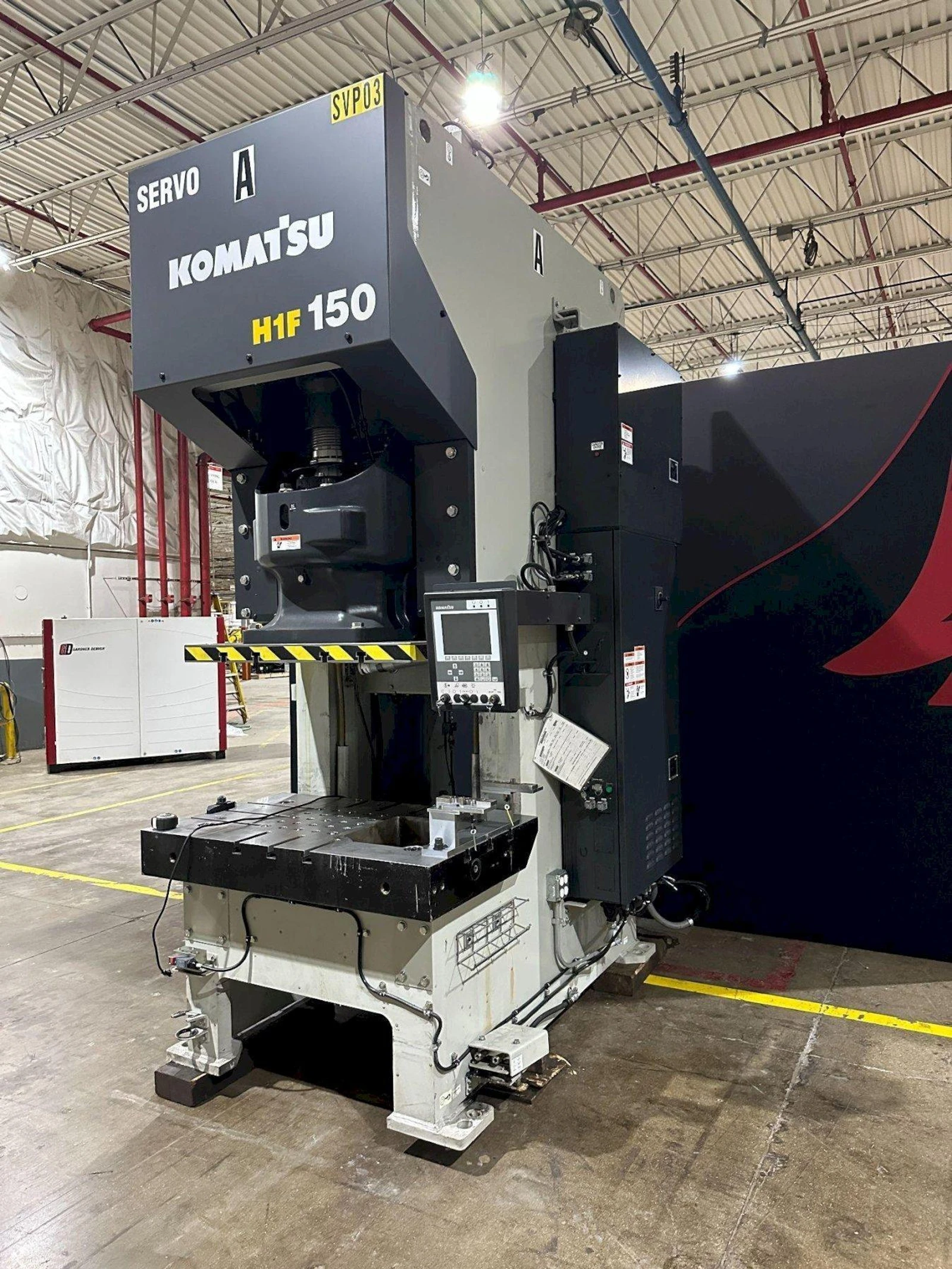

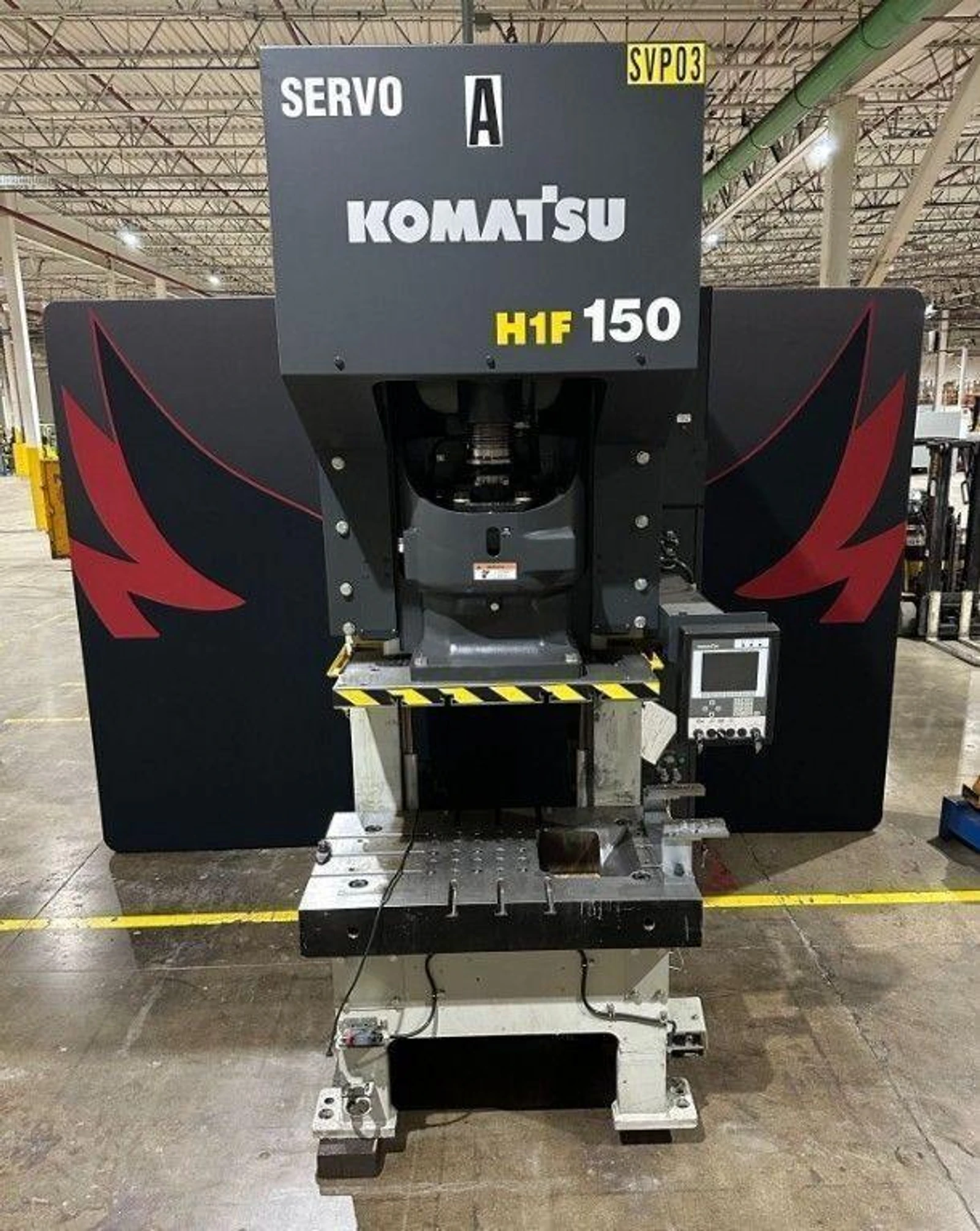

165 TON KOMATSU MODEL #H1F150-2 GAP FRAME SERVO PRESS, NEW IN 2020: YOBRO #24058

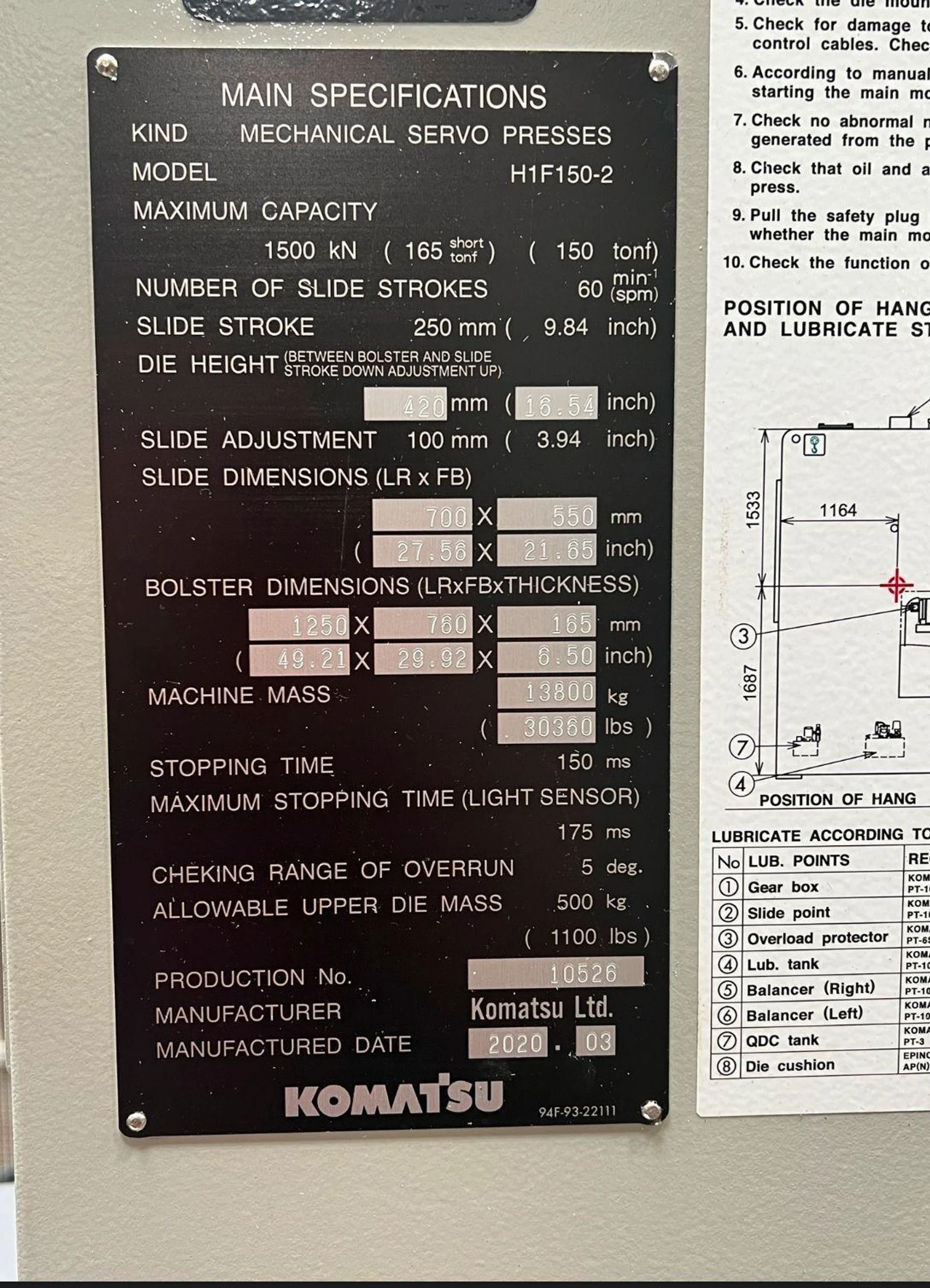

Model: H1F150-2

Year: 2020

Pressing Force: Up to 165 tons

Stroke Rate: 0–128 strokes per minute

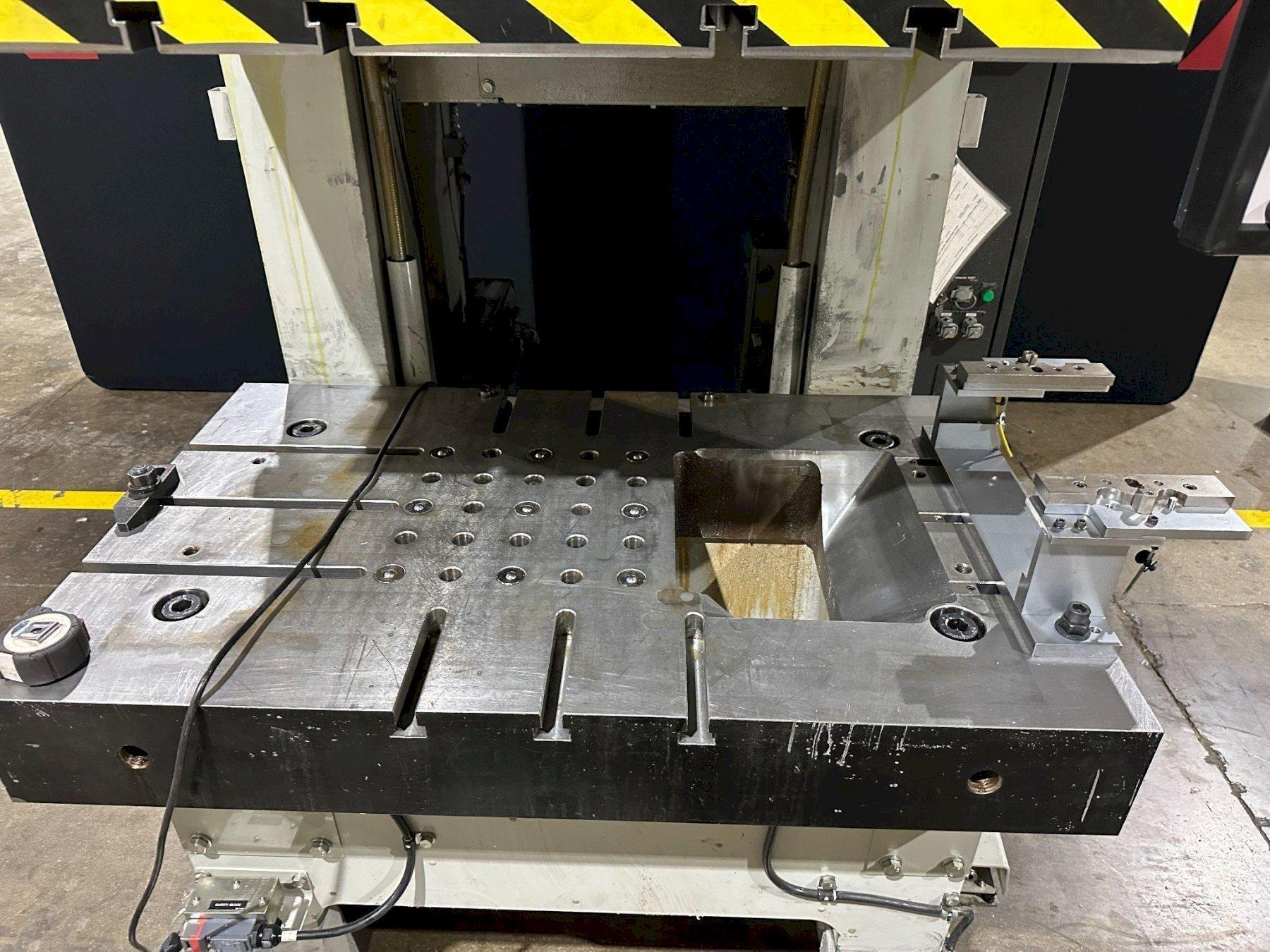

Bed Size: 29.92″ x 49.21″

Overall Dimensions: 61″ W x 95″ D x 133″ H

Max Die Height: 16.54″

RAM/Slide Adjustment: 3.94″

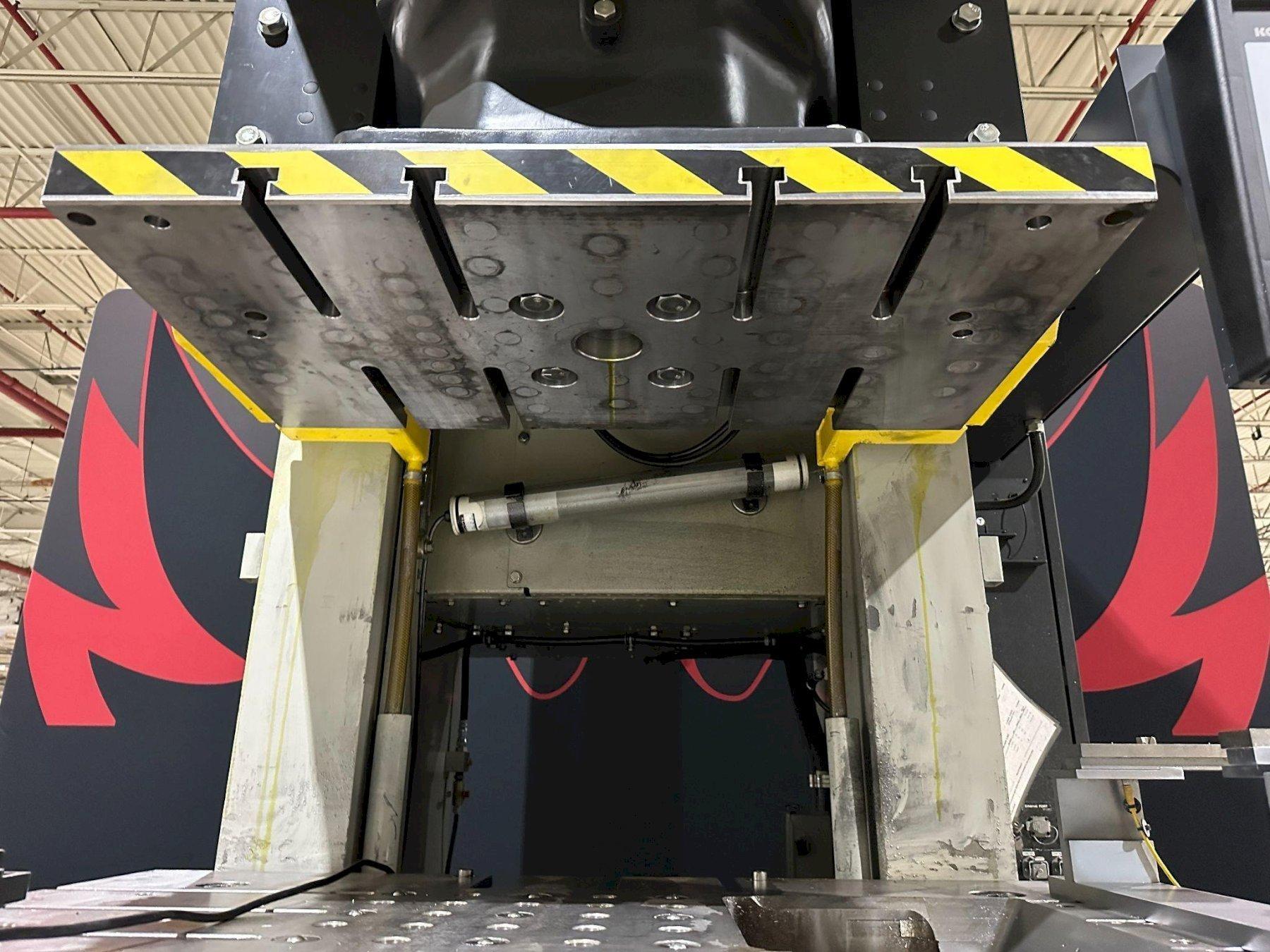

RAM/Slide Area: 27.56″ x 21.65″

Distance Between Uprights: 24.34″

Floor to Bolster Height: 35.43″

Throat Depth: 15.35″

Electric Servo Motor: 70 HP

Weight: 30,360 lbs.

High-performance 70 HP electric servo motor provides precise control and energy efficiency

Variable stroke rate from 0 to 128 SPM enhances production flexibility

Rigid frame construction ensures structural integrity under high loads

Large bed size and generous RAM area accommodate a variety of tooling setups

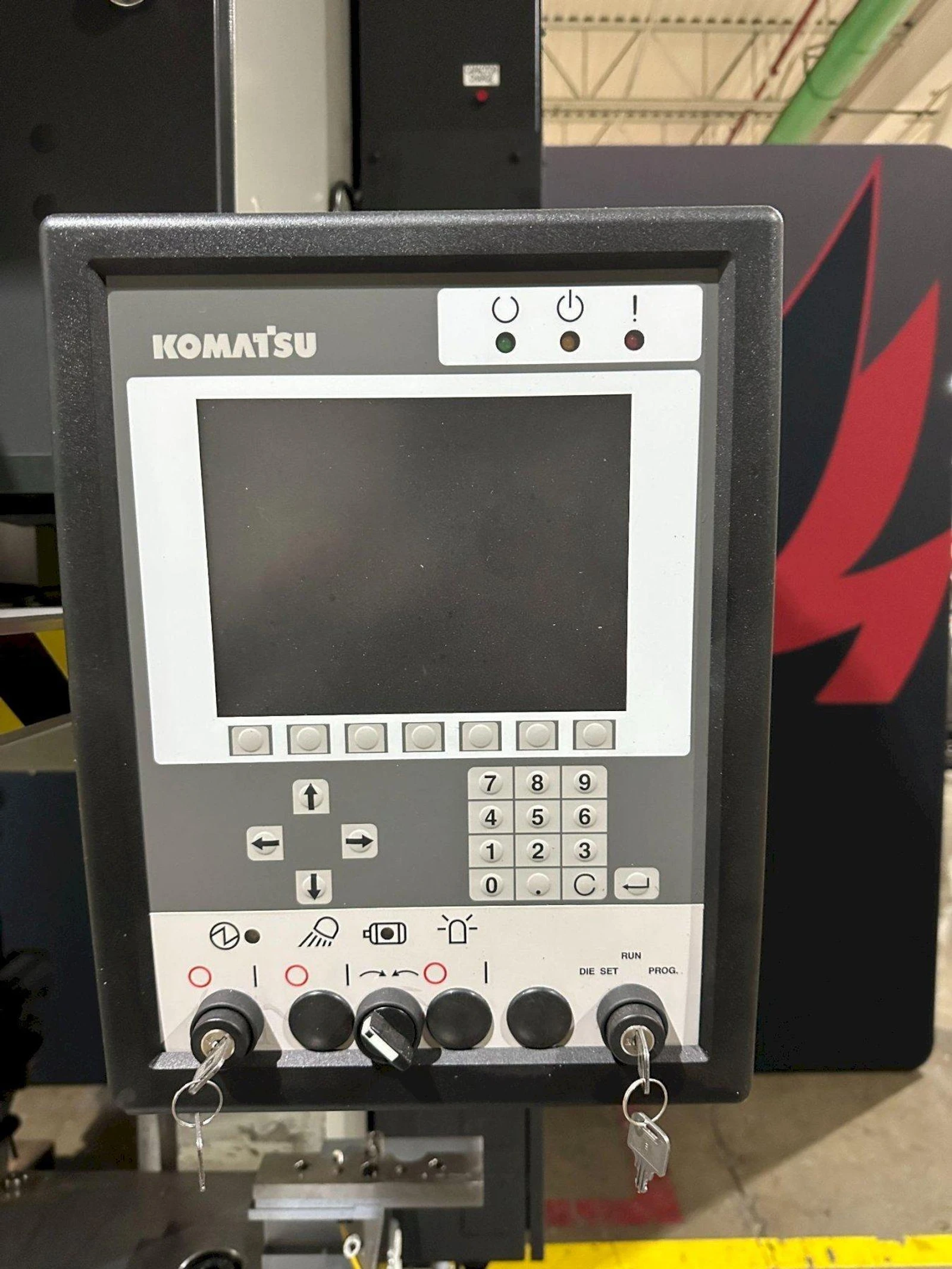

Integrated digital servo control system for easy programming and adjustments

Compact machine footprint helps optimize floor space

Excellent repeatability for high-precision operations

Quiet, low-vibration operation ideal for operator comfort
