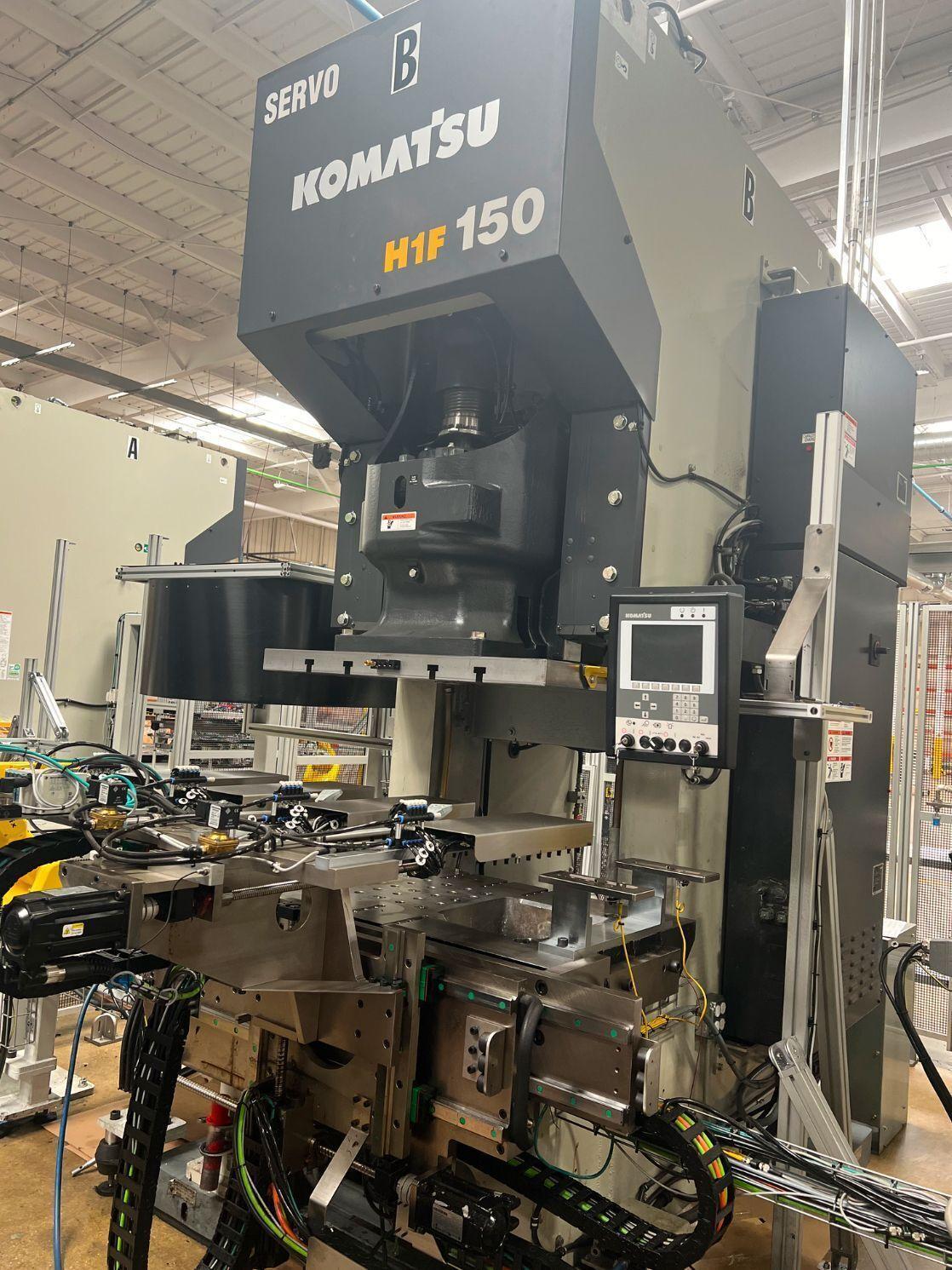

2020 KOMATSU H1F150-2 SERVO PRESS USED

Brand
KOMATSU
Category
Presses (Stamping)
Type
Presses, Gap Frame (OBS)
Model
H1F150-2
Stock #
IGAM1240001
Year
Not specified
Condition
Not specified

Location

Michigan
REQUEST FINANCING

Overview

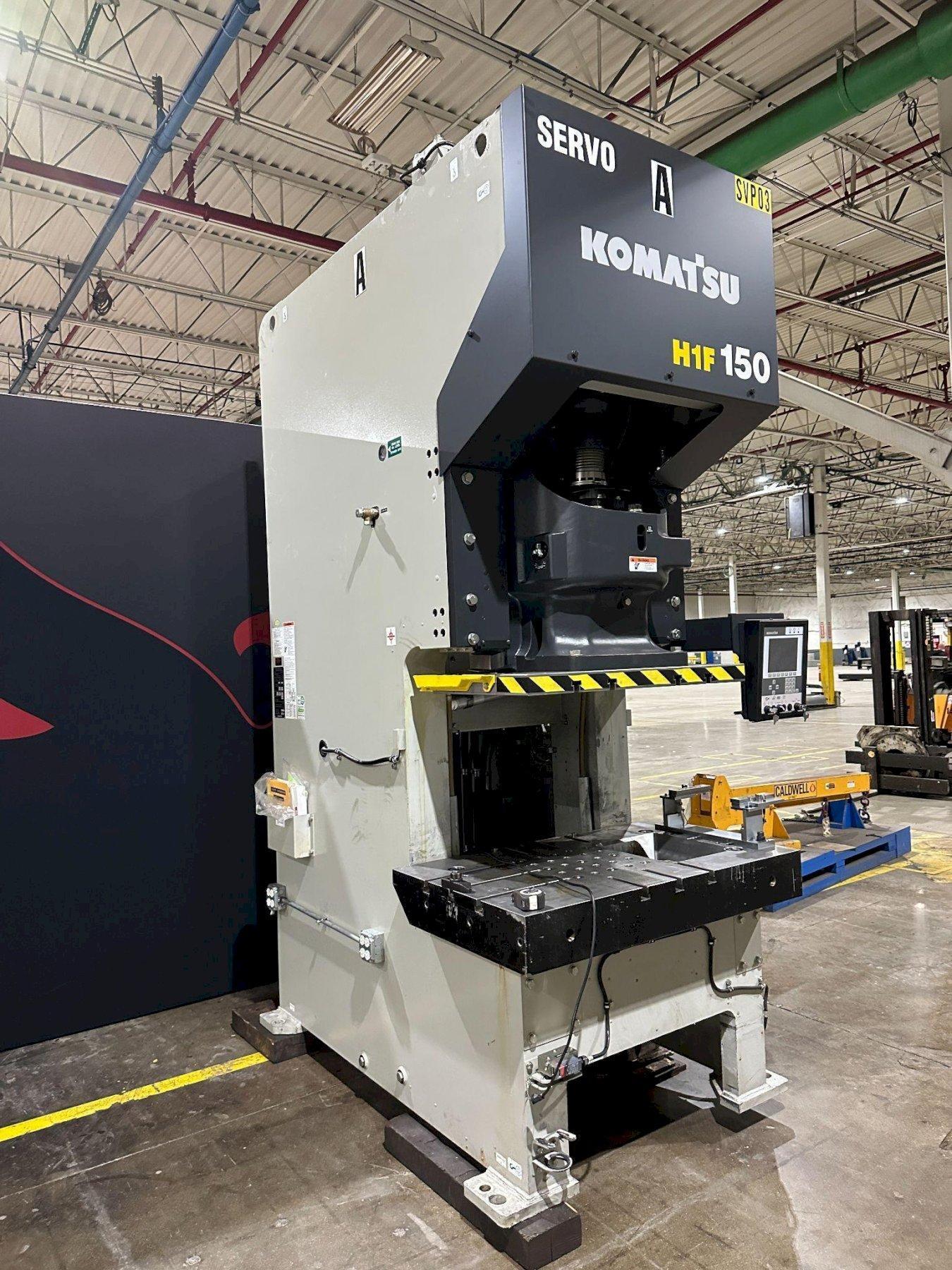

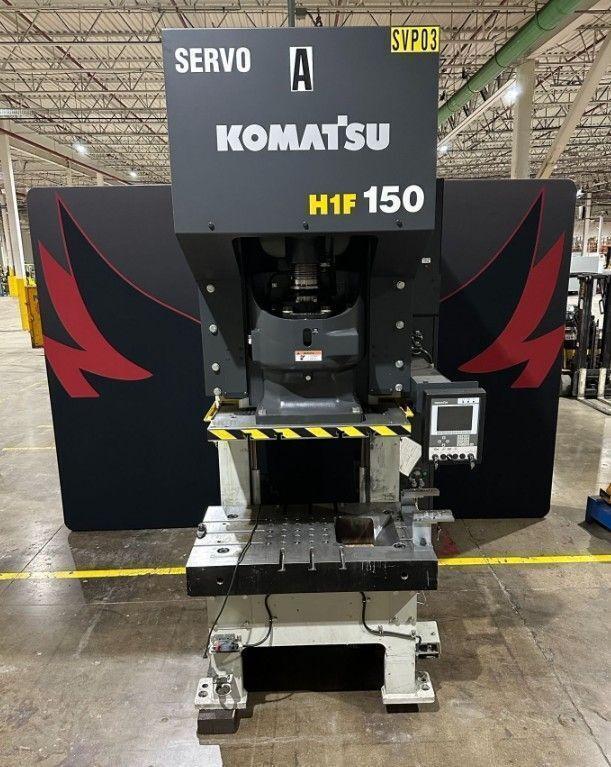

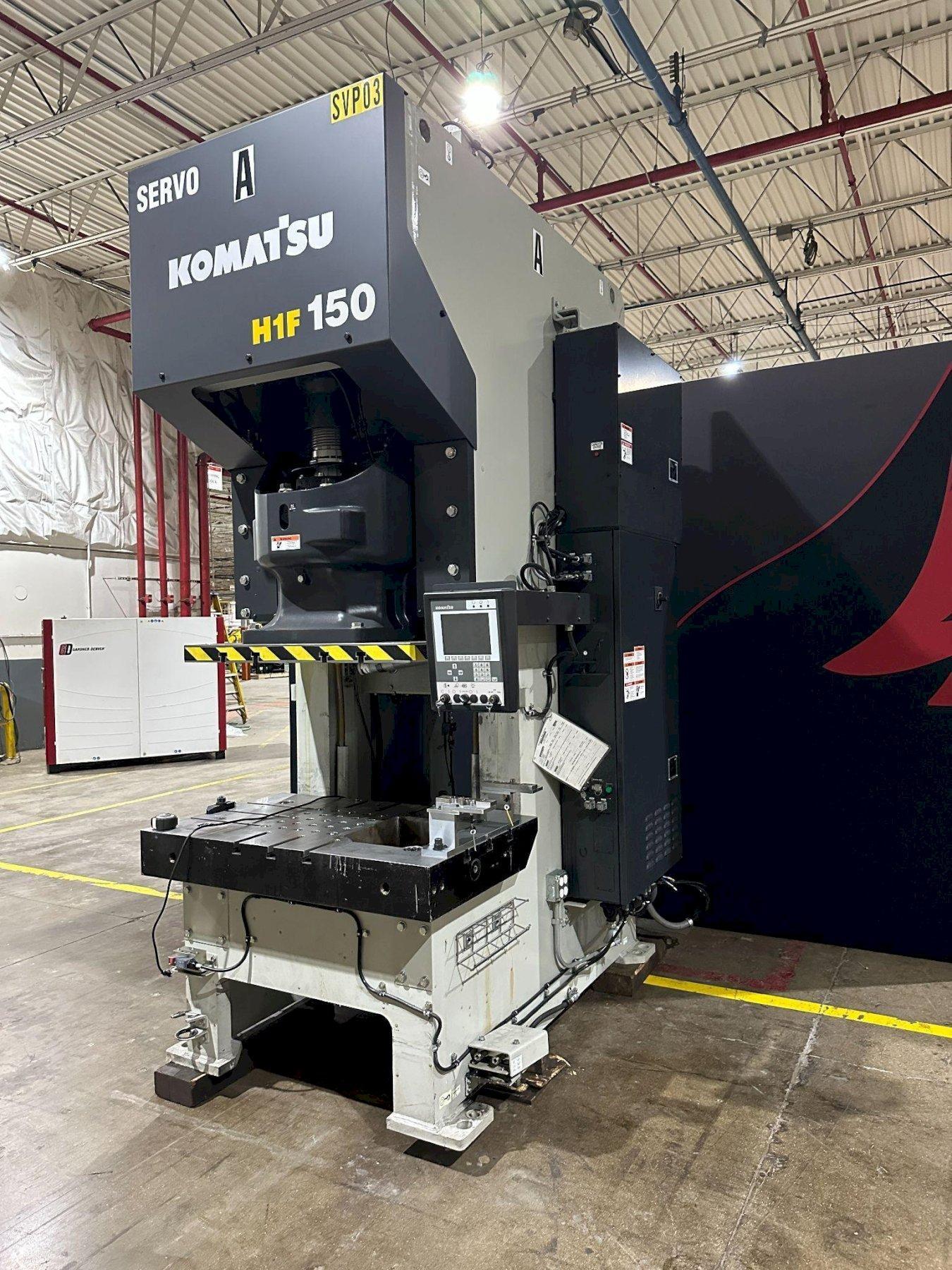

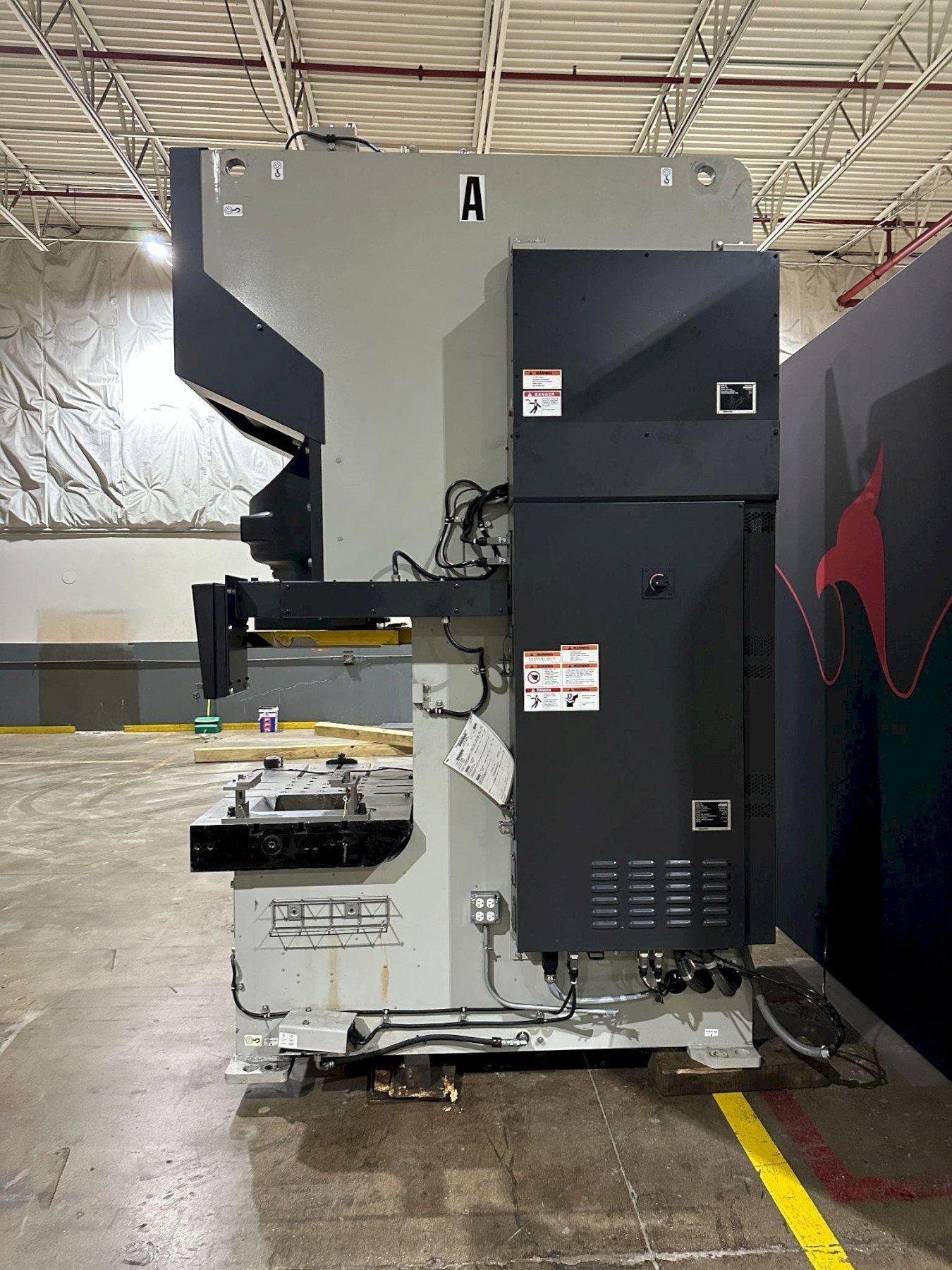

The 2020 KOMATSU H1F150-2 Servo Press is a used, precision-engineered press designed to deliver exceptional performance in demanding industrial environments. Capable of exerting up to 165 tons of pressing force with a stroke rate ranging from 0 to 128 strokes per minute, this servo press features a 70 HP electric servo motor for energy-efficient operation. With low operating hours, it is in excellent working condition. The unit’s compact footprint, robust construction, and advanced control system make it a powerful addition to any high-volume manufacturing line.

,

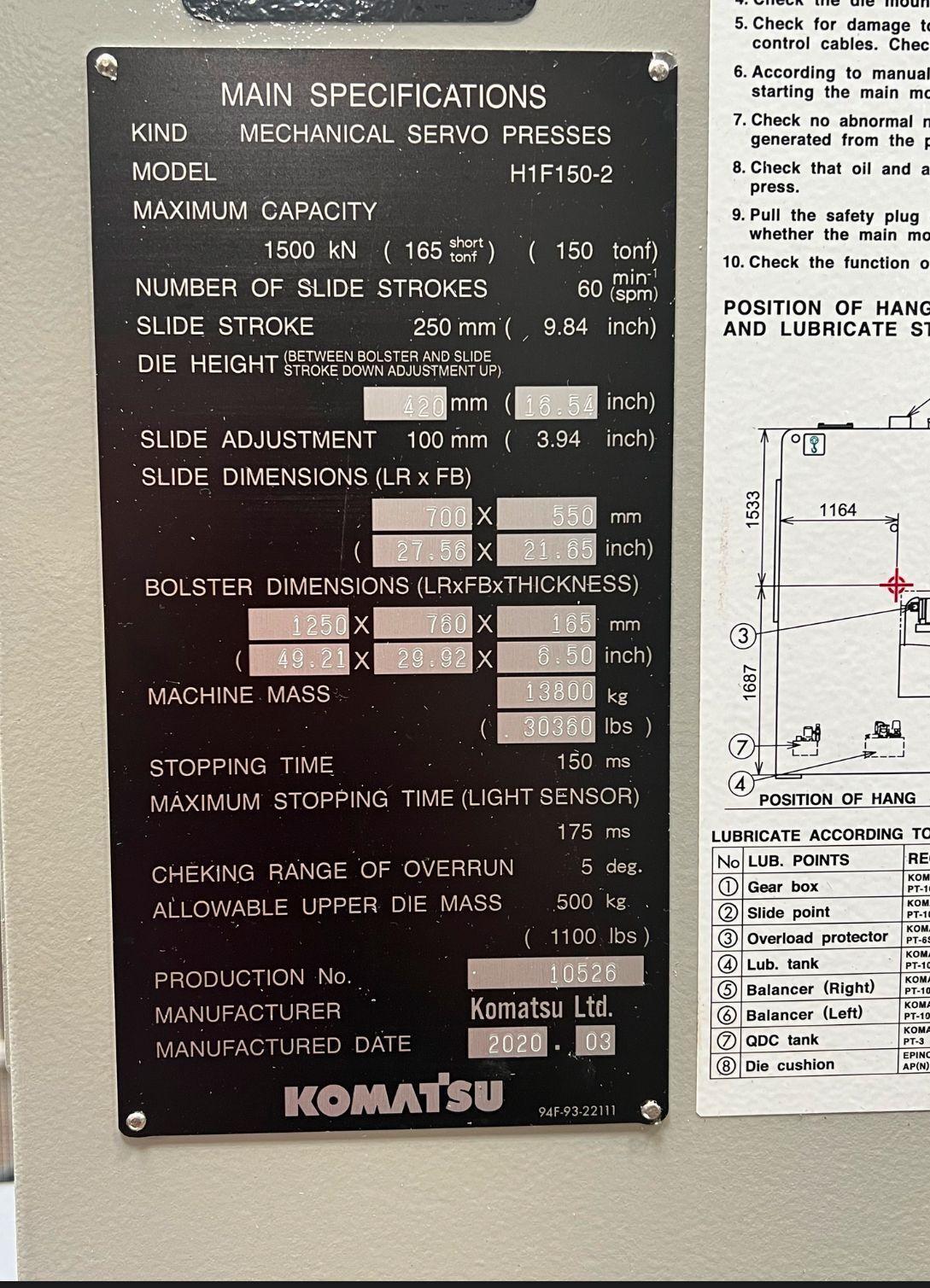

Specification Table

Tonnage 165 T
Stroke 9.84″

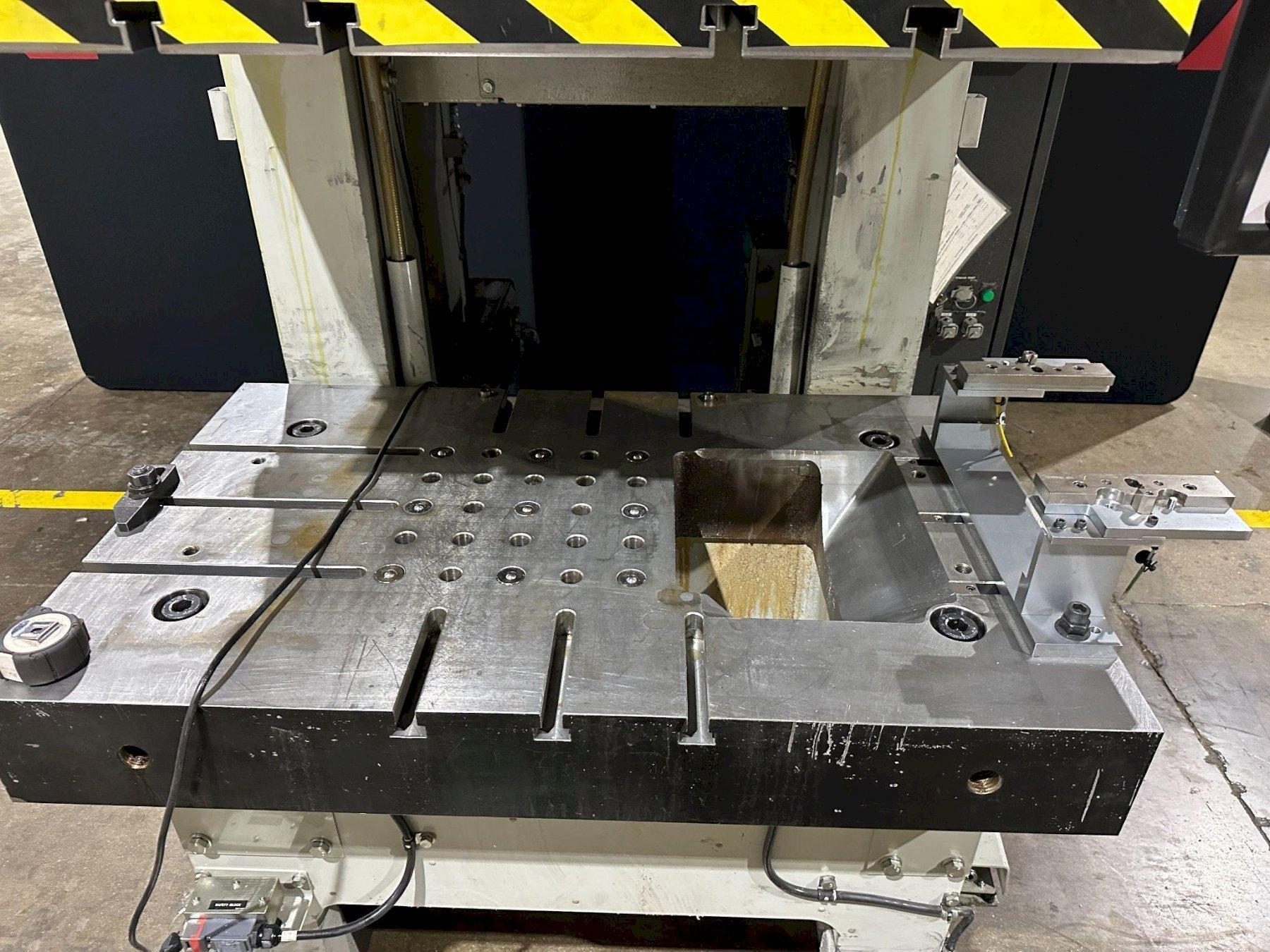

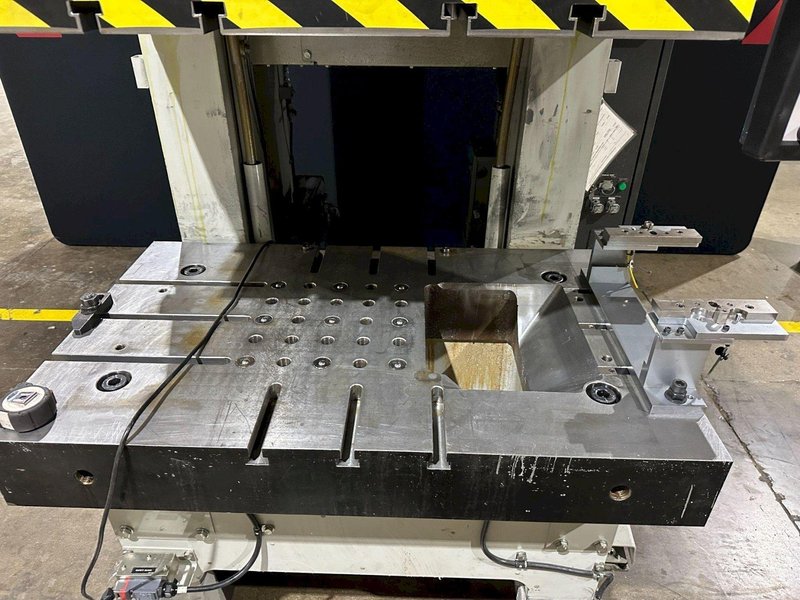

Bed W 29.92″
Bed L 49.21″
SPM 0 strokes/min.

Max die height- 16.54″
RAM/slide adjustment-3.94″

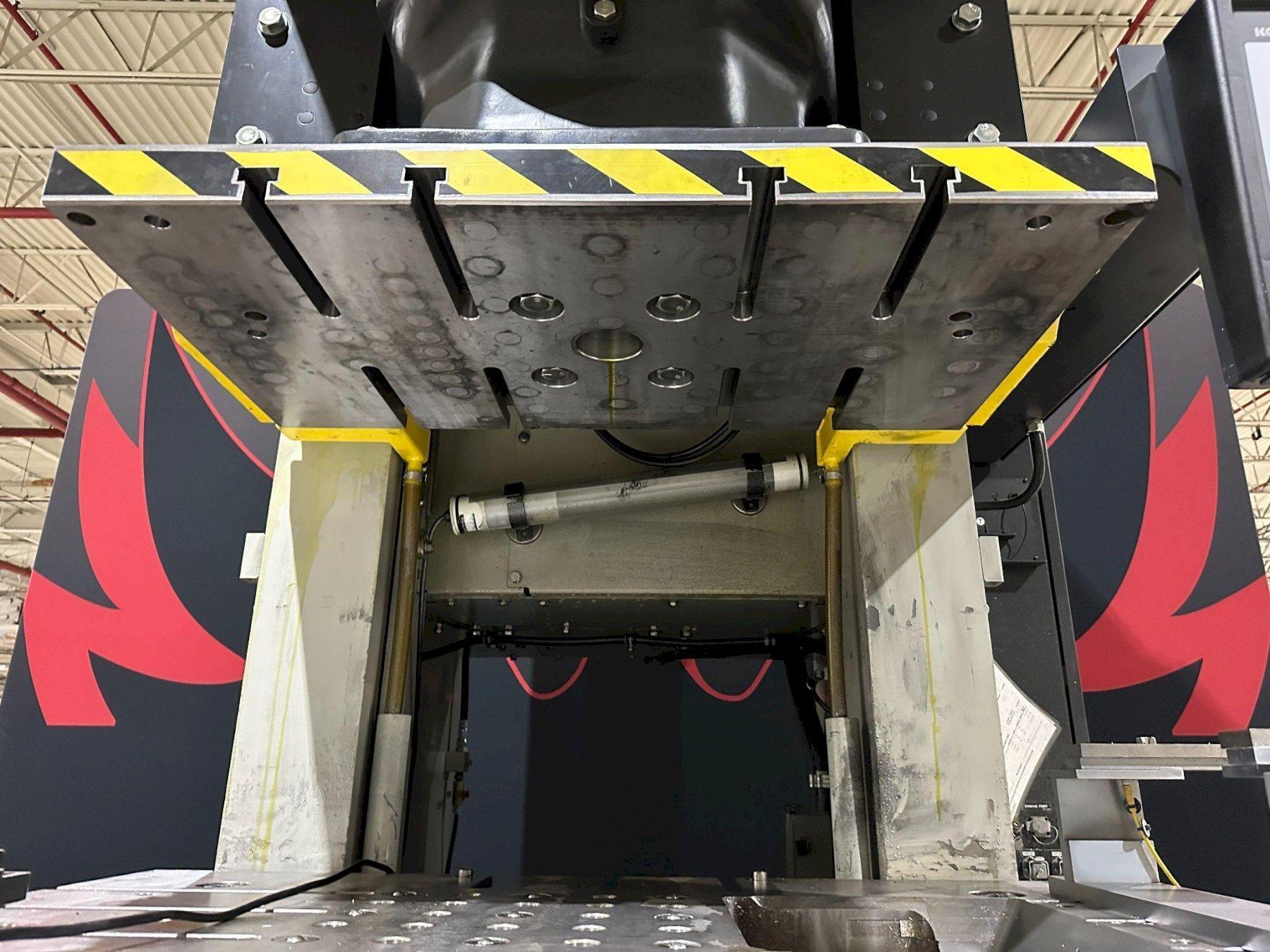

RAM/slide area- 27.56″ X 21.65″
Distance between uprights- 24.34″
Floor to bolster height- 35.43″
Throat depth- 15.35″
Electric servo motor: 70 HP Servo Motor
Stopping time – 150 ms

Product Specifications

  • Model: KOMATSU H1F150-2
  • Year: 2020
  • Pressing Force: Up to 165 tons
  • Stroke Rate: 0–128 strokes per minute
  • Bed Size: 29.92″ x 49.21″
  • Overall Dimensions: 61″ W x 95″ D x 133″ H
  • Max Die Height: 16.54″
  • RAM/Slide Adjustment: 3.94″
  • RAM/Slide Area: 27.56″ x 21.65″
  • Distance Between Uprights: 24.34″
  • Floor to Bolster Height: 35.43″
  • Throat Depth: 15.35″
  • Electric Servo Motor: 70 HP
  • Weight: 30,360 lbs.



Key Features

  • High-performance 70 HP electric servo motor provides precise control and energy efficiency
  • Variable stroke rate from 0 to 128 SPM enhances production flexibility
  • Rigid frame construction ensures structural integrity under high loads
  • Large bed size and generous RAM area accommodate a variety of tooling setups

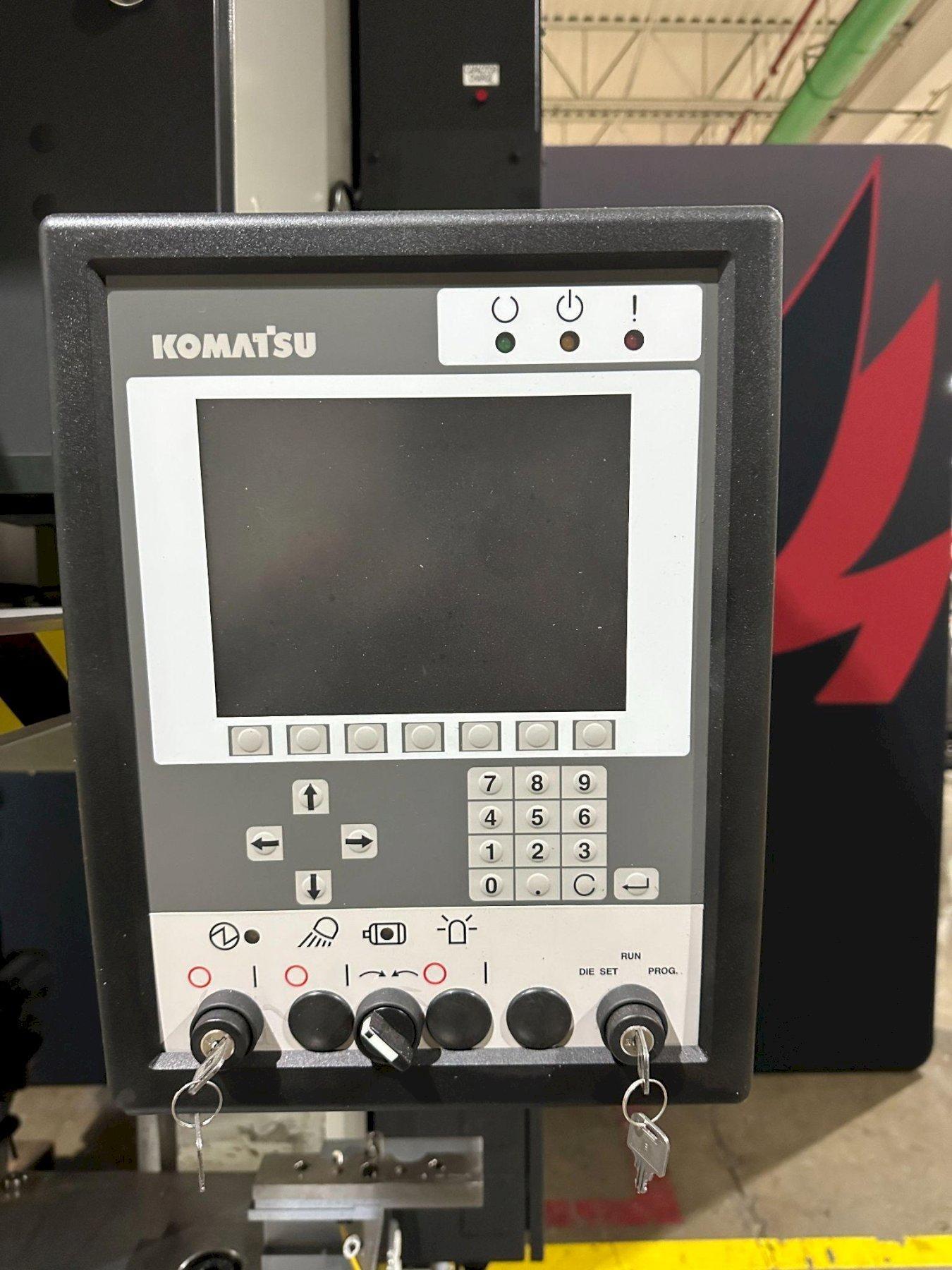

  • Integrated digital servo control system for easy programming and adjustments
  • Compact machine footprint helps optimize floor space
  • Excellent repeatability for high-precision operations
  • Quiet, low-vibration operation ideal for operator comfort



Applications

  • High-speed metal stamping operations
  • Progressive die and precision part forming
  • Automotive component manufacturing
  • Appliance and electronic enclosure fabrication
  • General industrial and contract manufacturing
