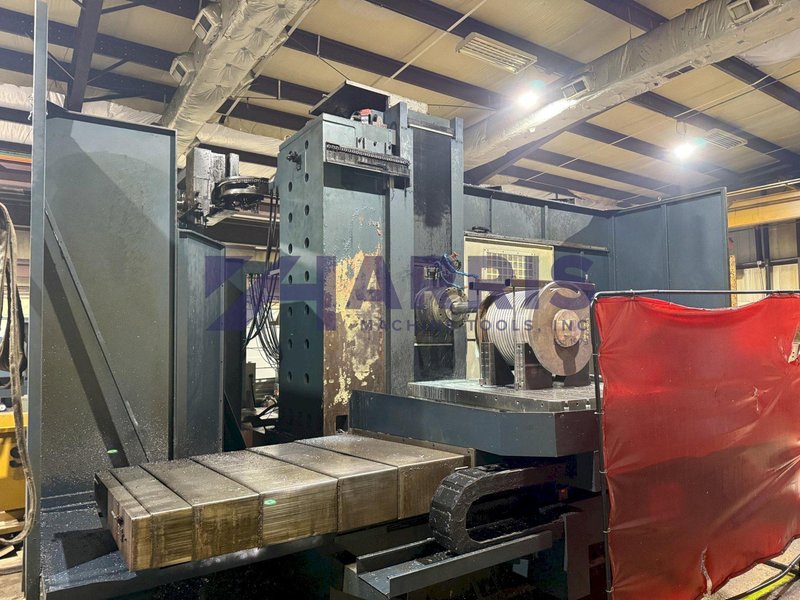

4.1" Johnford CNC Table Type Horizontal Boring Mill, Model BMC-110, 78" X, 70" Y, 63" Z, 21" W, 60 ATC, Fanuc, 2009

4.1" Johnford CNC Table Type Horizontal Boring Mill, Model BMC-110, 78" X, 70" Y, 63" Z, 21" W, 60 ATC, Fanuc, 2009

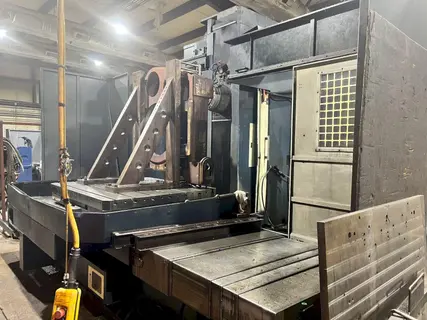

Name: 4.1" Johnford CNC Table Type Horizontal Boring Mill, Model BMC-110, 78" X, 70" Y, 63" Z, 21" W, 60 ATC, Fanuc, 2009
Brand: JOHNFORD
SKU: 20839
Availability: OutOfStock

Brand

JOHNFORD

Location

Texas

REQUEST FINANCING

Specifications
Files & Videos

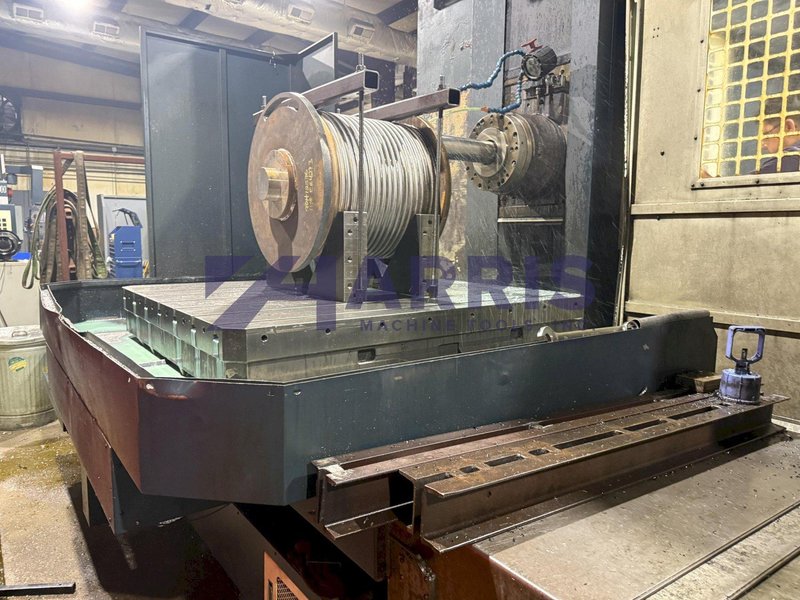

Table Size	55.1" x 63"
Max Distance Spindle To Table Top	21.6" - 84.6"
X Axis Travel	78.7 inches
Y Axis Travel	70.9 inches
Z Axis Travel	63.0 inches
W Axis Travel	21.7 inches
Table Indexing (B-Axis)	0.001°
B-Axis Rotation Speed (RPM)	4
Table Capacity	15432 pounds

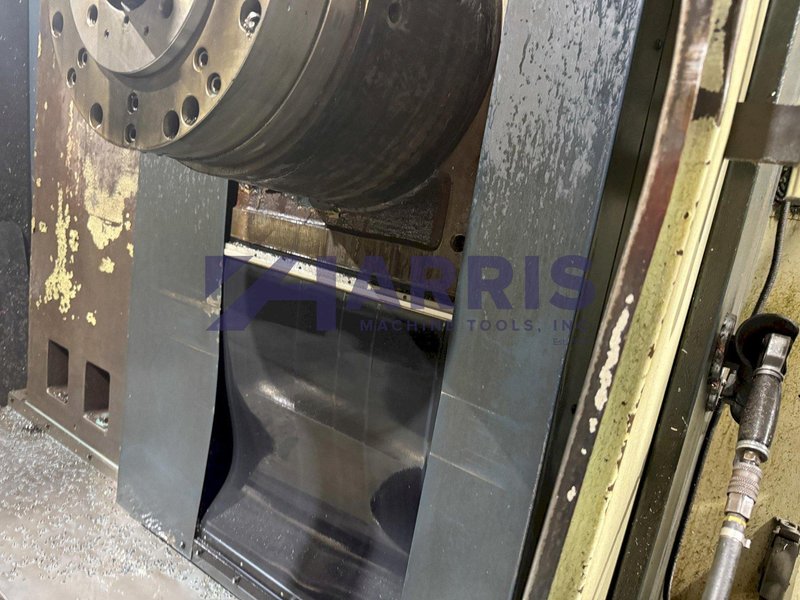

Spindle Size	4.3 inches
Spindle Speed (RPM)	5 - 3,000 (2-Steps)
Spindle Taper	CAT 50

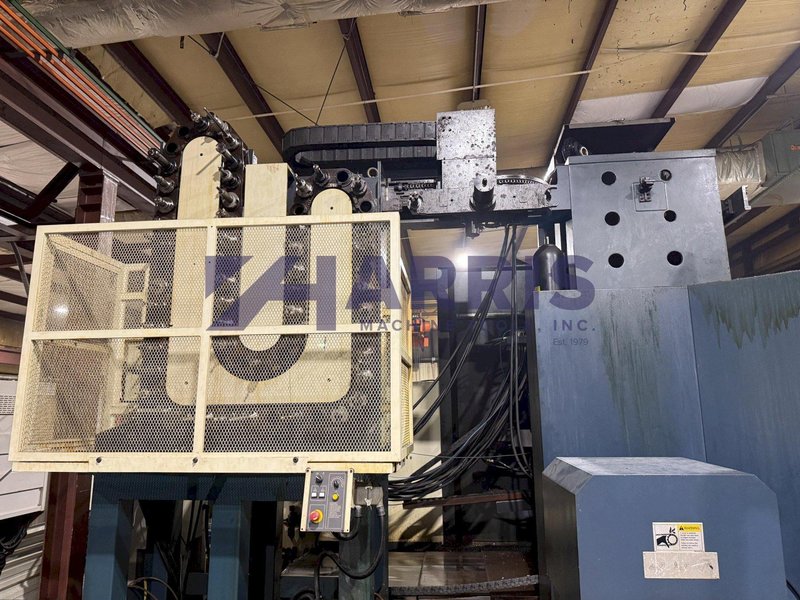

Tool Changer Capacity	60
Max Tool Weight	55 pounds
Dimensions	284″L x 246″W x 151″H
Weight	59500 pounds

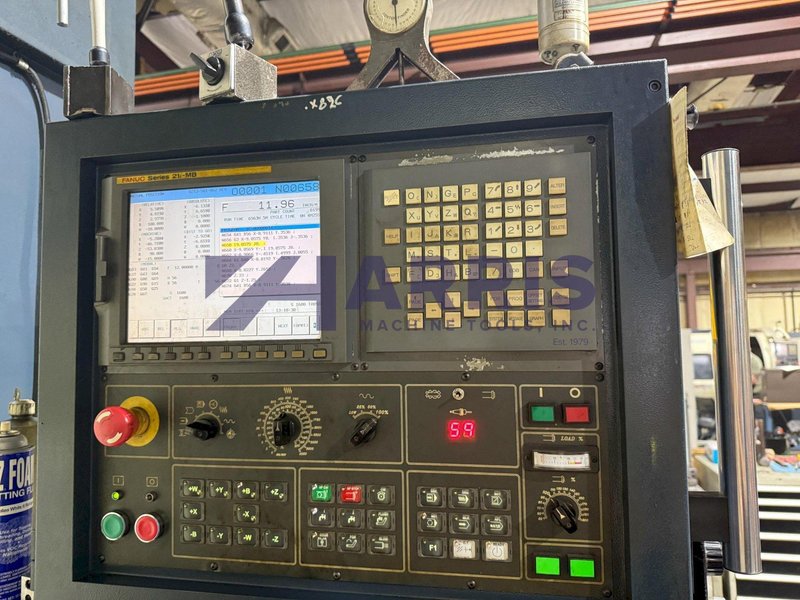

X-Axis Travel: 78.7″ (2000mm) Y-Axis Travel: 70.9″ (1800mm) Z-Axis Travel: 63.0″ (1600mm) W-Axis Travel: 21.7″ (550mm) B-Axis Table Indexing: 0.001 degree Table Size: 55.1″ x 63.0″ Table Load: 15,432 lbs Spindle Diameter: 4.3″ (110mm) Spindle Speed (2 Steps): 5 – 3,000 RPM Spindle Taper: Cat 50 Auto Tool Changer: 60 Tool Capacity Max Tool Weight: 55 lbs Spindle Nose to Table: 21.6″ – 84.6″ Spindle Center to Table: 0 – 70.9″ X/Y/Z Cutting Feed Rate: 3.94 IPS X/Y/Z Rapid Rate: 7.87 IPS B-Axis Rotation Speed: 4 RPM Electrical Requirements: 220V, 3Ph, 60 Hz Approx. Dimensions (lxwxh): 284″ x 246″ x 151″ Approx. Weight: 59,500 lbs EQUIPPED WITH: Fanuc Series 21i-Model CNC Control 60 Tool Change Magazine Full 4th Axis (B-Axis) Table Rotation Chip Conveyor Watch a demo video at our YouTube page - https://youtube.com/shorts/JrdTQx26o0g?si=LHXT5D6mSp_AykQr *All specs are subject to buyer verification
