2023 HAAS VF-12/40 | Machining Centers, Vertical

2023 HAAS VF-12/40 | Machining Centers, Vertical

Name: Used HAAS VF-12/40 For Sale 33982
Brand: HAAS
SKU: 33982
Availability: PreOrder

Brand

HAAS

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

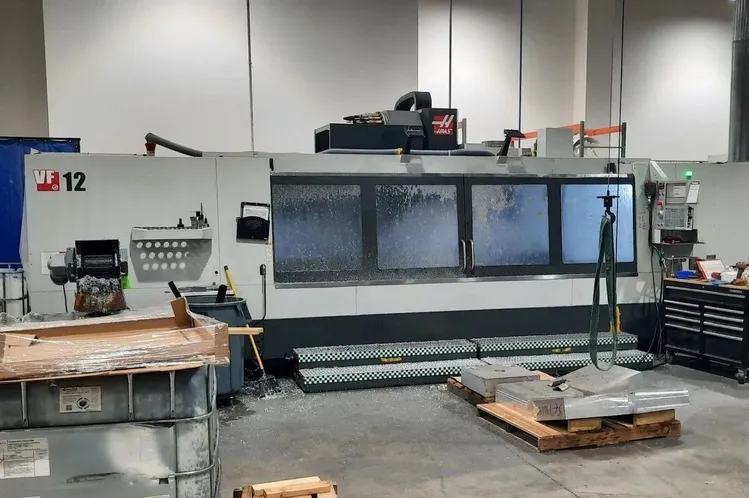

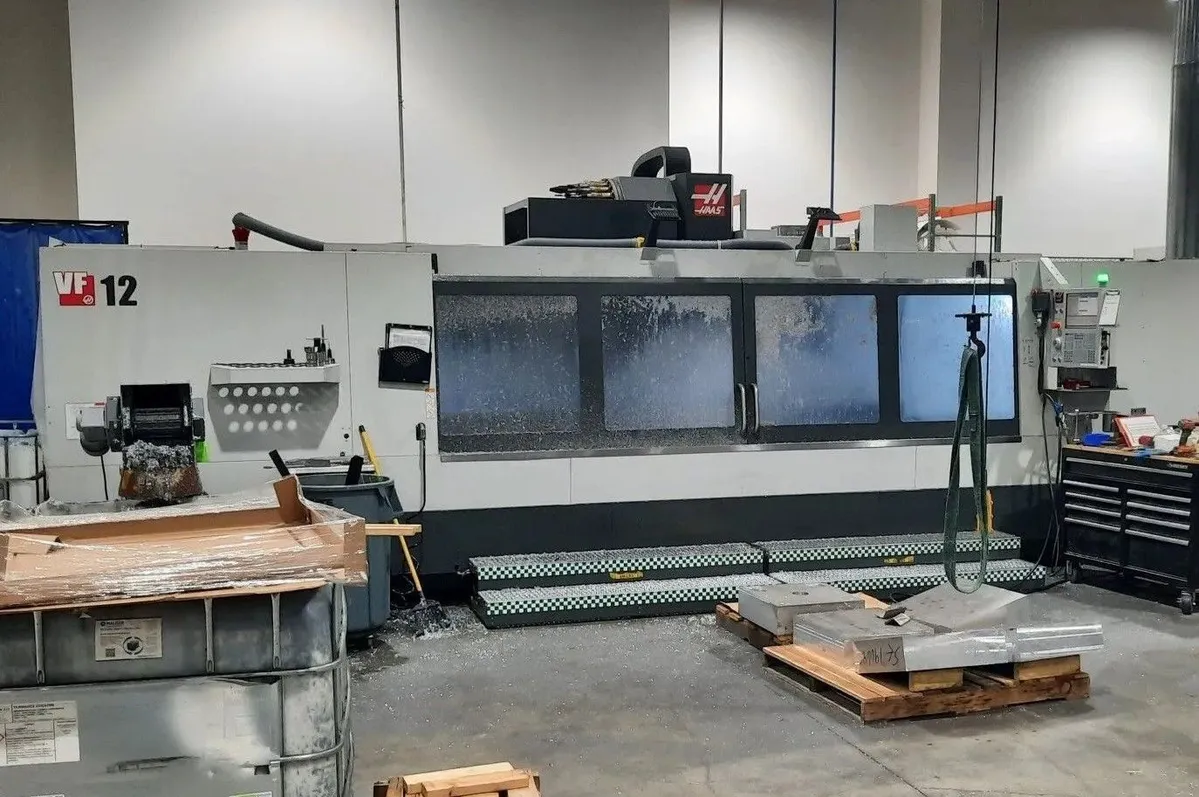

2023 Haas VF-12/40 vertical machining center for sale in stunning condition, featuring a massive 150" x 28" table, 30 hp power, and advanced features like WIPS probing and WiFi connectivity. This machine delivers outstanding precision and reliability for high-volume production and demanding machining tasks.

Specifications

ImperialMetric

X-Axis	150"	3,810 mm
Y-Axis	32"	812.8 mm
Z-Axis	30"	762 mm
Power	30 hp	22.4 kW
RPM	8,100 RPM	8,100 RPM
# ATC	24	24
Taper	CT or BT 40	CT or BT 40
Table-W	150"	3,810 mm
Table-L	28"	711.2 mm
# Axis	3	3

Specifications:

X - 150"
Y - 32"
Z - 30"
Power - 30 hp
RPM - 8,100 RPM
ATC Qty - 30
Taper - CT40
Table-W - 150"
Table-L - 28"
# Axis - 3
Dimensions - 343"L x 110"W x 134"H
Weight - 37,000 Lbs

Equipped With:

WIPS Probing System
Chip Conveyor
Programmable Coolant Nozzle

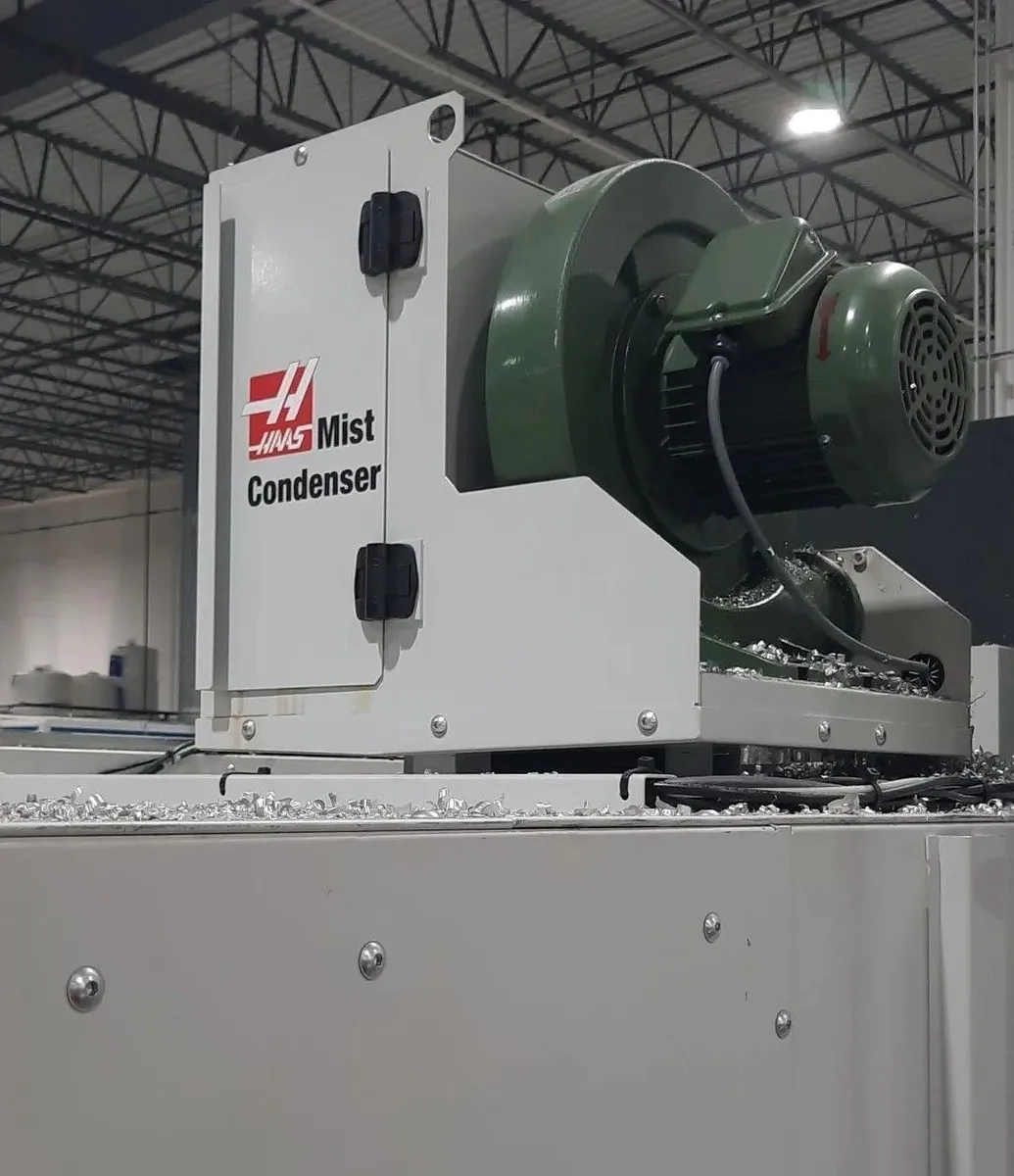

Coolant Mist Condenser
Widescreen Monitor / Ethernet Interface
Power Surge Protector
Large Touchscreen Remote Jog Handle
WiFi Connection
Early Power Failure Detection
Advanced Tool Management
Media Display M-Code 130
Haas Connect Remote Monitoring
Haas Drop
Rigid Tapping
Visual Part Programming System
Spindle Orientation
Coordinate Rotation & Scaling
1GB Memory
High Intensity Lighting
95 Gallon Coolant Tank & Pump
