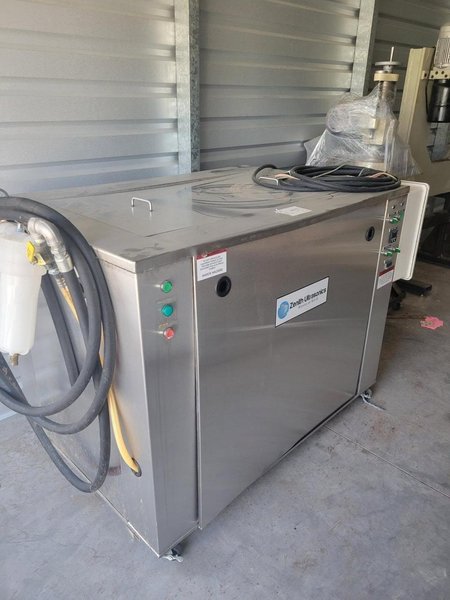

ZENITH ACS-70S Ultrasonic Cleaner – 70 Gal, 10.1kW, 208V 3-Phase with Dual Filtration

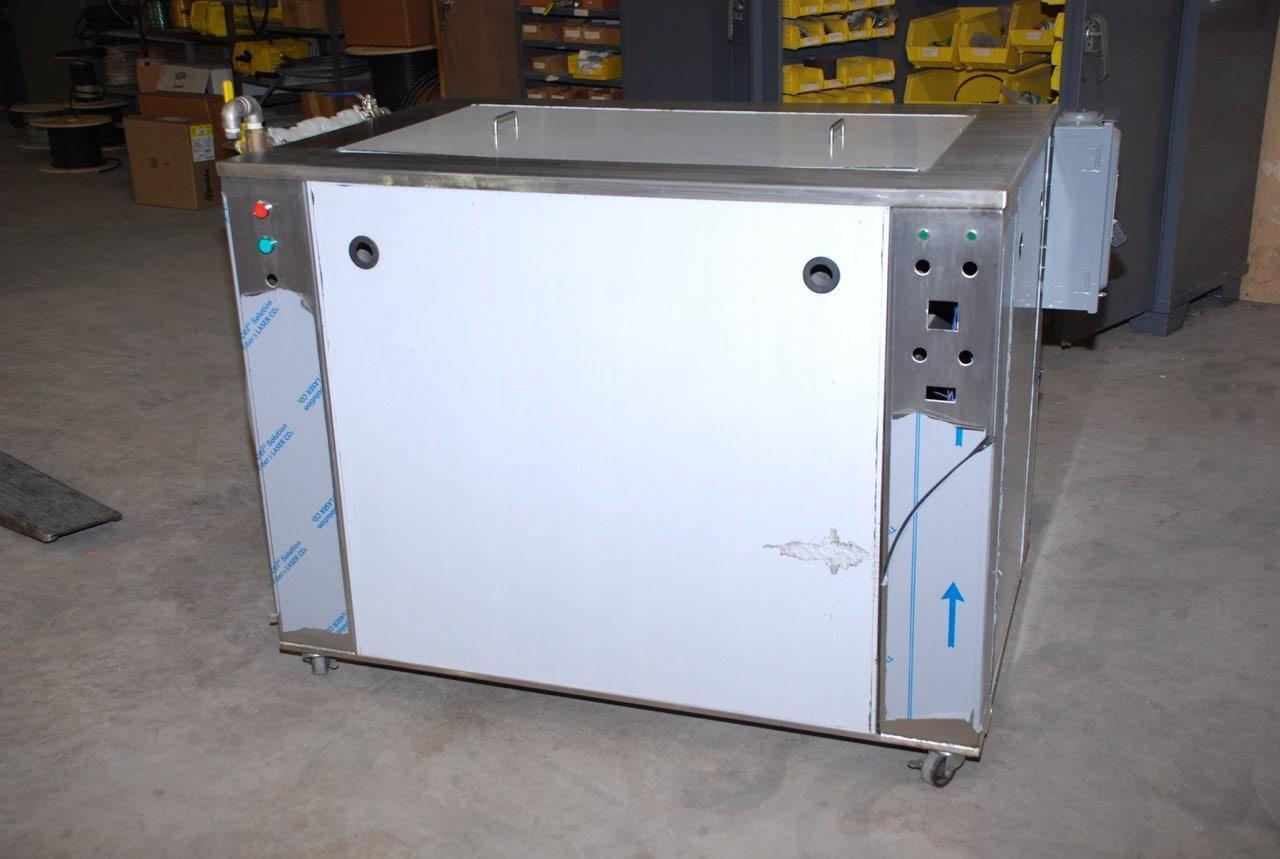

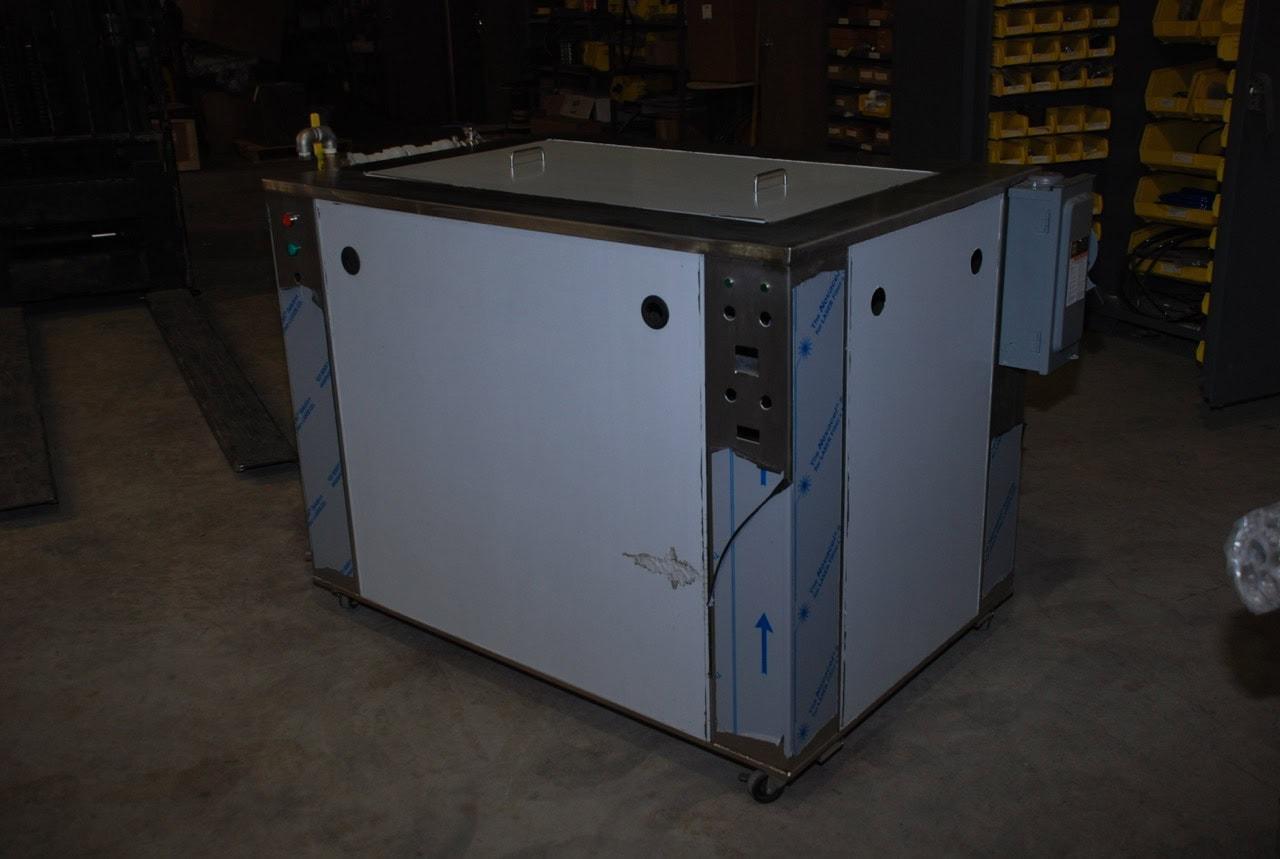

Equipment Overview The ZENITH ACS-70S is a fully enclosed ultrasonic cleaning system designed for mid-size industrial applications including aerospace, manufacturing, and precision component washing. With a 70-gallon capacity, dual-filtration system, and 10,180 watts of total heating and ultrasonic power, this model is engineered for high-reliability, deep-clean immersion cycles in demanding environments.

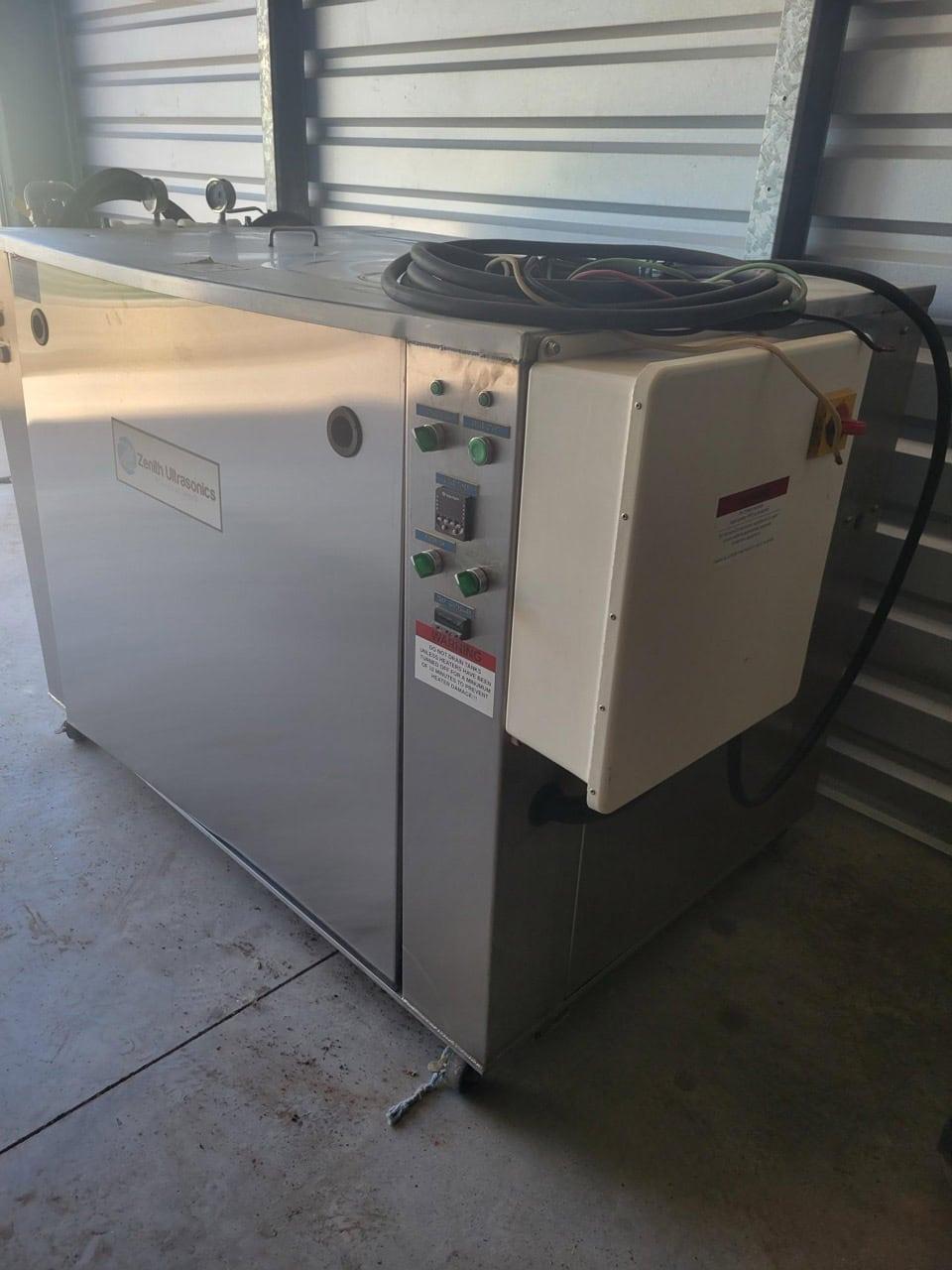

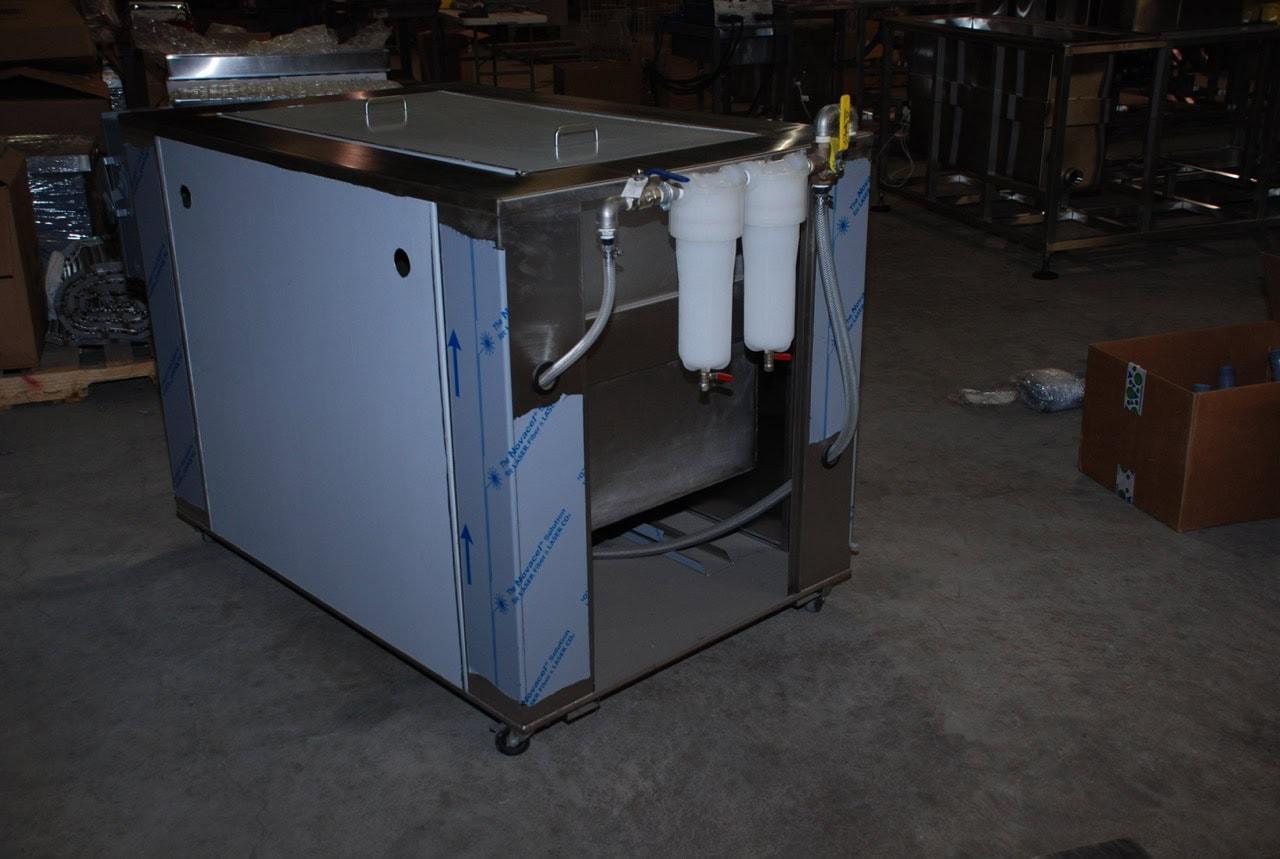

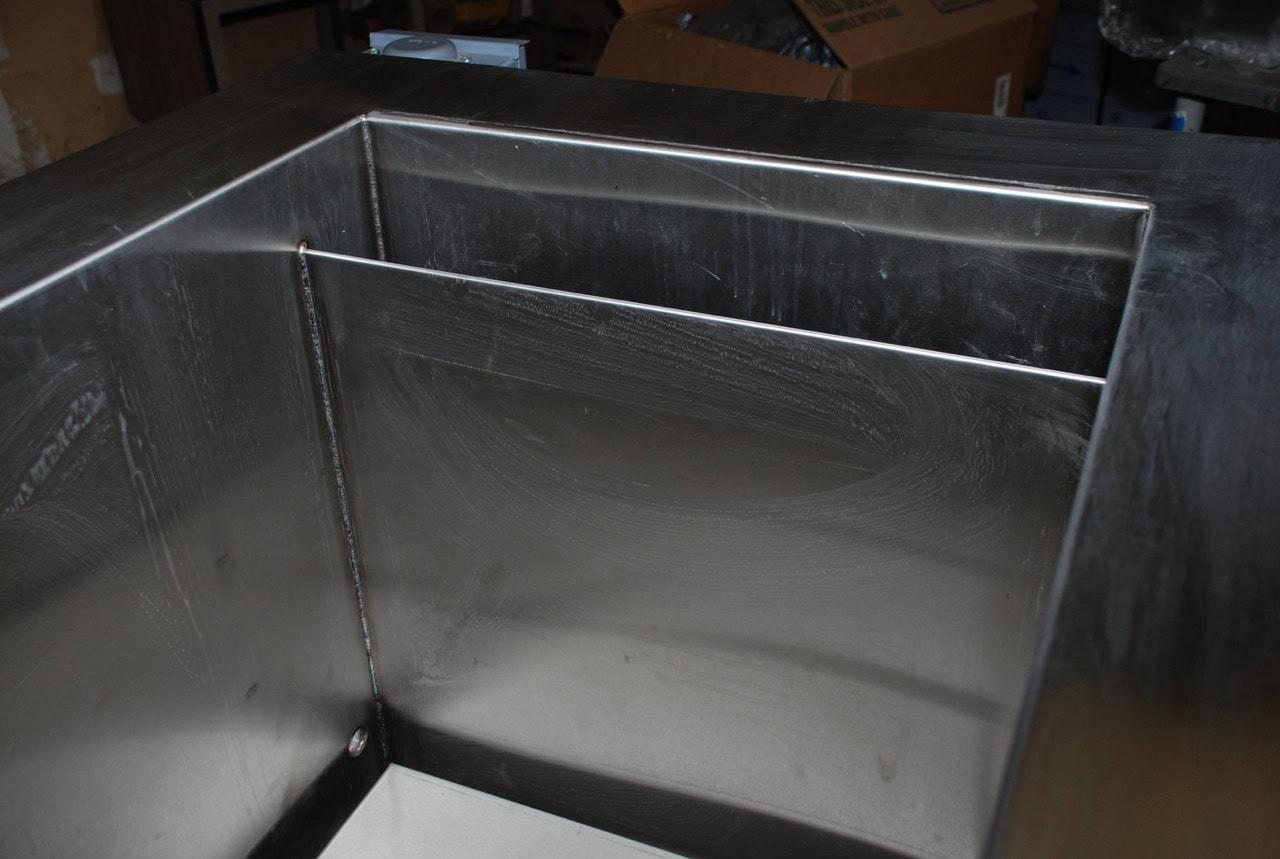

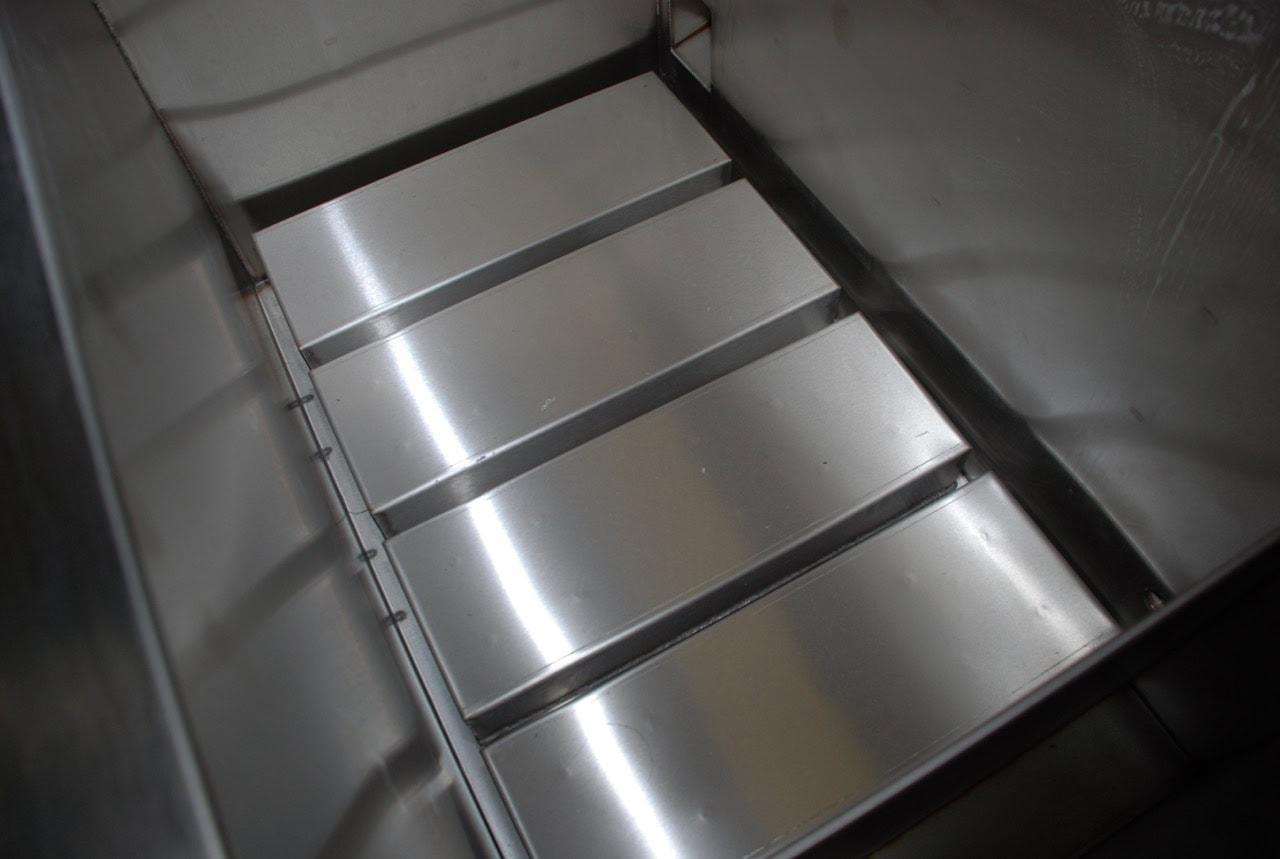

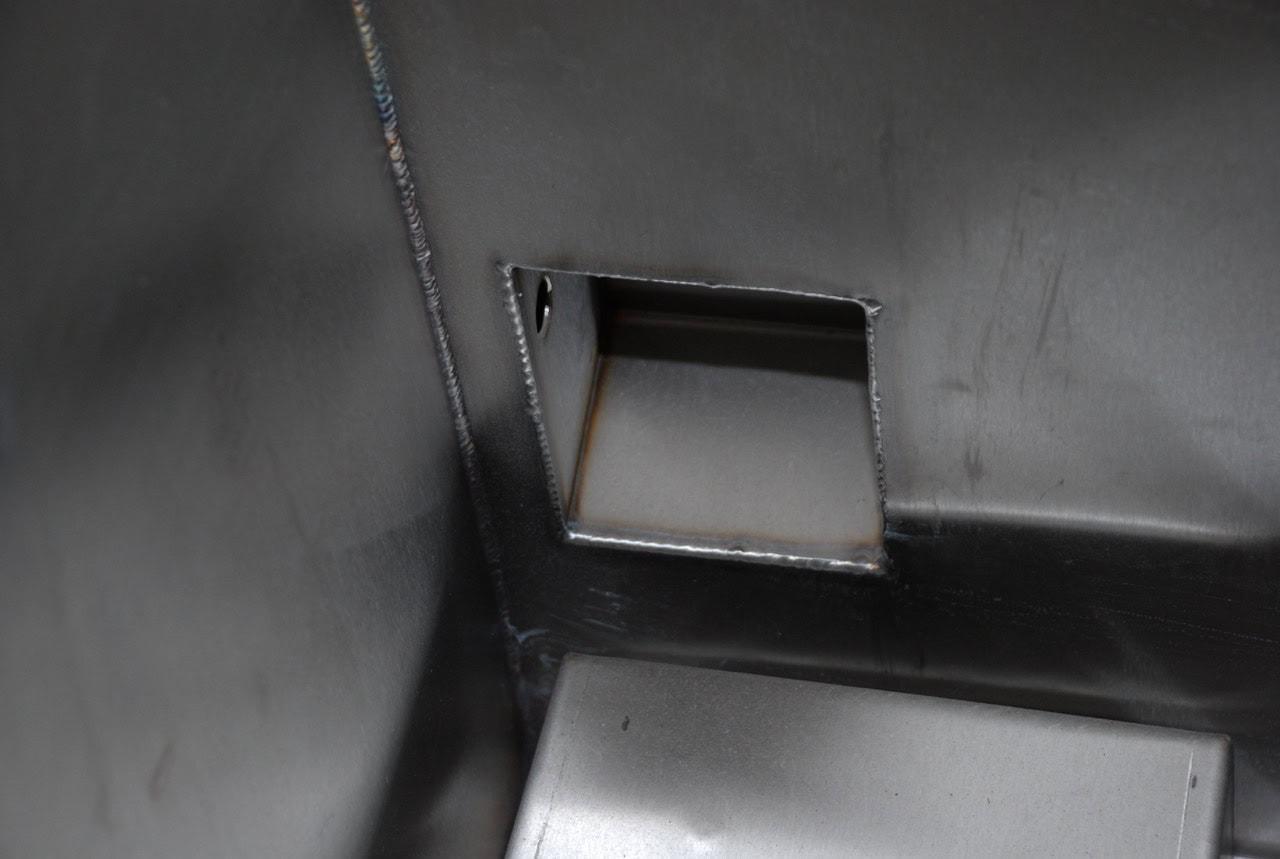

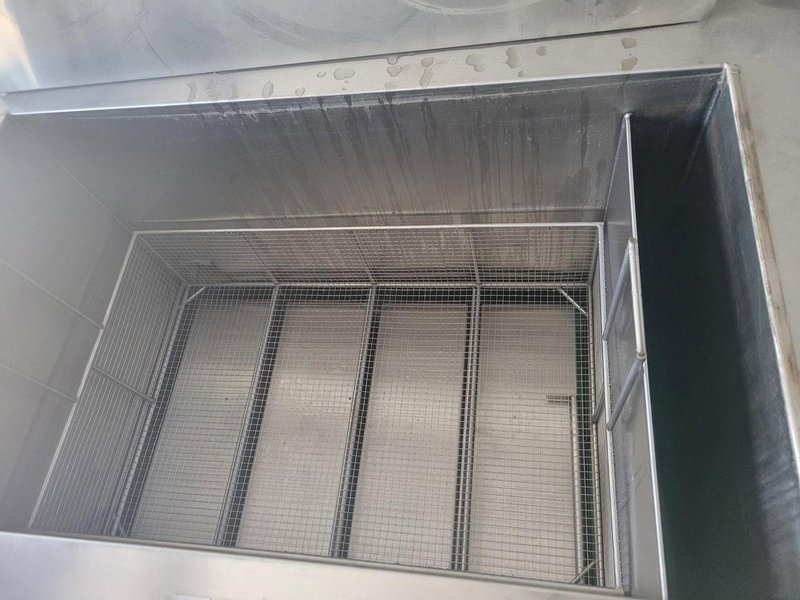

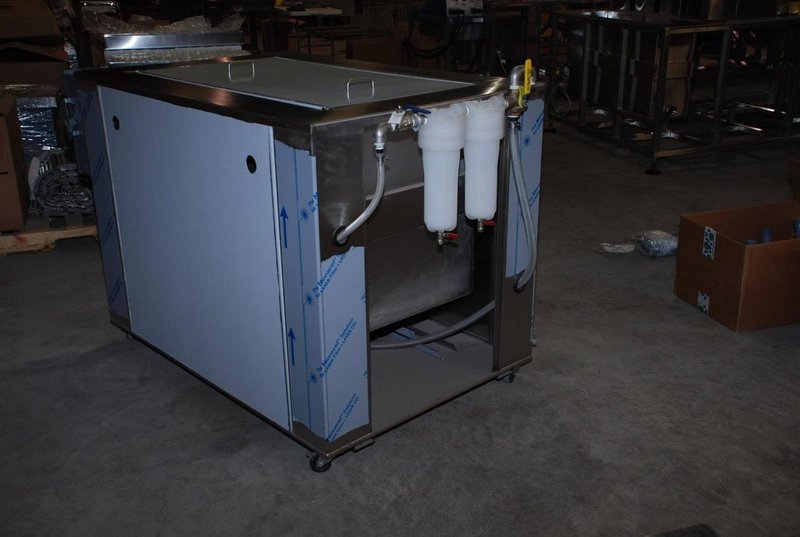

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Key Features and Specifications Brand: Zenith Ultrasonics Model: ACS-70S Power Requirements: – Voltage: 208V – Phase: 3-phase – Amperage: 37 amps – Power: 10,180 watts Tank Capacity: Approx. 70 gallons Tank Construction: – All-welded 316 stainless steel – Fully insulated side panels – Lift-off stainless tank lid with integrated handles – Sloped bottom and drain port Ultrasonic Transducers: Bottom-mounted heavy-duty transducers in baffle configuration Controls: – PID-style digital temperature control – Front-panel cycle switches with status indicators – Emergency stop – Integrated wiring bundle Filtration: – Dual-cartridge external filter system – Quick-connect plumbing Mobility: Heavy-duty casters with locking front wheels Accessory Basket: – Stainless steel mesh insert – Lift-out design Finish: Brushed stainless with protective film partially intact (some units) Safety: – Electrical enclosure mounted externally – Grounded chassis – Over-temp trip on heater

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
