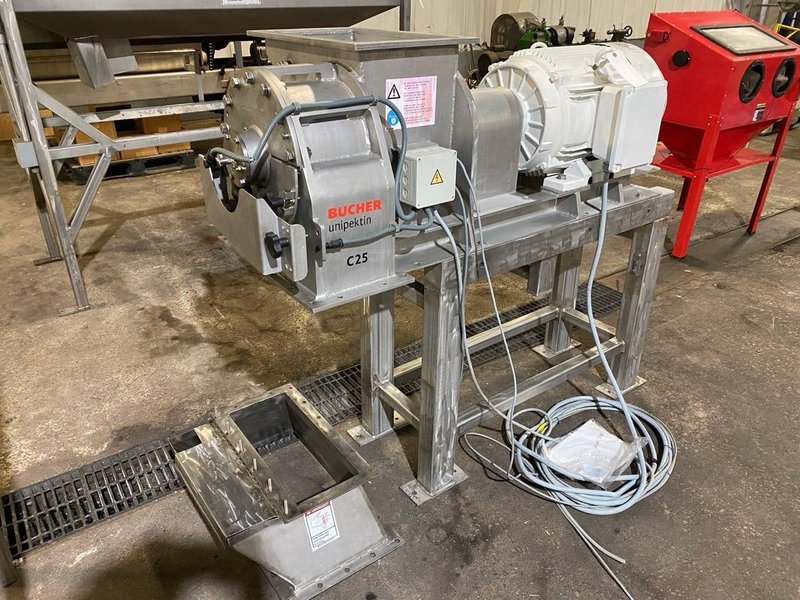

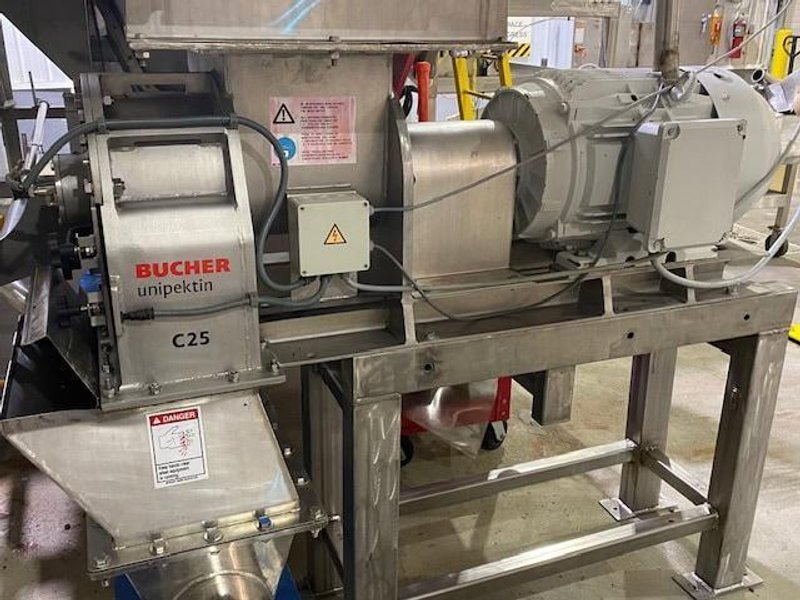

Bucher Unipektin C25 Fruit & Fiber Mill – Stainless Rotary Cutter with Auger Feed, Motor Drive, and Discharge Box

Machine Overview The Bucher Unipektin C25 is an industrial stainless rotary mill used to reduce fruit, root vegetable, and fibrous product prior to pressing or extraction. This unit features a vertical auger feed design with cutting drum assembly, toothed stator segments, and a robust base-mounted motor with inline gearbox.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,The system includes a removable stainless discharge chute with threaded tie-down lugs, polished auger feed inlet, and visible cutter blade housing with radial slot plates. Condition is excellent — no visible rust, gouging, or deformation. Feed zone, blade chamber, and discharge port are all intact, and the unit is fully staged for crate or integration.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Specifications & Features Bucher Unipektin C25 rotary cutter

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Product suitability: apples, pears, beets, carrots, tomato, stone fruit mash, citrus peel, etc.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Capacity range: 10 – 25 metric tons/hr (depending on feed type and screen)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Rotor diameter: 250 mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Screen size: standard slotted disc, removable with wedge lock blade retainer

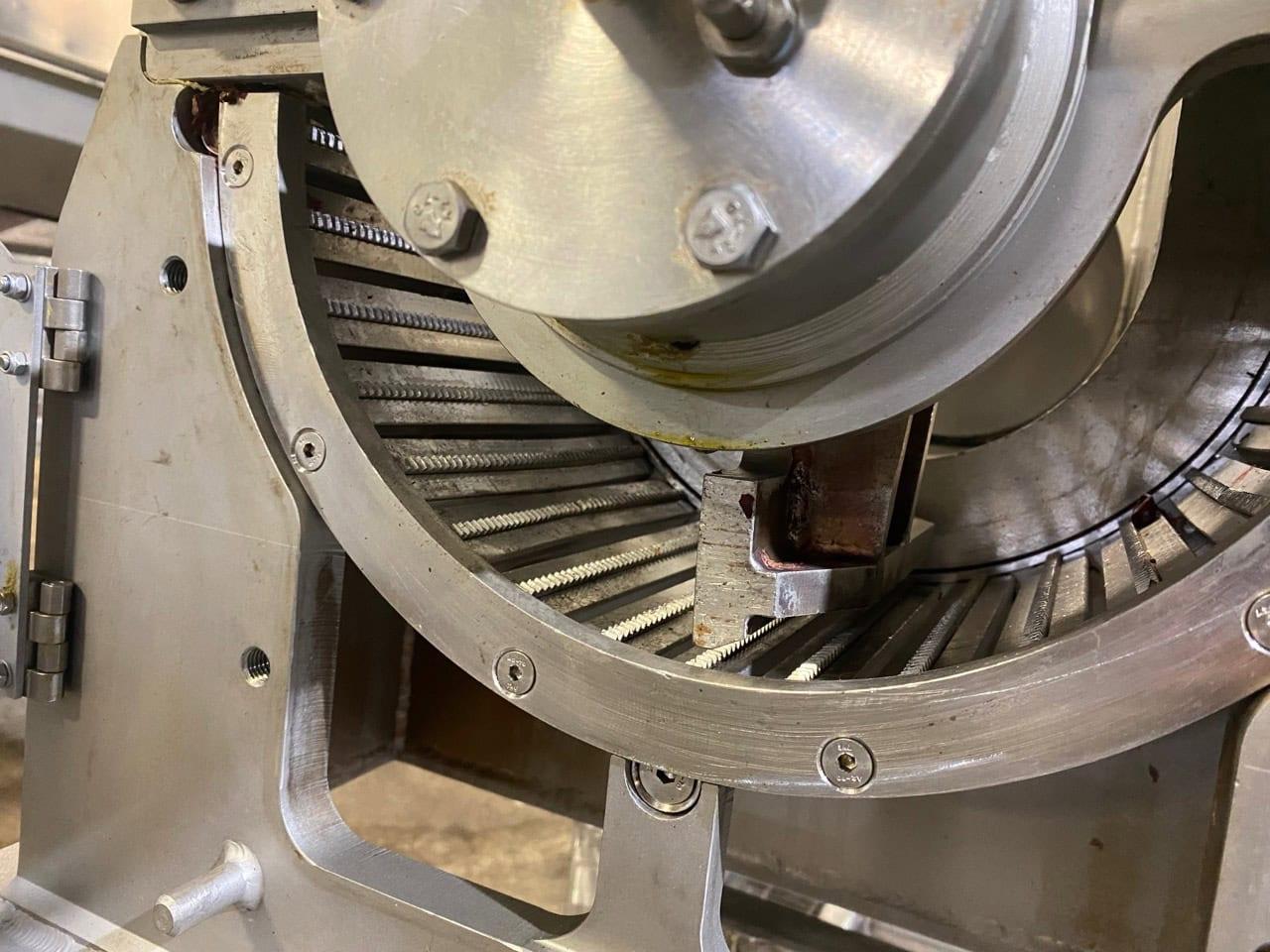

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Cutting principle: rotating blade rotor against fixed serrated stator segment

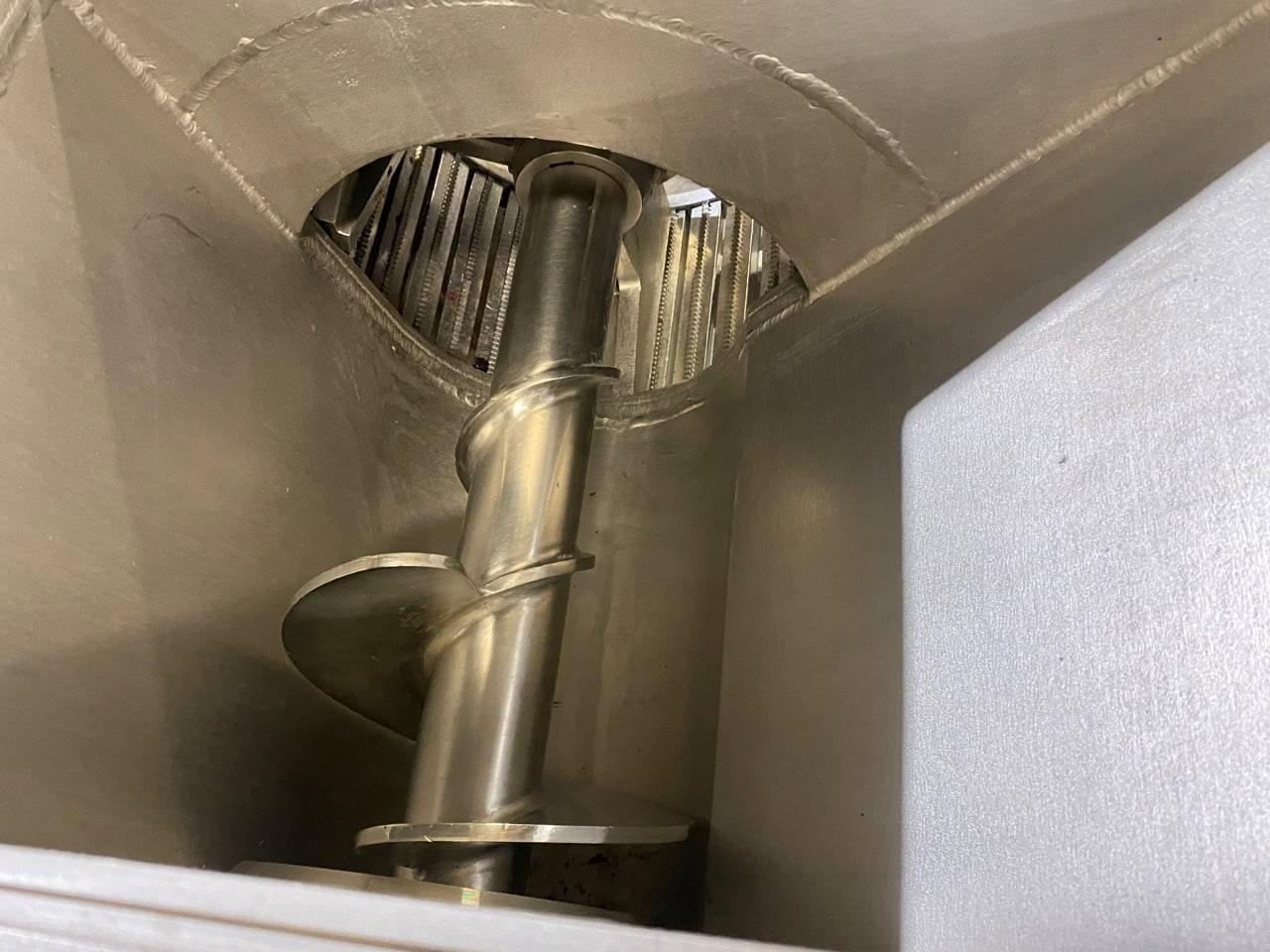

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Auger-fed vertical inlet screw – stainless, dual-pitch spiral, full coverage

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Product chamber: full weldment with TIG seams and flanged access

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Chamber opens via hinged front cover for cutter access

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Discharge: removable chute with machined saddle and lift rings

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Frame: heavy-duty stainless support legs with leveling pads

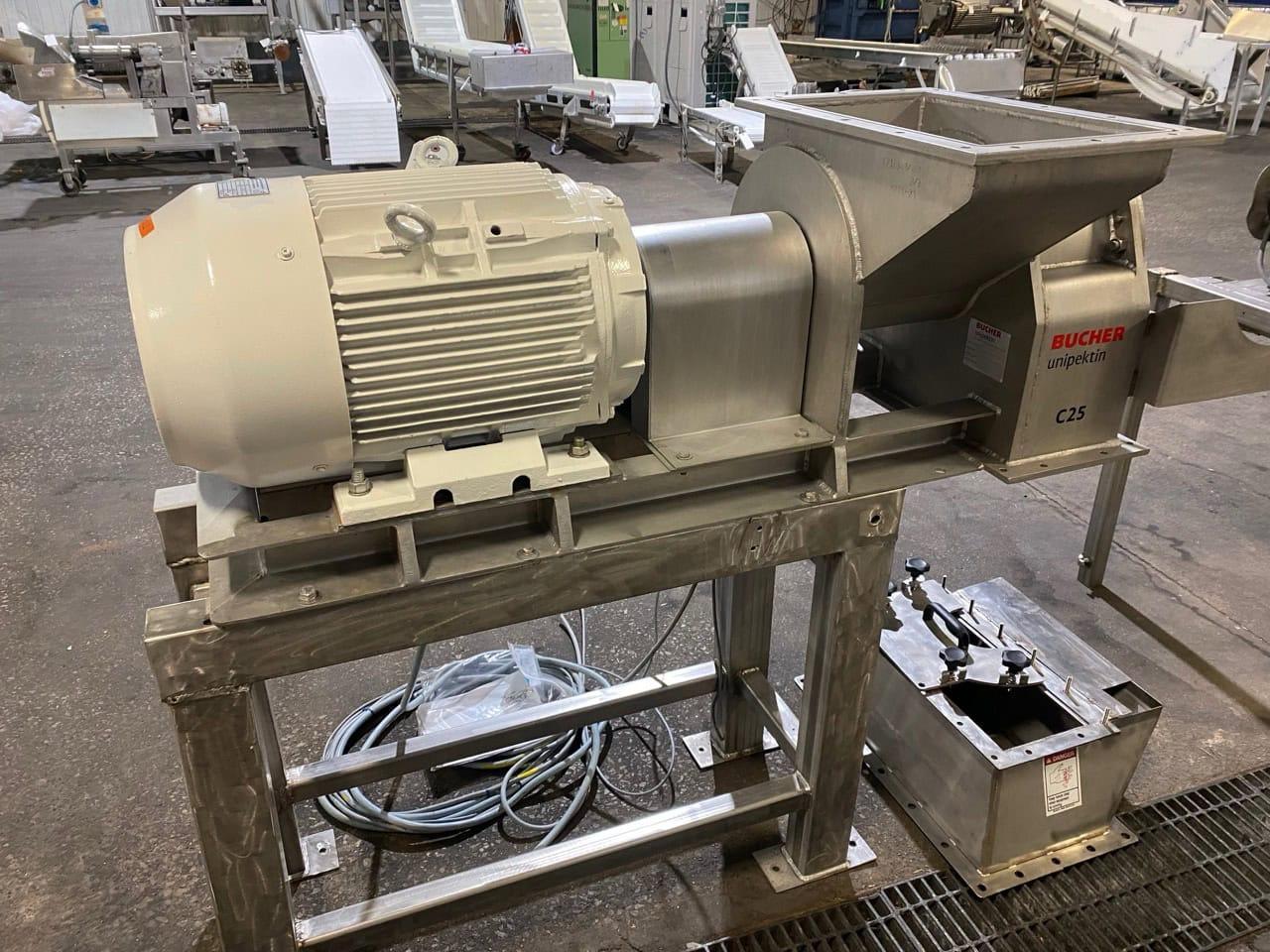

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Motor: IEC flange-mounted 3-phase motor, 15–25 HP (est.), with right-angle gear reducer

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Integrated cable bundle and control harness included

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Designed for CIP/washdown with smooth welds, radius corners, and no pits

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Removable bolt-on discharge collection port with guide tabs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
