Graphic Wizard Vividcoater XDC 530 Micro UV Coater for Coating Paper or Paperboard, Includes Feeder

Graphic Wizard Vividcoater XDC 530 Micro UV Coater for Coating Paper or Paperboard, includes feeder:

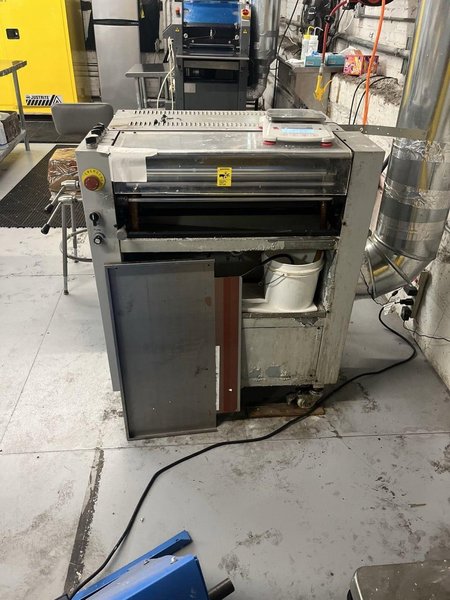

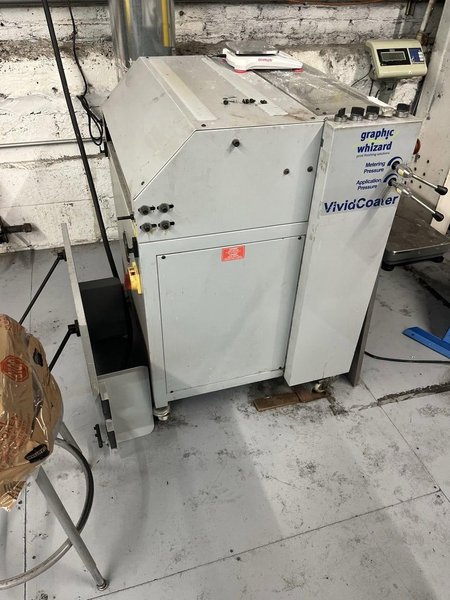

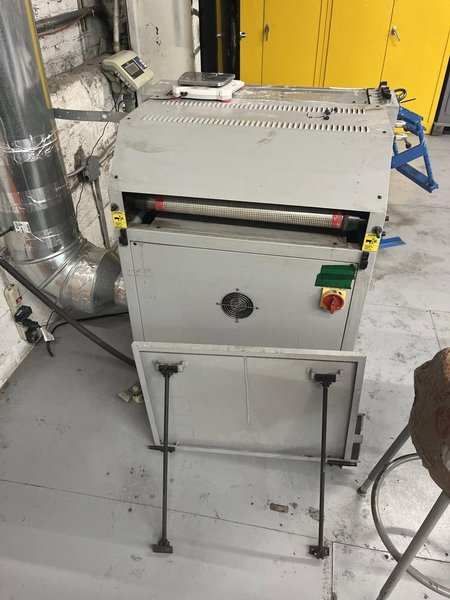

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Coater: – Coater has small footprint (3′ x 3′) – Recycles UV fluid to eliminate waste – IR lamp with adjustable intensity – Coats stock from 128-450 gsm – Max stock size: 20.75′′Wide (53 cm) * Length : Unlimited (standard tray holds up to 18′′(457mm) – Variable speed, up to 2700 sheets per hour – Coating capacity: 9 lb (4.1 k) buckets (5000+ sheets) – Amperage 30A breaker required Voltage 208-240V, 50/60Hz, 1 phase – Polished chrome metering and bottom rollers – Stainless steel doctor/wiper blade – Vacuum cooled UV lamp – Forward/Reverse controls for easy clean up – Easy set handles for pressure control

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Coater Dimensions: 29.25′′ x 35.25′′ x 34.25′′ (74x87x87 cm) – Coater Weight: 420 lbs ( 191 kg) – Coater Height when the machine is on casters is 39.5′′

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
