Twin 10 HP Powerex Rotary Vane Medical Air Compressor System w/ Baldor Super-E Motors

Brand
Model
PVI29T-A4AB
Stock #
302662
Year
1900
Condition
Not specified

Location

Not specified

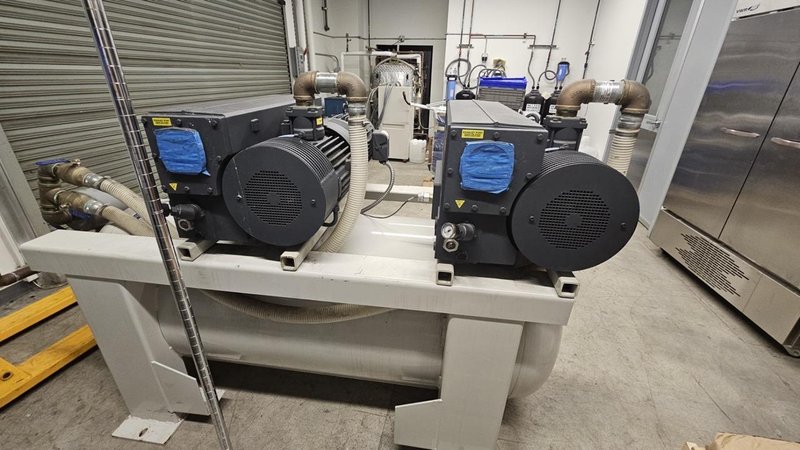

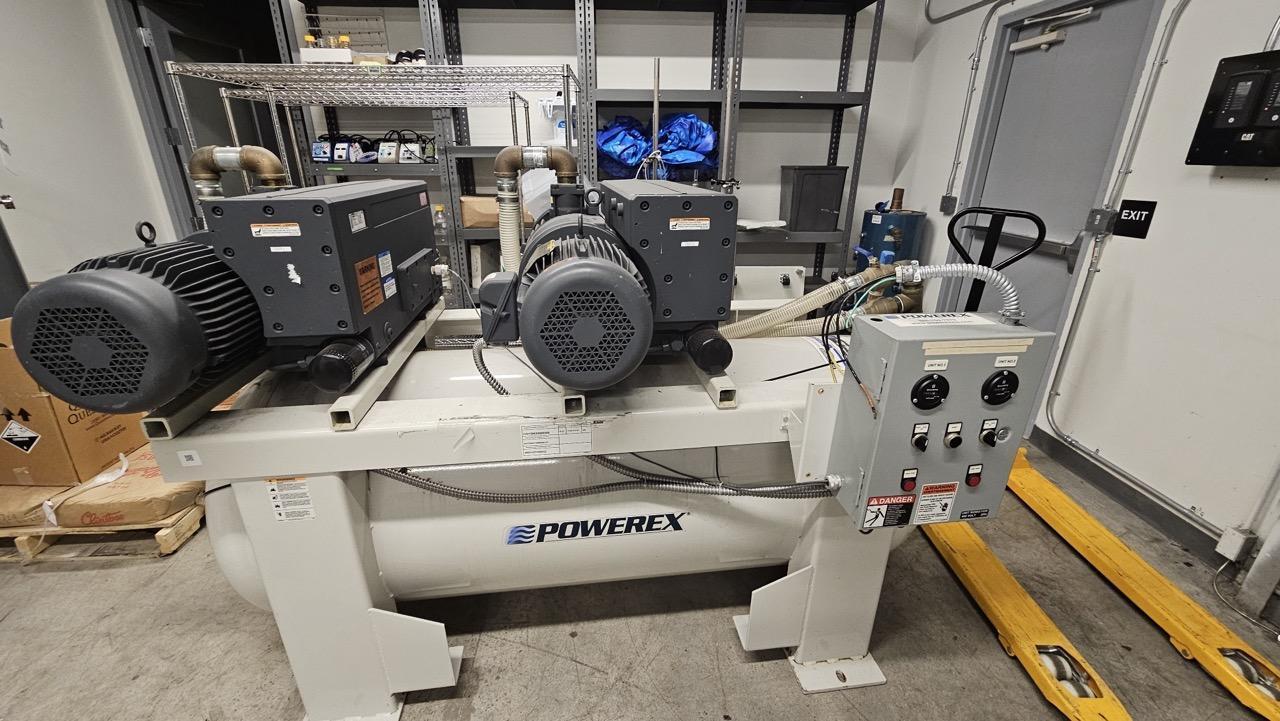

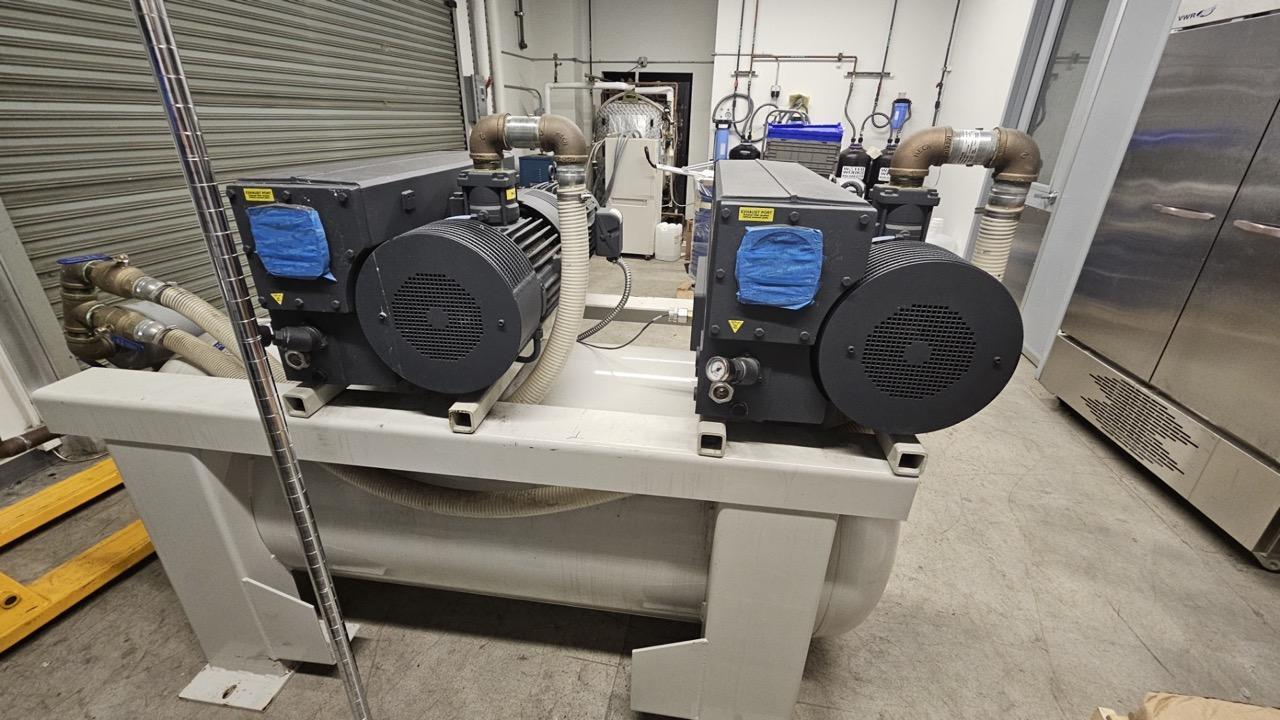

Equipment Overview This Powerex medical-grade air compressor system features a duplex setup with two 10 HP Baldor Super-E motors and rotary vane compressor heads mounted on a horizontal receiver tank. Designed for continuous, clean, oil-free air delivery, this setup is ideal for healthcare or laboratory environments. It includes a control panel and integrated safety systems.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Key Features and Specifications Motors: – Brand: Baldor Reliance Super-E – Model: 06249I8103 – HP: 10 HP each (Total: 20 HP) – RPM: 1760 – Voltage: 230/460 V – Amps: 26.2 / 13.1 A – Efficiency: 91.7% – Frame: 215TC – Enclosure: TEFC – NEMA Design: A – Class F insulation, IP54 protection Compressor System: – Configuration: Duplex (two pumps) – Tank Type: Horizontal air receiver – Tank Size: Estimated 120–240 gallons (exact size not labeled) – Pump Type: Oil-less rotary vane – Brand: Powerex – Panel Drawing: PVI-19T – Panel Voltage: 460V, 3-phase – Largest Motor FLA: 12.8 A – Total FLA: 27.6 A Control Panel: – Type 1 enclosure – Displays: Dual unit gauges – Power supply: 3-phase, 460V – Safety labels present – Manual toggle switches

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
