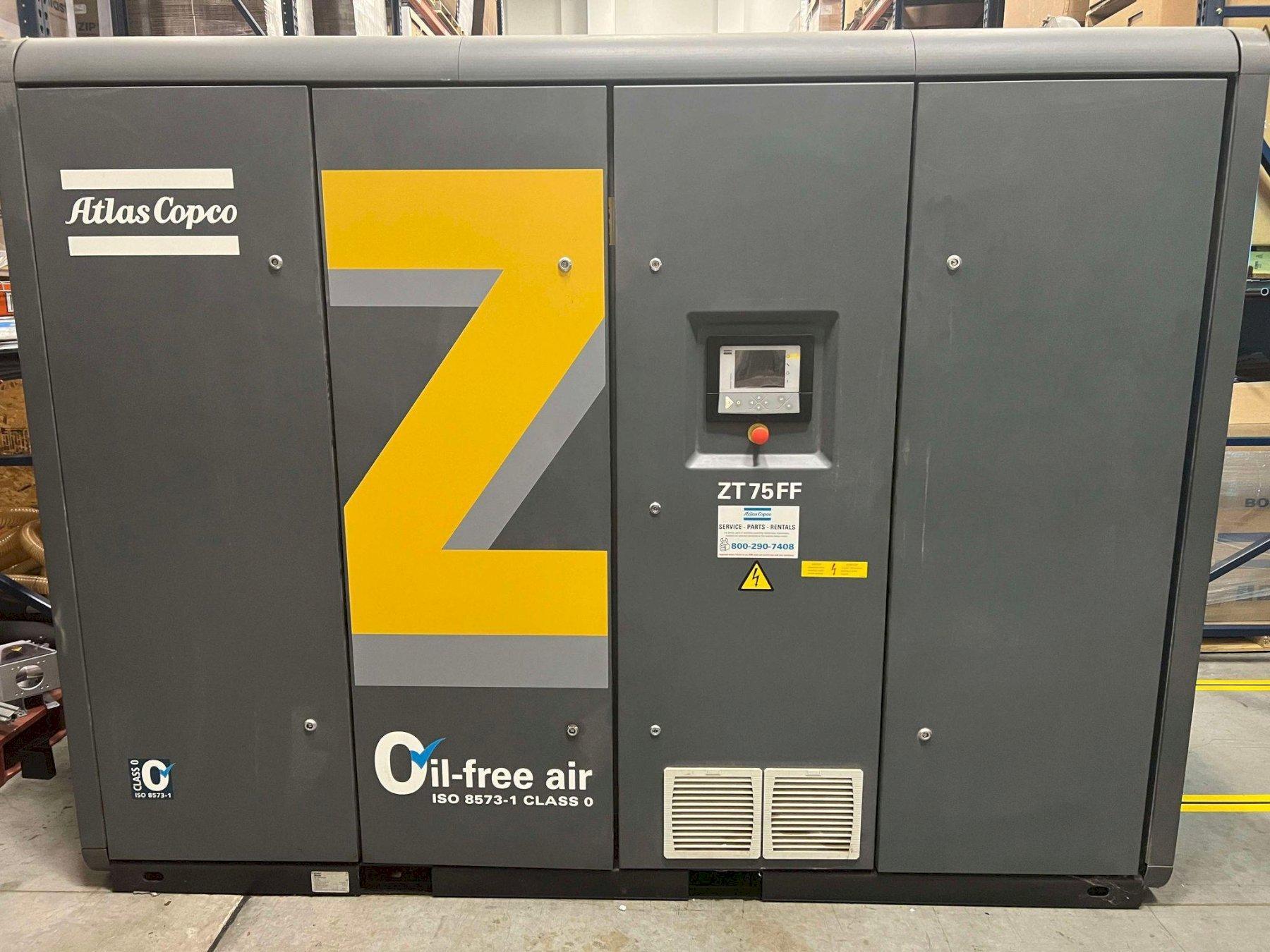

Atlas Copco ZT75FF 75 HP Oil-Free Screw Compressor – Integrated Dryer, Class 0, 2016 Model

Equipment Overview The Atlas Copco ZT75FF is a fixed-speed, oil-free rotary screw air compressor designed for continuous-duty, high-purity air applications. The FF (Full Feature) designation indicates an integrated air dryer for turnkey air quality compliance. Its 75 HP motor and 8.8 bar (127 psig) pressure rating provide reliable output for clean room, pharmaceutical, and food-grade operations.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Key Features and Specifications

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Compressor Type: Rotary screw, oil-free

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Drive Type: Direct-drive

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Power Rating: 55 kW / 75 HP motor, 400V / 3-phase operation

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Max. Working Pressure: 8.8 bar (127 psig)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Free Air Delivery (FAD): Approx. 250–270 cfm (dependent on conditions)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Air Quality Classification: ISO 8573-1 Class 0 (oil-free)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Integrated Dryer: Yes – FF version with refrigerated air dryer

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Cooling Type: Air-cooled (default for ZT series; confirm)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Rotational Shaft Speed: 3570 RPM

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Noise Level: ~69–72 dBA

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Control Panel: Elektronikon® graphical interface

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Safety: Overload protection, high-temp shutdown, emergency stop

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Weight: 2500 kg / 5511 lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Dimensions (est.): ~80″ W × 45″ D × 78″ H

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
