General System Features

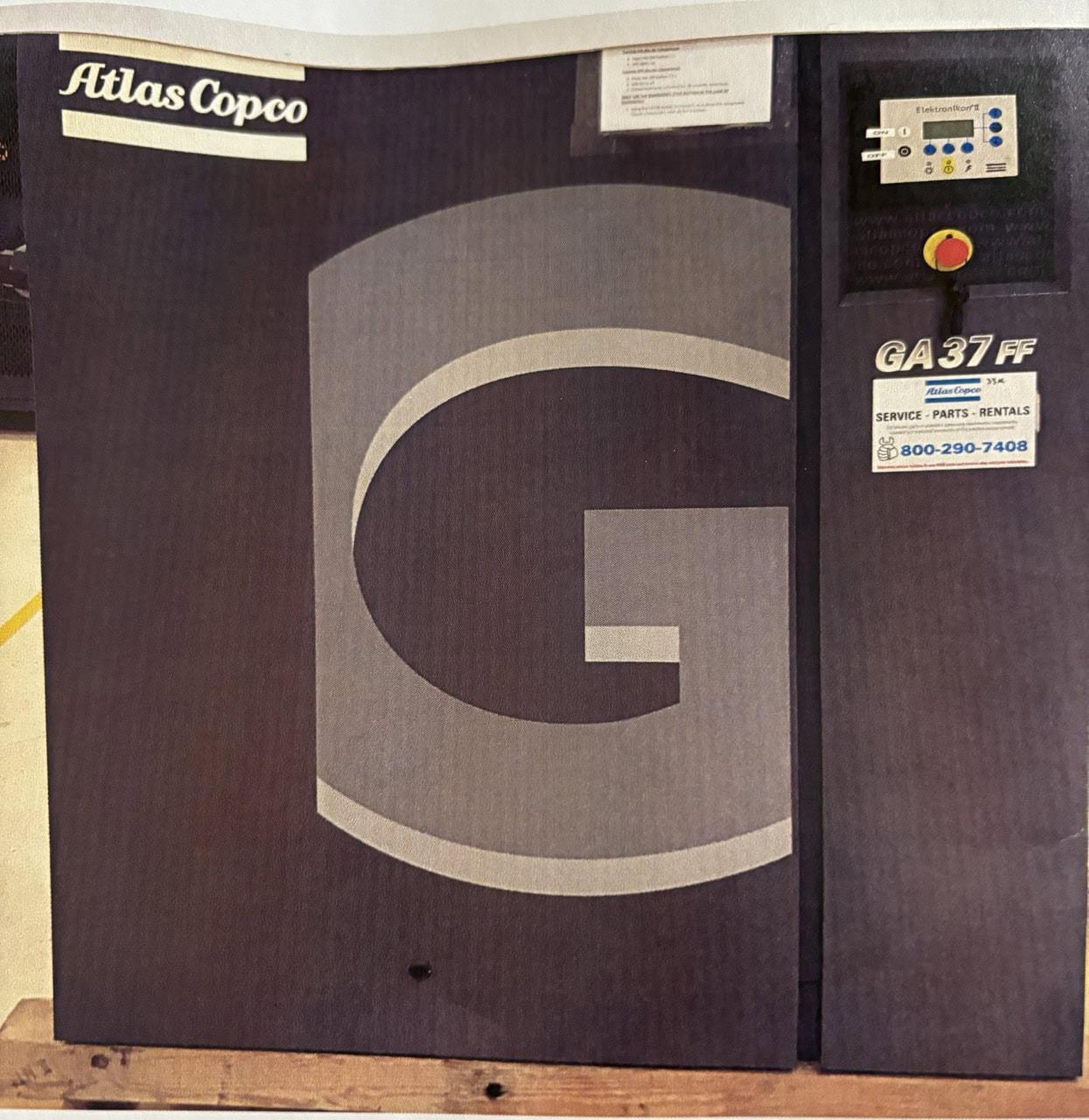

Compressor Type: Rotary Screw (Oil-Injected)
Configuration: Full-Feature (FF) – integrated refrigerated dryer
Cooling Method: Air-cooled (standard)
Drive Type: Direct drive (gear-driven), no belts
Controller: Elektronikon Graphic Mk5
Enclosure: Sound-attenuating, fully enclosed steel cabinet
Noise Level: ~67 dB(A)
Ambient Temp Range: 0°C to +45°C (32°F to 113°F)

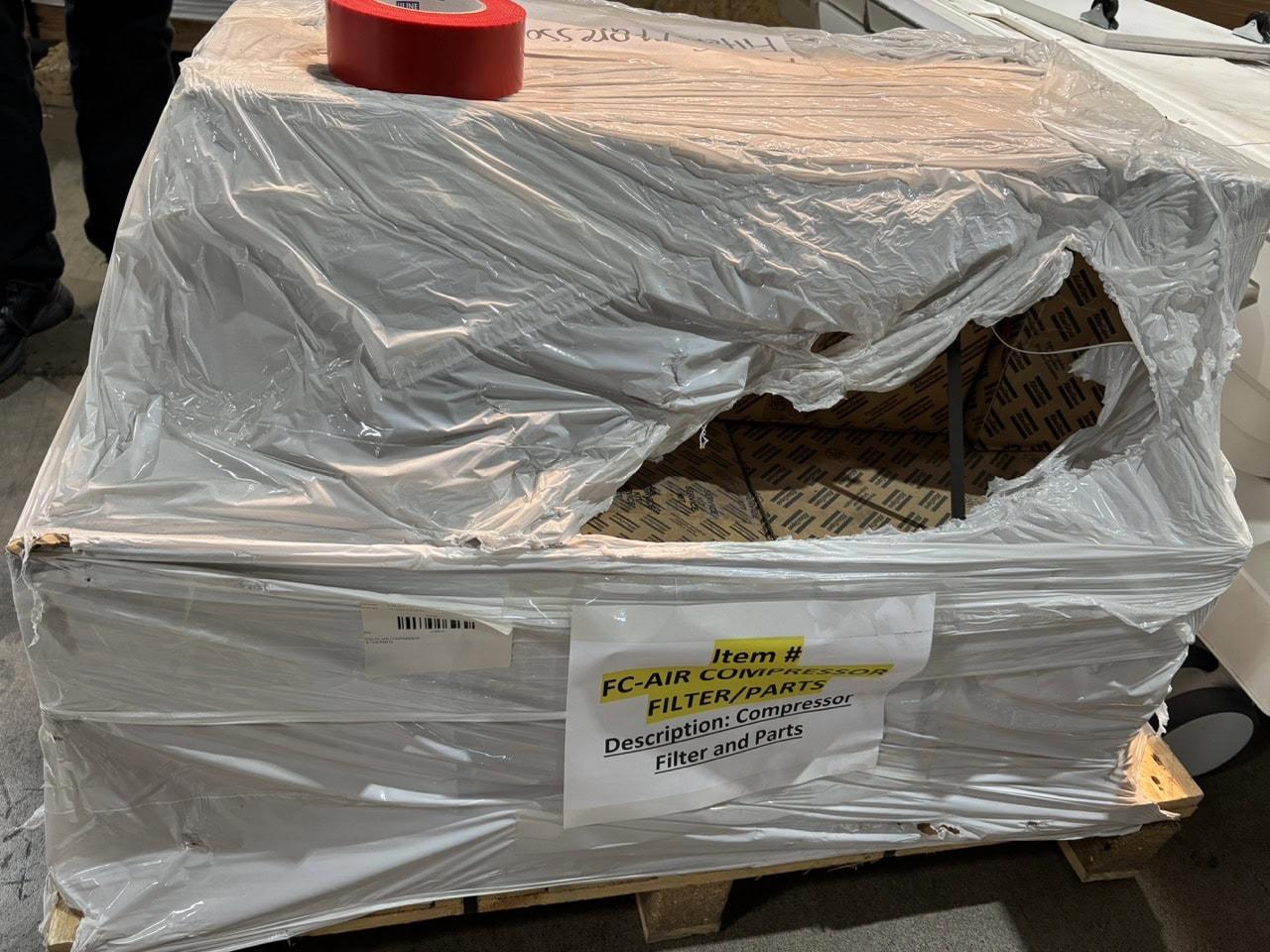

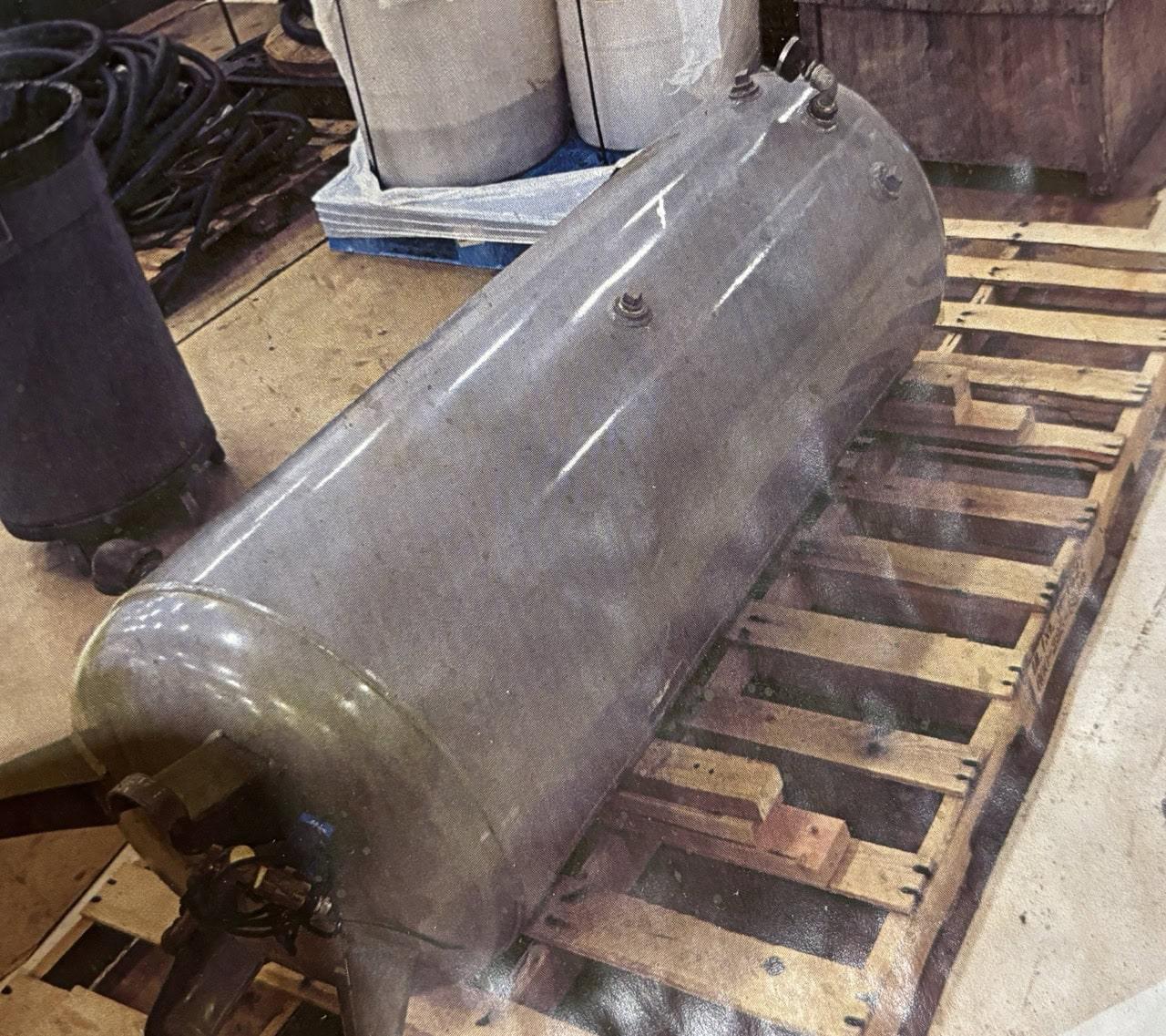

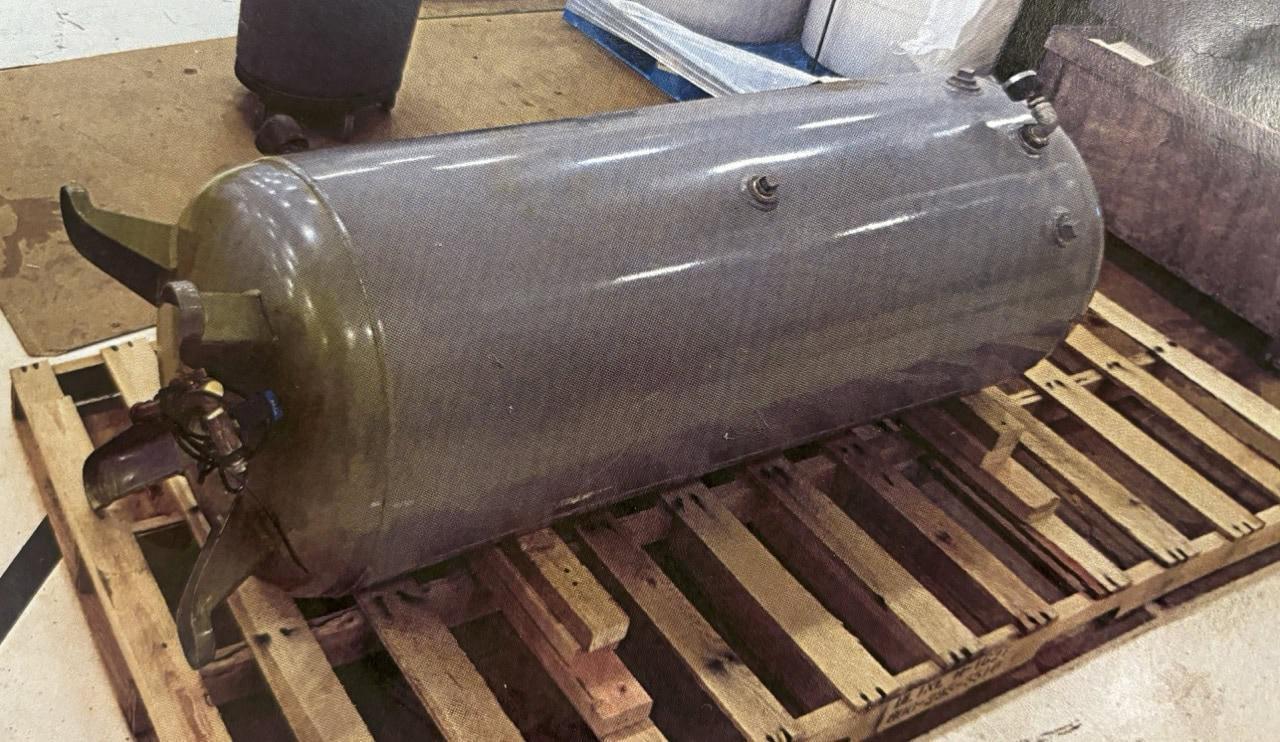

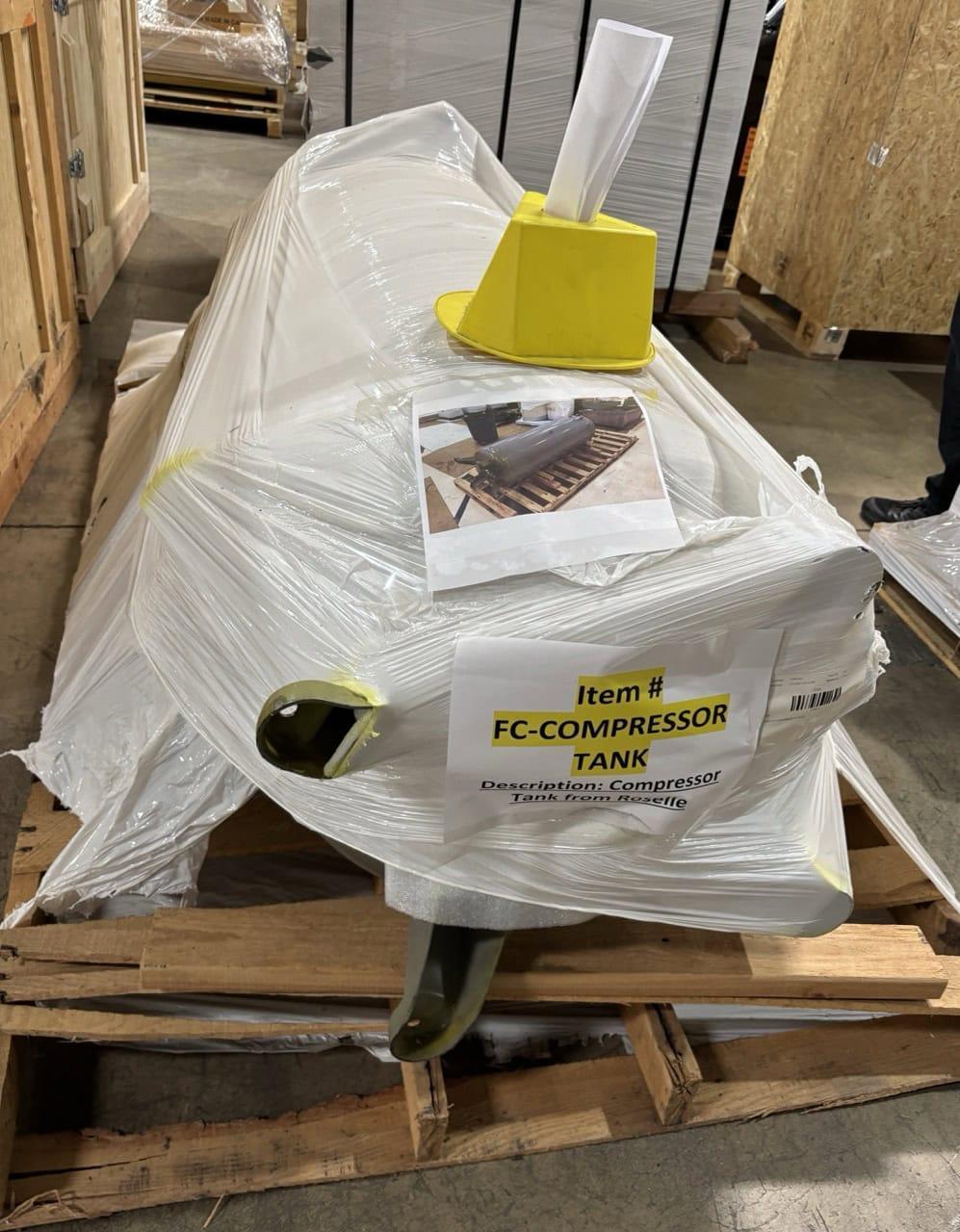

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Performance Specifications Motor Power: 50 HP / 37 kW Rated Pressure: 7.2 bar / 104 psi Max Pressure Range: 7.5 – 13 bar (unit is 7.2 bar rated) Free Air Delivery (FAD): 233.1 CFM / 6.6 m³/min @ 104 psi Flow verified per ISO 1217 Annex C Motor Speed: 3550 RPM (fixed speed) Thermal Protection: Yes – integrated into Elektronikon controller All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Physical Specifications Dimensions (Compressor): Approx. 72″ L x 36″ W x 60″ H Weight: 842 kg / 1856 lbs Base Frame: Skid-mounted, forklift accessible All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Receiver Tank: Orientation: Horizontal Est. Capacity: 120 gallons Mount: Welded feet with pallet base Material: Steel, with OEM ports and valve fittings Parts Pallet: Sealed OEM filters and accessories for GA37 All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Integrated Dryer (FF Model) Dryer Type: Refrigerant cycle dryer Function: Removes moisture downstream of compressor Dew Point Control: ~+3°C (37°F) standard Drain System: Electronic Water Drain (EWD) standard Power Source: Shares power/control with GA unit Protection: Thermal switch and pressure sensor interlock All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Control System Elektronikon Controller Graphic LCD display Maintenance alerts Real-time pressure, load status, and fault diagnostics Optional remote control / SMARTLINK integration Password protection and configurable service intervals All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
