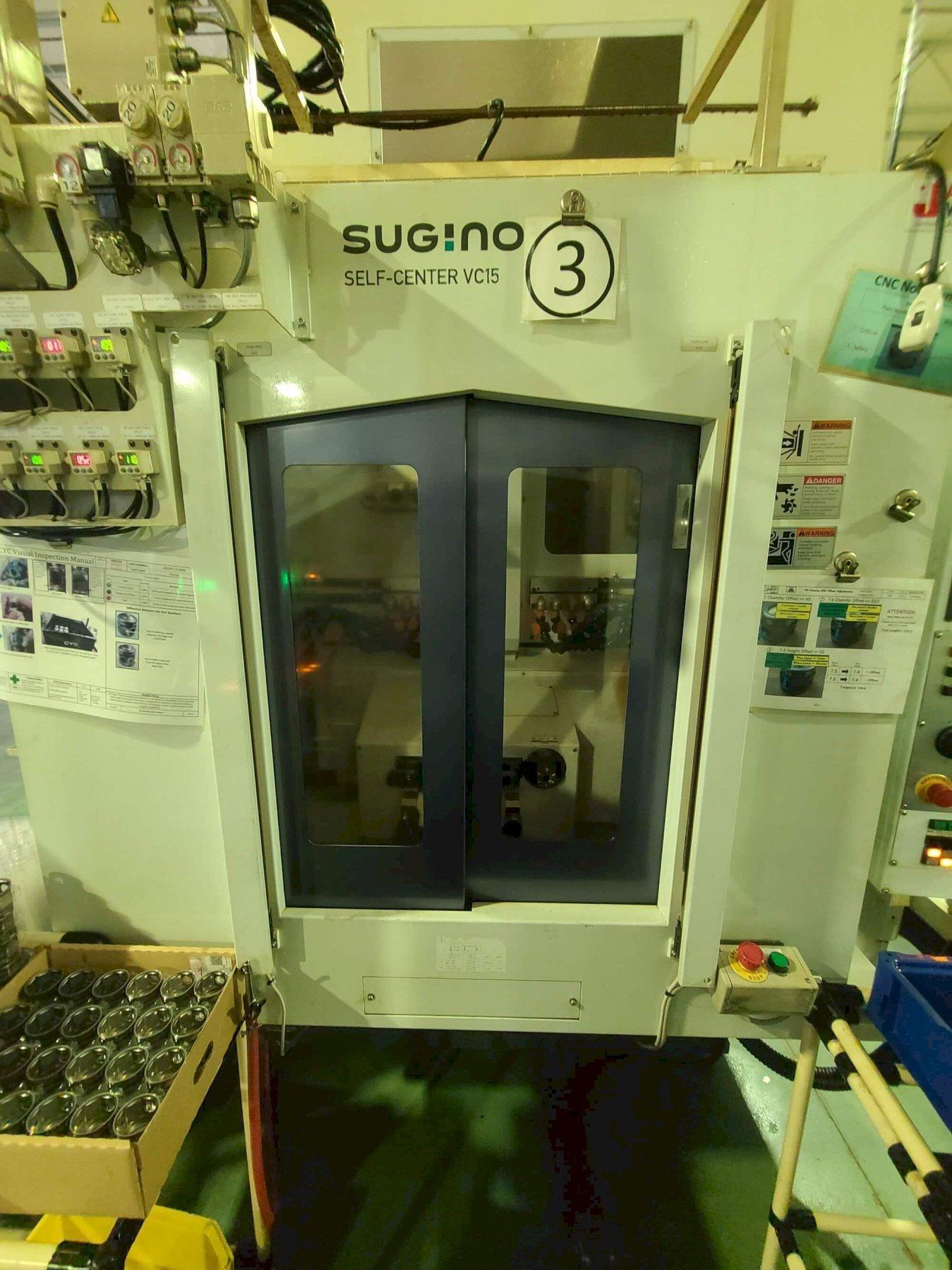

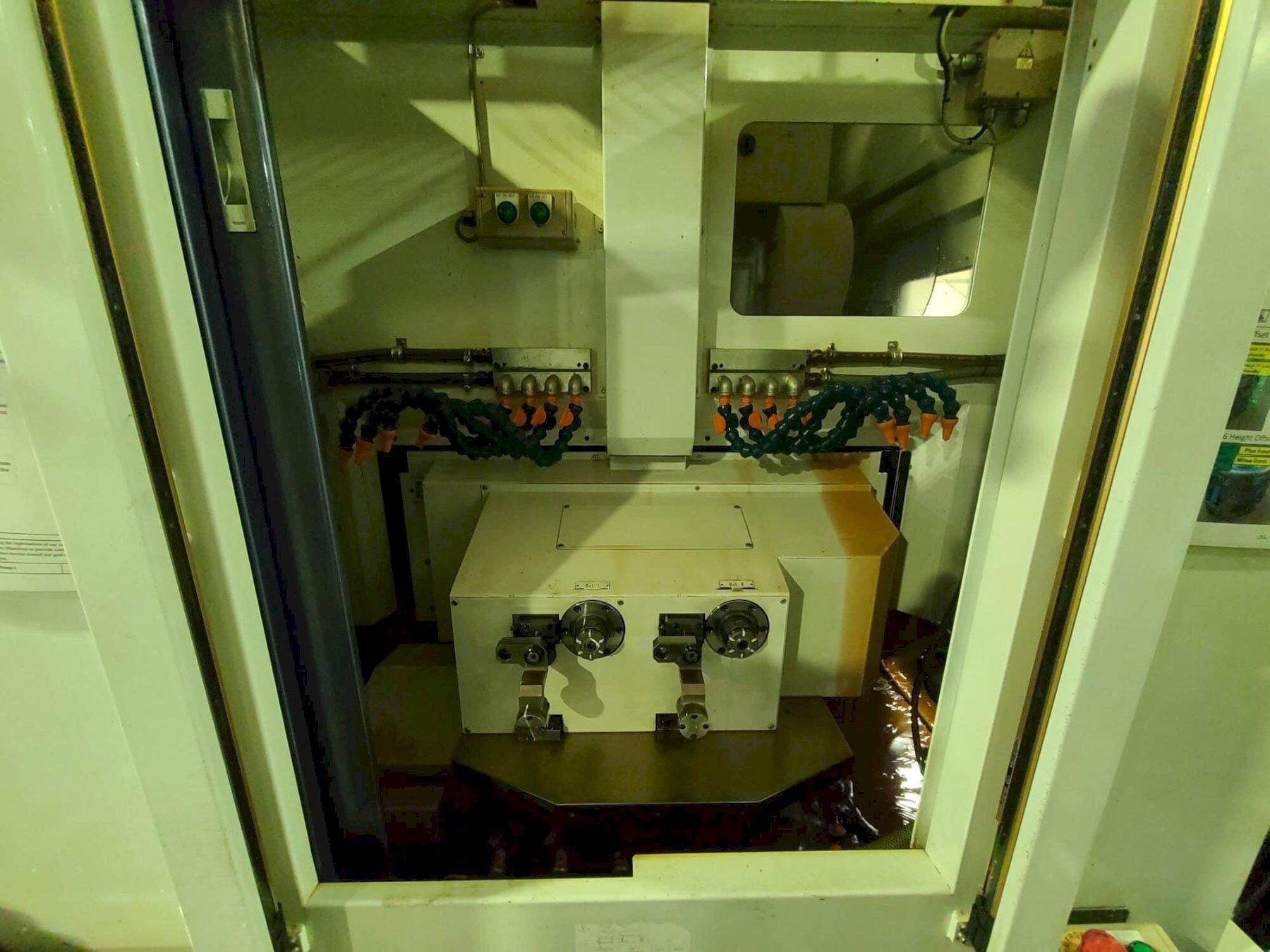

Sugino Self Center VC15 VMC, 2017 – Dual-Workholding, Synchronous Machining, Rigid Tap, 12k Spindle

X Axis: 15.7 Y Axis: 12.6″ Z Axis: 12.4″ Table Size: 27.6″ × 15.7″ Spindle Motor Power: 2.9 HP Continuous, 5 HP 15-Minute Maximum Spindle Speed: 12,000 RPM Tool Capacity: 15 Max Tool Size: 2.36″ × 7.87″ Max Tool Weight: 4.4 Lbs (7.7 Lbs With Low Speed ATC) Tool Change Time: 1.0 Second Rapid Feed X And Y: 945 IPM Rapid Feed Z: 1,575 IPM Cutting Feed Rate: 394 IPM Positioning Accuracy: 0.00016″ Repeatability: ±0.00004″ Machine Width: 68.7″ Machine Length: 118.1″ Machine Height: 113.4″ Machine Weight: 9,920 Lbs Power Capacity: 18 kVA Air Pressure: 58–87 PSI Air Consumption: 3.5 CFM Noise Level: 75 dB(A) Or Less

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

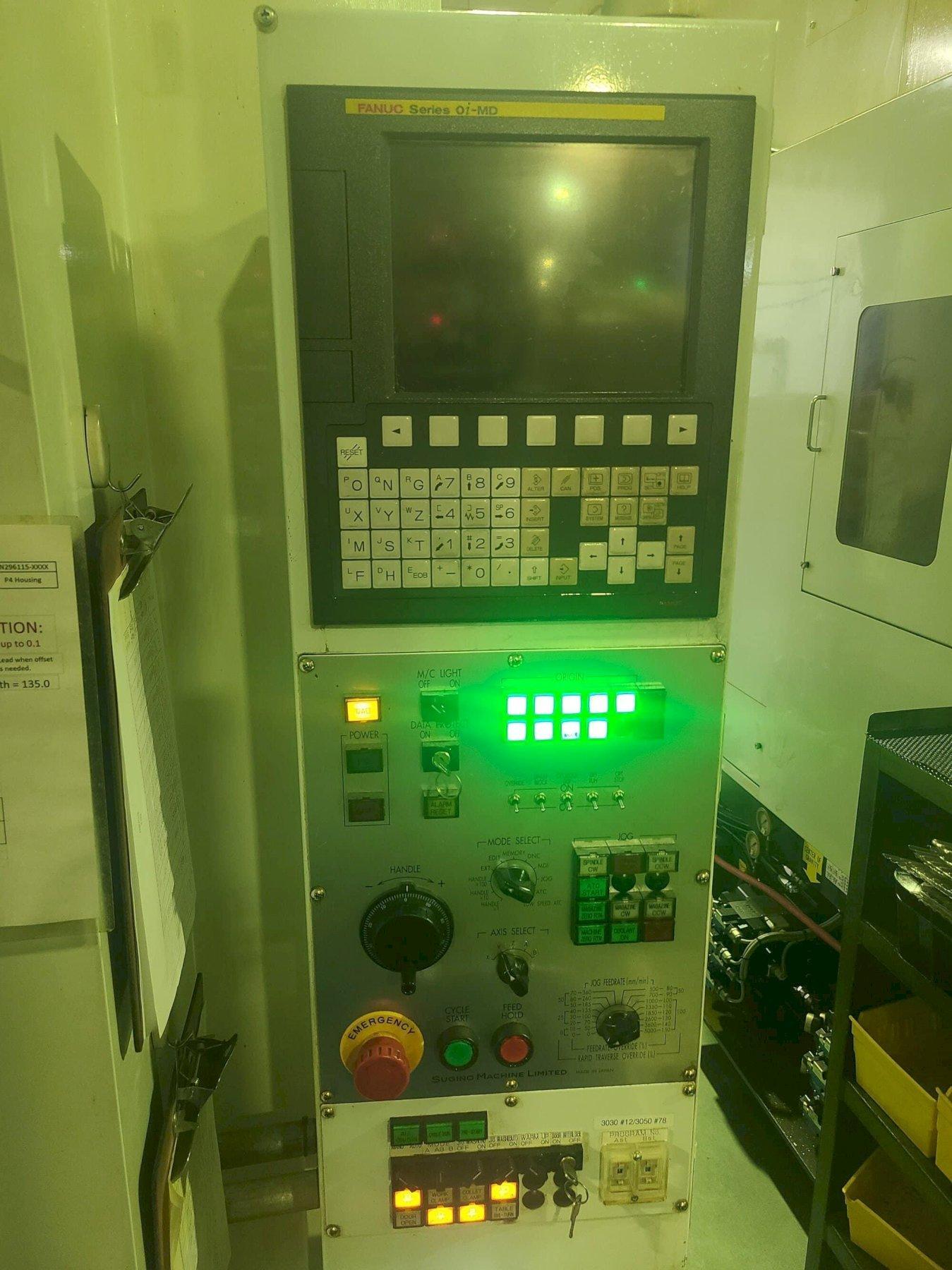

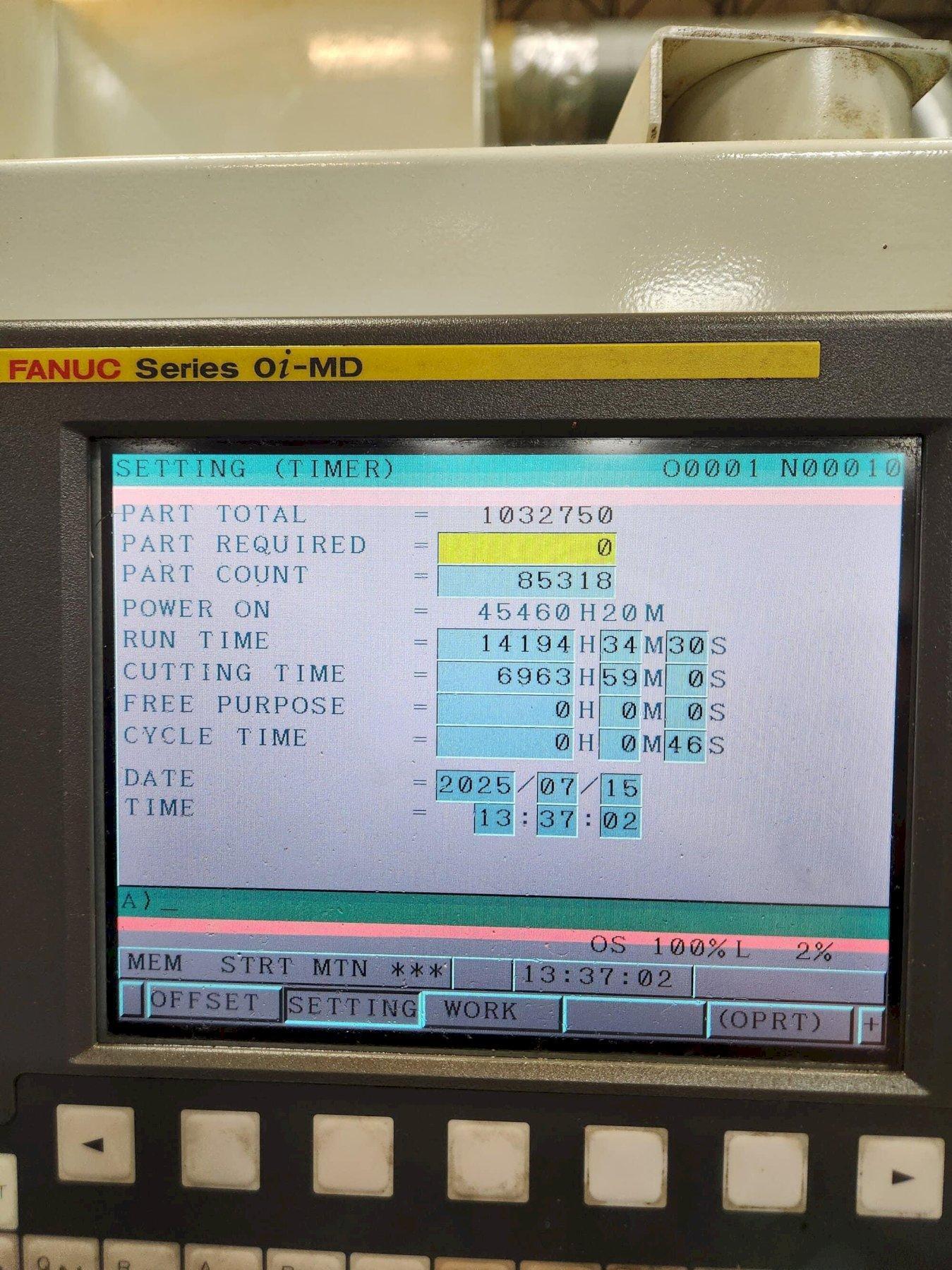

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,-English Operation Panel -Full Size Splash Guard With Auto Door, Ceiling, Slide Door Right To Left, Mist Collector, Light Curtain SF4BH48V2 -52.8 Gallon Coolant Tank With Two 1 HP Pumps, Base Cleaning Piping, Splash Gun, Chip Tray -Additional Chip Tray With 0.5 HP Pump And Cleaning Piping -Chip Conveyor Installed Inside Right Splash Guard -Auto Lubrication For Ball Screw And Linear Guides -DUL Electrical Standard (Breaker, Wire, Electromagnetic Switch, Circuit Protectors) -Toyooki TP40NA-C3-D Hydraulic Unit -Fanuc 0i-MD CNC Control

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
