MITSUI #MSG-200 6 x 12” Precision Surface Grinder 1998’ #7693

MITSUI #MSG-200 6 x 12” Precision Surface Grinder 1998’ #7693

Name: MITSUI #MSG-200 6 x 12” Precision Surface Grinder 1998’ #7693
Brand: MITSUI
SKU: 7693
Availability: PreOrder

Brand

MITSUI

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Overview

Type:

Grinder

Manufacturer:

MITSUI

Model:

MSG-200ML

Year:

1998

Stock #:

7693

Status:

For Sale

Description

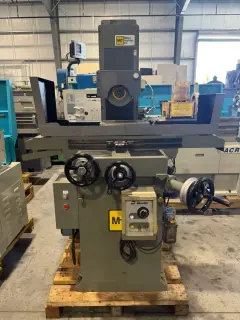

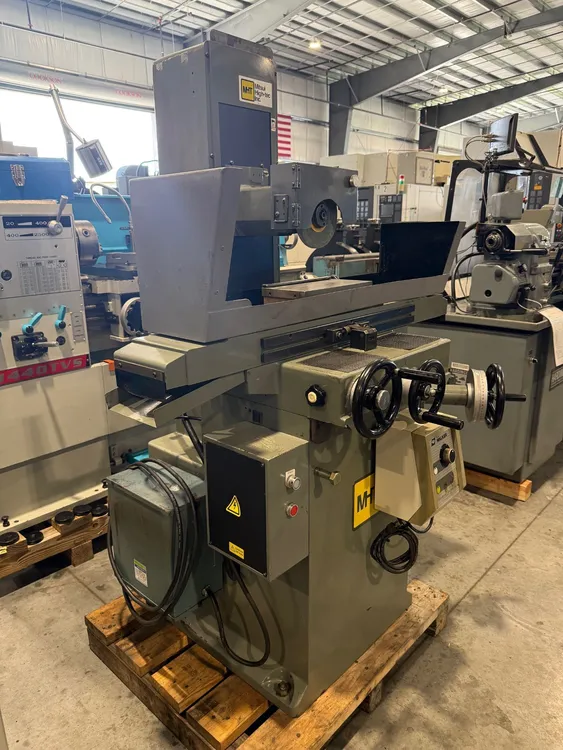

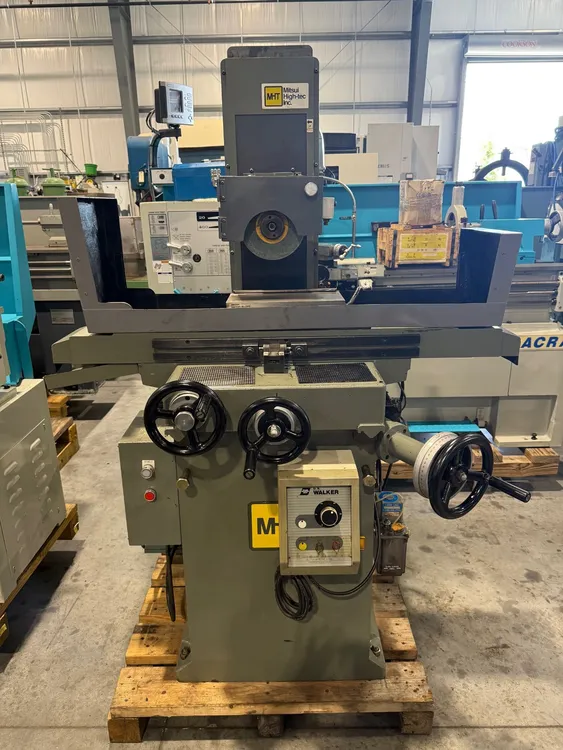

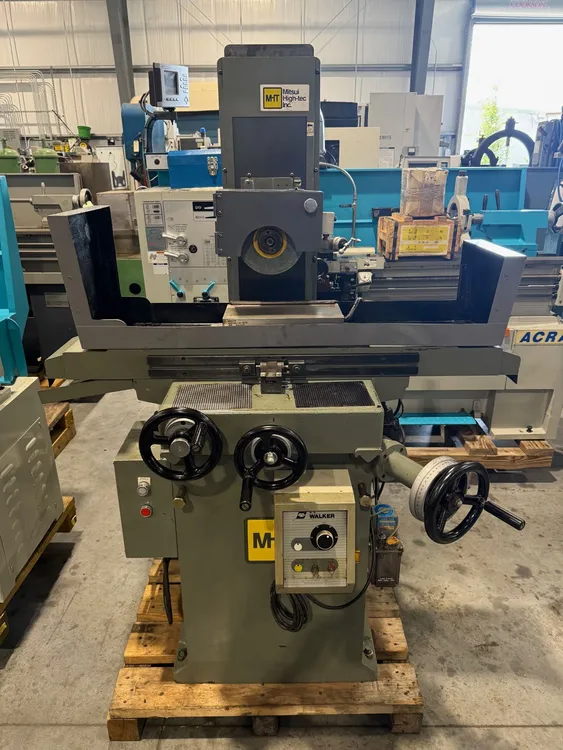

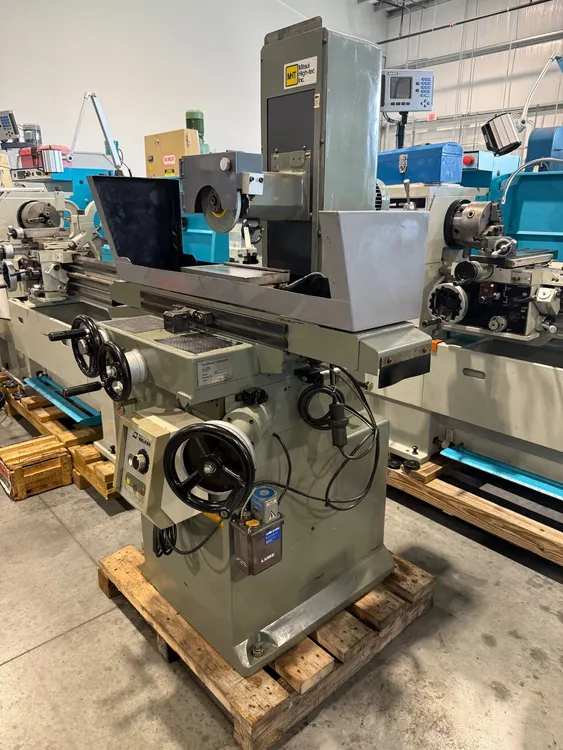

MITSUI #MSG-200 6 x 12” Precision Surface Grinder 1998’ #7693

MITSUI #MSG-200 6 x 12” Precision Surface Grinder 1998’ #7693
Reference #7693

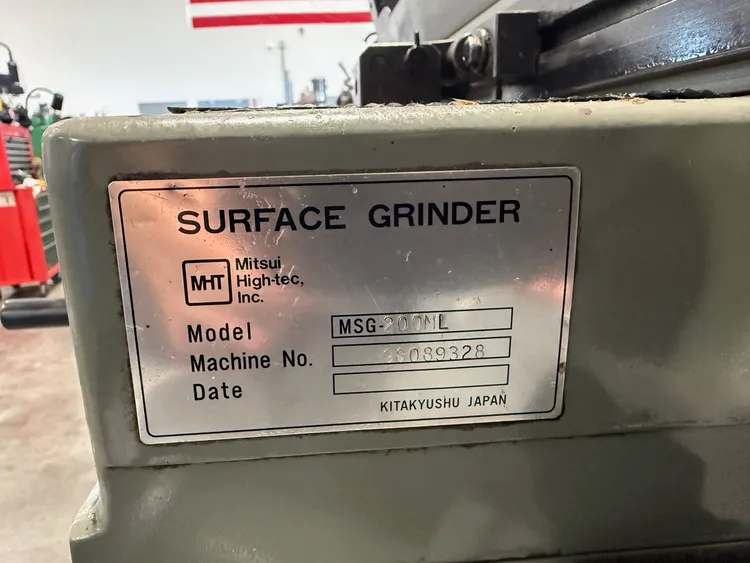

Model # MSG-200ML
Serial # 98089328
Year of manufacture- 1998’
Maximum surface ground- 6” x 12”
Maximum distance, table surface to spindle center- 18”
Maximum distance, top of chuck to underside of 8" diameter wheel- 11”
Range: longitudinal- 15”
Cross- 8”
Size of standard grinding wheel- 7" diameter x 1/2" face x 1-1/4" hole
Size of maximum grinding wheel- 8" diameter x 3/4" face x 1-1/4"hole

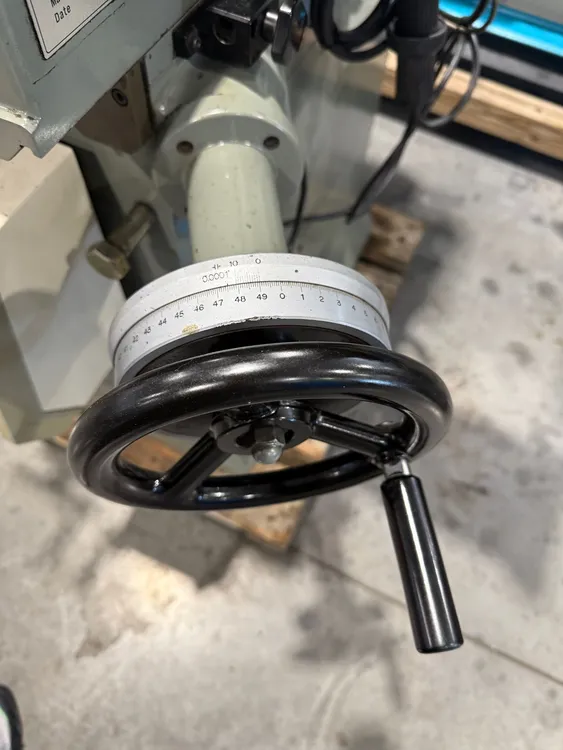

Elevating handwheel graduations- .0001"
Vertical feed per revolution of handwheel- 0.0500"
Cross feed handwheel graduations- .001"
Cross feed per revolution of handwheel- 0.100"

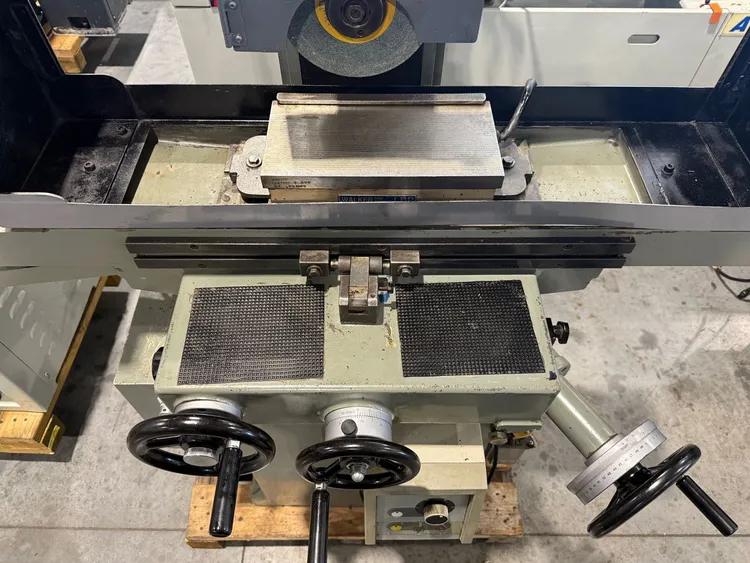

Hardened and ground removable ways on table, saddle, and column
All three axes traveling on roller bearing slides

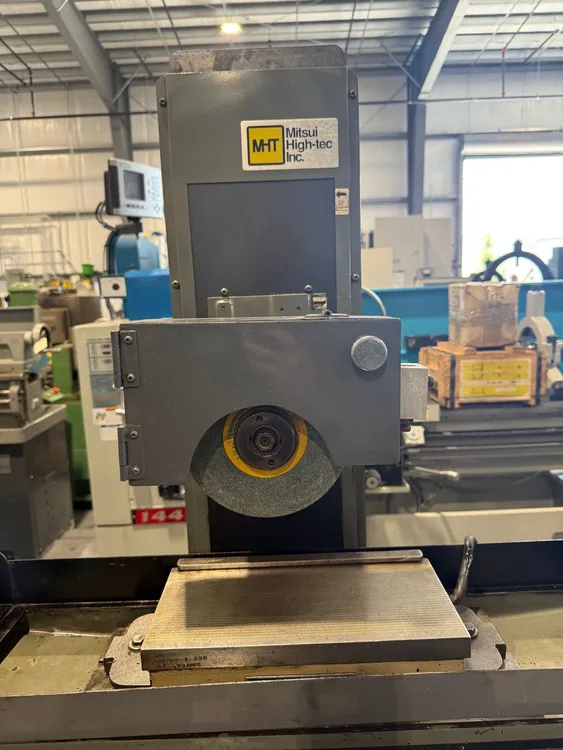

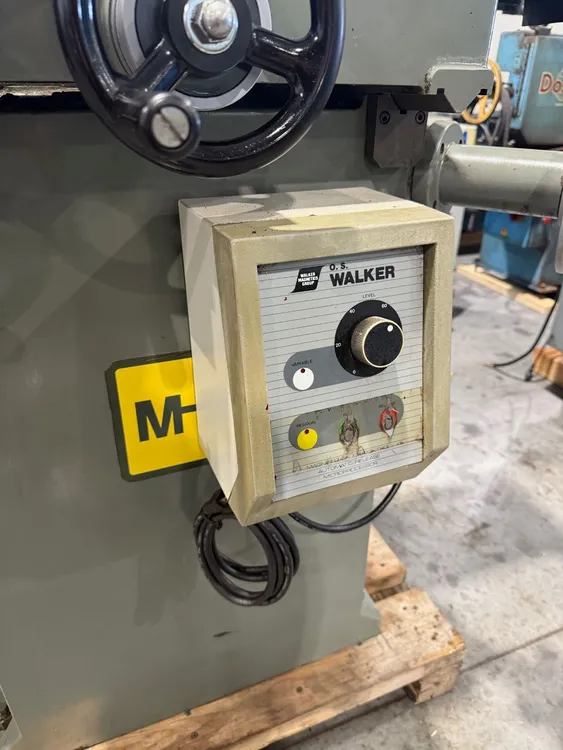

6" x 12" OS WALKER FINE Pole Electromagnetic Chuck & Rectifier

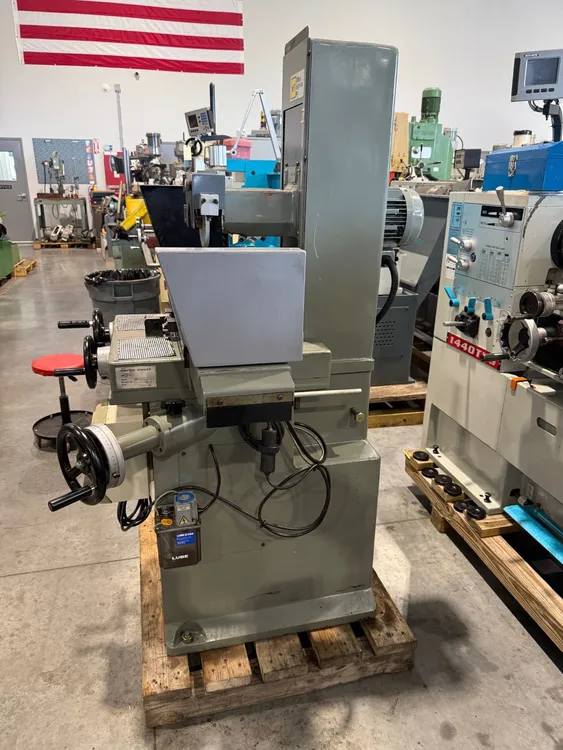

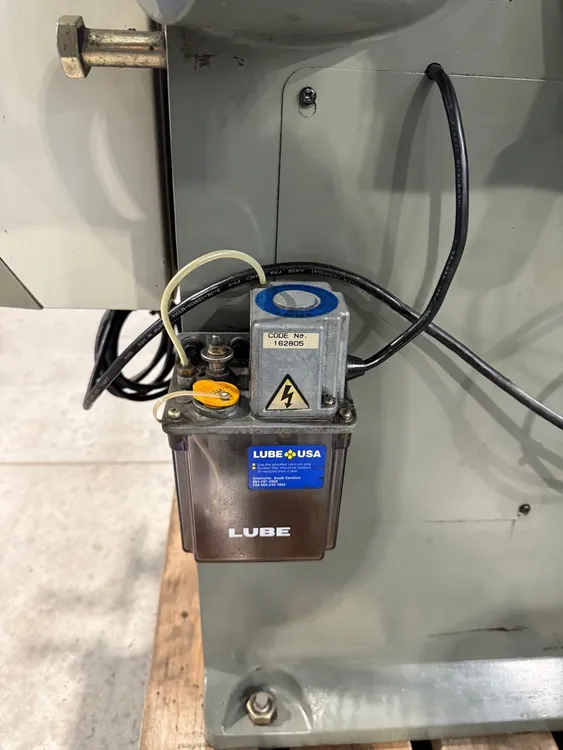

LUBE one-shot lubrication system

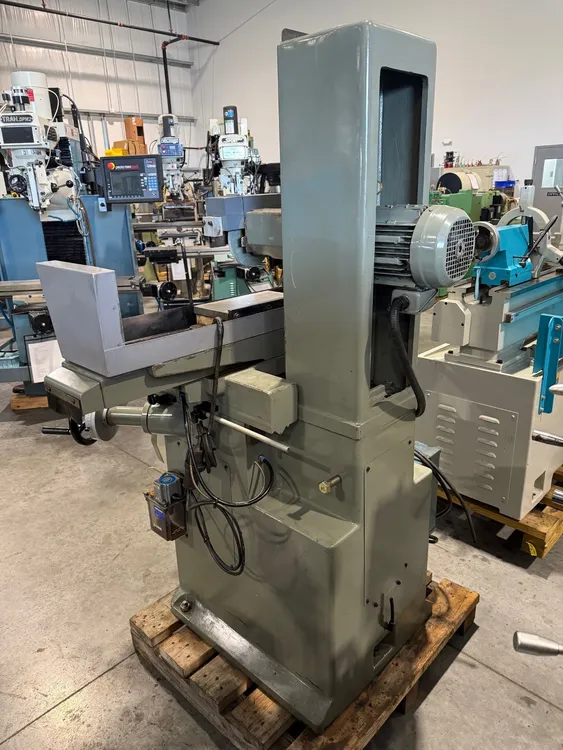

1.3 H.P. 3/60/220 volt cartridge-type spindle drive motor and electrical controls
Machine weight- 1,500 Lbs.
Machine dimensions- 58” x 52” W x 72’’ H
Machine location- F.O.B. Sarasota, Florida
