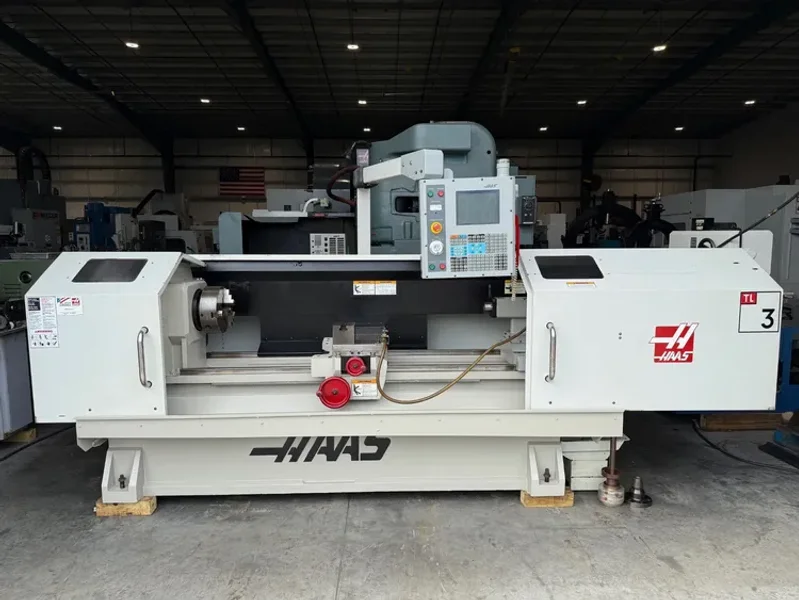

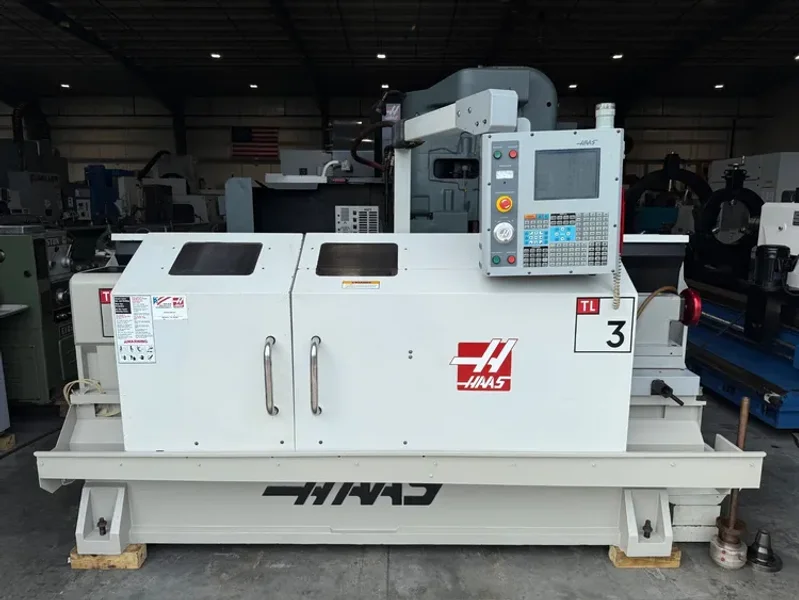

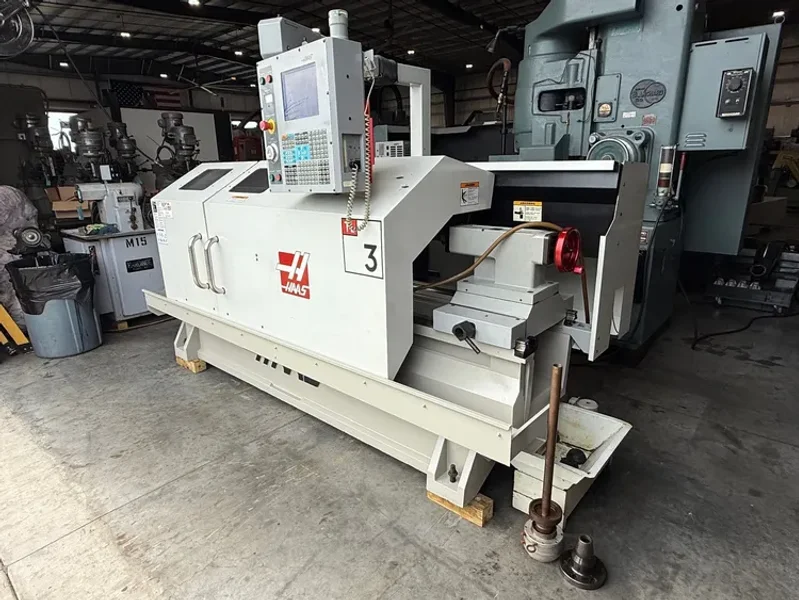

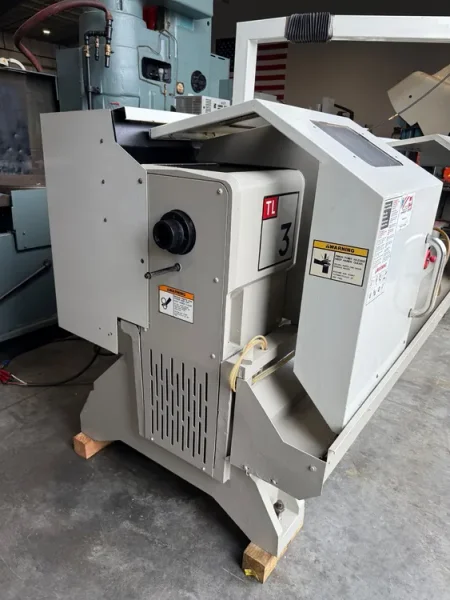

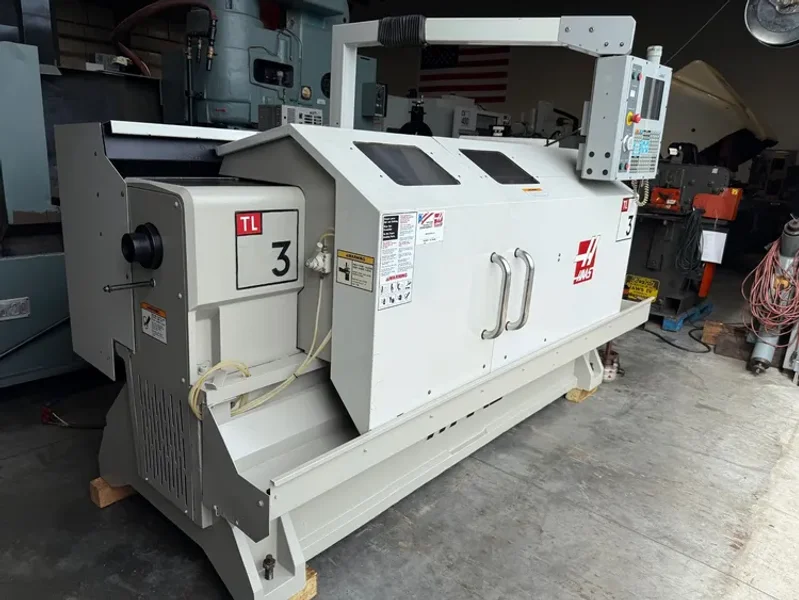

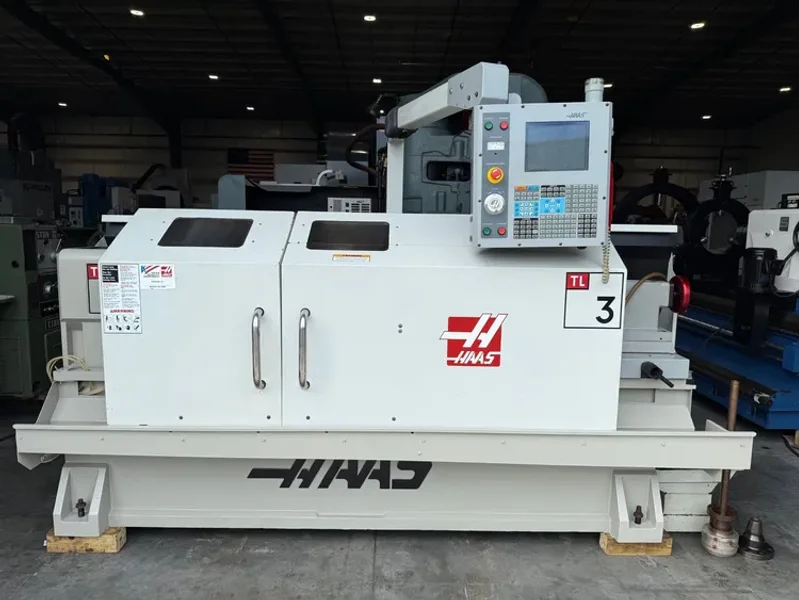

HAAS TL-3 CNC Toolroom Teach Style Lathe 2006’ USA #7698

HAAS TL-3 CNC Toolroom Teach Style Lathe 2006’ USA #7698

Name: HAAS TL-3 CNC Toolroom Teach Style Lathe 2006’ USA #7698
Brand: HAAS
SKU: 7698
Availability: PreOrder

Brand

HAAS

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Overview

Type:

CNC Lathes

Manufacturer:

HAAS

Model:

TL-3

Year:

2006

Stock #:

7698

Status:

For Sale

Description

HAAS TL-3 CNC Toolroom Teach Style Lathe 2006’ USA #7698

ImperialMetric

Swing	20"	508 mm
Machining Length	60"	1,524 mm
Chuck Size	12"	304.8 mm
Power	18 hp	13.4 kW
Max RPM	1,800 RPM	1,800 RPM
Turning Dia	20"	508 mm
Tailstock	No	No
Dimensions	118” x 69” W x 83” H	118” x 69” W x 83” H
Weight	8500 Lbs.	8500 Lbs.

HAAS TL-3 CNC Toolroom Teach Style Lathe 2006’ USA #7698
Reference # 7698
Model # TL-3
Serial # 73723
Year of manufacture- 7/2006’
Maximum swing- 20”
Swing over cross slide- 13”
Maximum cutting diameter- 16”
Maximum cutting length- 60”
Distance between centers- 60”
X axis travel- 12”
Z axis travel- 60”
Rapids on X axis- 450 I.P.M.
Rapids on Z axis- 450 I.P.M.
Spindle nose- A2-6
Max spindle speed- 1800 R.P.M.
Spindle bore- 3.5”

HAAS CNC control
Control options- Rigid Tapping, DNC, M19 Spindle Orient, Quick Code, Brushless Barfeeder Interface, Intuitive Programming Systems

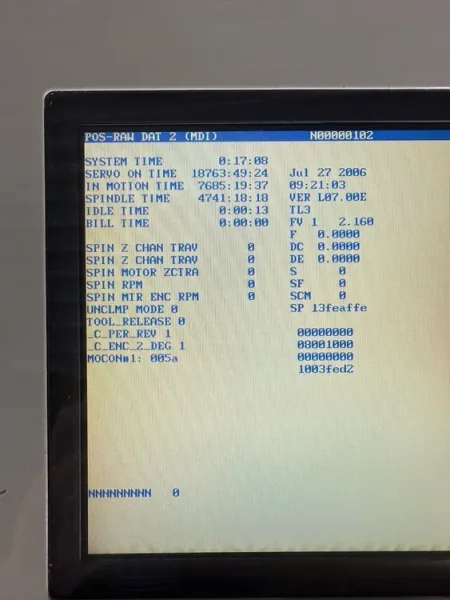

Machine hours- Servo time- 18,763 In motion time- 7,685, Spindle time- 4,741

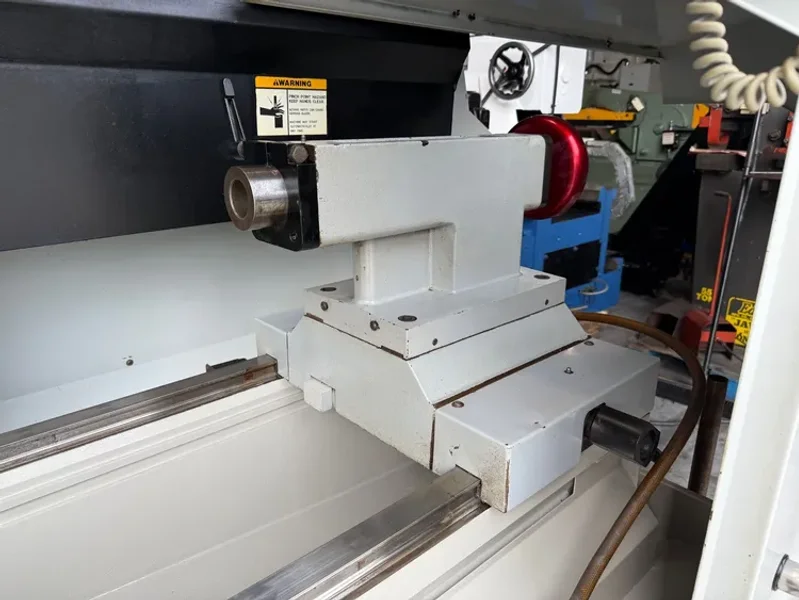

Tailstock

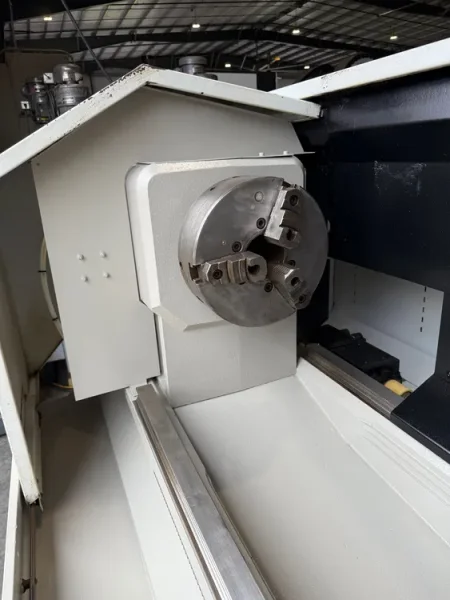

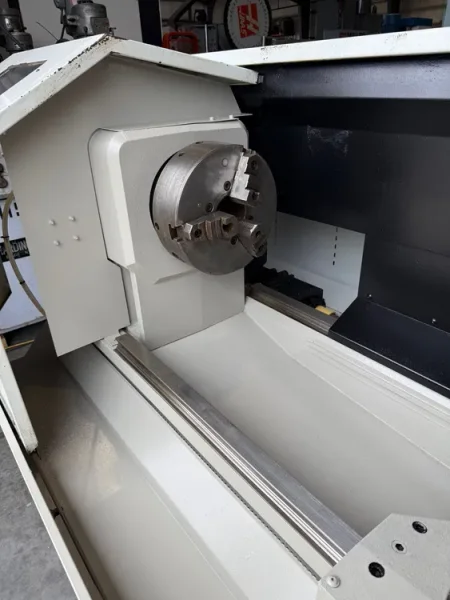

12” BTC 3 Jaw Chuck “Adjust-Tru” Type
5-C Collet chuck & Pneumatic draw tube

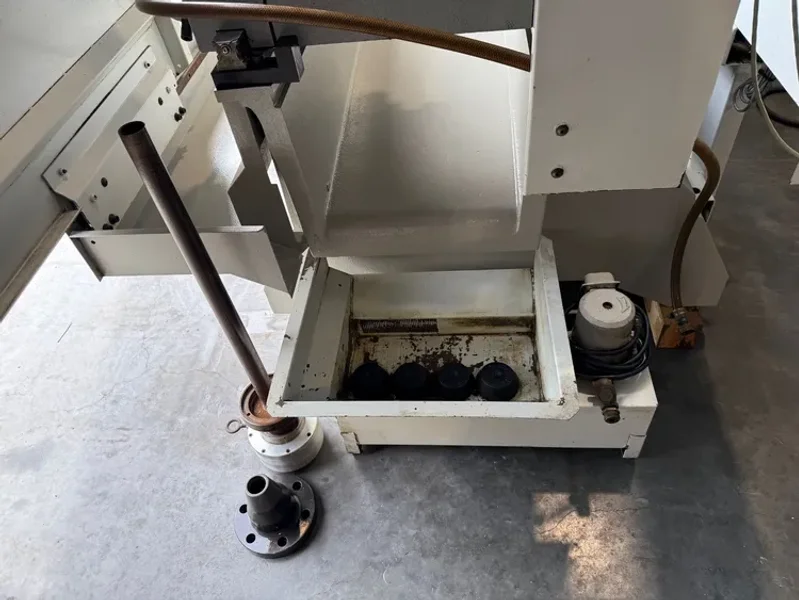

Coolant tank & pump
Chuck wrench
Main spindle motor 18 H.P.
Machine is wired for 208/230 volt / 3 phase / 60 H.Z.
Machine weight- 8500 Lbs.
Machine dimensions- 118” x 69” W x 83” H
Machine location- F.O.B. Sarasota, Florida
