CWP Complete Coil Feed Line 20,000 Lbs. x 24" Wide x .187"

Stock thickness range: .021" - .187"

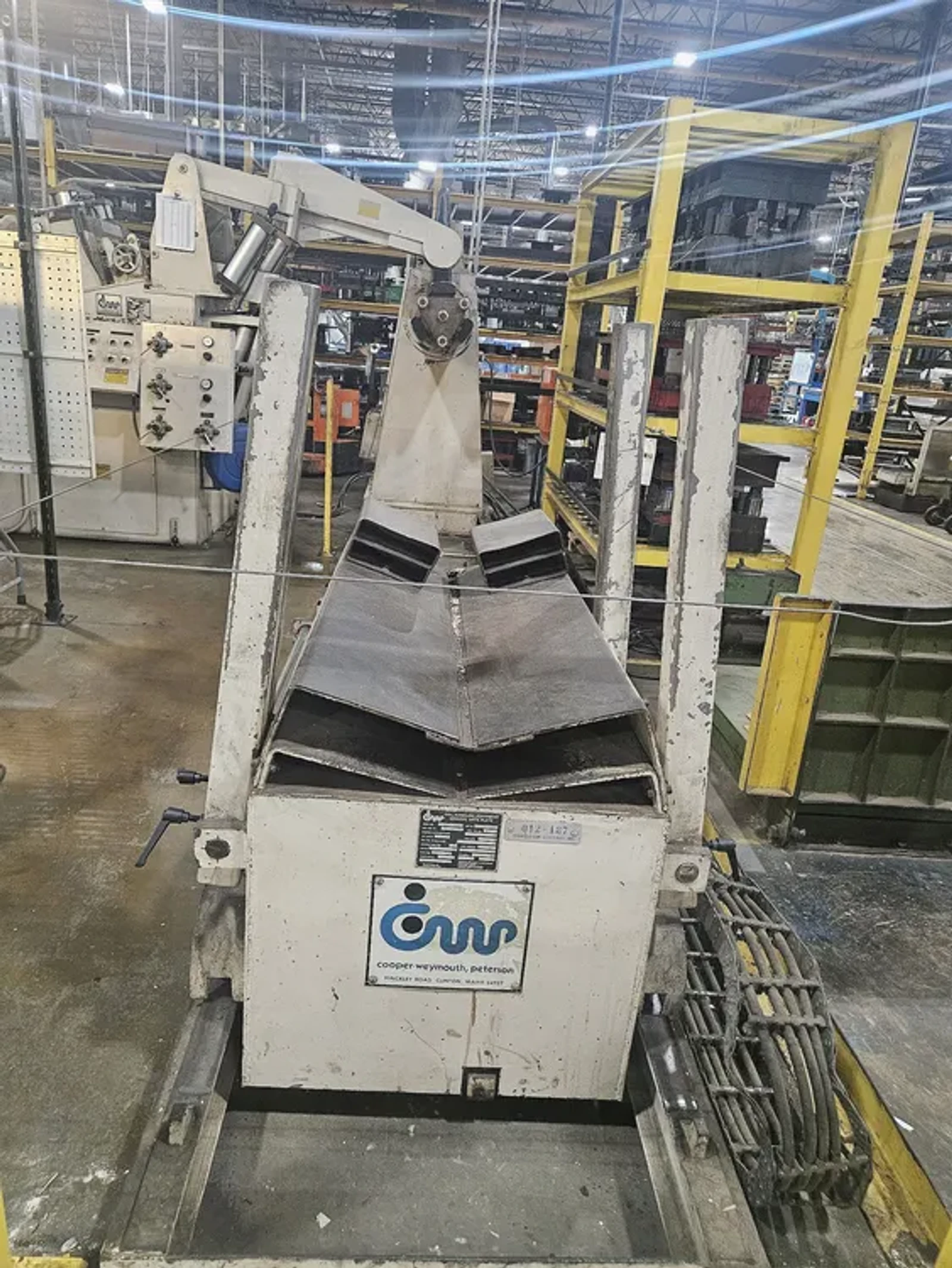

CWP Coil Reel Model 6R-24 with Coil Car Model 20042 CLC

Three Leaf Mandrel
Hydraulic Expansion
Coil Keeper Arms
Air Brake with Adjustable Tensioning
Thread Drive for Jog Forward and Reverse
Traveling Coil Car
Powered Lift and Travel

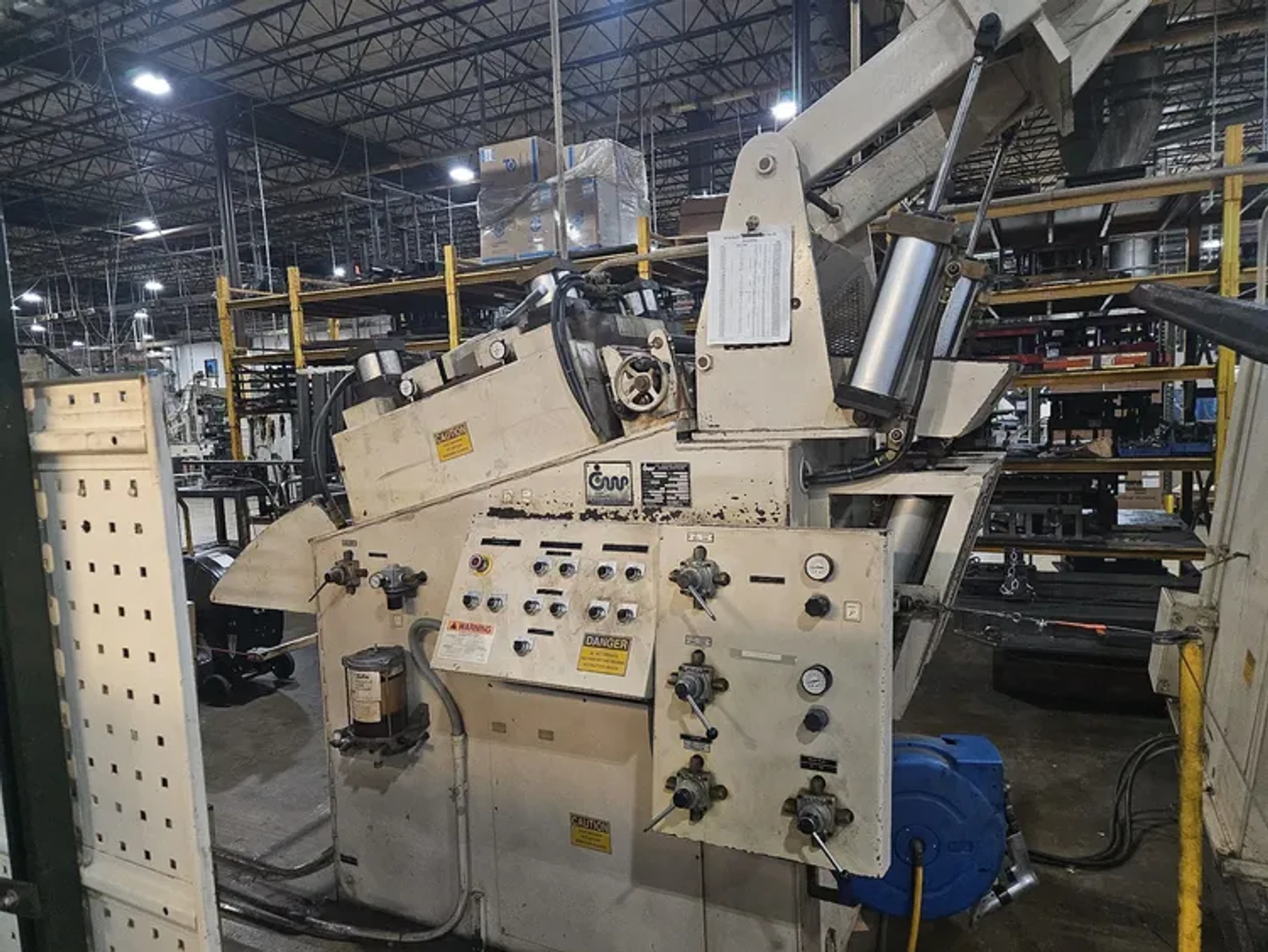

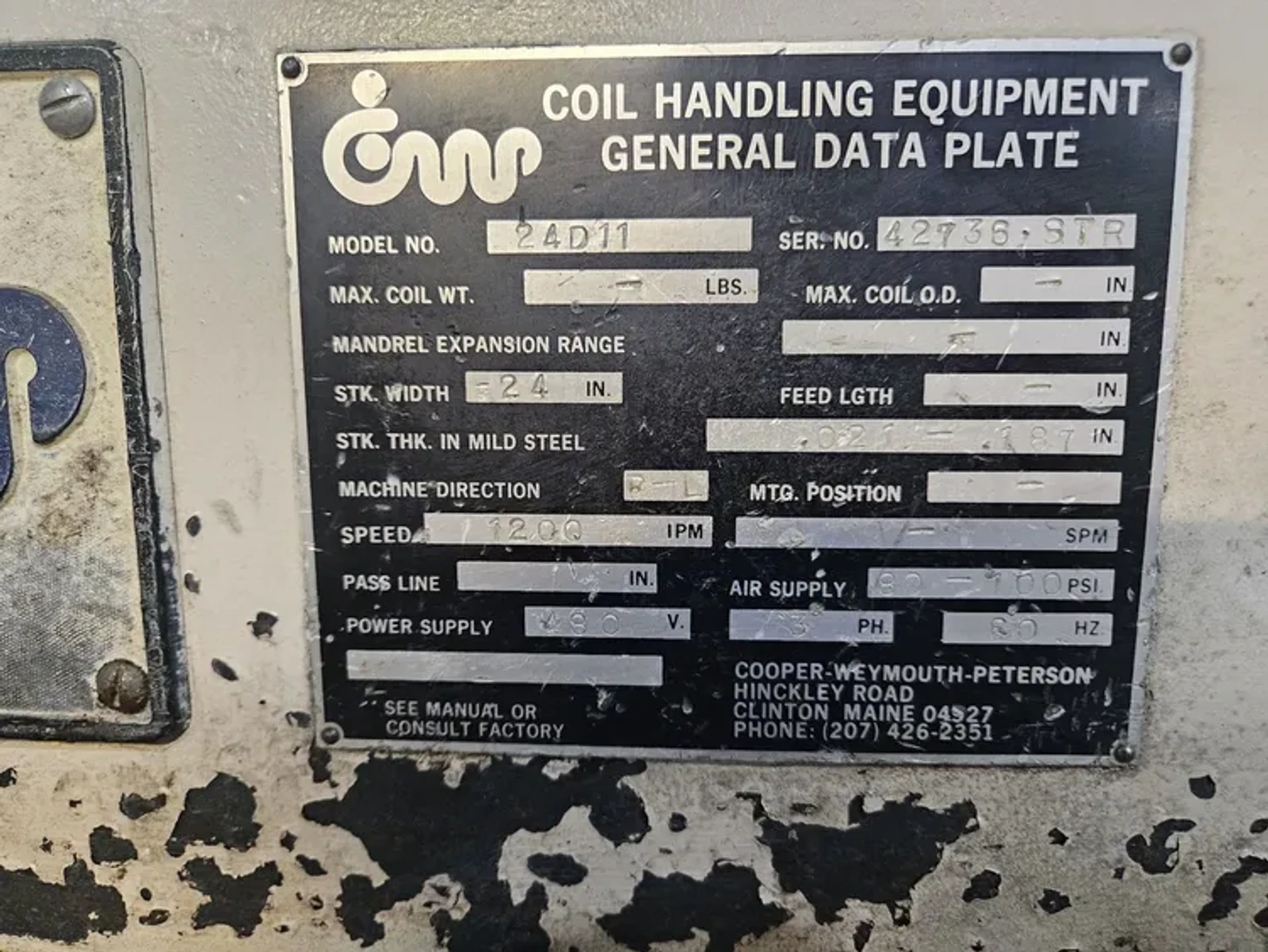

CWP Powered Coil Straightener Model 24D11

Eleven Straightening Rolls
2.8" Diameter Straightening Rolls
Back Up Supports on Upper Straightening Rolls
Entry and Exit Pinch Rolls with Air Operated Adjustment
Adjustable stock Width Edge Guides
Coil Hold Down Arm with Motorized End Wheel
Stock Peeler Table
Exit Cascade Loop Rolls
Automatic Lubrication
Operators Control Console

CWP Exit Thread Table

CWP Coil Servo Roll Feed Model SMX24H Heavy Duty

.187" Maximum Coil Stock Thickness
Piloting Upper Roll Lift
Adjustable Edge Guides
Entry Cascade Loop Rollers
Heavy Duty Cabinet Base
Adjustable Pass Line
Automatic Lubrication System
AC Servo Drive and Controls
Slant Top Operators Console
