CWP Coil Feed Line 5,000 Lbs. x 30" Wide
Brand
Category
Type
Model
4RM-36 / SMX30CSF
Stock #
5572
Year
Not specified
Condition
Used
Location
Michigan
| Coil Weight Capacity: | 5000 pounds |
| Stock Width Capacity | 30 inches |
| Max Stock Thickness Capacity At Full Width | .078 inches |
| Minimum Expansion Range: | 13 inches |
| Maximum Expansion Range: | 17 inches |
| Coil O.D. Capacity: | 60 inches |
|
Stock thickness capacity: 30" Wide x 078"

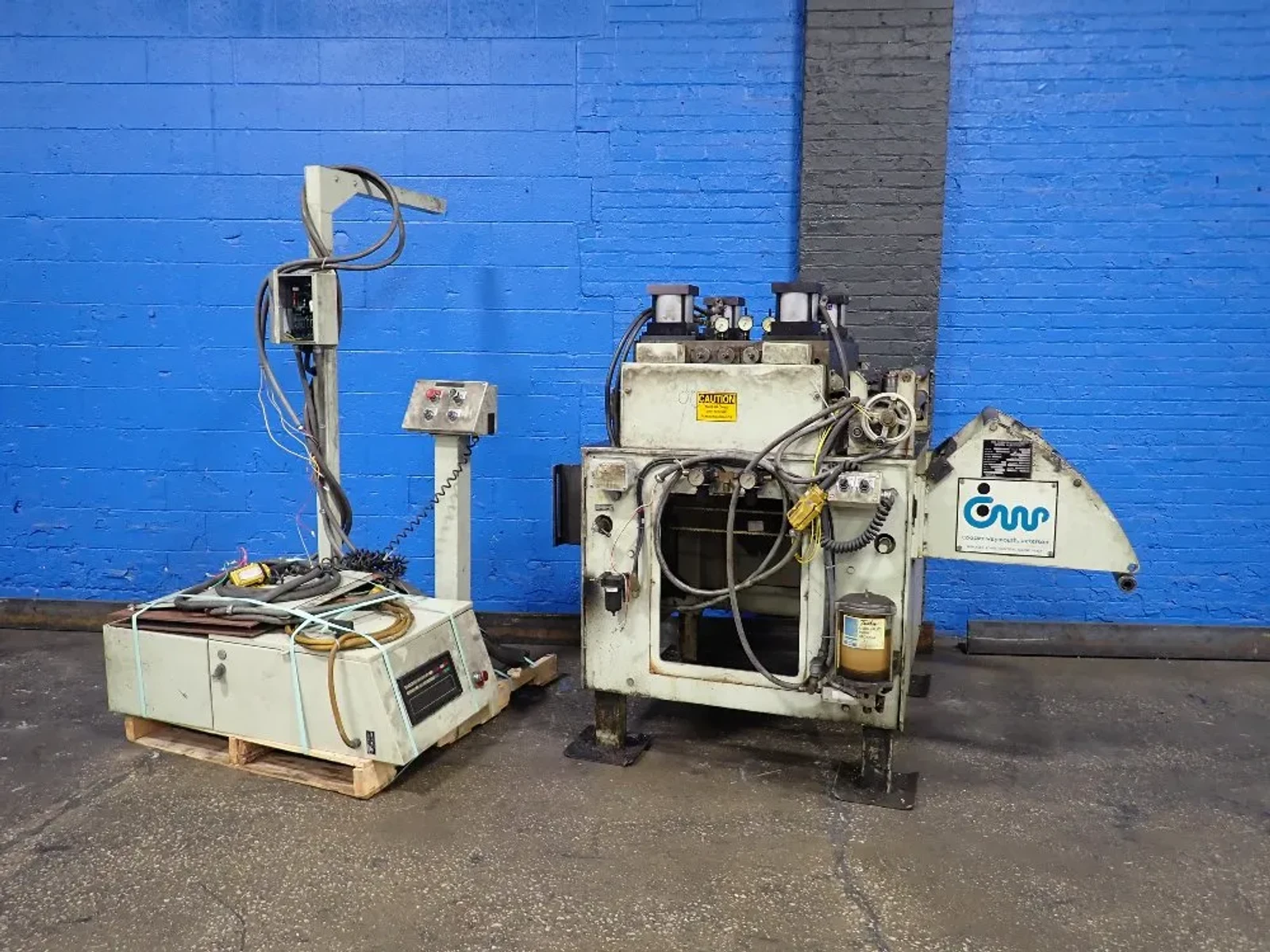

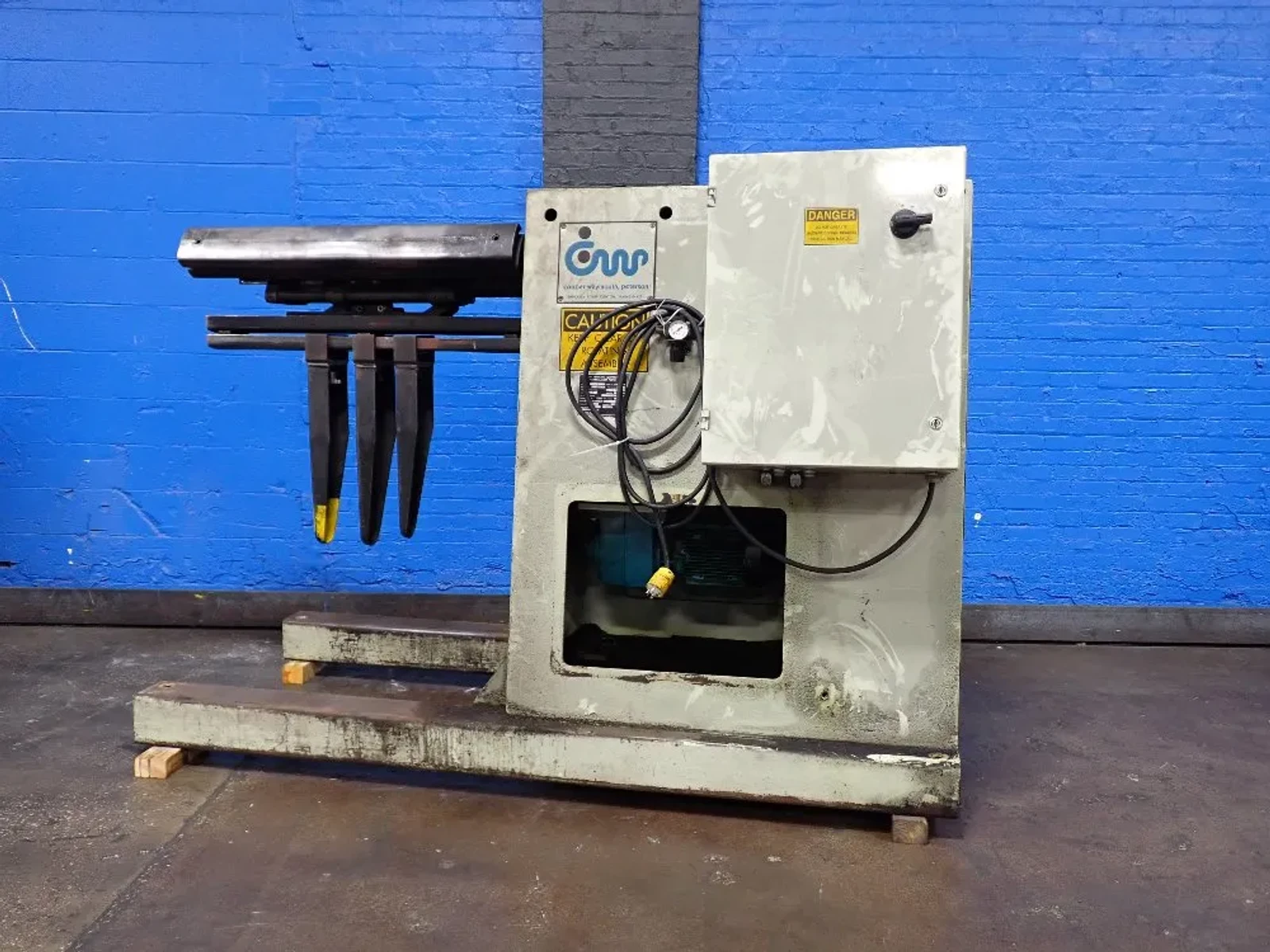

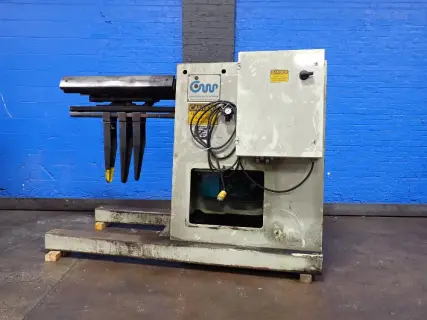

Stock thickness capacity: 18" Wide x TBD Coil reel expansion range: 13" - 17" (17" - 21" w/ included riser pads) Equipped With: CWP Servo Roll Feed - Straightener Combination Model No. SMX30CSF Feed rolls with air operated actuation Seven straightening rolls x 2.75" diameter Individual upper roll adjustments Adjustable stock width edge guides - hand crank Entry cascade loop support rollers Cabinet base mounted with adjustable pass line Automatic lubrication system AC Servo drive and controls CWP Coil Reel Uncoiler Model No. 4RM-36 Motorized payout Three leaf mandrel Hydraulic mandrel expansion AC VFD Control system Operator's control station Jog forward and reverse Auto / Run cycle w/ ultrasonic loop control |
|
