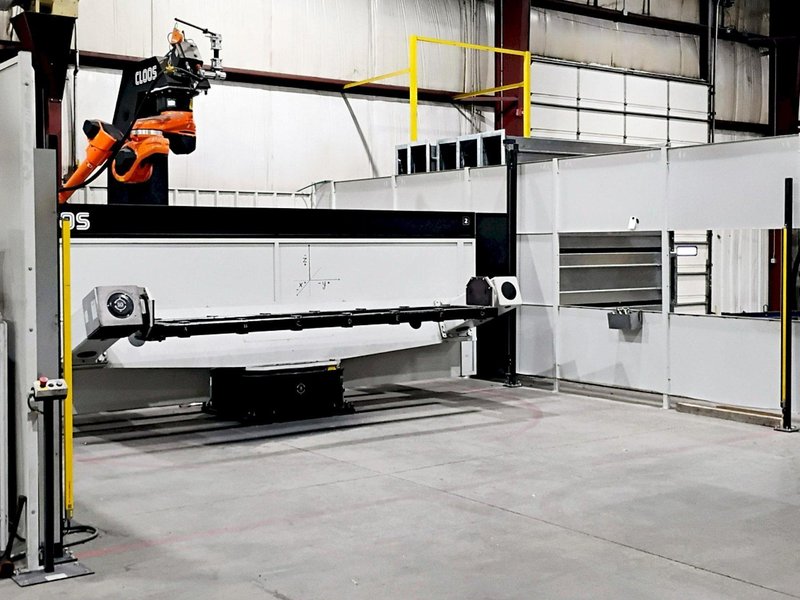

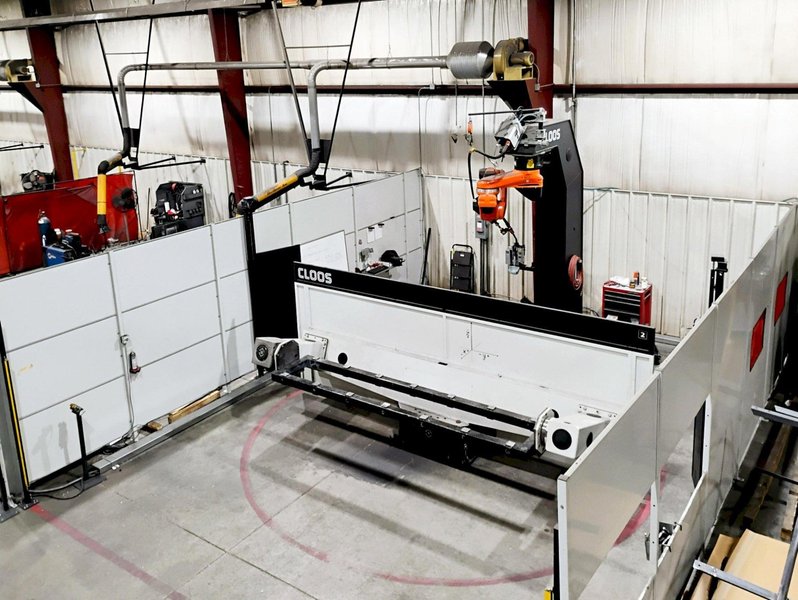

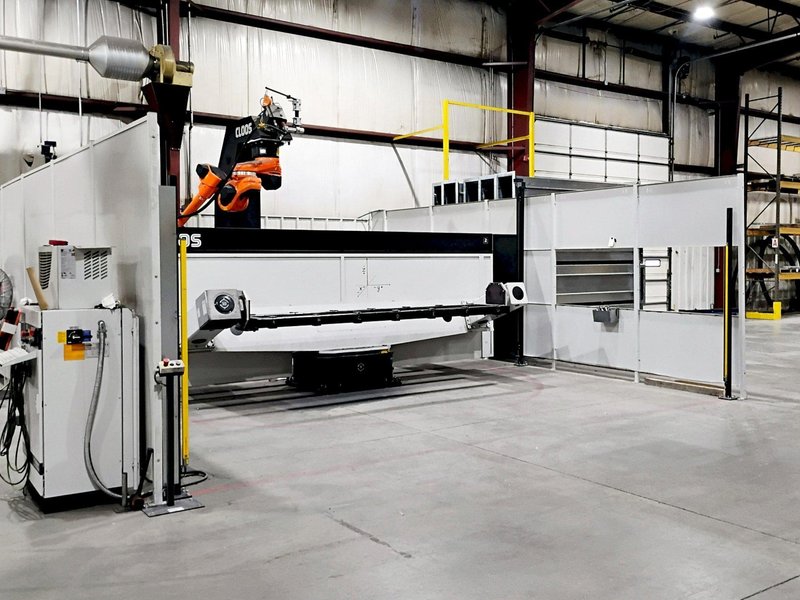

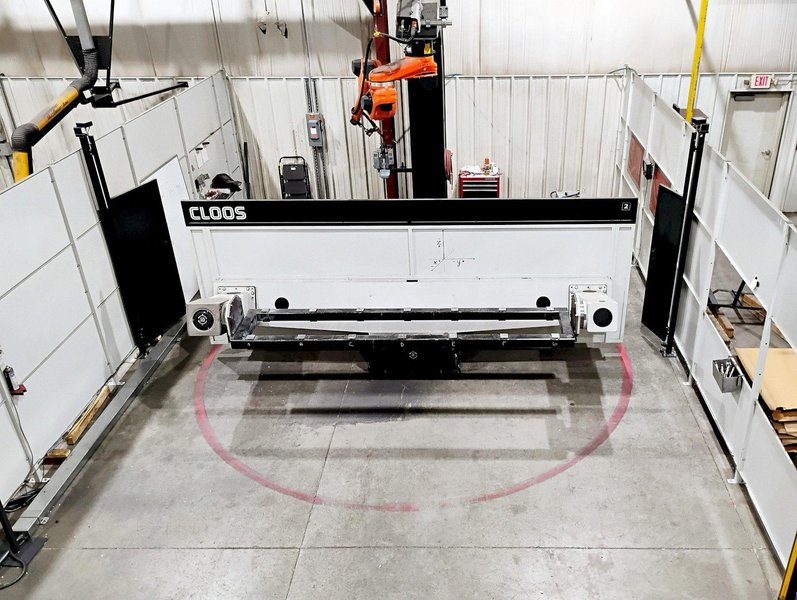

Cloos CS-30 Robotic Welding Cell

Brand
CLOOS
Category
Welding Equipment
Type
Automated Welding Systems
Model
CS-30
Stock #
100596
Year
2023
Condition
Like New

Location

Not specified
REQUEST FINANCING

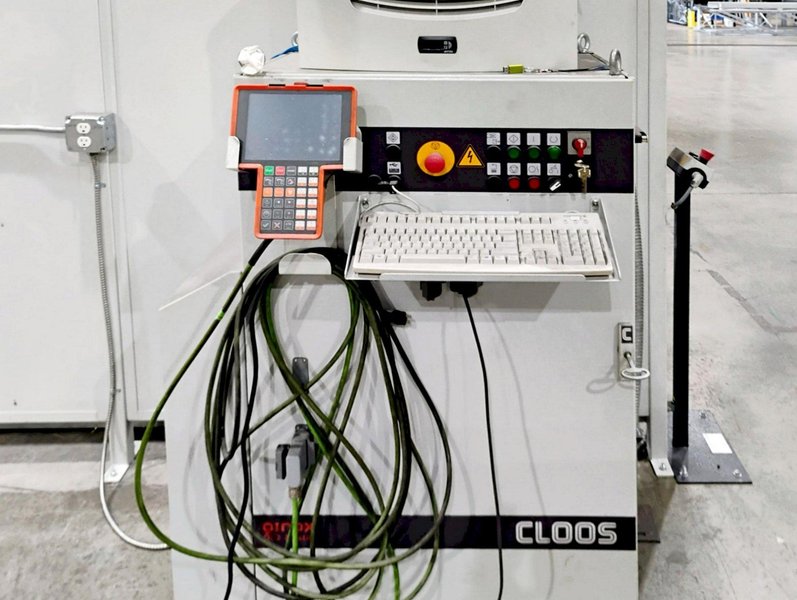

Controller QIROX QC2

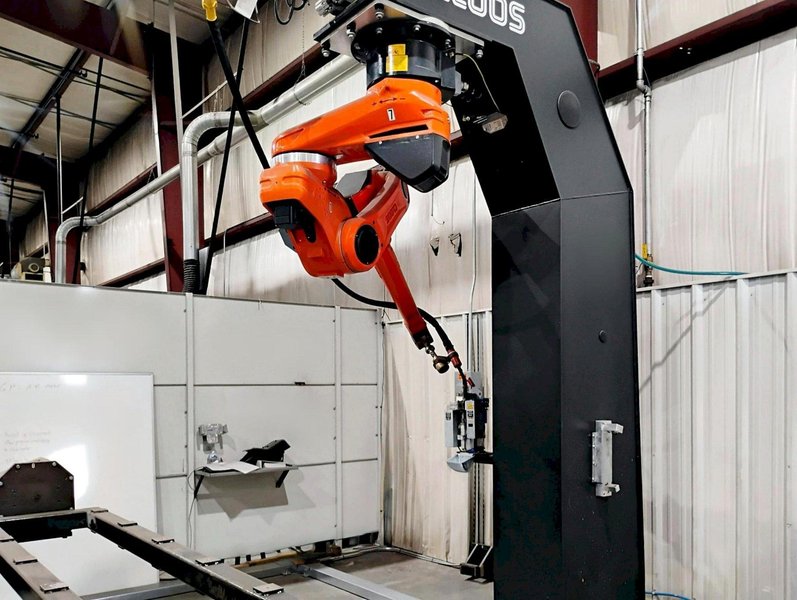

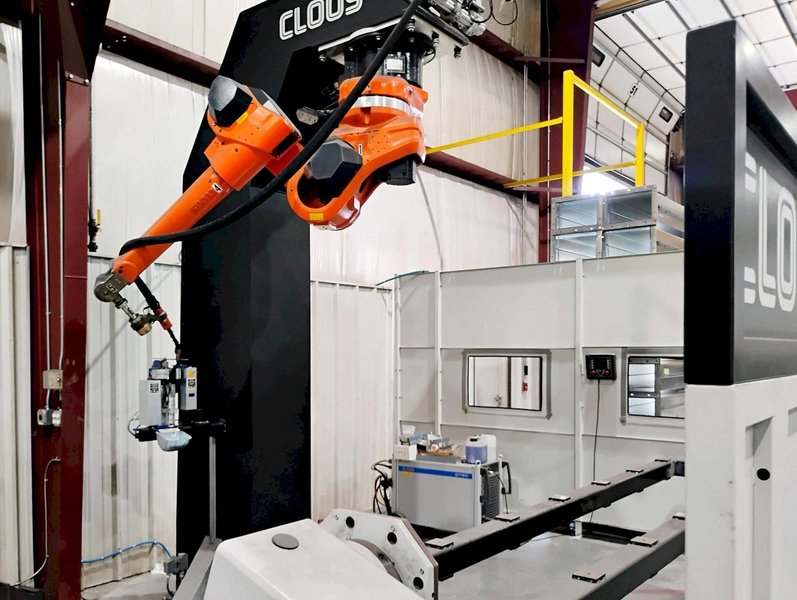

Robot Cloos QIROX® QRC-410e
Number Of Axis 7
Working Space 177"
Welding System Qineo Pulse A 450A
Positioner Max. Load Per Station In N 10kN
Positioner Max. Load Per Station 2,248 Lbs.
Positioner Max. Tilting Moment 2450 Nm
Positioner Mass Moment Of Inertia 150 kgm2
Positioner Max. Turning Speed 120°/Sec.
Positioner Face Plate Diameter 15.75" x 15.75"
Positioner Clamping Length 137”
Positioner Free Turning Radius 59”
Positioner DH-TC-10kN
Positioner Type 2 Station
Robot Pay Load 22 Lbs.
Robot Swivel Speed - Axis 1 184

Robot Swivel Speed - Axis 2 184

Robot Swivel Speed - Axis 3 177

Robot Swivel Speed - Axis 4 497

Robot Swivel Speed - Axis 5 542
Robot Swivel Speed - Axis 6 528

Robot Swivel Speed - Axis 7 90

Operating Range 240”

Equipped With:

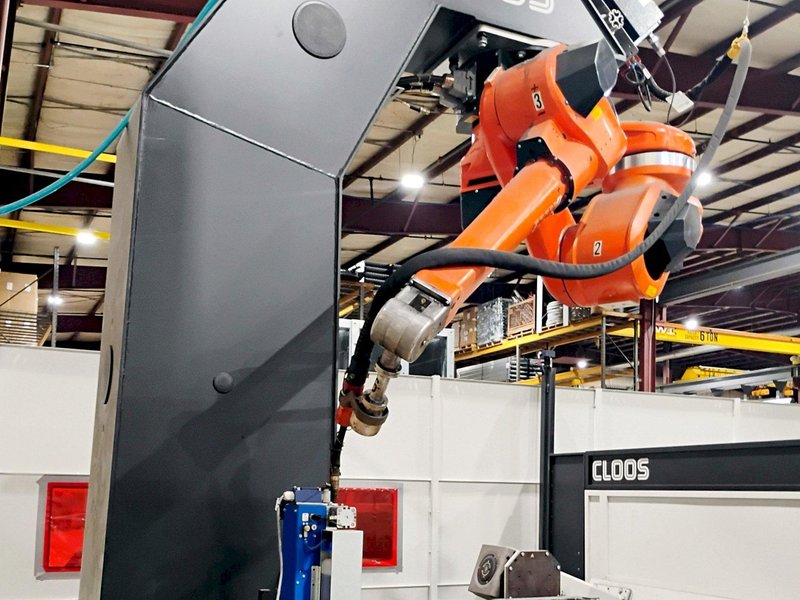

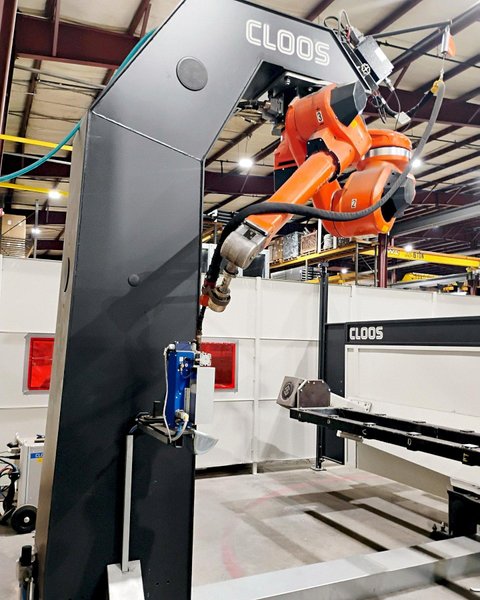

QIROX QRC 350-E Welding Robot

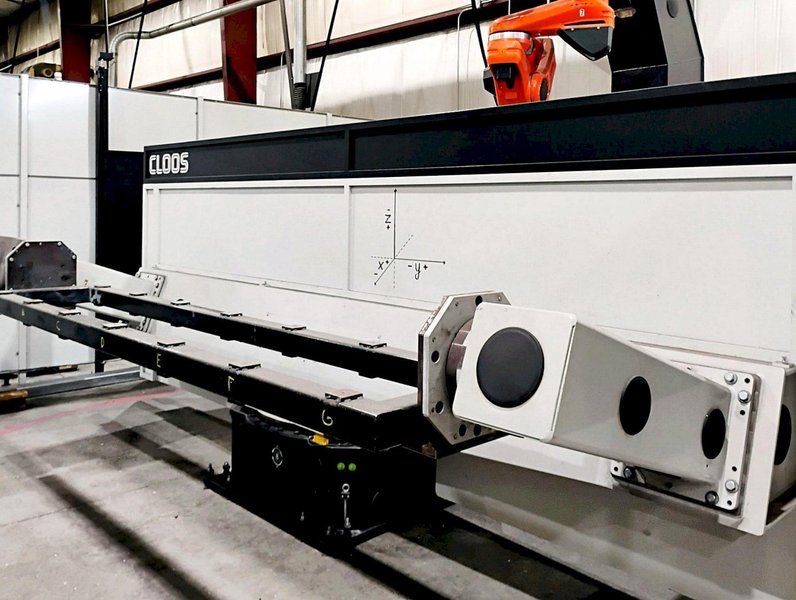

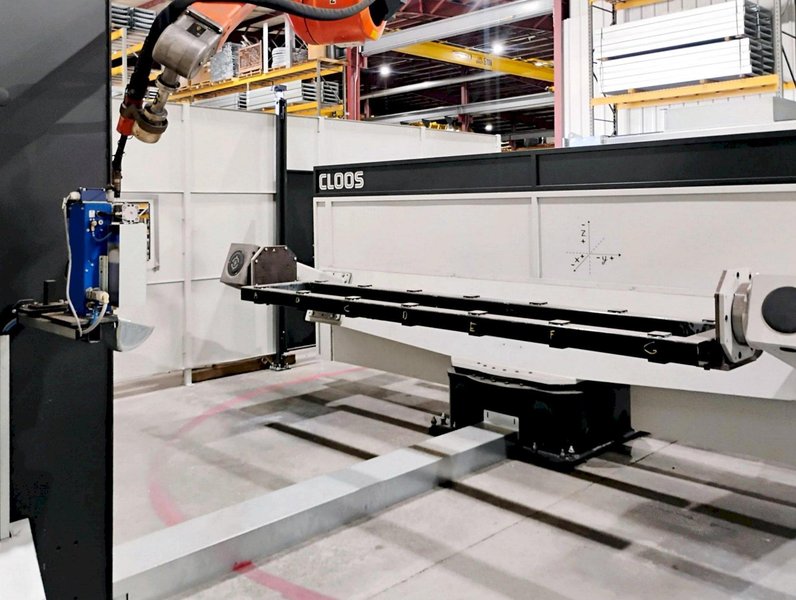

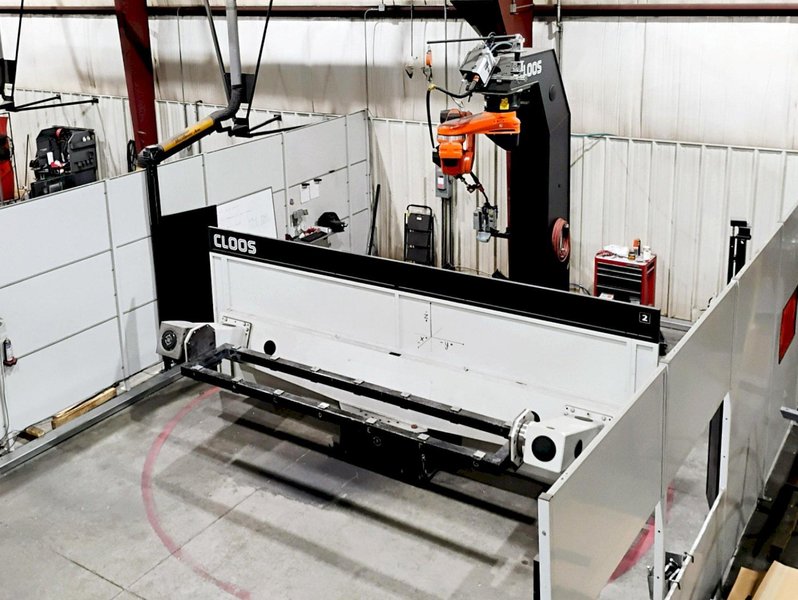

2 Stage Positioner - 2200lbs/side (Coordinated Motion)

Torch Cleaning Unit

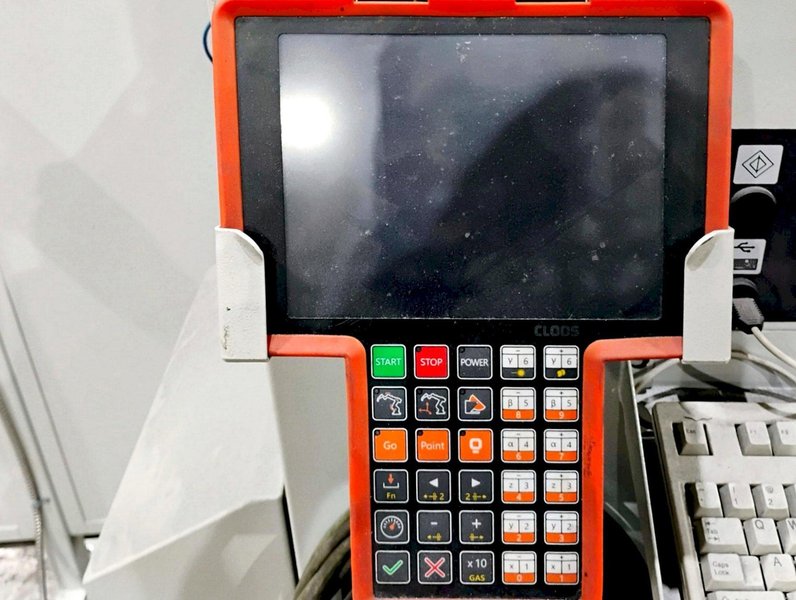

Tracking MANAX – Operator’s Positioner Control

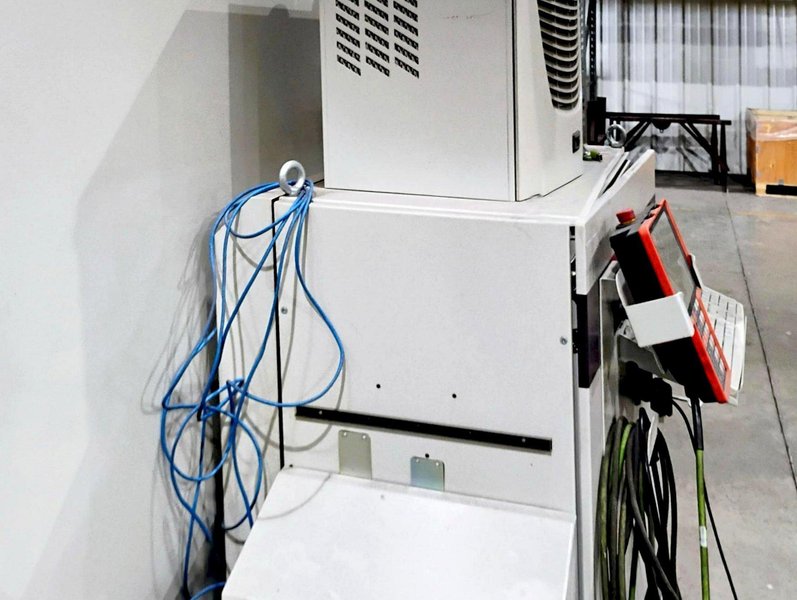

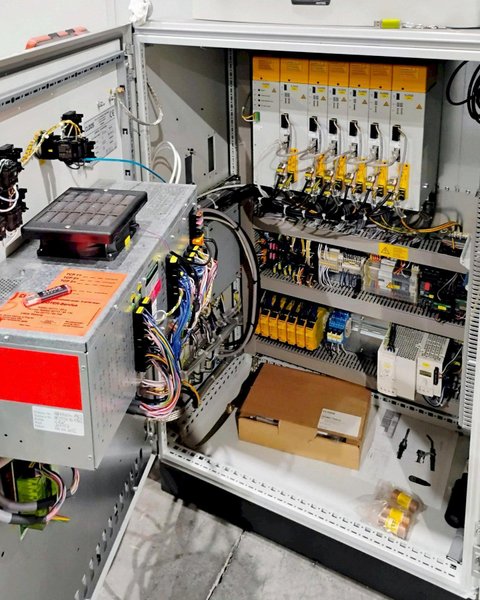

QIROX QC2 Master Controller

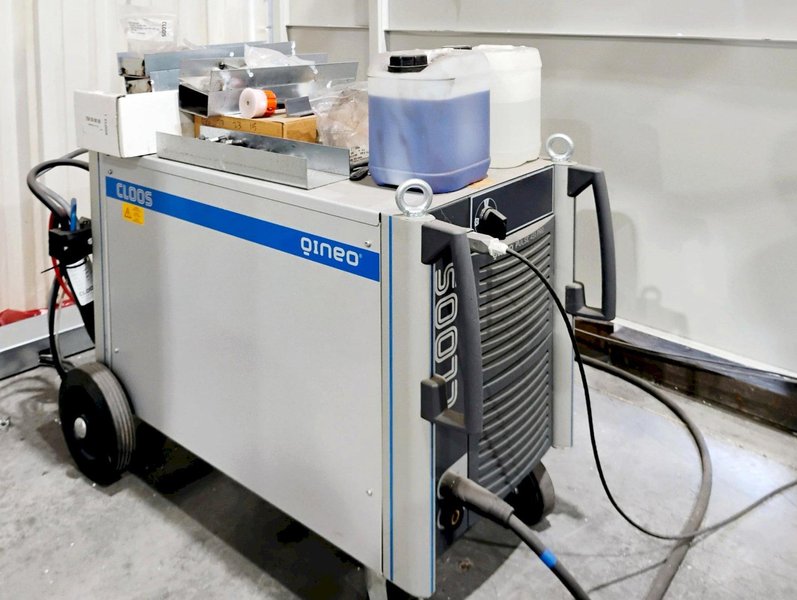

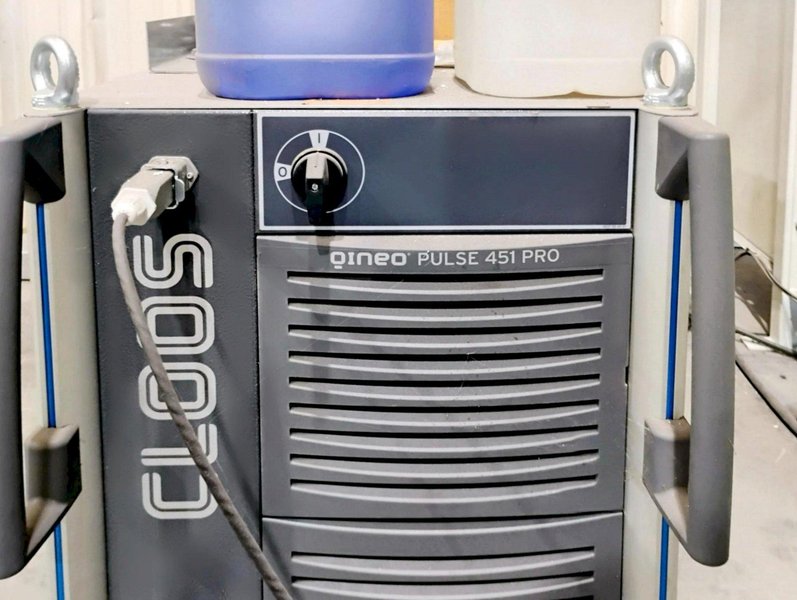

QINEO Pulse Pro 450A Welding Power Source

Touch Sensing & Thru-Arc Seam
