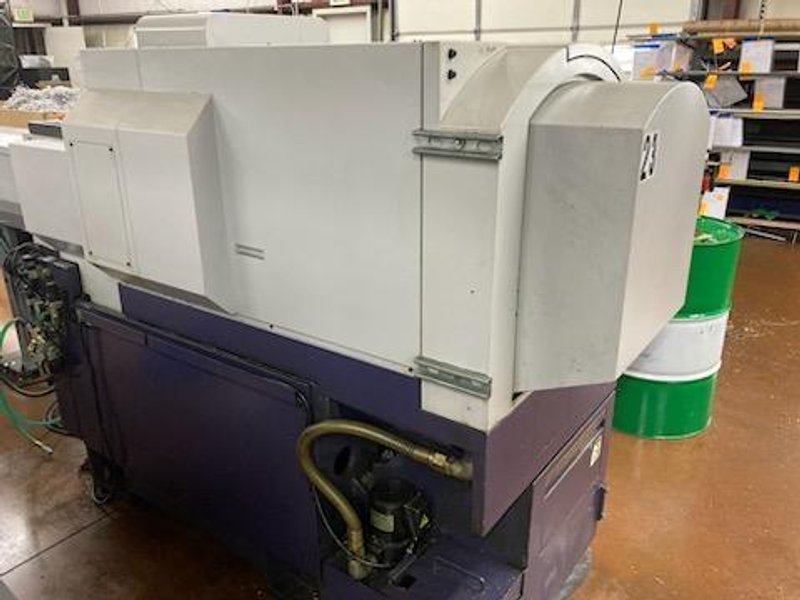

Citizen C16 Type VII CNC Swiss Screw Machine w Live End Working Option, Coolant Tank and Pump
Brand
Category
Model
C16 VII
Stock #
C1011
Year
2001
Condition
Not specified
Location
Not specified
|

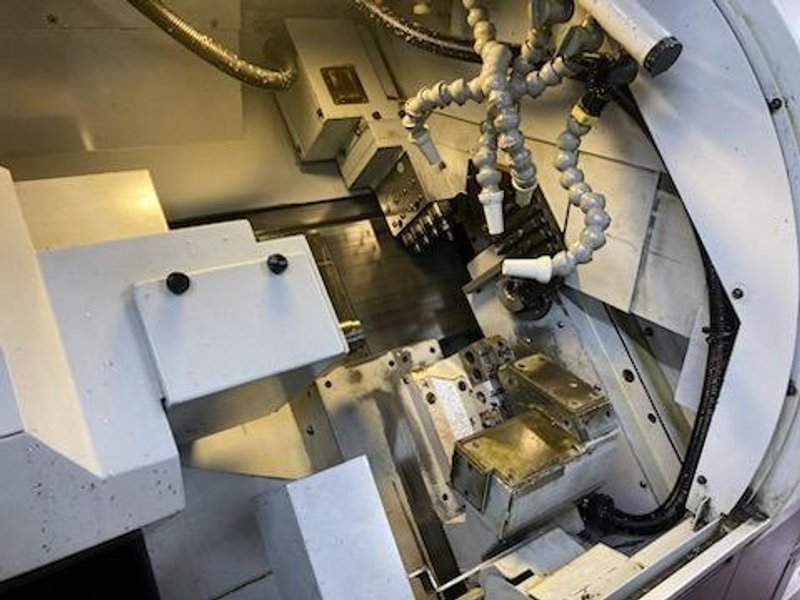

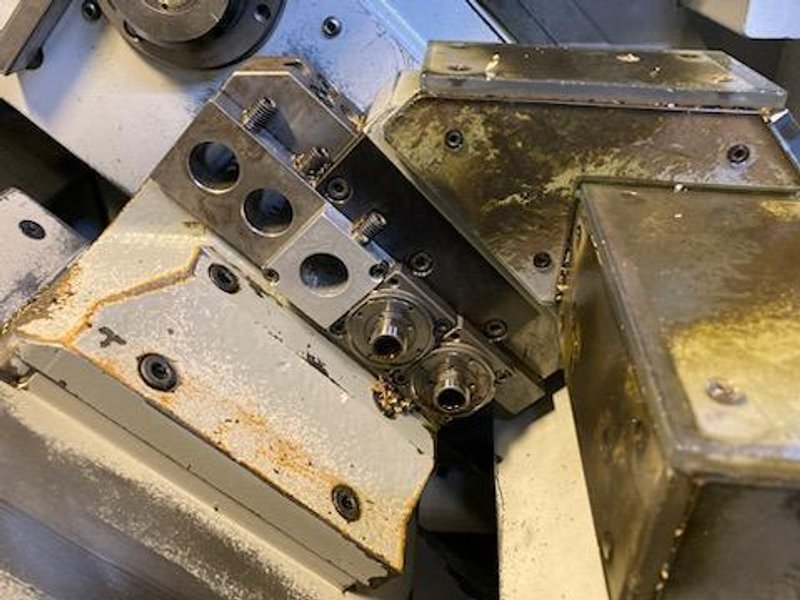

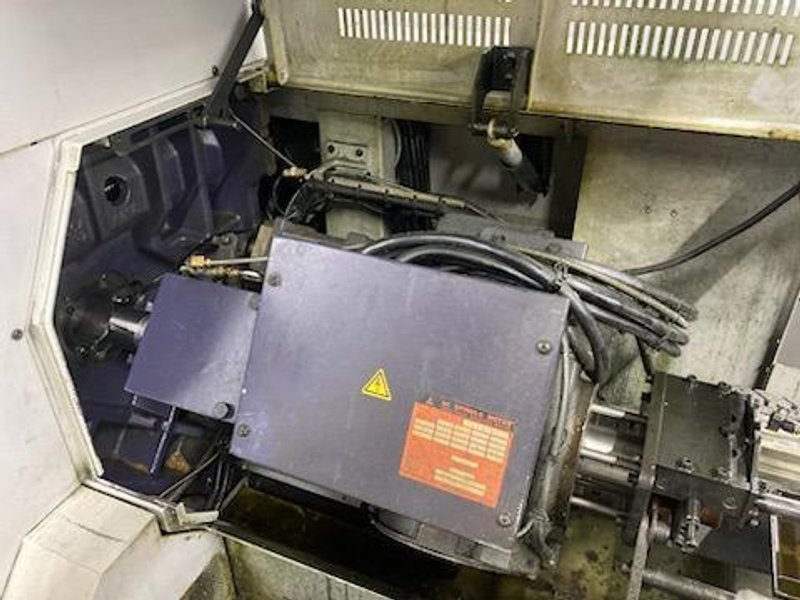

Control: Cincom System M6B Control Maximum Machining Diameter: 5/8" Maximum Machining Length: 7.87" Per Chucking Main Spindle Speeds: 200 - 10,000 RPM Back Spindle Speeds: 200 - 10,000 RPM Rotary Tool Speeds: 200 - 8,000 RPM Back Spindle Max Chucking Diameter: 5/8" Turning Tools: 6 Static on Main Rotary (Live) Tools: 4 Live on Main Back Endworking Tools: (3) static and (2) Live Front Endworking Tools: (3) Static and (2) Live Rapid Feed Rate: 20 m/min on all Axes Main Spindle Drive: 3 HP Cutting Tool Shank/Sleeve Size: 3/8" Square Description: Citizen C Series Swiss Screw Machines are the best machines for a customer's "flexible" needs. The machine block elements, attachments, and tooling systems are all in the modular designs. Equipped With: Citizen Cincom CNC Control, 4- Live Milling station on Main Slide with Live Tool Holders, Added Live End Working Option, Standard Live Tools, Synchronous Guide Bushings, Coolant Tank and Pump Back/Main Spindle 1 Degree Indexing Function, Tool Spindle and Back Spindle Synchronized Tapping, Main Spindle C Axis, Back Spindle Constant Surface Speed Control, Main Spindle Synchronized Tapping, Back Spindle Chasing Function, Spindle Synchronization Control Function, User Macro, Canned Drilling Cycle, Missing Interpolation Function, Inclined Helical Interpolation. Electrics: 220 Volt |
