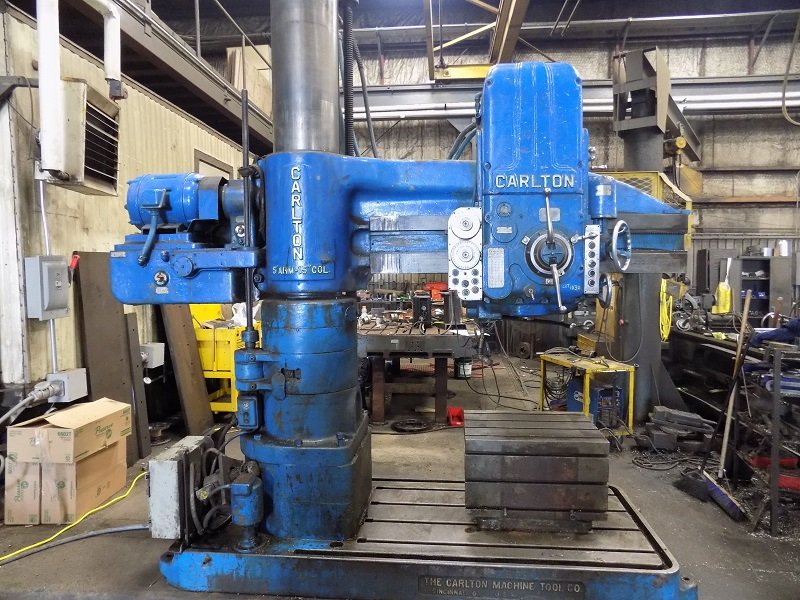

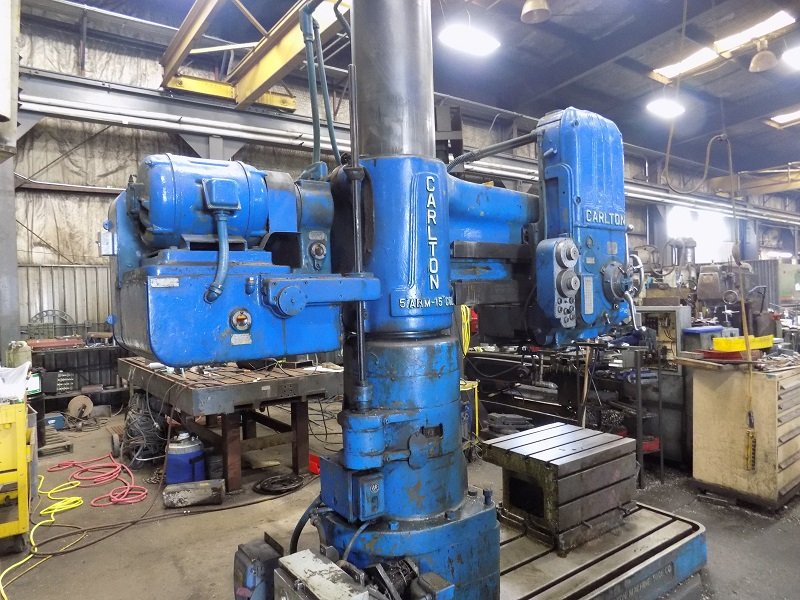

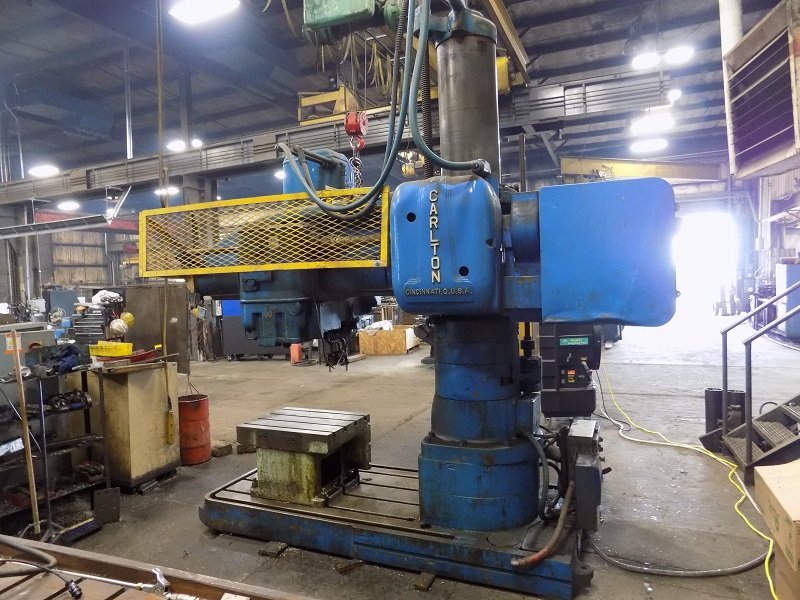

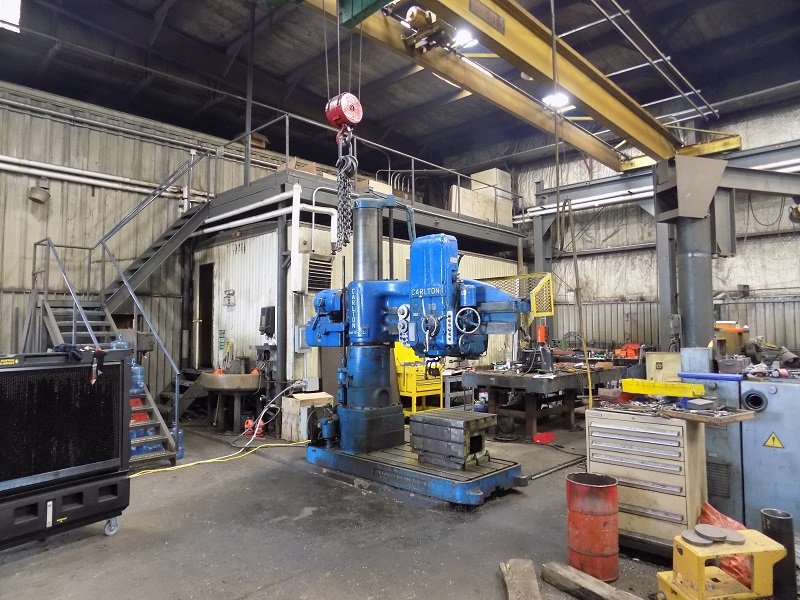

5' x 15" Carlton Radial Arm Drill
Brand
Category
Type
Model
3A
Stock #
1902518
Year
1954
Condition
Used
Location
Not specified
|
SPECIFICATIONS:
MODEL ........................ 3A AREA OF BASE ................. 65' X 42" SPINDLE SPEEDS ............... (36) 15 TO 1500 RPM SPINDLE FEEDS ................ (18) .004 TO .125 TAP LEADS .................... 8, 11-1/2, 14, 18 TPI DIAMETER OF SPINDLE .......... 3-3/16" TAPER IN SPINDLE ............. #5 MT DISTANCE SPINDLE TO BASE ..... 10-1/2" MIN, 66" MAX DISTANCE SPINDLE TO COLUMN ... 15" MIN, 60" MAX POWER ARM ELEVATION .......... YES POWER COLUMN CLAMPING ........ YES POWER HEAD CLAMPING .......... YES POWER ARM ELEVATION .......... YES COOLANT ...................... YES MAIN MOTOR ................... 20 HORSEPOWER |
