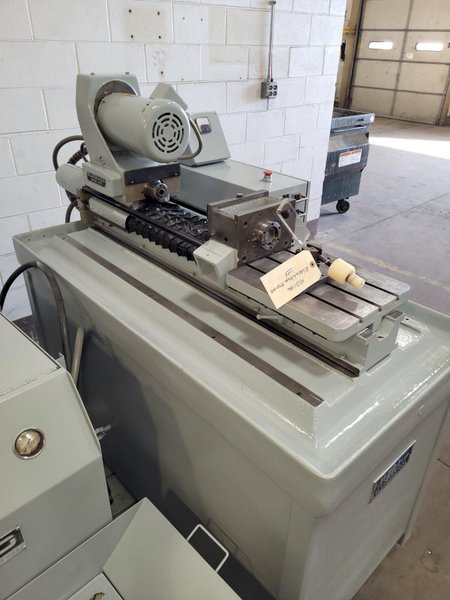

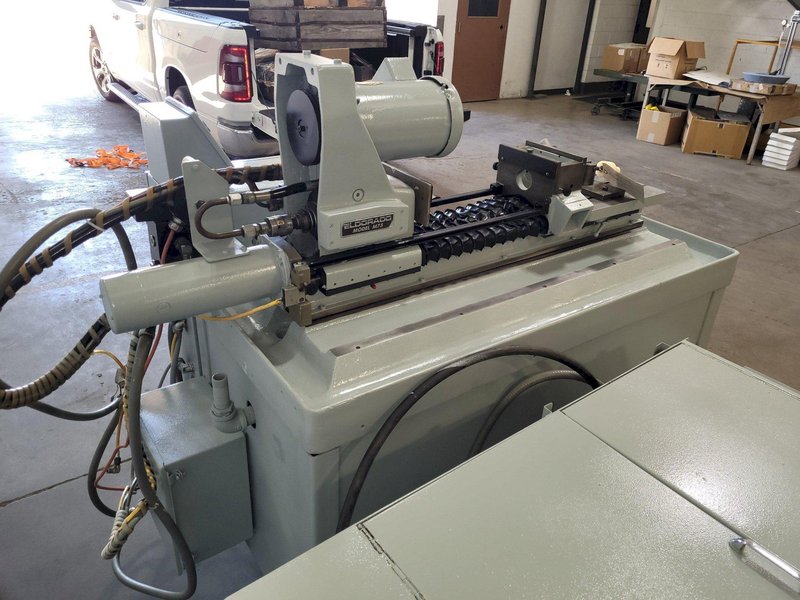

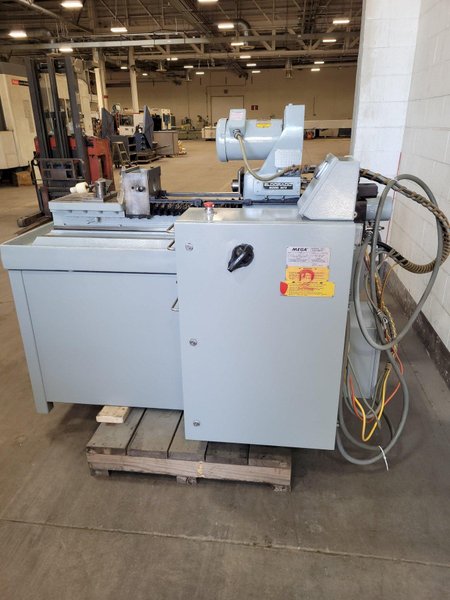

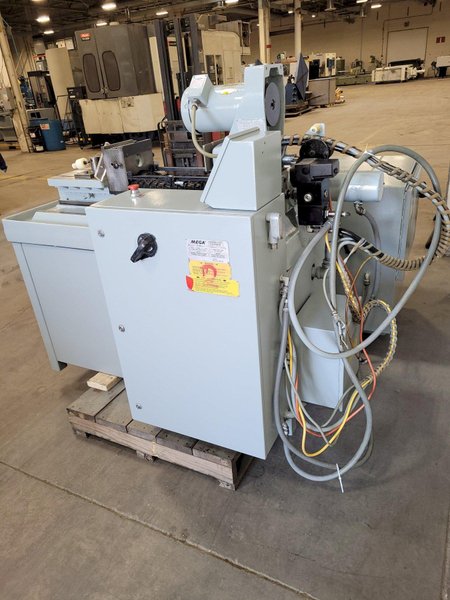

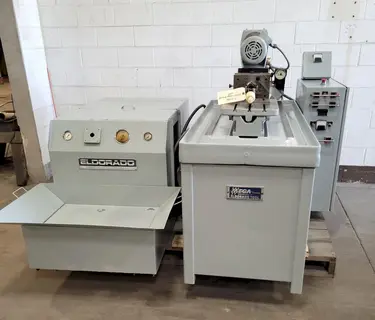

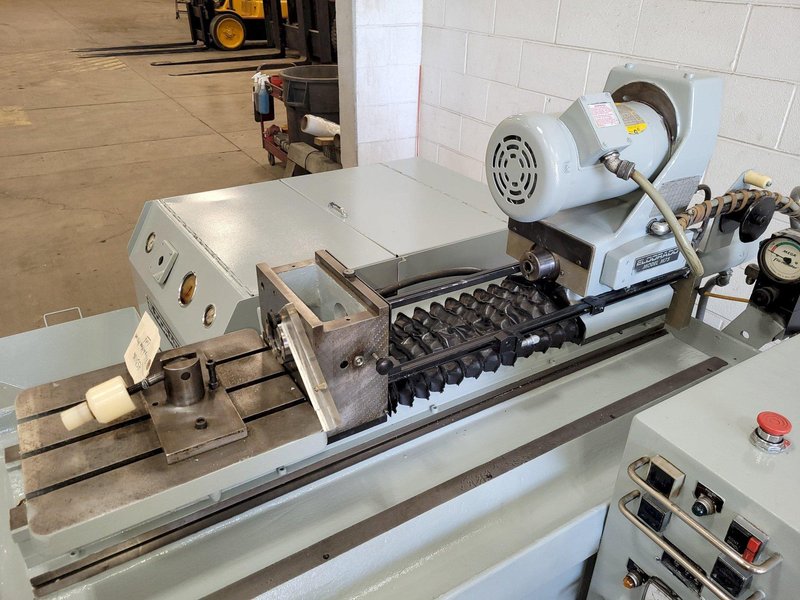

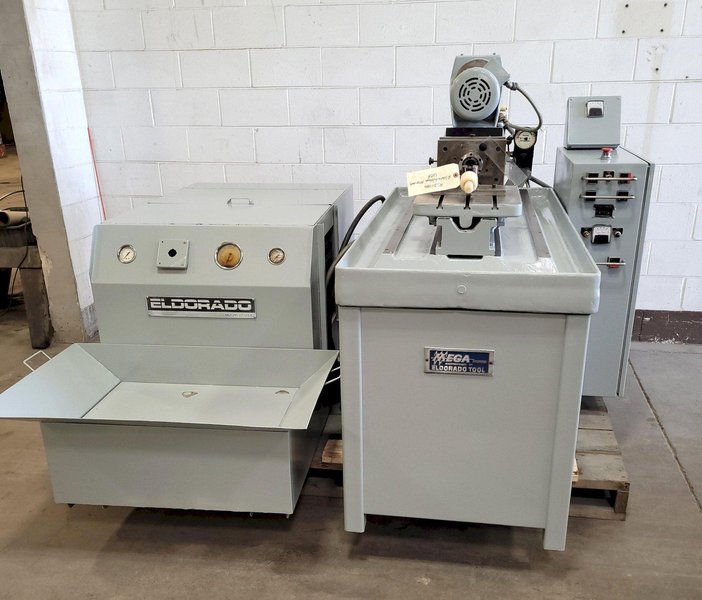

3/4" X 15" Eldorado Mega Model M-75-1003 Precision Deep Hole Gun Drill

Model
M-75-1003
Stock #
HSD1186
Year
1991
Condition
Used

Location

Illinois
Drilling Diameter Maximum .75”
Drilling Diameter Minimum .055”
Maximum Drilling Depth 15”
Spindle Speeds 725-5860 RPM
Drilling Feed Rate .1-99.9 IPM
Rapid Feed Rate 200 IPM
Work Table (T-Slotted) 12” x 14”
Height Of Spindle Centerline 2-1/2”
Coolant Pressure, Maximum 1900 PSI
Reservoir Capacity 90 Gallon
Coolant Flow (Gal/Min.) 17.5 GPM
Filtration 5 Micron
Machine Dimensions 42” x 72”
Coolant Dimensions 42” x 78”
Approximate Weight 5,000 lbs.
EQUIPPED WITH:

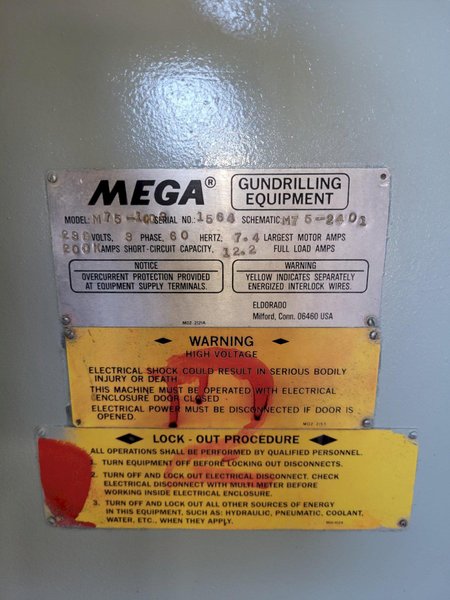

Motor Driven with 2HP, 3 Phase, 60 Cycle, 460 Volt 1725 RPM Spindle Drive.
7.5 HP, 3 Phase, 60 Cycle Coolant System.
Complete Electrical Controls.
1 HP DC Servo Feed Motor.
Ball Screw Driven Drill Feed.
12” x 14”” Work Table.

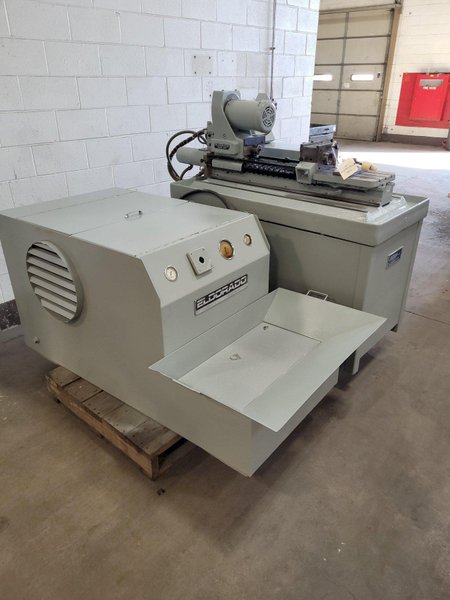

Eldorado F18 “Mega Flow” High Pressure Coolant System with Filtration and Heat Exchanger.

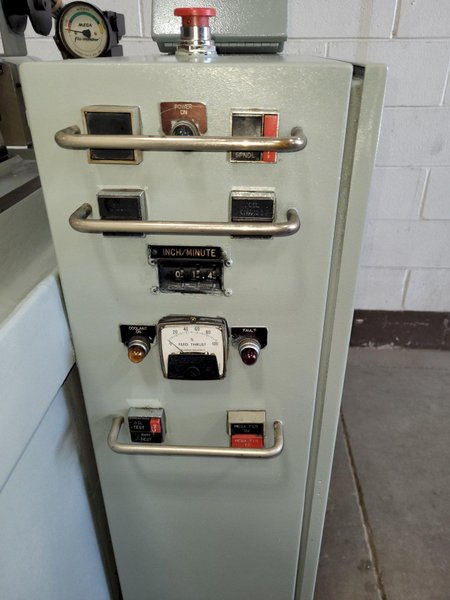

Thumb Wheel Feed Rate.
Feed Thrust Load Meter.
Spindle Load Meter.
Chip Box.
Automatic Slideway Lubrication.
Miscellaneous Drills.
