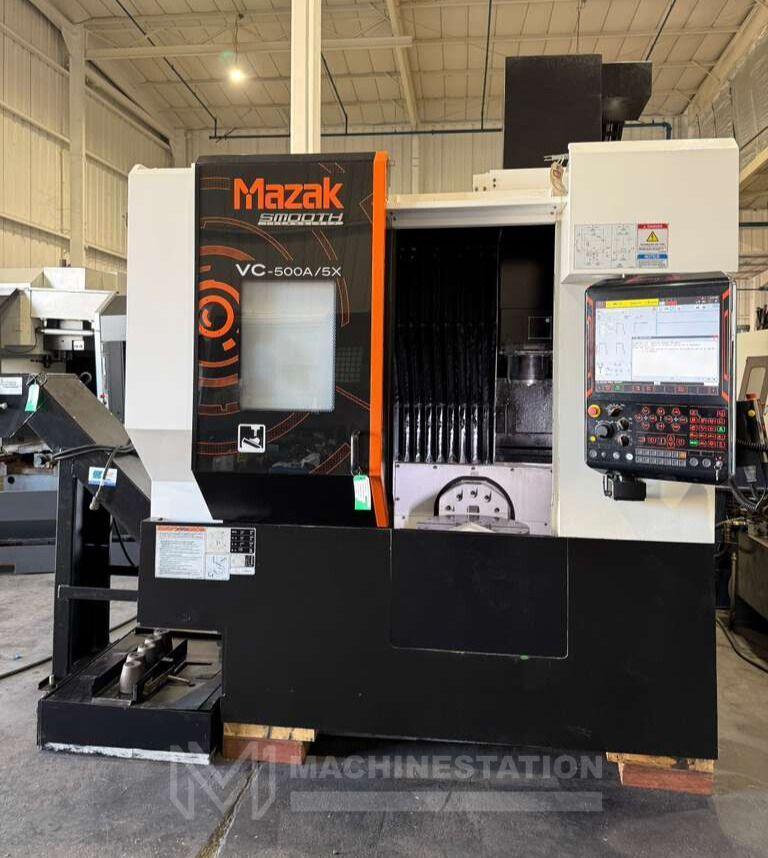

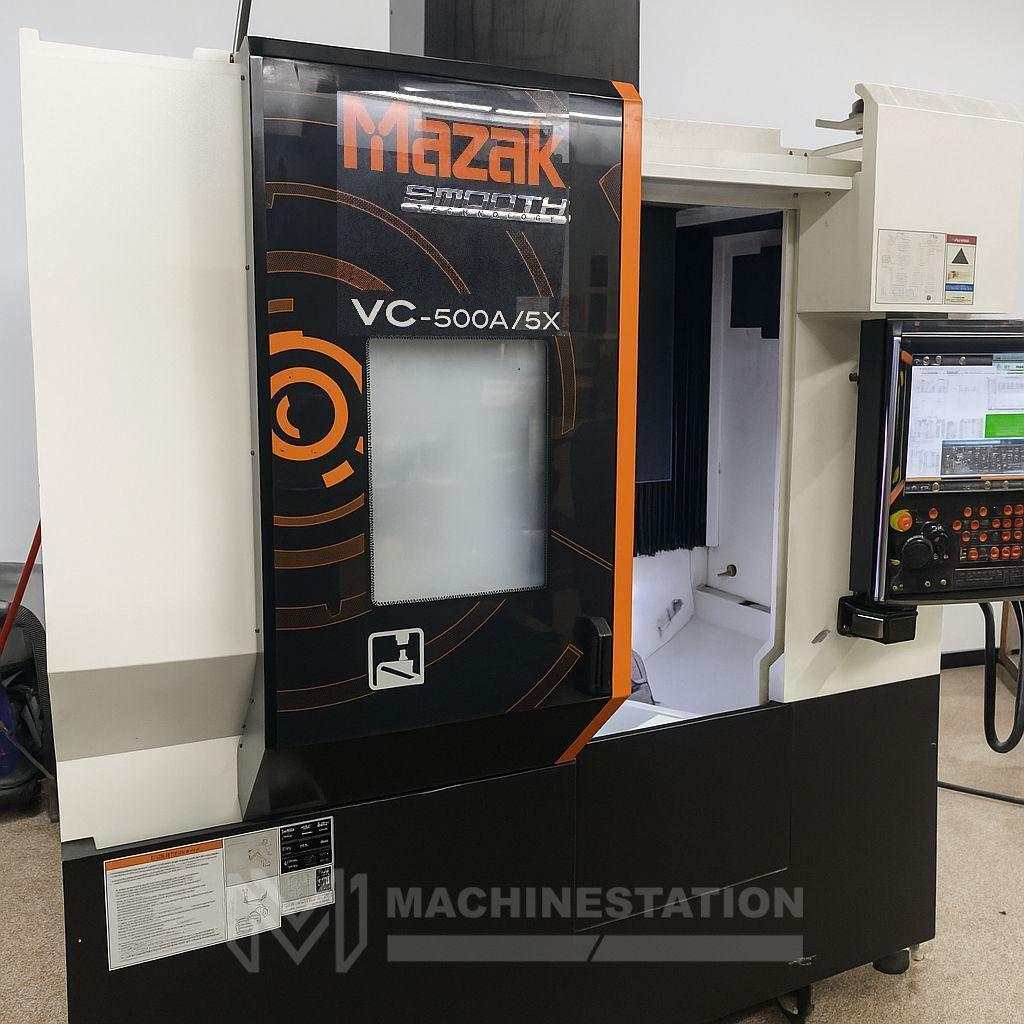

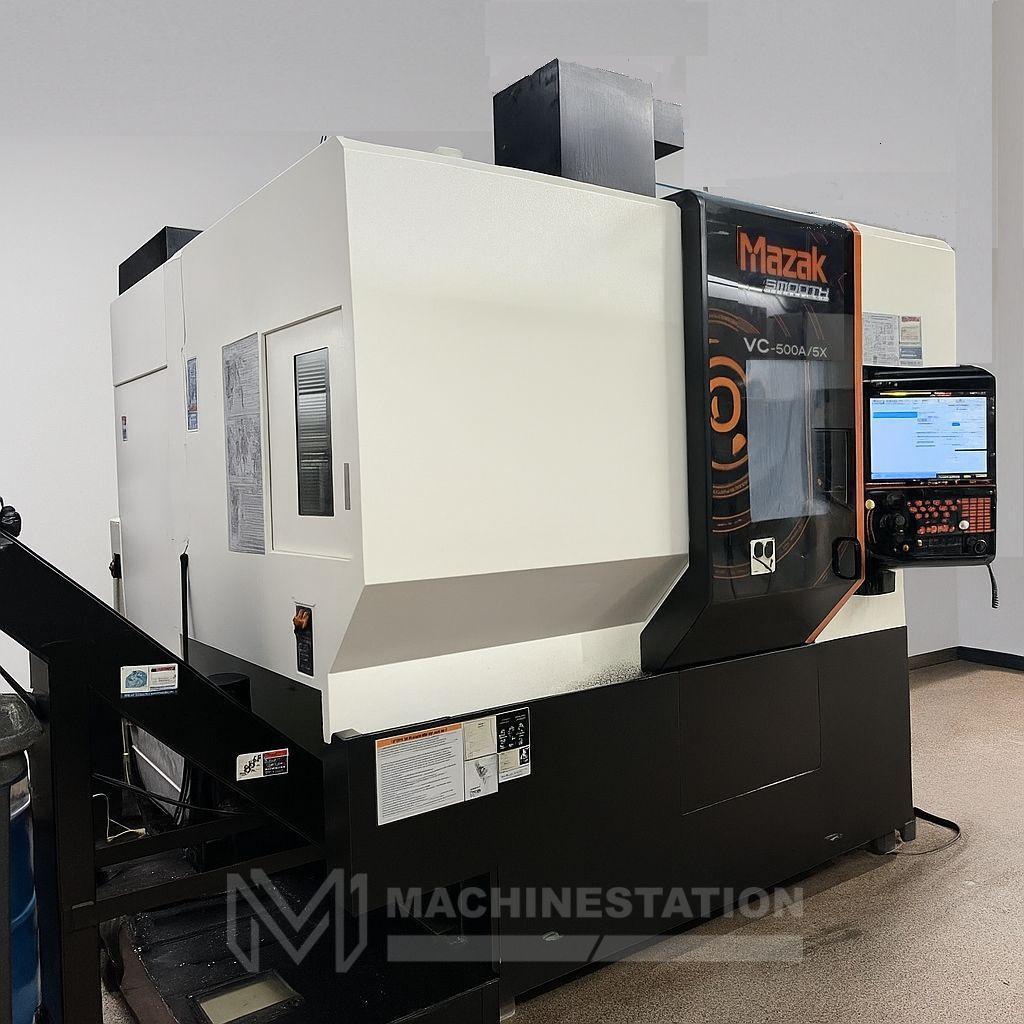

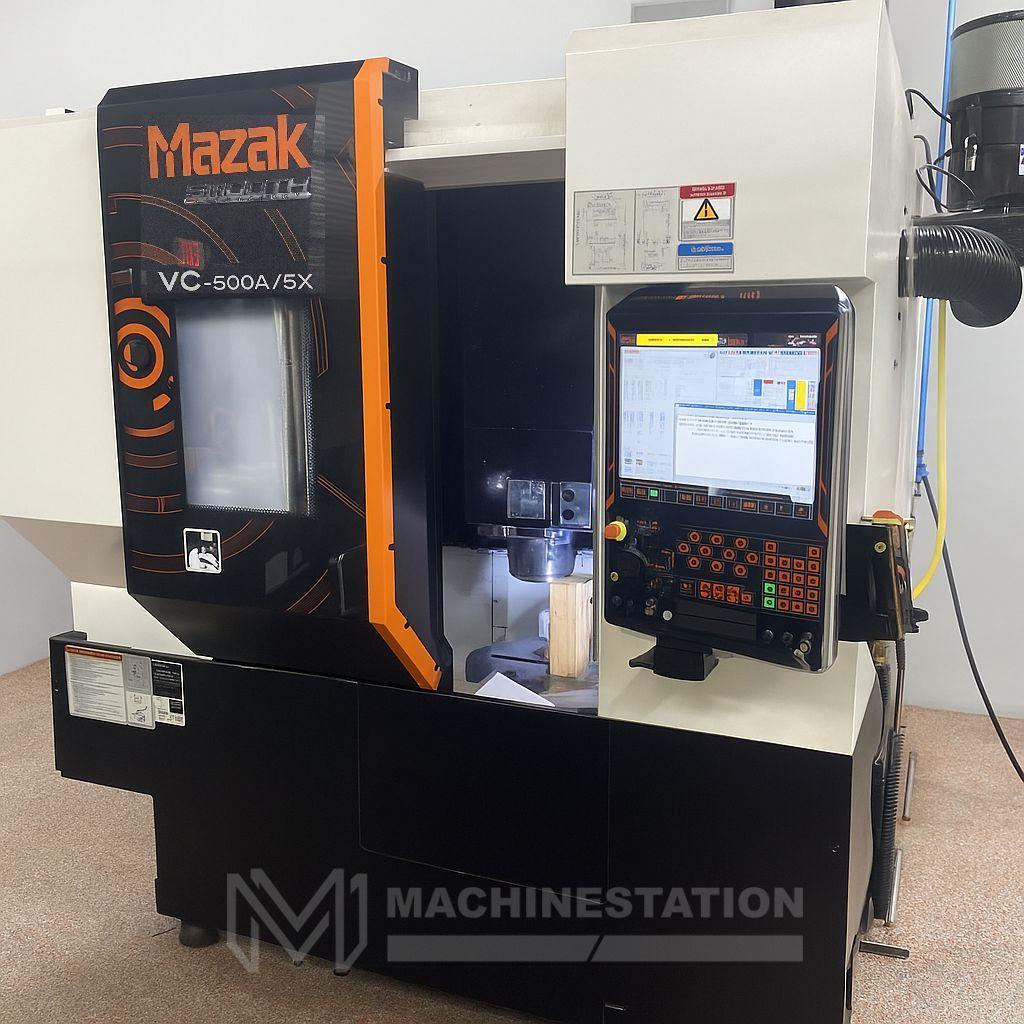

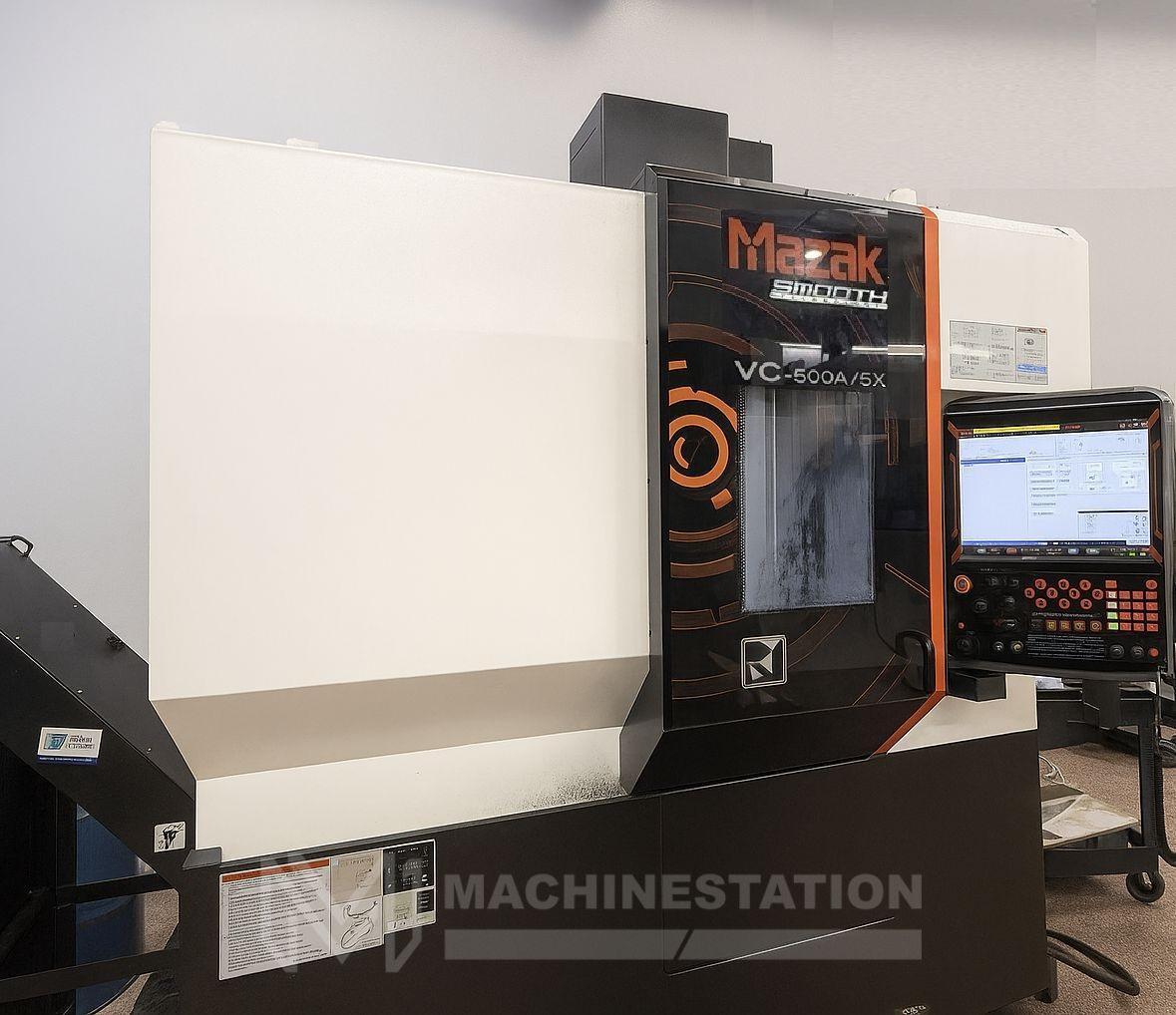

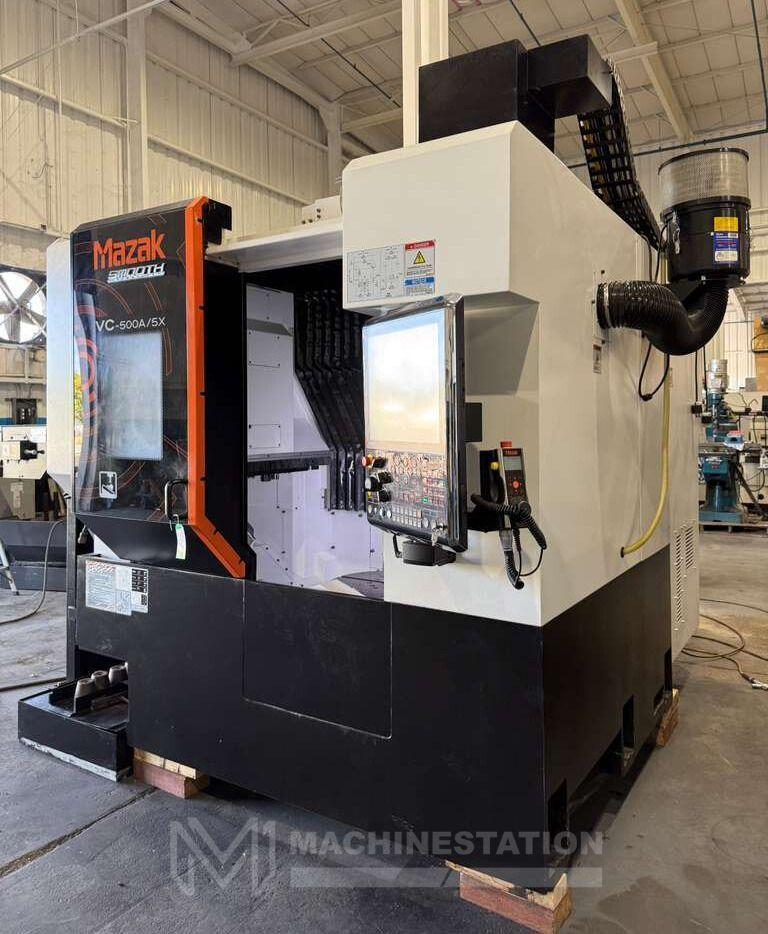

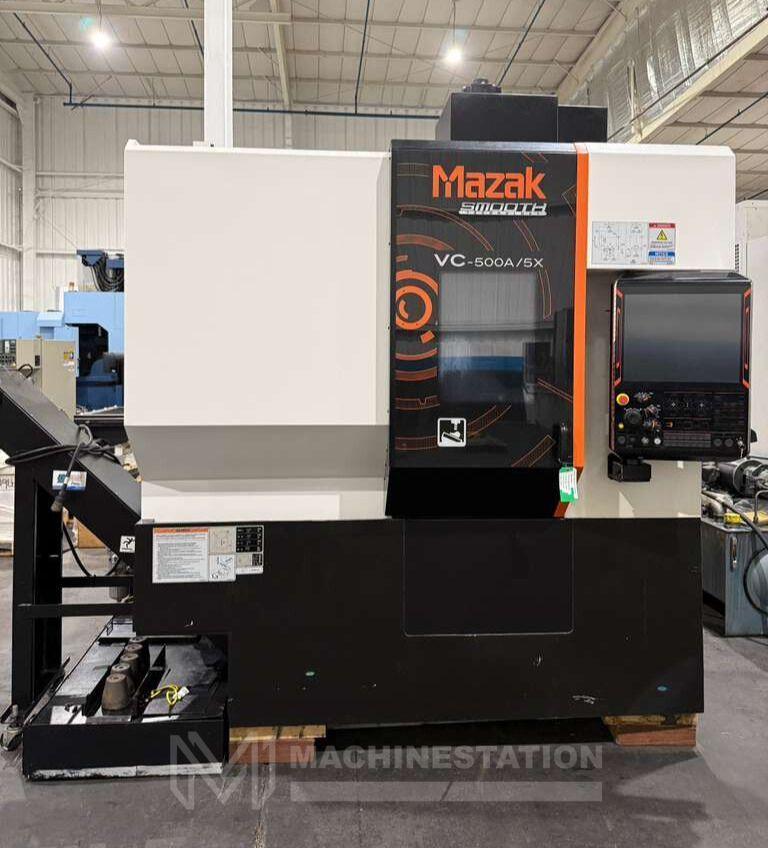

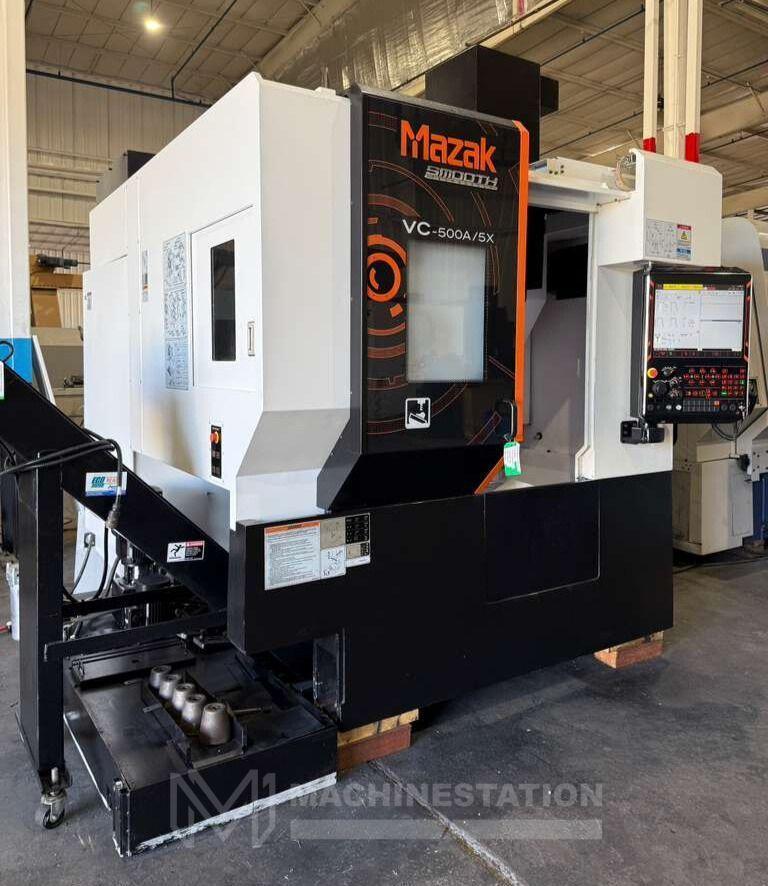

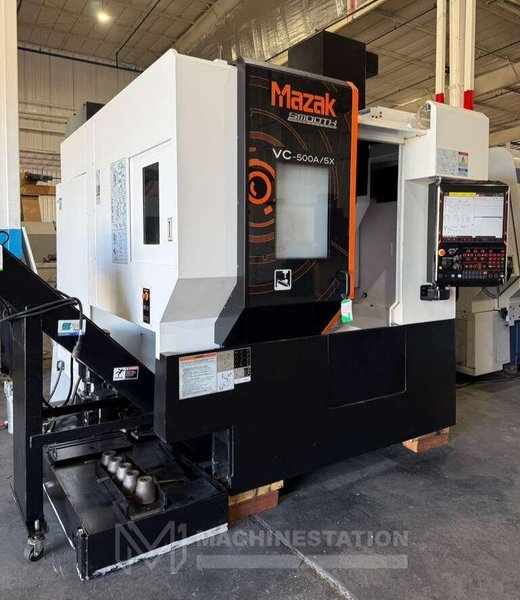

Mazak VC-500A/5X 5 Axis CNC Vertical Machining Center – 2019 Mill

Mazak VC-500A/5X 5 Axis CNC Vertical Machining Center – 2019 Mill

Name: Used MAZAK VC-500A/5X For Sale 112856
Brand: MAZAK
SKU: 112856
Availability: PreOrder

Brand

MAZAK

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

SKU:	112856
Make:	Mazak
Model No.:	VC-500A/5X
Year of Manufacture:	2019
Condition:	Used – Excellent

Equipped With:

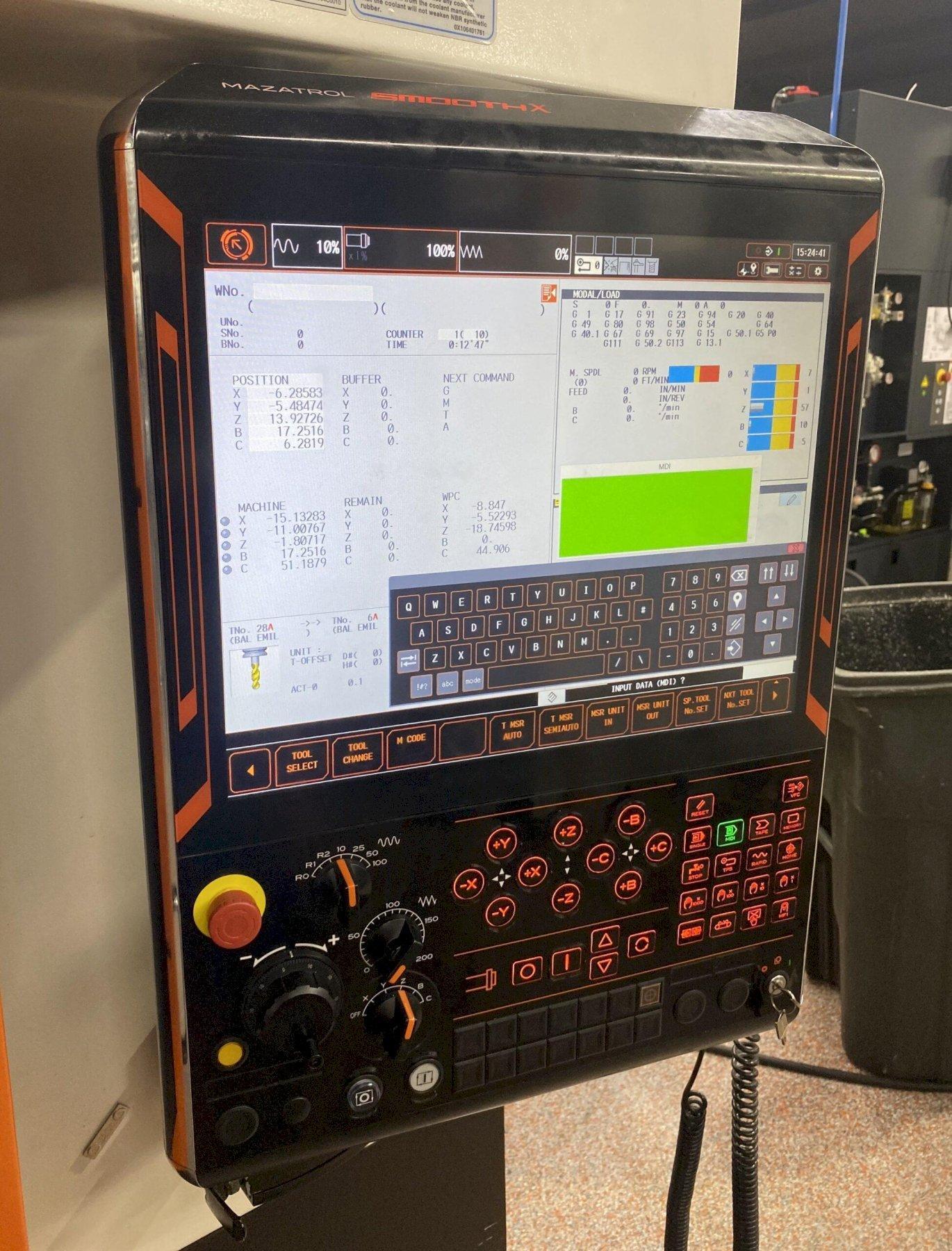

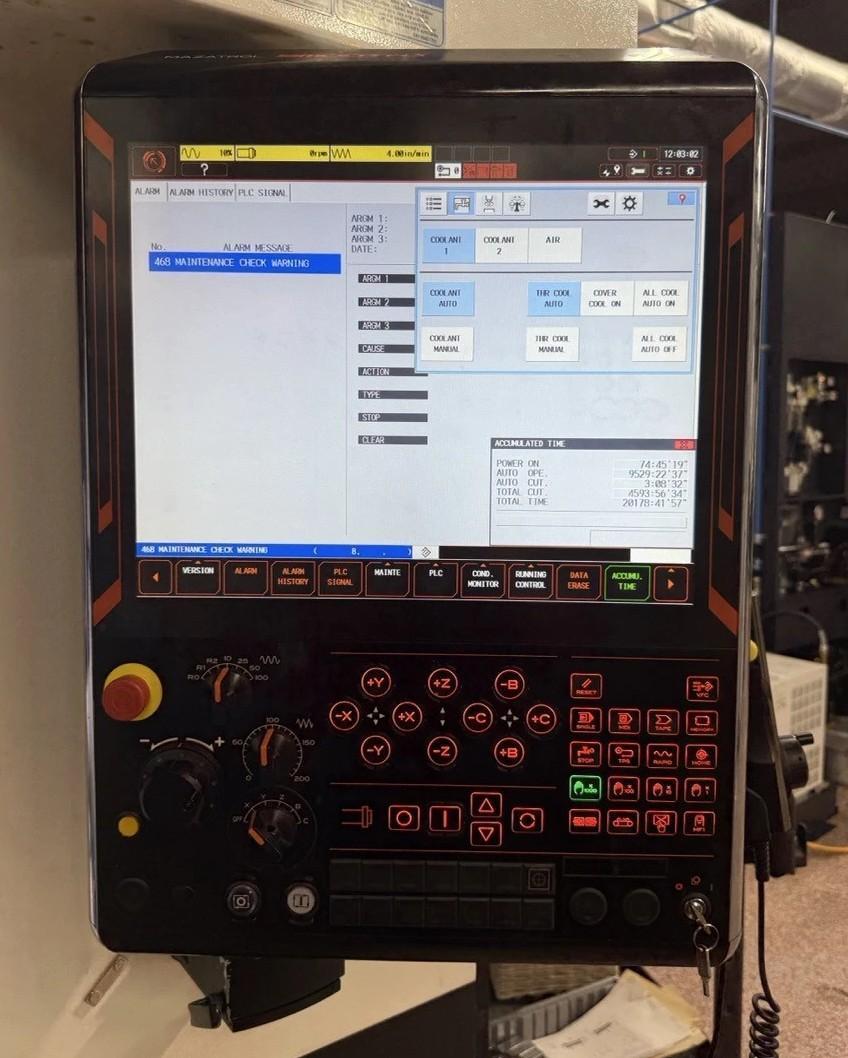

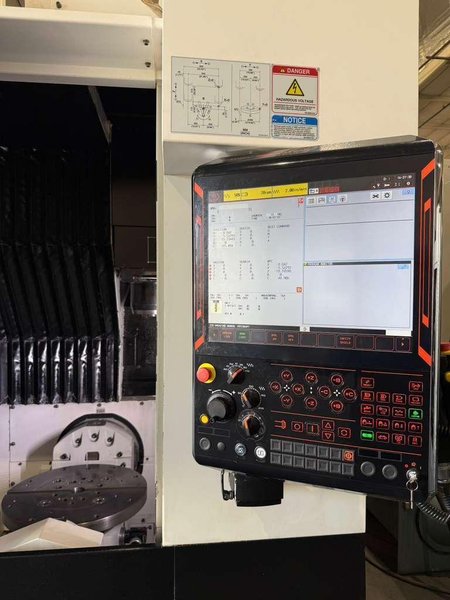

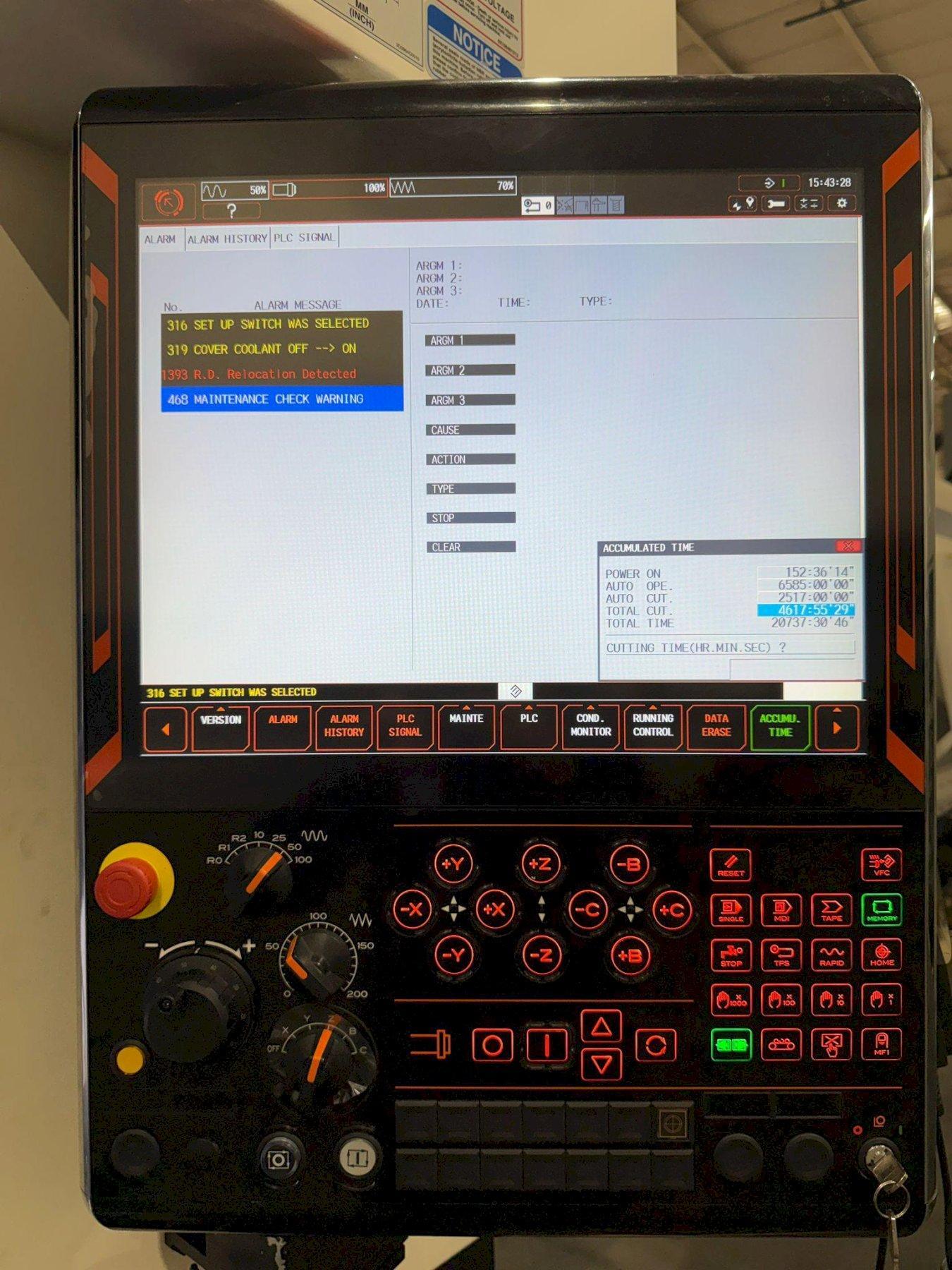

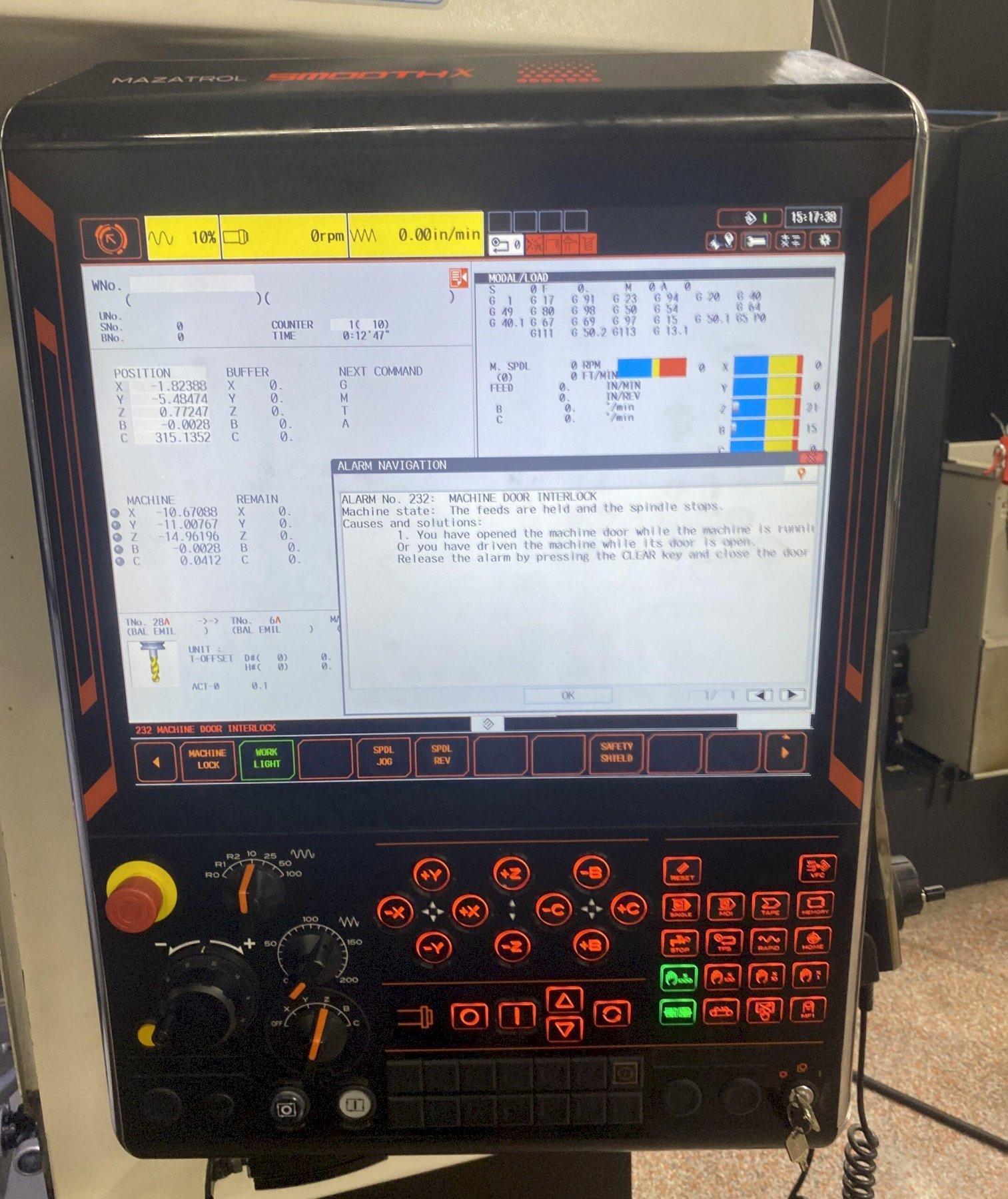

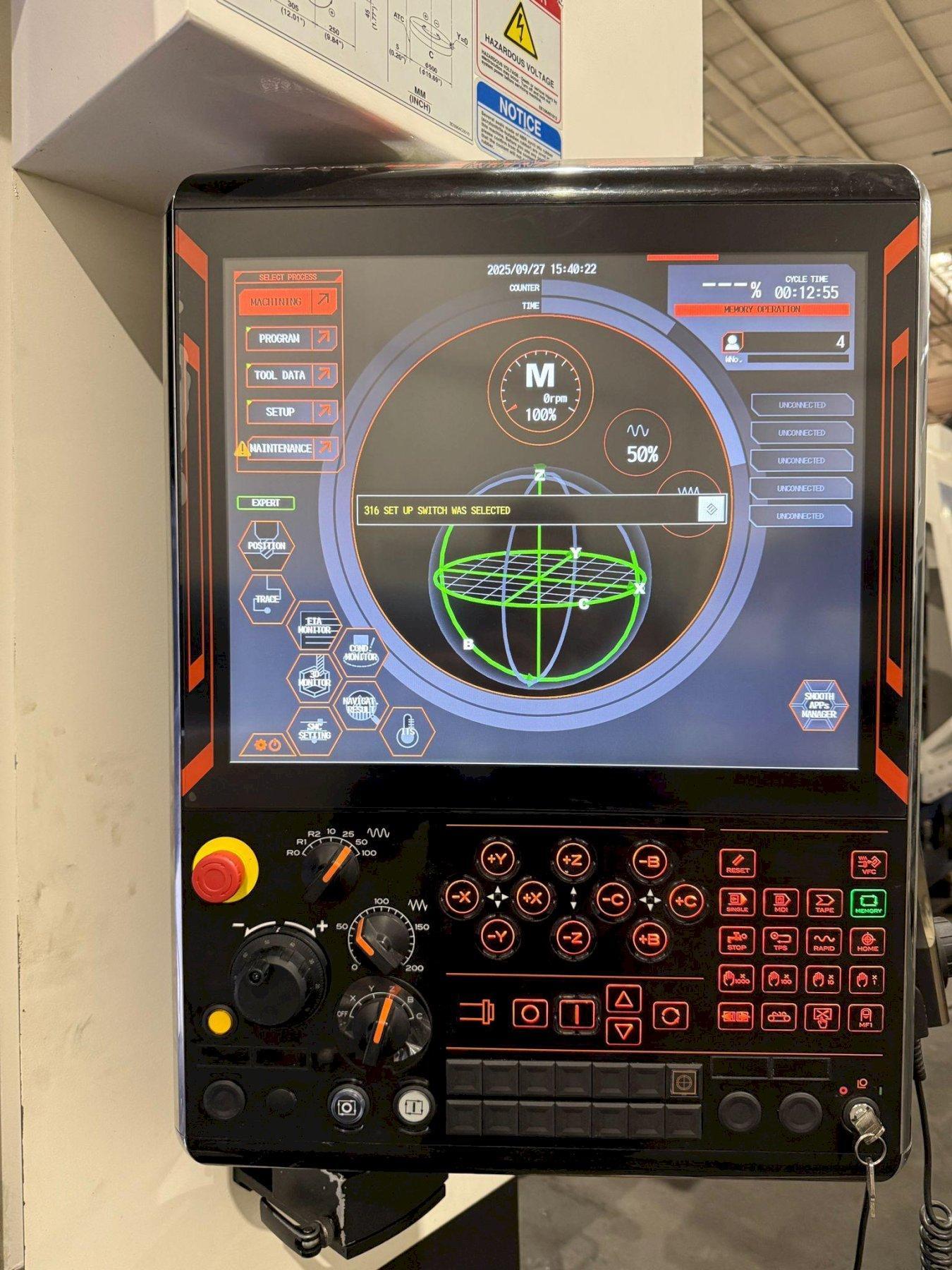

Mazatrol SmoothX CNC Control
5 Axis Simultaneous Machining
15,000 RPM High Speed Spindle

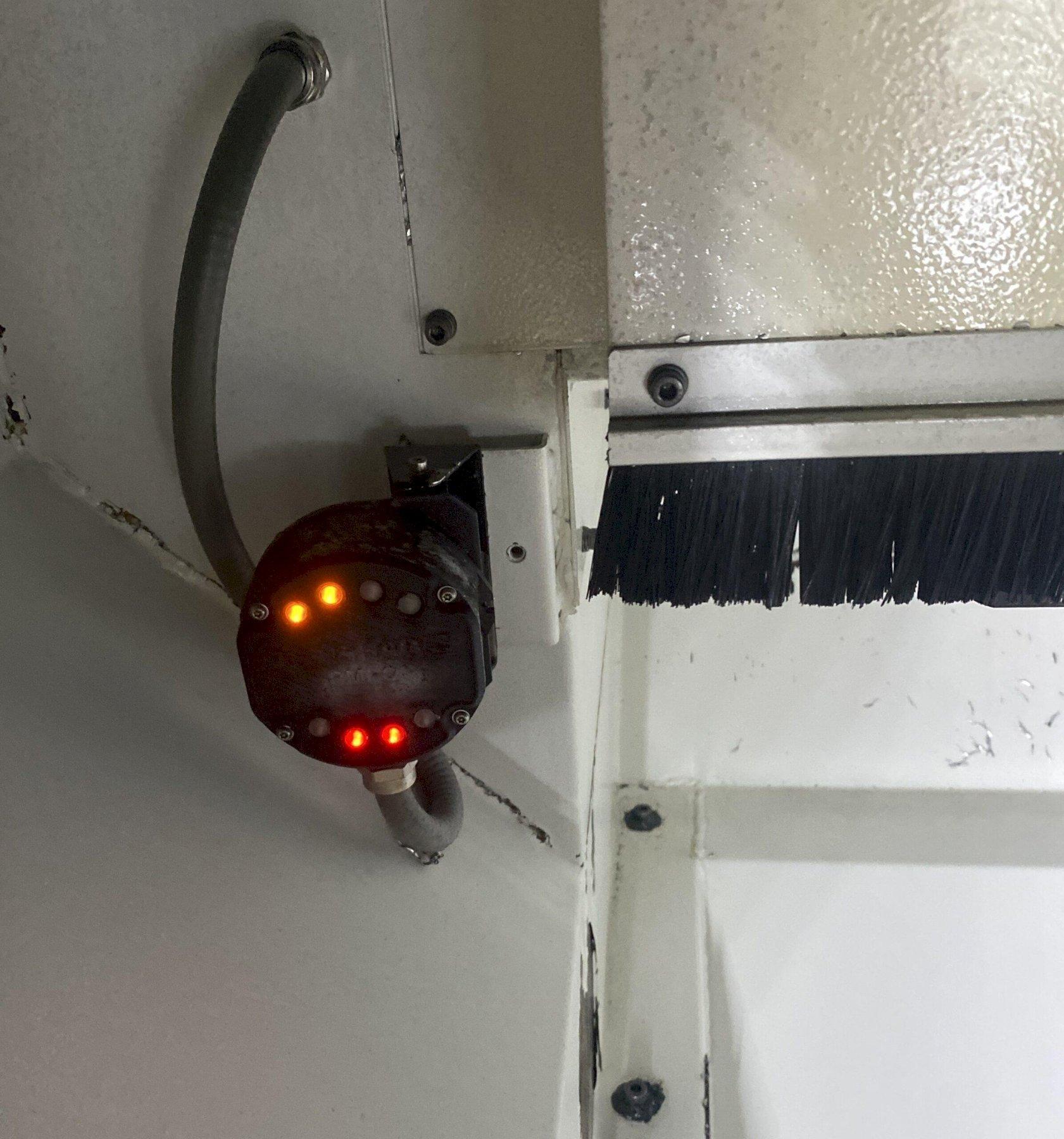

Renishaw Probing System (Probe Needed)

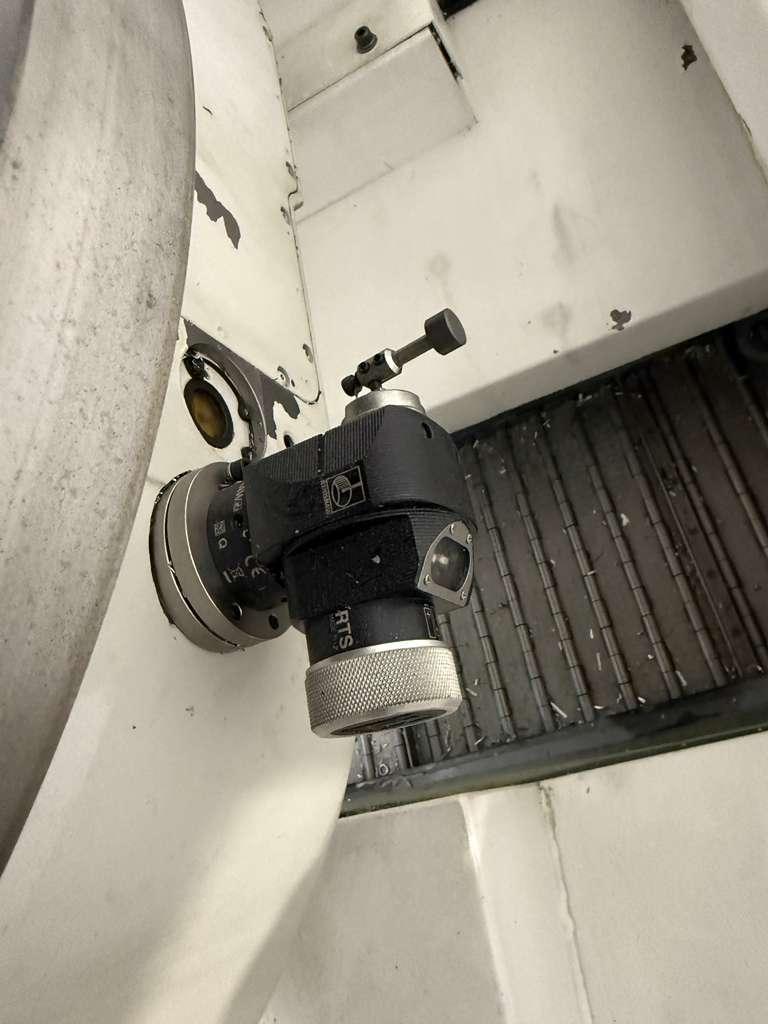

Tool Presetter
Through Spindle Coolant

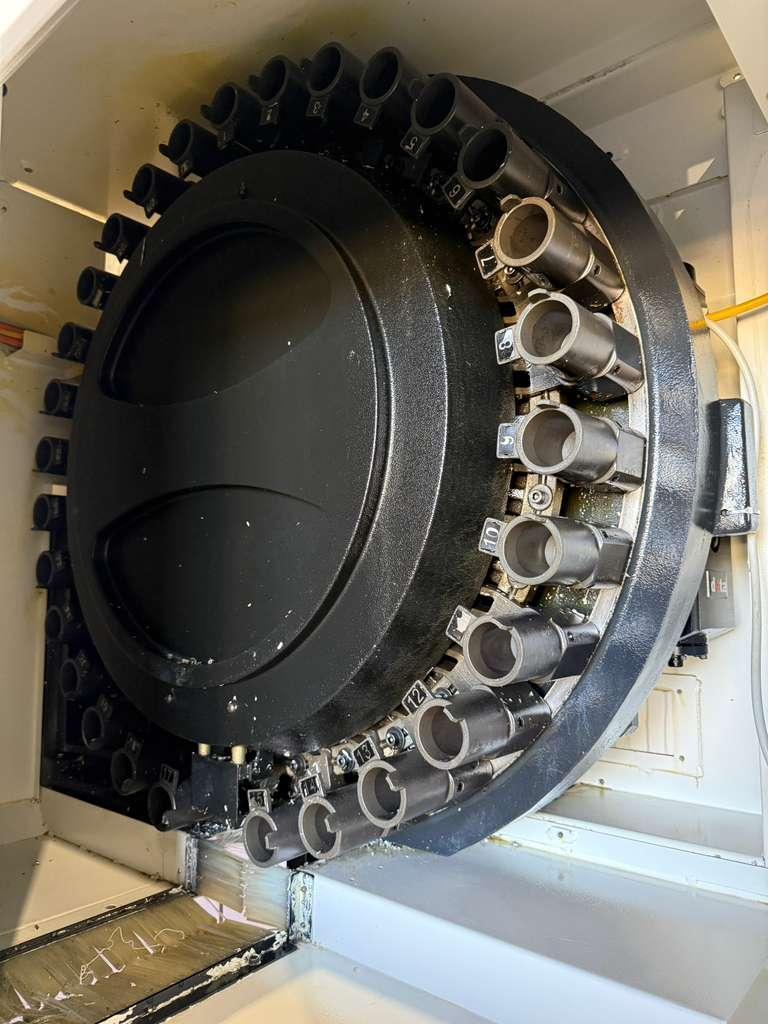

30 Station Automatic Tool Changer
30 HP High Torque Spindle
CAT-40 Taper Spindle

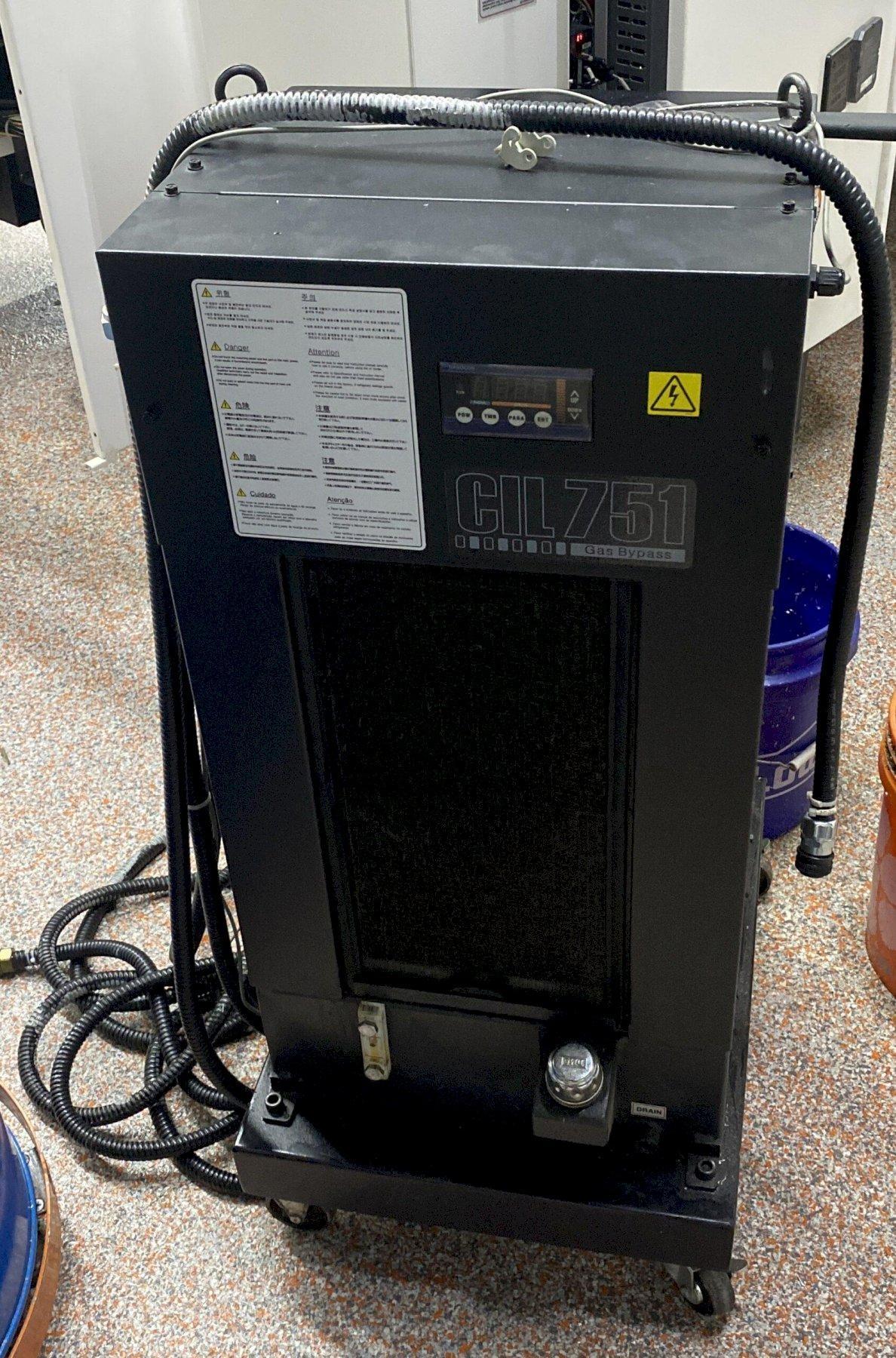

Spindle Chiller Unit

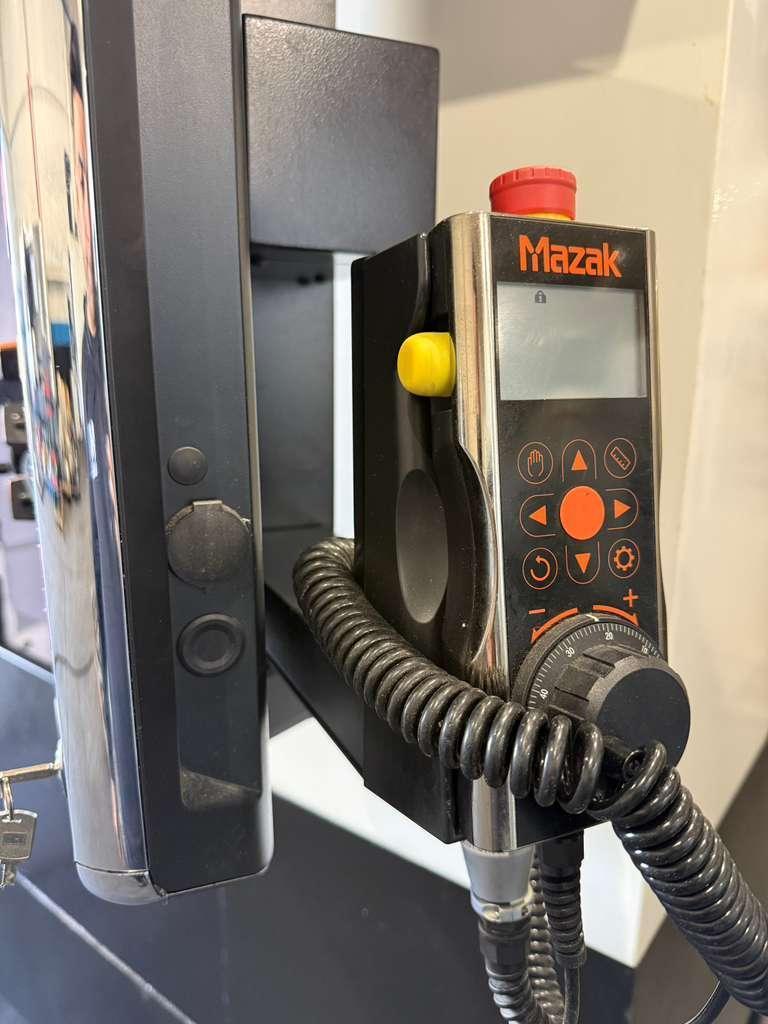

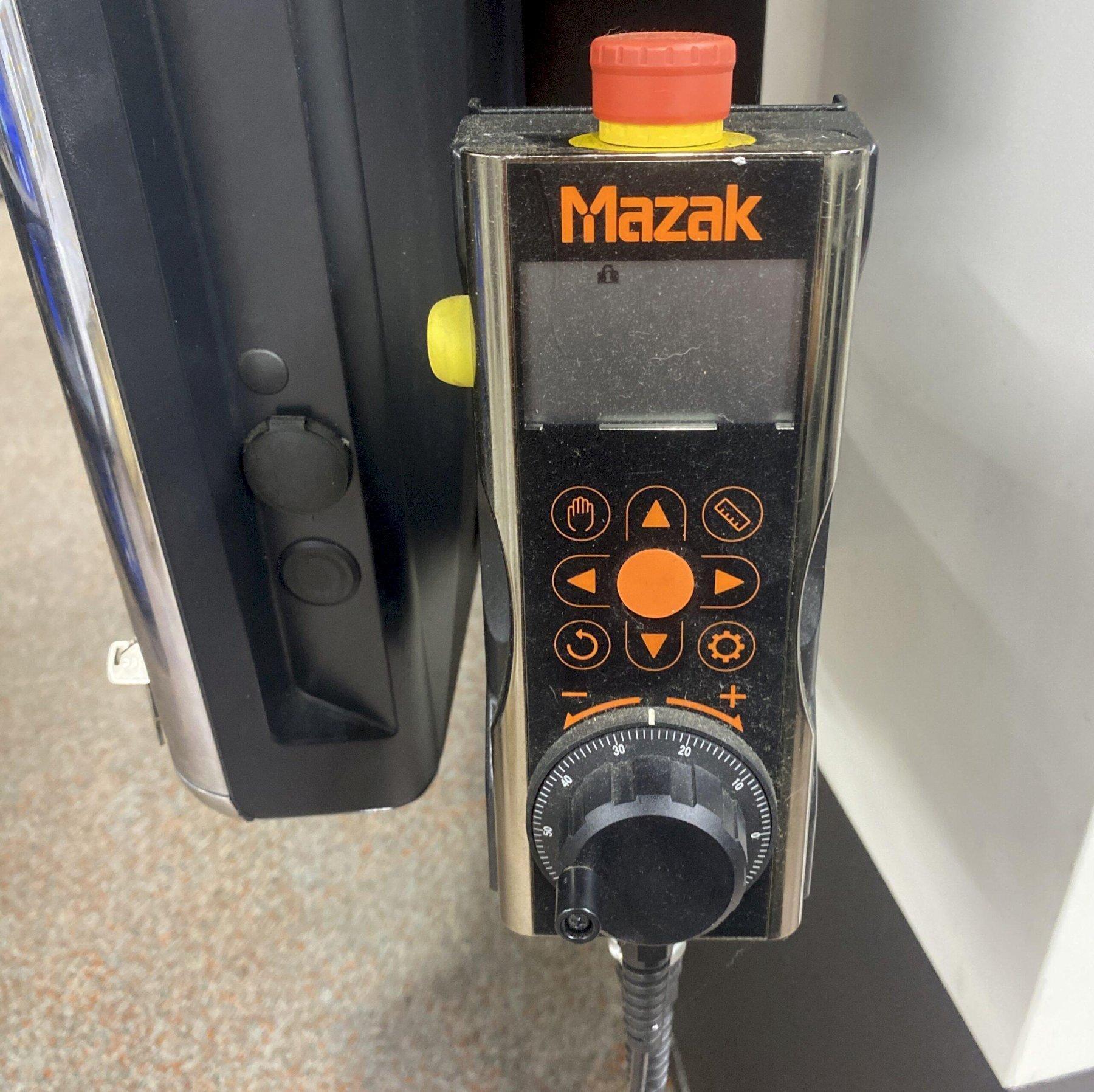

MPG Handwheel Control
Rigid Tapping
Coolant System
Chip Conveyor
Levelling Pads

Travels:
X-Axis: 21.85″
Y-Axis: 19.88″
Z-Axis: 20.07″
B-Axis: ±110° ( Table Tilt )
C Axis: 360° ( Table Rotate )
Rapid Traverse Rates Axis: 1181 IPM
Spindle Nose to Table (Min.- Max.): 4.53″ – 24.61″

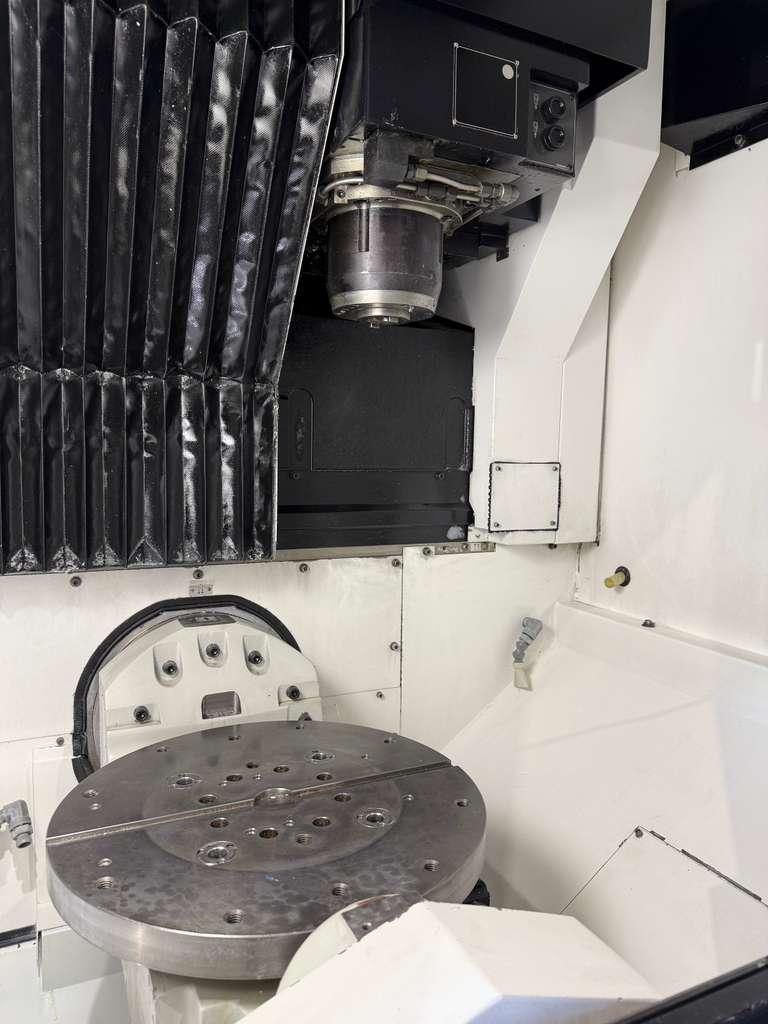

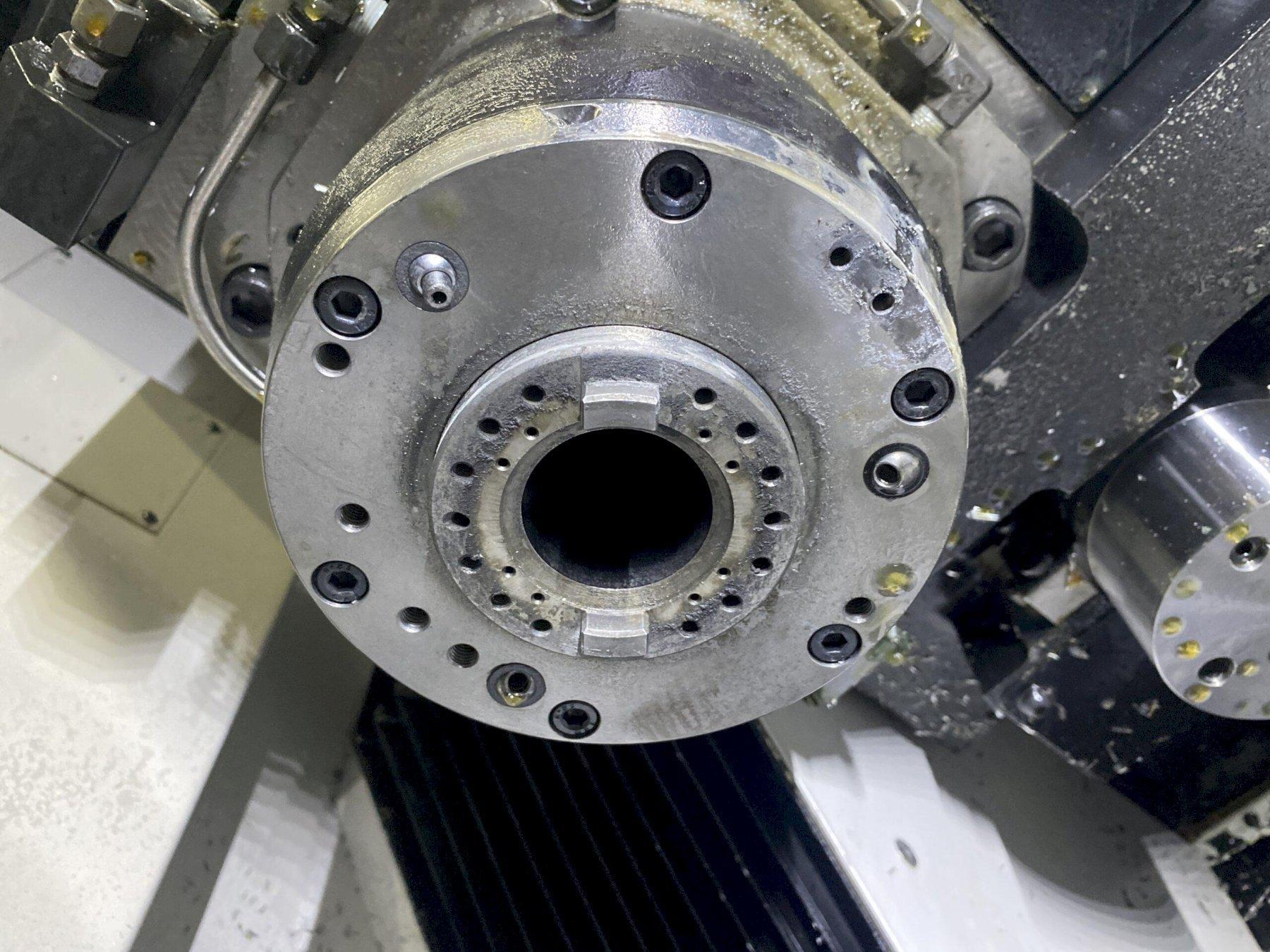

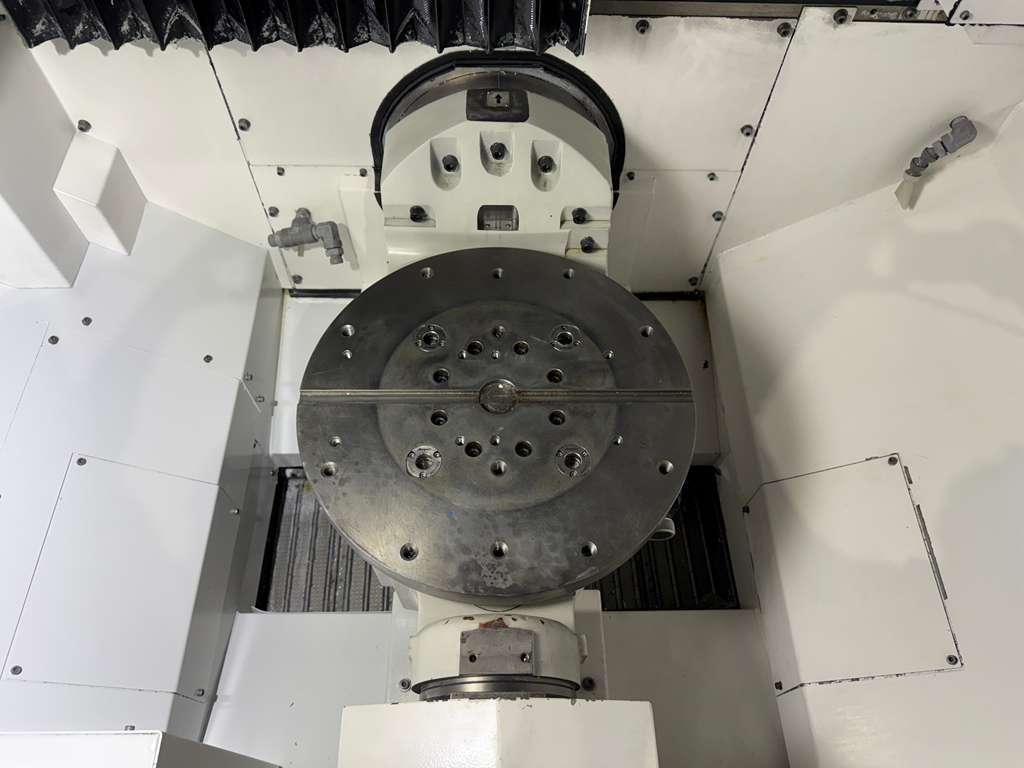

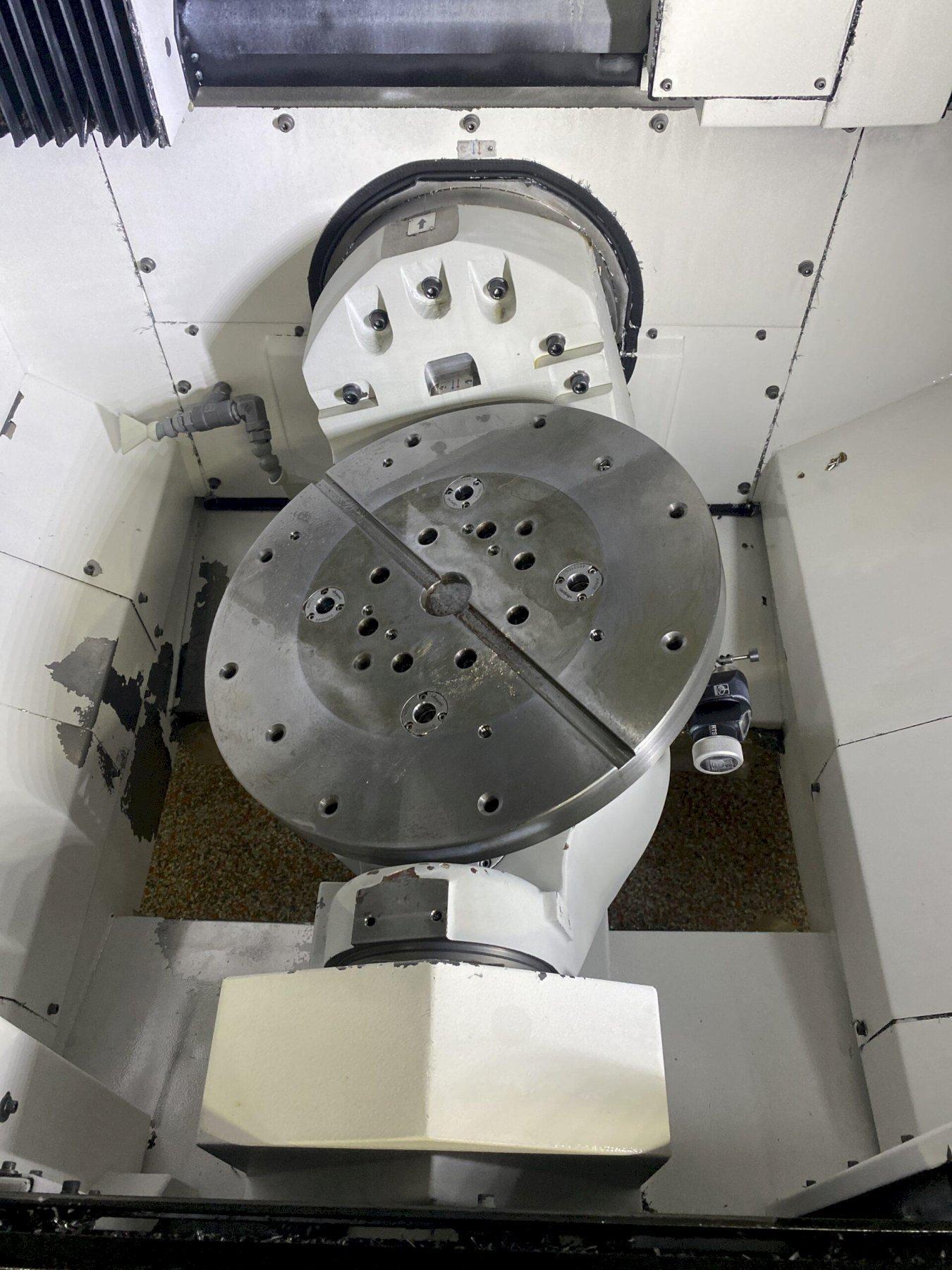

Table:
Table Diameter: ø 19.69″
Max Workpiece Size: ø 19.69″ x 12″
Max Workpiece Weight: 441 lbs

Spindle:
Taper Size: CAT-40
Speed Range: 15,000 RPM
Spindle Power: 30 HP

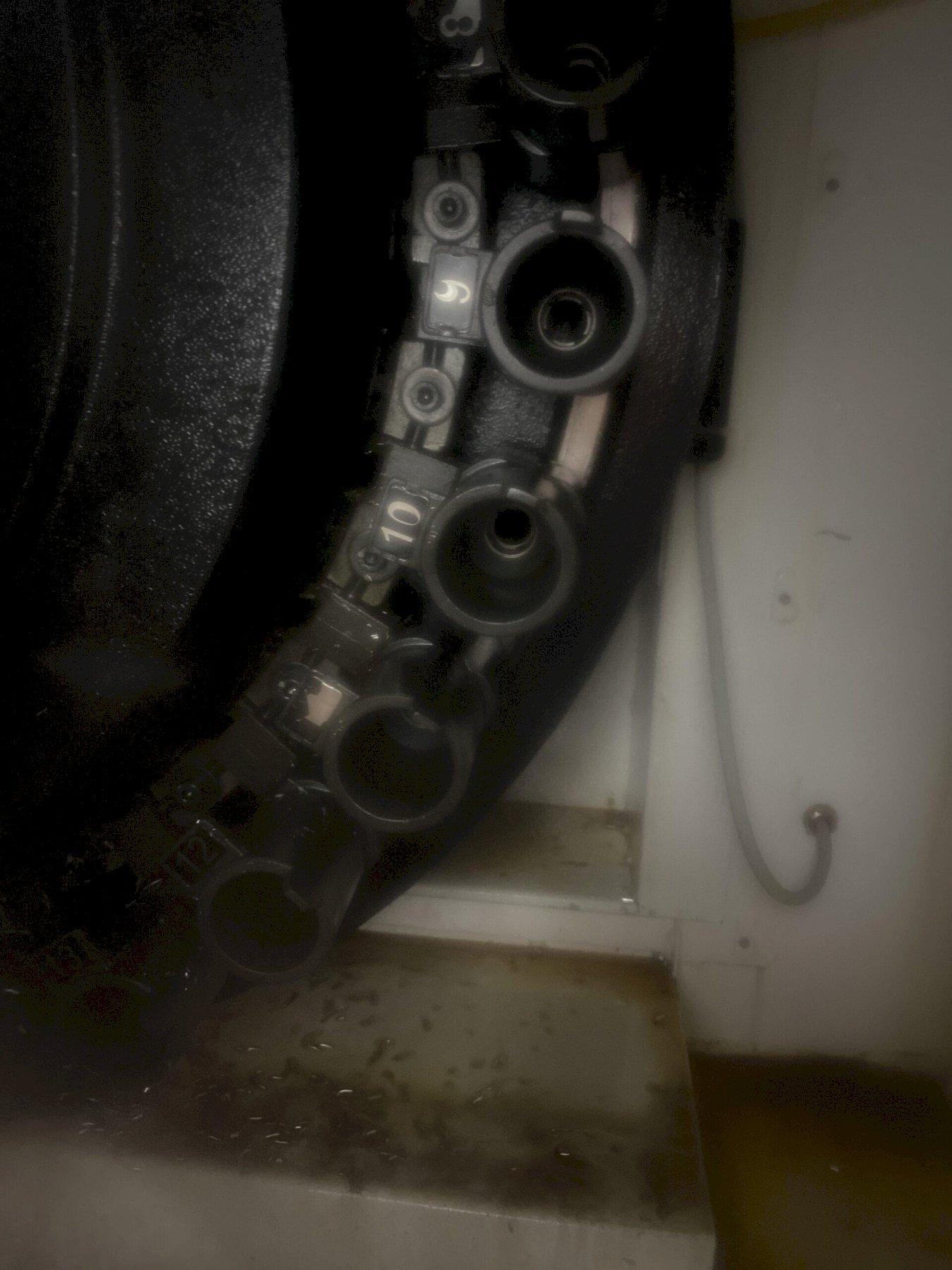

Automatic Tool Changer:
Capacity: 30 Tools
Max Tool Dia: 3.15″ -4.92″
Max Tool Length: 10.23″
Max Tool Weight: 17.63″ lbs

General:
Air Required: 80 psi, 4 scfm
Overall Dimensions: 118.45″ x 99.2″ x 118.11″ High
Weight: 14,000 lbs Approx.
