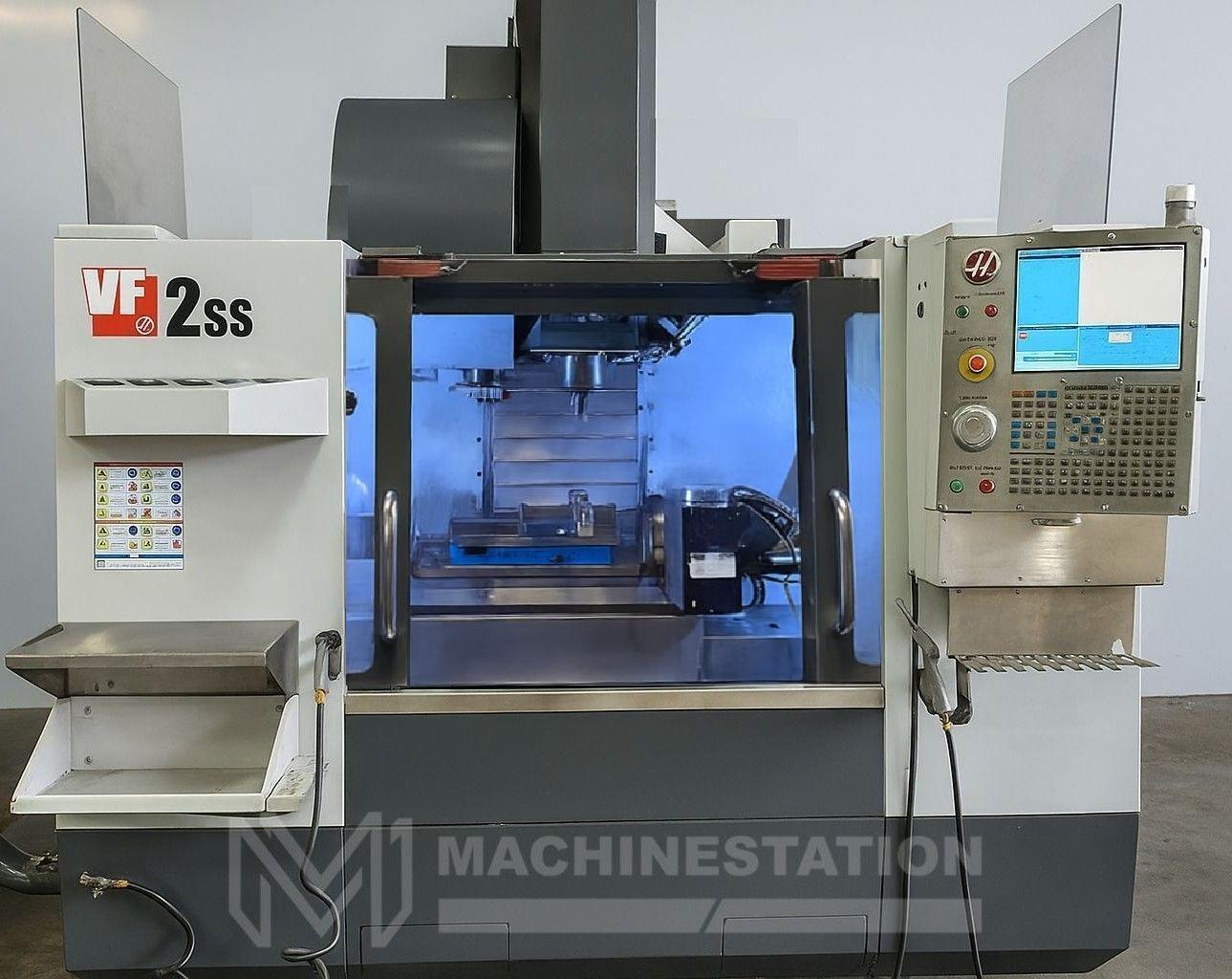

Haas VF-2SS CNC Vertical Machining Center – 4th Ready Axis Mill

Haas VF-2SS CNC Vertical Machining Center – 4th Ready Axis Mill

Name: Used HAAS Haas VF-2SS For Sale 112867
Brand: HAAS
SKU: 112867
Availability: PreOrder

Brand

HAAS

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

SKU:	112867
Make:	Haas
Model No.:	VF2SS
Year of Manufacture:	2016
Condition	Used – Good

Equipped With:

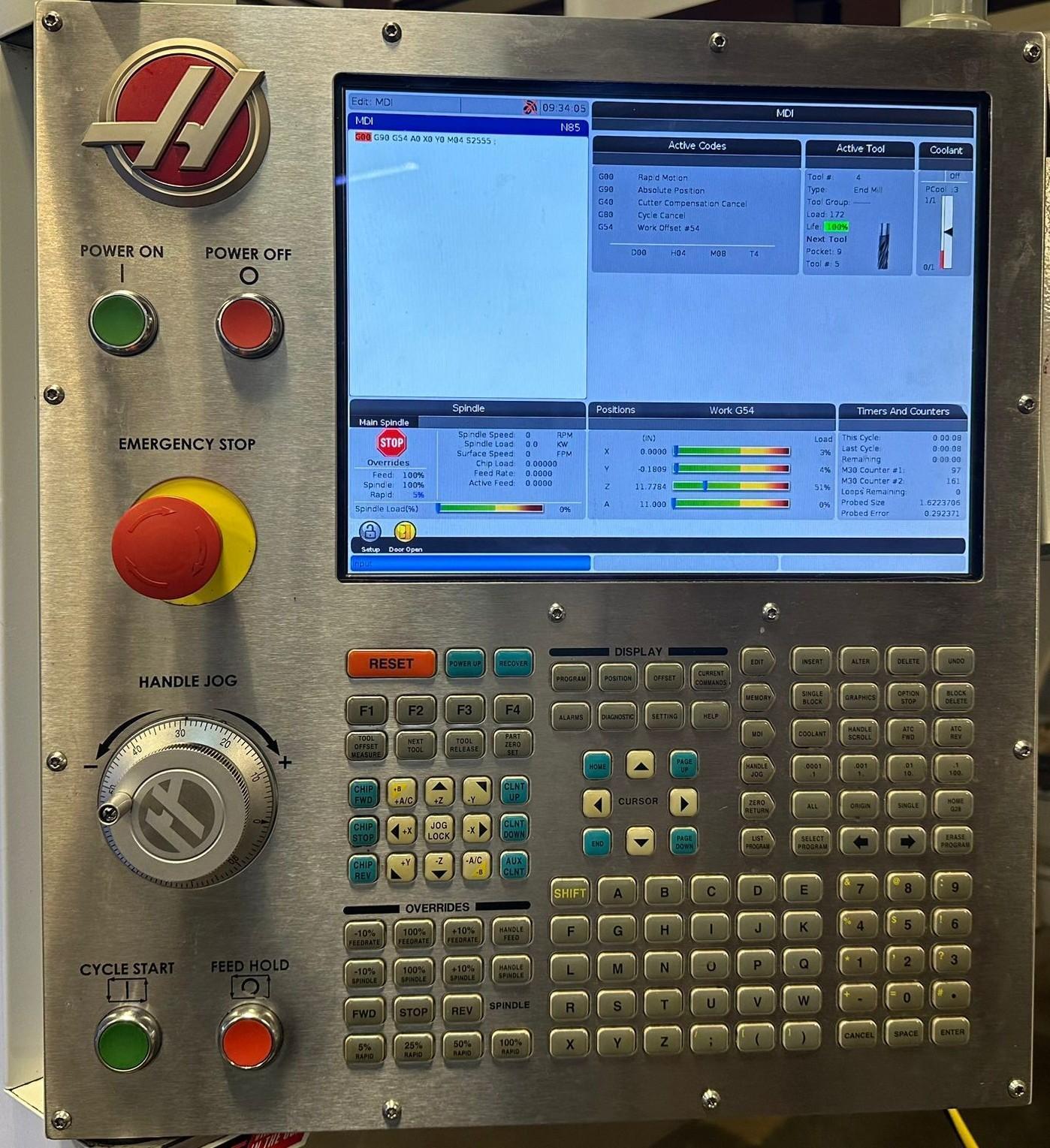

Haas CNC Control
12000 RPM High Speed Inline Direct Drive Spindle

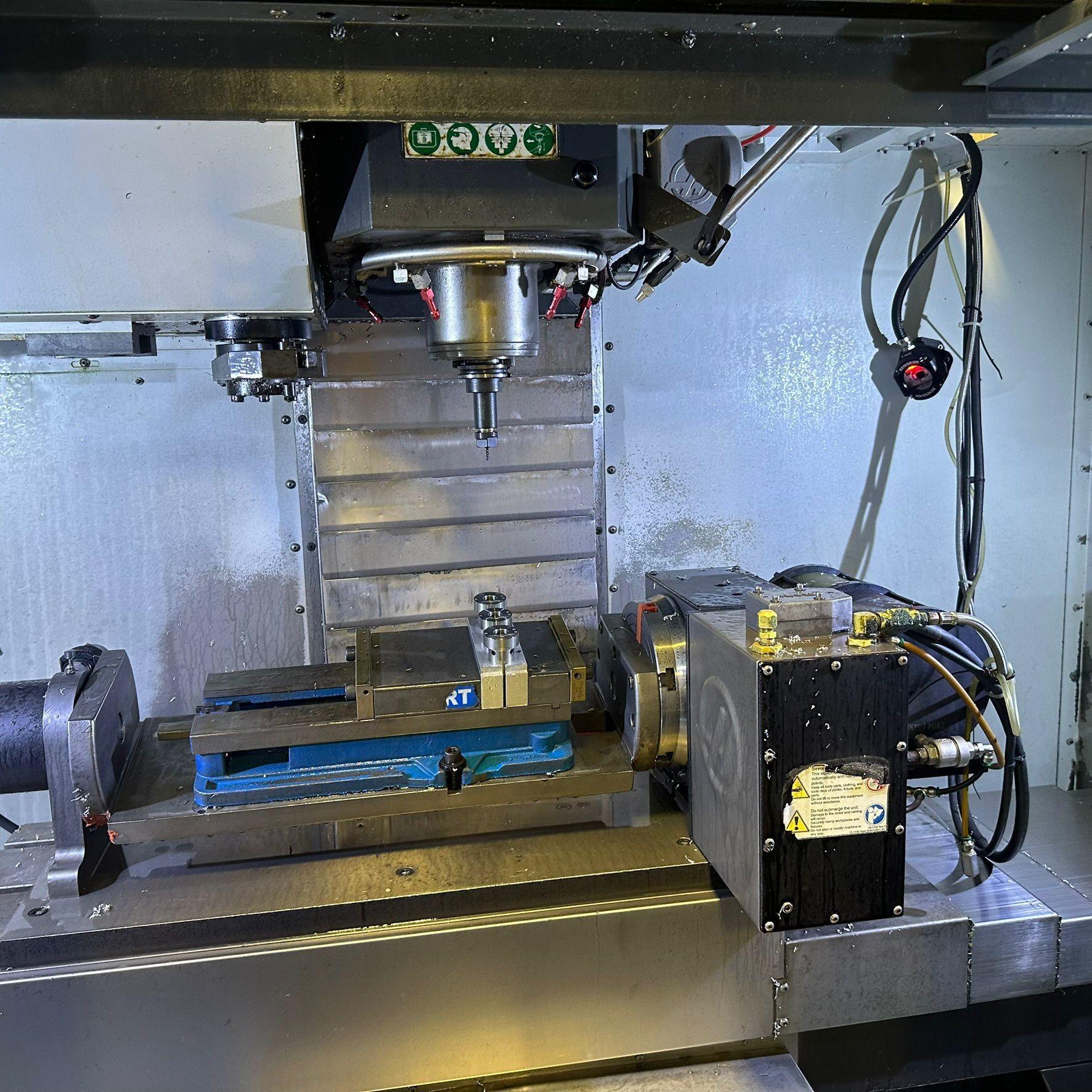

4th Axis Ready
30 HP High Torque Spindle Drive

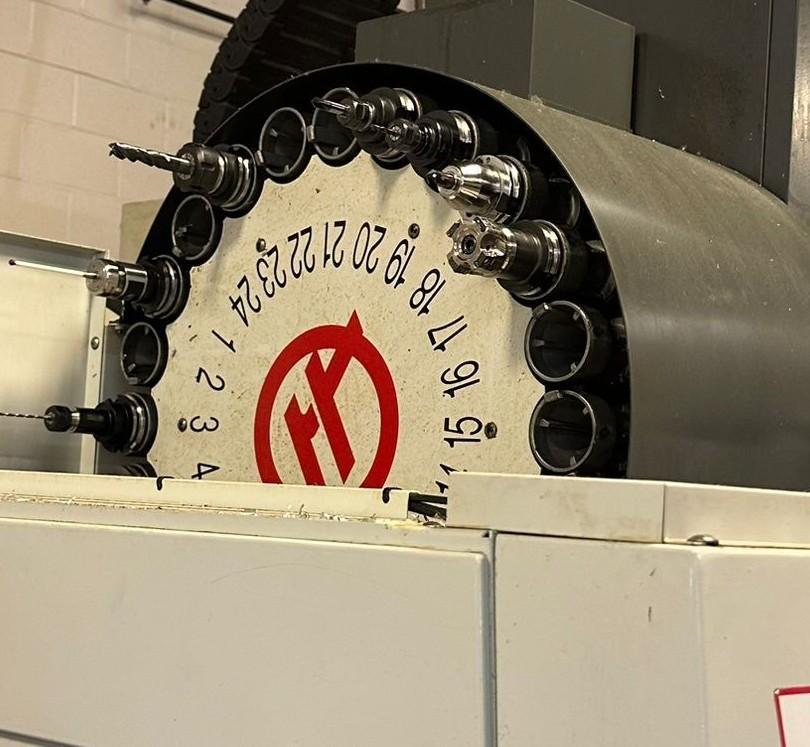

24 Station Super Speed Side Mount Automatic tool changer
1400 IPM Fast Rapid
WIPS-R Renishaw Probing System (Probe Needed)
Programmable Coolant Nozzle
Spindle Orientation
Rigid Tapping
User-Definable Macros
Visual Part Programming System
Coordinate Rotation and Scaling
Coolant System

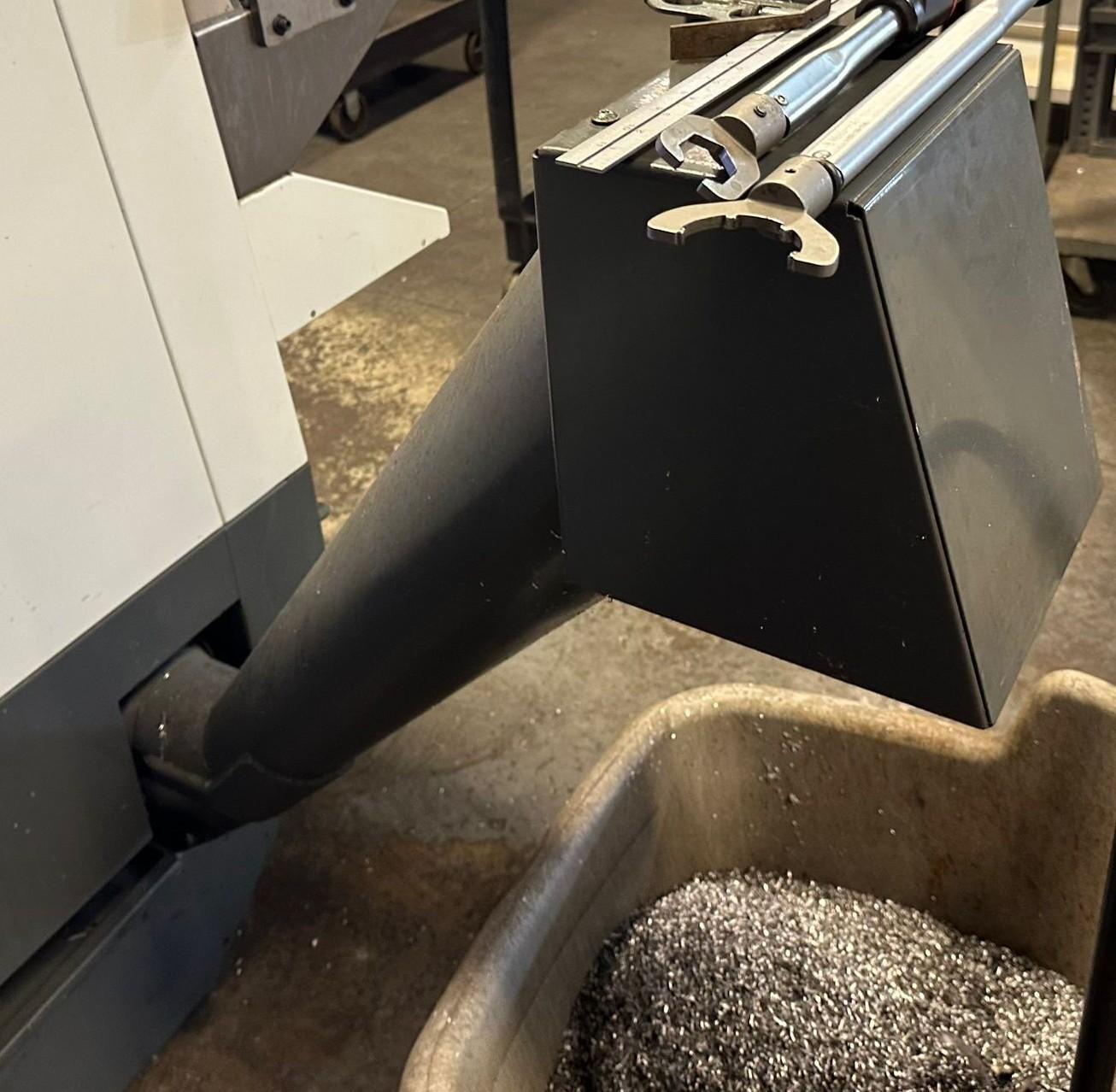

Chip Auger
Note: 4th Axis Rotary Table Not Included with the Machine

Table:
Length: 36.0″
Width: 14.0″
Number of Std T-Slots: 3
T-Slot Width: 5/8″
Max Weight on Table: 1500 lbs

Travel:
X-Axis: 30″
Y-Axis: 16″
Z-Axis: 20″
Rapid Traverse Rates: 1400 Inch Per Minute
Cutting Feed Rates: 883 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4″ – 24″

Automatic Tool Changer:
Capacity: 24 Tools
Max Tool Weight: 12 lbs
Max Tool Diameter (full): 2.5″
Max Tool Diameter (adjacent empty): 5″
Max Tool Length: 11″
Tool Changing Time: 1.8 Seconds
