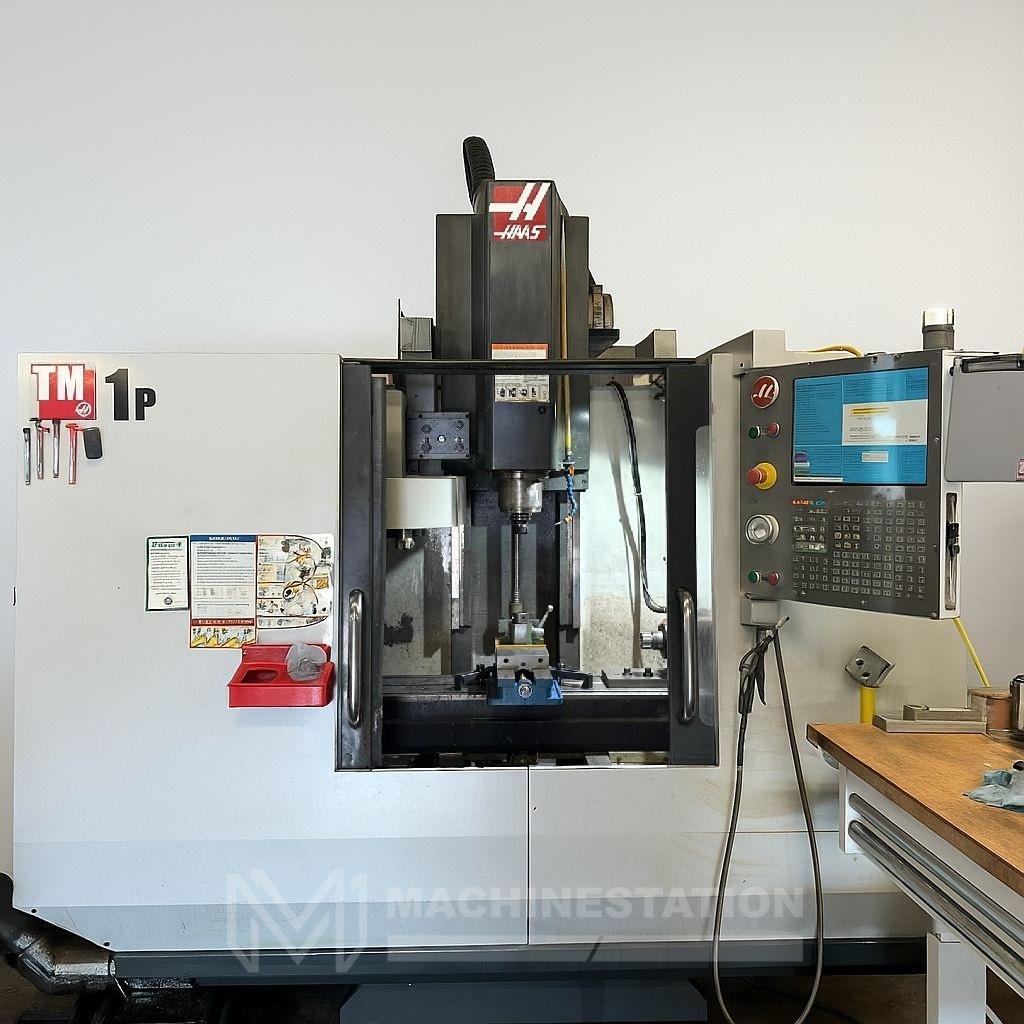

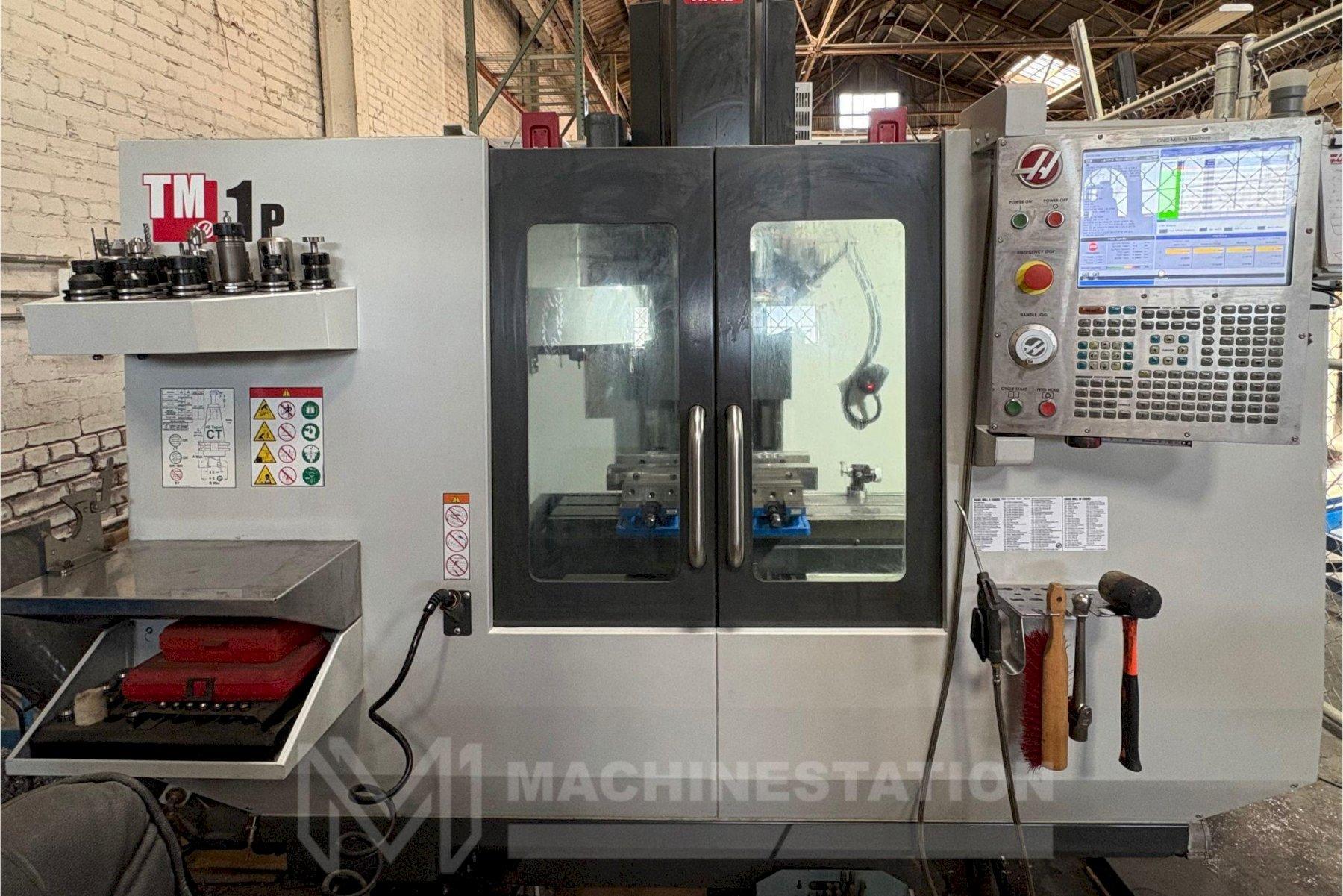

Haas TM-1P Tool Room CNC Mill – 2011 4th Axis Mill

Haas TM-1P Tool Room CNC Mill – 2011 4th Axis Mill

Name: Used HAAS Haas TM-1P For Sale 112868
Brand: HAAS
SKU: 112868
Availability: PreOrder

Brand

HAAS

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

SKU:	112868
Make:	Haas
Model No.:	TM-1P
Year of Manufacture:	2011

Equipped With:

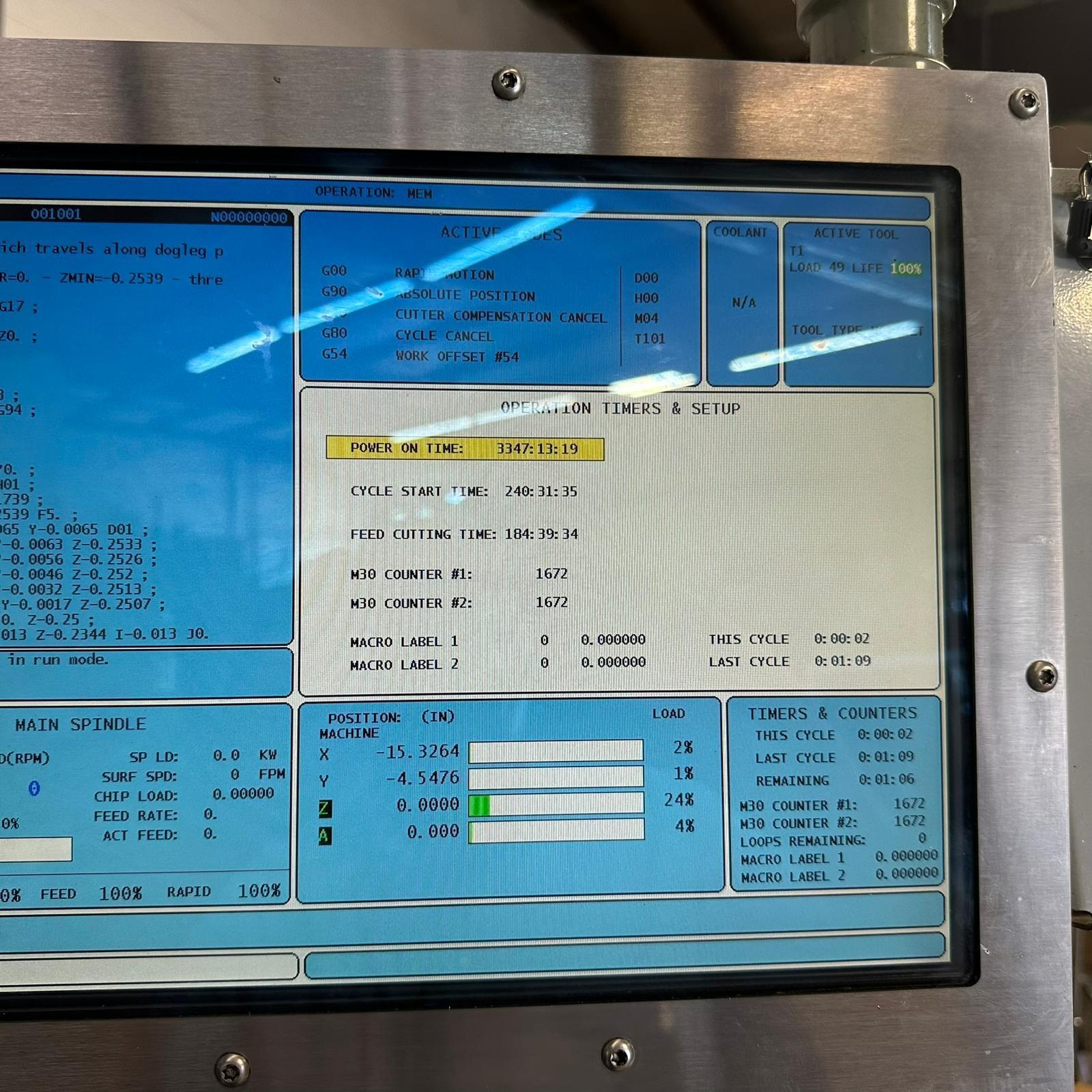

Haas CNC Control

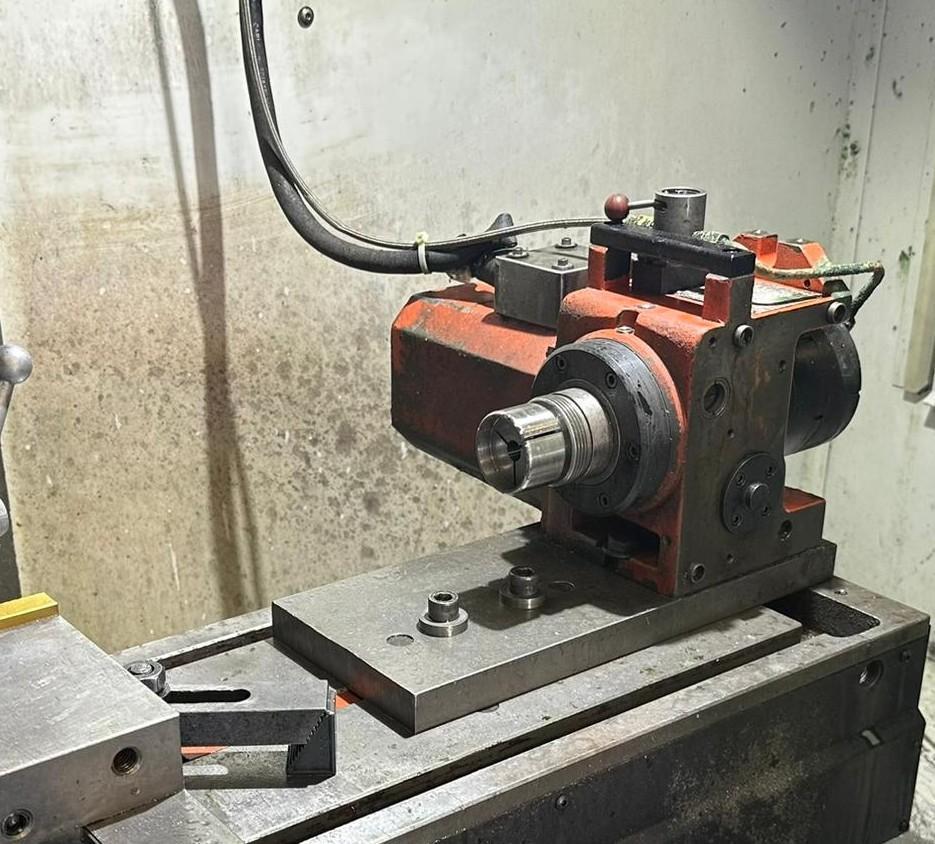

Haas 4th Axis Rotry Table
6000 RPM Spindle
10 Station Automatic Tool Changer
7.5 HP High Torque Spindle
Coolant System
Chip Auger

Travel:
X-Axis: 30″
Y-Axis: 12″
Z-Axis: 16″
Rapid Traverse Rates: 400 Inch Per Minute
Cutting Feed Rates: 400 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4″ – 20″

Table:
Length: 47.8″
Width: 10.5″
Number of Std T-Slots: 3
T-Slot Width: 5/8″
Max Weight on Table: 350 lbs

Spindle:
Taper Size: 40
Speed Range: 6000 RPM
Spindle Power: 7.5 HP

Automatic Tool Changer:
Capacity: 10 Station
Max Tool Diameter: 3.5″
Max Tool Weight: 12 lbs
Tool Change Time: 5.7 Sec.

General:
Air Required: 100 psi, 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 96″ x 72″ x 103″ High Approx.
Weight: 3850 lbs Approx.

No files or videos to display
