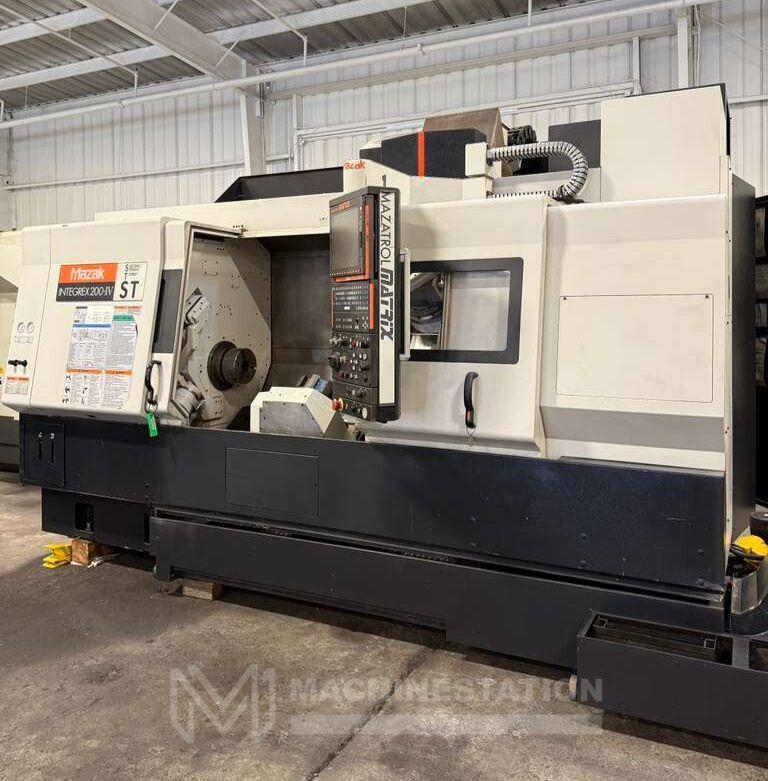

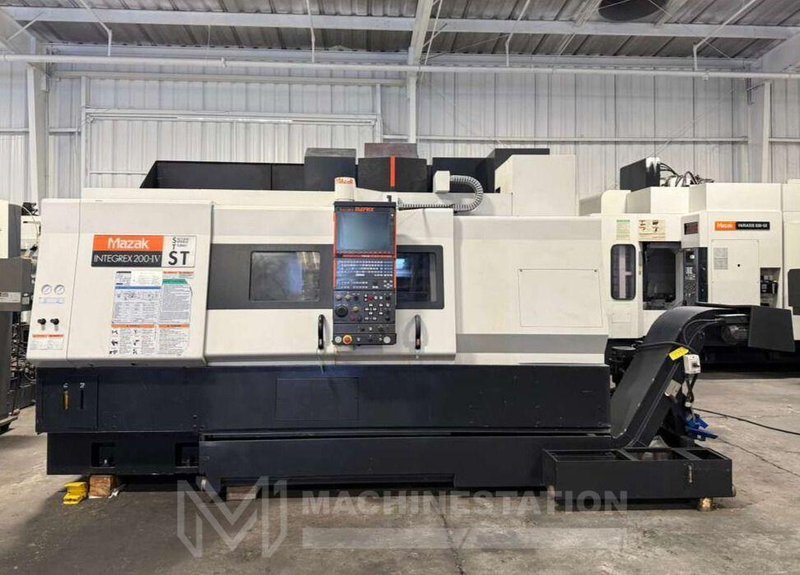

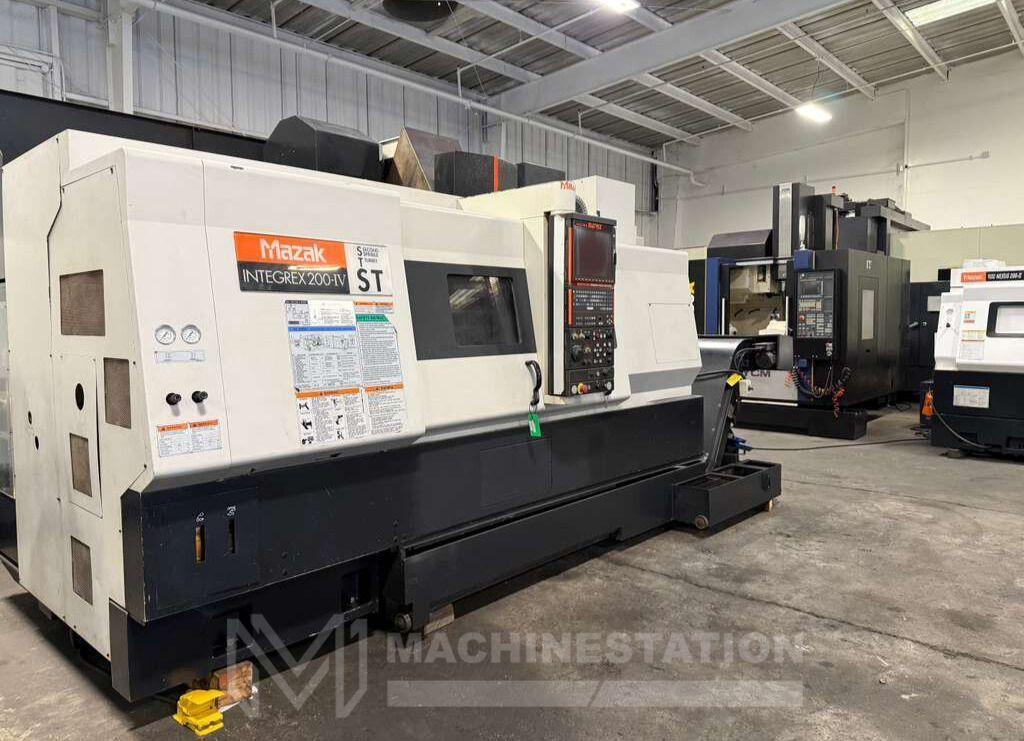

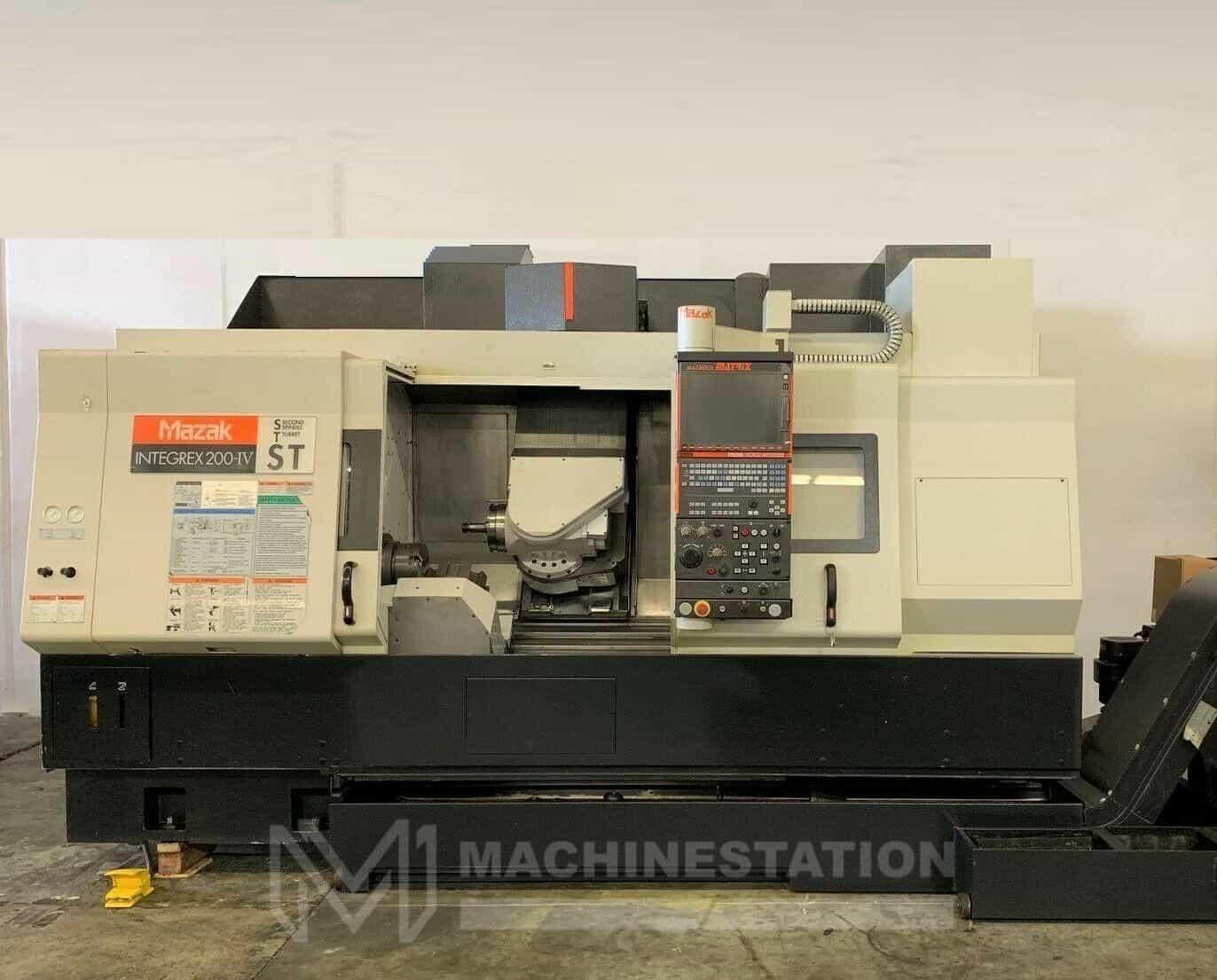

Mazak Integrex 200-IV ST Multi Axis CNC Turning Center

Mazak Integrex 200-IV ST Multi Axis CNC Turning Center

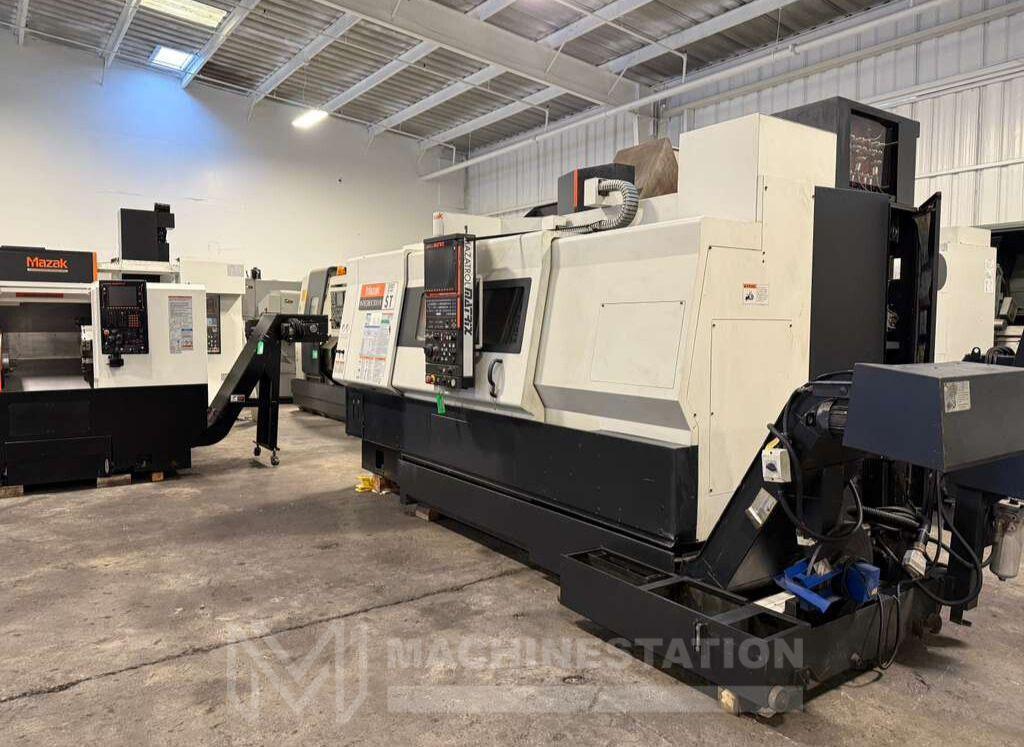

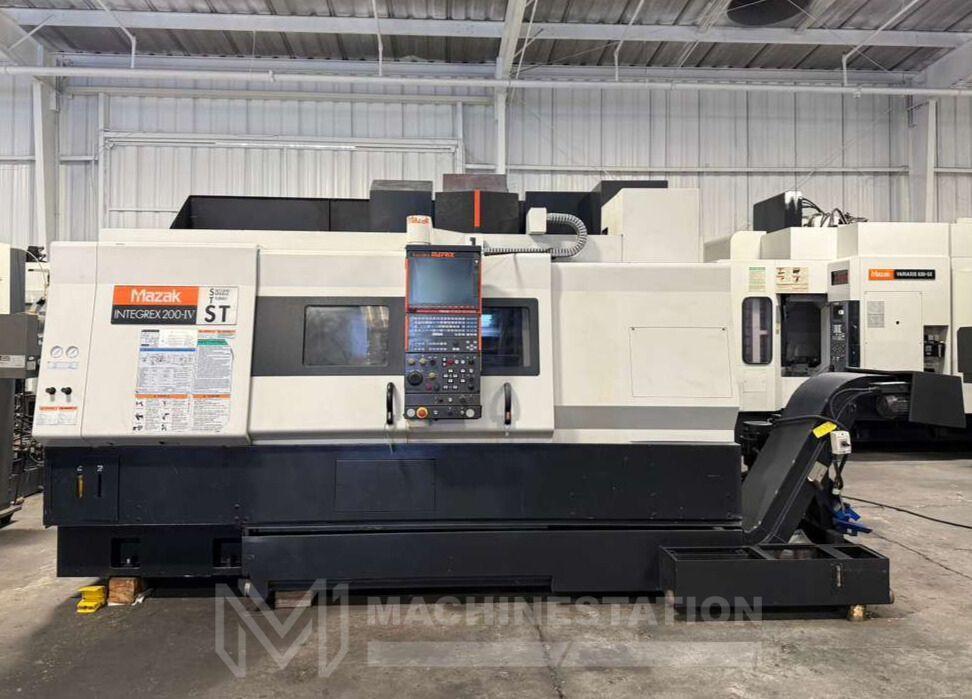

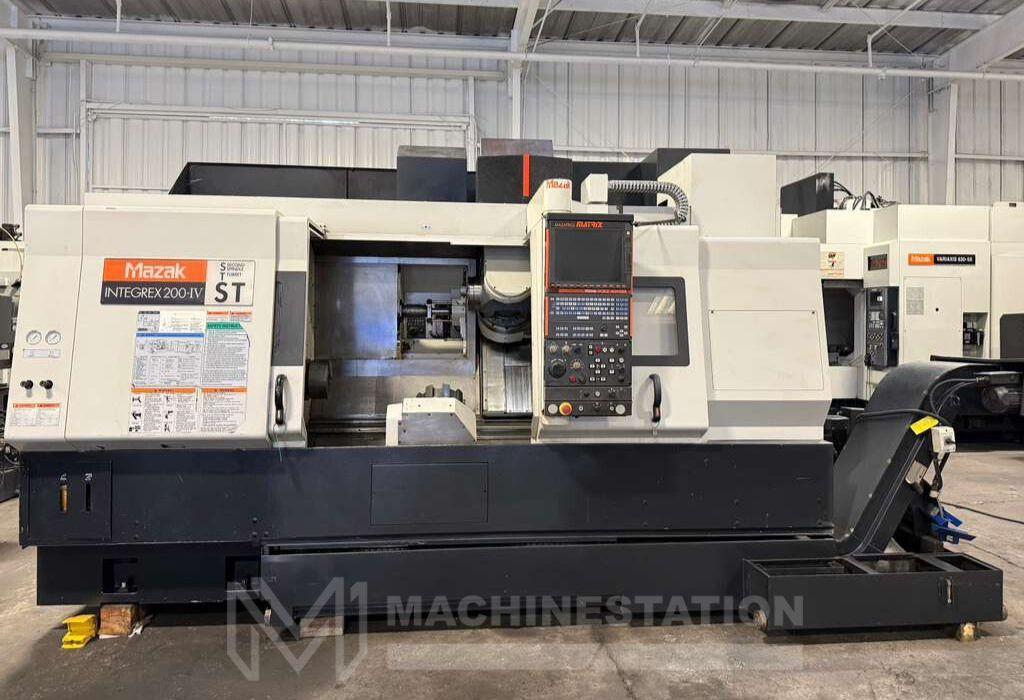

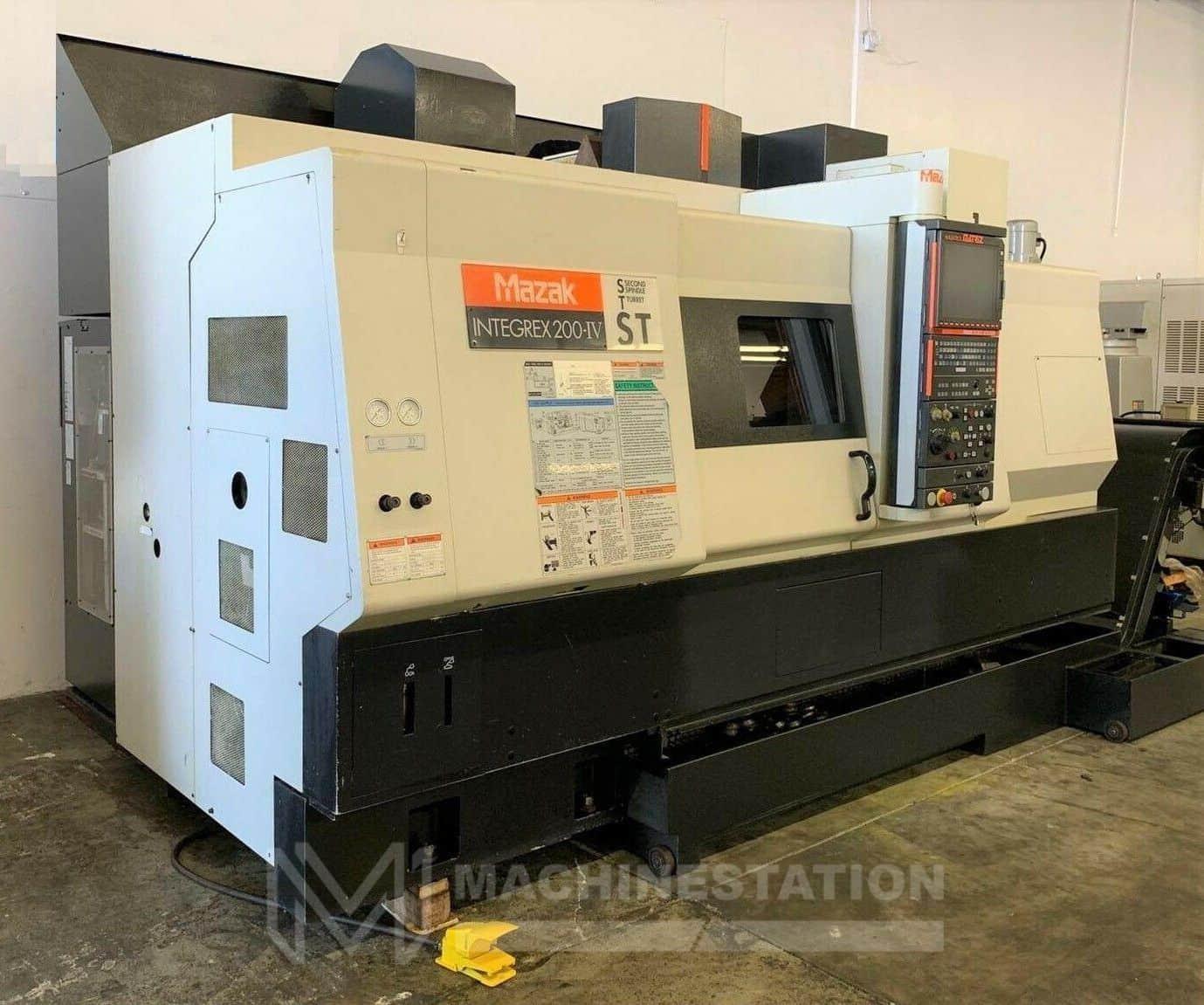

Name: Mazak Integrex 200-IV ST Multi Axis CNC Turning Center
Brand: MAZAK
SKU: 111747
Availability: InStock

Brand

MAZAK

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make:	MAZAK
Model No.:	INTEGREX 200-IV ST
Year of Manufacture:	2006
Condition:	Used – Good

Equipped With:

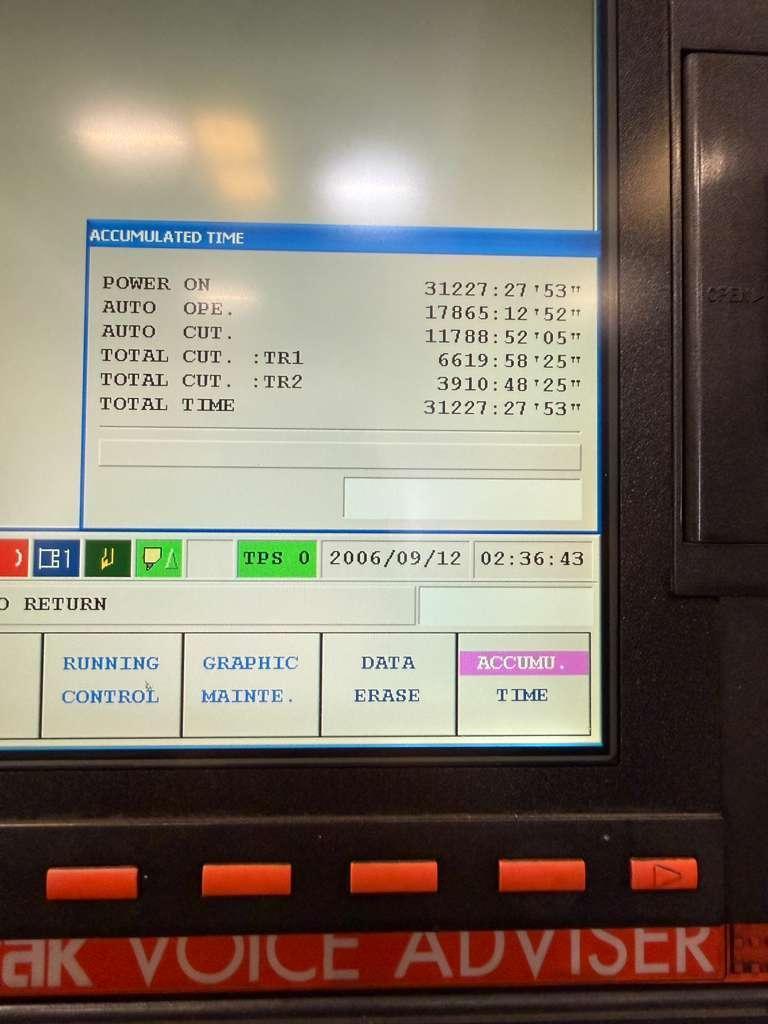

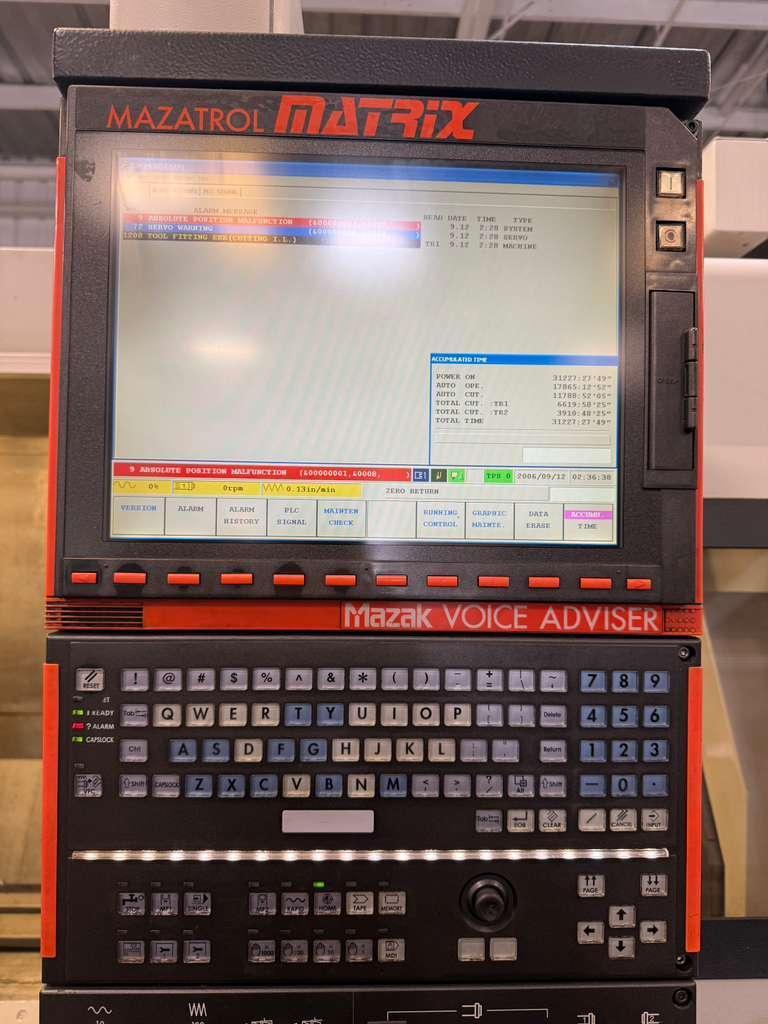

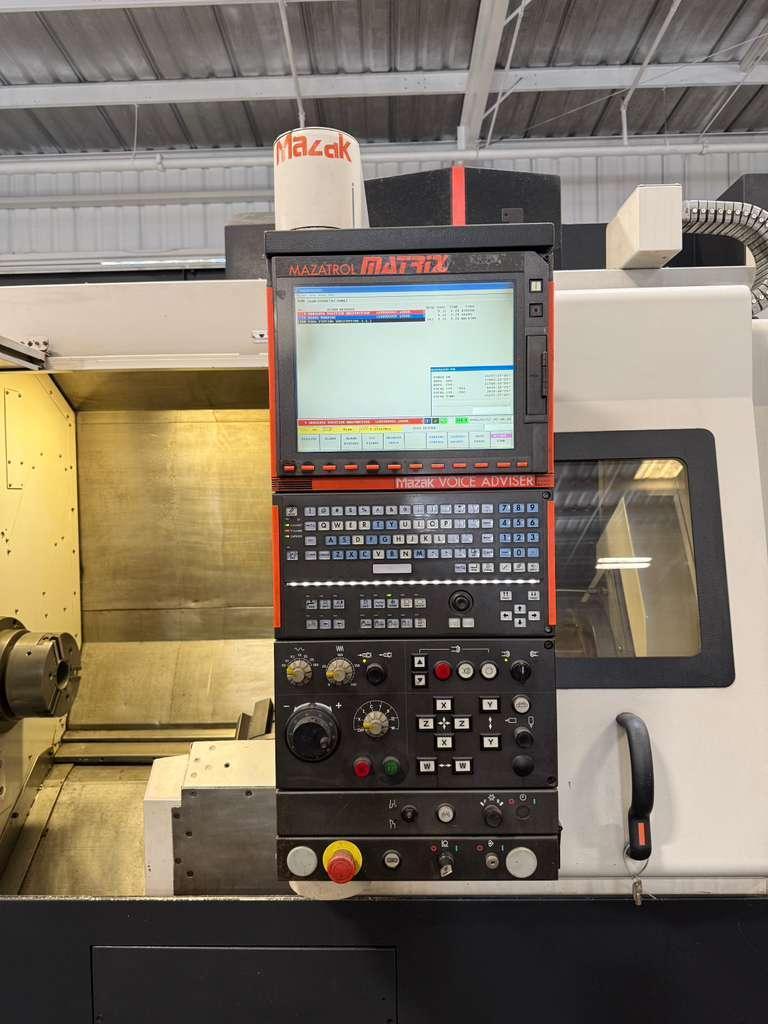

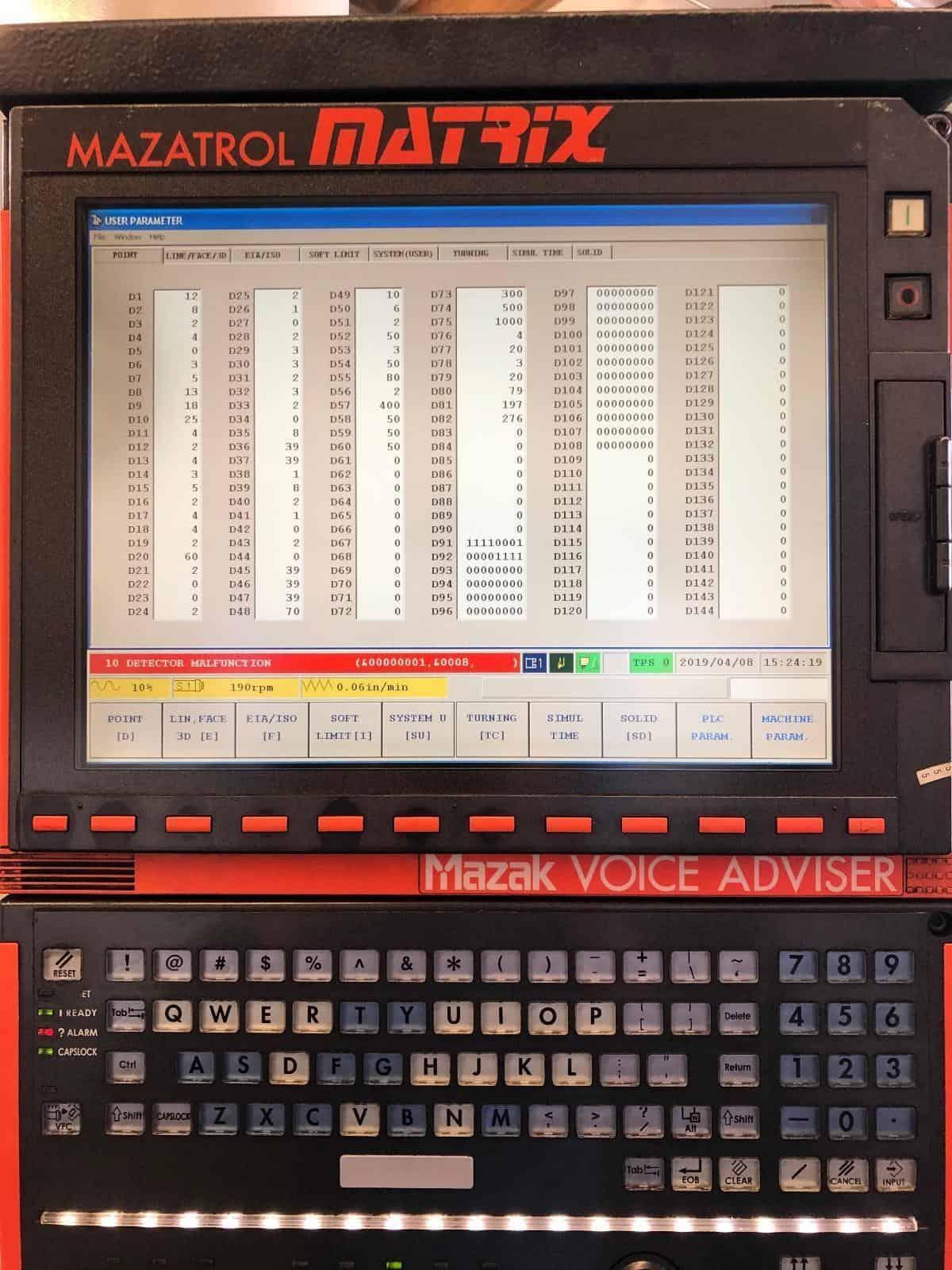

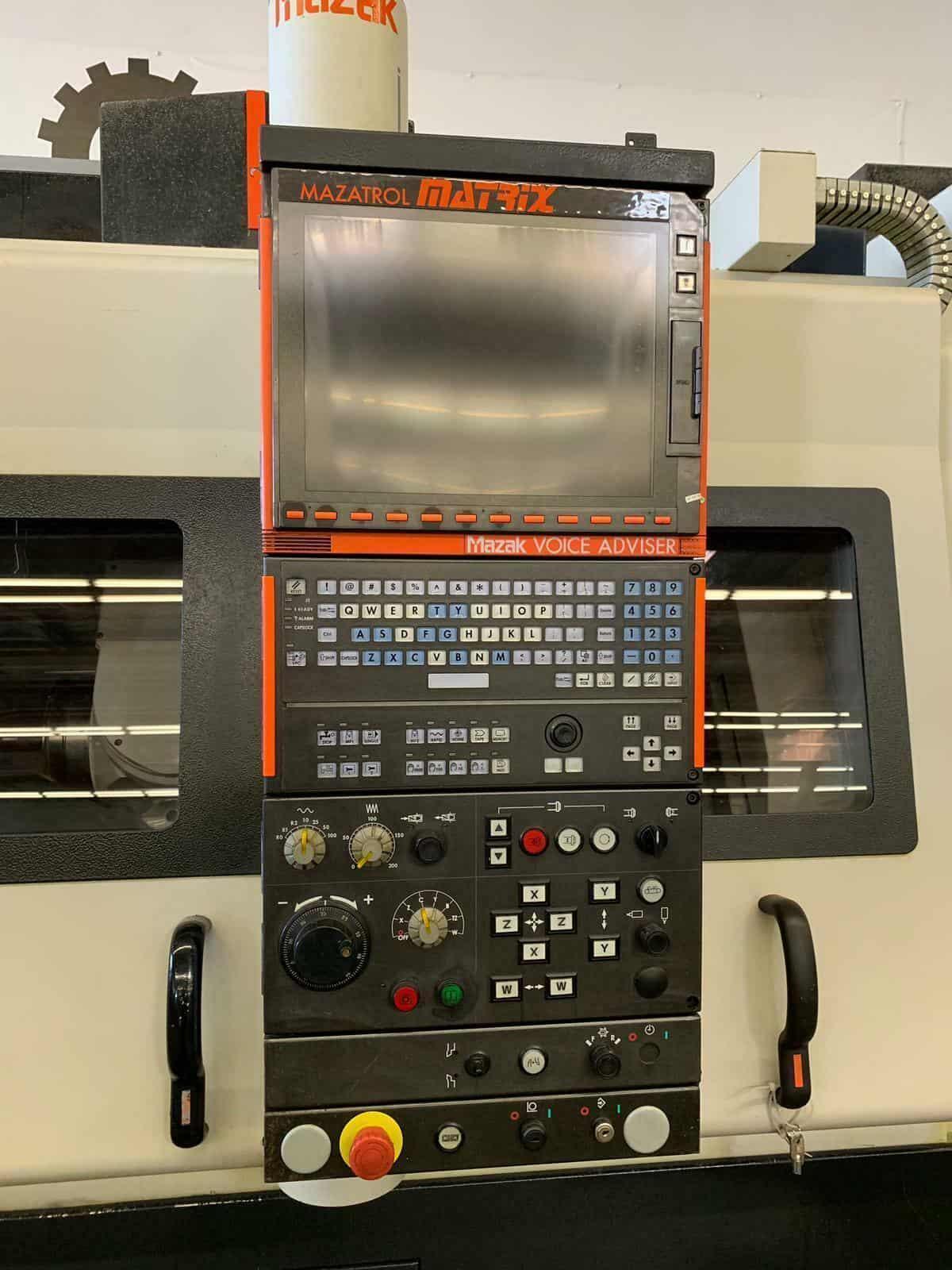

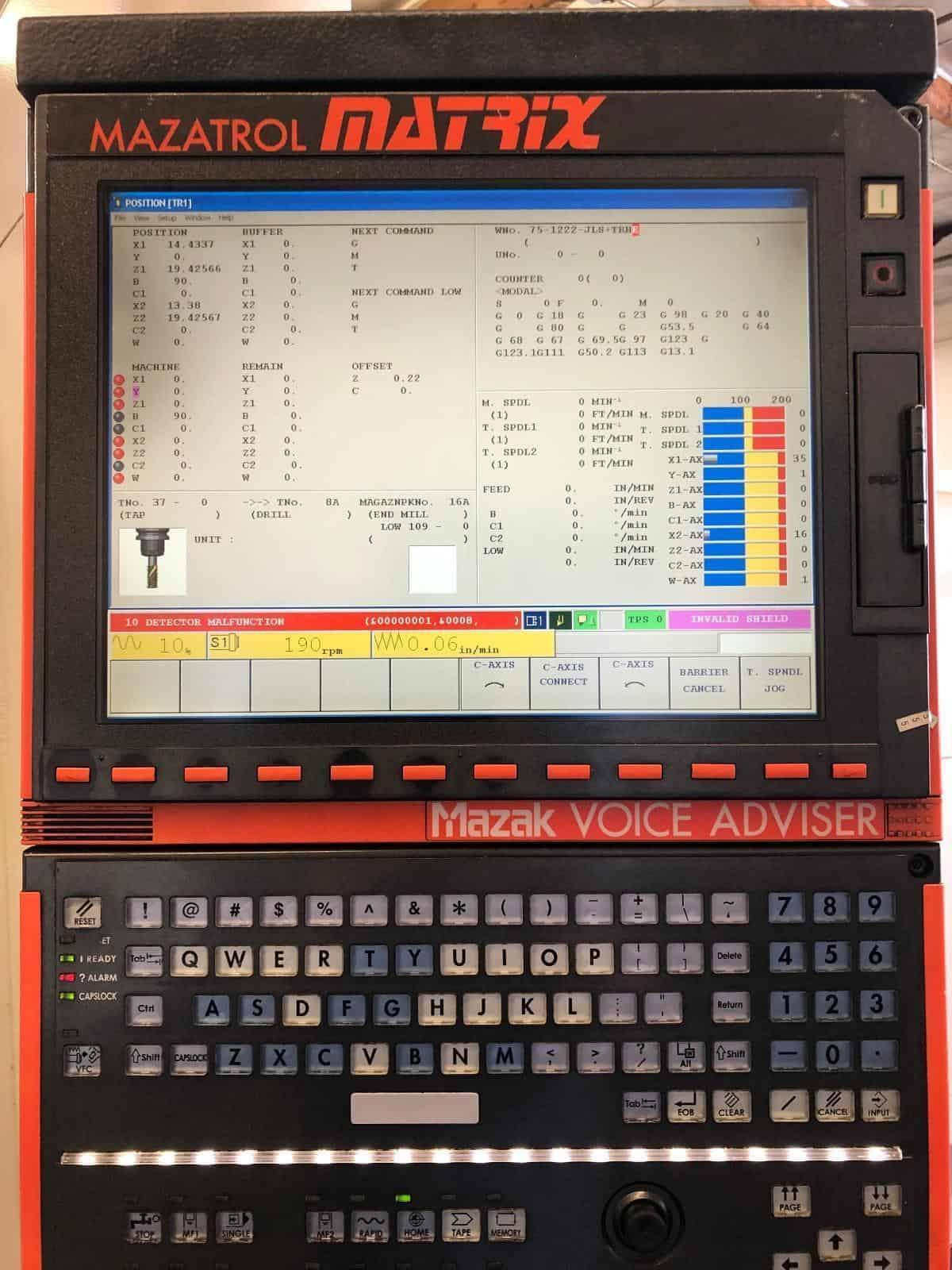

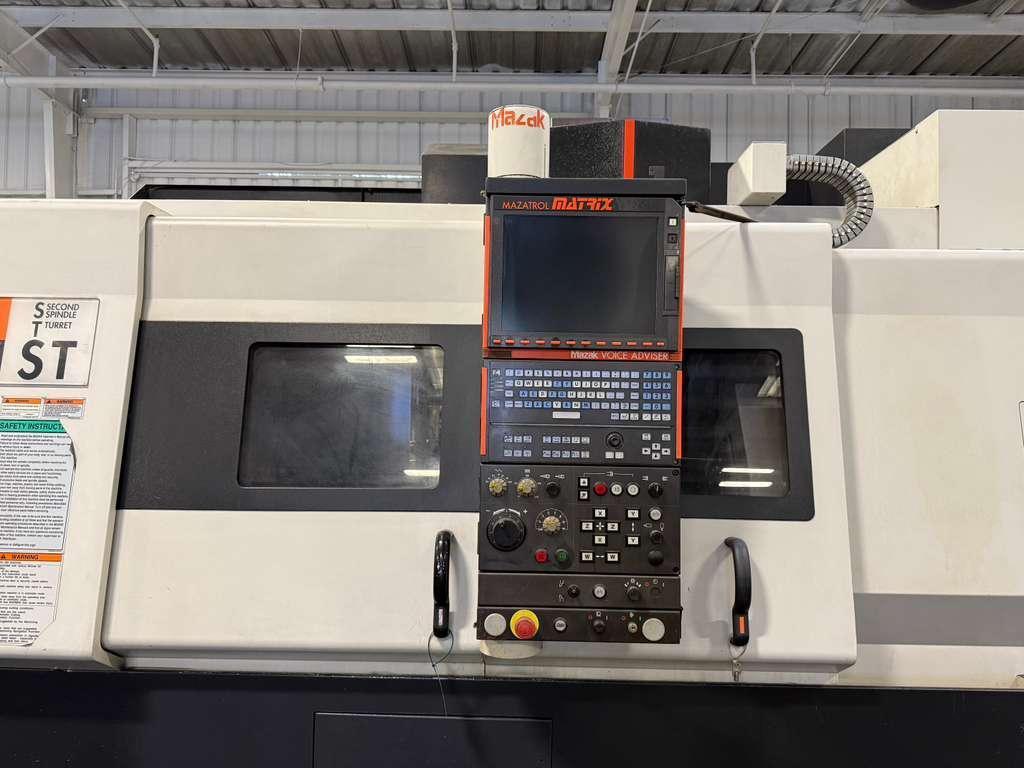

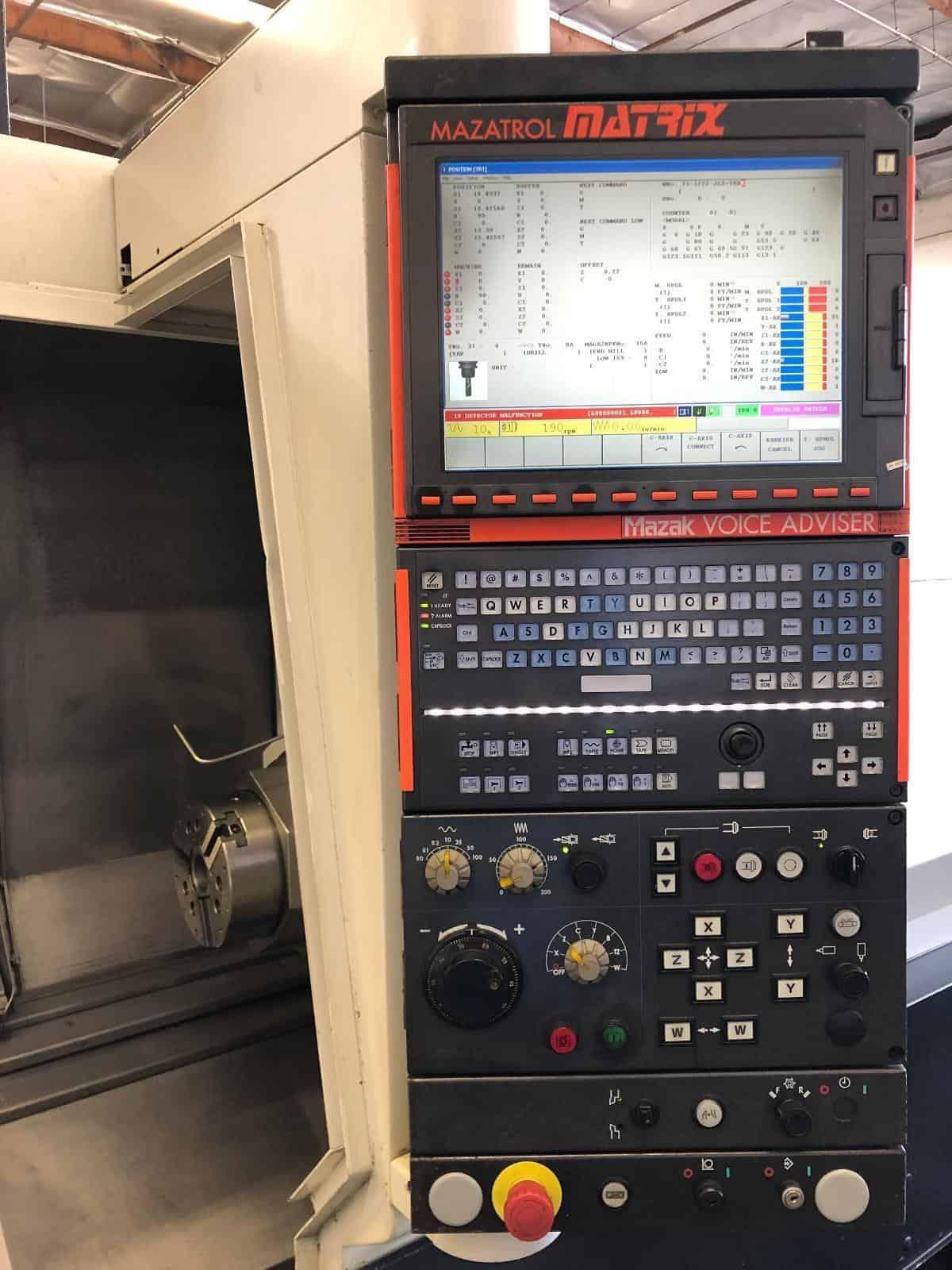

Mazatrol Matrix CNC Control
Linear Ways Construction

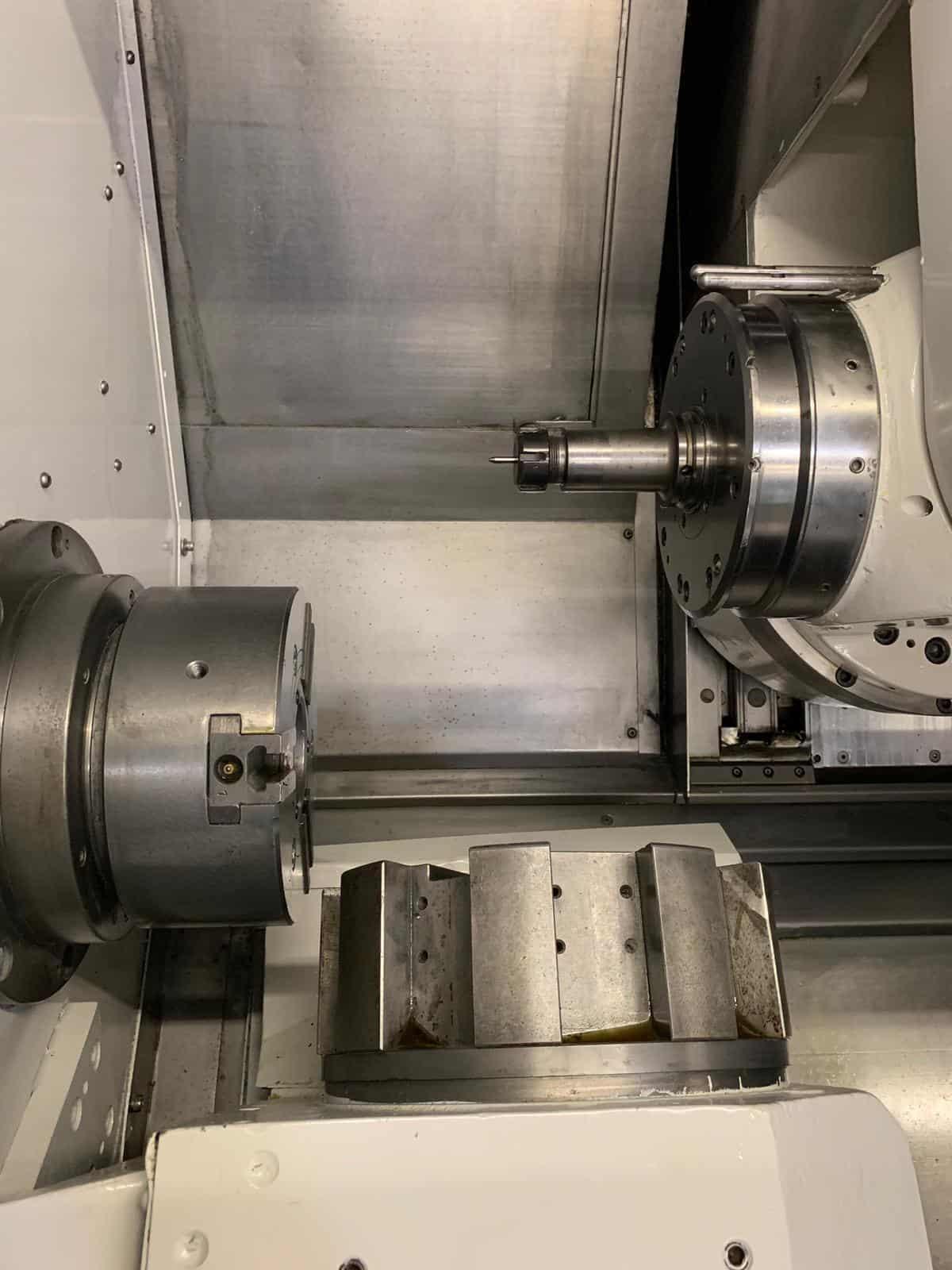

12,000 RPM Pendulum Milling Head
40 Station Tool Magazine
9 Station Lower Turret
Sub Spindle
Servo Controlled Full C-Axis on Both Spindles
Y Axis Capability

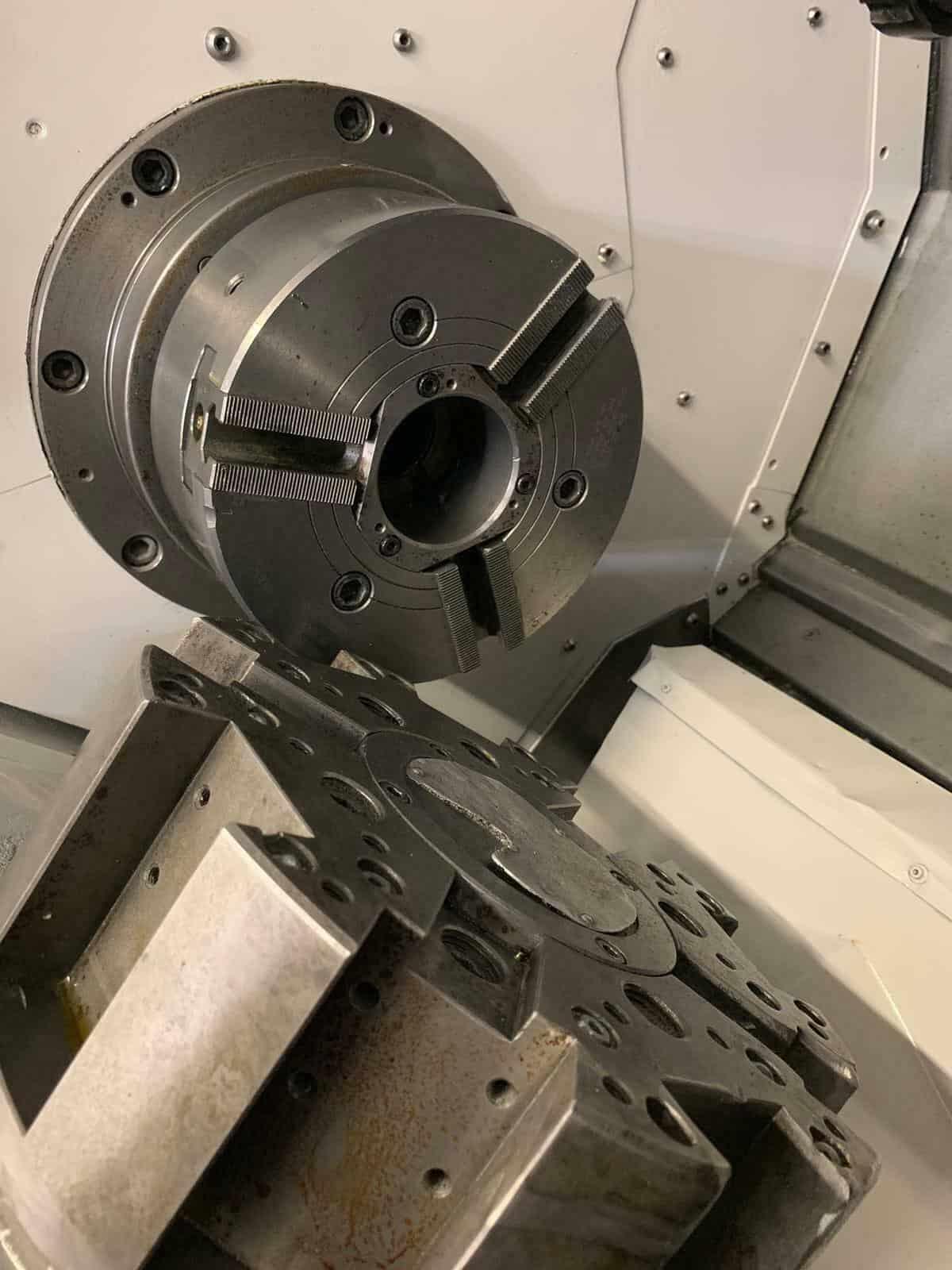

8″ Chuck on Main Spindle

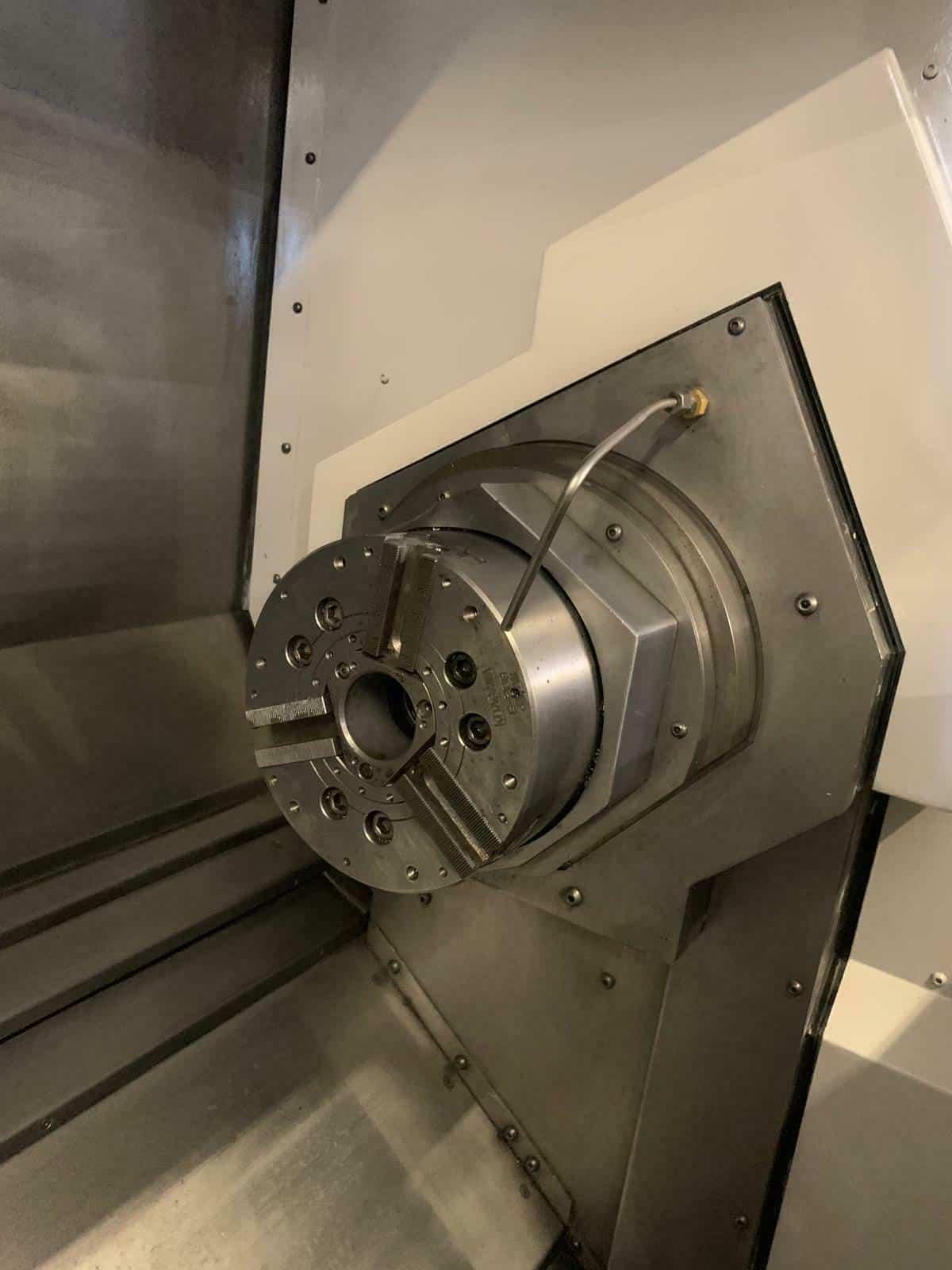

8″ Chuck on Sub Spindle
EIA/ISO Programming
3DCoordinate Conversion
Rigid Tapping
PCMCIA Card Slot
High Pressure Coolant System
Foot Operated Control for Chuck
Chiller Unit

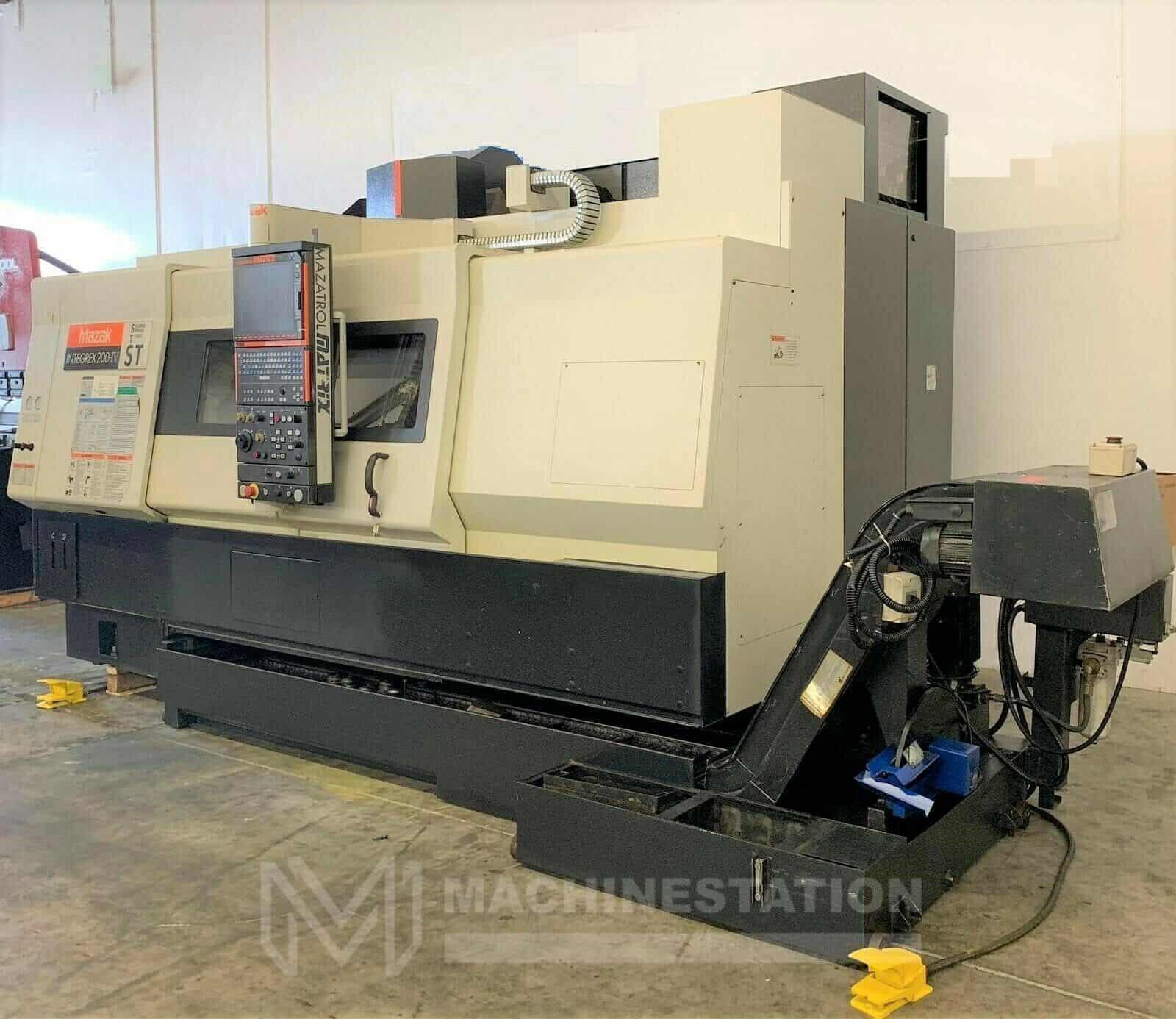

Chip Conveyor

Capacity:
Max Turning Diameter: 26.0″
Max Turning Length: 40.0″
Max Bar Capacity: 2.55″
Max Swing Over Bed: 26.0″
Max Swing with Y-Axis: 19.70″
Max Weight on Main & Sub Spindle: 660 lbs

Travel:
X Axis Travel: 22.83″
Y Axis Travel: 6.30″
Z Axis Travel: 41.14″
W Axis Travel: 41.34″ (Sub Spindle)
B Axis Travel: 225 Degree
C Axis: 360° (0.001°) Both Spindle
X Rapid Traverse Rate: 1496 Inch Per Minute
Y Rapid Traverse Rate: 1093 Inch Per Minute
Z Rapid Traverse Rate: 1496 Inch Per Minute

Spindle:
Main Spindle Nose: A2-8
Sub Spindle Nose: A2-8
Main Spindle Bore: 2.99″
Sub Spindle Bore: 2.99″
Main Spindle Speed: 35 – 5000 RPM
Sub Spindle Speed:35 – 5000 RPM
Main Spindle Motor: 30 HP
Sub Spindle Motor: 25 HP

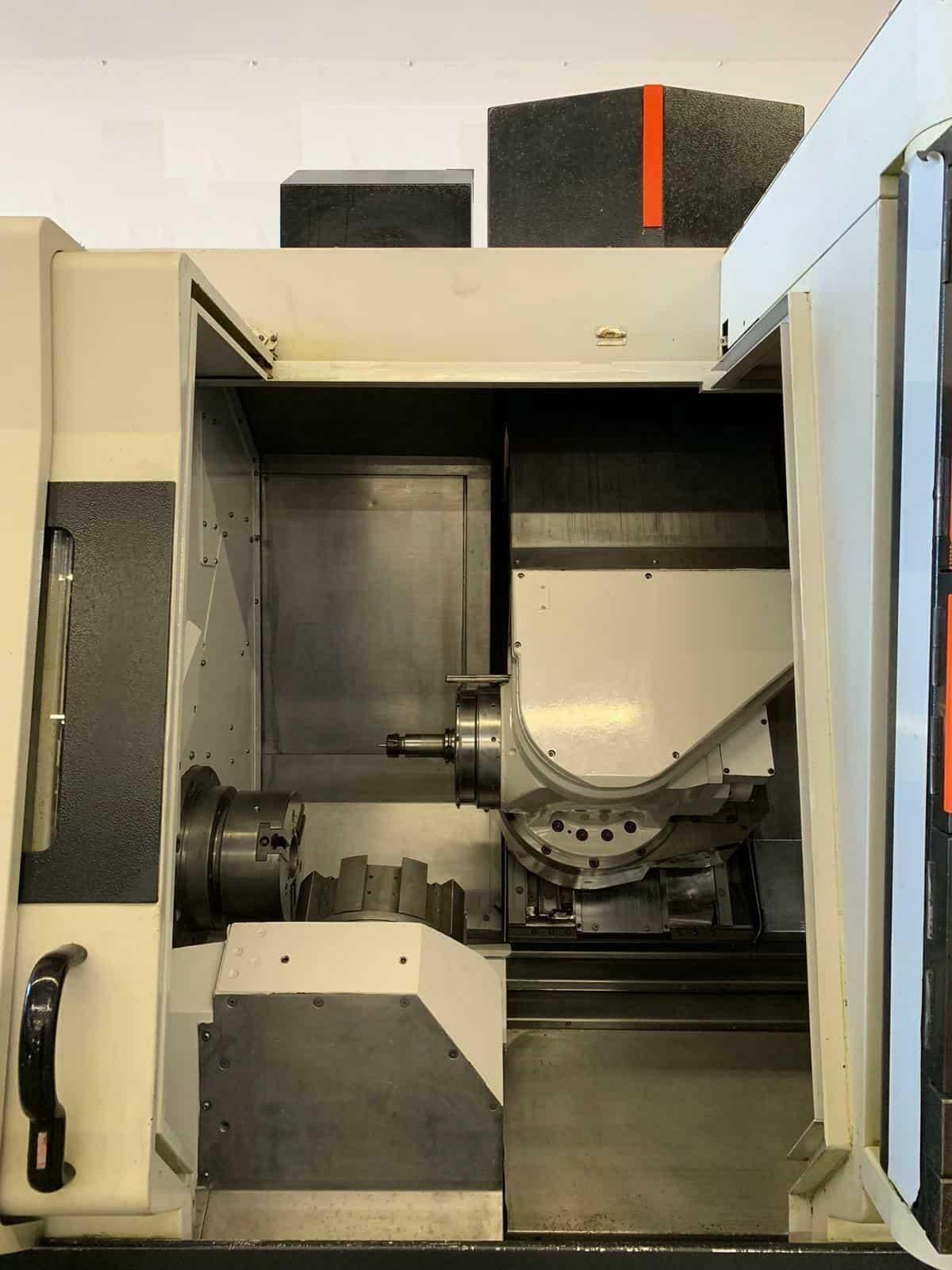

Milling Head:
Single Station Pendulum Head with 40 ATC
Tool Type: KM-63, 40 Taper
Max Tool Diameter: 3.54″
Max Tool Length: 11.81″
Spindle Speed: 15-12,000 RPM
Spindle Motor: 25 HP
Spindle 90° Index Time: 0.5 sec

Lower Turret:
Capacity: 9 Stations
Turret Index Time: 0.14 Second
OD Tool Size: 1.00″

General:
Power Source: AC 400 V, Three Phase, 50/60 Hz
Power Requirement: 82.6 Kva
Overall Dimensions: 160″ x 93.0″ x 110.2″ High
Weight: 22,660 lbs Approx.
