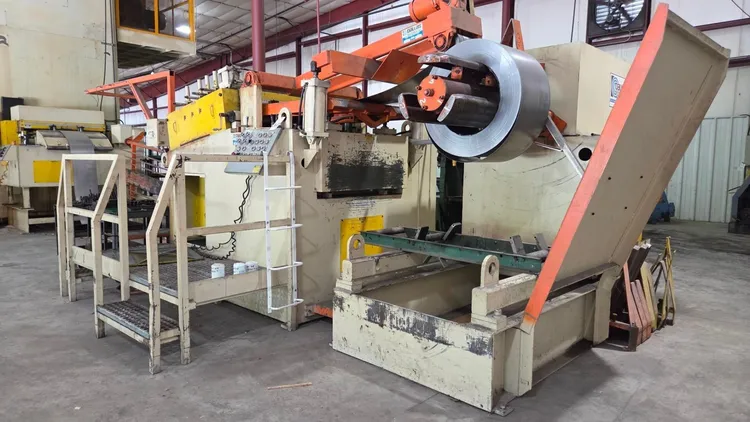

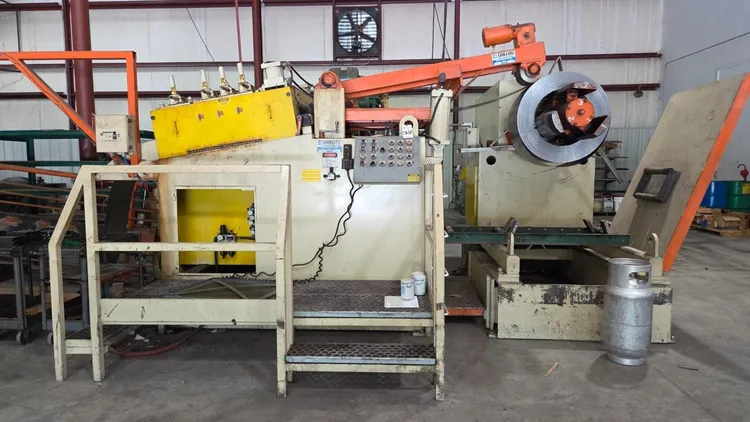

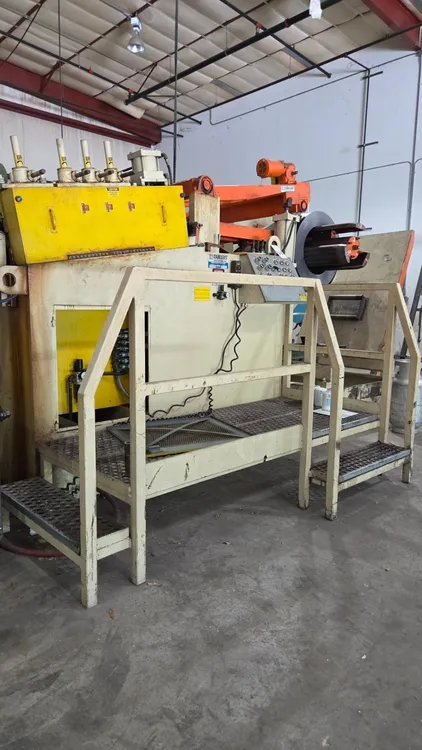

Dallas Coil Reel and Powered Straightener Combination 15,000 Lb x 42" Wide x .135"
Brand
Category
Model
DJJ 15,000 #-42 / DPS-3-1/2-7-42
Stock #
5571
Year
Not specified
Condition
Used
Location
Michigan
| Coil Weight Capacity: | 15000 pounds |
| Stock Width Capacity | 42 inches |
| Max Stock Thickness Capacity At Full Width | .135 inches |
| Minimum Expansion Range: | 20 inches |
| Maximum Expansion Range: | 24 inches |
| Coil O.D. Capacity: | 72 inches |
|
Stock Thickness Capacity: .135" x 42" Wide

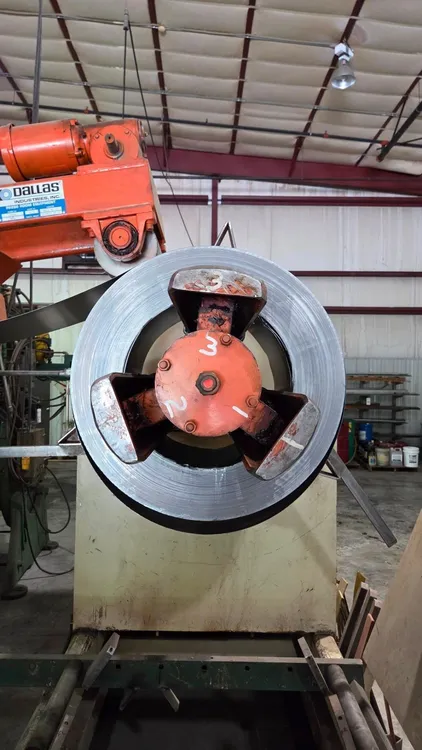

Stock Thickness Capacity: .187" x 24" Wide Equipped With: Dallas Coil Reel Model No. DJR-15,000# x 42 Three leaf mandrel Coil keeper arms Hydraulic mandrel expansion Air Brake with Adjustable Tensioning Clock Spring Back Side Guard Dallas Powered Coil Straightener Model No. DPS-3-1/2-7-42 Seven Straightening Rolls 3.5" Diameter rolls Entry and Exit Pinch Rolls Adjustable Stock Width Edge Guides Coil Hold down Arm with Motorized End Wheel Stock Peeler Table Exit Cascade Loop Support Rollers Operator's control console Loop Control Dallas Exit Thread Table - Loop Area (Bomb-Bay Door Design) |
|
