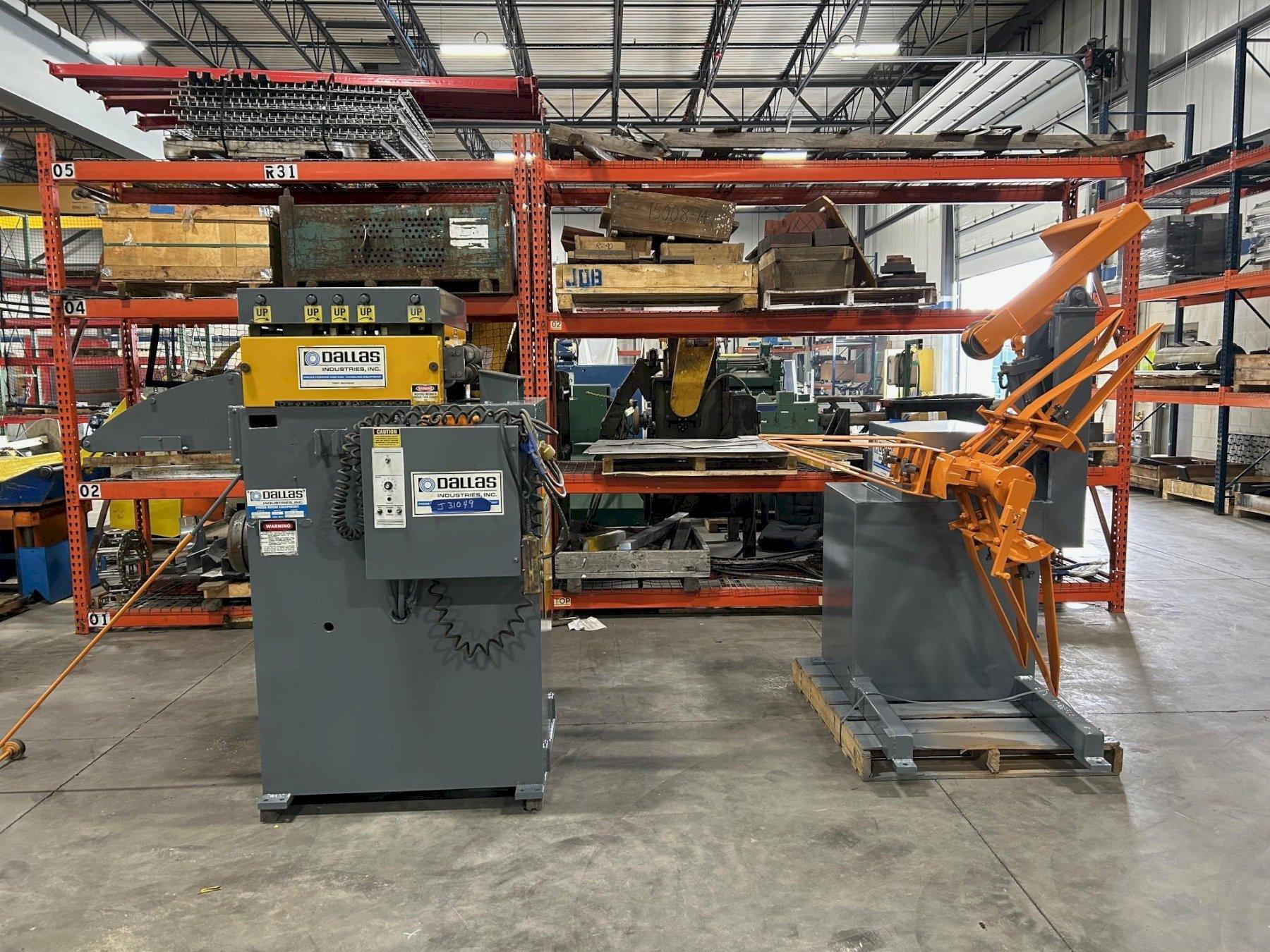

Dallas Coil Reel And Straightener Combination 4,000 Lbs. x 18" Wide
Brand
Category
Model
81923
Stock #
5467
Year
Not specified
Condition
Not specified
Location
Michigan
| Coil Weight Capacity: | 4000 pounds |
| Stock Width Capacity | 18 inches |
| Max Stock Thickness Capacity At Full Width | .093 inches |
| Minimum Expansion Range: | 16 inches |
| Maximum Expansion Range: | 21 inches |
| Coil O.D. Capacity: | 60 inches |
|
Stock Thickness Capacity: .093" x 18" Wide

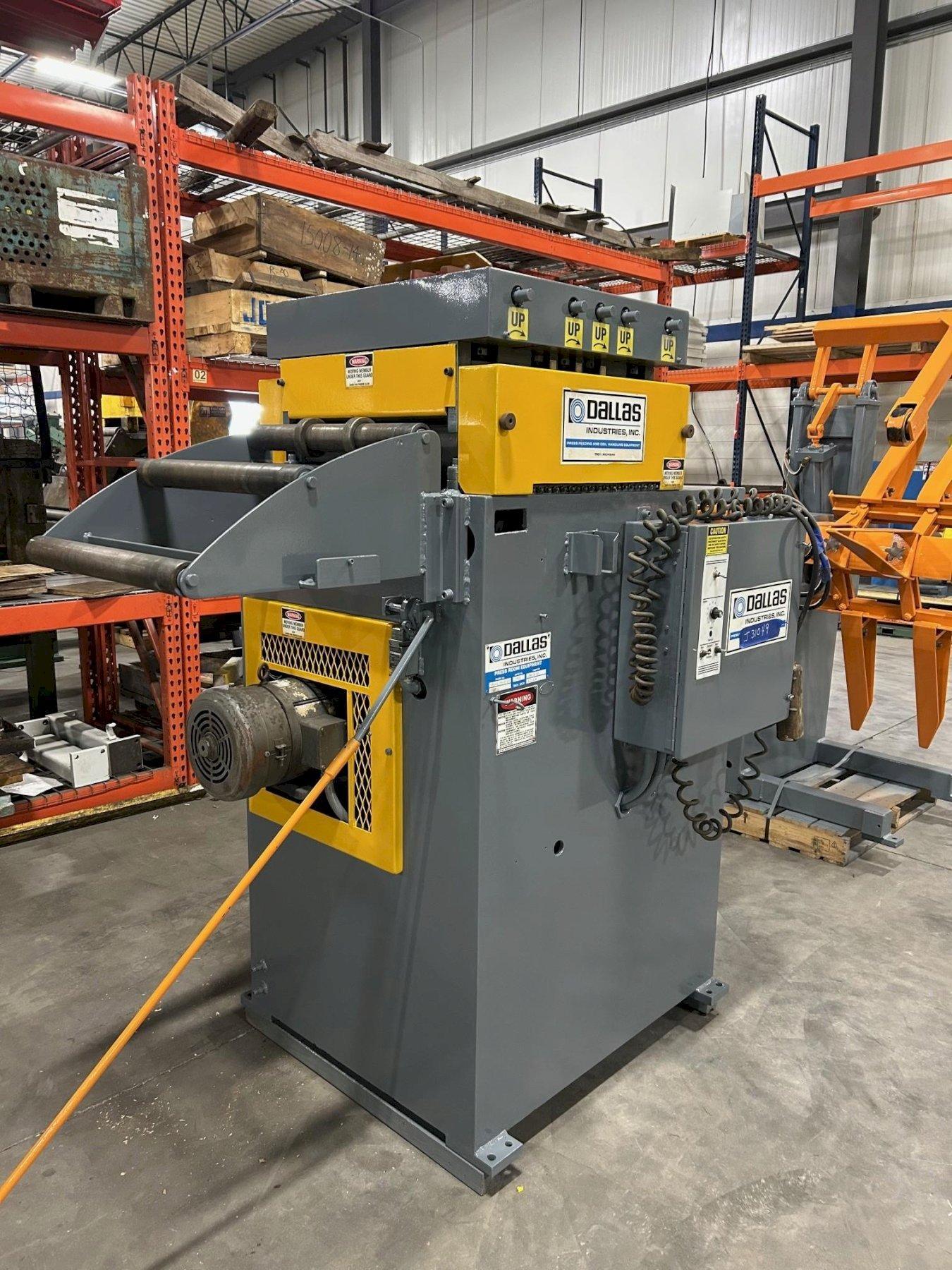

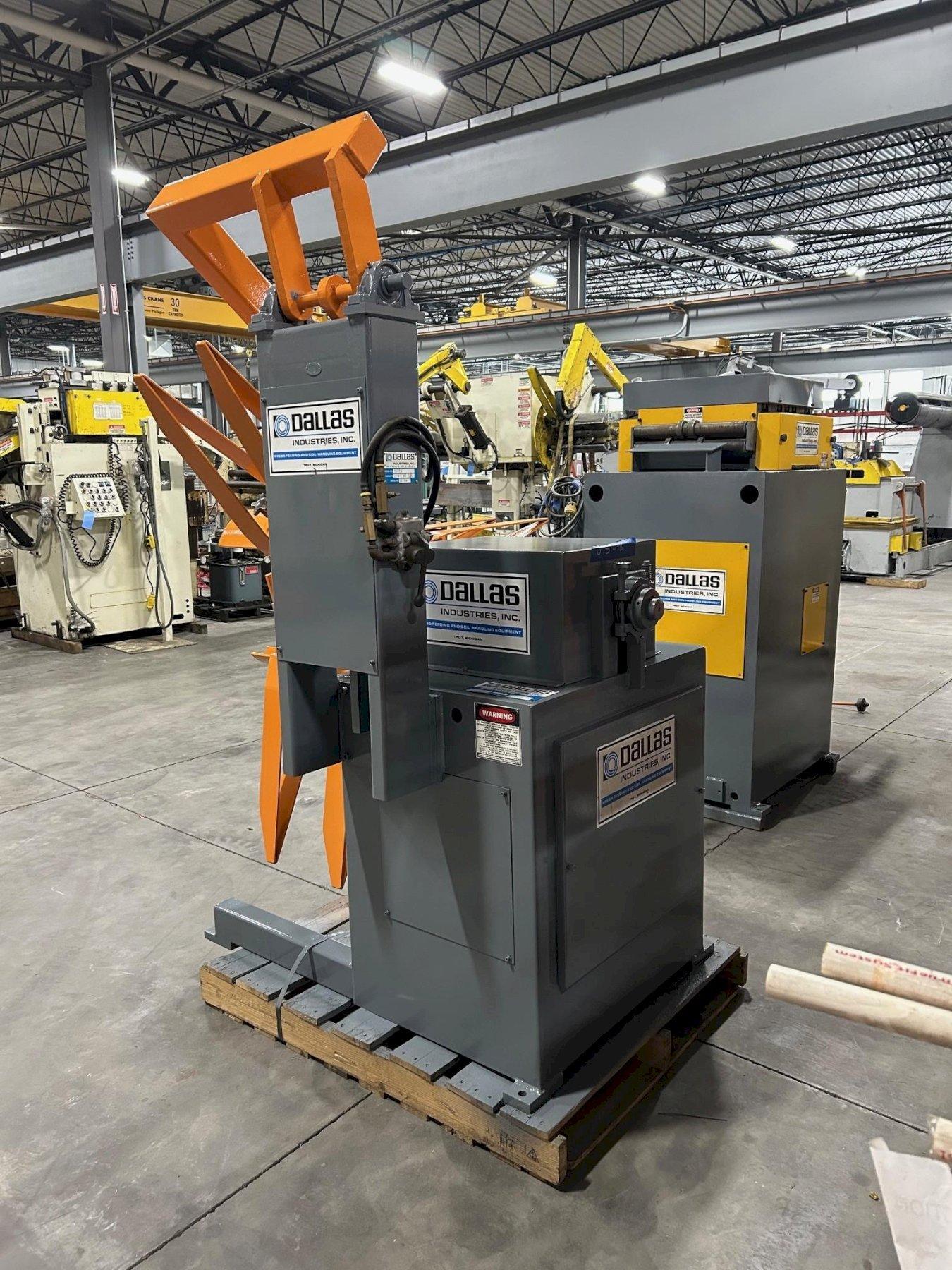

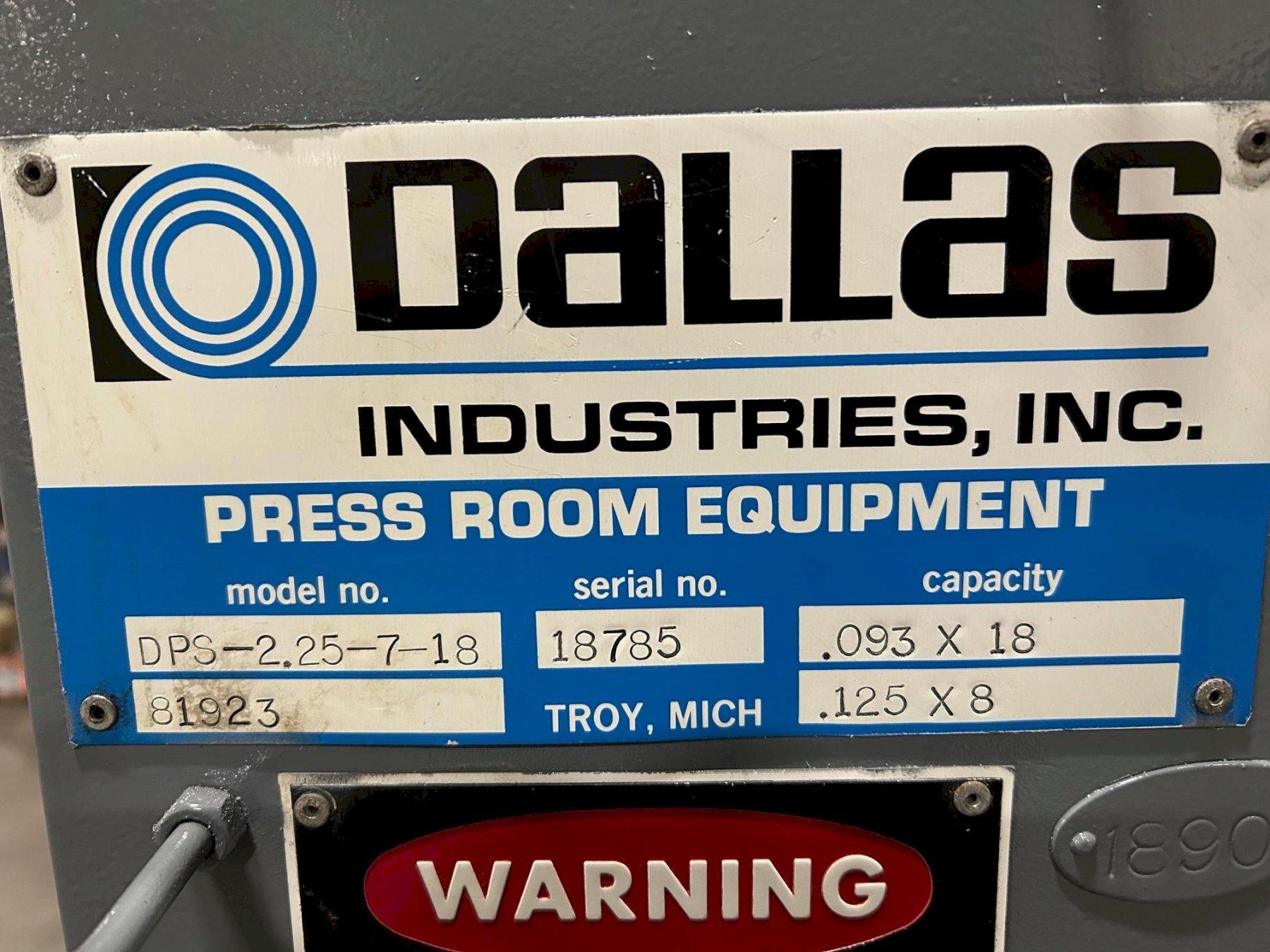

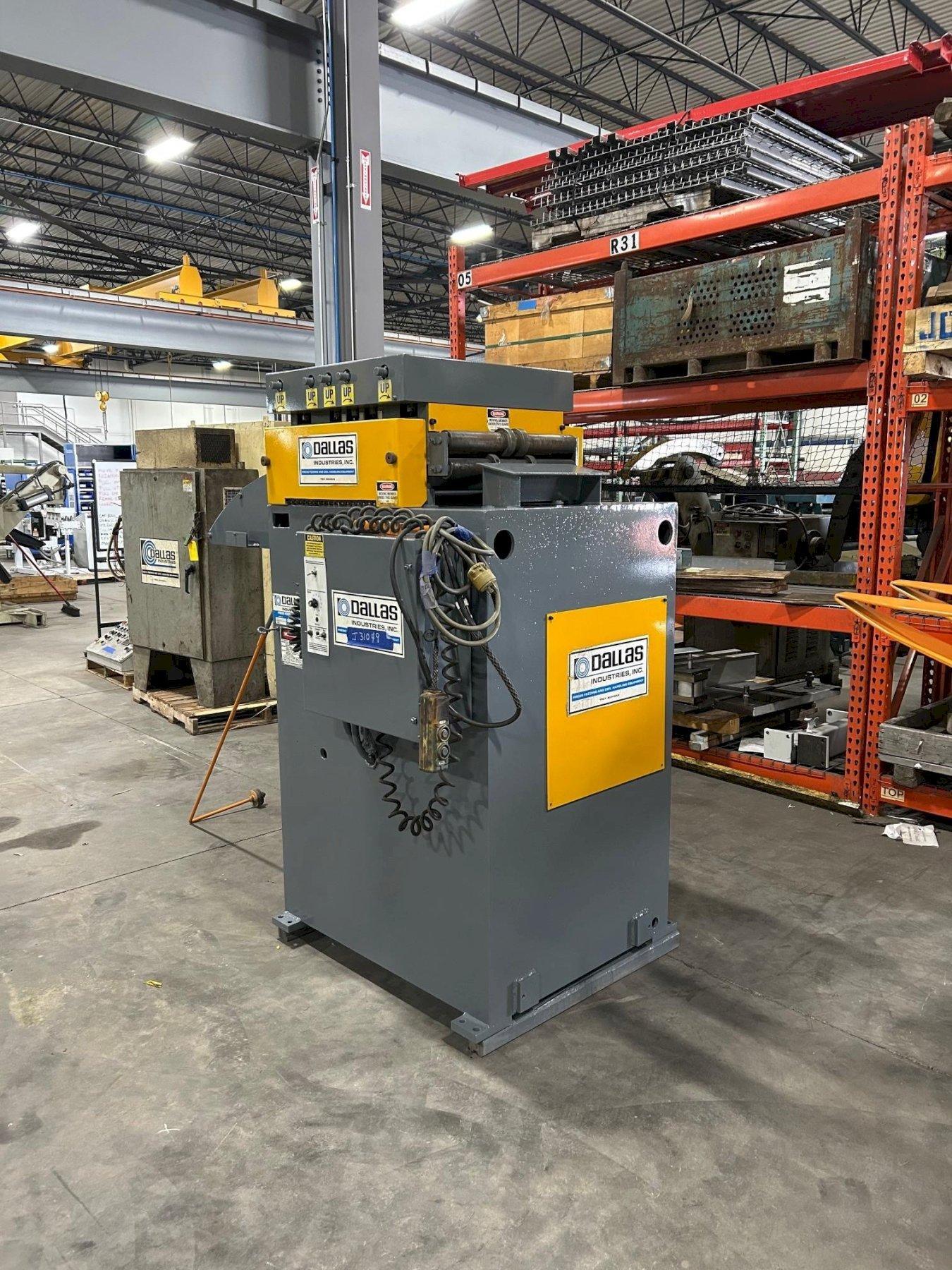

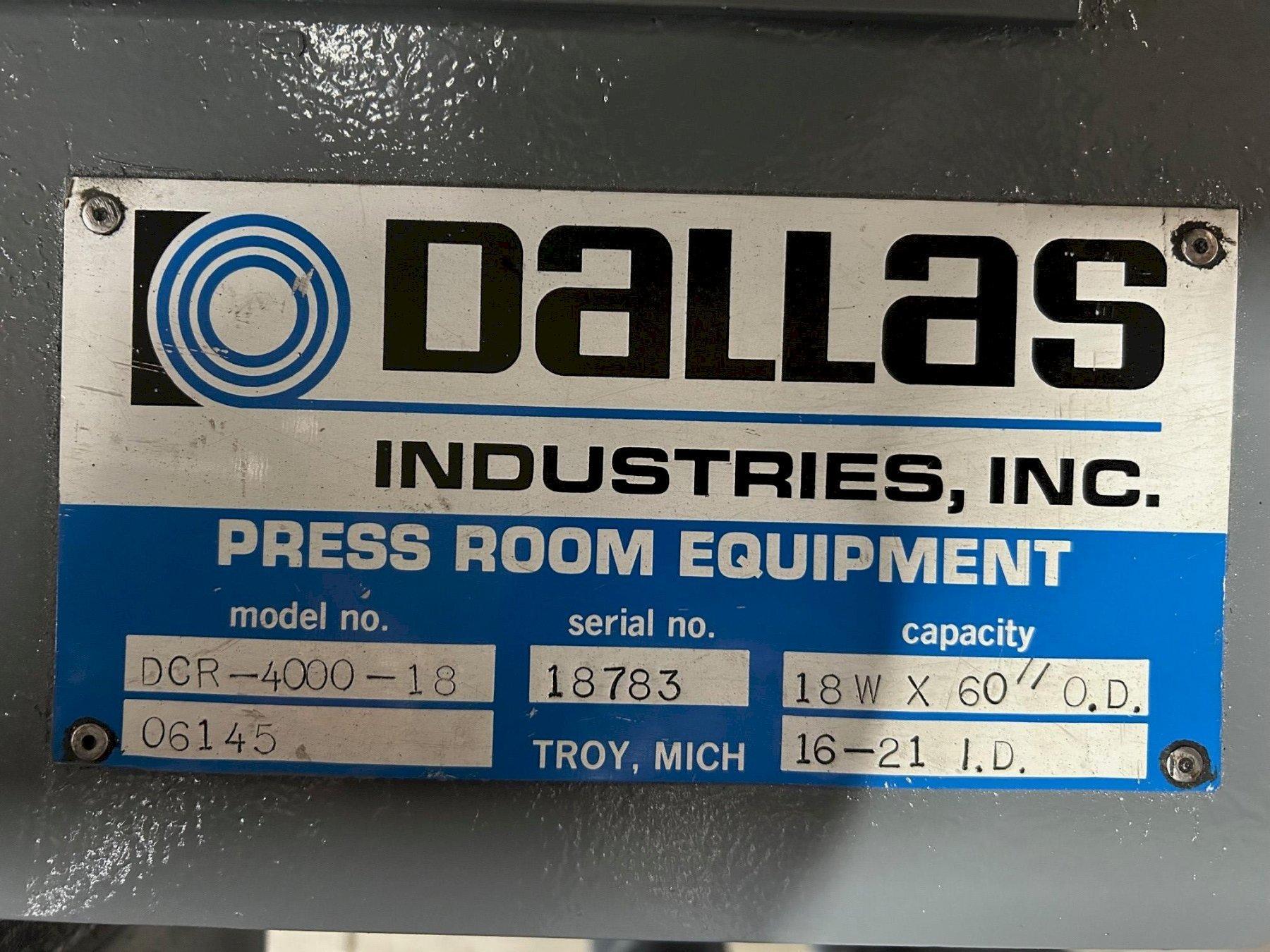

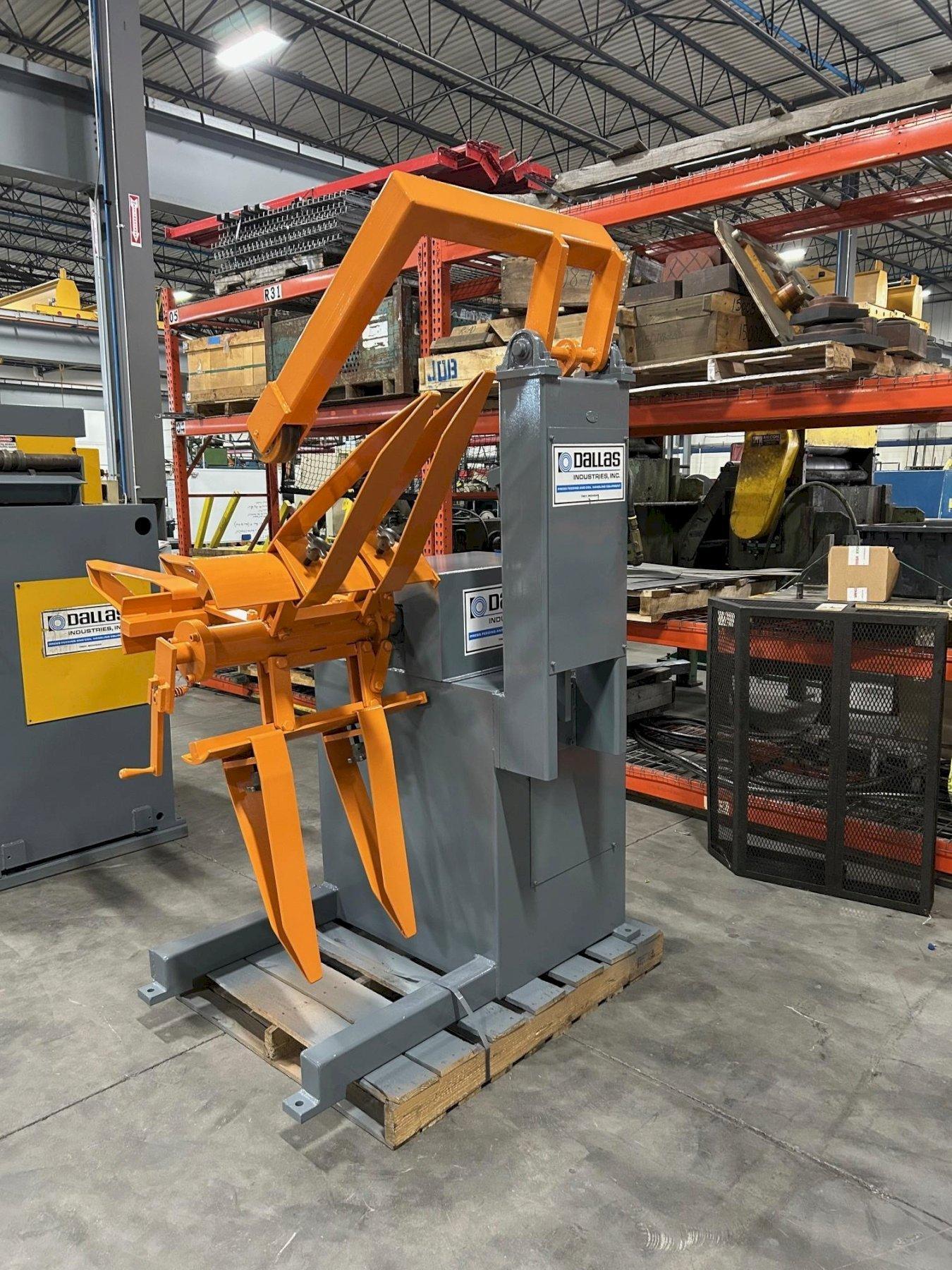

Stock Thickness Capacity: .125" x 08" Wide Dallas Industries Coil Reel Model No. DCR-4000-18 Three leaf mandrel Adjustable coil keeper arms Front mounted manual mandrel expansion Flip out expansion handle Drag brake (adjustable tensioning) Dallas Industries Powered Coil Straightener Model No. DPS-2.25-7-18 Entry and exit pinch rolls Seven straightening rolls x 2.25" diameter Entry stock width edge guides Exit cascade loop support rollers Variable speed payout Operator's controls Jog forward and reverse Auto / Run cycle Optional to complete into a coil feed line: New NIDEC-CHS Servo Roll Feed MX-318 --- Consult sales for pricing |
|
