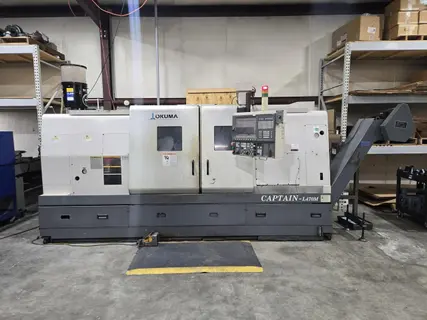

Okuma Captain L470M/1250 CNC Lathe, 2007 – Live Tooling, C- Axis
Brand
Not specified
Category
Model
L470M/1250
Stock #
320390
Year
2007
Condition
Not specified
Location
Michigan
|
Swing Over Bed: 24.4″
Swing Over Cross Slide: 18.89″
Max Cutting Diameter: 16.53″
Max Cutting Length: 49.21″
X-Axis Travel: 11.81″
Z-Axis Travel: 50″
C-Axis Indexing: Yes
Chuck Size: 15”
Bar Capacity: 3.5″
Spindle Motor: 30 hp
Spindle Speed: 3,000 RPM
Rapid Traverse Rate X-Axis: 787 in/min.
Rapid Traverse Rate Z-Axis: 981 in/min.
Turret Capacity: 12
Turret Type: VDI
Live Milling: Yes
Approx. Weight: 18,000 LBS
All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: OSP-P200L CNC Control 15″ B-215 Kitagawa 3-Jaw Hydraulic Chuck All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
