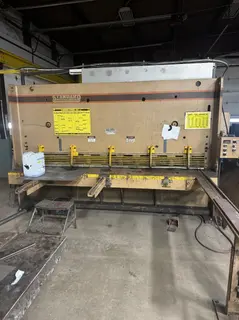

1/2″ x 10′ Standard AS Series Hydraulic Shear, 2005 – Backgauge

Shearing Length: 10′ Rake Angle: ~1/2° – 2° Hold-Downs: Hydraulic, full length, with ~20+ hold-down cylinders across bed Stroke Control: Variable, full length or shorter strokes Backgauge: 36″ motorized backgauge (programmable to ±0.01″)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Blade Clearance Adjustment: Manual lever or handwheel (quick-set for different thicknesses) Blades: 4-edge, high-carbon/high-chrome alloy, reversible Hydraulics: Dual cylinder, full hydraulic drive Pressure-compensated hydraulic system Main Motor: 20–25 HP (depending on options at build)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Electrical: 220V, 3-phase, 60 Hz Machine Dimensions: 14′ × 7′ × 6′ Machine Weight: 42,000lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
