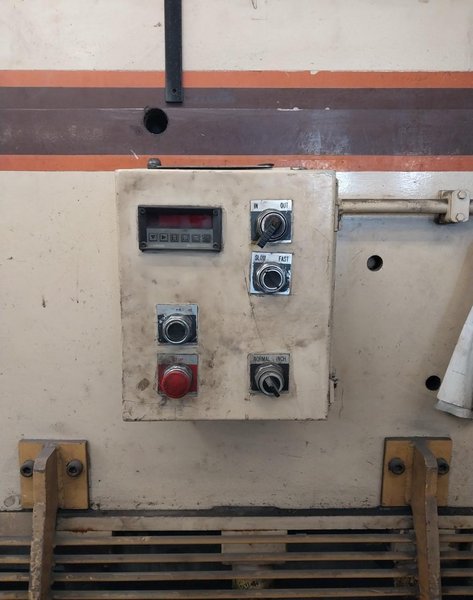

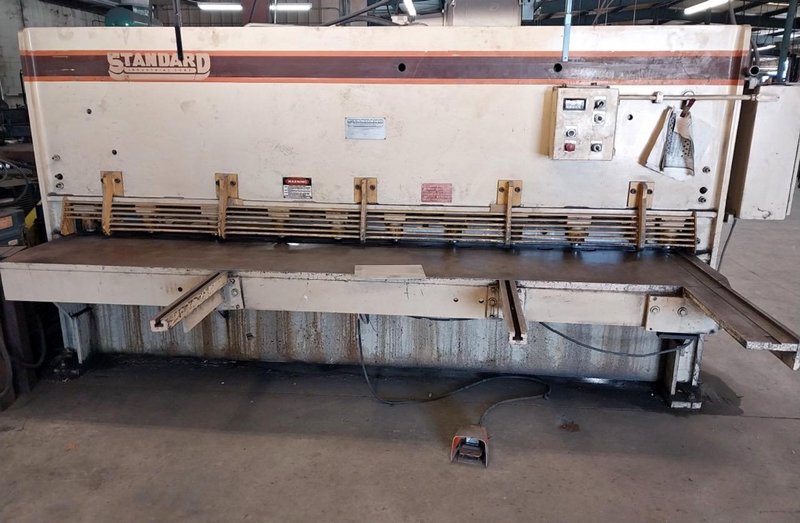

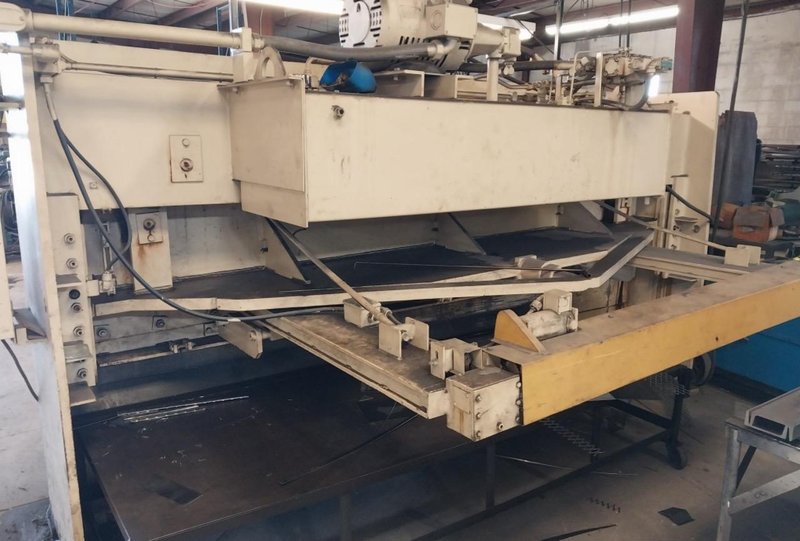

1/4” X 10’ Standard AS250-10 Hydraulic Shear, 1993

Brand
STANDARD
Category
Shearing Equipment
Type
Shears, Mechanical
Model
AS250-10
Stock #
370662
Year
1993
Condition
Not specified

Location

Not specified
REQUEST FINANCING
Capacity: 1/4″ x 10′ Available Shearing Force: 36 tons Hold Downs: 11 cylinders Hold-Down Force: 31 tons total Blade Size: 1″ × 3″ × 124″ Rake Angle: 0.25″ per foot (≈ 3° rake) Ram Speed: 110 IPM (down), 173 IPM (up) Strokes Per Minute: 16 full‑width strokes; 36 at 12″ width Motor Power: 20 HP

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped with: Adjustable blade gap squaring arm Powered back Gauge

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
