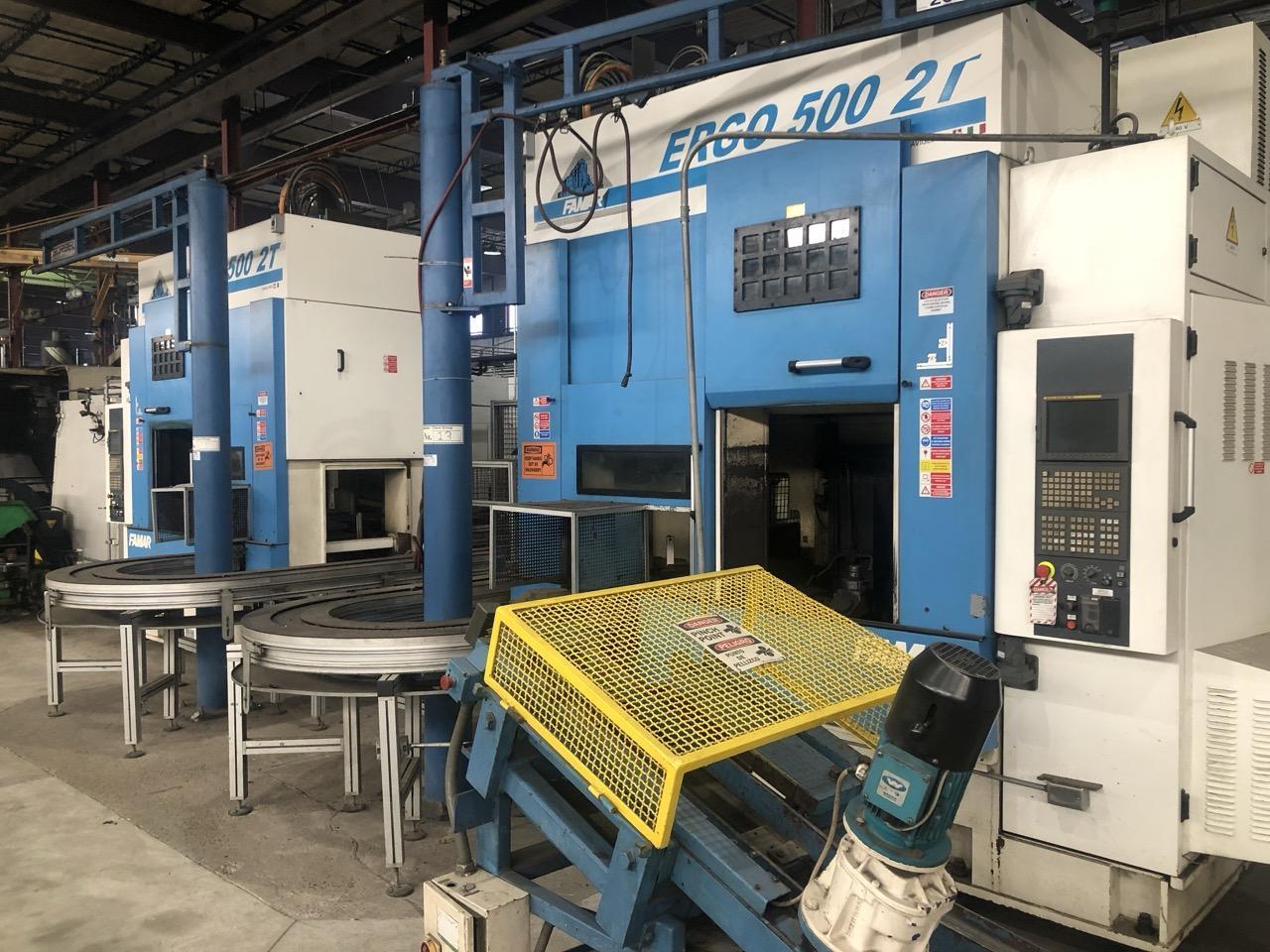

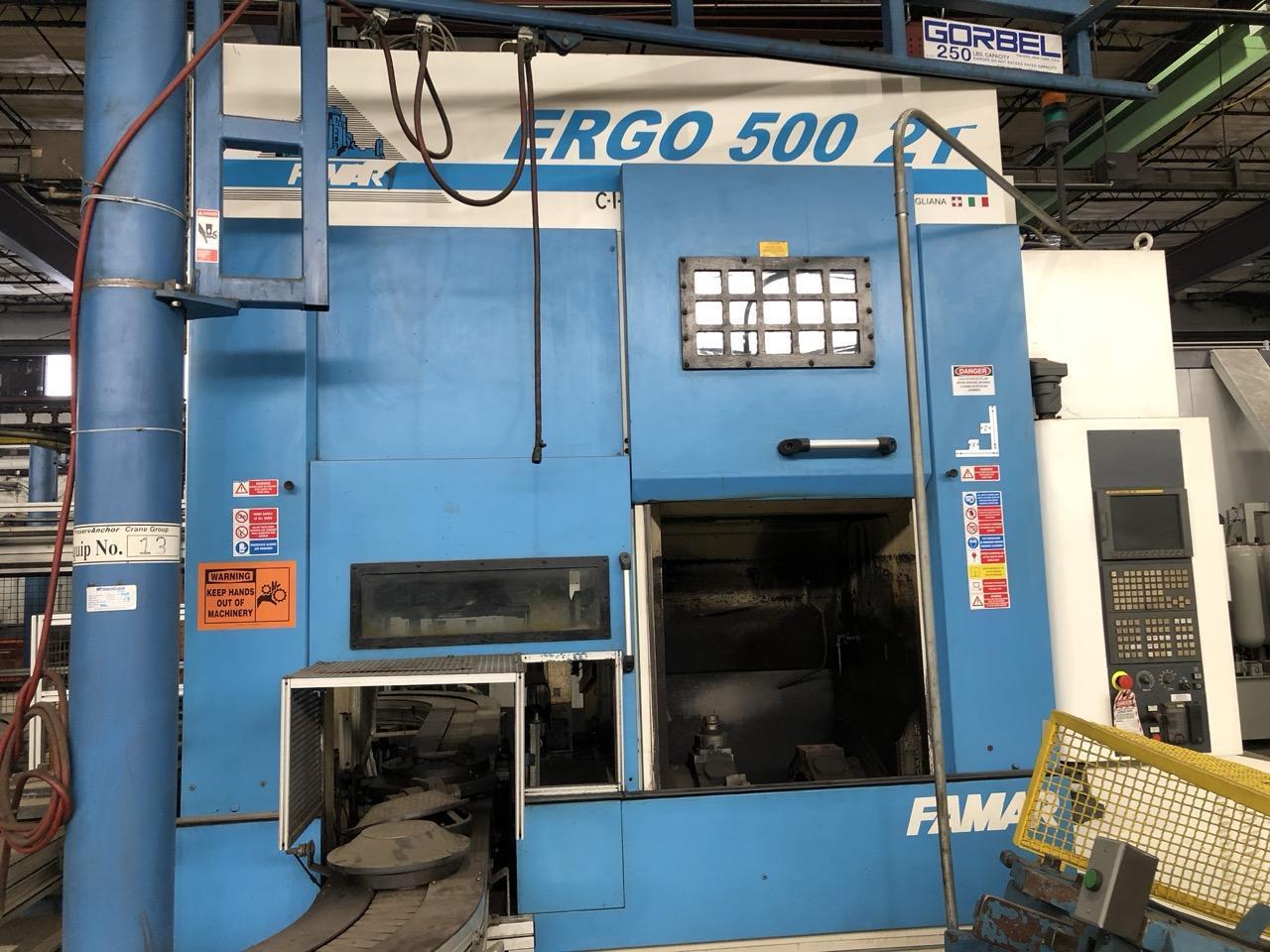

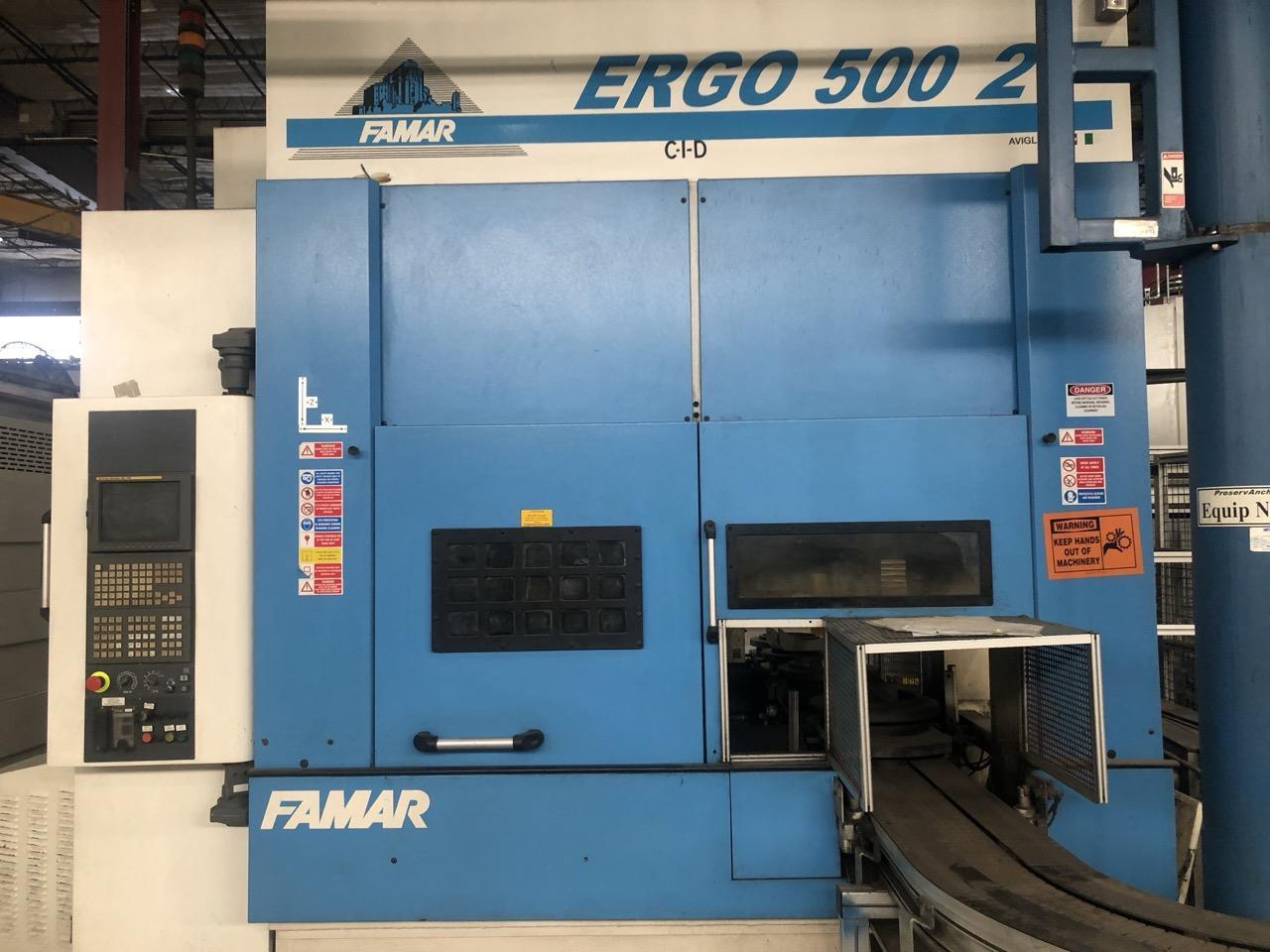

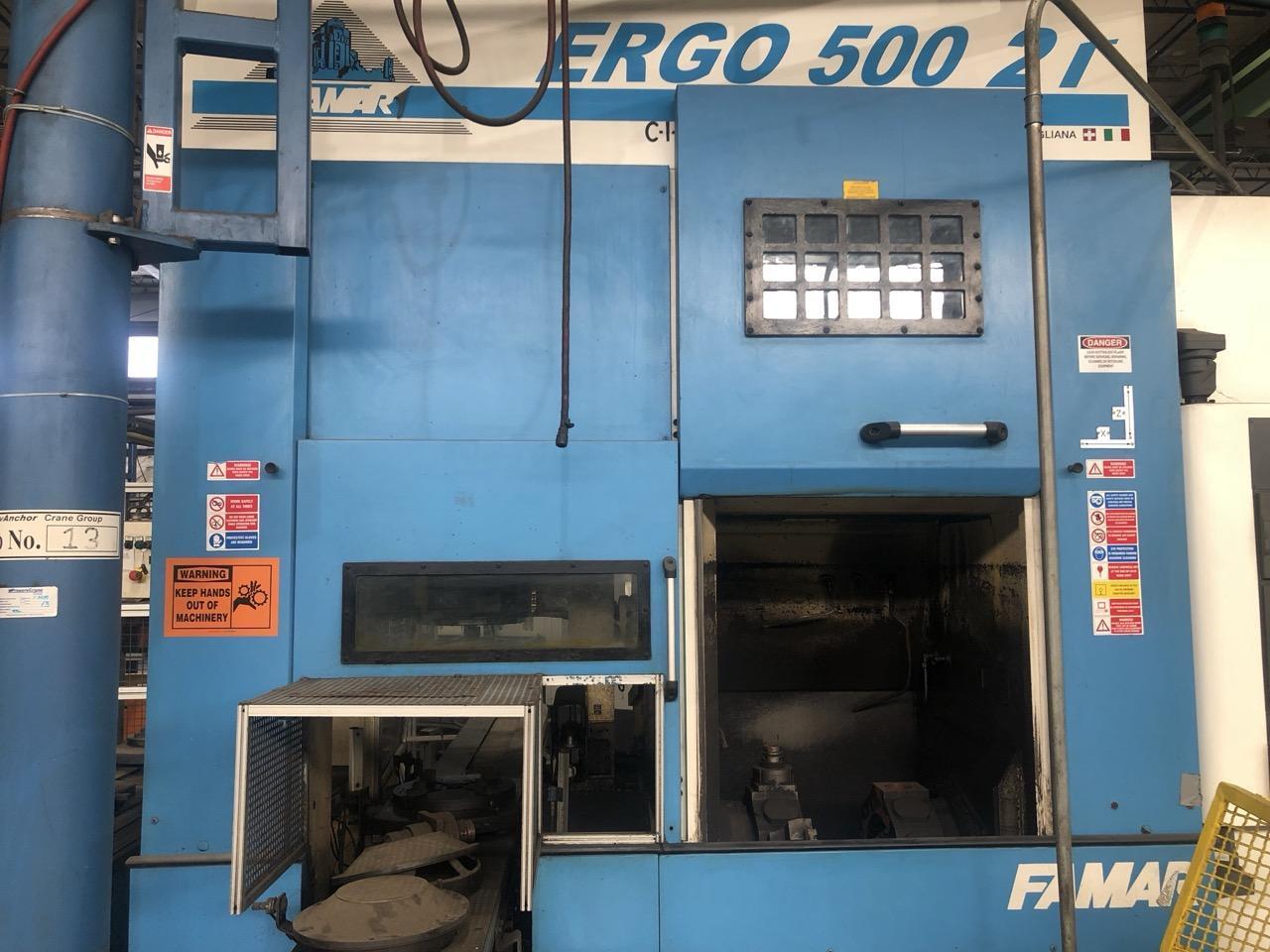

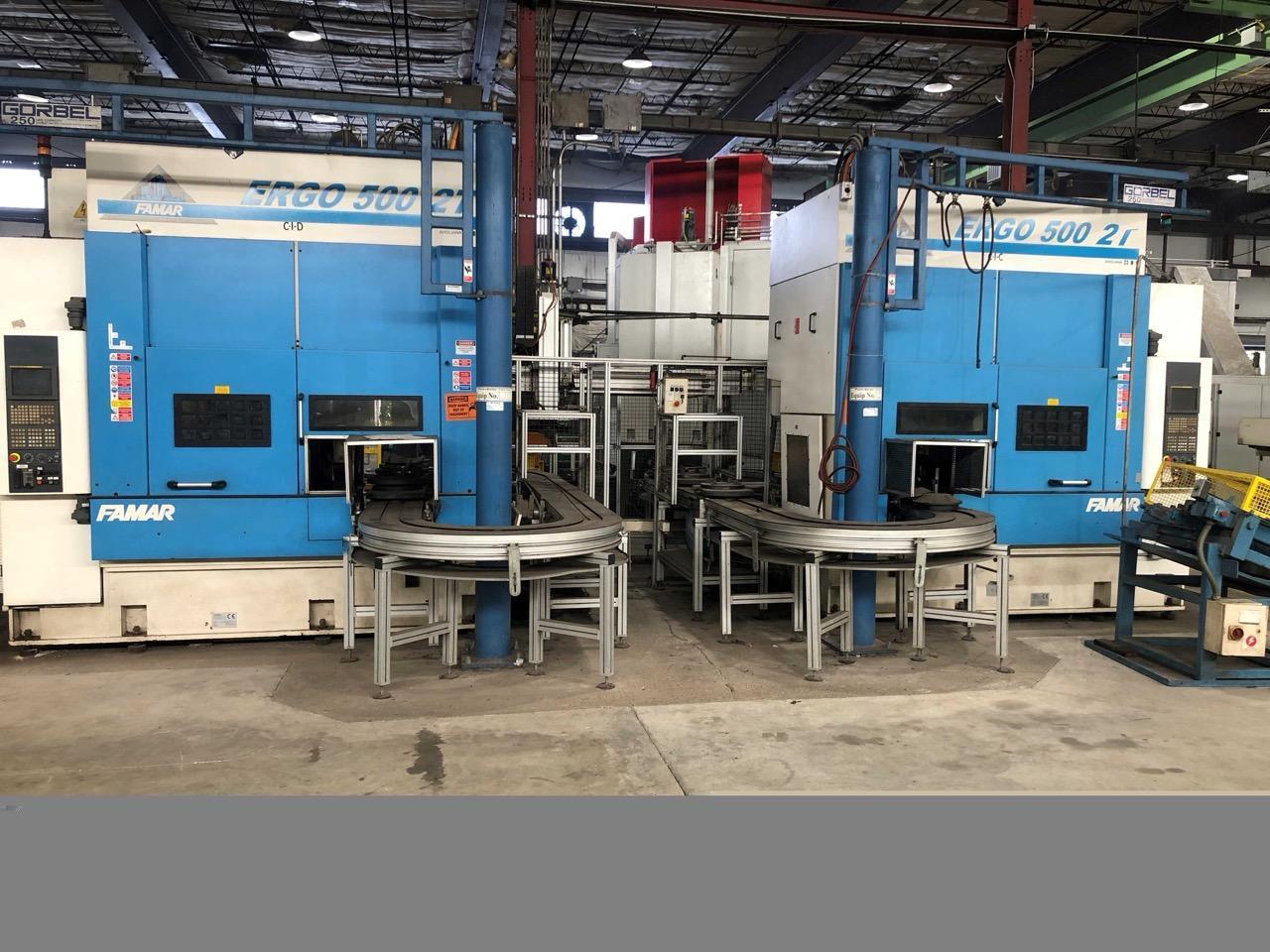

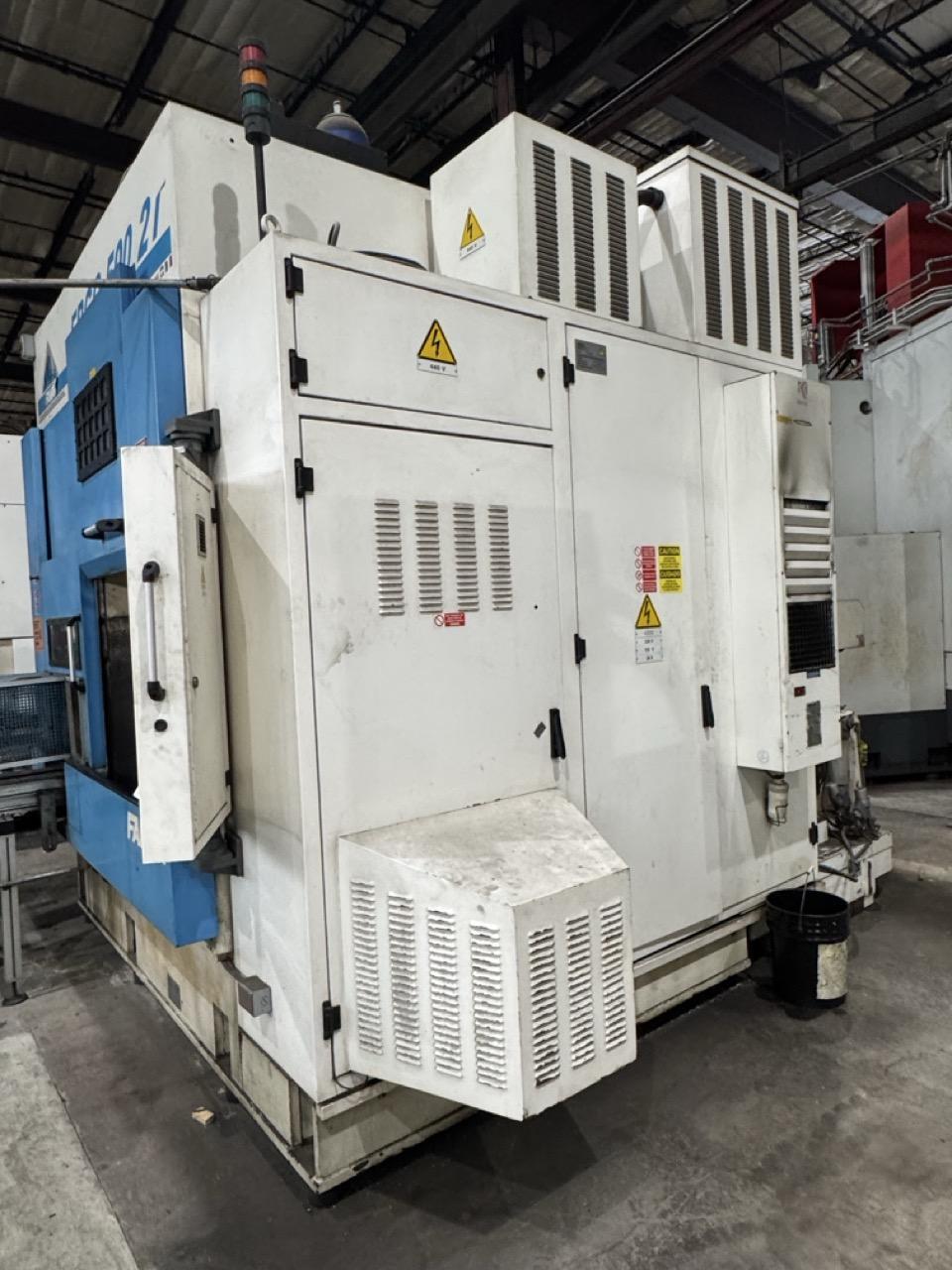

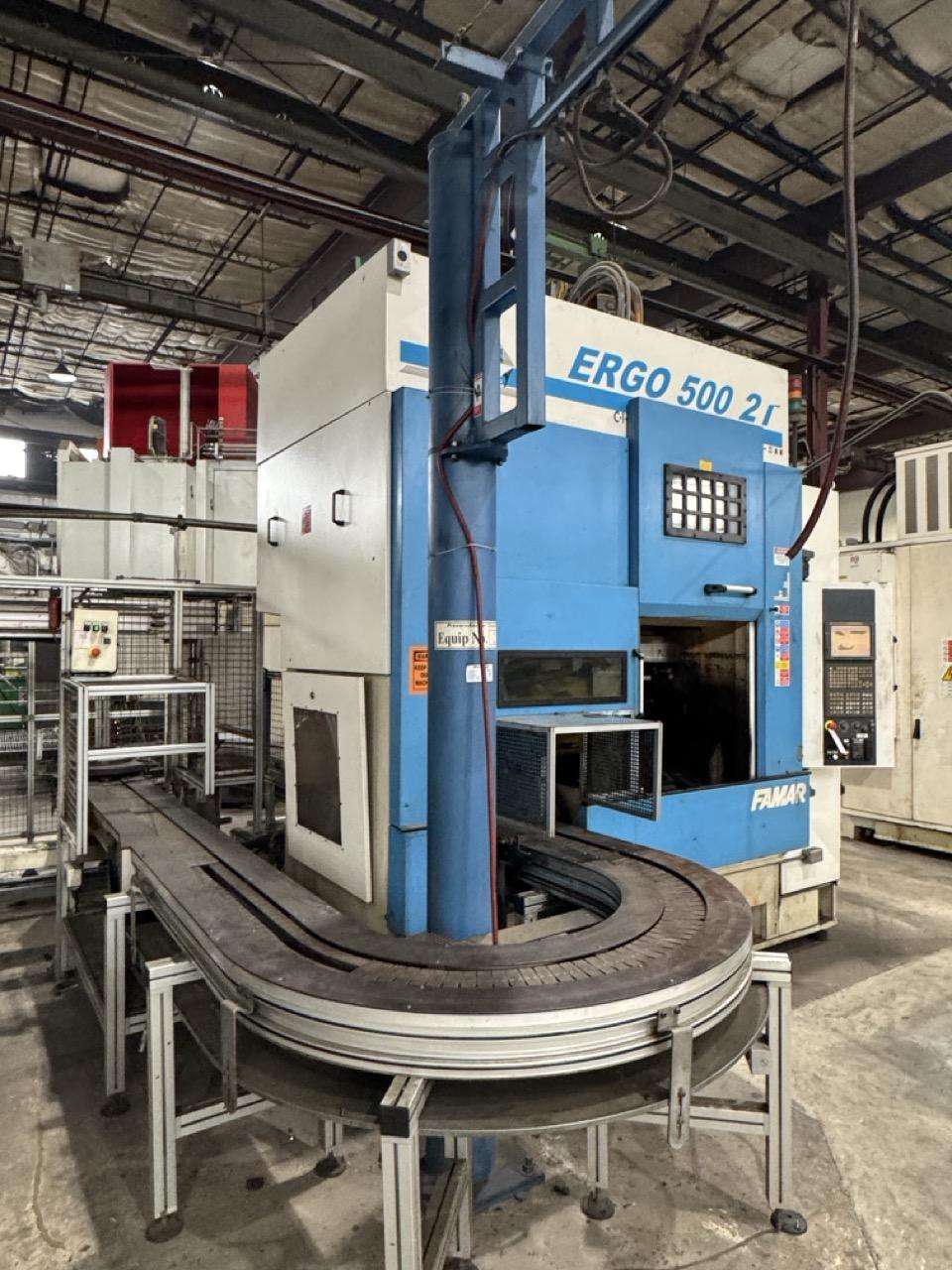

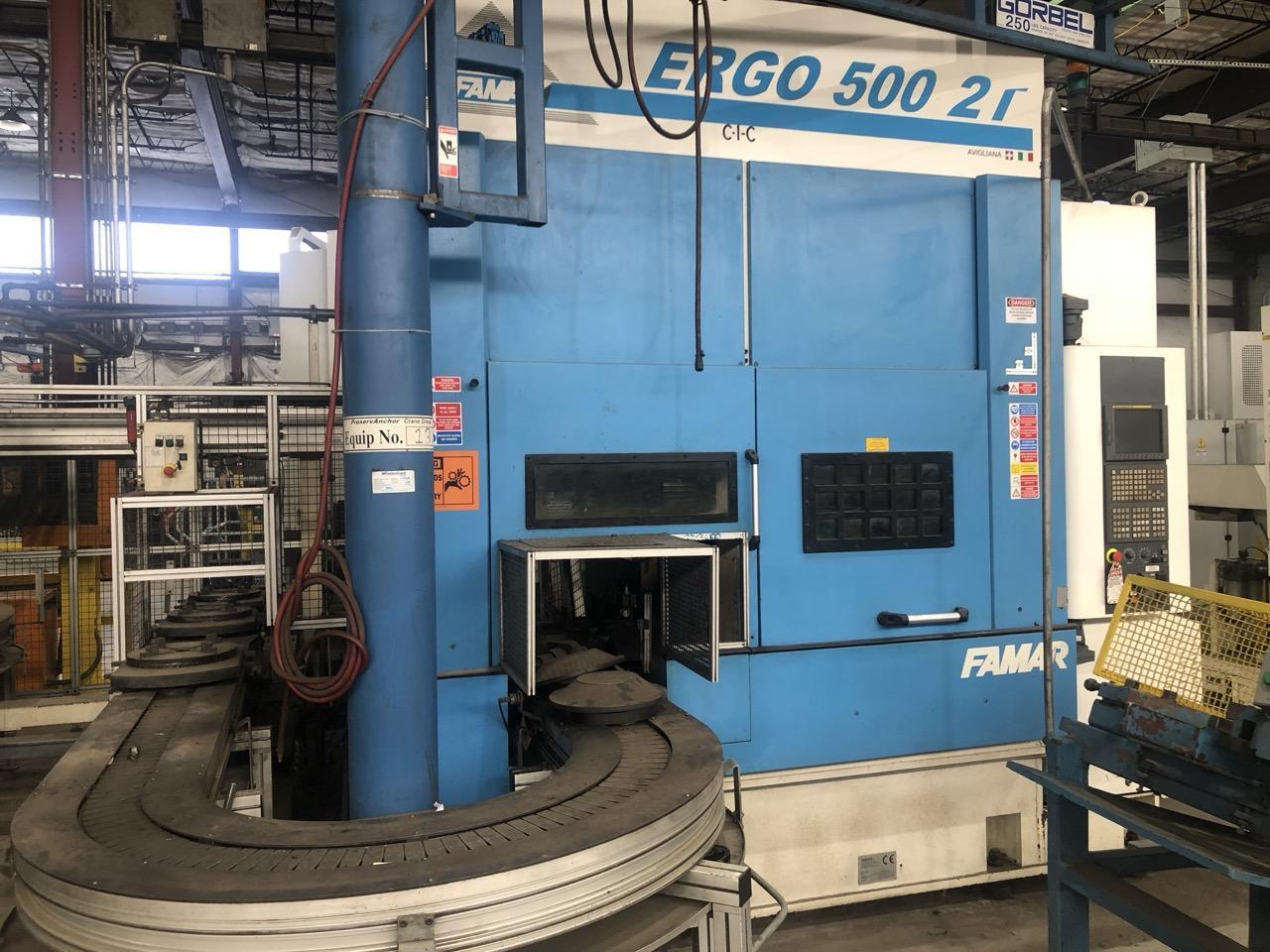

Famar Ergo 500 2T Multi-Tasking Turning Center, 2007 – Chip Conveyor, Measuring Device, Tool Monitoring

Turning Capacity: Nominal Diameter: 15.75″ Max Length on Turret: 13.78″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Axis Specifications: X-Axis Working Stroke: 20.39″ Z-Axis Working Stroke: 13.39″ Z-Axis Total Stroke: 46.46″ X-Axis Rapid Speed: 1,574 in/min Z-Axis Rapid Speed: 984 in/min Ball Screw Diameter: 1.97″ X/Z Ball Screw Pitch: 0.79″ / 0.39″

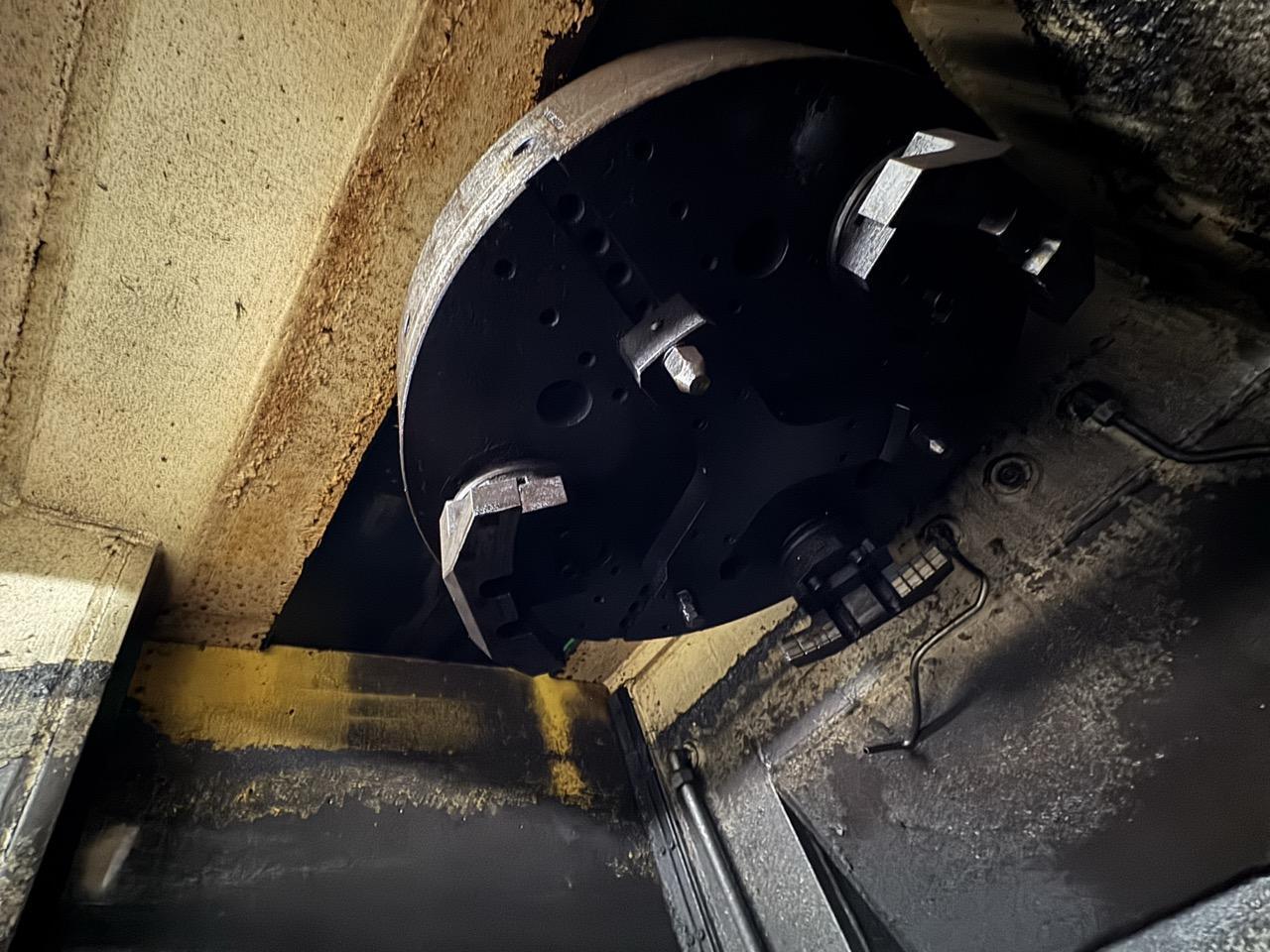

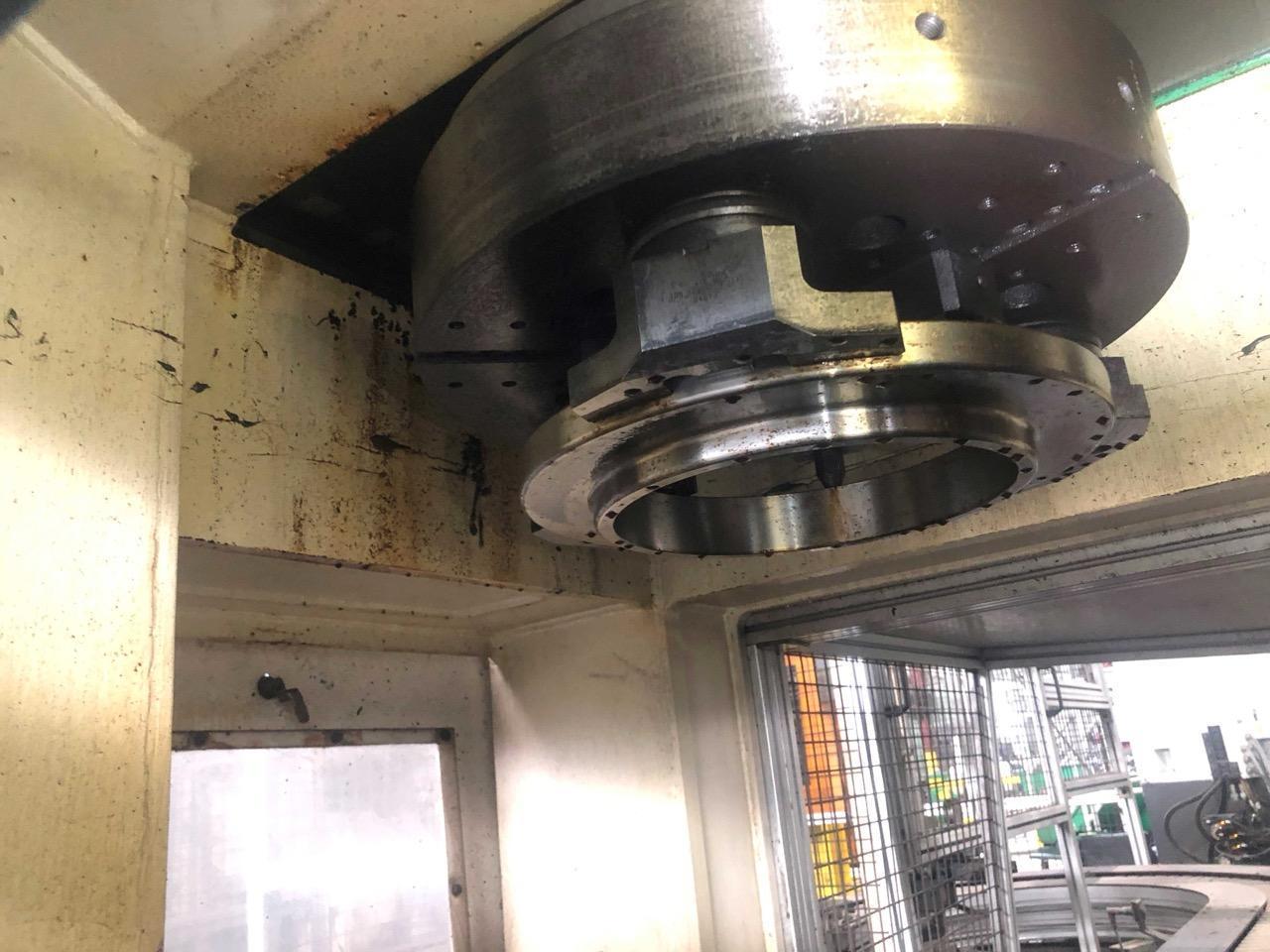

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Electro-Spindle: Spindle Taper (ASA): 11″ Spindle Power: 107.3 HP Spindle Speed: 0–3200 RPM Max Torque: 1033.2 ft-lbf S6 Torque (40%): 1254.2 ft-lbf Swing Diameter: 24.8″ Self-Centering Chuck (Standard): 19.7″

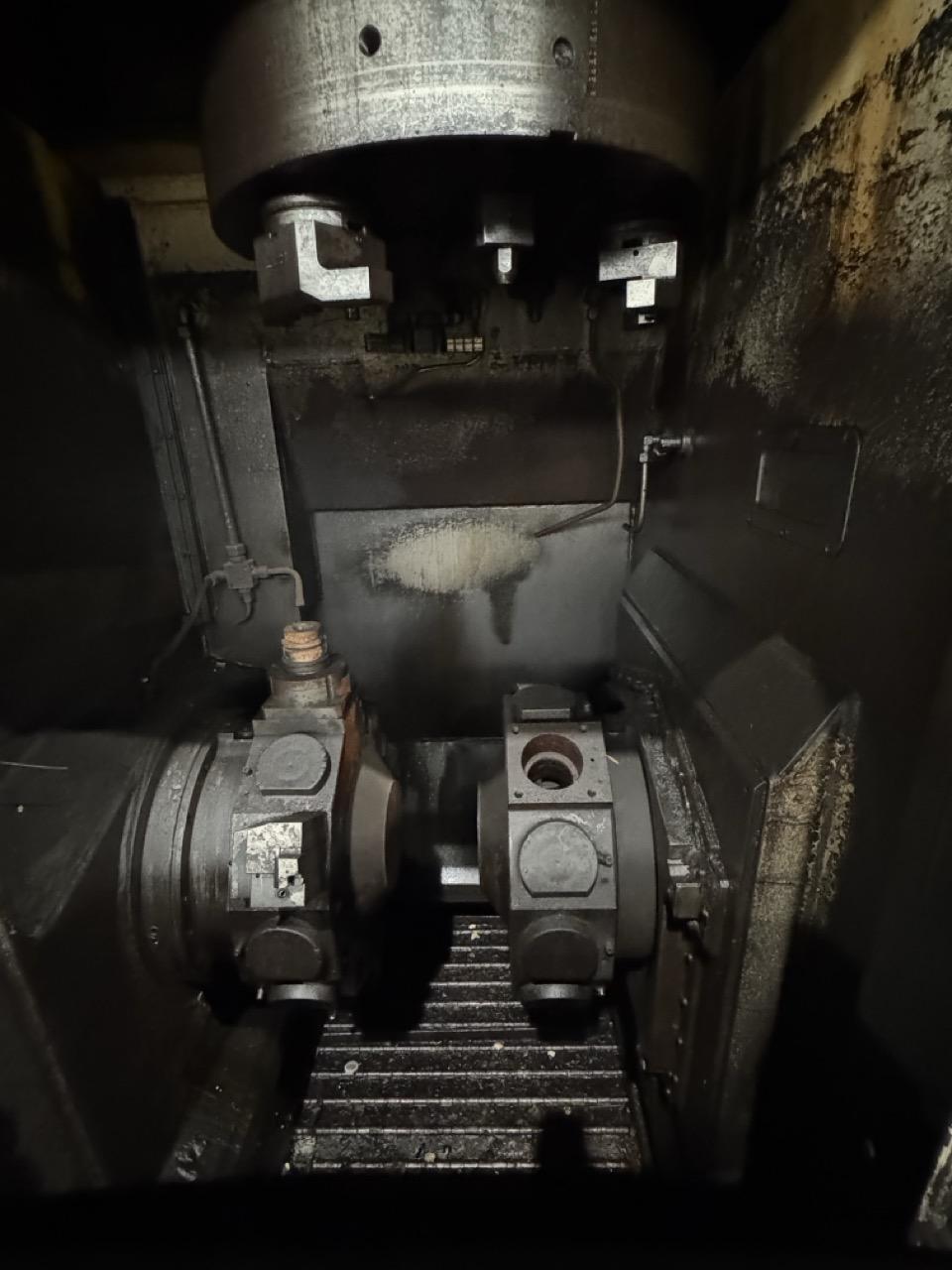

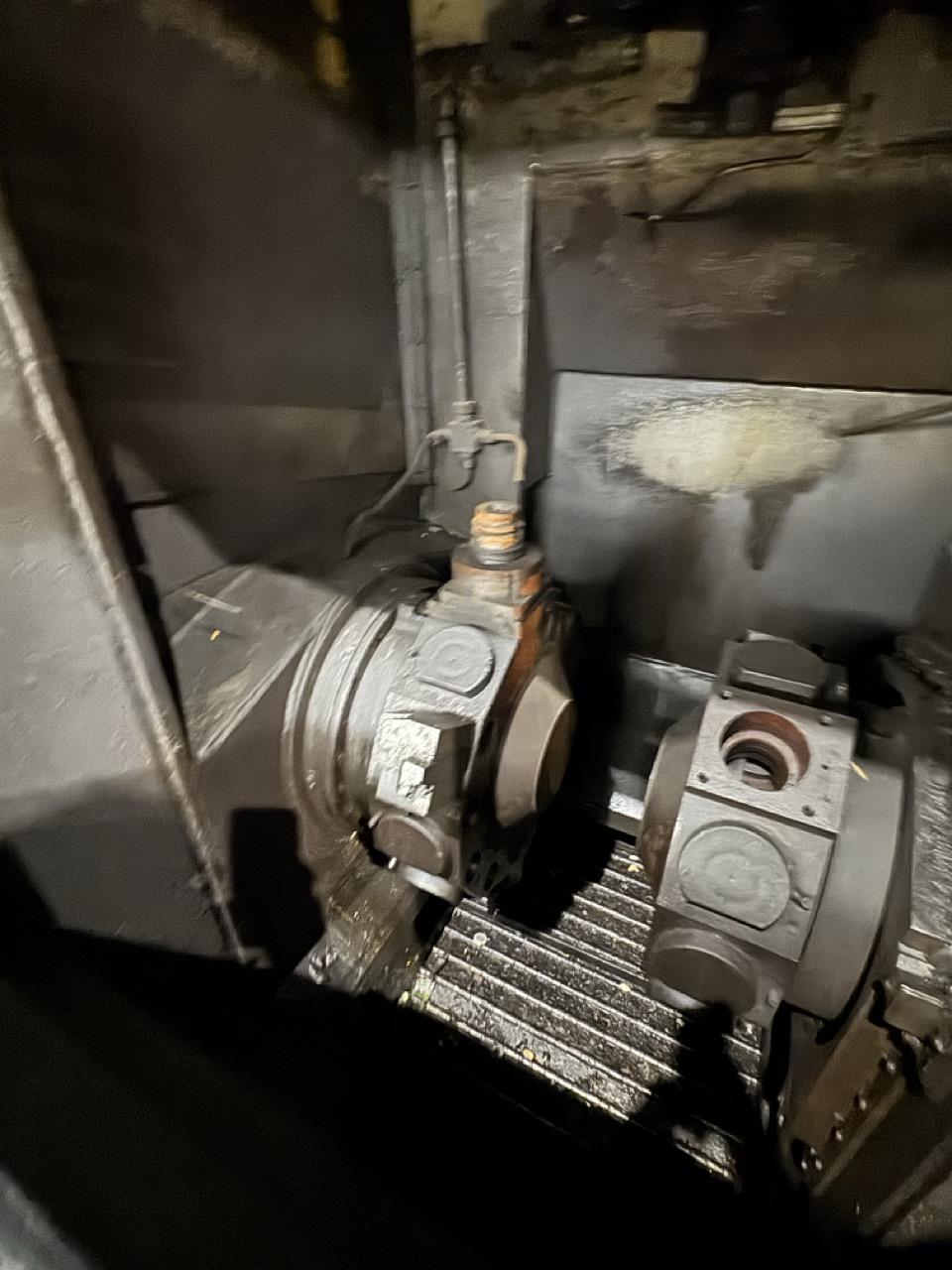

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Turret (Fixed Tools): Tool Positions: 12 Tool Interface : VDI 50 Turret (Driven Tools): Tool Positions: 12 Tool Interface : VDI 50 Turning Time: 0.35 sec Chip-to-Chip Time: 1.4 sec

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Loading / Unloading: Time per Cycle: 8–14 sec

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Power Requirements: 400v, 50Hz Machine Weight: 35,274 lbs Overall Dimensions: 233.2″(L) x 203.3″(W) x 74.8″(H)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

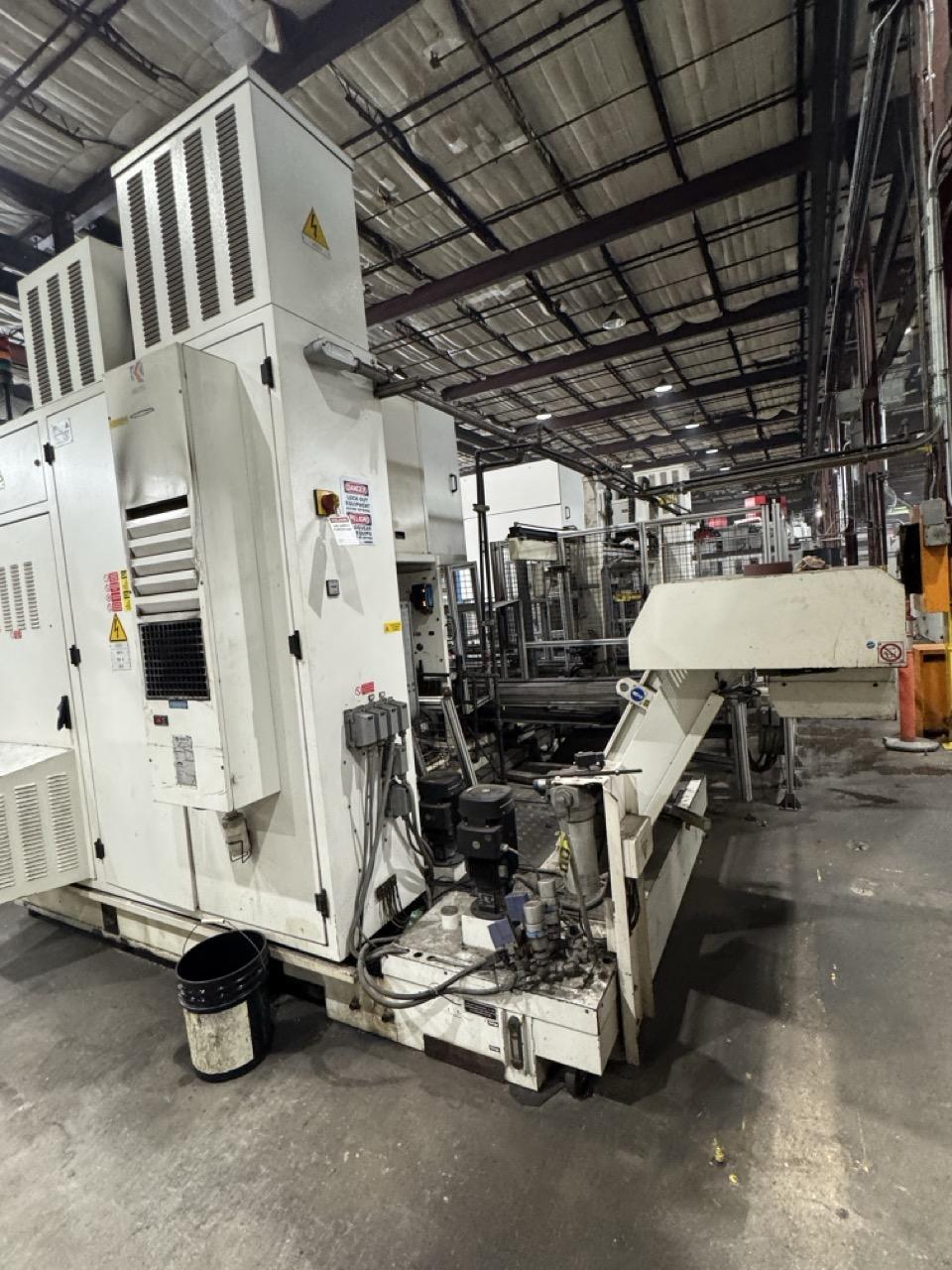

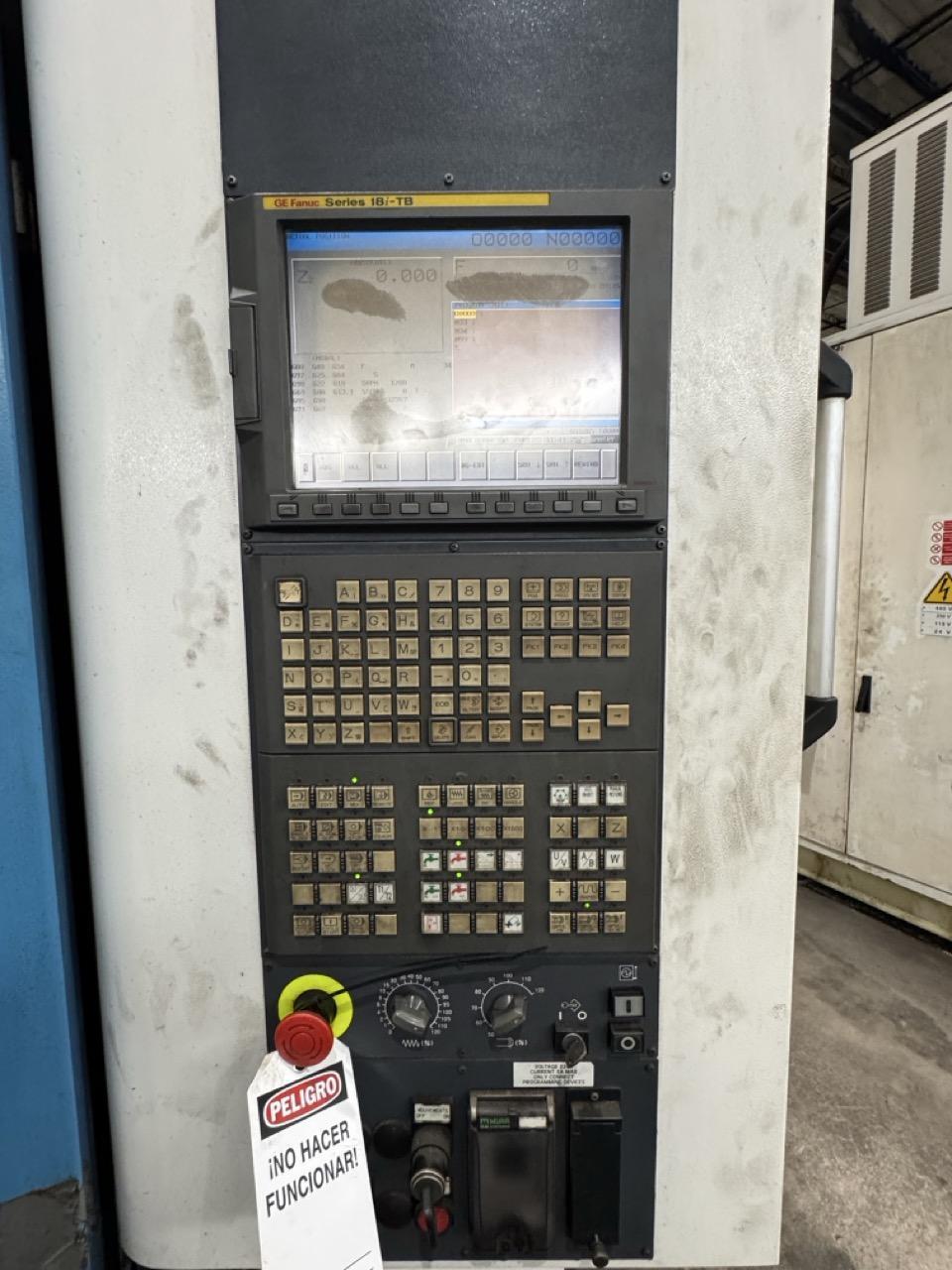

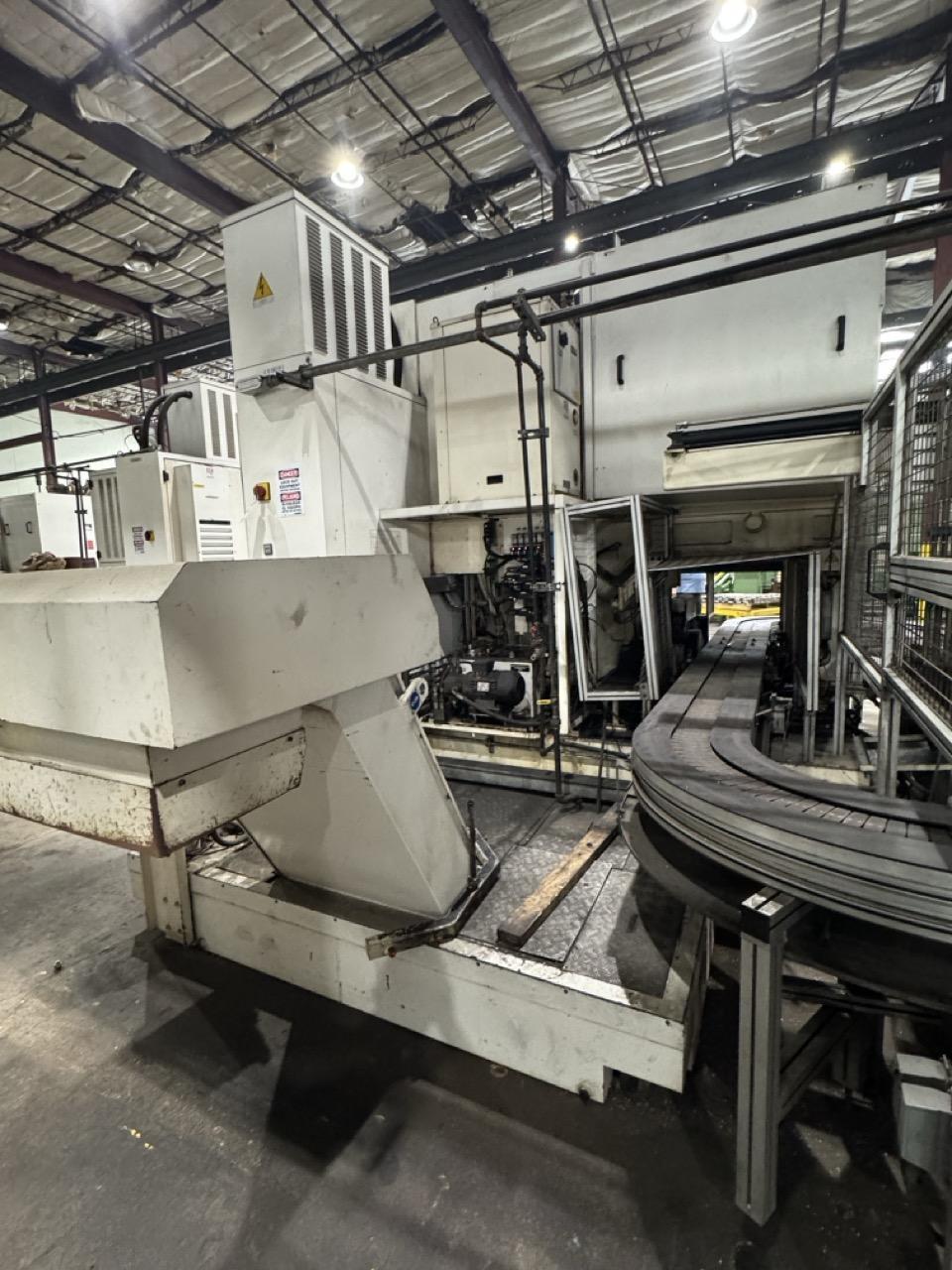

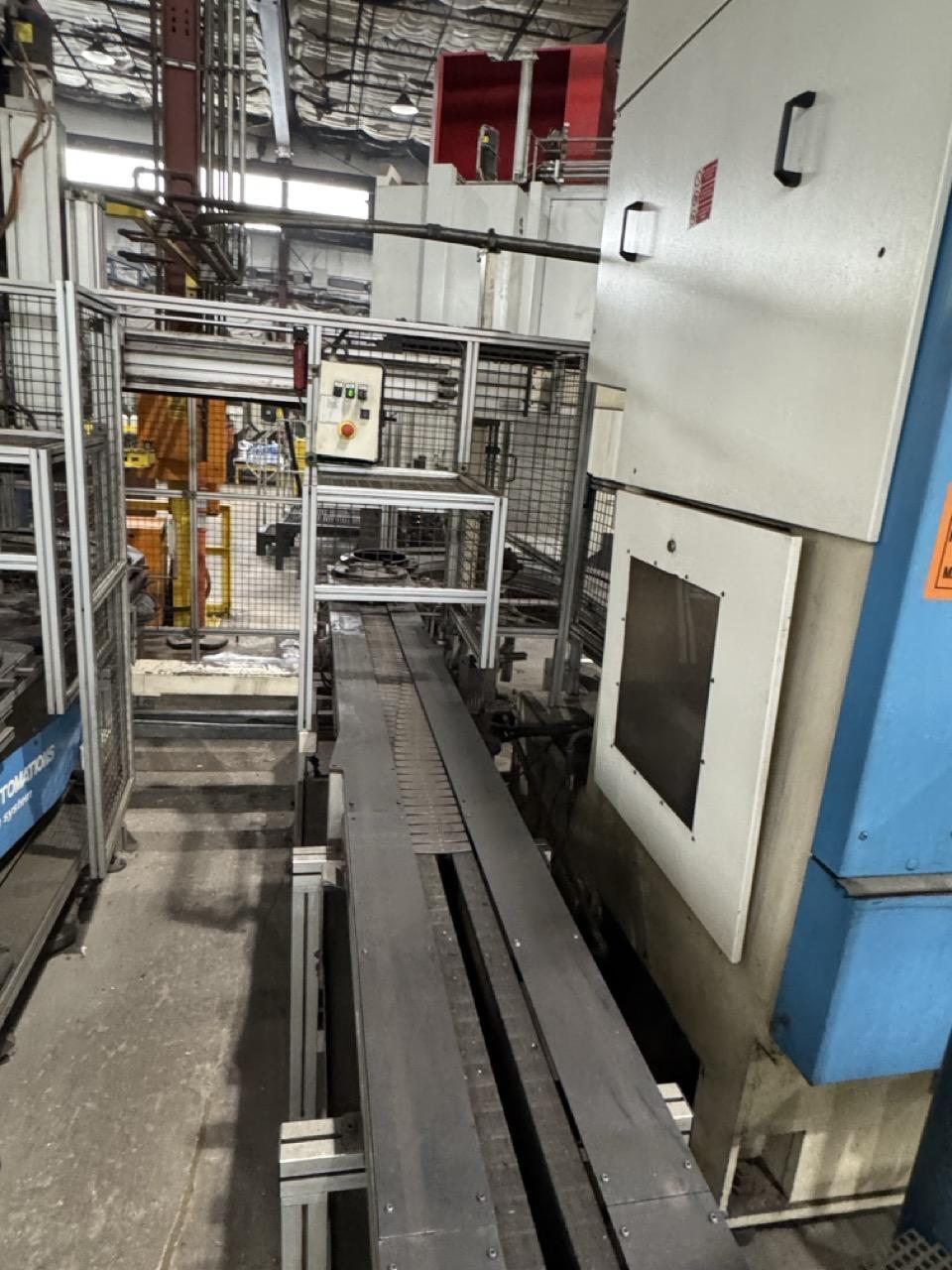

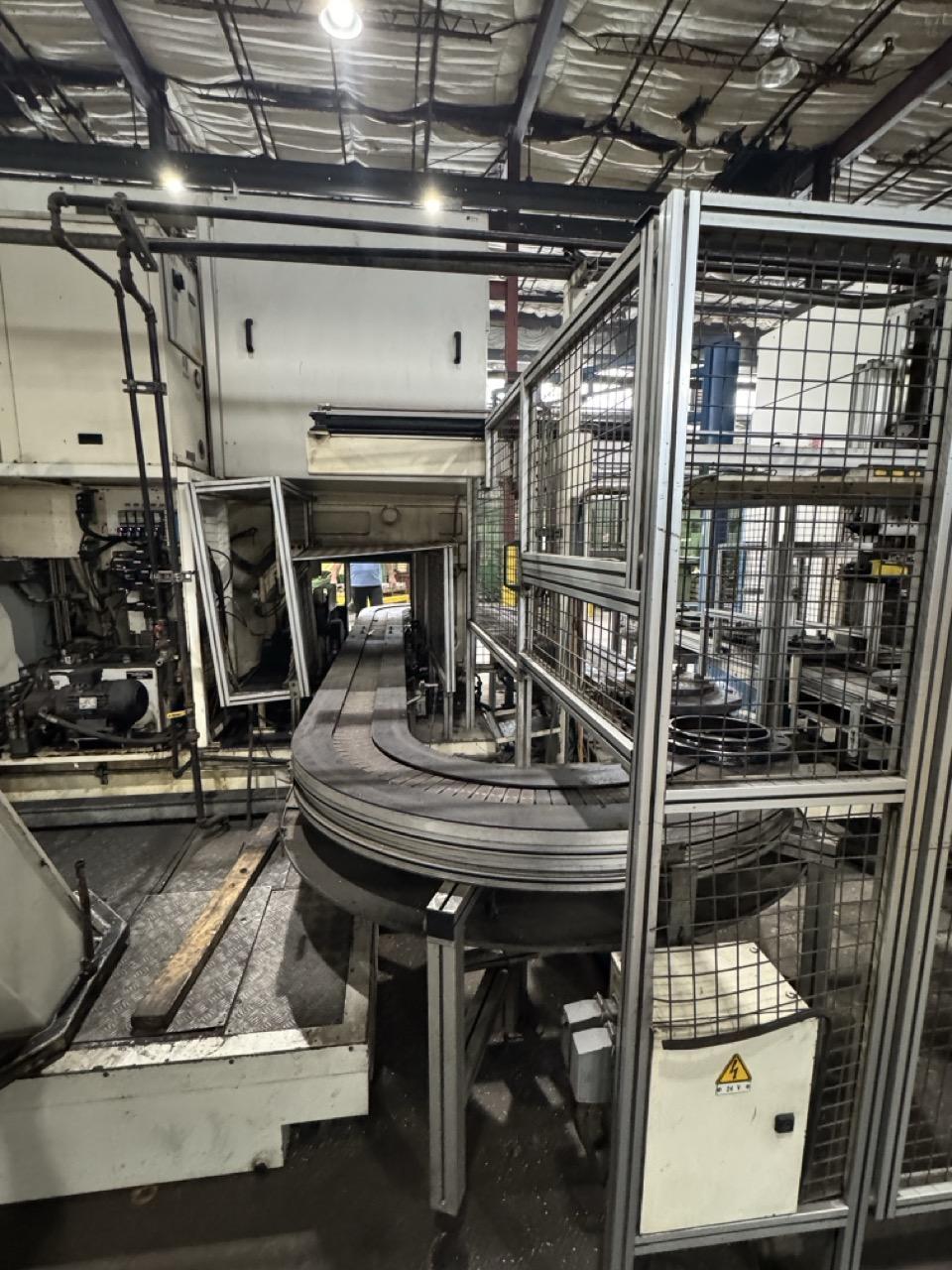

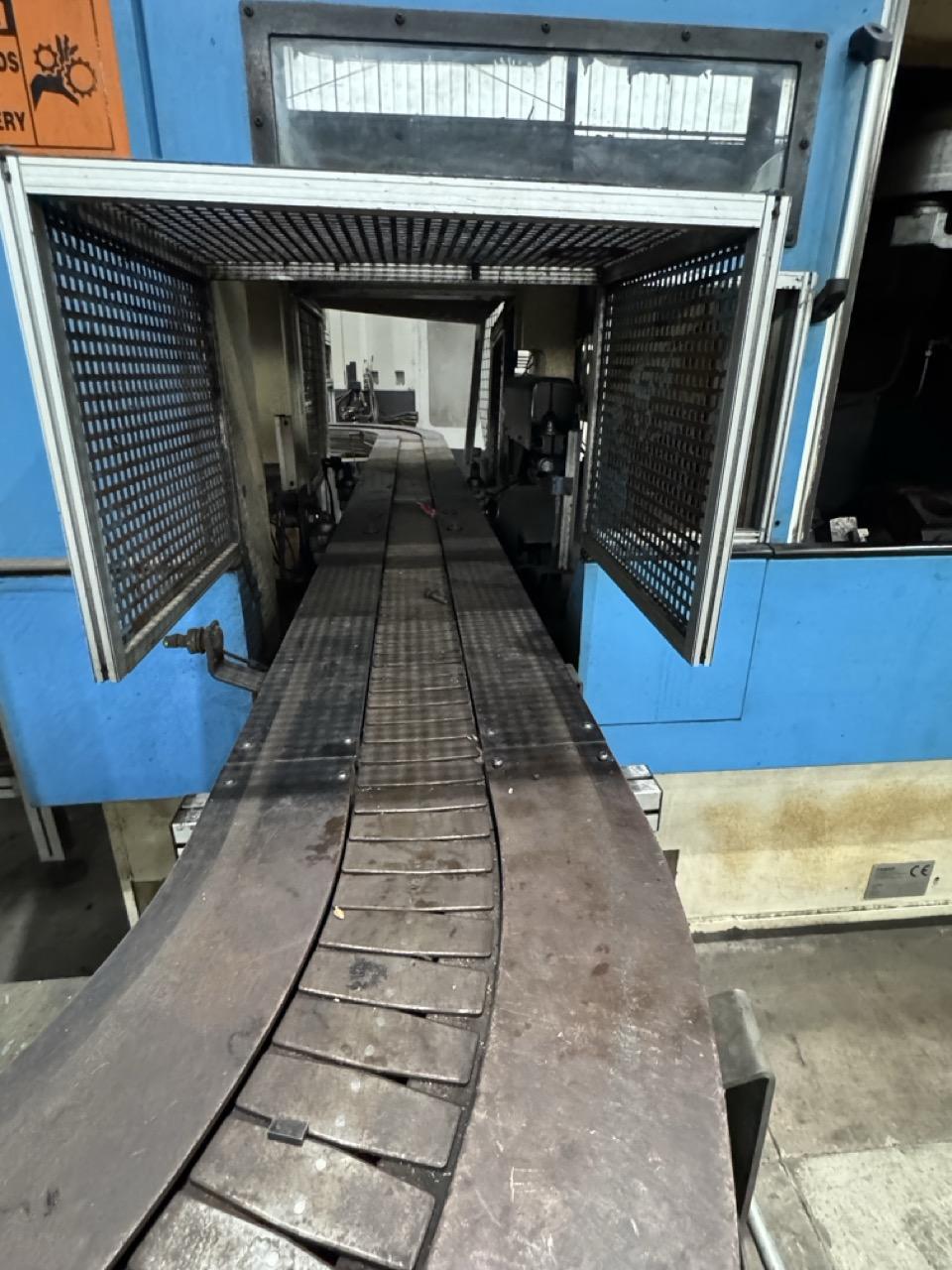

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Fanuc 18i-TB Control High Pressure 15 Bars Belt Type Chip Conveyor Turret for Driven Tools with VDI 50 Clamping Automatic Load/Unload Conveyor Portal Turnover Device “C” Axis Application In-Process Measuring Device Tool Monitoring Breaking Device Montronix Electrospindle for Special Machining
