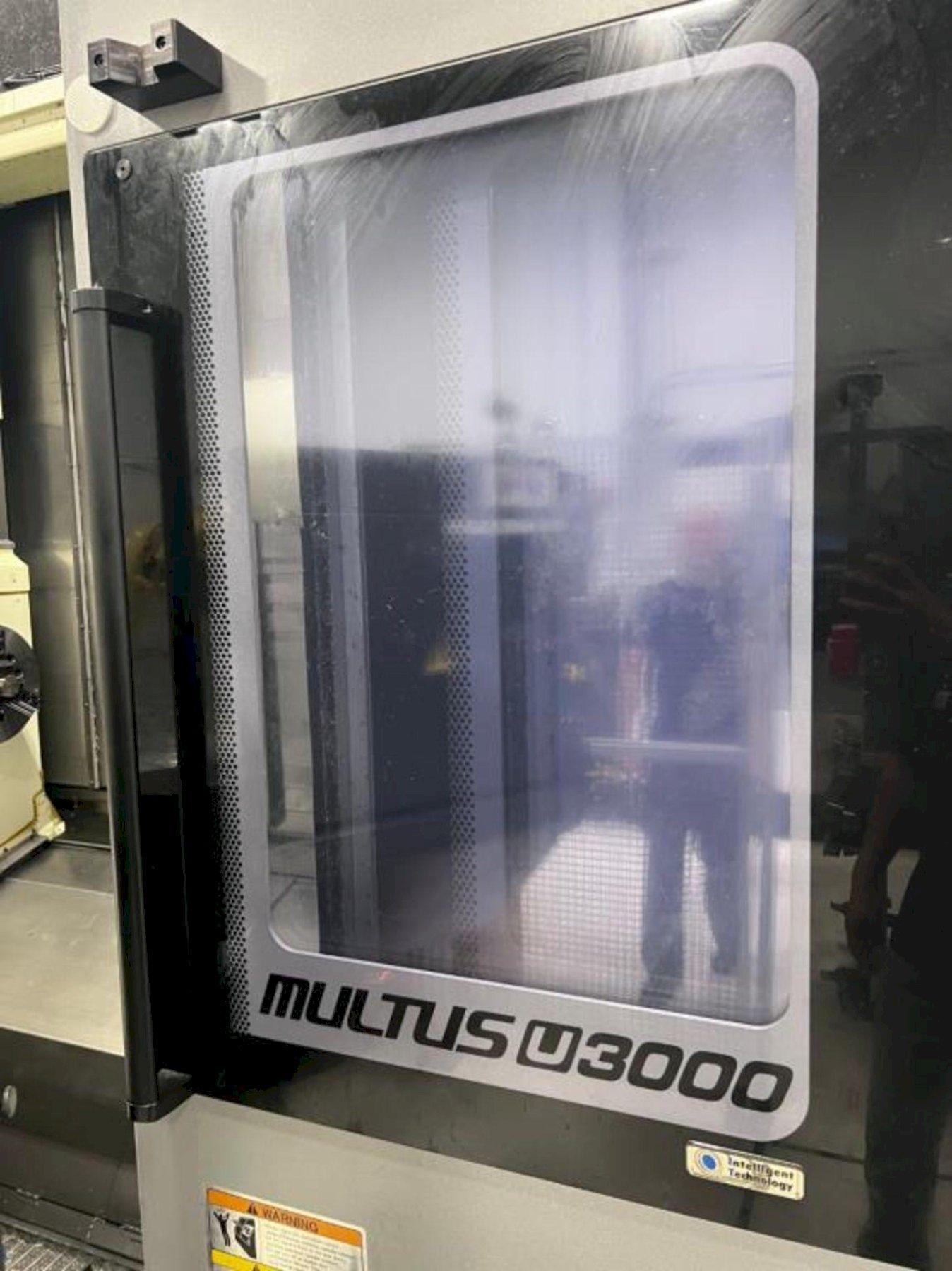

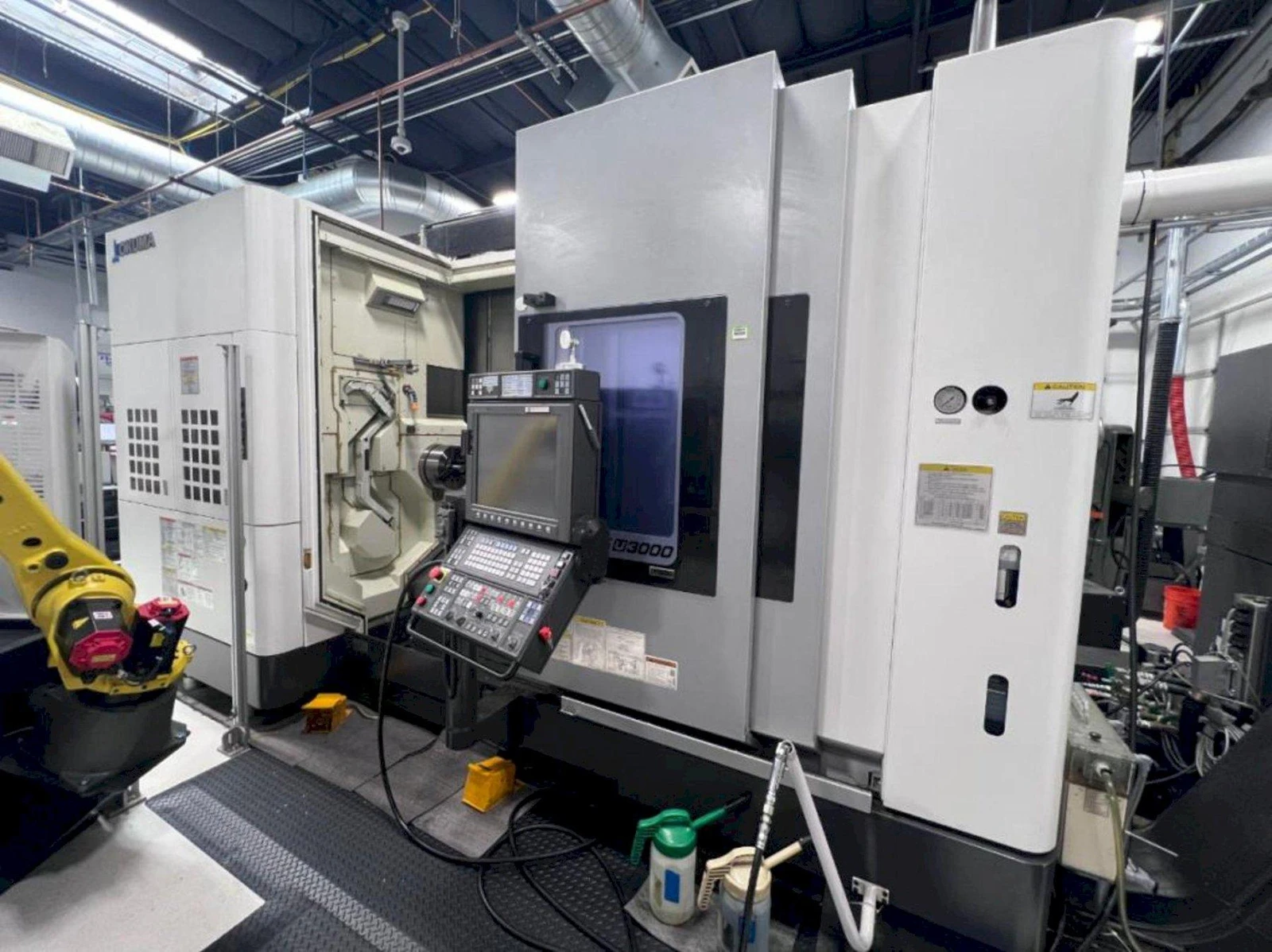

2019 Okuma Multus U3000 Used Multi-tasking CNC Lathe For Sale
Brand
Category
Model
Multus U3000
Stock #
Not specified
Year
2019
Condition
Used
Location
California
| CNC Control | yes |
| Type Of CNC Control | Okuma OSP-P300SA-H |
| # Axis | 8 |
| Swing | 25.59 inches |
| Turning Diameter | 25.59 inches |
| Center Distance | 74.13 inches |
| Chuck Size | 12 inches |
| Bar Capacity | 3.15 inches |
| X Axis Travel | 25.39 inches |
| Y Axis Travel | 9.84 inches |
| Z Axis Travel | 62.99 inches |
| X2 Axis Travel | 9.25" Lower Turret |
| Z2 Axis Travel | 62.36" Lower Turret |
| B Axis Travel (Sub Spindle) | 62.36 inches |
| C Axis Index | 0.0001° |
| B-axis Indexing | -30° to +120° |
| Spindle Speed | 5,000 rpm |
| Main Motor | 30/20 hp |
| Tailstock | no |
| Y Axis | yes |
| Live Tooling | yes |

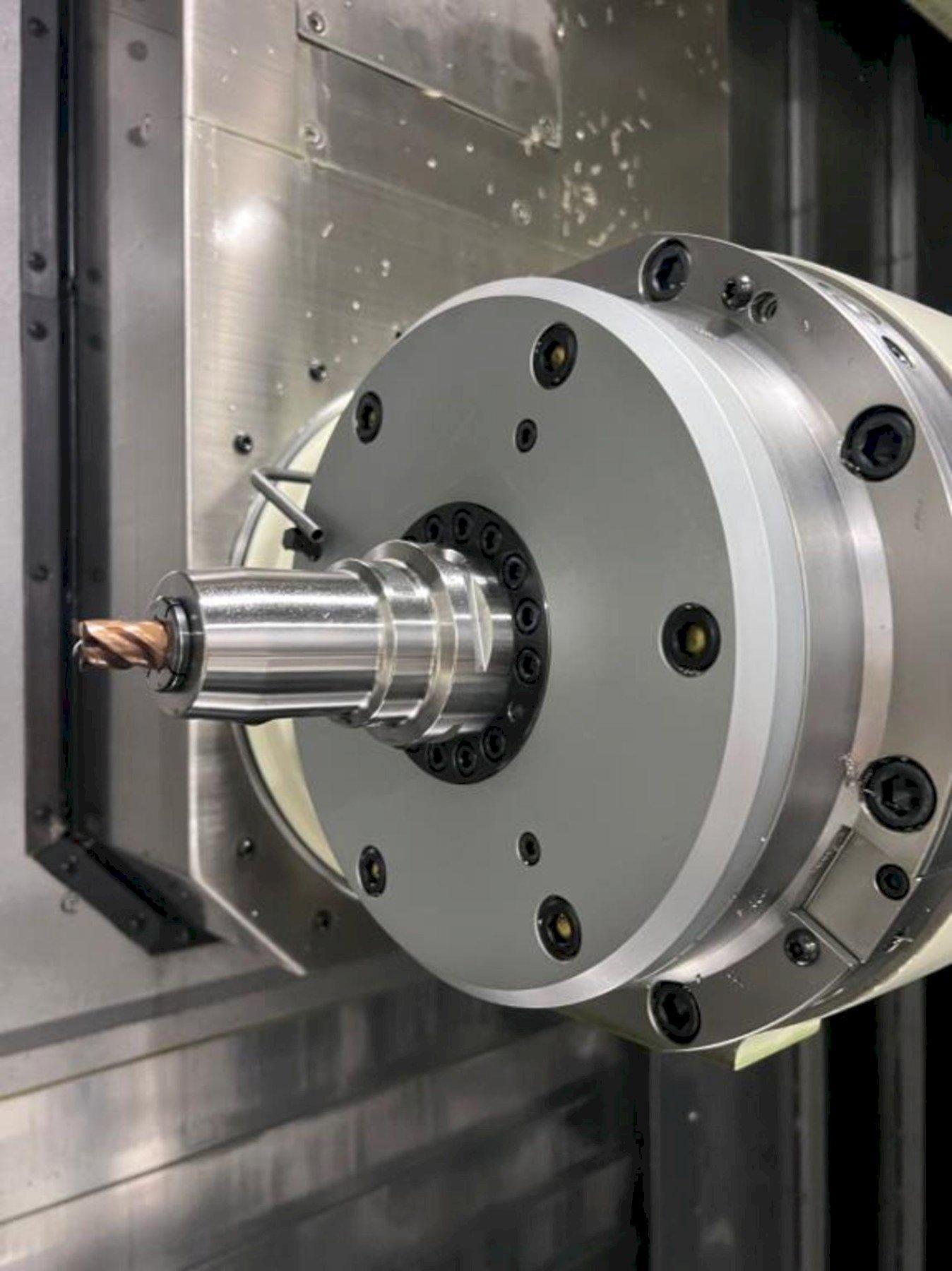

| Milling Spindle Taper | CAPTO C6 |
| Live Tooling Speed | 12,000 rpm - Milling Spindle |
| Live Tooling Motor | 25 hp |
| Sub Spindle | yes |
| Sub Spindle Chuck | 10 inches |
| Sub Spindle Speed | 5,000 rpm |
| Sub Spindle Motor (HP) | 30/20 hp |
| ATC Capacity | 40 Stations - Milling Spindle |

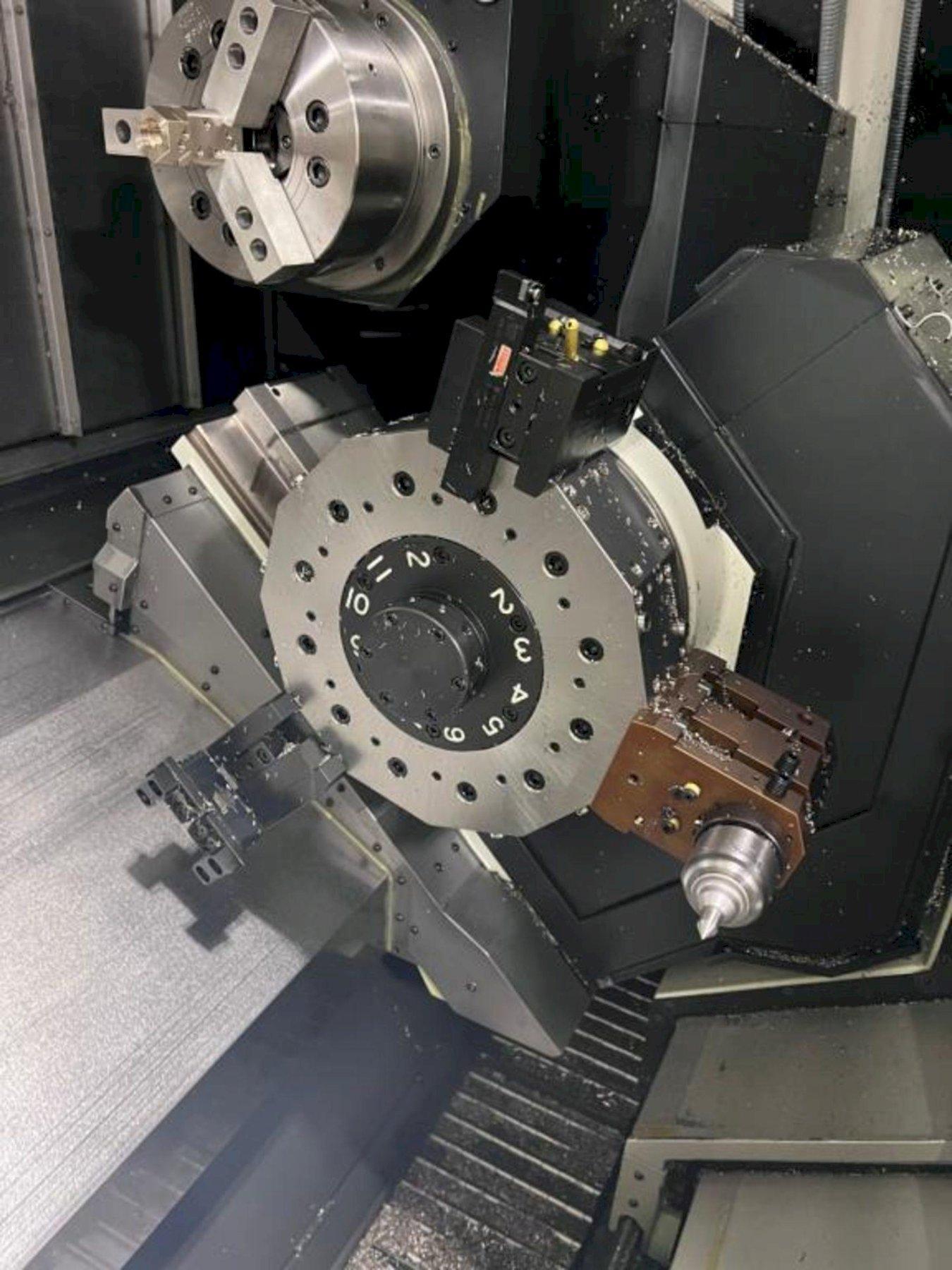

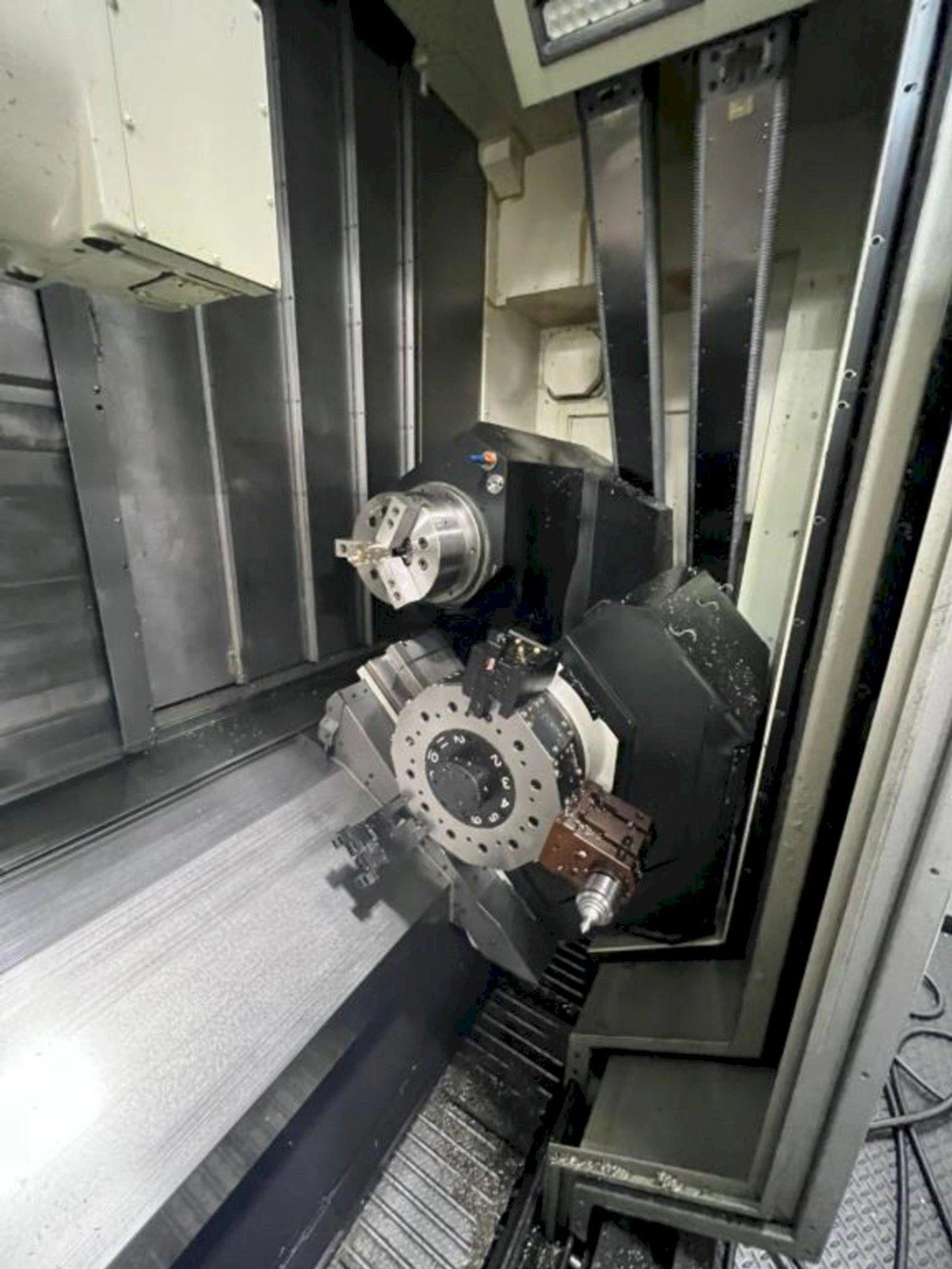

| Turret Capacity | 12 Station Lower Turret |
| Machine Weight | 40000 pounds |
|

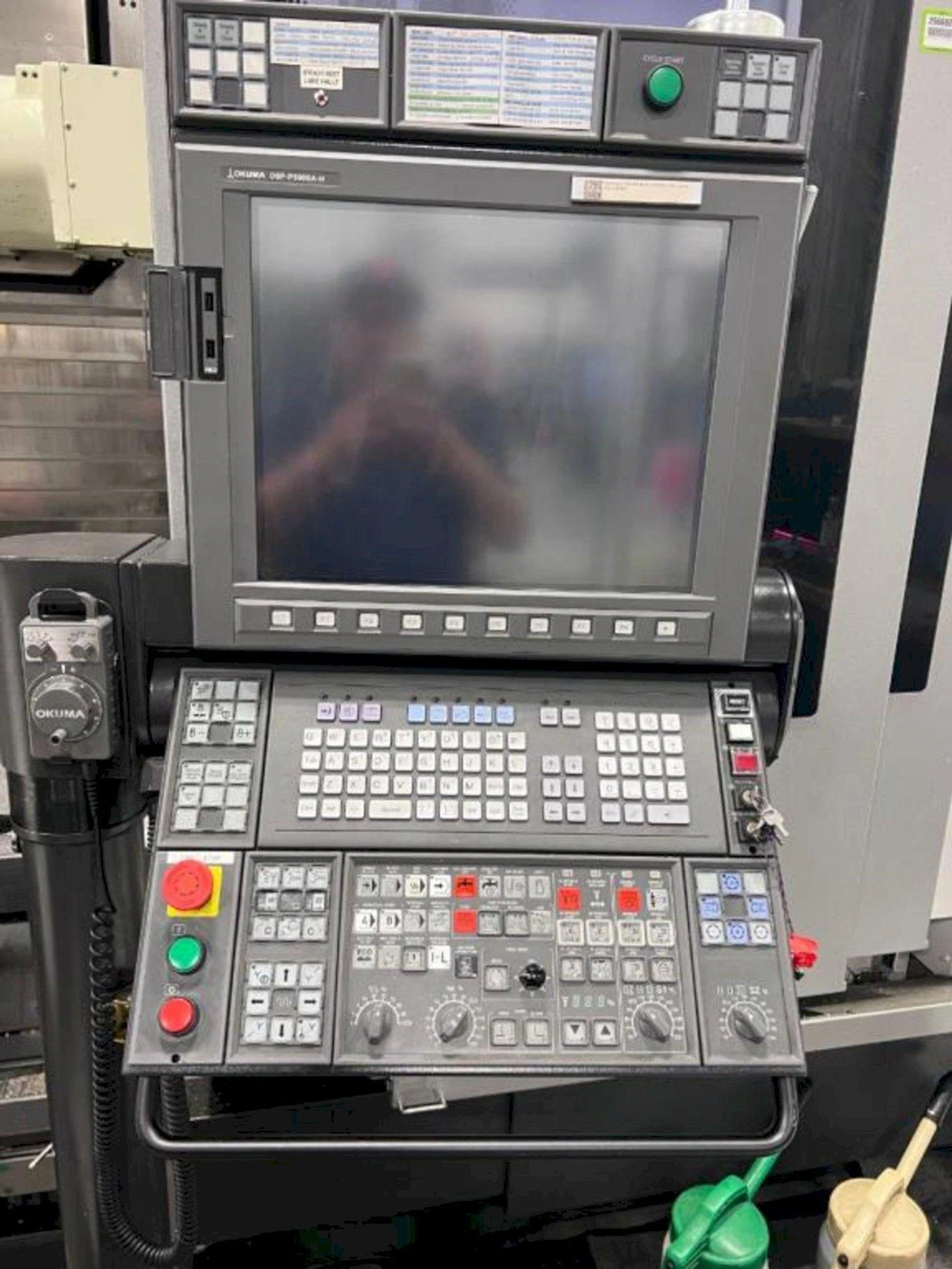

- Okuma OSP-P300SA-H CNC Control

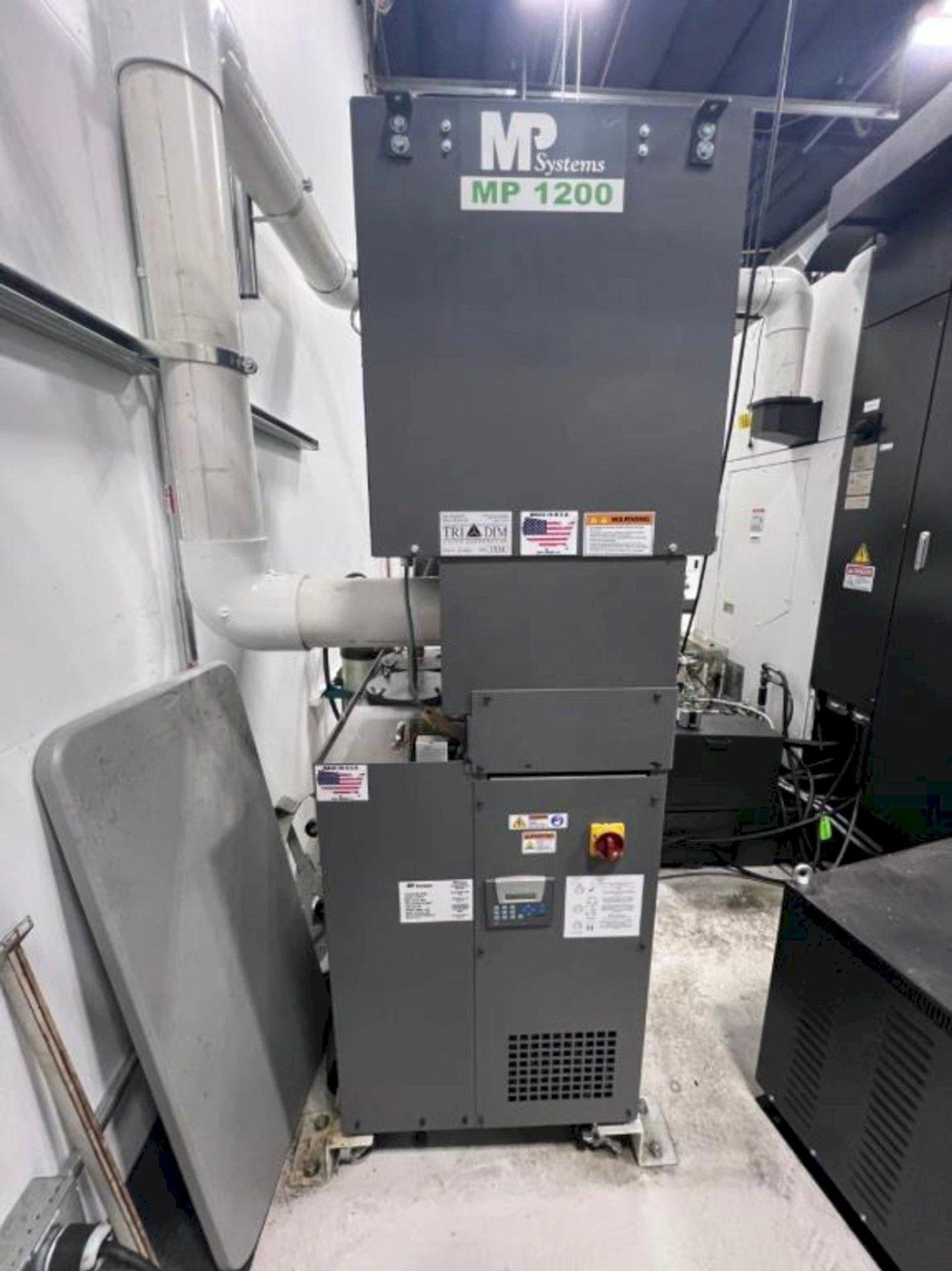

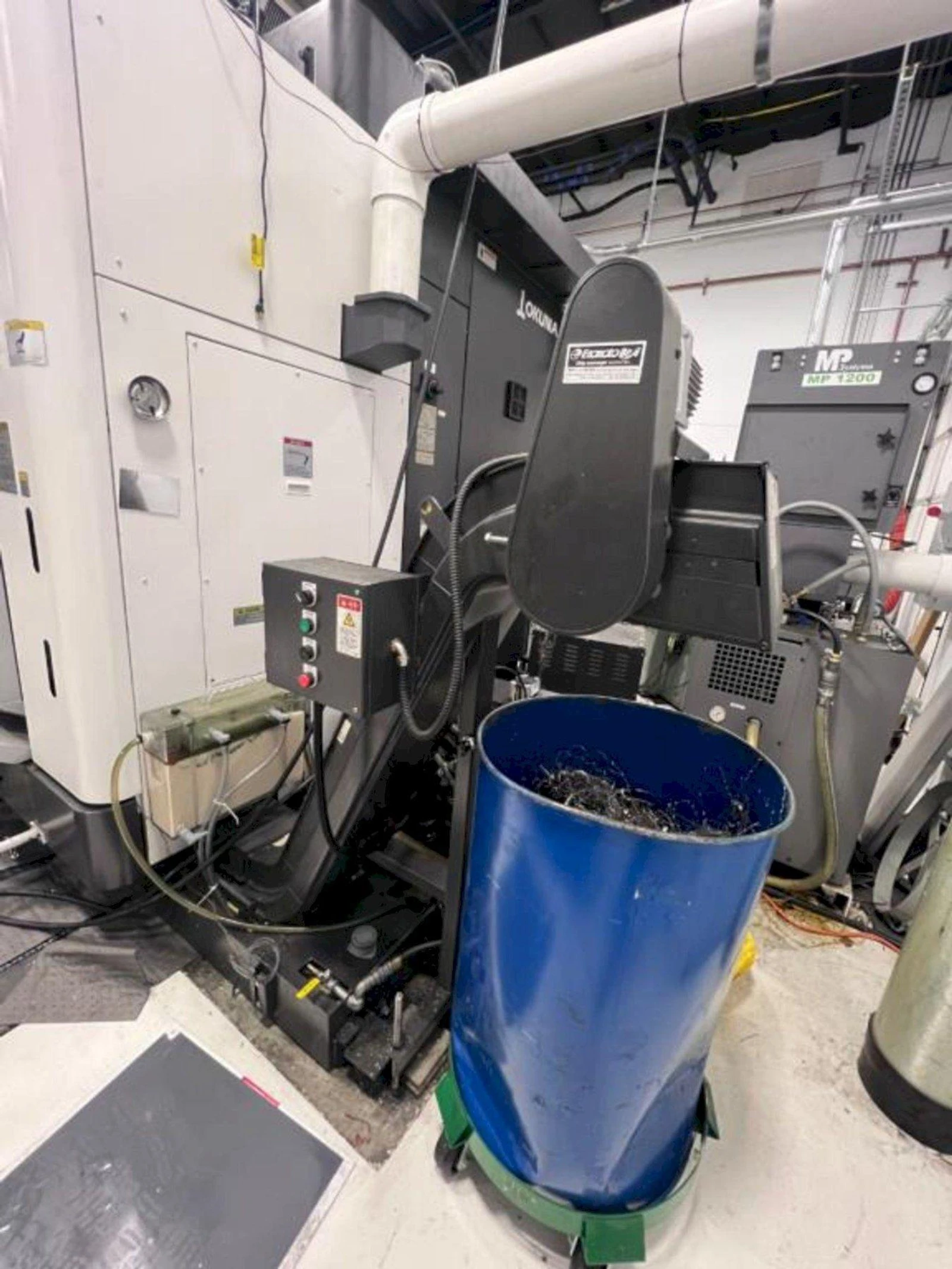

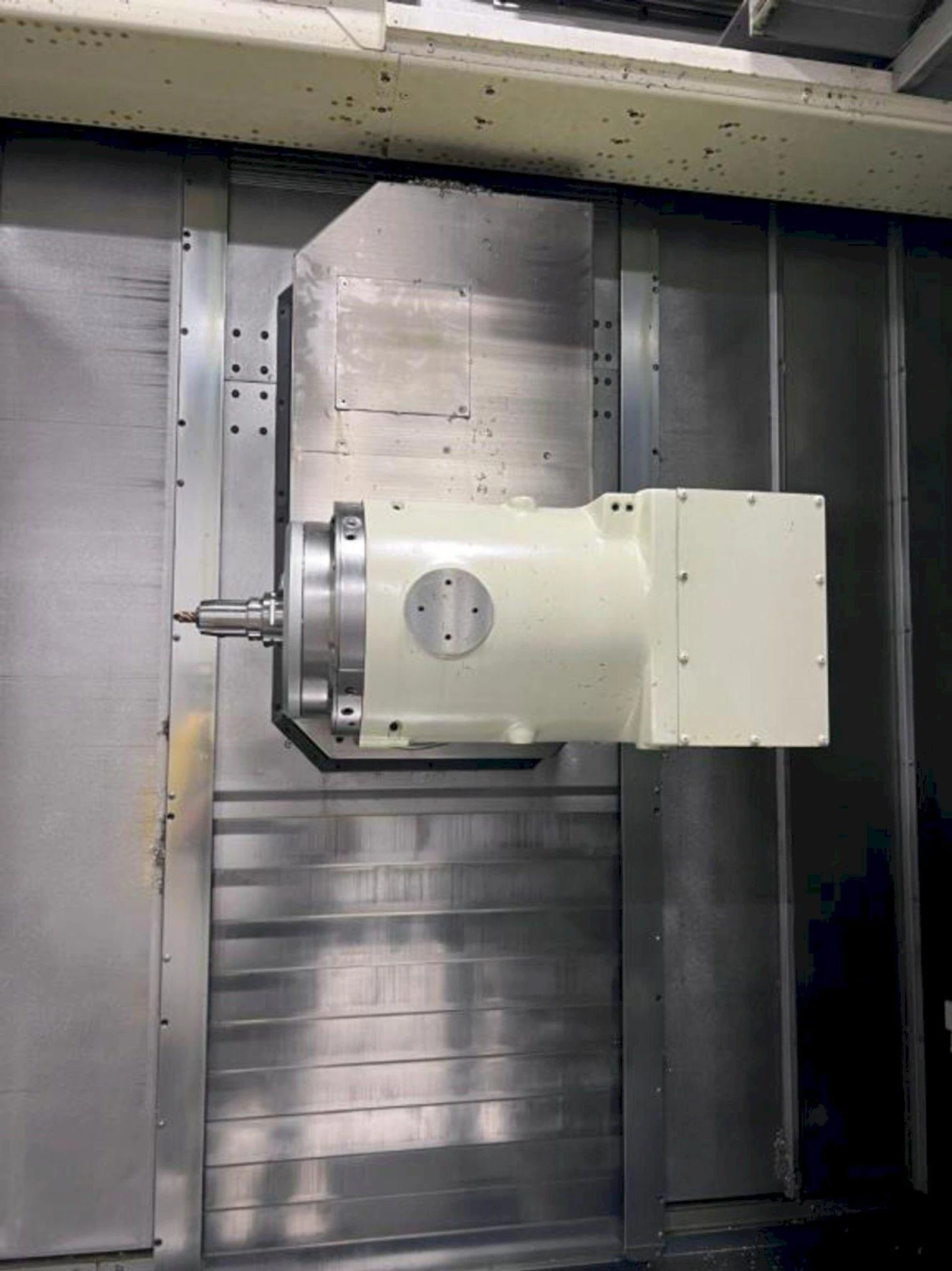

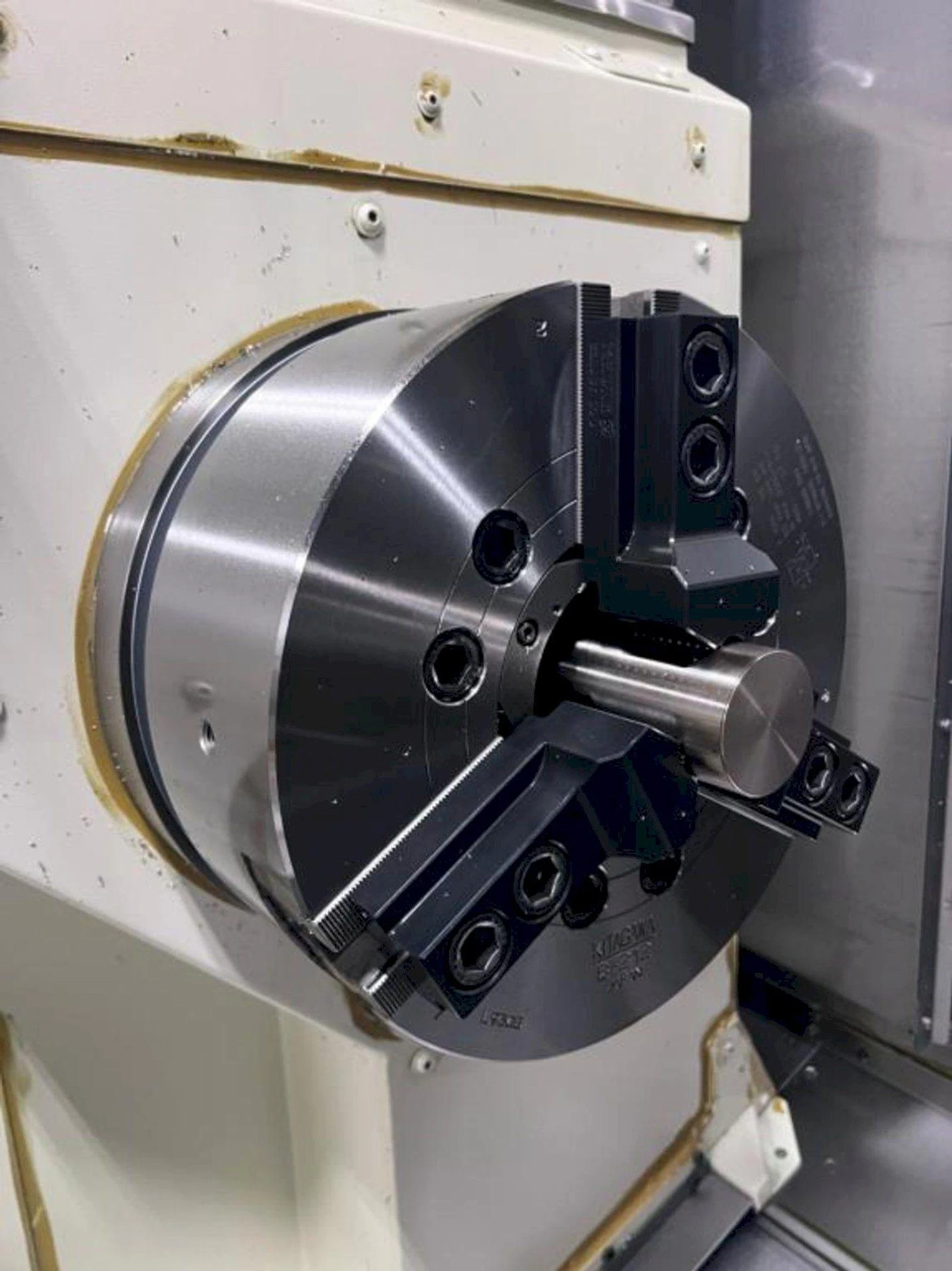

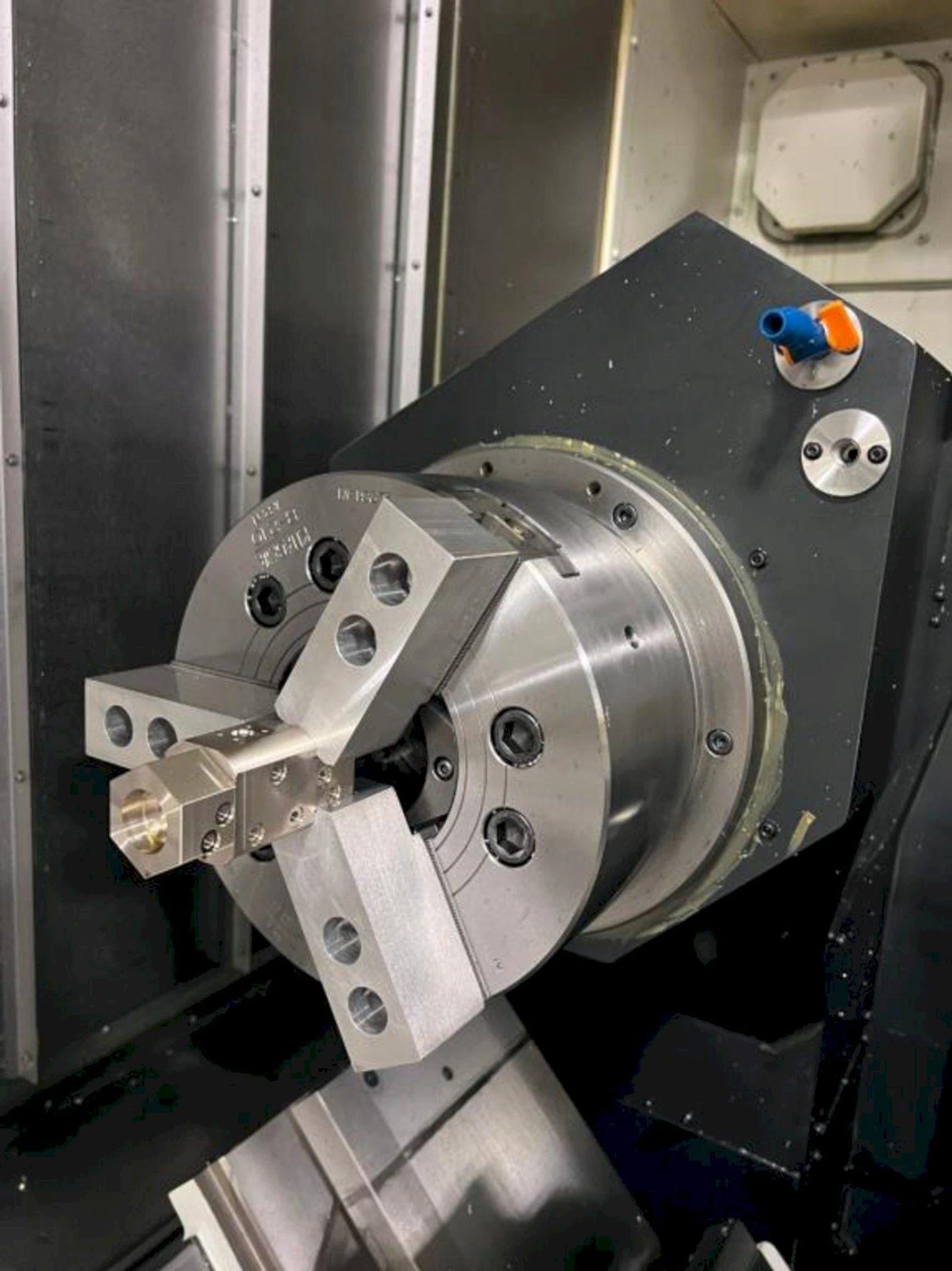

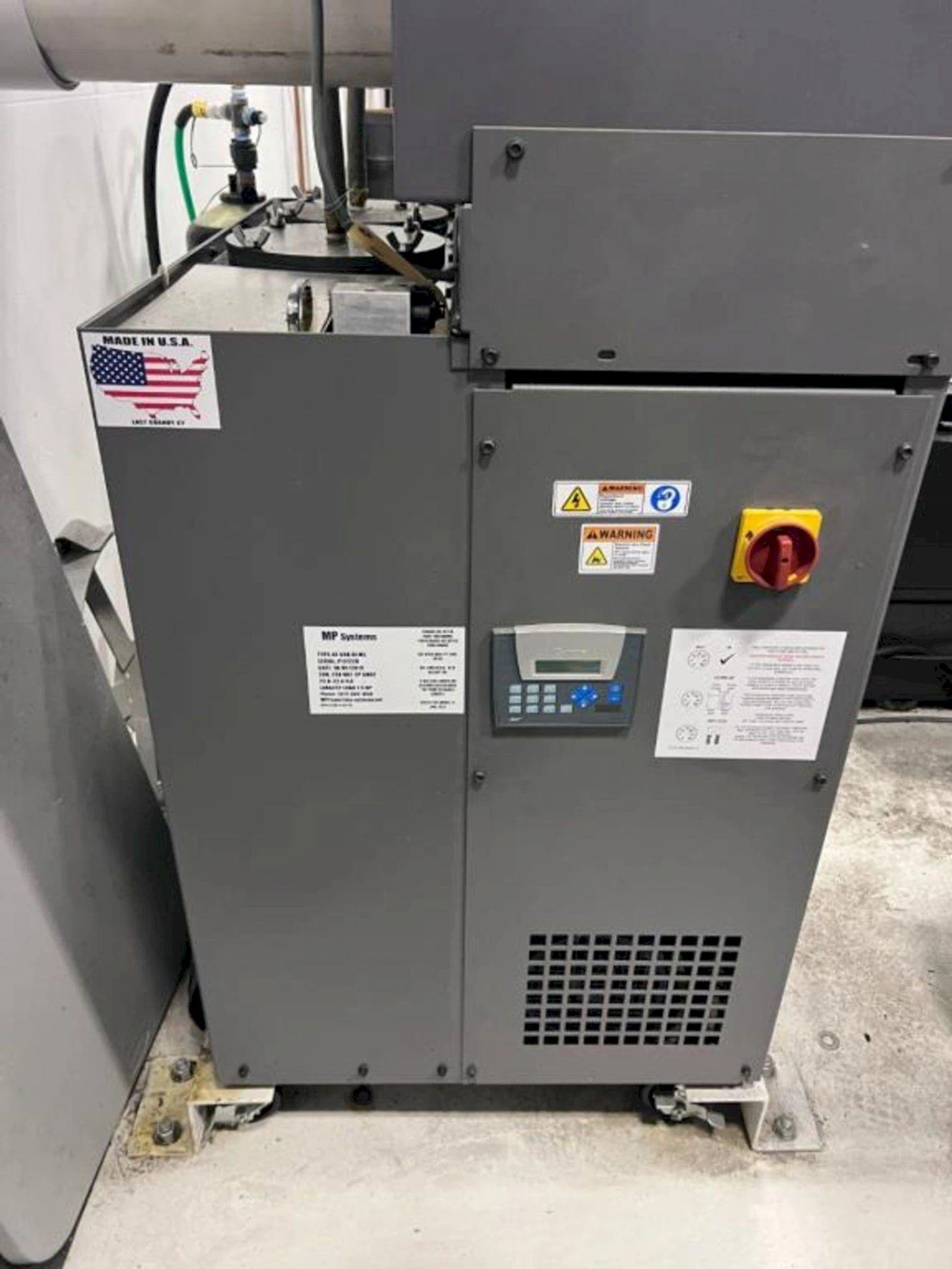

- Chip Conveyor - Coolant Tank - MP 1200 Coolant System - High Pressure Coolant System - Lower Turret - Sub Spindle - Milling Spindle w/B Axis - CAPTO C6 Milling Spindle - Tool Presetter - Kitagawa B-212 Hyd. Chuck Main Spindle - Kitagawa B-210 Hyd. Chuck on Sub Spindle - Renishaw Probing (Receiver) |
|
