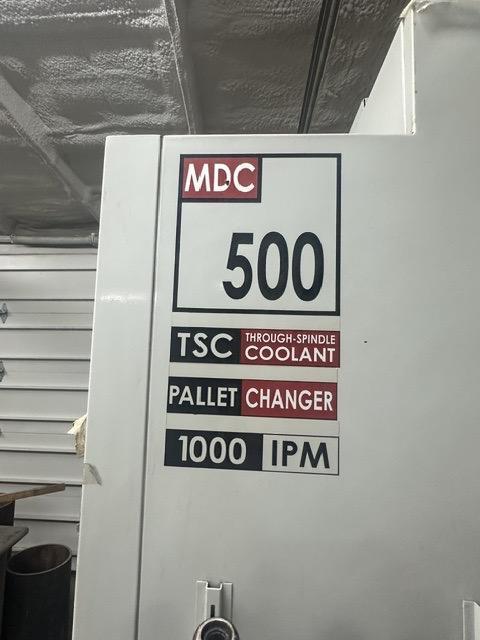

Haas MDC-500 VMC, 2007 – Thru Spindle Coolant, Pallet Changer, 1000 ipm

X-Axis Travel: 20″ Y-Axis Travel: 14″ Z-Axis Travel: 20″ Rapid Traverse Rates: 1,000 IPM Cutting Feed Rate: Up To 833 IPM Spindle Taper: CAT 40 Spindle Speed: 0–7,500 RPM Spindle Motor: 20 HP Pallet System: Dual 180° Pallet Changer Pallet Size: 20″ × 12.75″ Pallet Change Time: Approx. 8 Seconds Max Table Load: 700 Lbs Tool Changer: Side-Mount 24+1 ATC Max Tool Diameter: 3″–3.6″ Max Tool Length: 16″ Max Tool Weight: 12 Lbs Tool-To-Tool: Approx. 2.2 Seconds Chip-To-Chip: Approx. 4.8 Seconds Machine Weight: Approx. 14,000 Lbs Overall Dimensions (L×W×H): Approx. 130″ × 134″ × 113″ Air Requirement: 100 PSI, 9 SCFM Coolant Capacity: 55 Gallons

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Haas CNC Control Thru Spindle Coolant Dual Pallets

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
