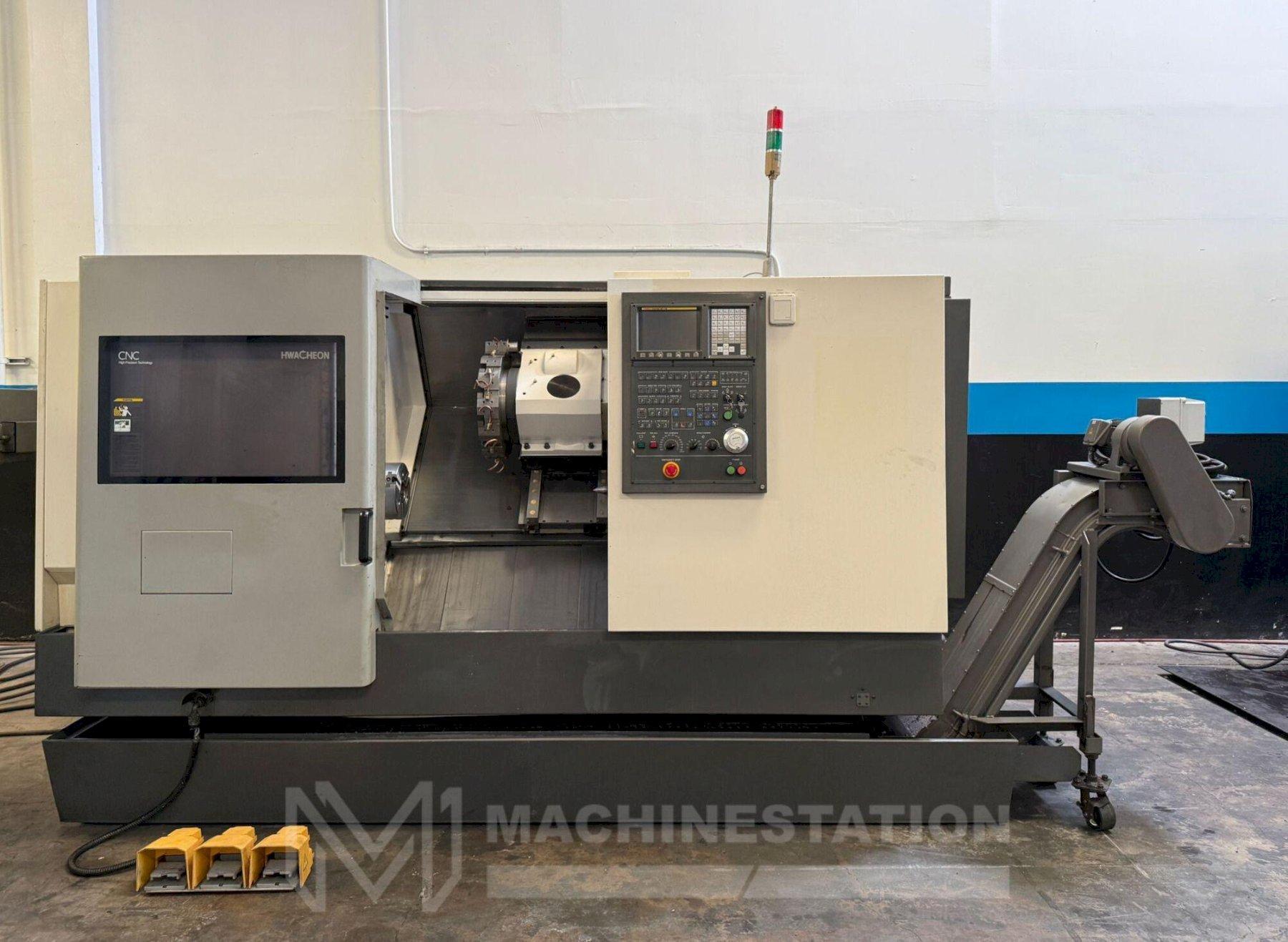

Hwacheon Cutex 240 CNC Turning Center – Lathe

Hwacheon Cutex 240 CNC Turning Center – Lathe

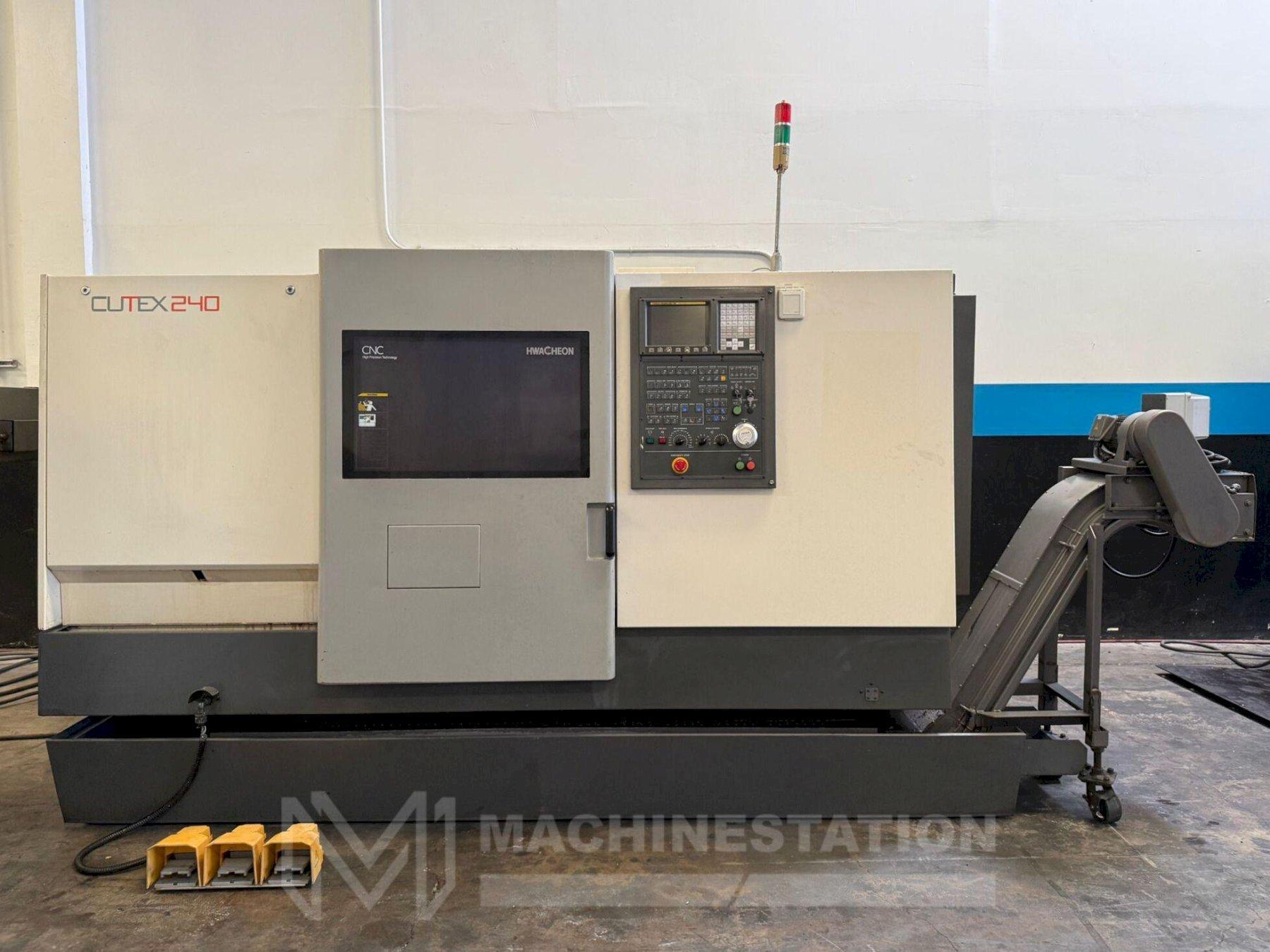

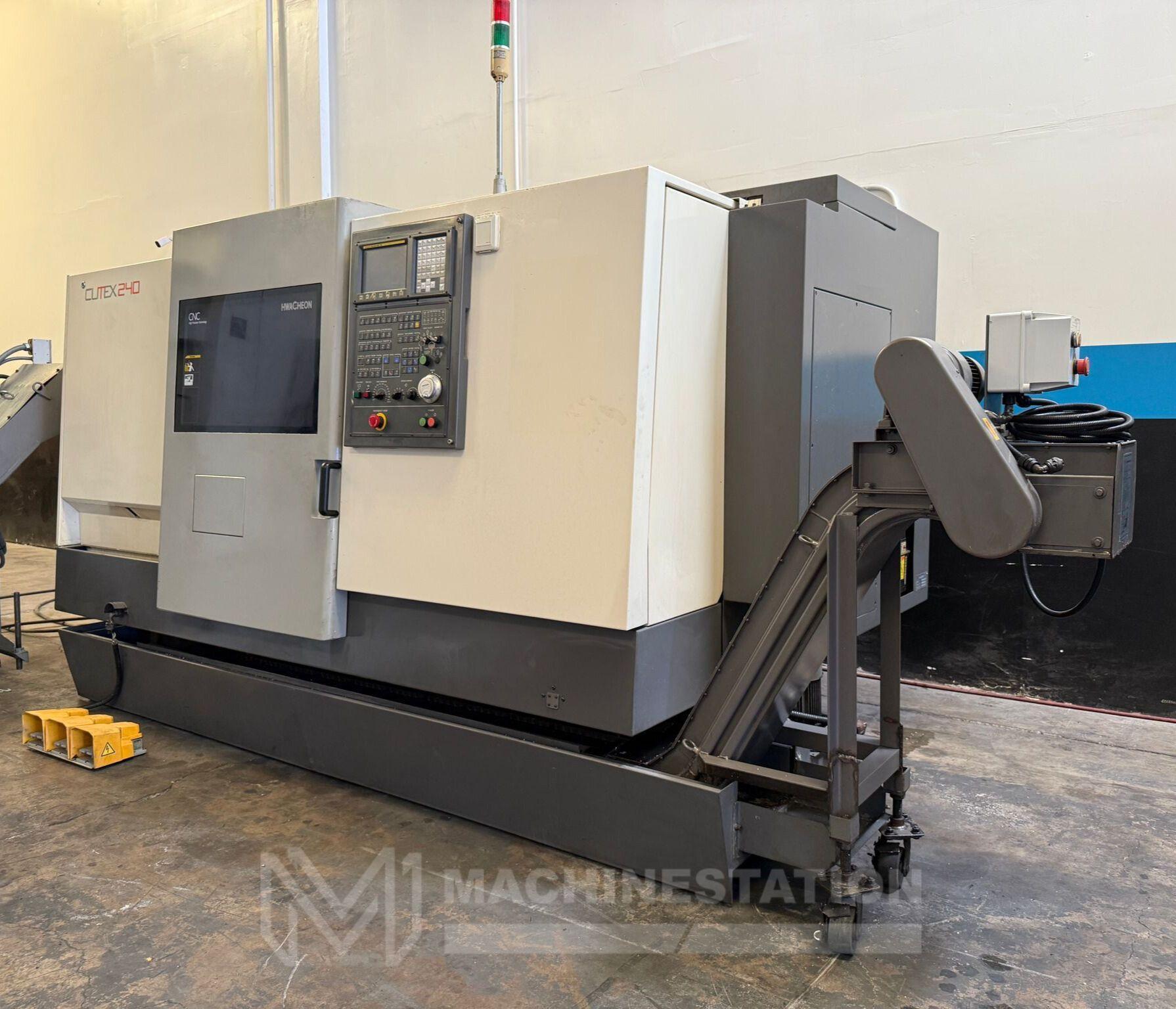

Name: Hwacheon Cutex 240 CNC Turning Center – Lathe
Brand: HWACHEON
SKU: 112794
Availability: InStock

Brand

HWACHEON

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make:	Hwacheon
Model:	Cutex 240

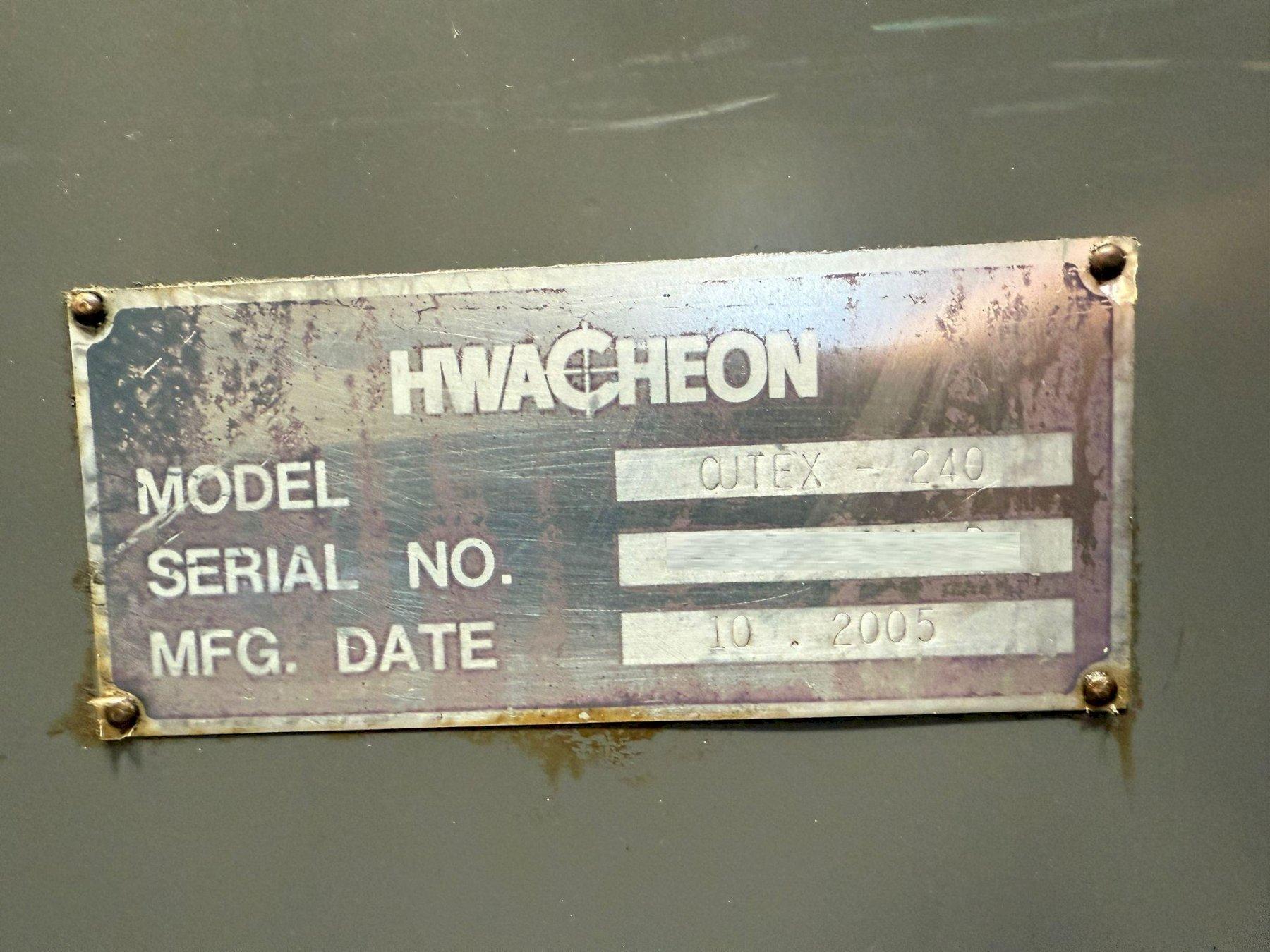

Year:	2005
Condition:	Used-Good

Equipped With:

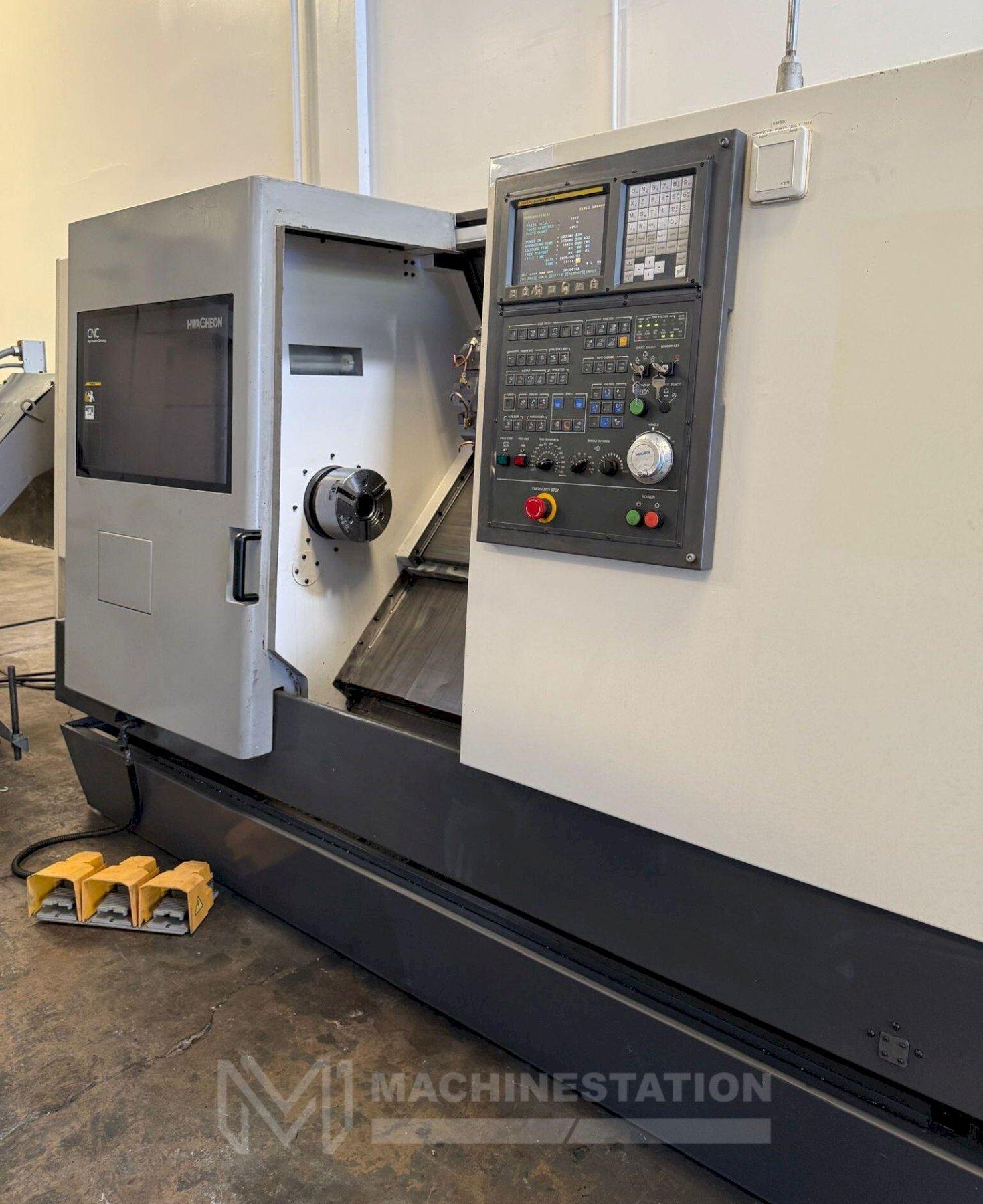

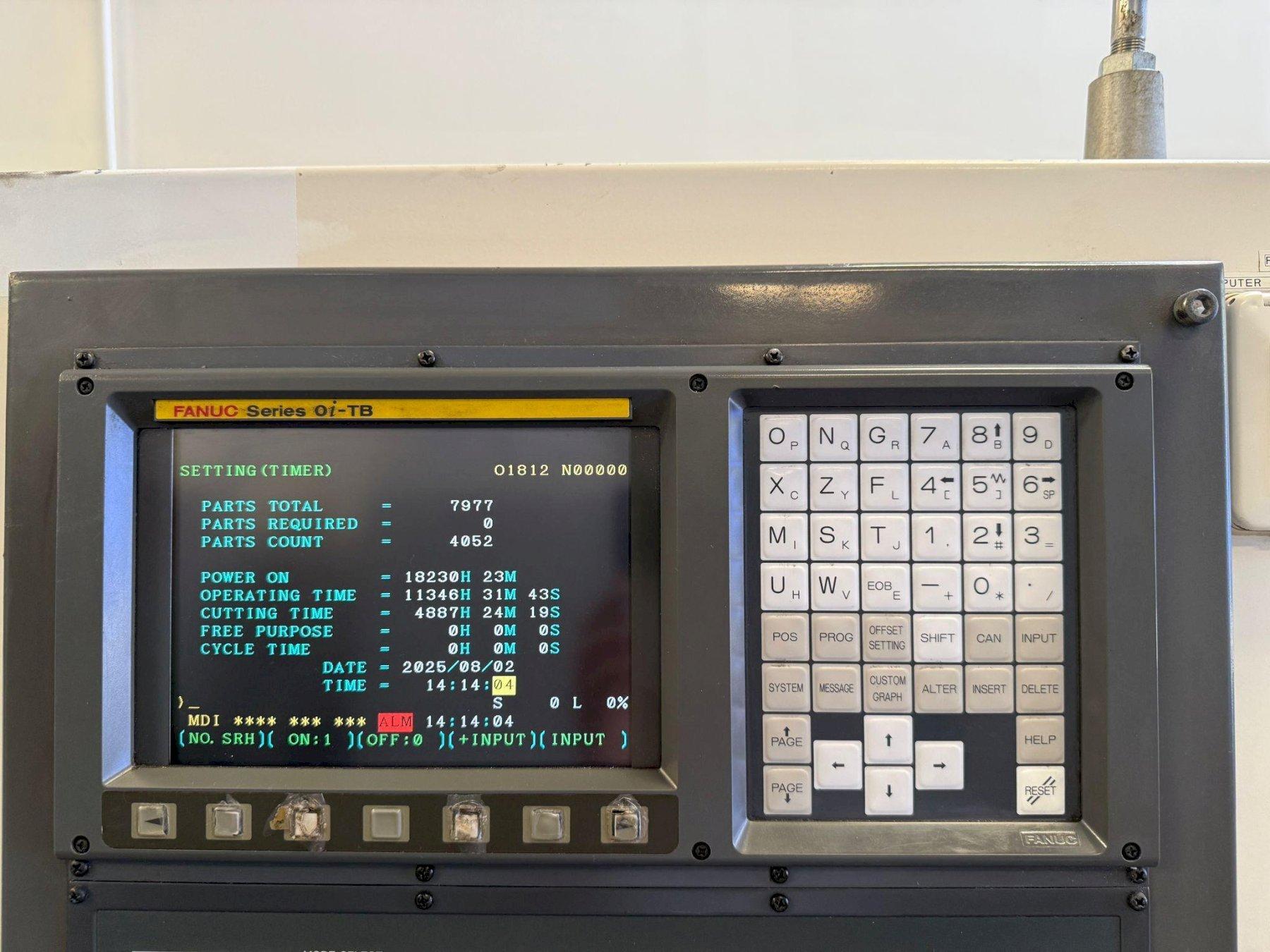

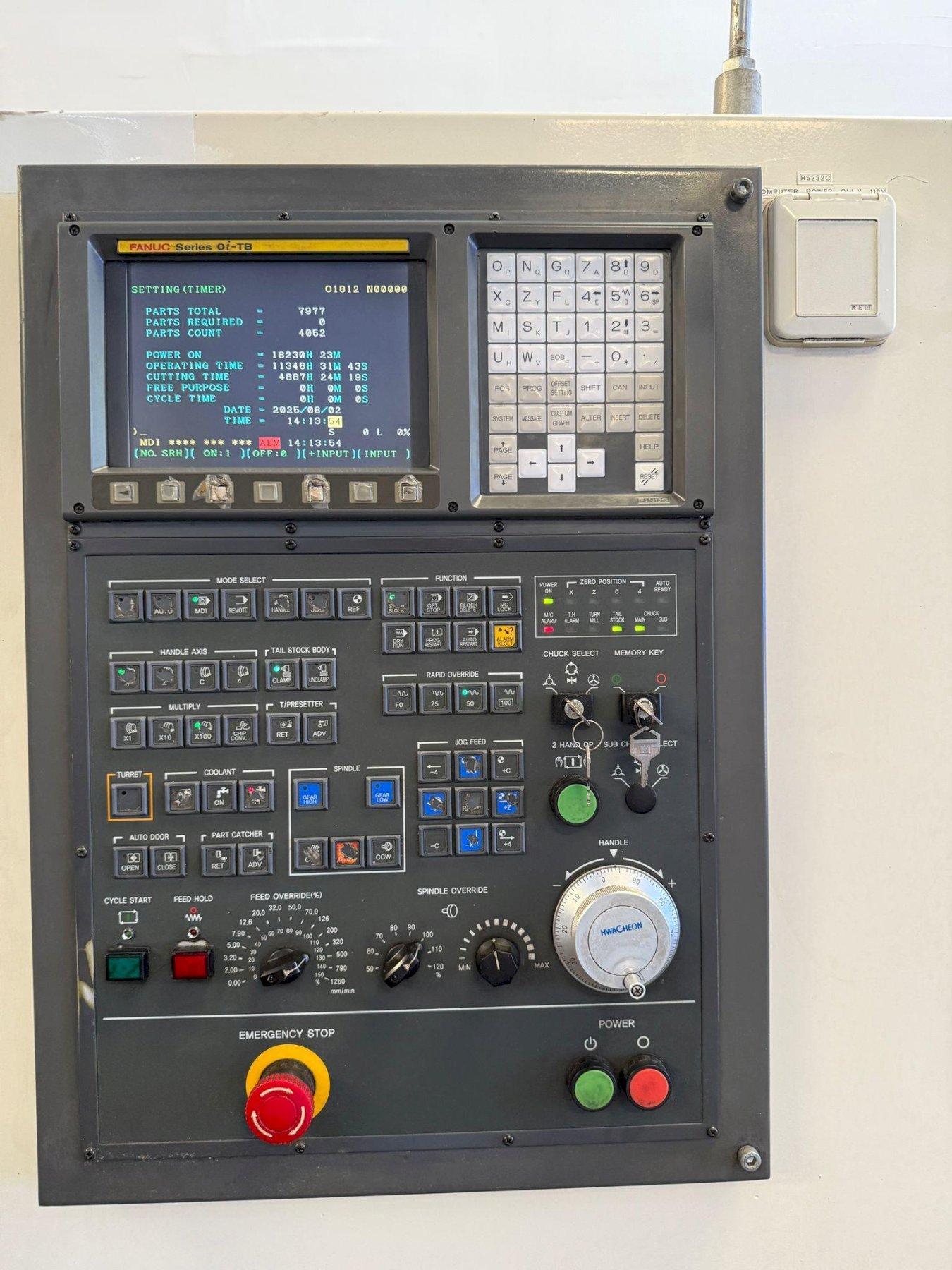

Fanuc Oi-TB CNC Control

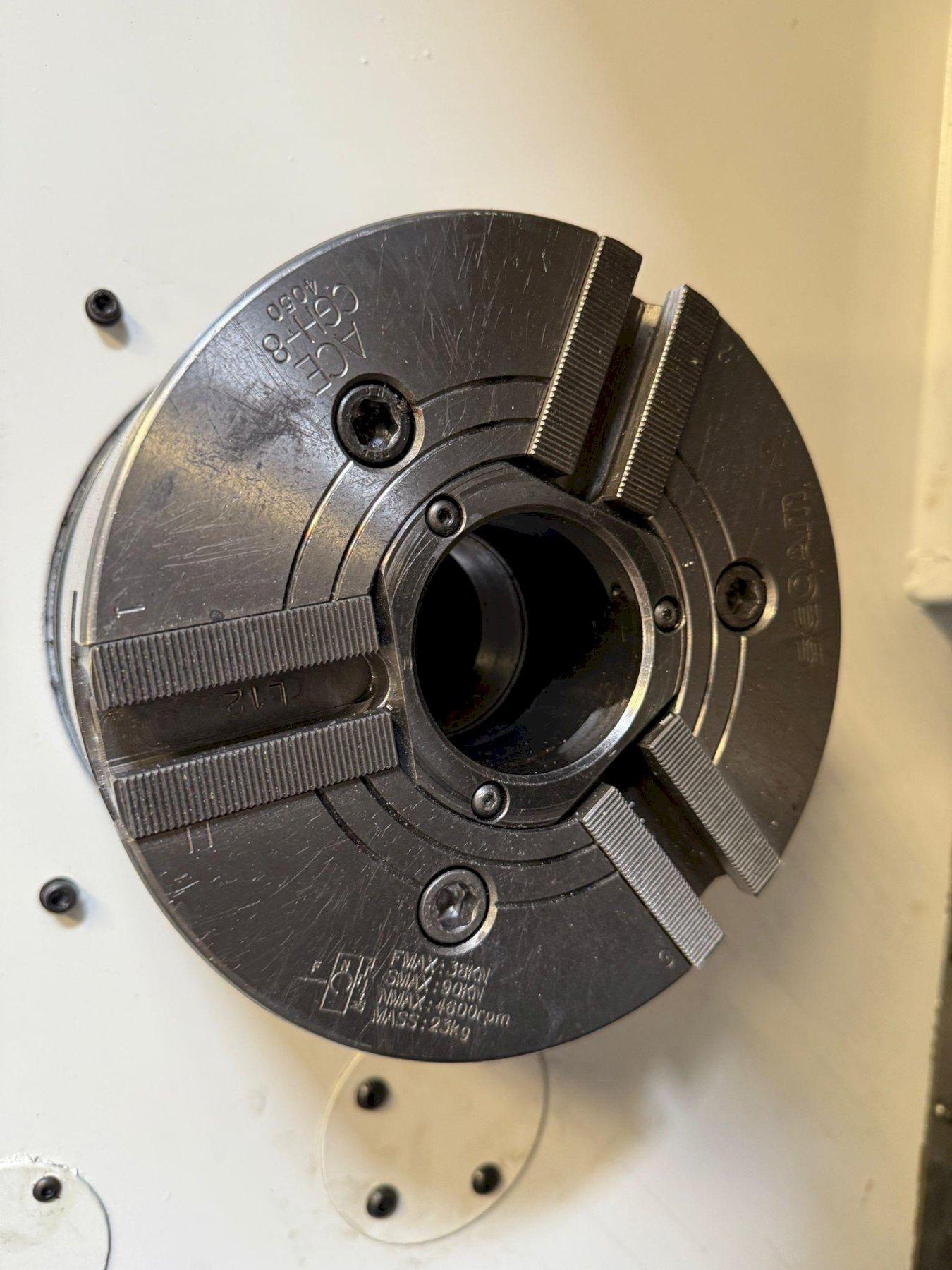

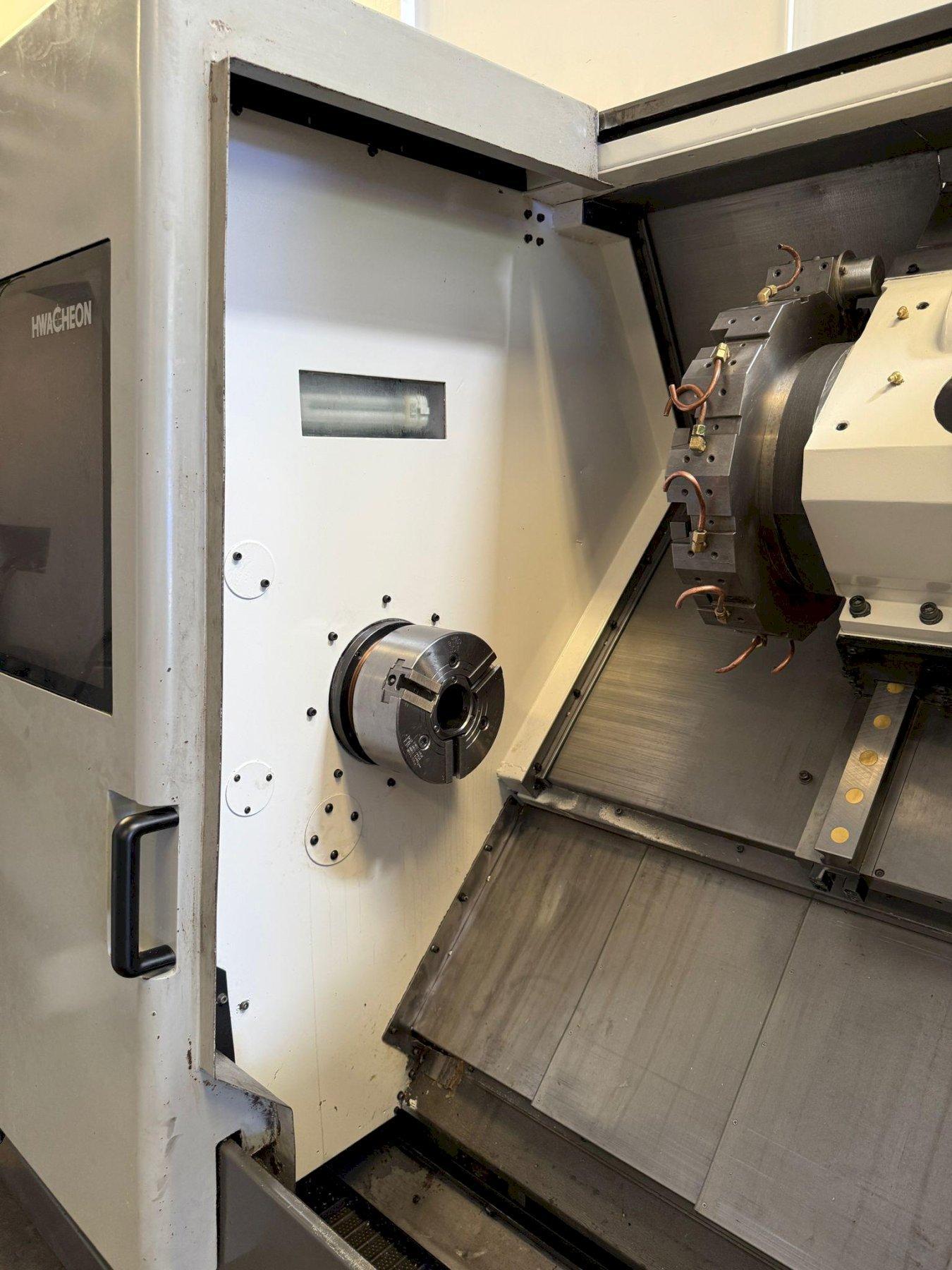

8″ 3-Jaw Hydraulic Chuck (Capable 10″ Chuck )

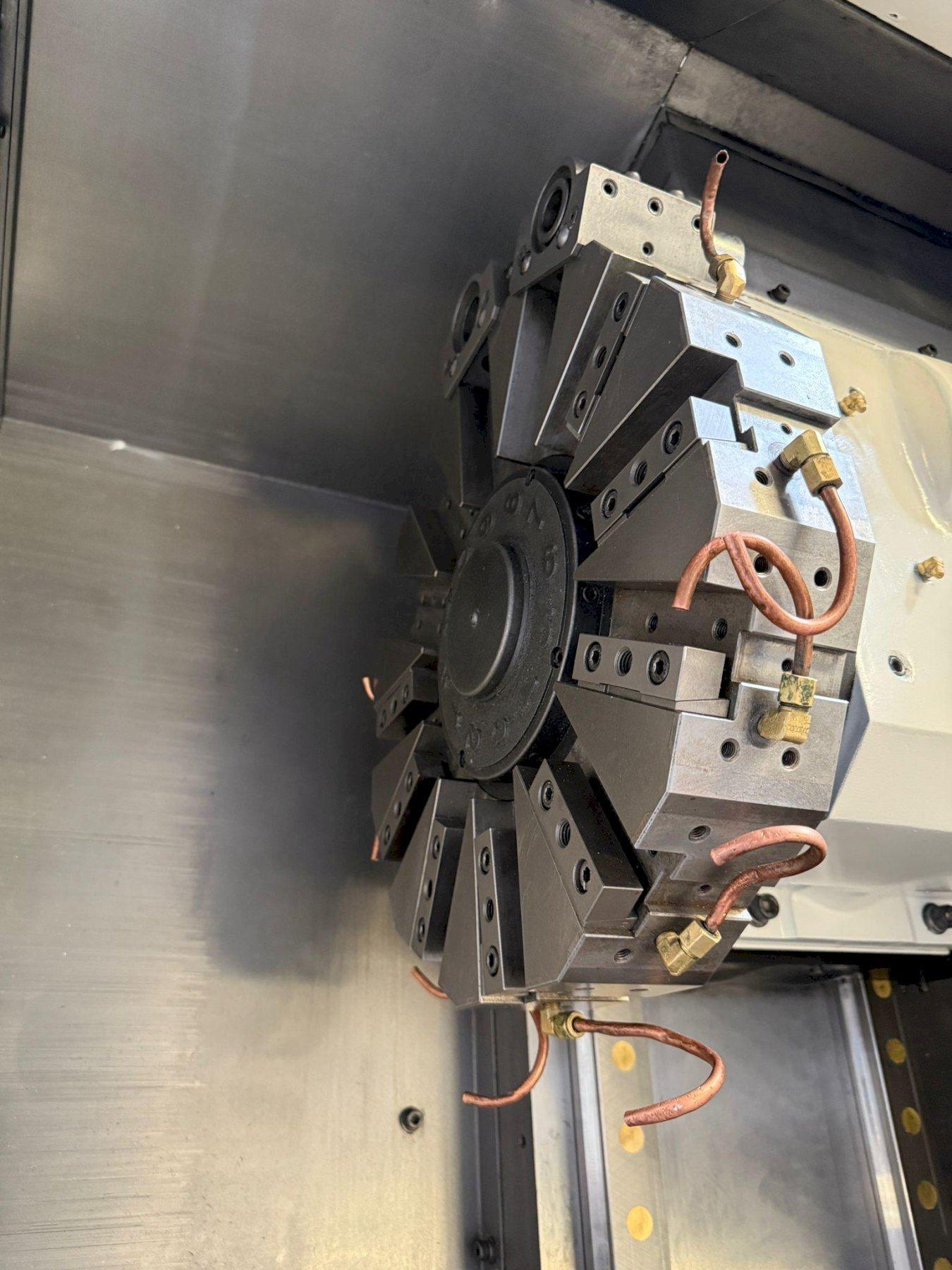

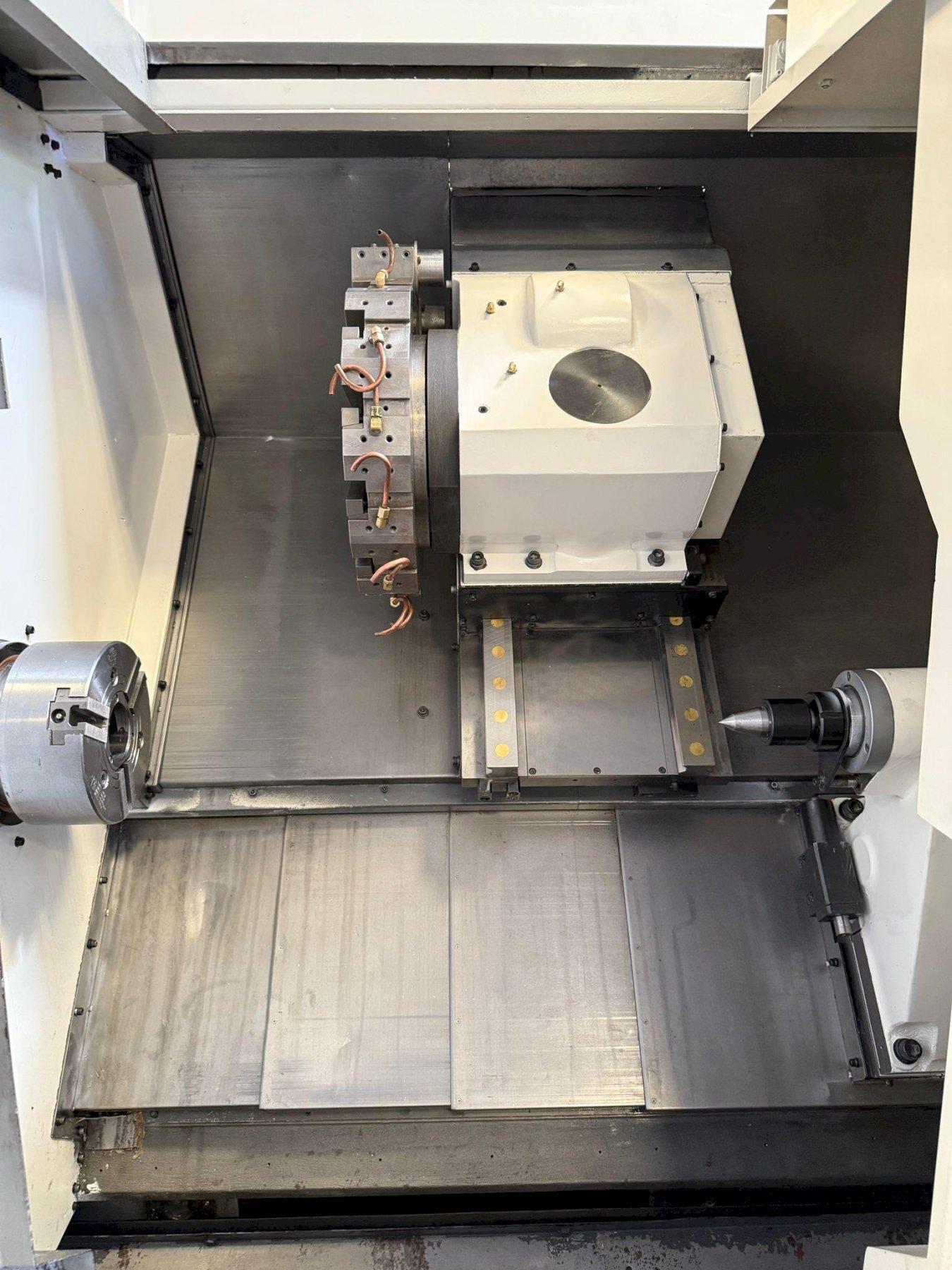

12 Station High Speed Turret

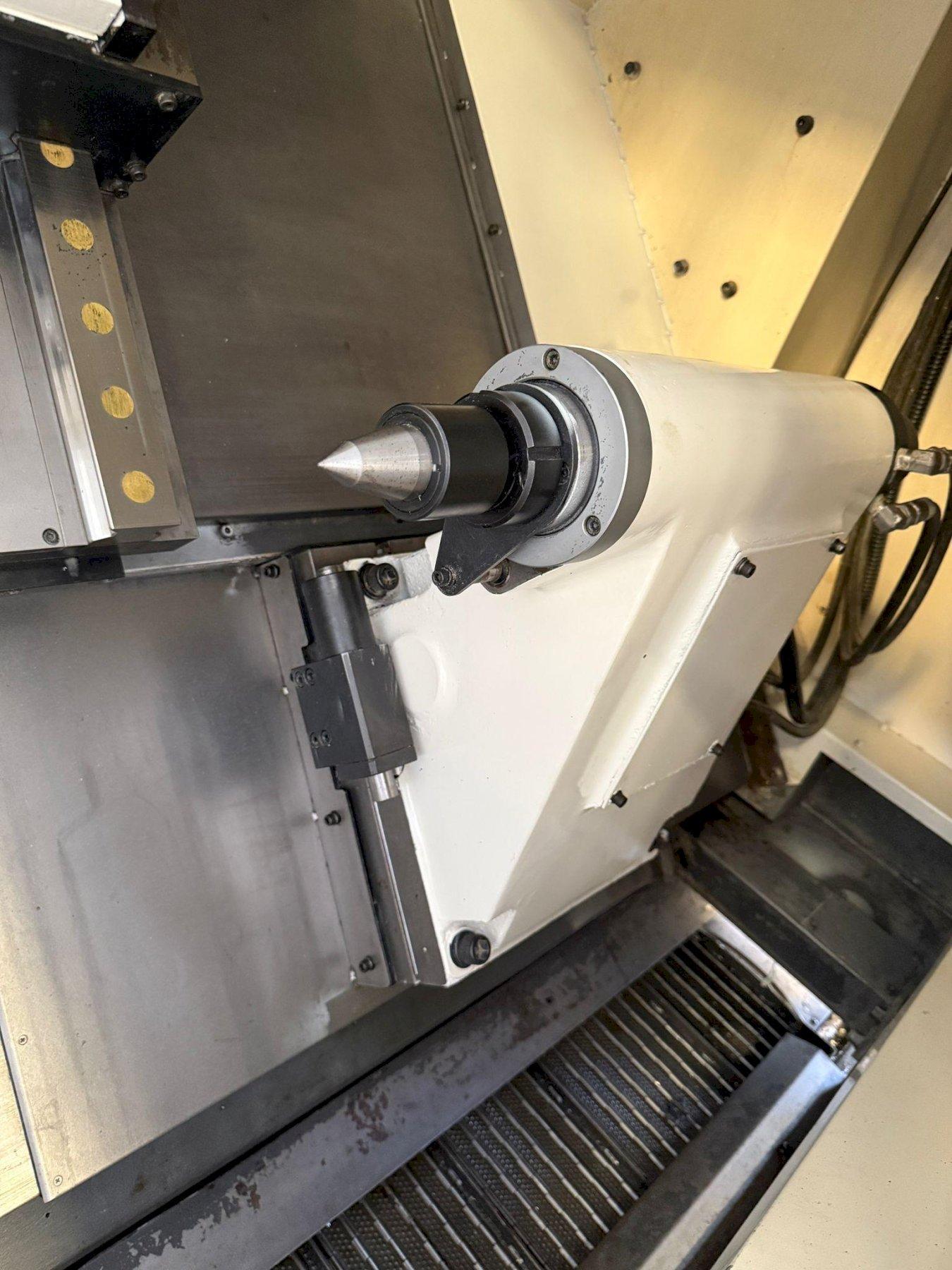

Tailstock and Power Quill
PCMCIA Port
Coolant System

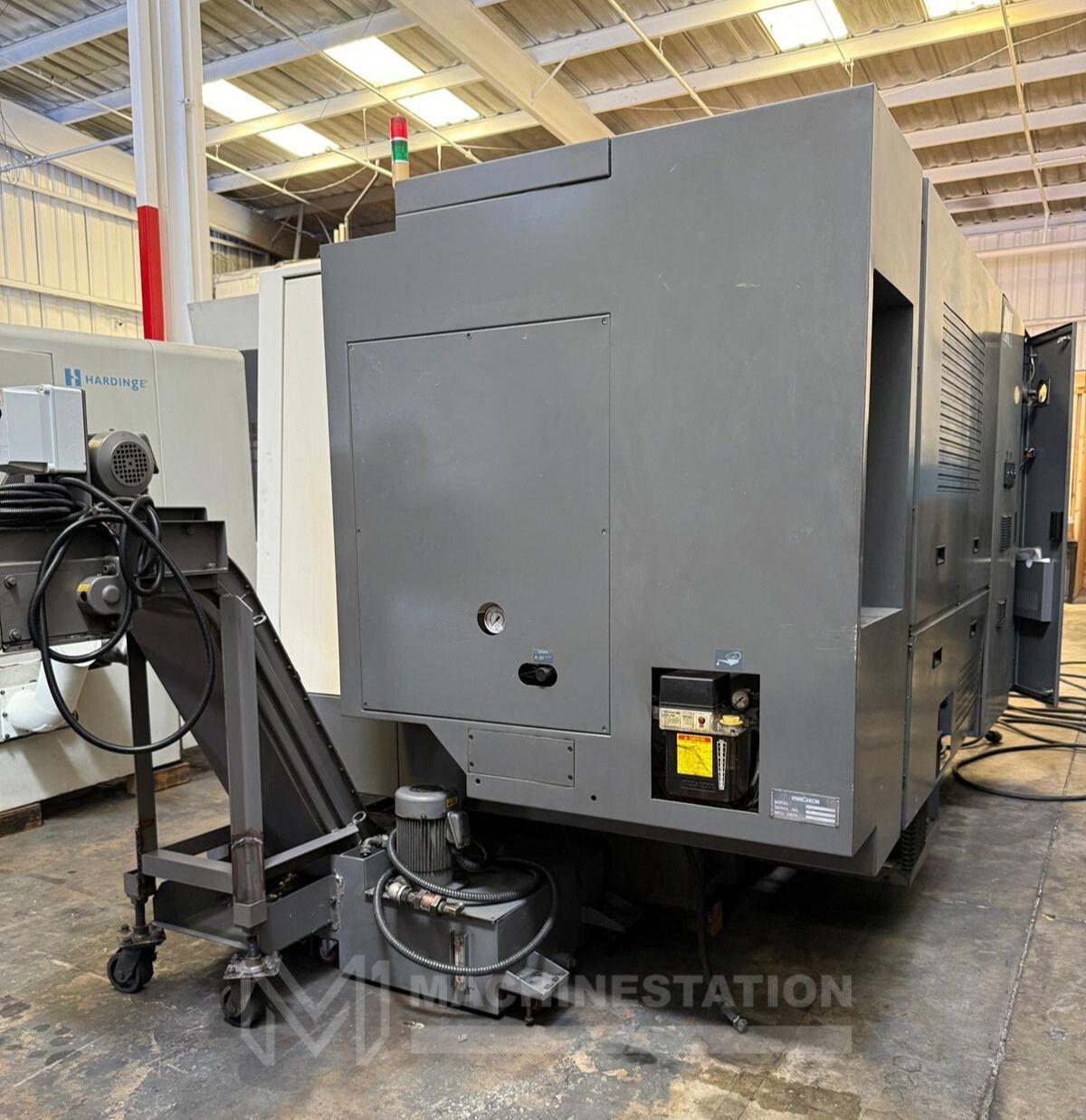

Chip Conveyor
Automatic Lubrication System
Foot Switches
(2) Boring Tool Holders are Mounted on Turret (As shwon in the images)

Capacity:
Max Turning Diameter: 14.96″
Max Turning Length: 26.44″
Max Bar Capacity: 2.56″
Swing Over Bed: 22.84″

Travel:
X Axis Travel: 8.47″
Z Axis Travel: 27.56″
Rapid Traverse X Axis: 1417 IPM
Rapid Traverse Z Axis: 1417 IPM

Spindle:
Spindle Nose: A2-6
Spindle Bore: 2.95″
Spindle Speed: 5000 RPM
Spindle Motor: 25 HP

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.15 Second

Tailstock:
Tailstock Taper: MT- 4
Tailstock Quill Dia.: 3.15″
Tailstock Quill Stroke: 4.12″

General:
Power: 35 kva, 220v / 3-Phase /60Hz
Overall Dimensions: 127.2″ X 71.5″ X 75.39″ High
Weight: 9,260 lbs Approx.

No files or videos to display
