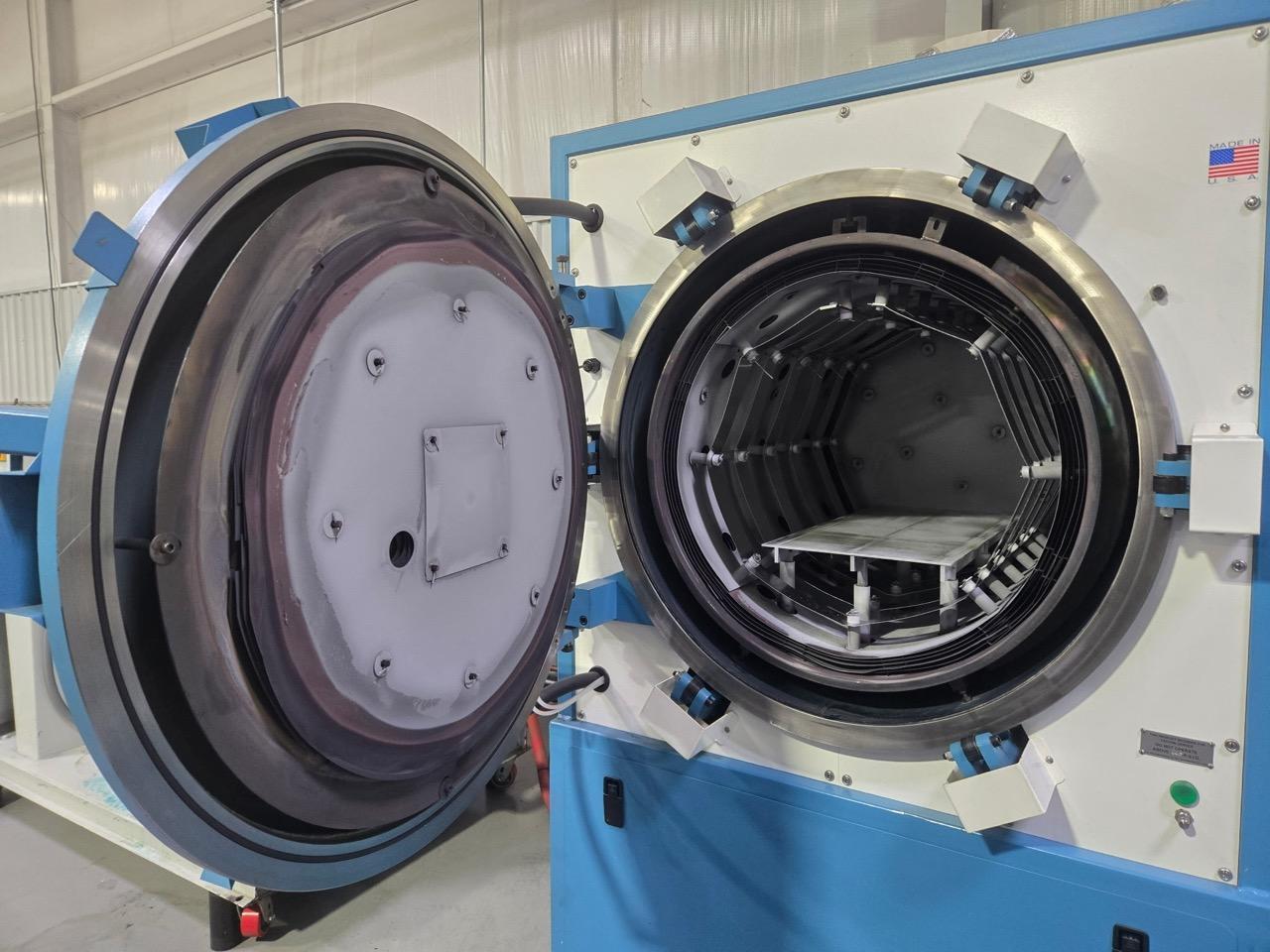

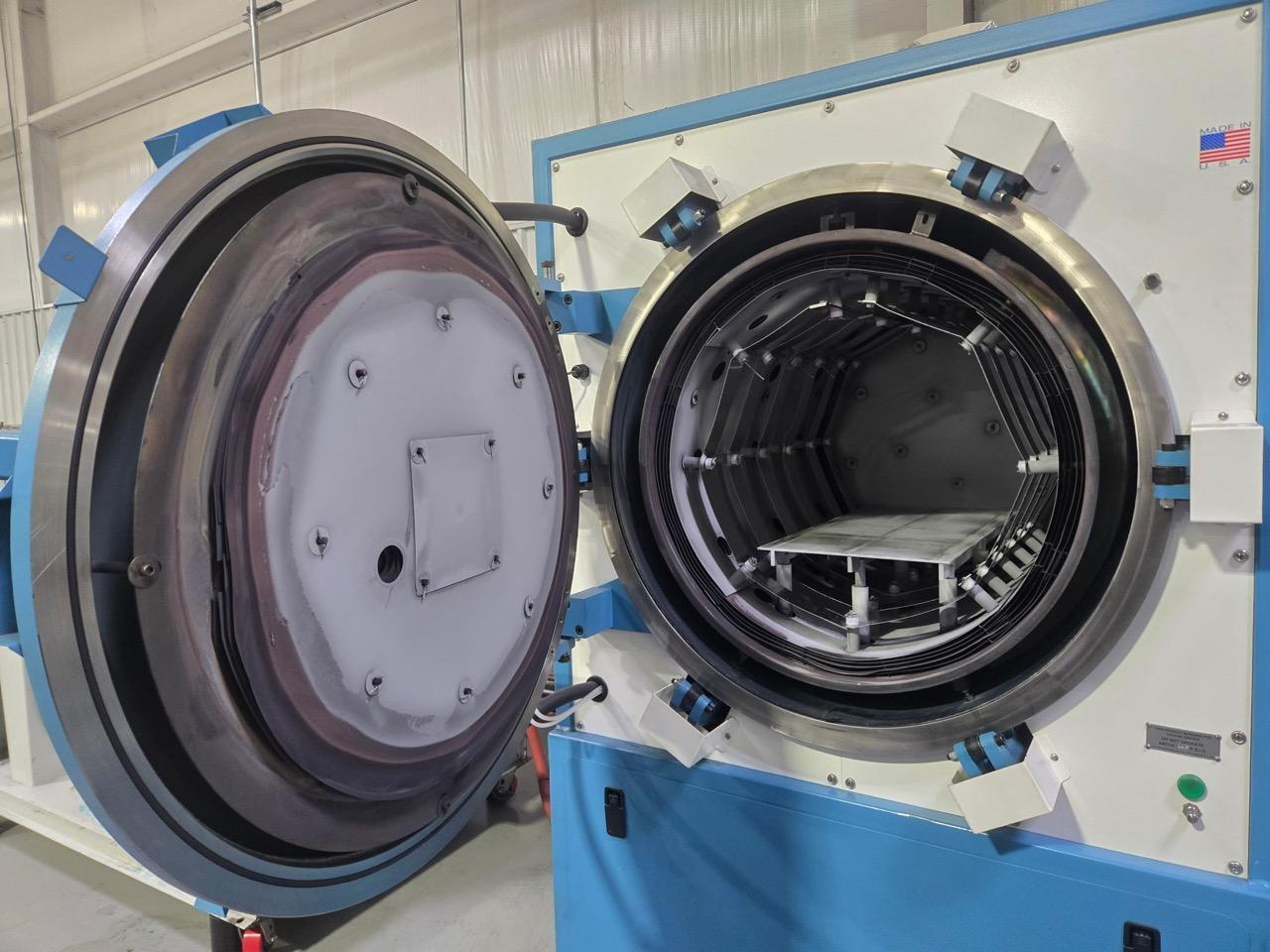

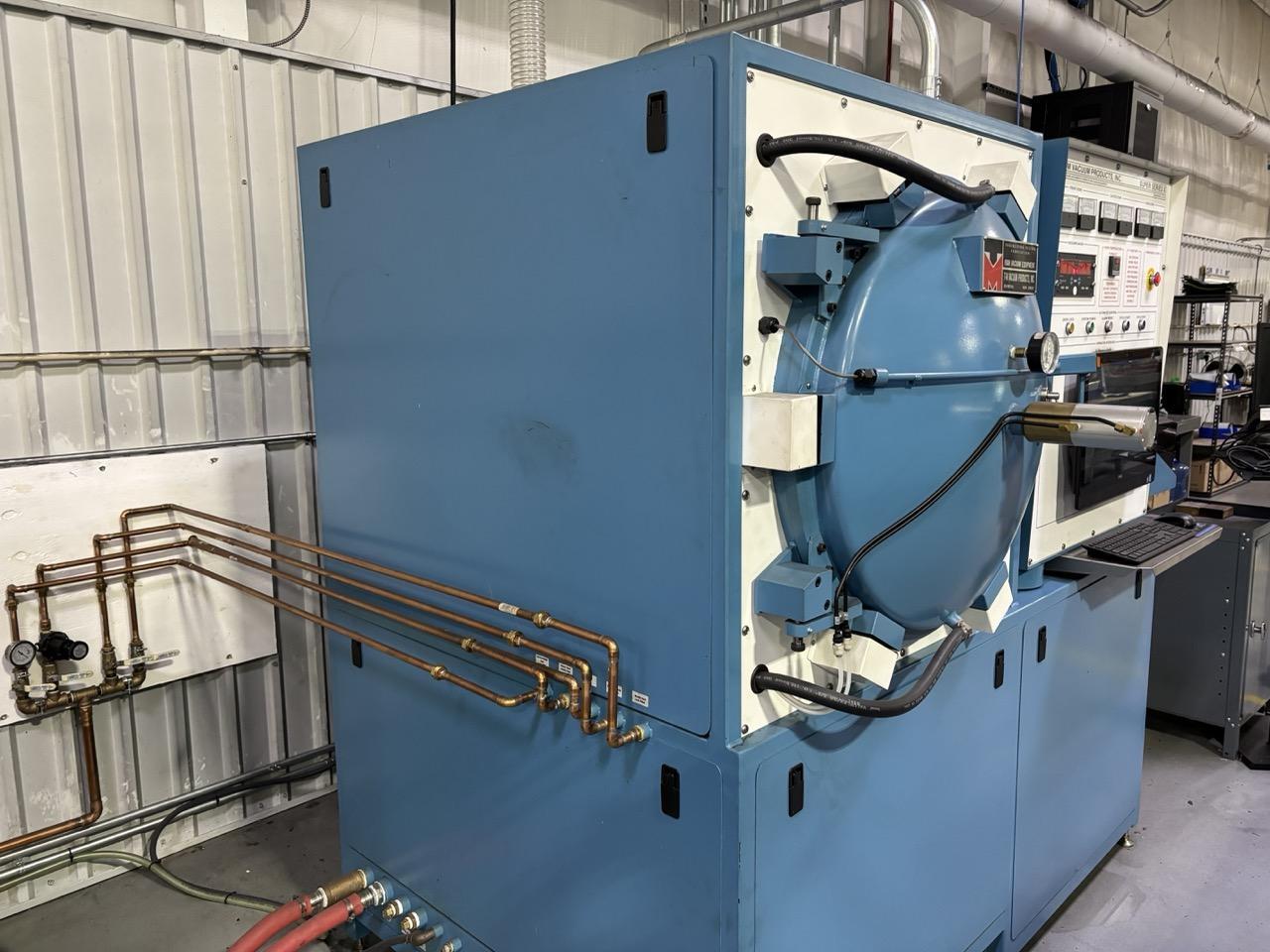

2400° F T‑M Vacuum SS12/24‑13MCX Super Series Vacuum Furnace – 2 cu ft Precision All‑Stainless Chamber

2400° F

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Work Zone Size: 12″ wide × 12″ high × 24″ deep

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Load Capacity: Up to 200 lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Temperature Control:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,±1 °C controllability

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,±3 °C or better uniformity

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,3-zone PID-controlled system

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Vacuum Performance:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,0.1 Torr in approx. 7 minutes

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,10⁻⁵ Torr in approx. 15 minutes

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,250 mm diffusion pump (3,000 l/s)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Mechanical roughing pump (46 cfm)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Hold pump (6 cfm)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Cooling System:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,10 HP blower delivering 4,200 cfm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,18-directional vent system

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Fully integrated inert gas quick-cool system

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Chamber Construction:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,All stainless steel, double-wall, water-jacketed

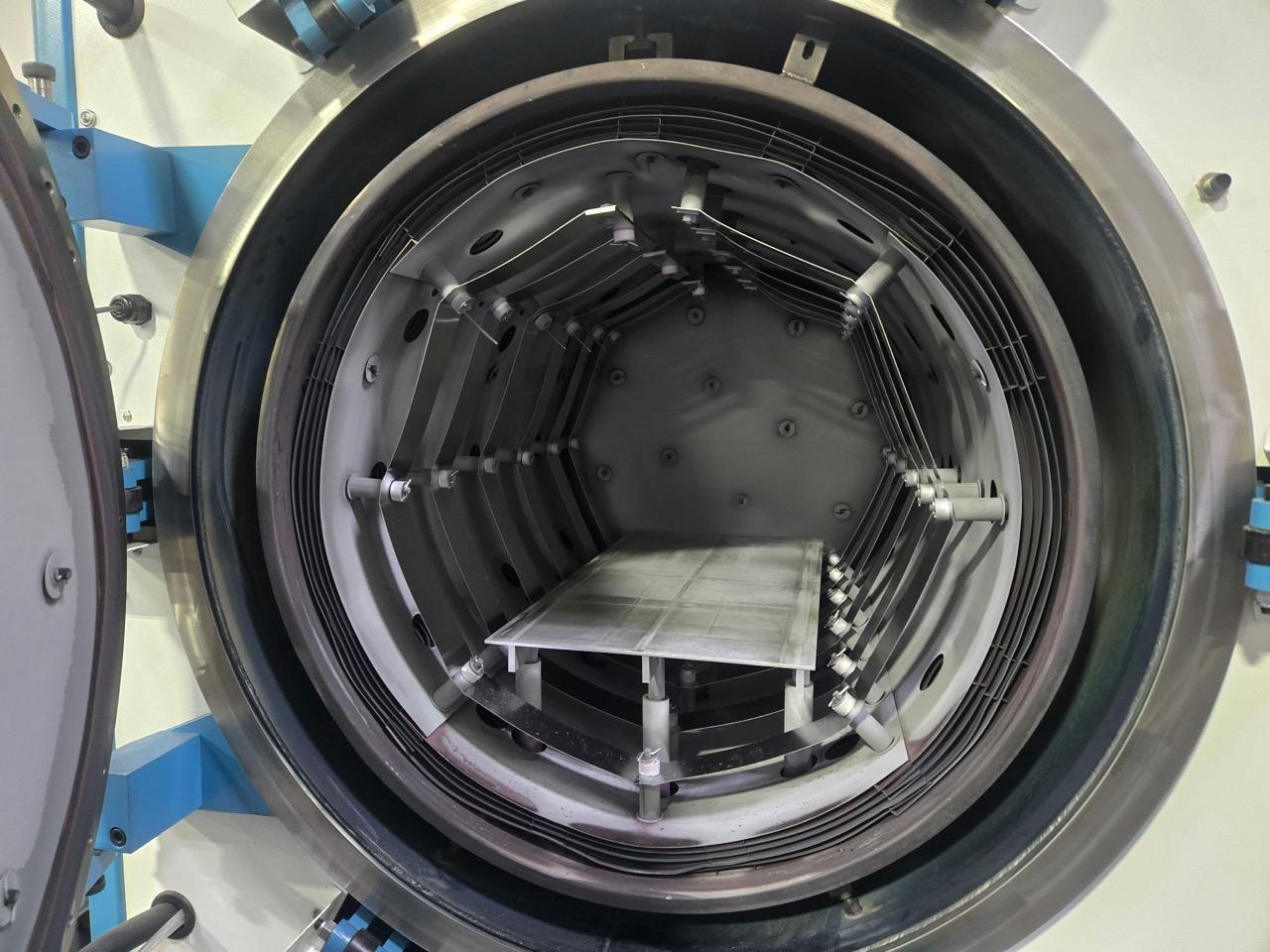

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Removable hot zone

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Heat Pack thermal shielding

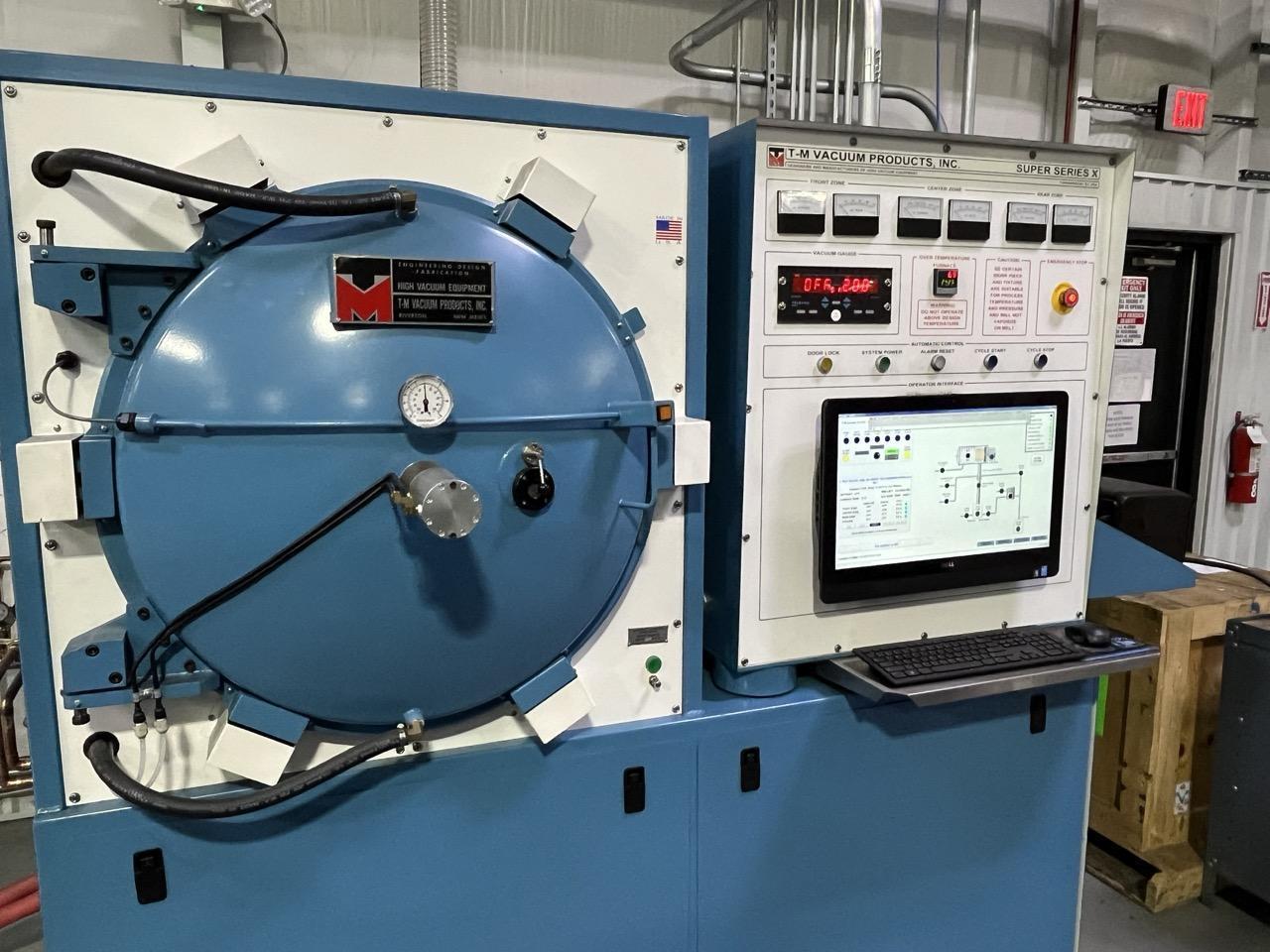

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Control System:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,PC-based full automation

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Recipe storage and HMI interface (23″ touchscreen)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Data logging and Ethernet communication

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,UPS power backup

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Pressure Range: High vacuum to 2 bar standard, up to 6 bar optional

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
