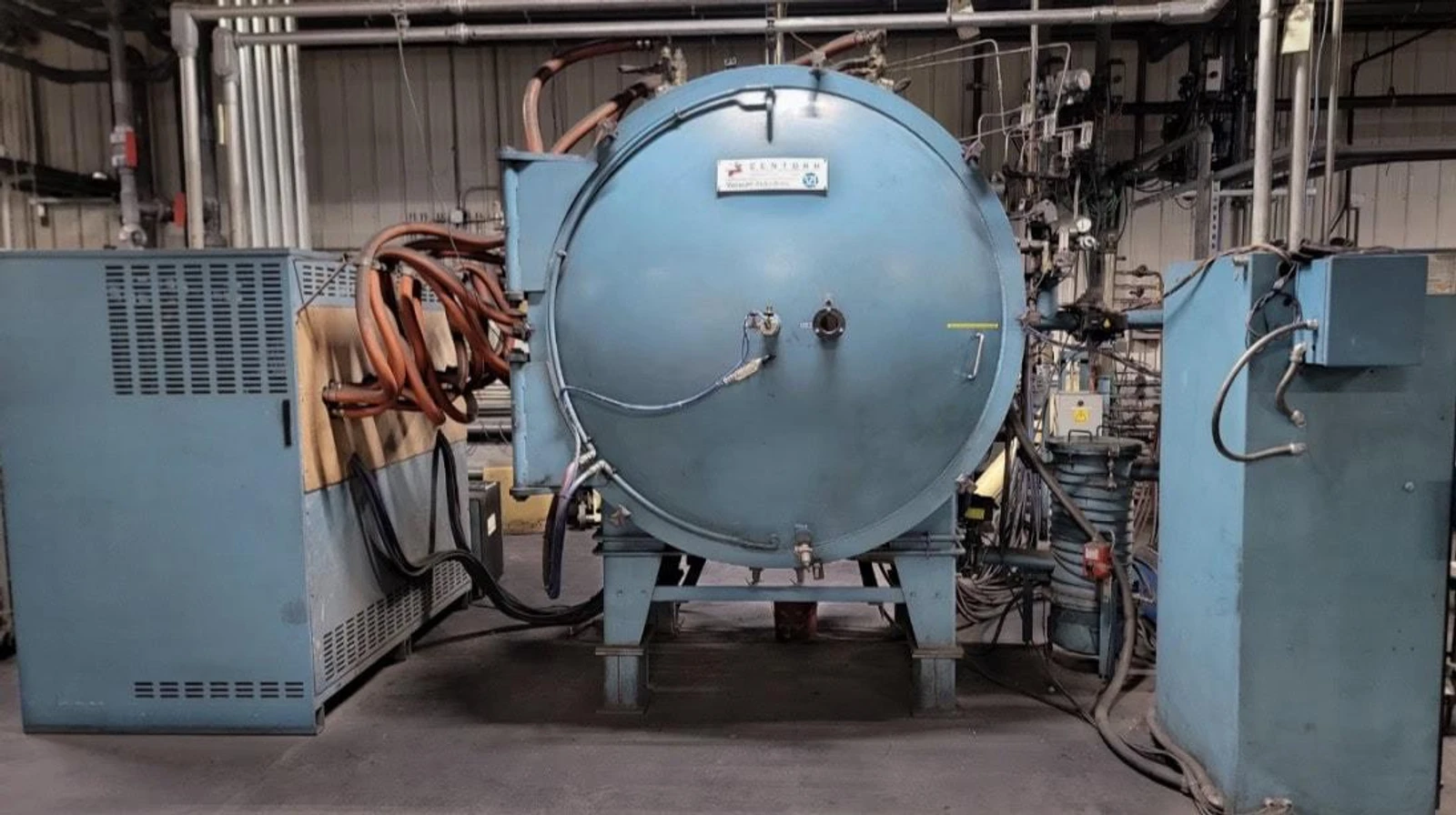

Centorr Vacuum Industries Workhorse Model 3530 Vacuum Furnace

Model: 3530 Job#: 35044 / 35141 Max Temp: 2530C Insulation Material: Graphite Board (4” total thickness) Element Material: Graphite Element Arrangement: 2 sided heating, 3 elements per side 6 total Zone Interior Dimensions: 28.5” x 25” x 50” (W x H x L) Effective Hot Zone: 24” x 24” x 48” (W x H x L) Pump: Kinney KT-170-LP Power Supply: 480V 800kVa 3 phase Electrical Req.: 1000a 480VAC 3 phase w/ digital breaker Controller: Honeywell DCP-552 Pyrometer: Ircon Modline 5 (Fluke) FEATURES: Large binder trap 4 channel process gas control Automatic pressure regulation Hot Zone cooling blower Full Stainless steel shell Data Logger: Yokogawa 6 Channel FX-1000

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
