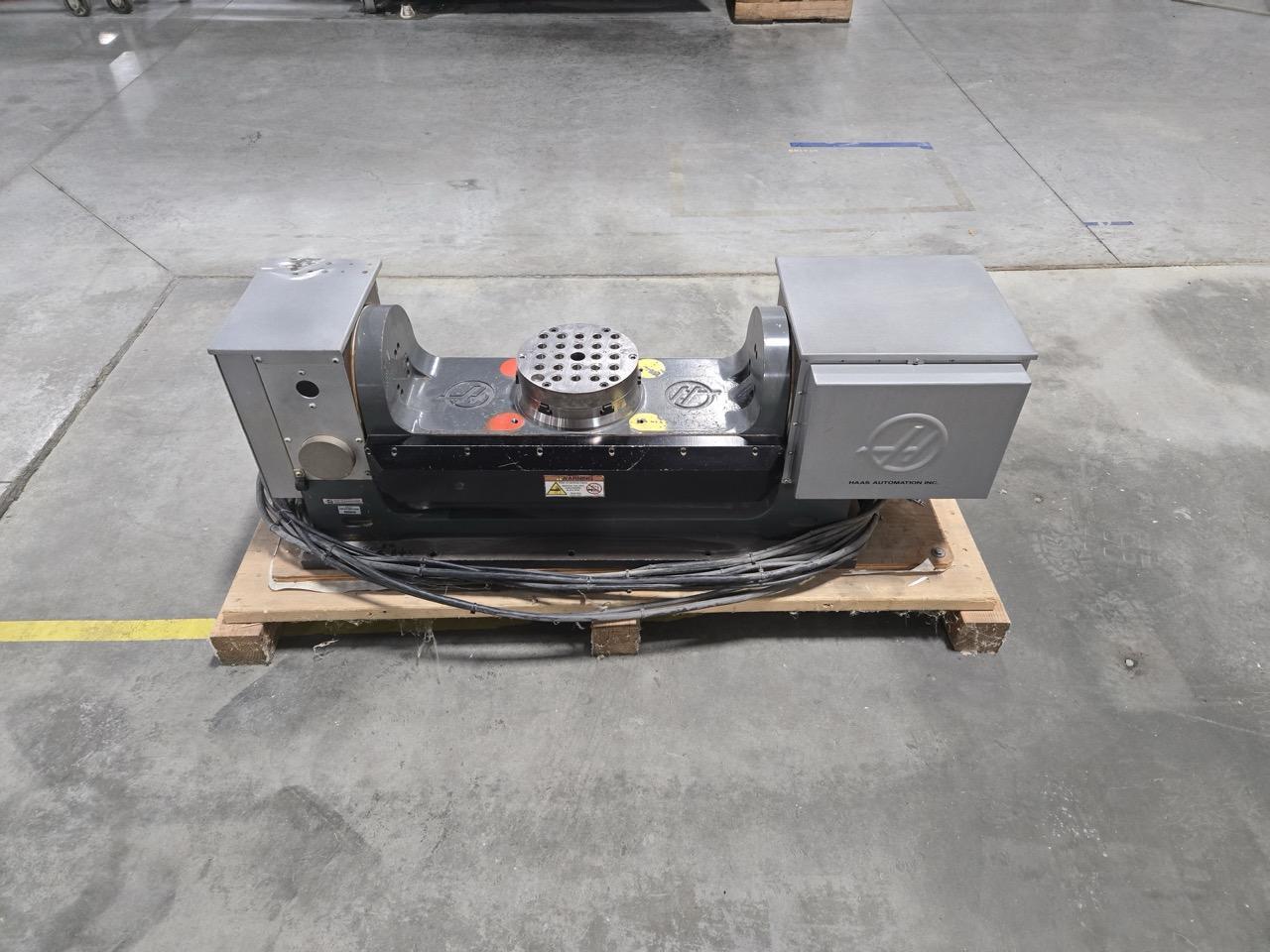

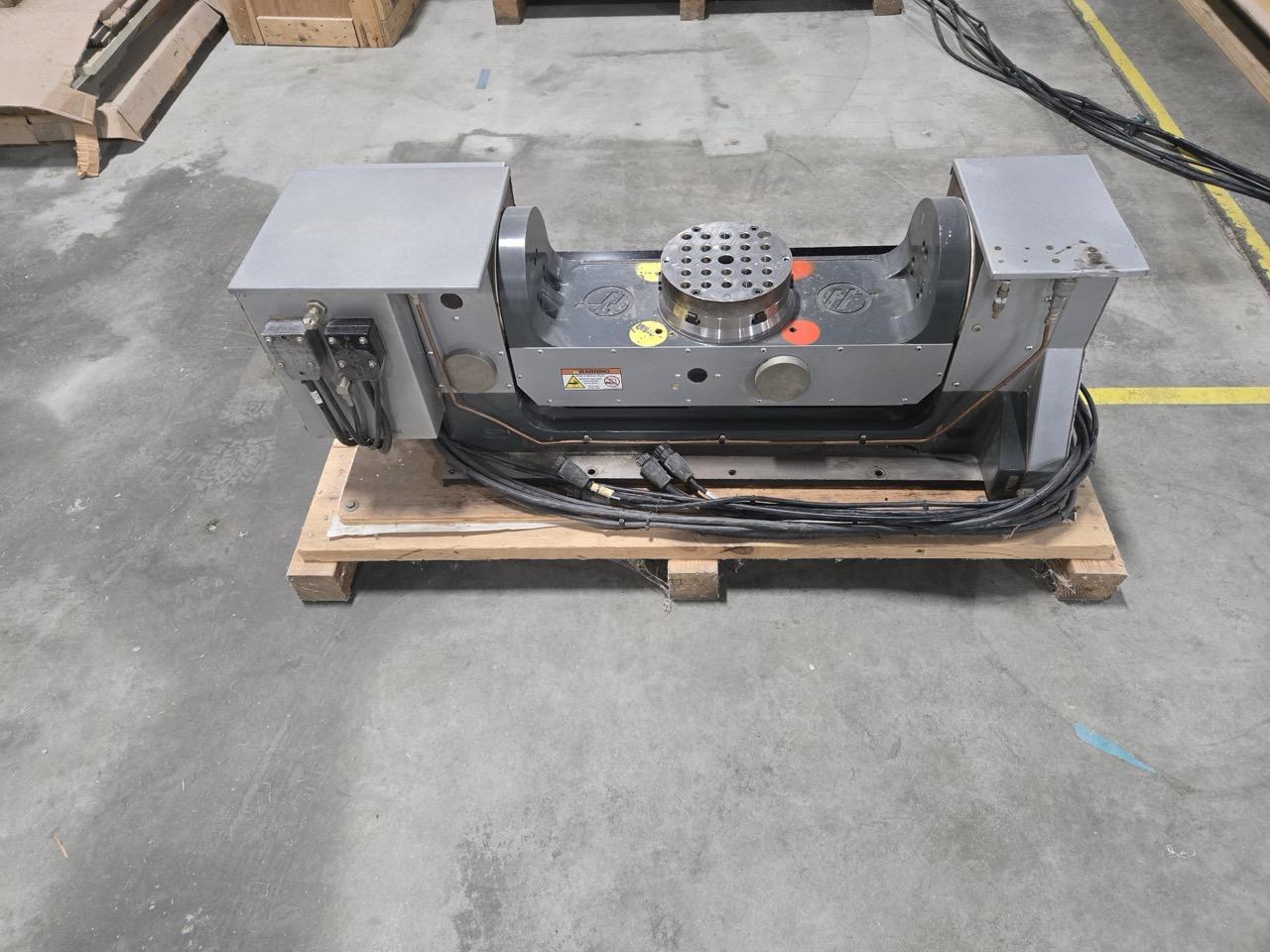

Haas TR210 Dual-Axis Trunnion Rotary Table, 2010
Brand
Category
Type
Model
TR210
Stock #
390392
Year
2010
Condition
Not specified
Location
Michigan
|
Platter Diameter: 8.3″
A-Axis Tilt Range: ±120°
C-Axis Rotation: 360° Continuous
A-Axis Max Speed: 50°/sec
C-Axis Max Speed: 100°/sec
A-Axis Max Torque: 210ft-lb
C-Axis Max Torque: 210ft-lb
A-Axis Brake Torque: 200ft-lb
C-Axis Brake Torque: 200ft-lb
Resolution: 0.001°
Weight Capacity (horizontal orientation): 150lbs
Unit Weight: 435 lbs
Mounting Style: T-slot
Coolant Compatible: Yes (fully enclosed)
Power Requirement: Driven by Haas mill’s 4th/5th-axis drives
All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
