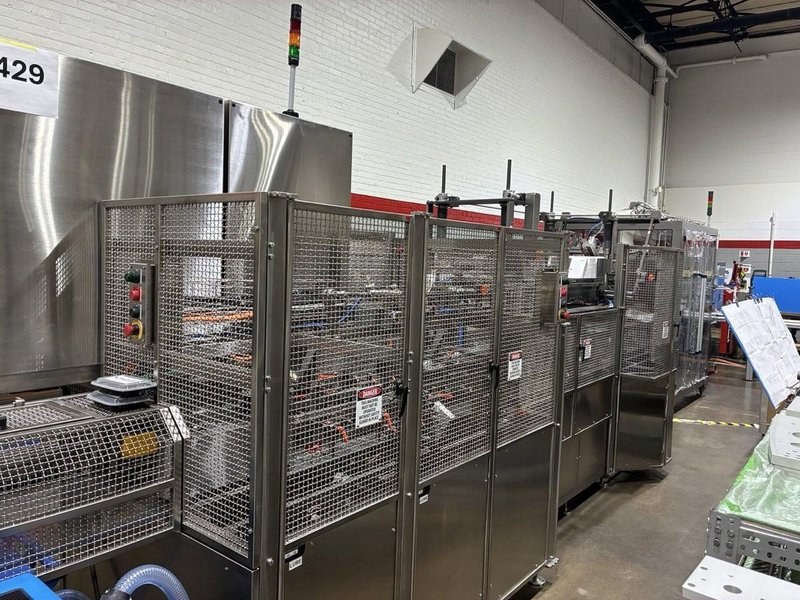

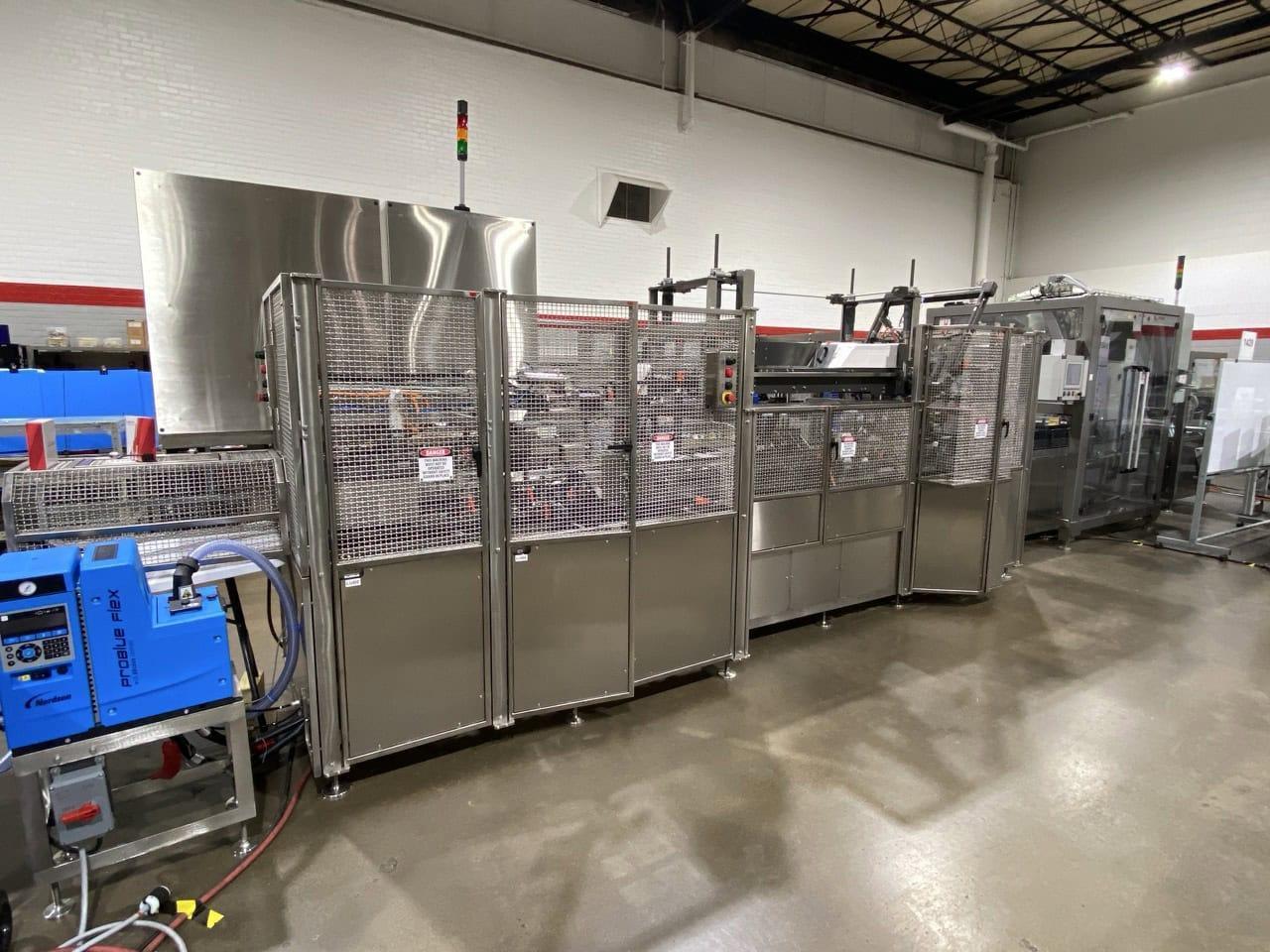

PMI Kyoto HS1-12 Horizontal Cartoner/Sleever – Washdown for Frozen Food Applications, 2024

PMI Kyoto HS1-12 Horizontal Cartoner/Sleever – Washdown for Frozen Food Applications, 2024:

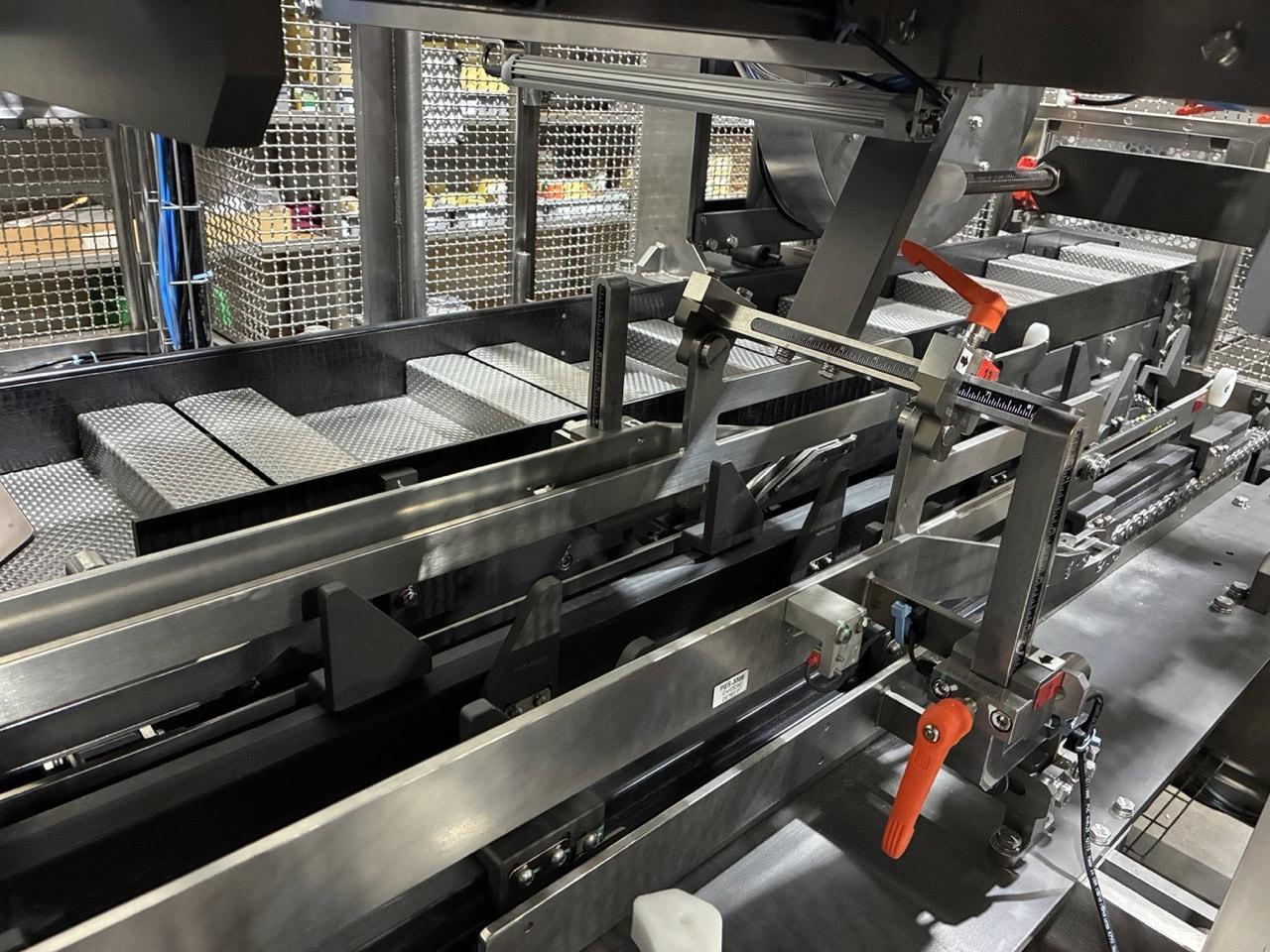

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Stainless steel cartoner – 12″ pitch. Existing infeed trays are 6.5″ wide, carton size is currently 8″x 6.5″ x 1.75″.

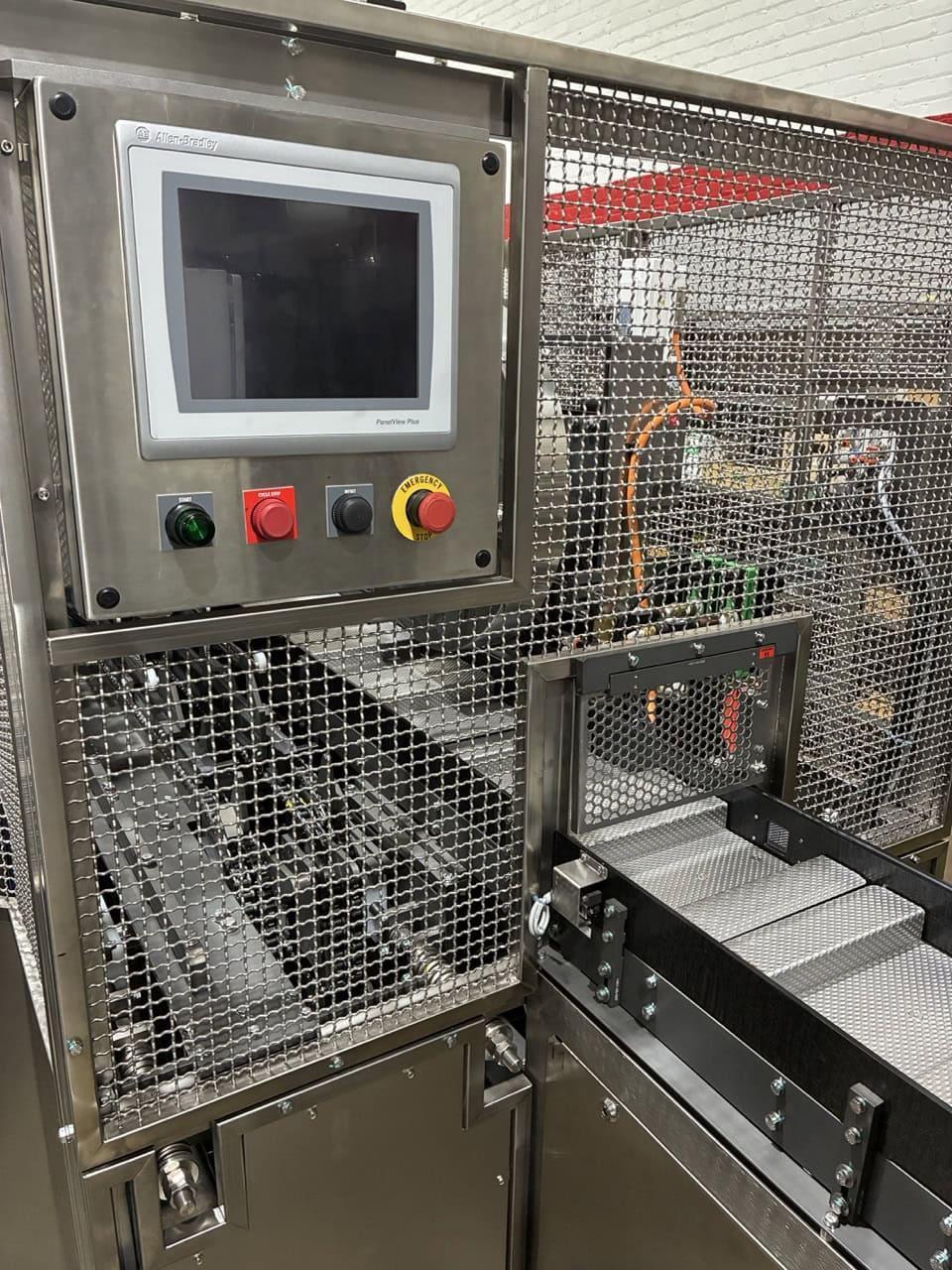

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– High-speed, all-servo driven – Ideal for cartoning frozen food, stick packs, ice cream novelties, bag-in-box, etc – Able to run cartons or sleeves – Allen-Bradley system control platform and HMI

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Speed range: up to 225 cartons/min – Power: 480V / 60A / 3 Ph – Air: 60 PSI @ 5 CFM – Carton size minimum: 1.5″ L x 1″ W x 1.5″ H – Carton size maximum: 5″ L x 4″ W x 12″ H

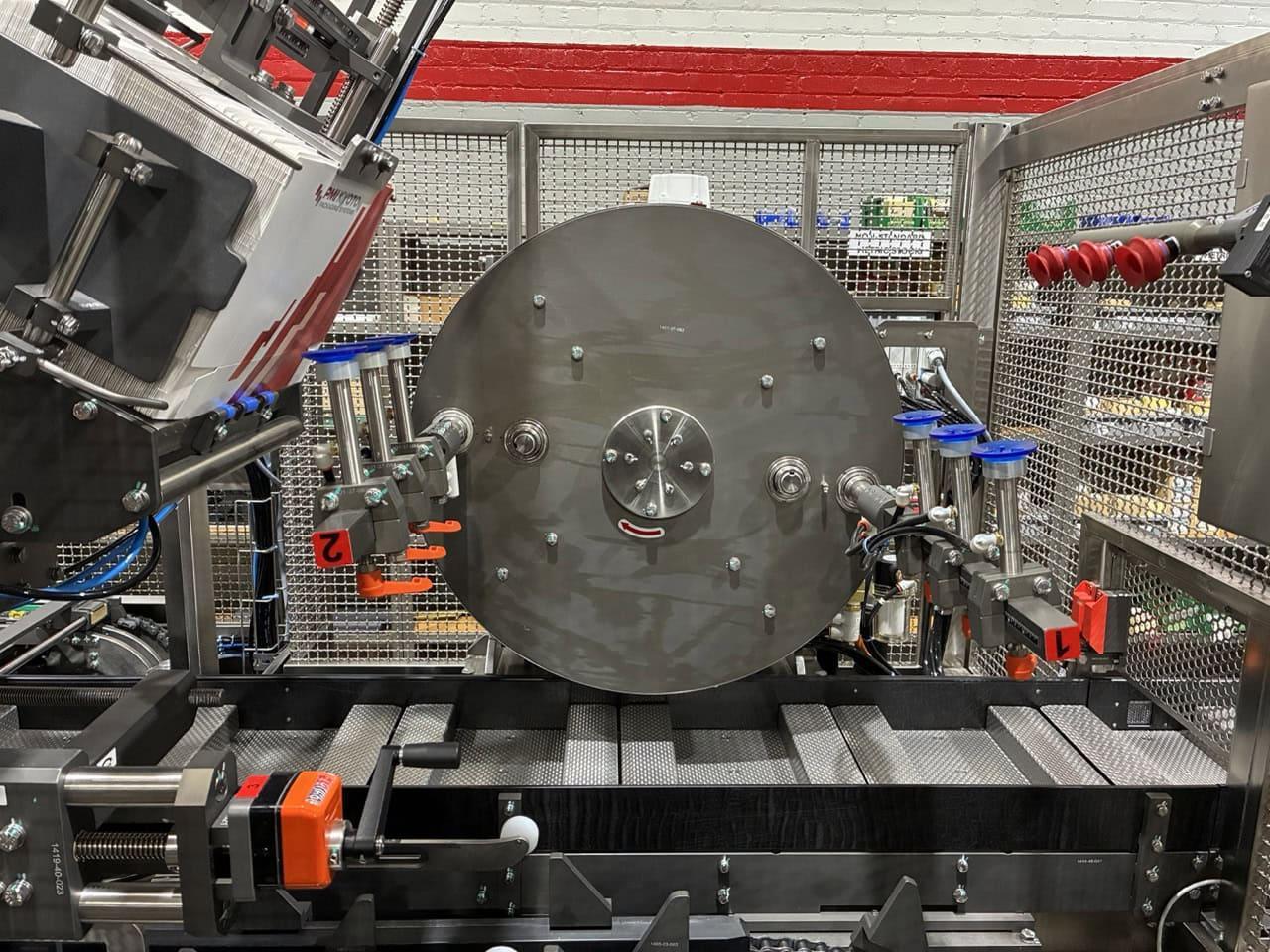

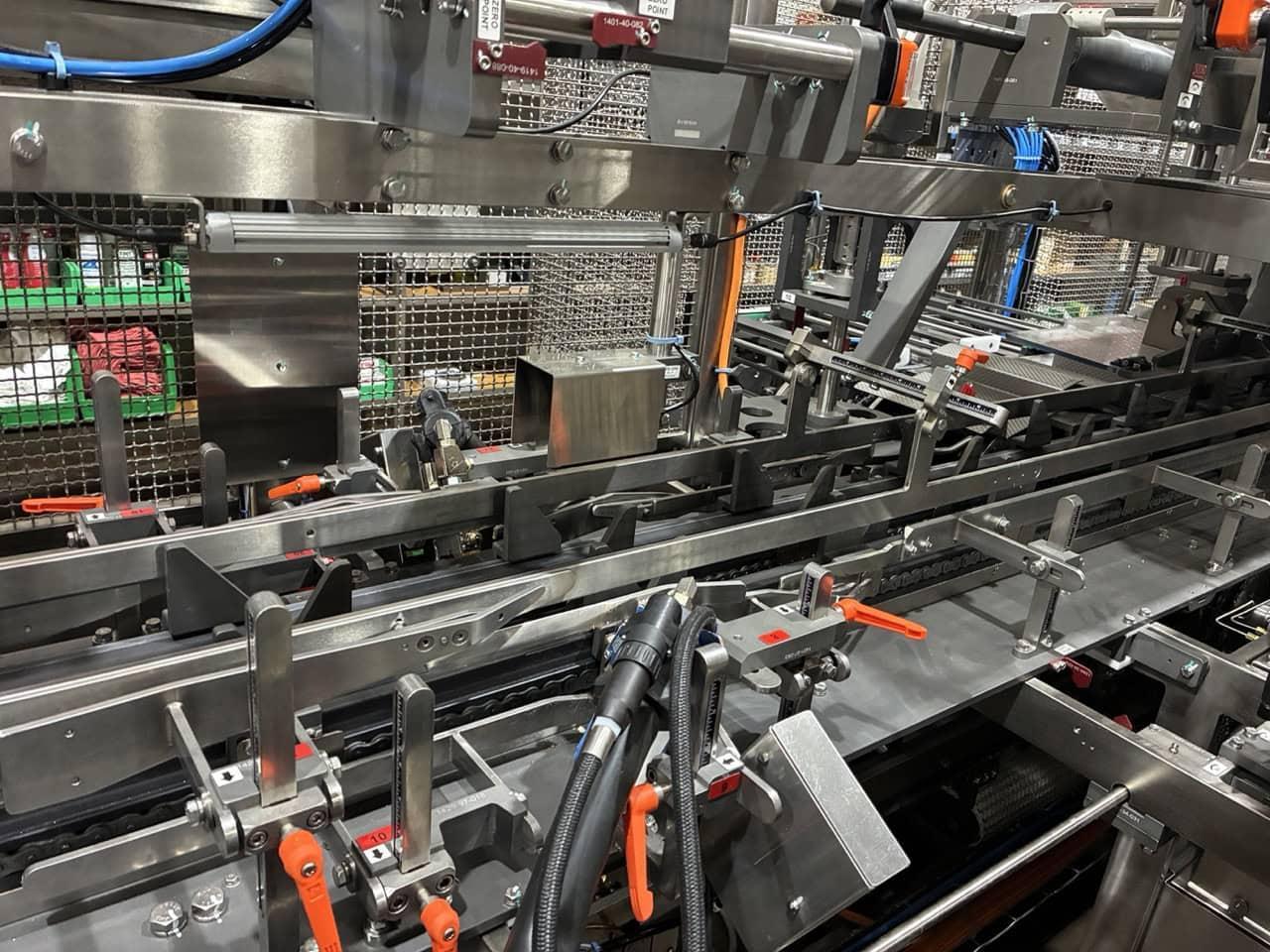

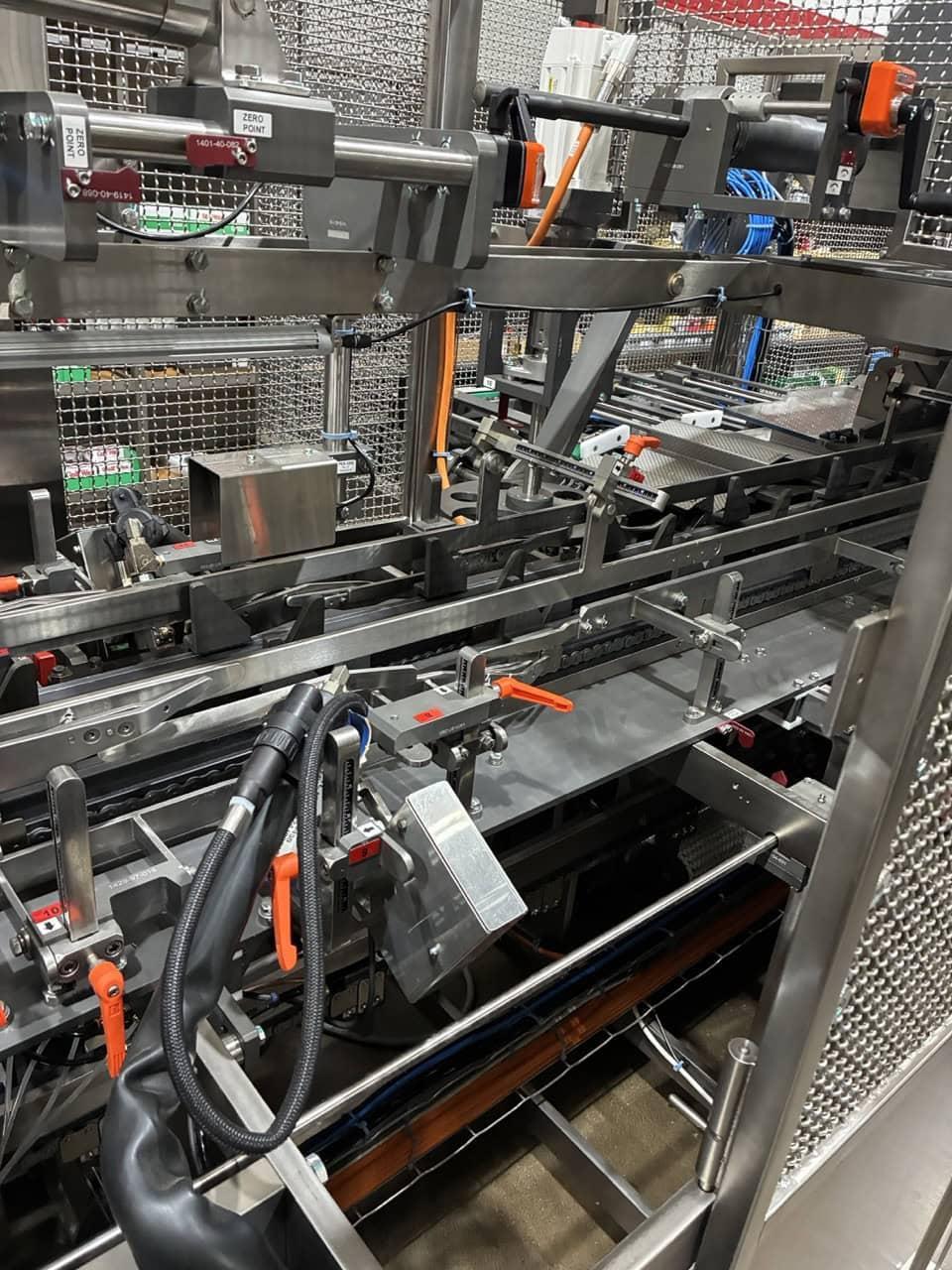

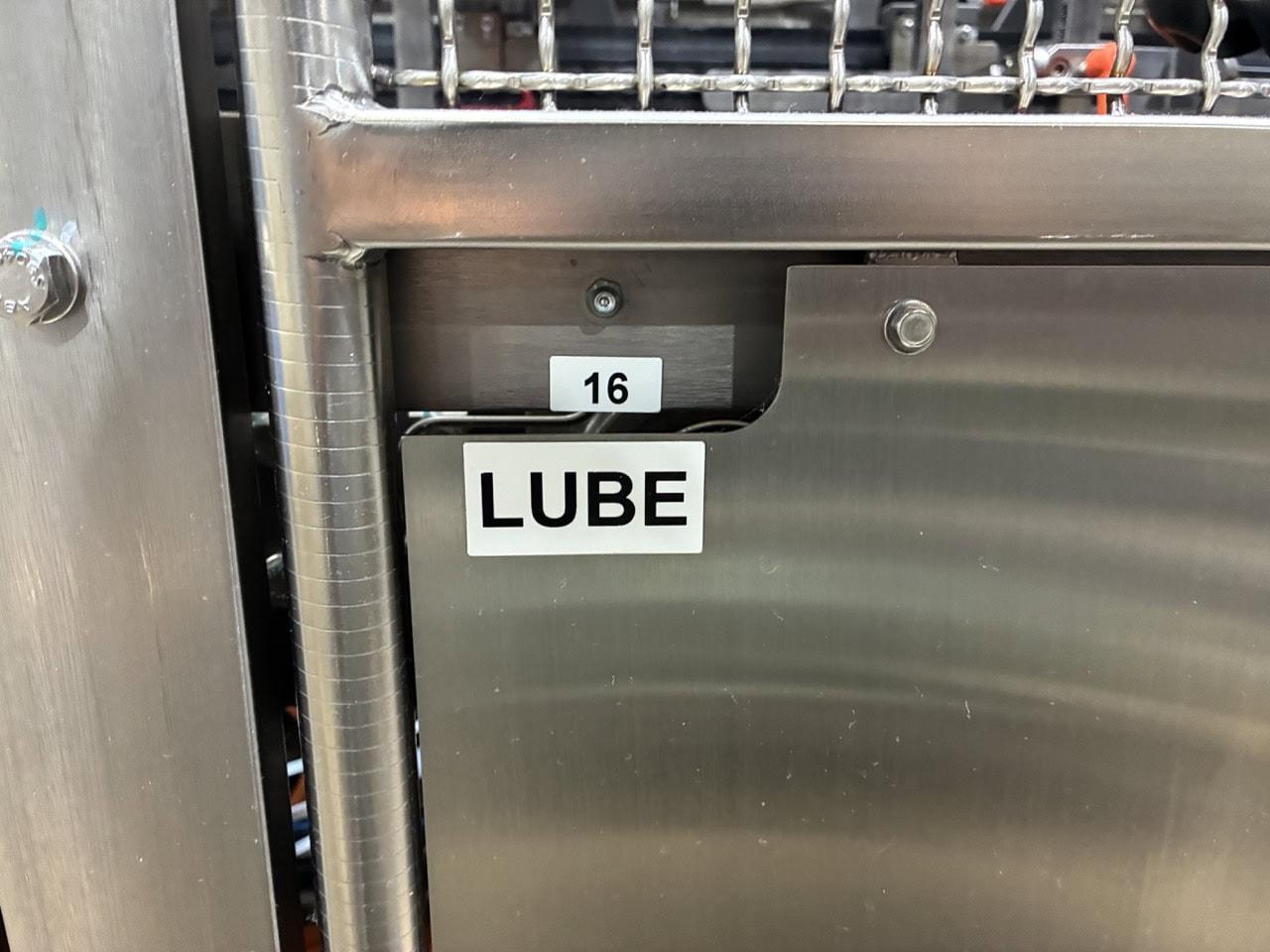

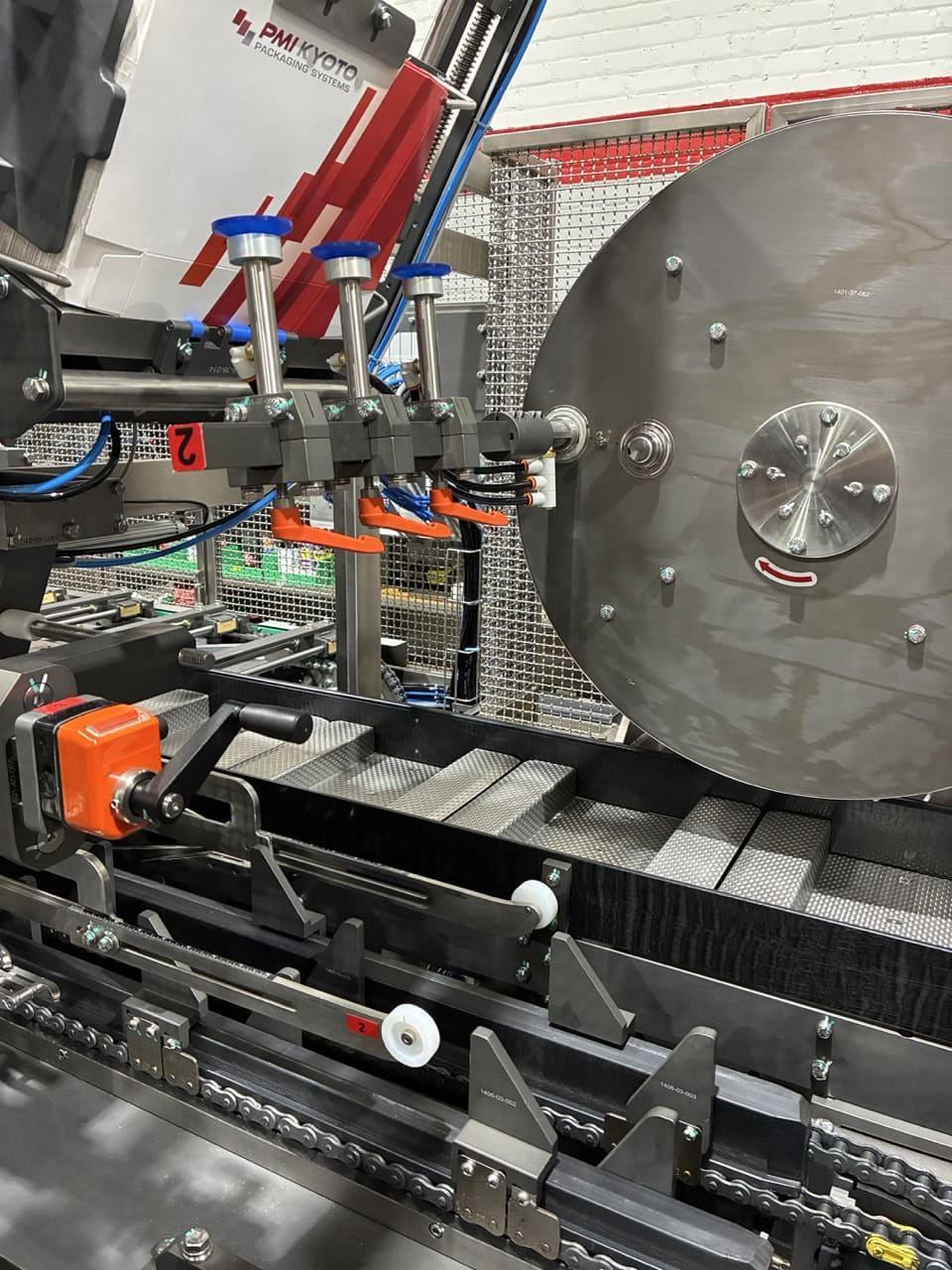

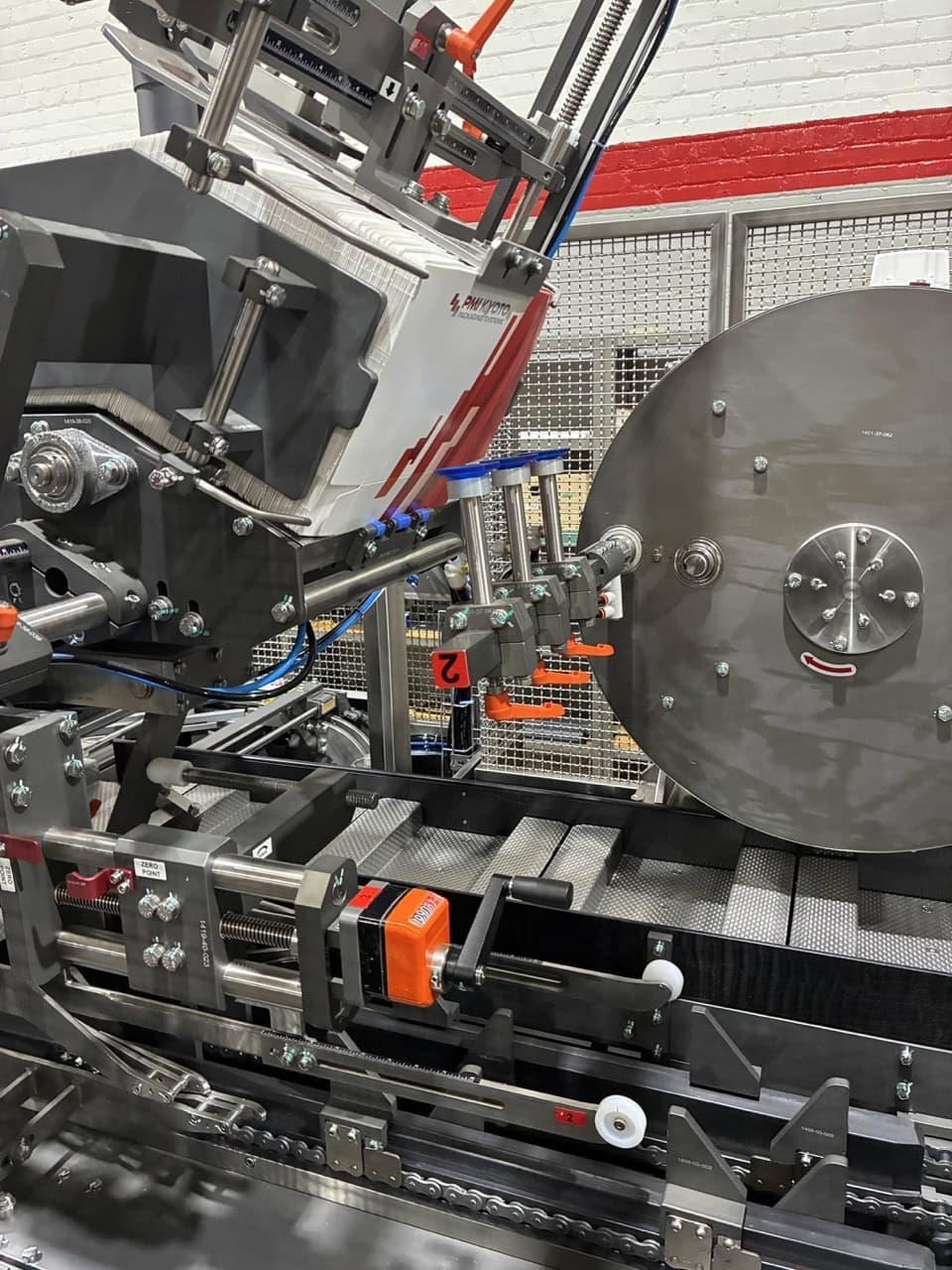

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Heavy-duty, fully-welded stainless steel main frame – Ethernet connectivity module – Stainless steel washdown construction – Central lubrication and auto lug chain lube – Full-height guard doors with interlocked stainless frame – Category-3 Safety (lockable guard doors available) – Servo-driven rotary carton feeder with pre-break – Extended carton magazine, powered with low-level indicator – Articulating product bucket with integral pusher head, meets the carton at the load station – No-carton, no-fill and no-product, no-carton control – Spindle adjustments with center-lining for quick and easy changeover – Open flap detection and reject – Cycle stop mode – flaps closed and glued (available feature) – Nordson hot melt glue system – Compliant with OSHA, ANSI, NFPA, ISO, LOTO and UL

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
