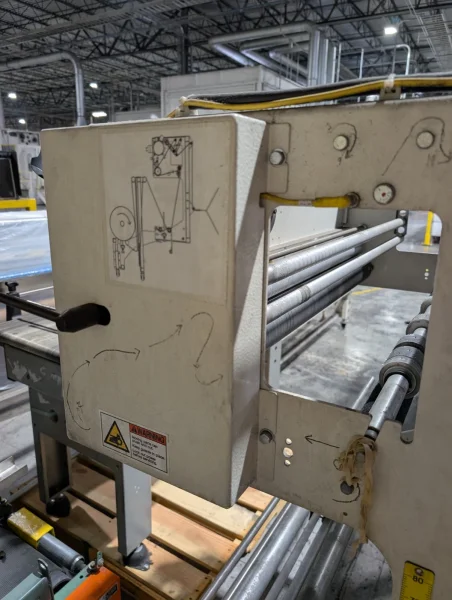

Texwrap 2410ISS Automatic Side Seal Shrink Wrapper with Texwrap ST-1322 Heat Tunnel, 2019

Used Texwrap 2410ISS Automatic Side Seal Shrink Wrapper with Texwrap ST-1322 Heat Tunnel, 2019:

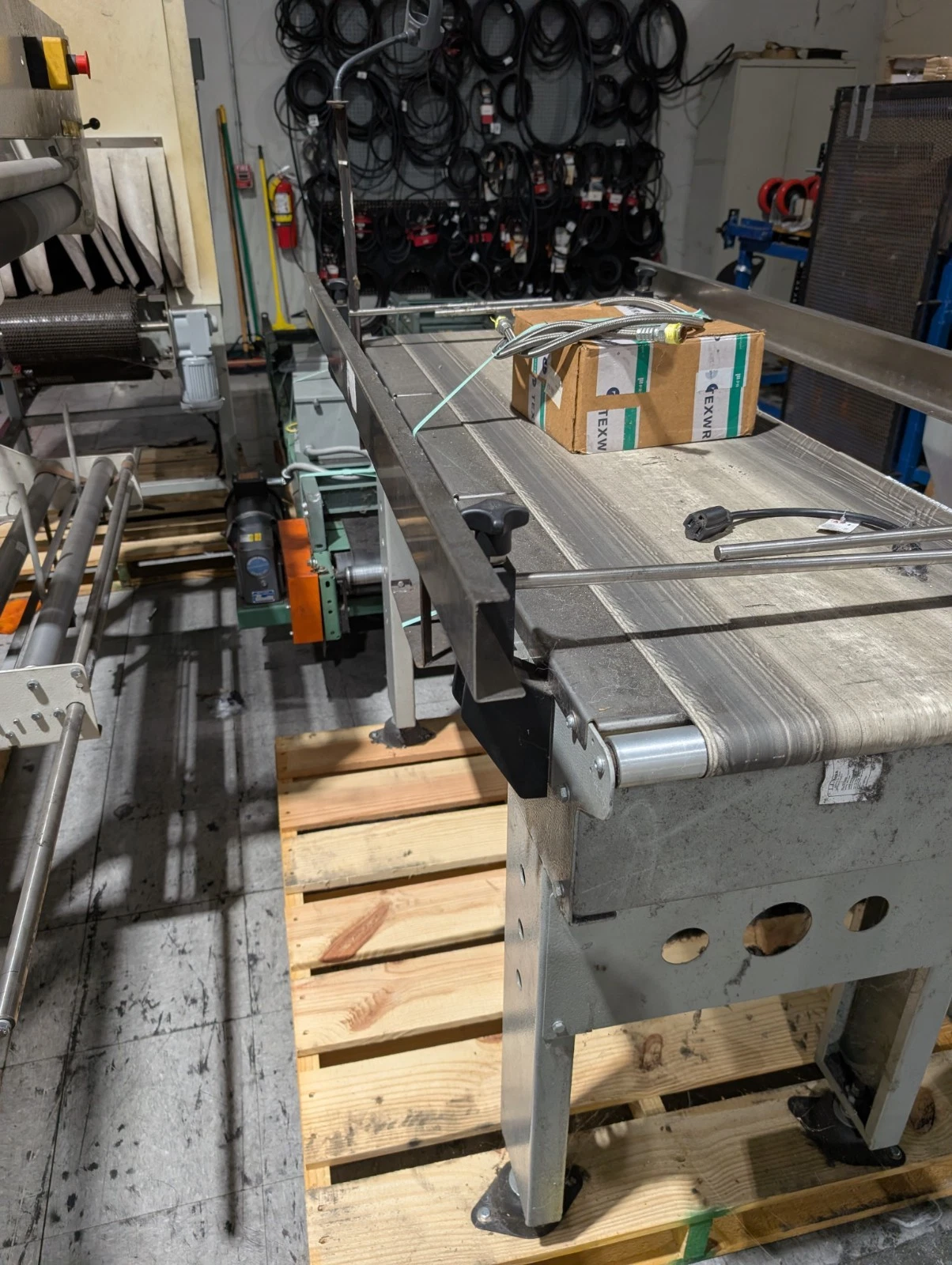

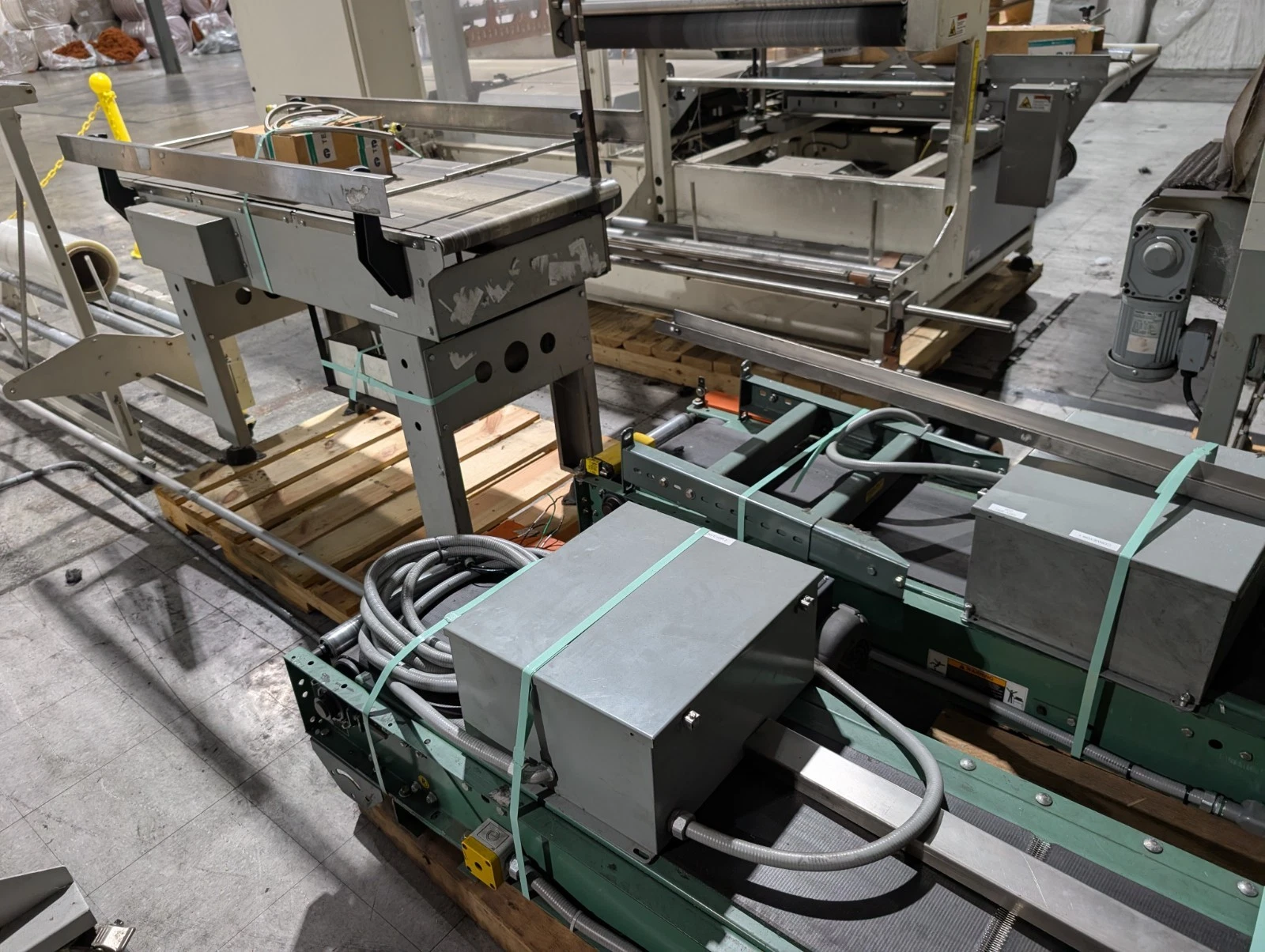

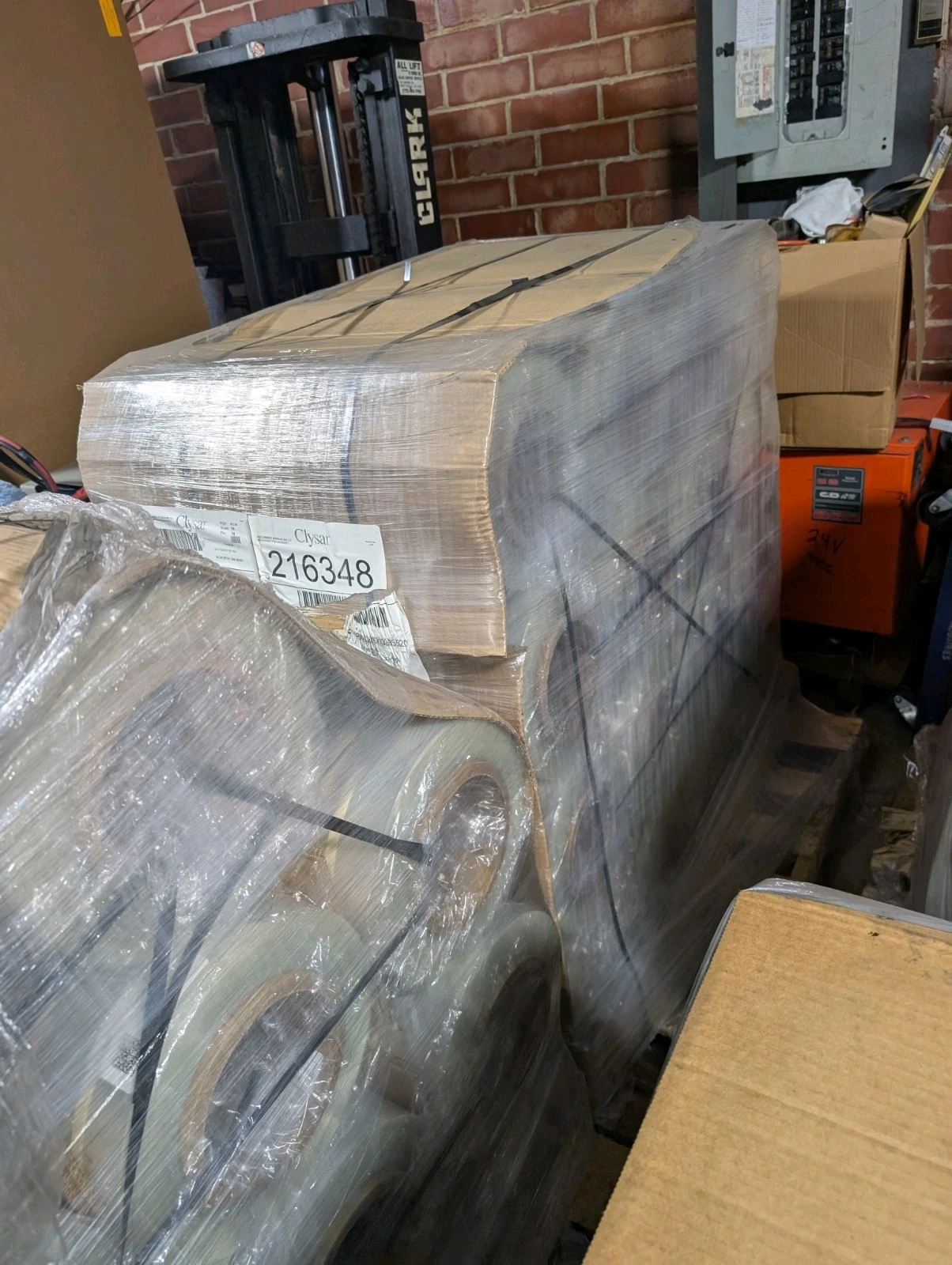

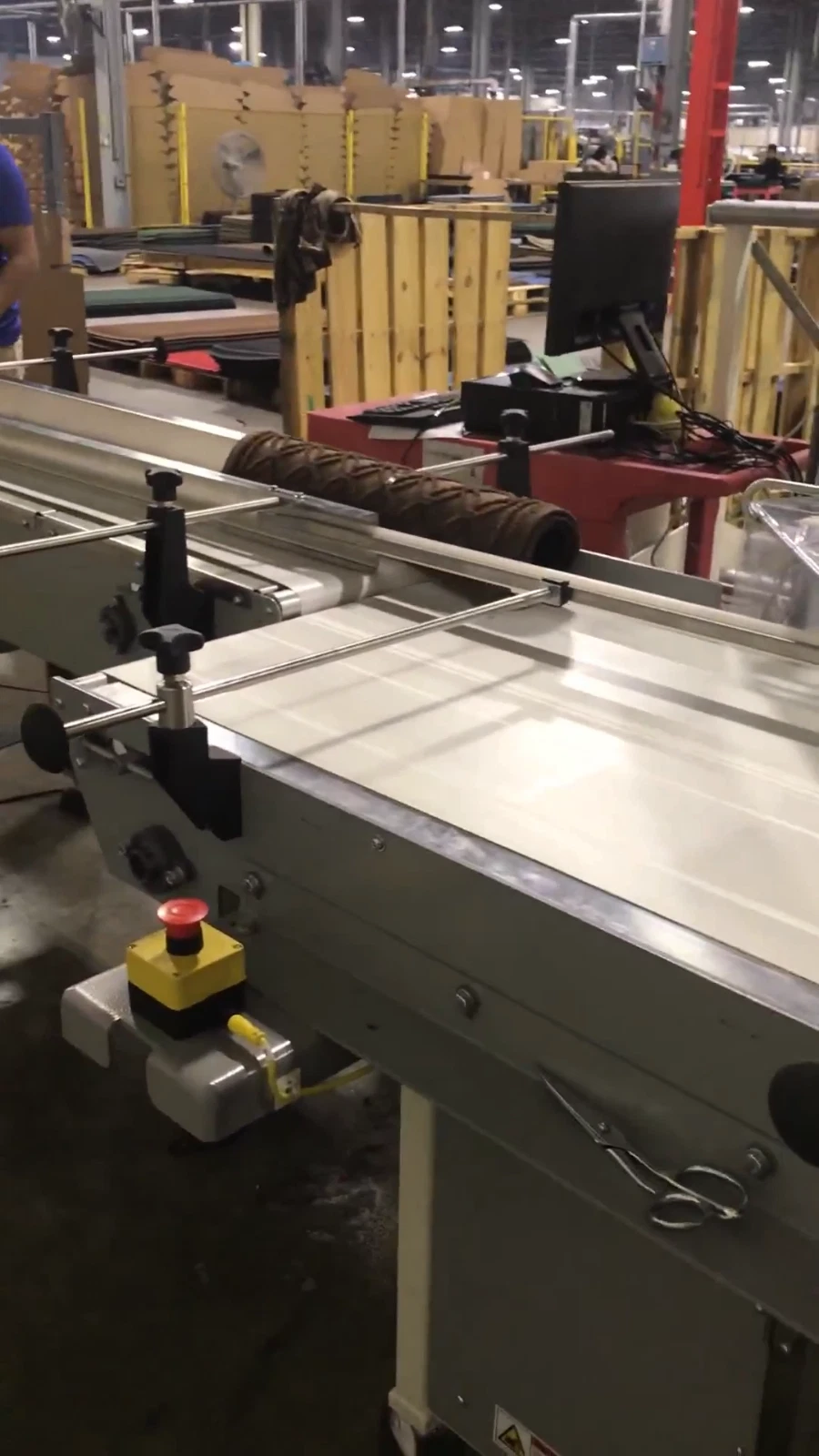

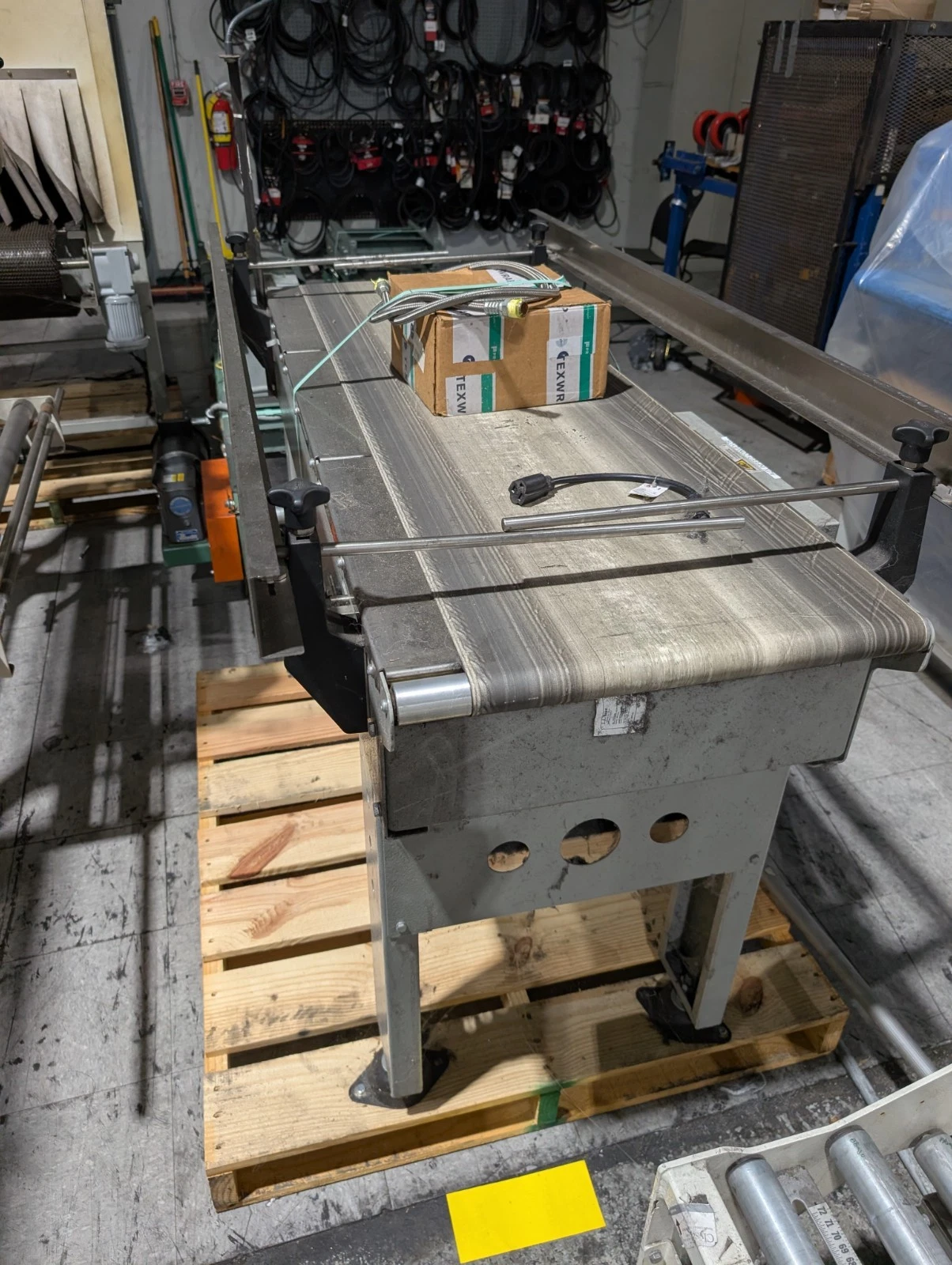

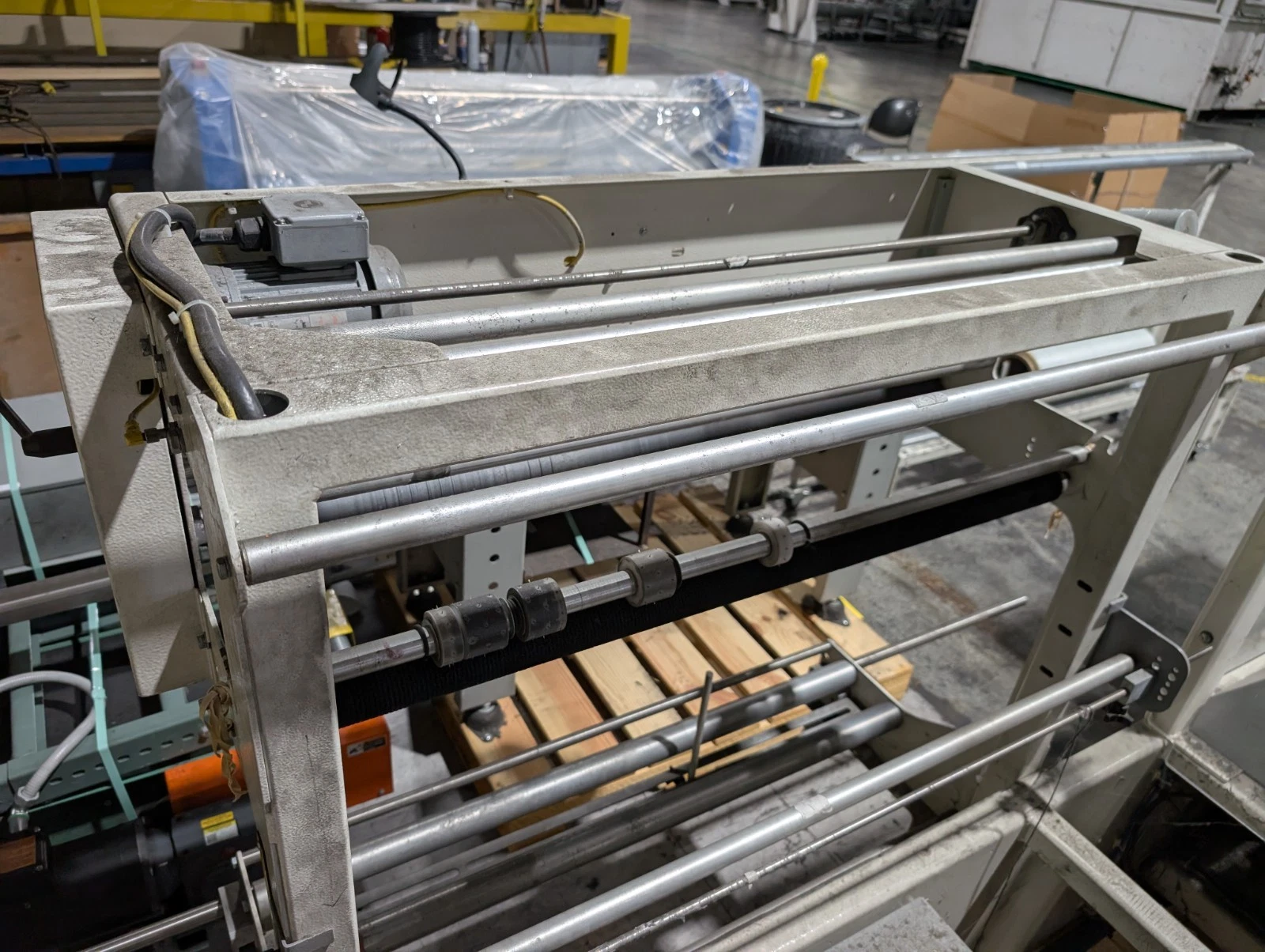

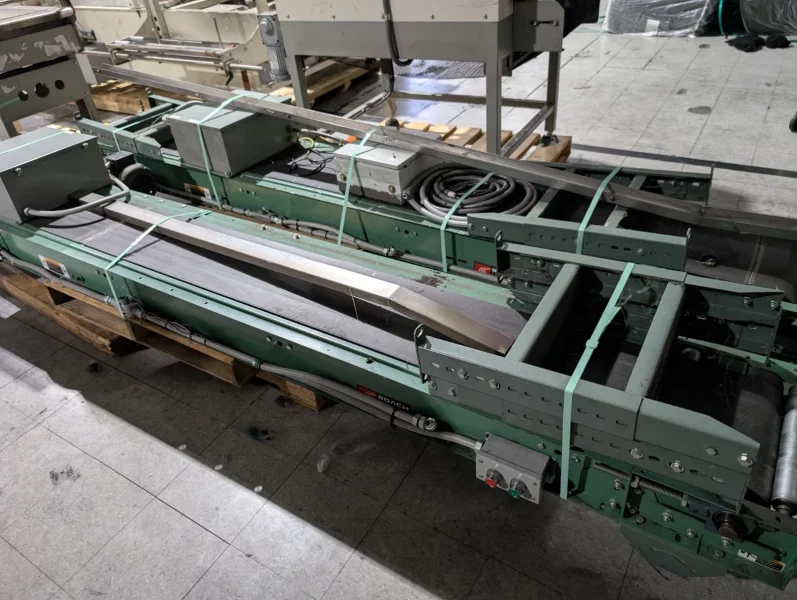

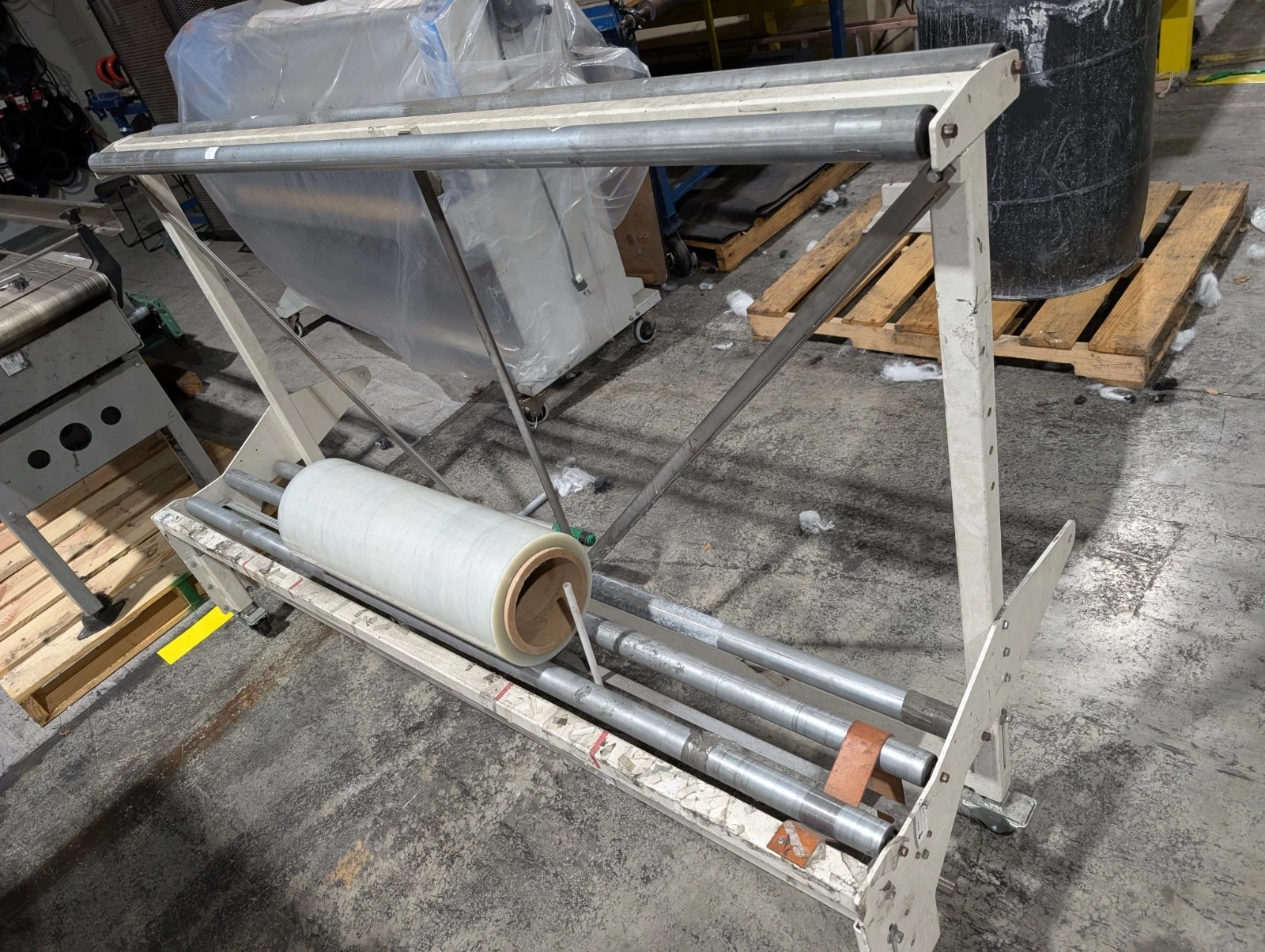

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,This listing includes: – Two Hytrol Conveyors – Infeed conveyor – Texwrap 2410ISS Automatic Side Seal Shrink Wrapper – Texwrap 1322 Shrink Tunnel – Center fold attachment – 36 Rolls of 42″ Clysar HPG 150GA 3500′ Film – 30 Rolls of 26″ Clysar HPG 150GA 3500′ Film

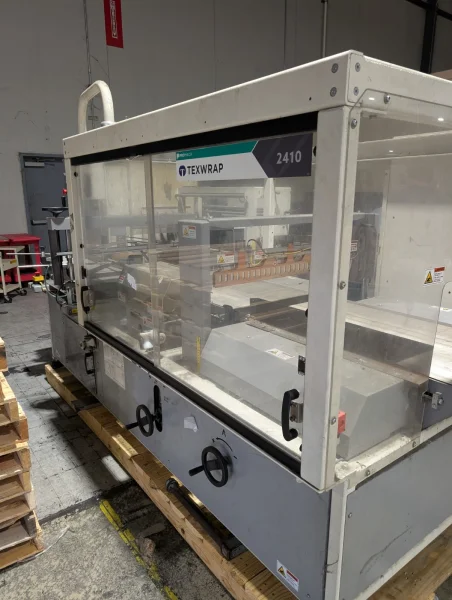

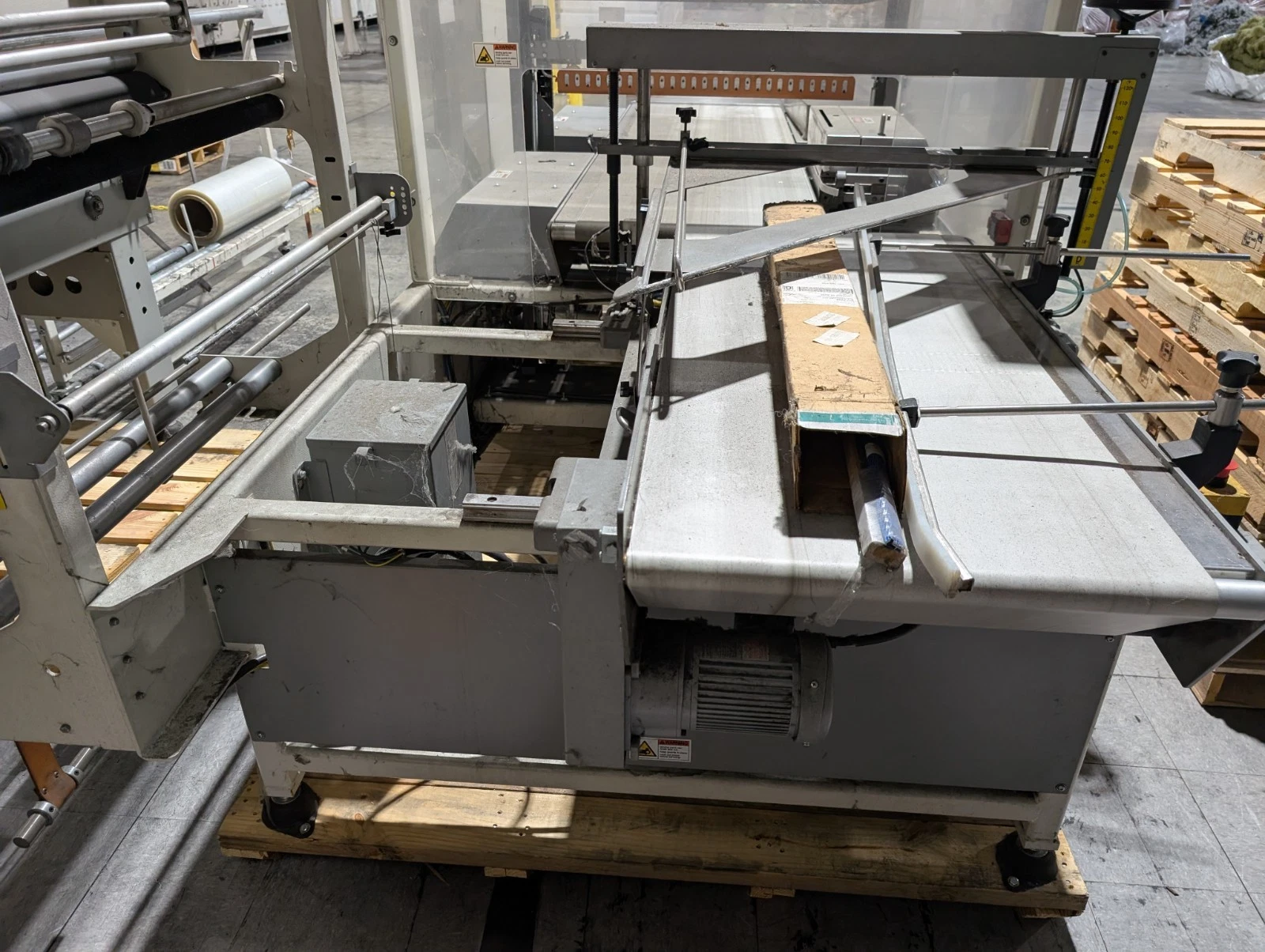

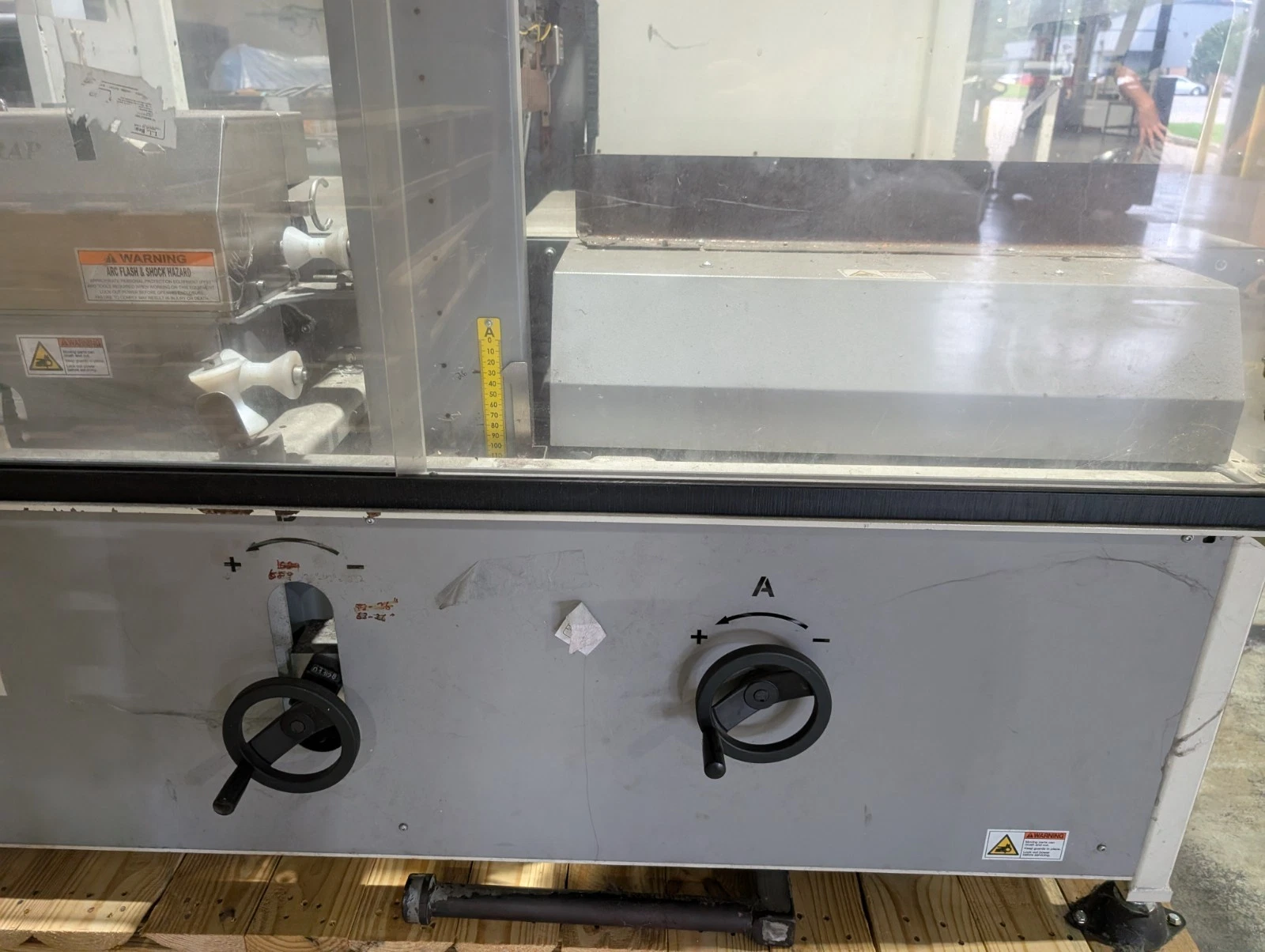

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,2410ISS Intermittent Motion Side Sealer – Maximum package size (both height and width cannot be maximum dimensions): 10″ H, 24″ W, infinite length – Film width: maximum: 36″ center folded – Conveyor speed: up to 100 feet per minute – Standard footprint (not included center fold attachment): 137″ L x 82″ W

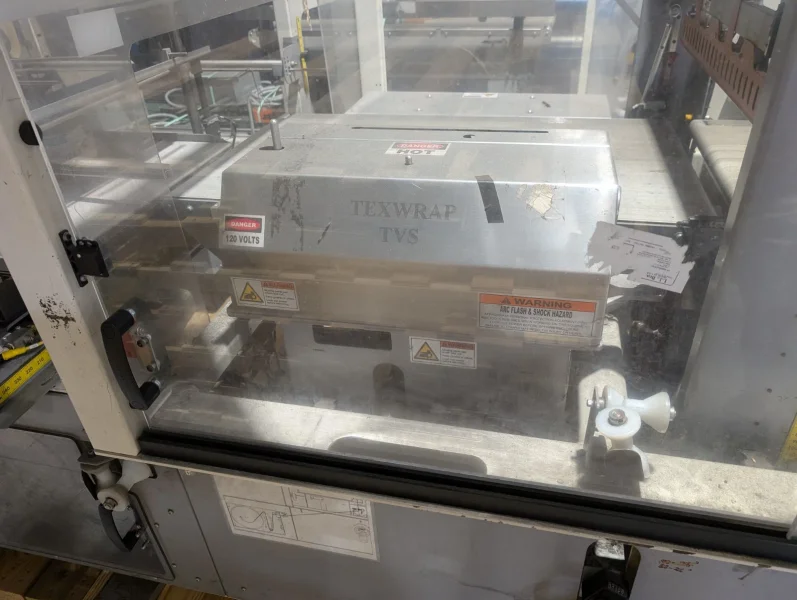

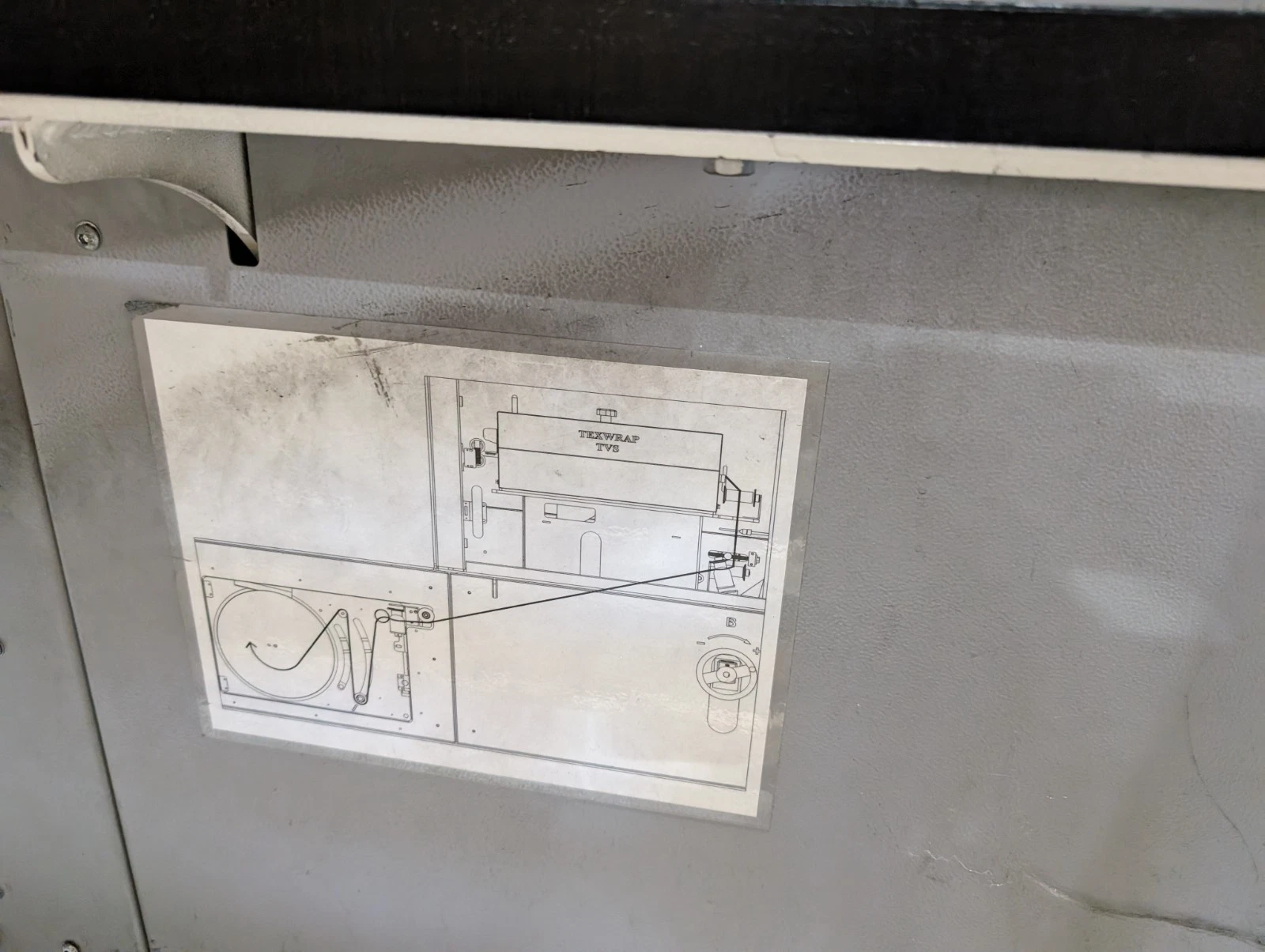

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,The 2410ISS is equipped with the exclusive Texwrap Versa Seal (TVS) to insure consistent, high quality seals across a wide range of film types. The TVS tightly clamps the film between parallel belts while a heating element seals and separates the film between them. The slightly diverging belts continue to clamp the film securely allowing the film seal to cure and, at the same time, assuring reliable scrap/trim separation. The belts on the TVS design also control film tension allowing consistent seals to be made using the absolute minimum film width possible saving money on every package.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,FEATURES & SPECS

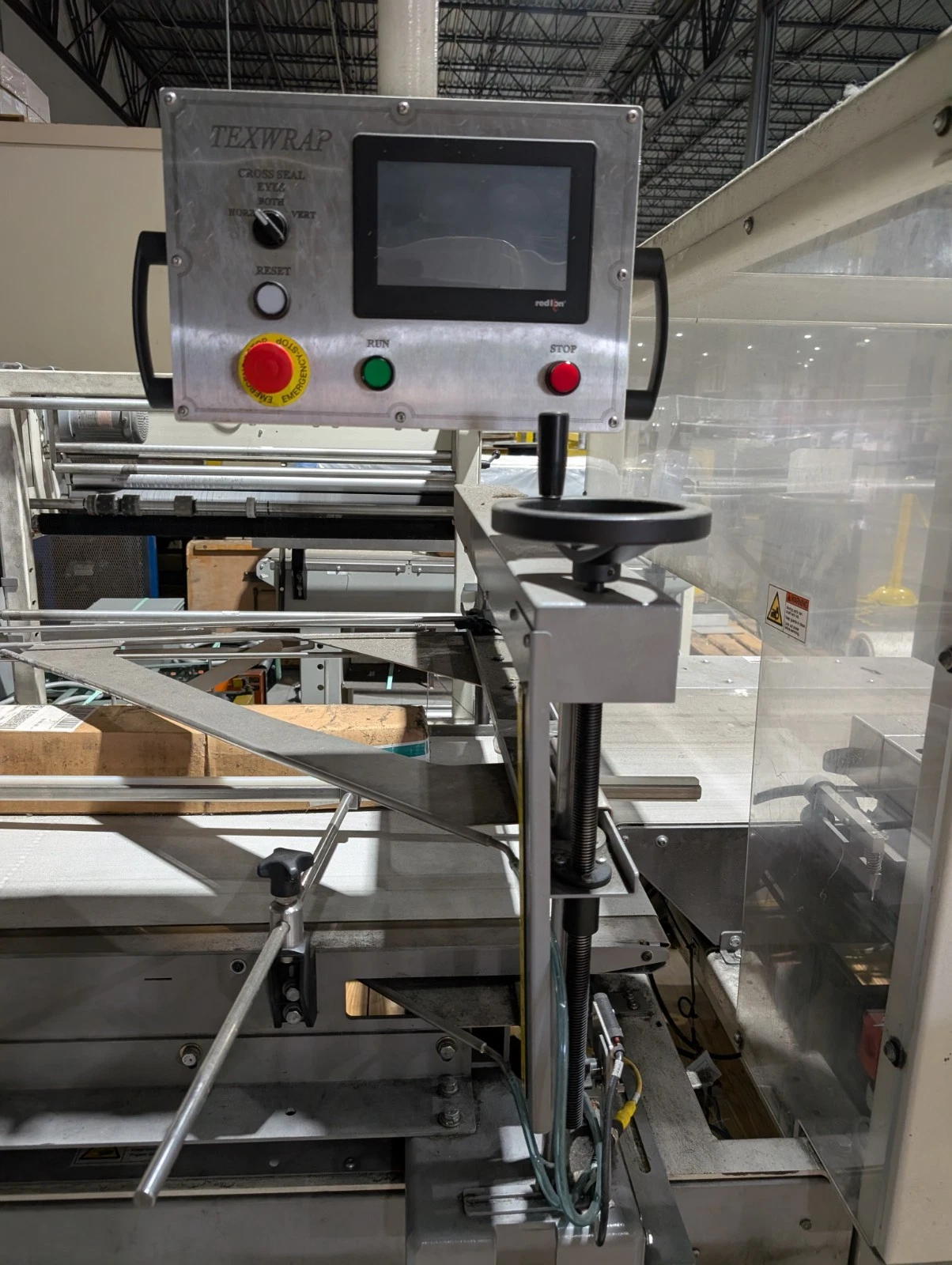

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Patented Texwrap Versa Seal (TVS) technology – Horizontal and vertical photoeye controlled cross seal to provide automatic adjustment for bag length – Automatic autospace tuning feature adjusts machine to match upstream production – Standard auto-spacing control using vertical and horizontal photoeyes – Variable speed control with belt speed of 100 feet per minute

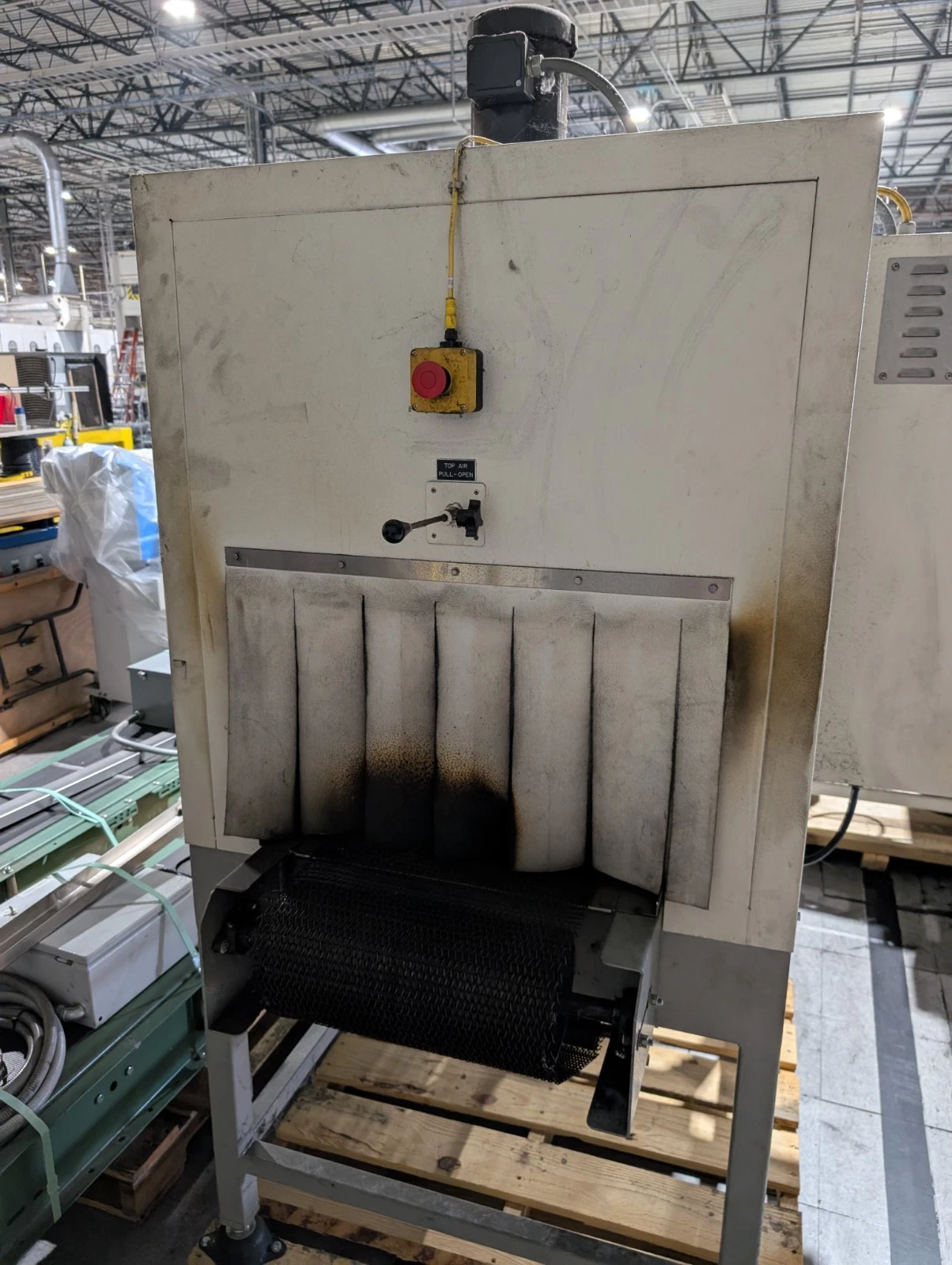

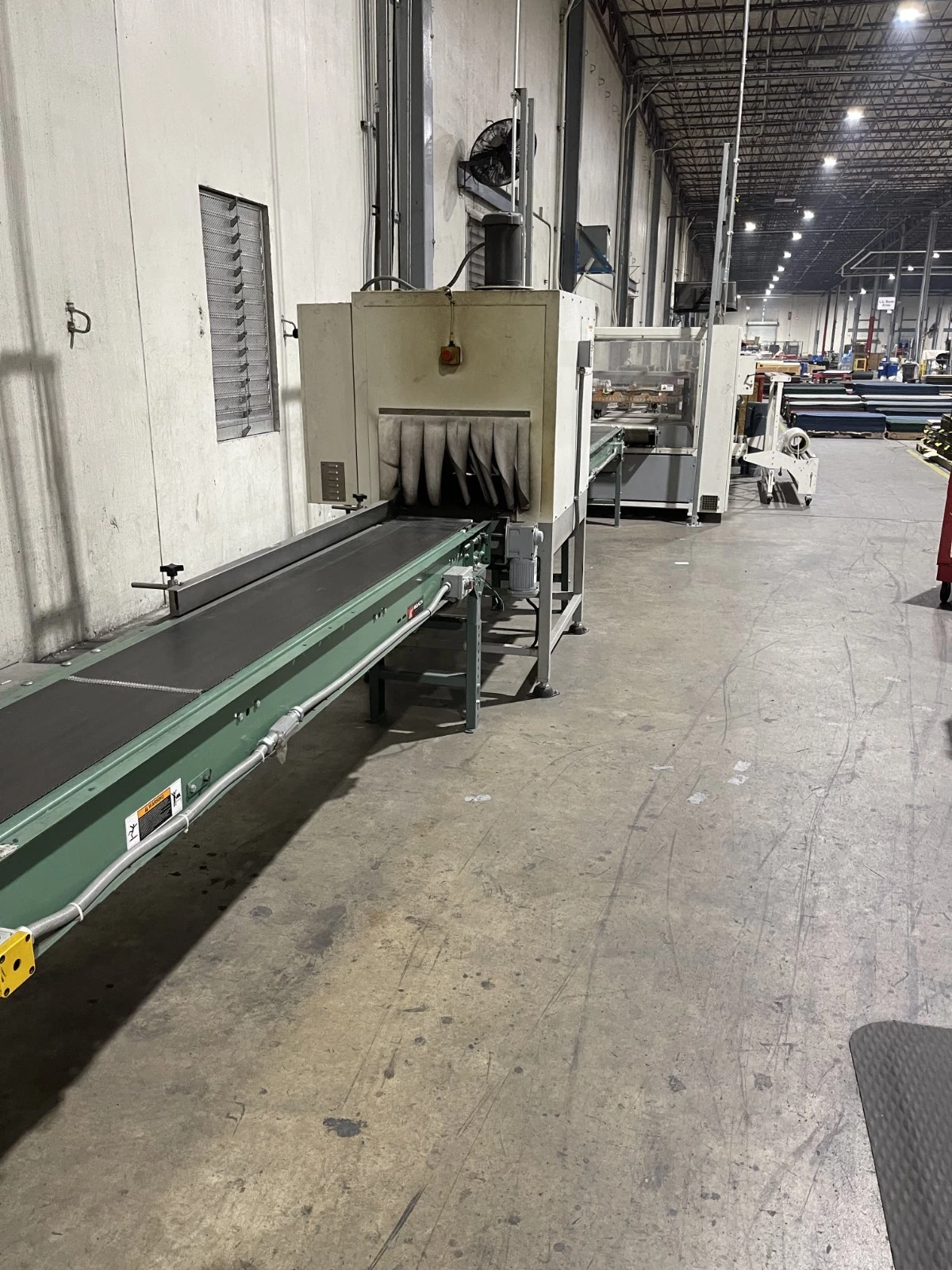

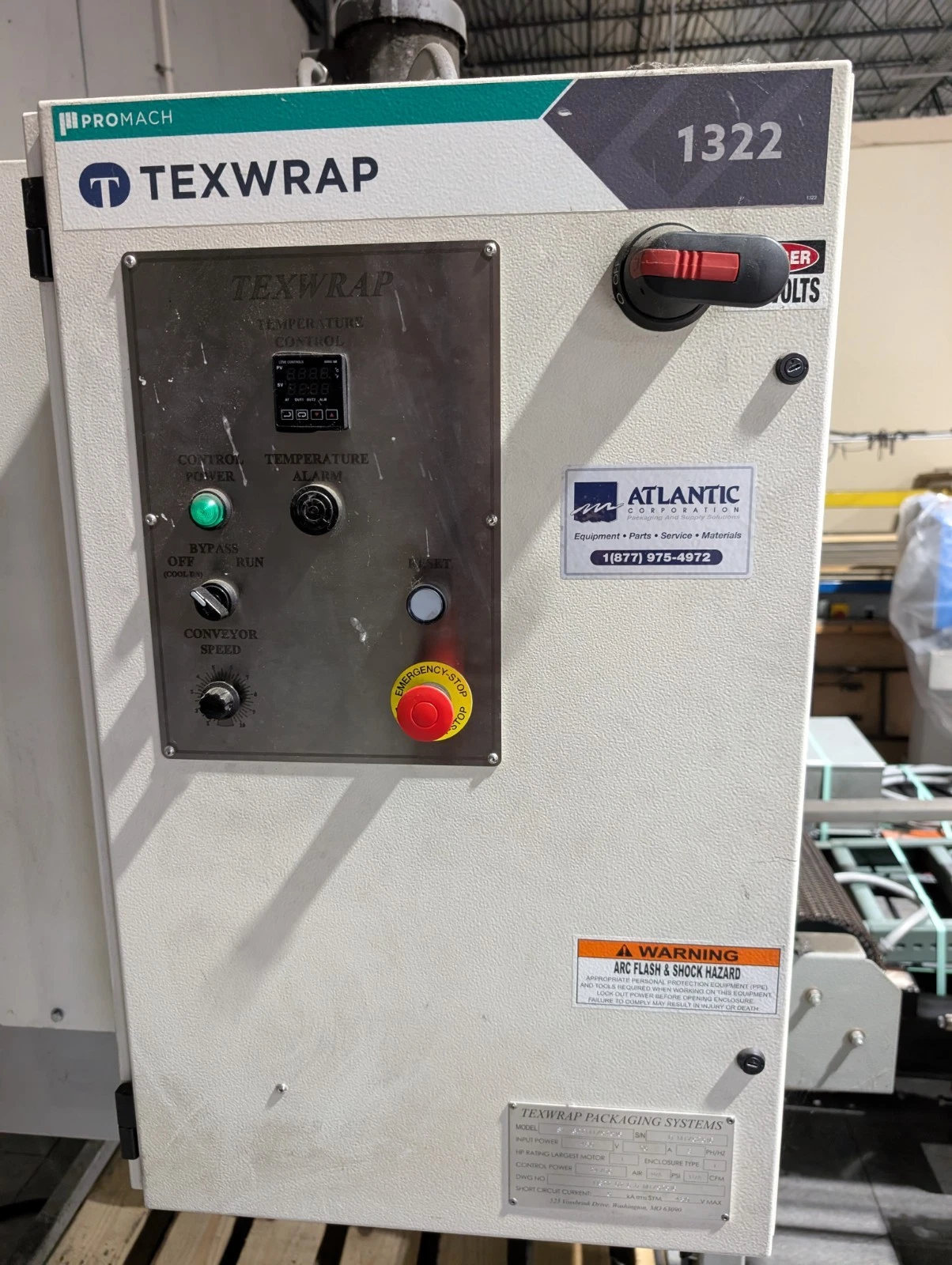

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Texwrap 1322 Single-Chamber Forced Air Heat Tunnel – Texwrap’s line of single-chamber forced air convection tunnels are designed to give outstanding shrink results on lower speed applications. Generally paired with an L-sealer or intermittent motion wrapper, this type of tunnel uses large volumes of high velocity air to impart the necessary energy to the film for the best shrink package. – Footprint: Appox 5′ L x 4′ W – Conveyor speed: 0-160 feet per minute – Conveyor height: adjustable 32.75″ to 37.75″ – Conveyor width: 15″ – Opening: 13″ x 22″ – Chamber length: 42.5″ – Electrical requirements: 480V, 25A, 3 Ph – Air requirements: 80 PSI @ 16 cfm
