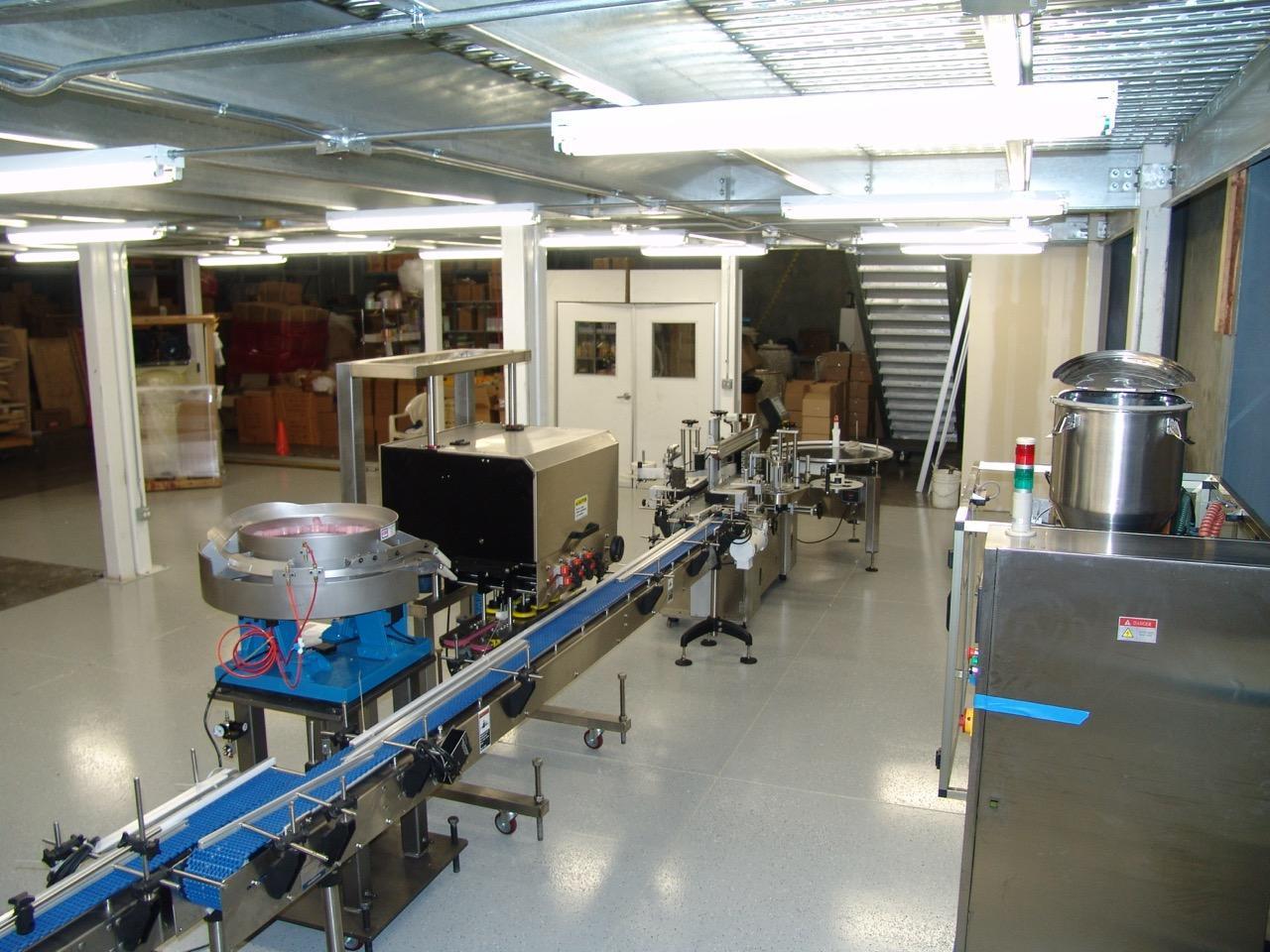

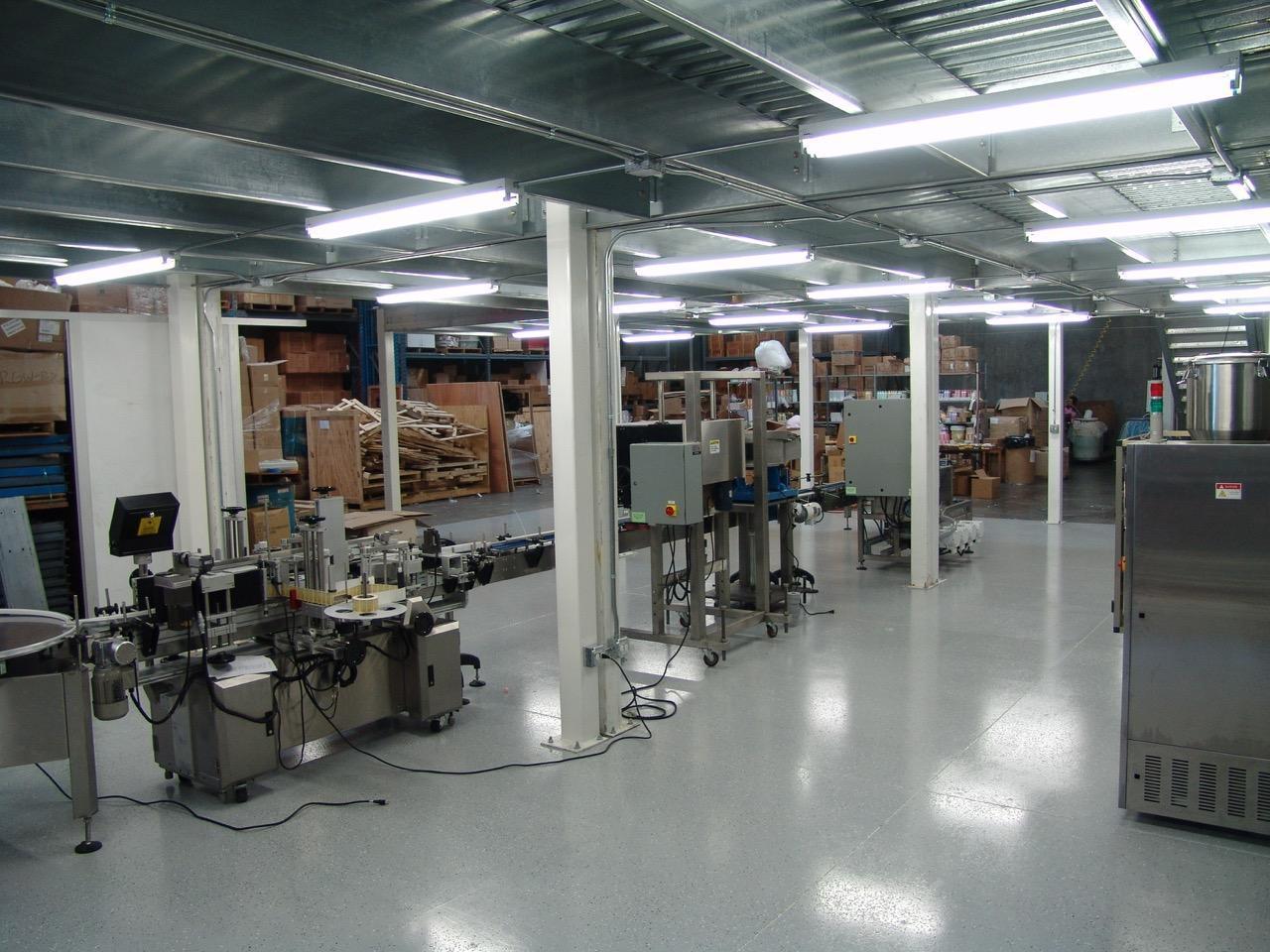

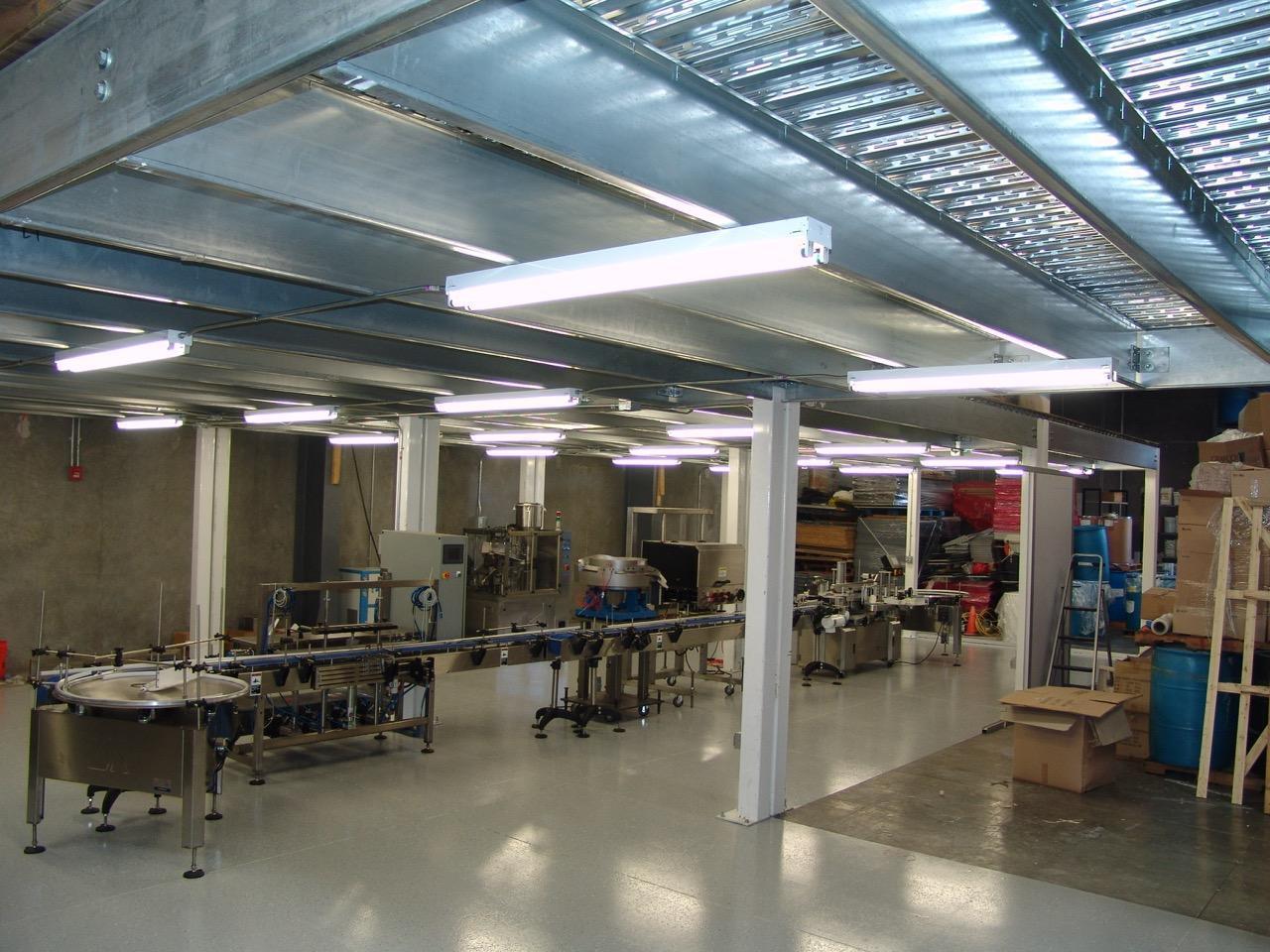

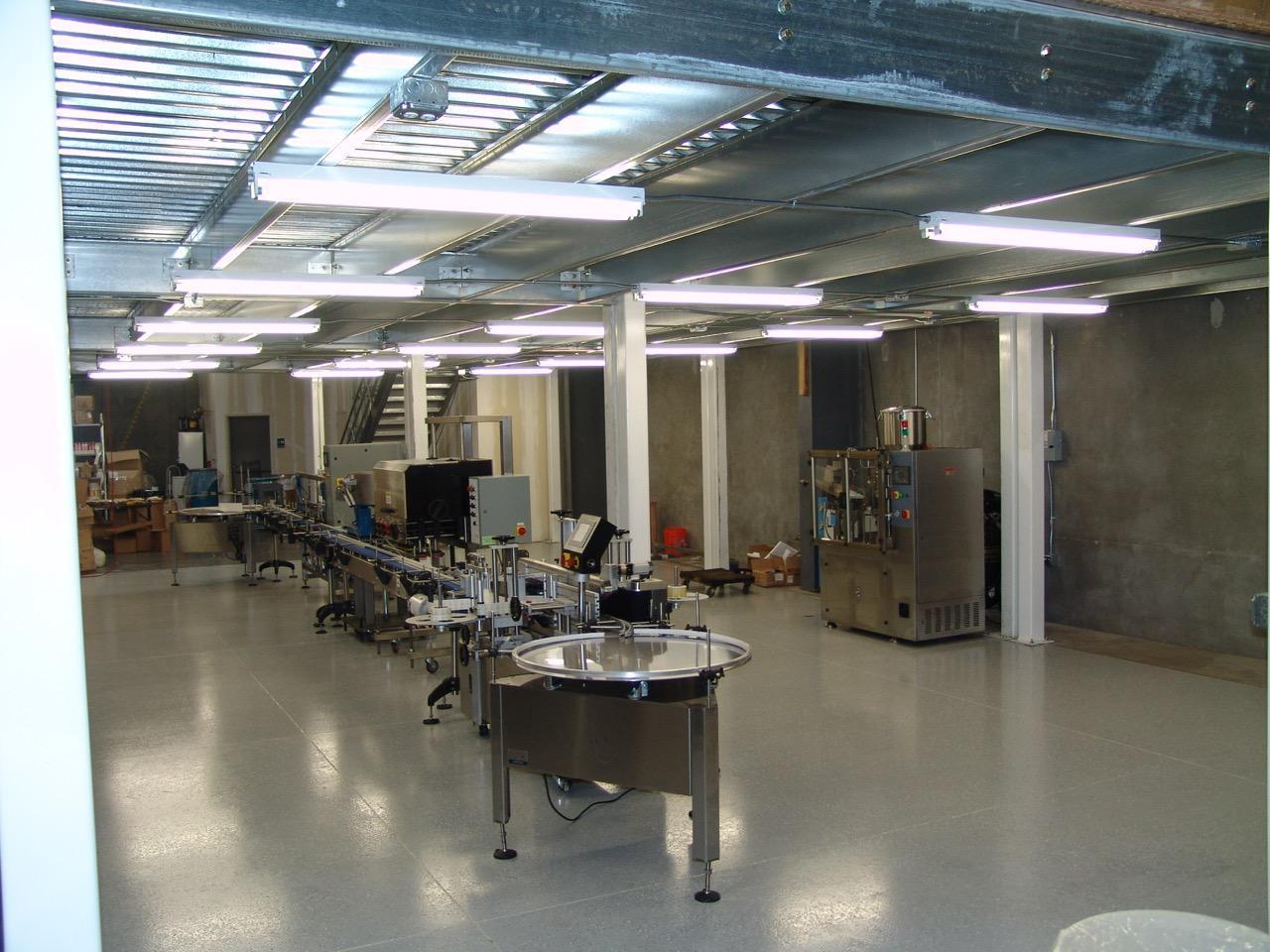

A Packaging Systems Fully Automatic Filling and Labeling Line for Shampoo Bottles, 2009

A Packaging Systems Fully Automatic Filling and Labeling Line for Shampoo Bottles, 2009:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Previously used primarily for 1 and 2 oz bottles with wrap label or two side label. Can be used to full up to a gallon.

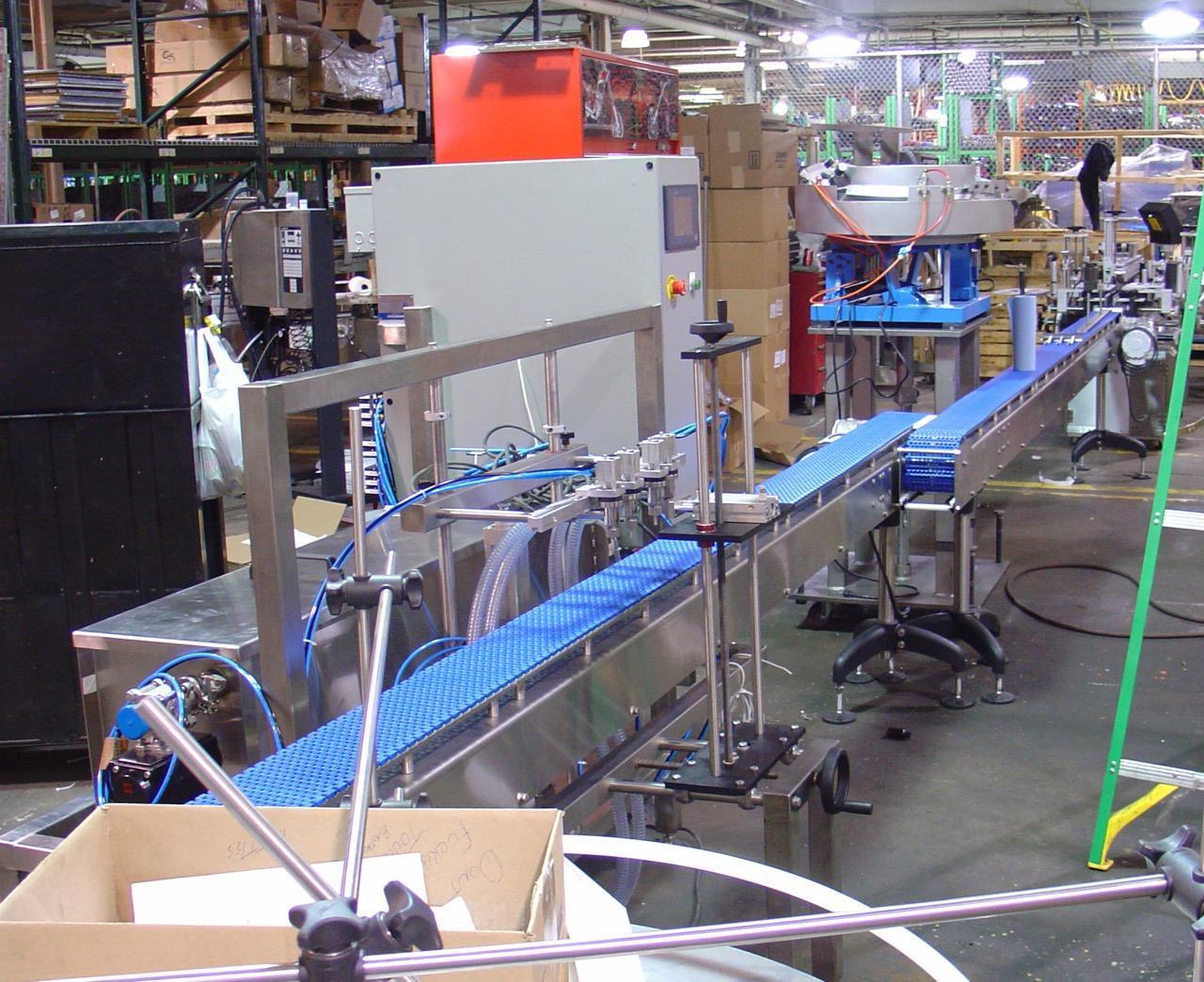

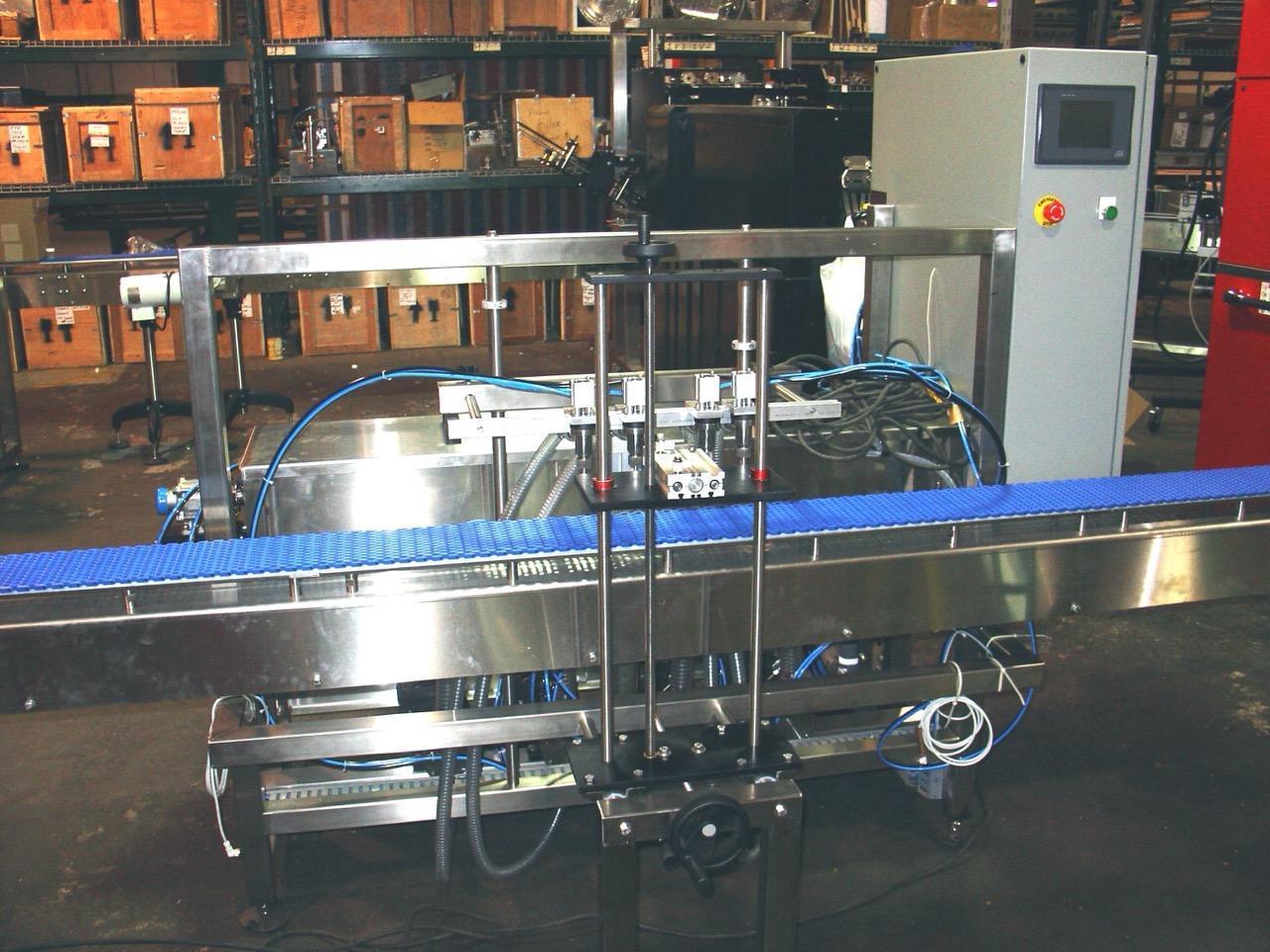

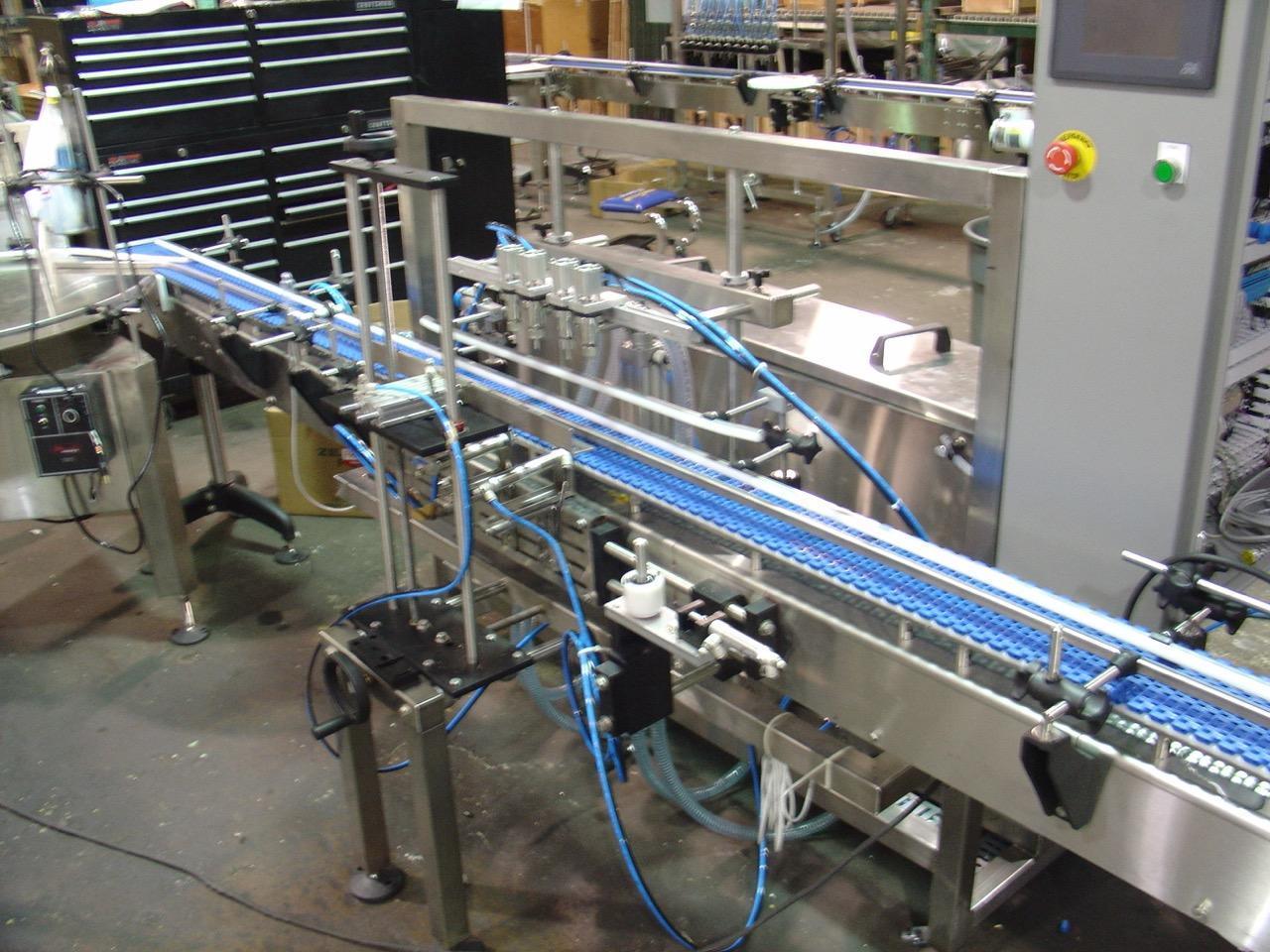

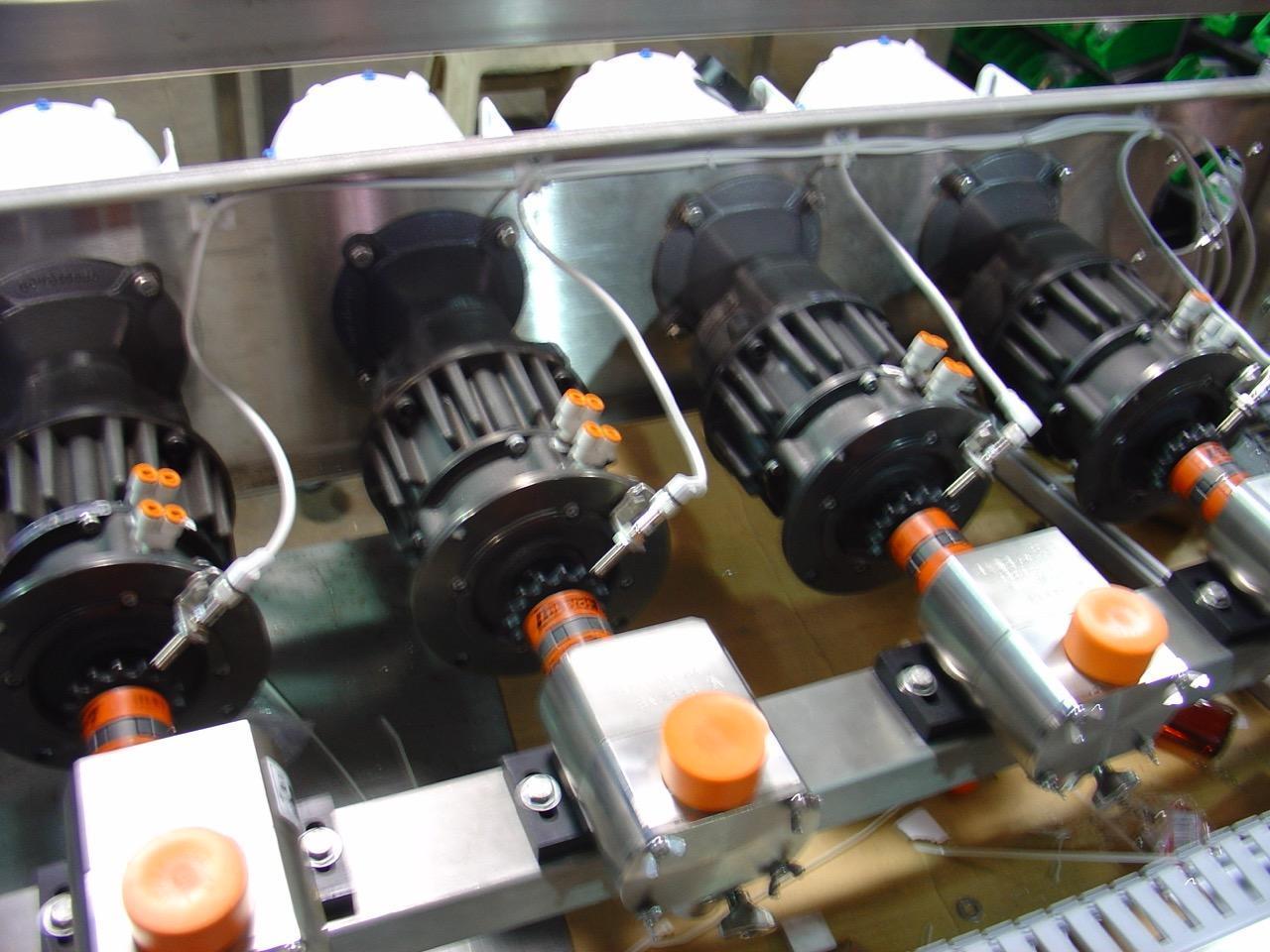

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,A Packaging Systems Filler: Positive Displacement Pump Filler Module – Sturdy stainless steel tubular frame on adjustable leveling legs and casters – Easy height adjustment up to 12″ tall containers – Stainless steel filler reservoir – Filler product re-supply system with electronic float system and check valve – PLC Control System with digital LCD touch screen display – Digital filling volume setting for each pump from touch screen. – Revolution sensor-based pump RPM pulse counting system. – Automatic bottle indexing system (moves bottles automatically) – No bottle/no fill vision system (insures no attempted fill of missing bottles) – Anti-bottle backup vision system (prevents filling if bottles are jammed downstream) – Overall electronic production counter – Pneumatic gates to stop containers or Star wheel bottle indexing. – Conveyors start/stop control system. – Memory locations for fill and indexing set-up recipes – Pump & Drive System: Variable Speed Motor, Gear Reducer, Clutch/Brake, and stainless-steel positive displacement pump. – Bottom close stainless steel nozzle assembly – Automatic Neck Locating System – Diving Head Mechanism with Air-actuated operation

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,A Packaging Systems Inline 6 Spindle Cap Tightener – Fully adjustable for caps from 8 mm to 110 mm – Fully adjustable from 1 inch to 14-inch-high containers – Heavy duty 304 Stainless steel Tig-welded C frame – 6 capping discs, with bottom screws change over. – Direct gear motor transmission through coupling for capping belts movement – DC gear motor for independent speed control of gripper belts – Capping discs adjustment by frontal knobs, with lock nut hand wheel – Hand Crank for manual height adjustment – Gripper belt in/out adjustment by hand wheel – Priced with single, opposing, 3/4″ Gripper Belts (other models available) – No change parts needed for a wide range of containers. – Electric and pneumatic requirements: ·110 Volts, 60Hz, 15 Amps. ·5 CFM @ 80 p.s.i. – Cap Delivery Chute, tool-less adjustment on 4 axes for versatility, can be fed manually or by automatic sorting system.

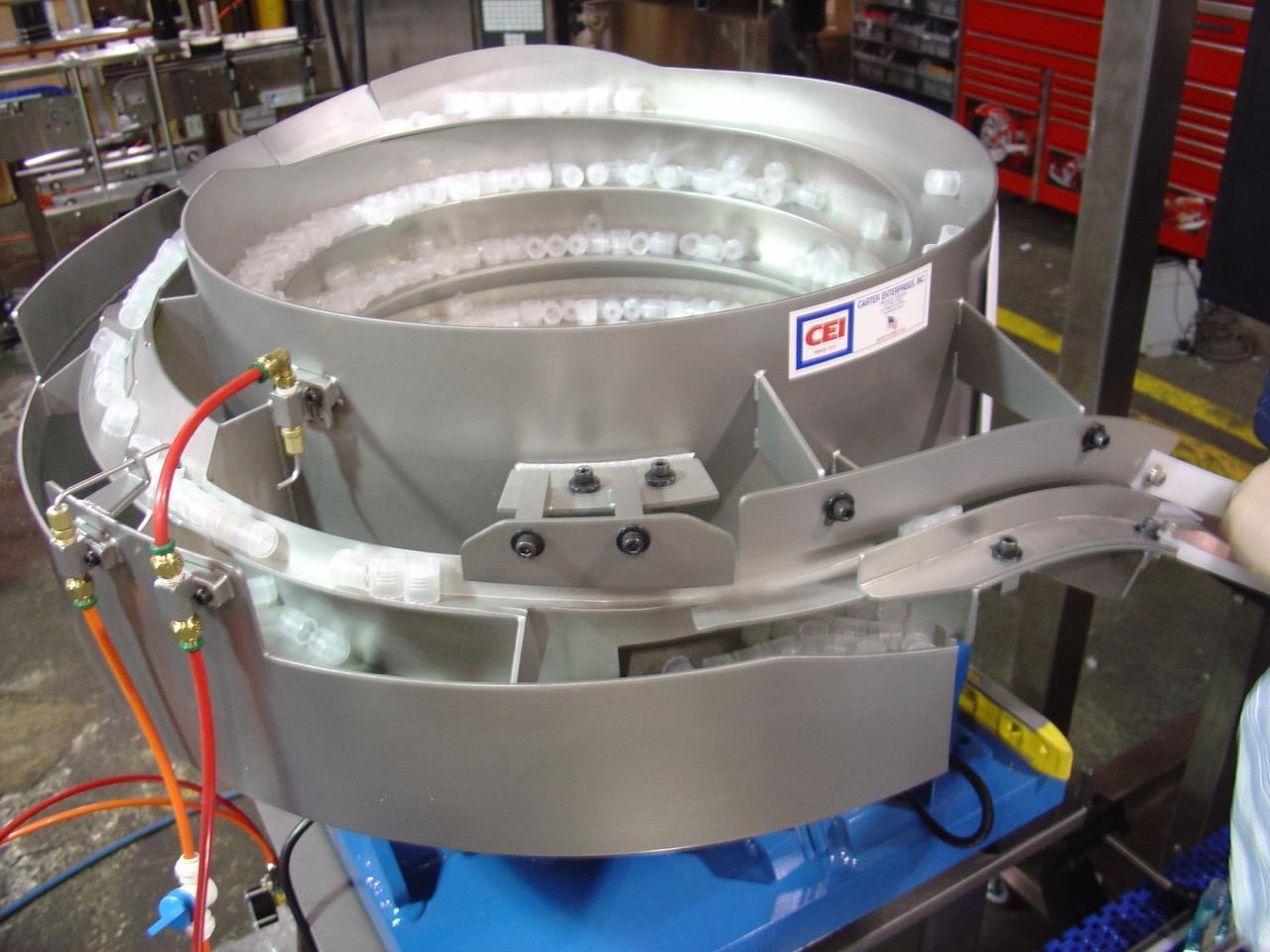

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,CEI 27″ Vibratory Cap Sorting Bowl – 27″ Bowl diameter with 304 stainless steel construction, tooled for various caps. – Alternating Vibration Coil and Control Cube, for adjusting sorter speed. – Heavy-duty Bowl Cart, with powder-coated steel frame, leveling legs and casters.

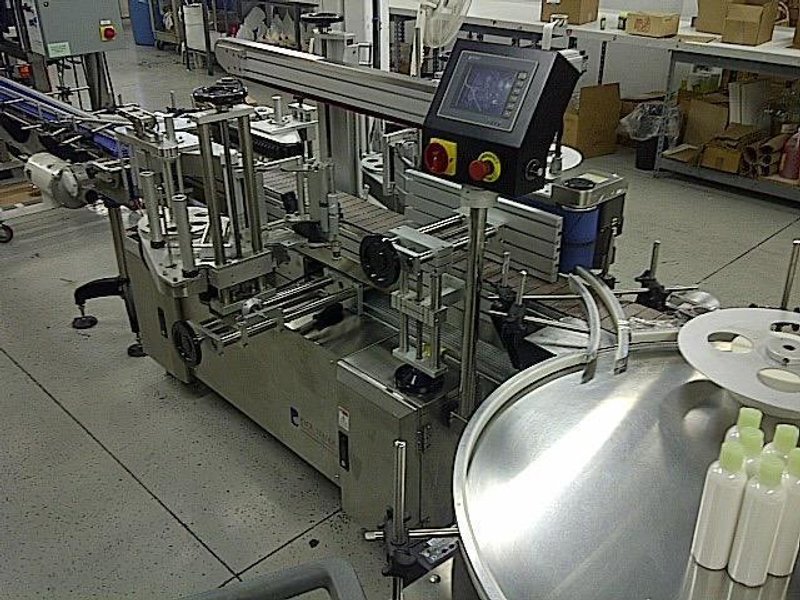

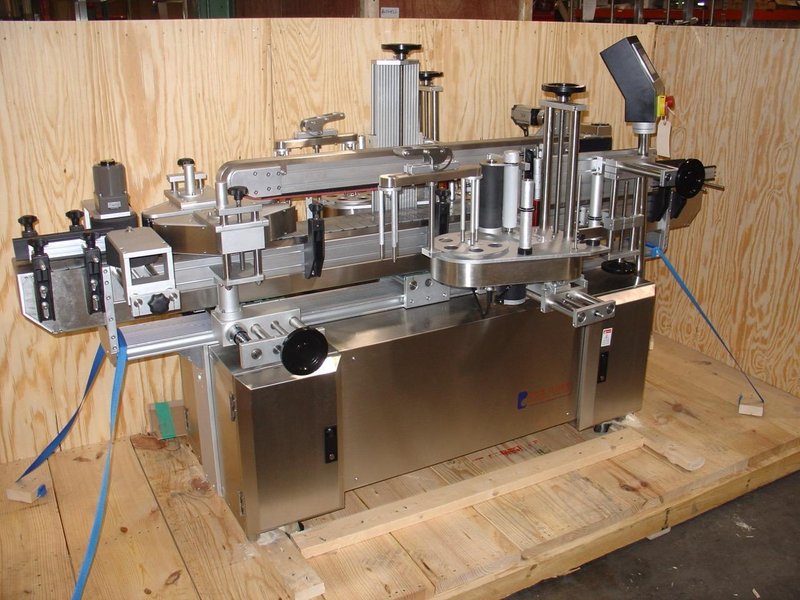

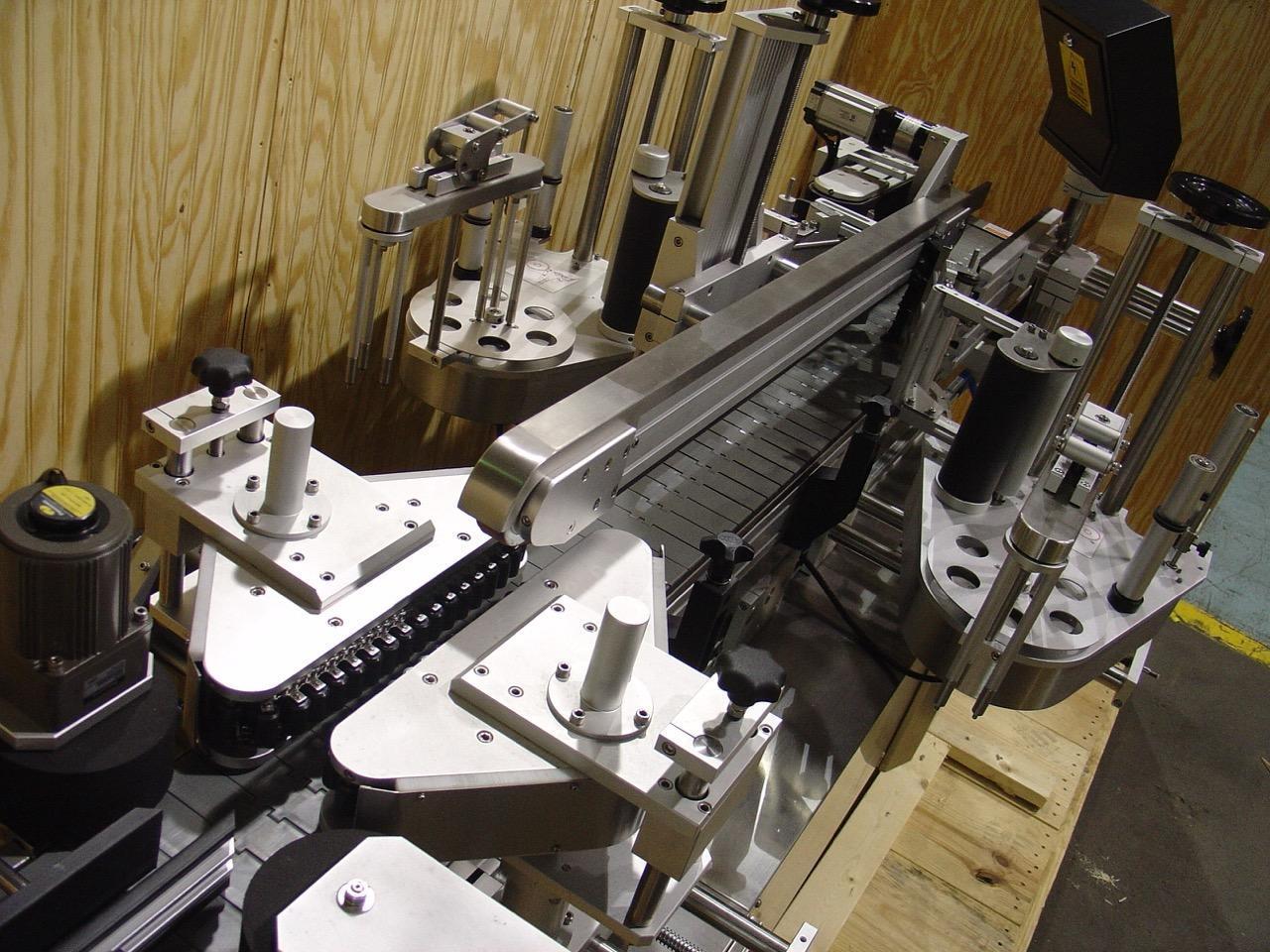

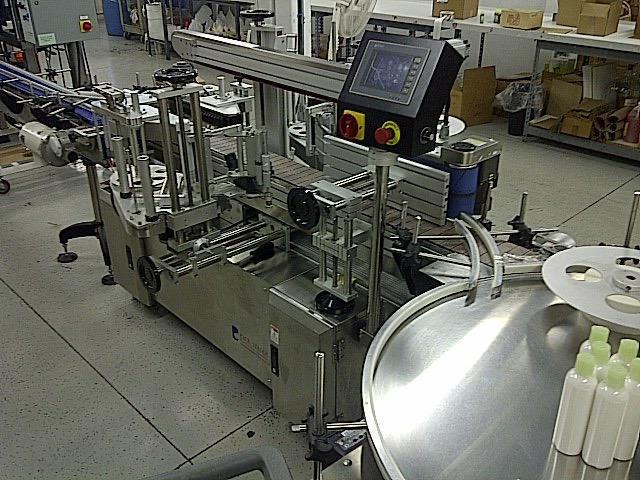

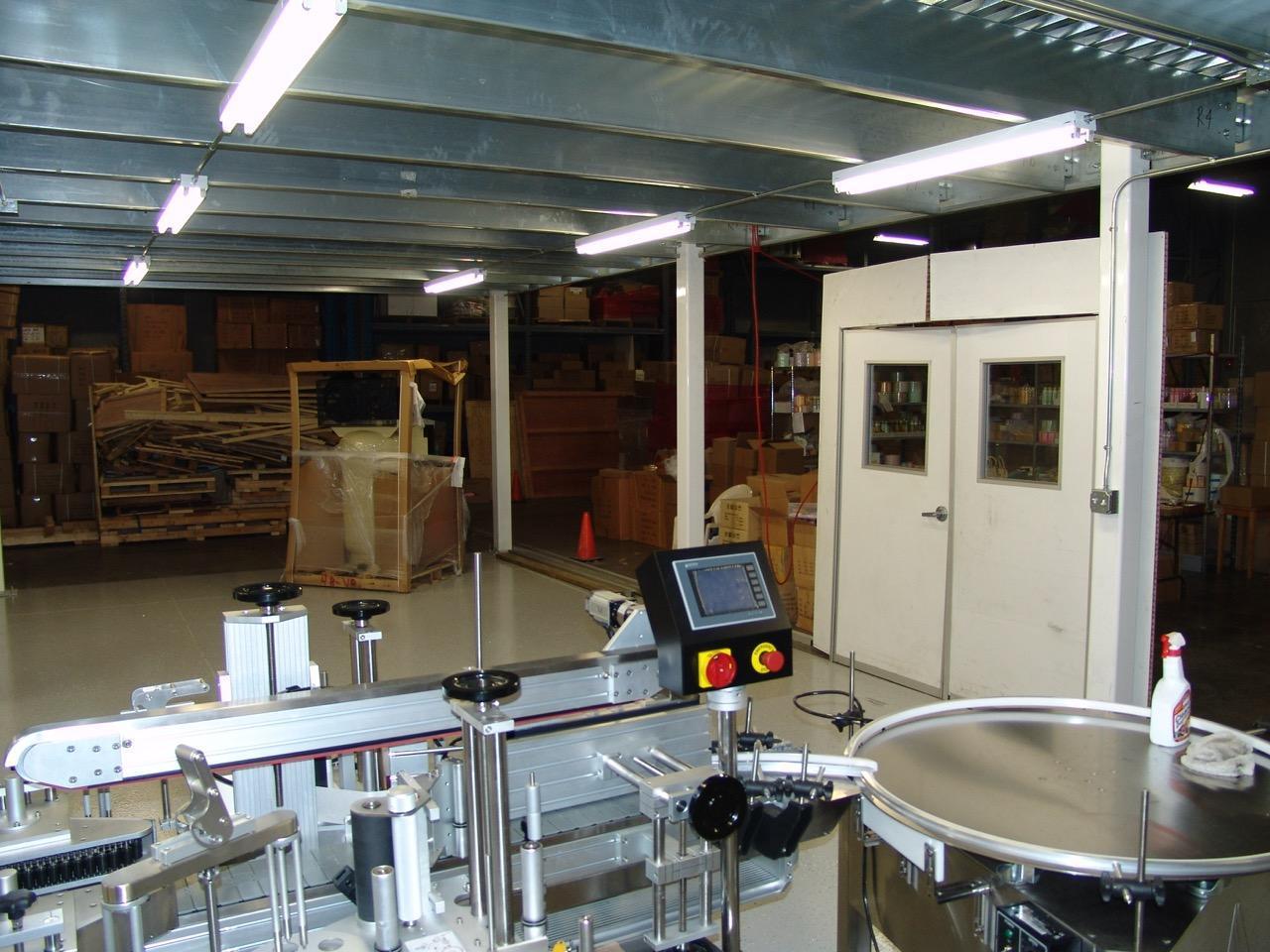

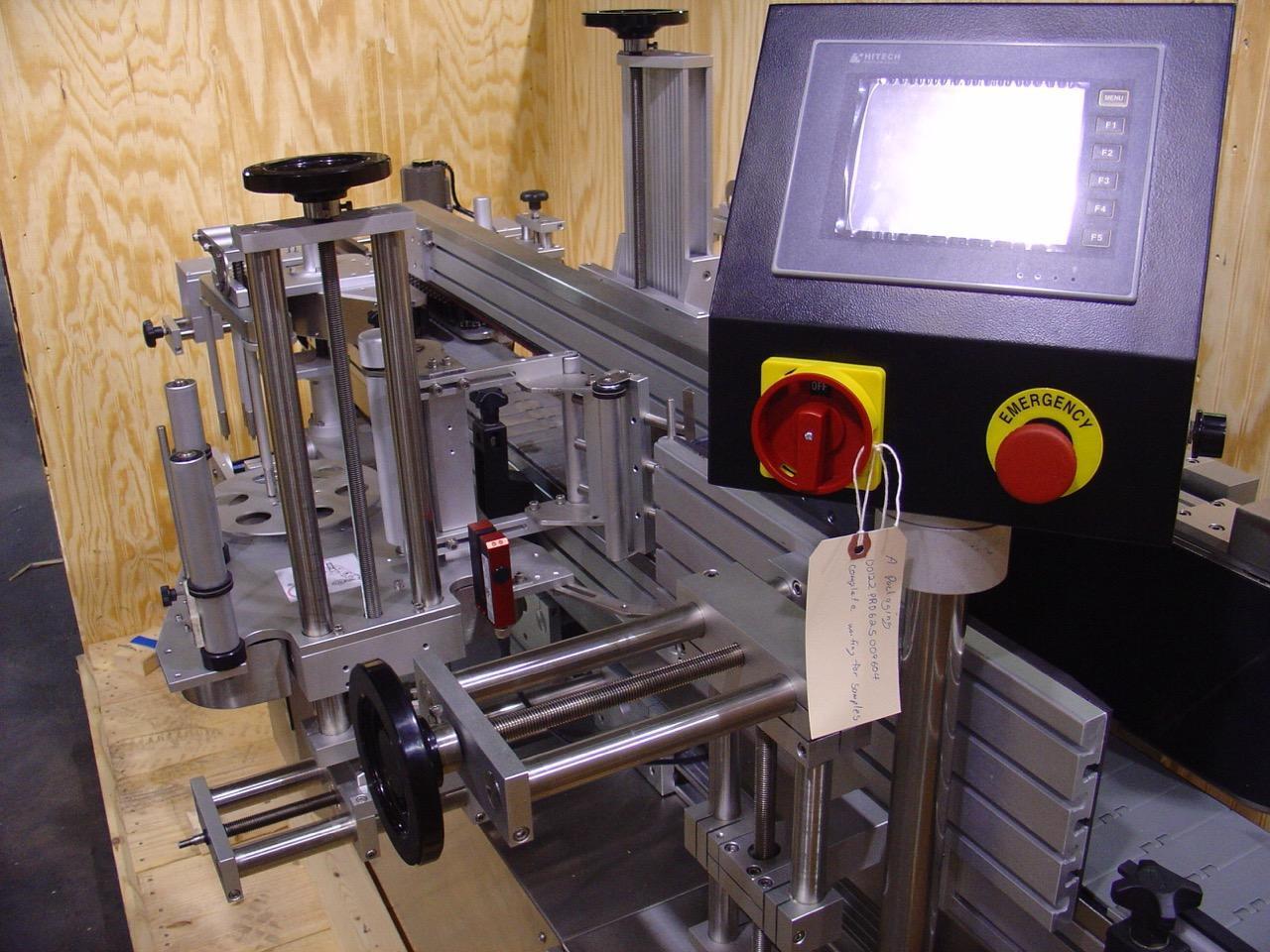

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Pack Leader Pro-625 Front and Back Pressure Sensitive Labeler with Wrap Station Feature – The automatic front & back labeling system comes equipped with a 6 5/16″ inch wide (adjustable) X 8’ long variable speed conveyor. – Features include a stepper motor drive for label and power assisted web take up – Labeling heads speed automatically synchronizes with conveyor speed. – Non-contact photo eye sensors and an auto teach function for new labels. – Handles many different size containers and can be used in virtually all industries such as pharmaceuticals, personal care products, foods, vitamins, cosmetics, and chemicals. – One touch automatic label detection and setup – Built-in touch screen operation manual – Built-in touch screen troubleshooting guide – Low or Missing label detection with automatic stop system to prevent mislabeling. – Label counter and Count down feature to allow precise run of set number of labels. – Auto Shut Off – Specifications: Voltage: 220/110 VAC 50/60 HZ 1 phase Power: 1,320 WA – Conveyor speed: 0-40m/min. – Dispensing speed: 40 m/min max. – Applicator height: 150mm(5 7/8″)/200mm(7 7/8″) Conveyor width: 160mm (6 5/16″) – Spool diameter: 76mm(3″) – Measurement: 2,420mm (L)*1,800mm(W)*1,450mm(H) – Full or Partial Wrap Labeling Feature

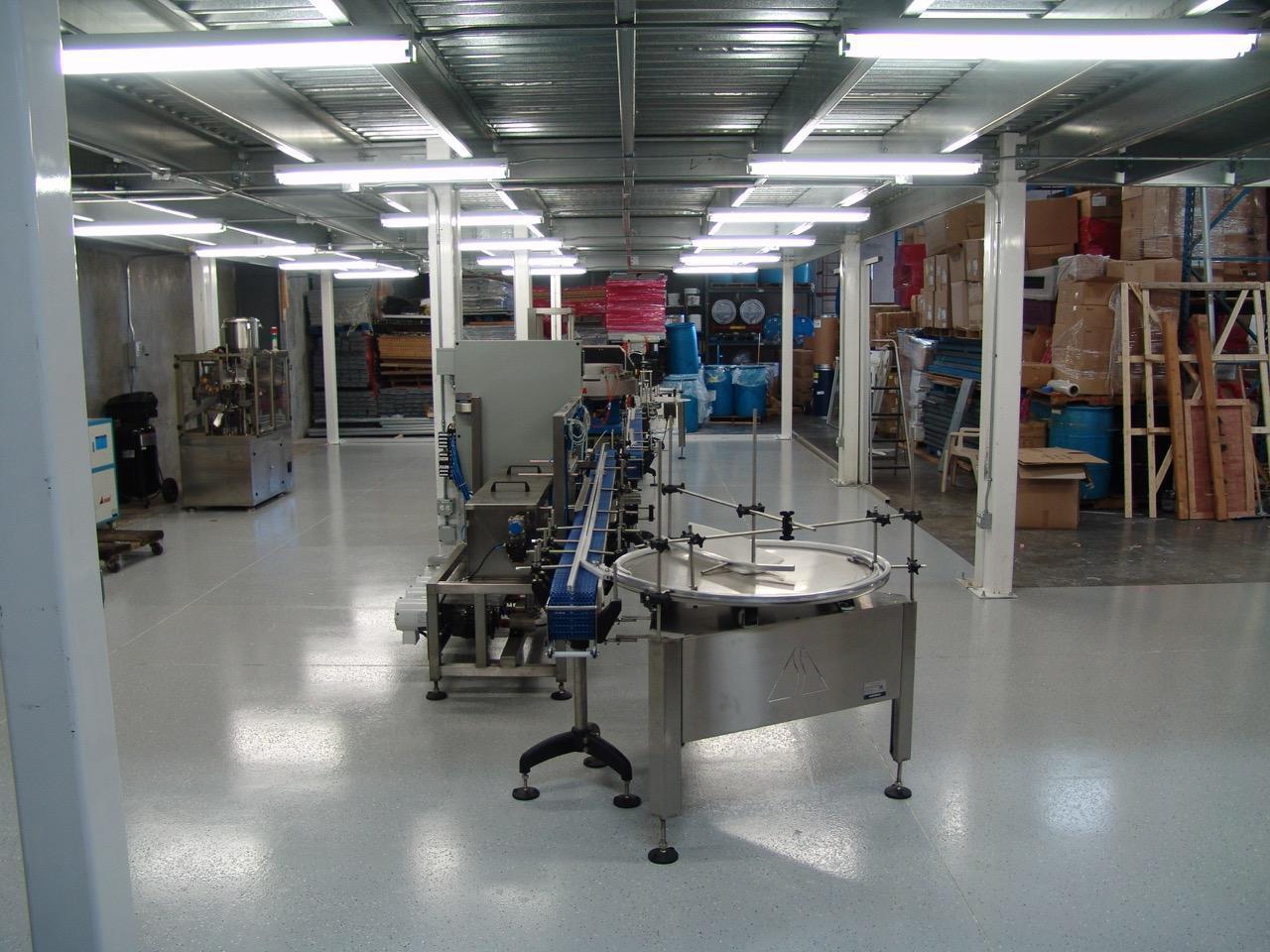

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,A Packaging Systems Turntables 1 APS 40″ ACCUMULATING TURNTABLE – 304 stainless steel Disc top – 304 stainless steel frame construction – Line height 30-36″ – Clockwise or Counterclockwise rotation – 115/230Volt/1f/50-60Hz Variable speed control box mounted on machine cabinet – Single rail system with HDPE bottle contact surface and tool-less adjustments

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,(1) A Packaging Systems 40″ LOADING TURNTABLE – 304 stainless steel disc top – 304 stainless steel frame construction – Overhead support system for bottle diverter – Line height 30-36″ – Clockwise or Counterclockwise rotation – 115/230Volt/1f/50-60Hz Variable speed control box mounted on machine cabinet – Single rail system with HDPE bottle contact surface and tool-less adjustments

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,(2) A Packaging Systems 15′ x 6.0″ Sanitary Conveyors – 304 Stainless steel closed-shell construction – 6.0″ Delrin chain belt, elevated on spacer for easier washing above & below the belt. – Optional open link chain for faster removal. – 115V/1f/50-60Hz Variable Frequency Drive. – Washdown duty 90Volt DC motor. – 36:1 gear reducer. – Speeds up to 67′ per minute. – Single stainless steel rail system with HDPE wear strip & tool-less brackets.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
