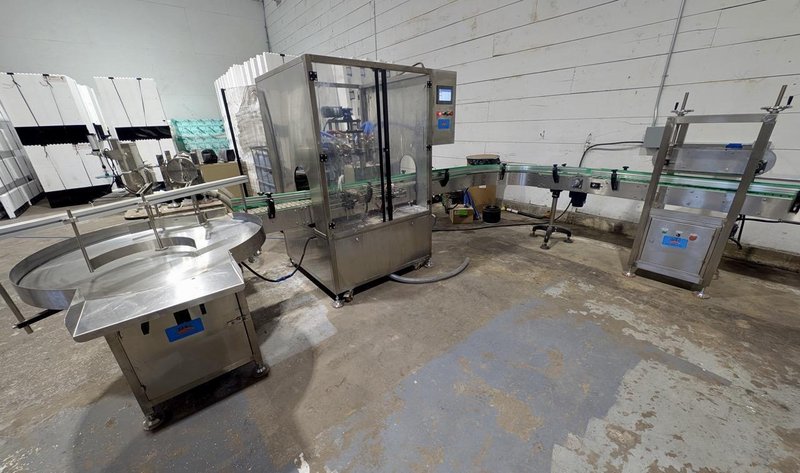

Liquid Filling Line with Automatic 4 Nozzle Servo Gear Pump Filler, Lid Presser, Labeler, Turntables, and Conveyors, 2024

Integrated Liquid Filling Line Purchased New and Used Only for Limited Pilot Runs (Approximately 2,000 Units Total) of Water-Based, Non-Toxic Paint. Fully Washed and Cleaned After Each Use. Recently Removed From Working Environment and Ready for Immediate Production.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,The System is Designed for High Versatility and Straightforward Operation, Capable of Packaging 237 mL, 473 mL, 947 mL, and 3.785 L (1-Gallon) Containers with Simple Mechanical Adjustments and No Major Change Parts Required. Throughput Depends on Container Size and Operator Workflow.

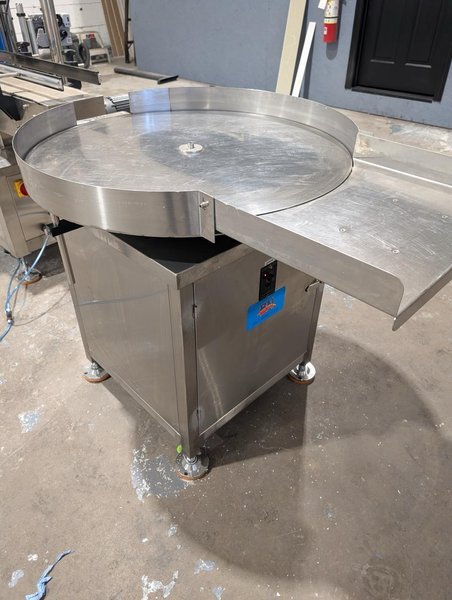

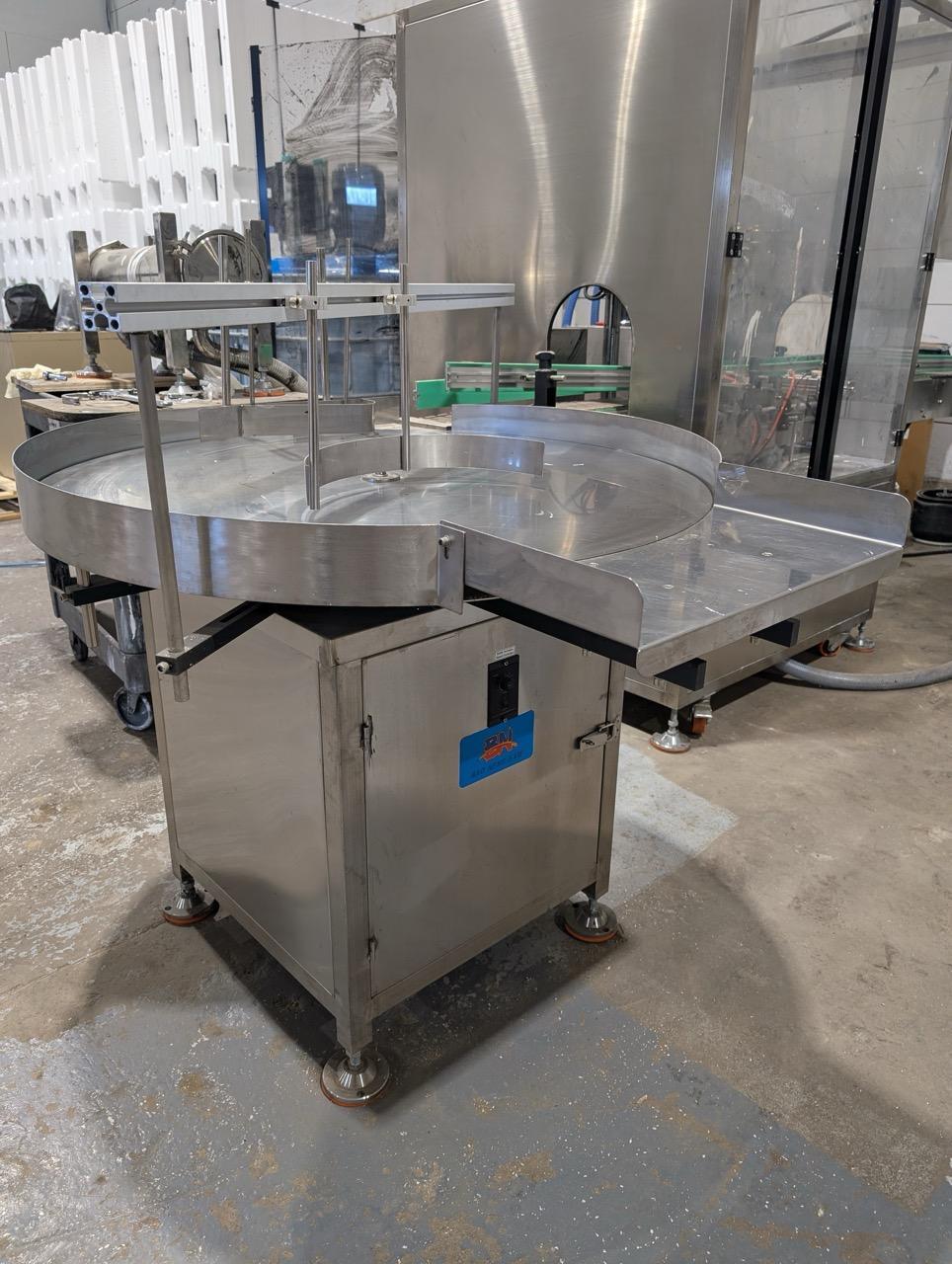

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Included Equipment: BNLP-1000 Stainless Steel Infeed Turntable: – 1000 mm Diameter – SUS304 Construction – Adjustable for Ø50–180 mm Containers, Height 60–260 mm – 220 V, 50/60 Hz, 0.2 kW

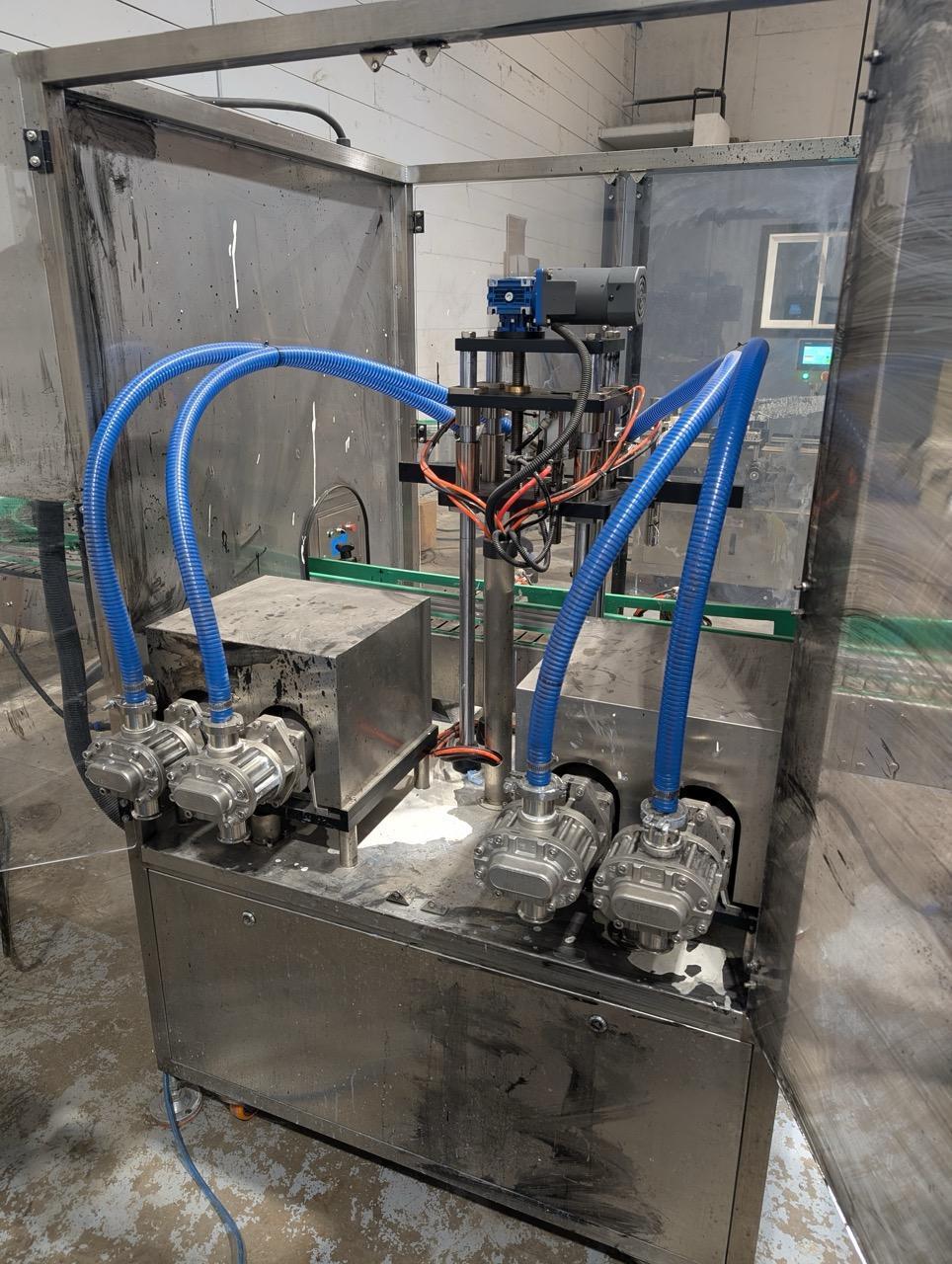

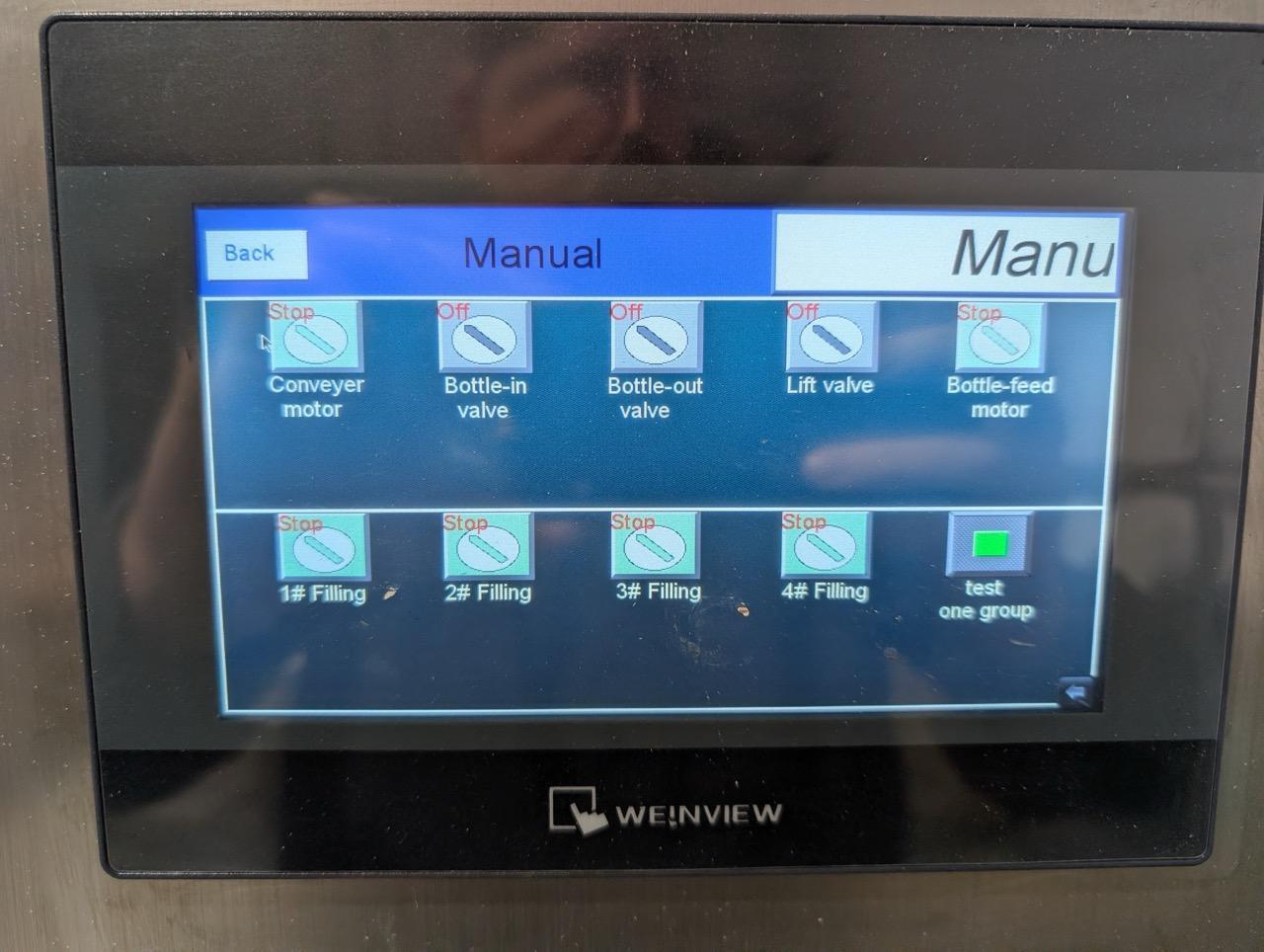

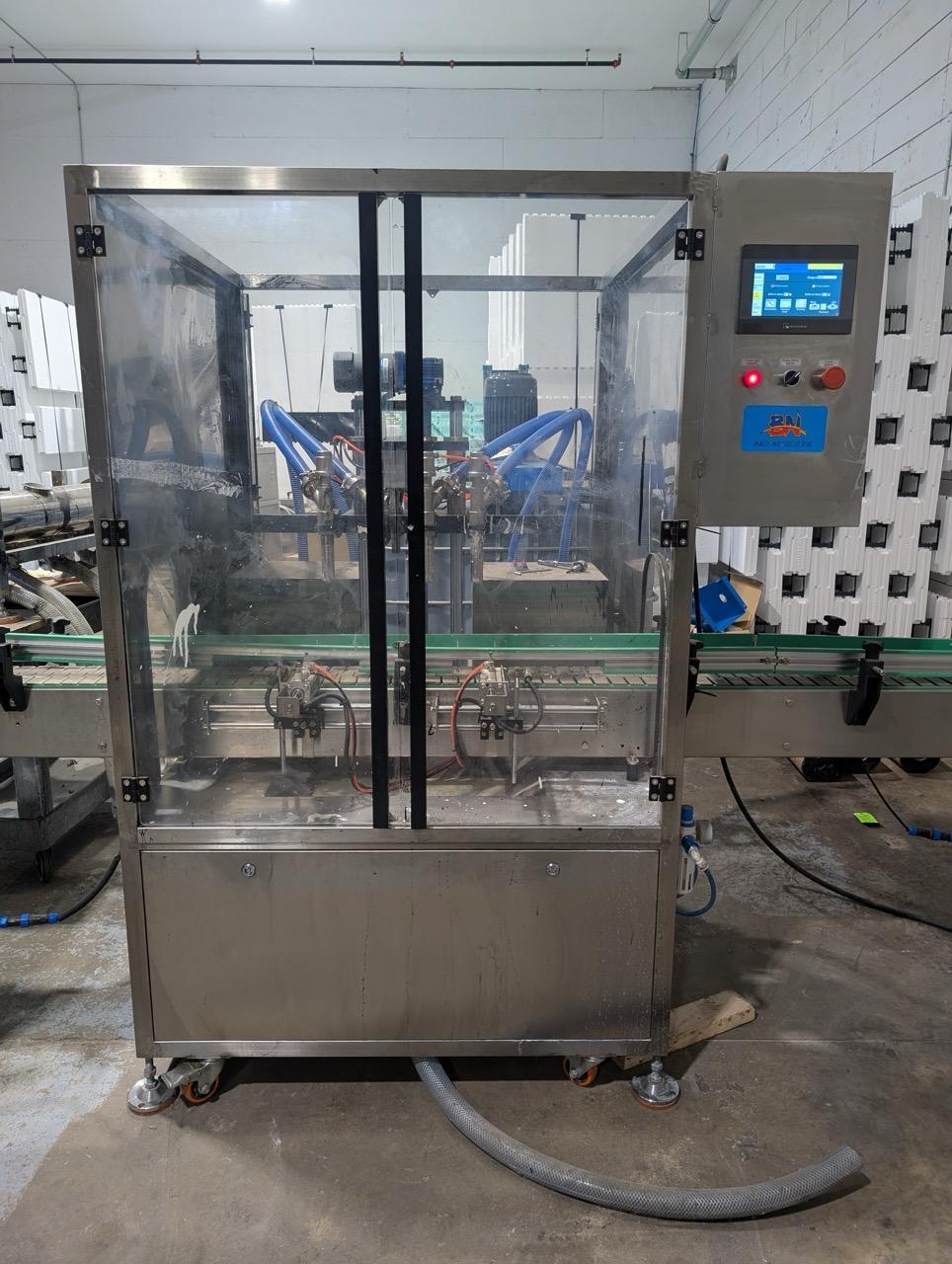

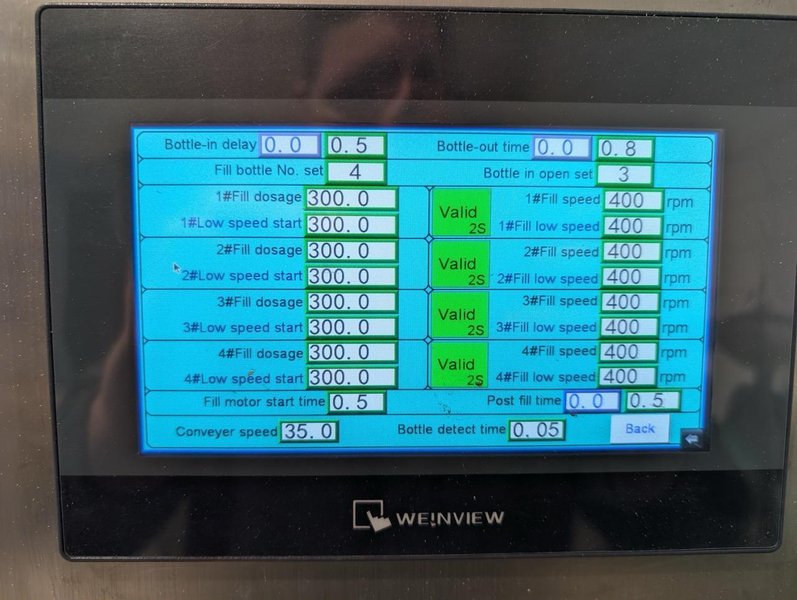

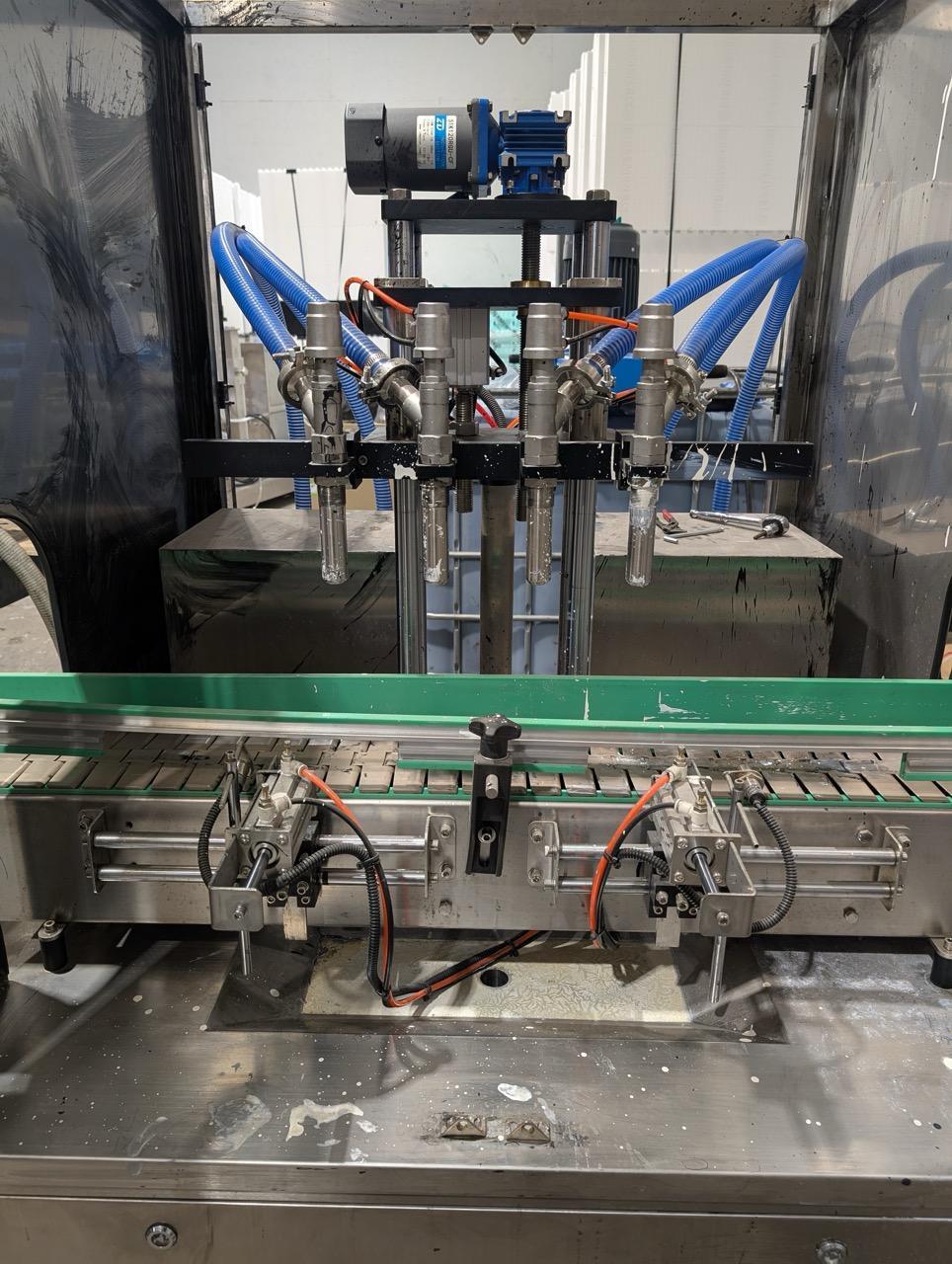

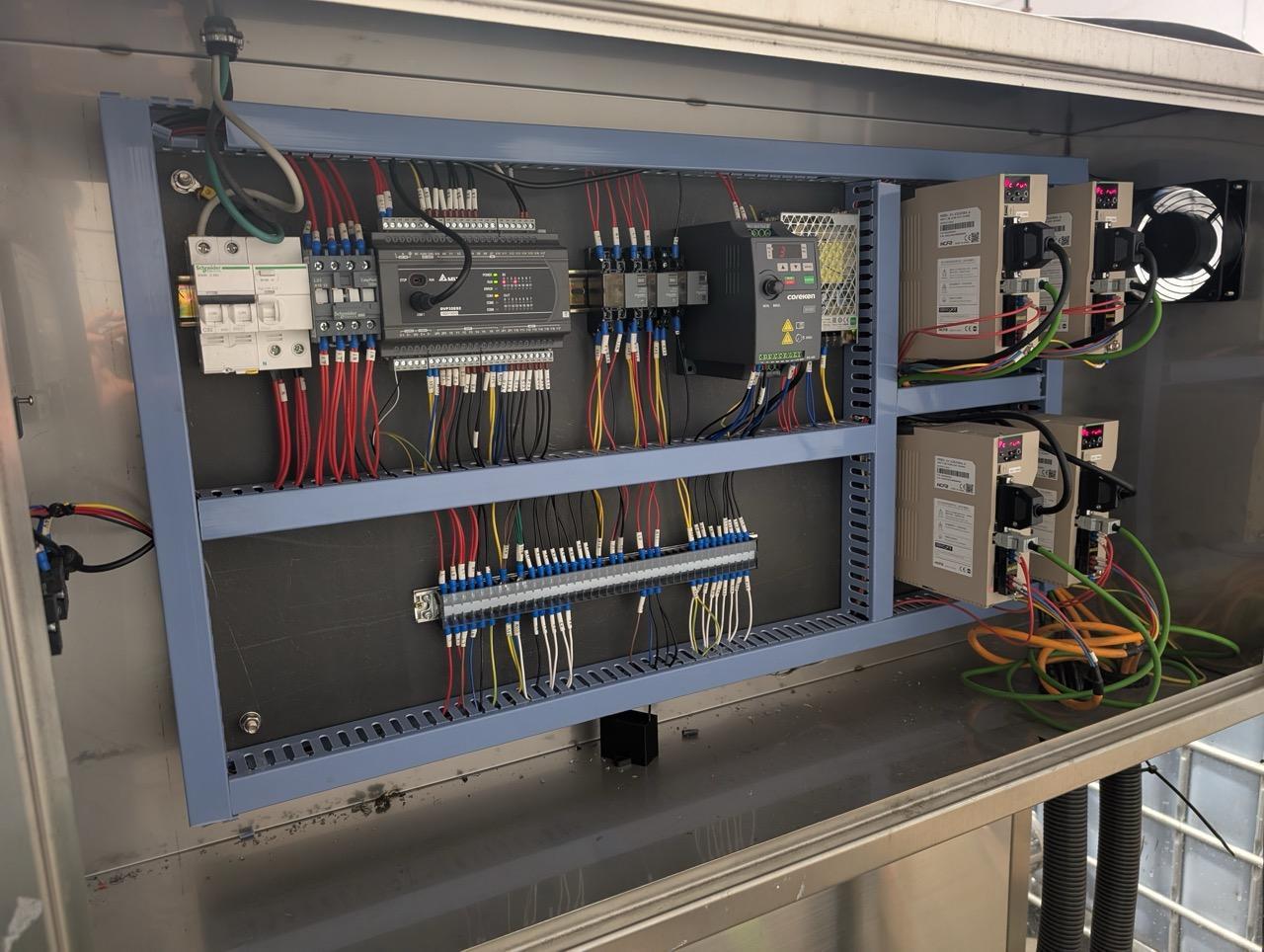

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,BNALF-GP4 Automatic 4-Nozzle Servo Gear-Pump Filler: – Filling Range: 200–4000+ mL – Four Servo-Driven SUS304 Gear-Pump Heads – Self-Priming From External Tank – Anti-Drip Nozzle Assembly – PLC + Touchscreen with Recipe Storage – “No Bottle / No Fill” Interlock – Accessible Teardown for Cleaning Electrical & Control Components: – PLC: Delta (Taiwan) – HMI: Weinview (Taiwan) – Low-Voltage Electrical: Schneider (France) – Pneumatics: Airtac (Taiwan) – Sensors: Autonics – Servo Motor: HCFA – Power: ~7 kW – 220 V, 50 Hz – Air: ~80 PSI – Construction: SUS304 Throughout

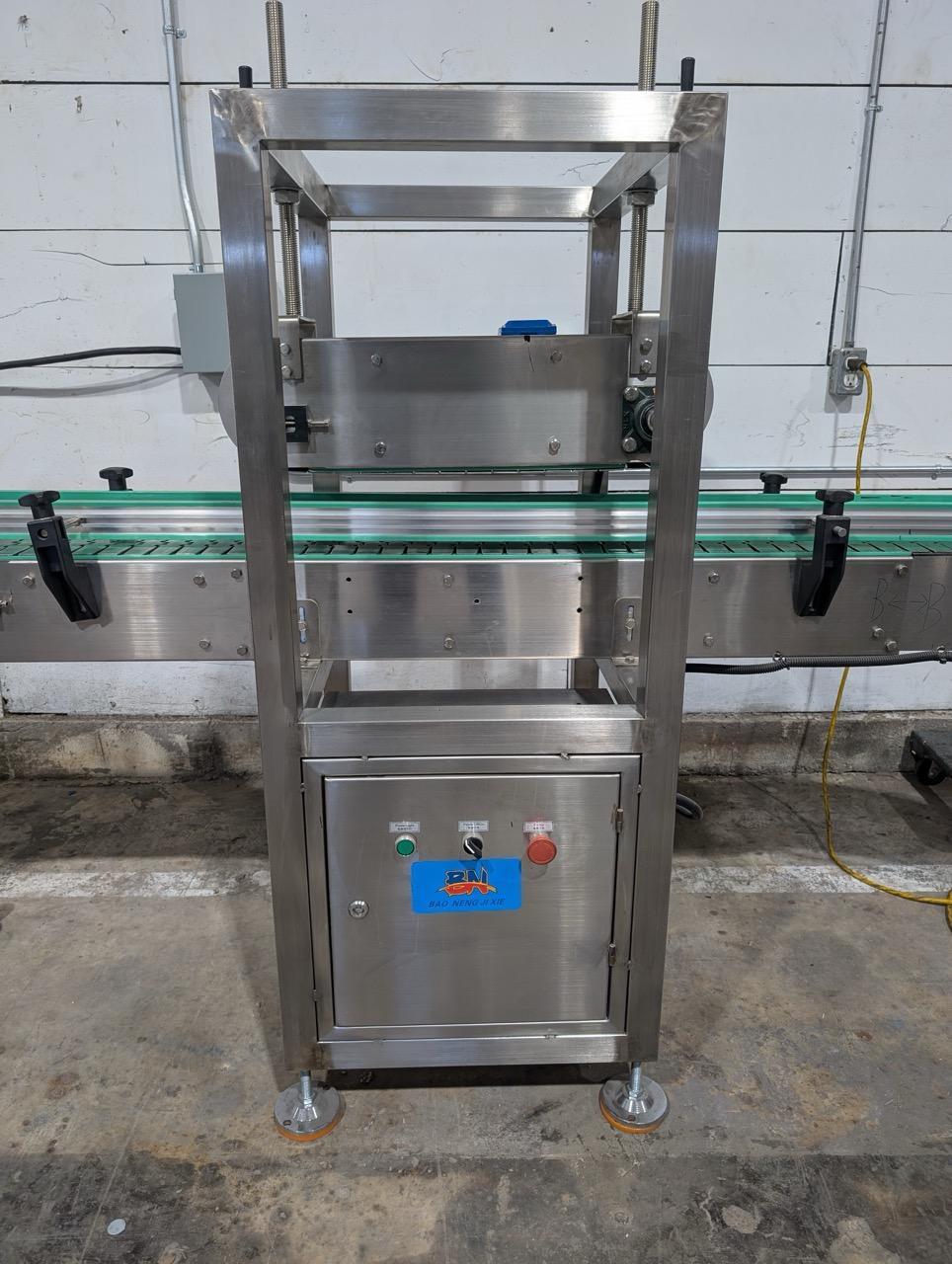

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,BNAC-PB Automatic Belt-Type Lid Pressing Machine: – Continuous Inline Lid Pressing – Buffer Conveyor for Ergonomic Manual Lid Placement – SUS304 Frame – 220 V, 1000 W – Speed Control via Delta Inverter – Electrical/Sensor Components: Schneider, Autonics

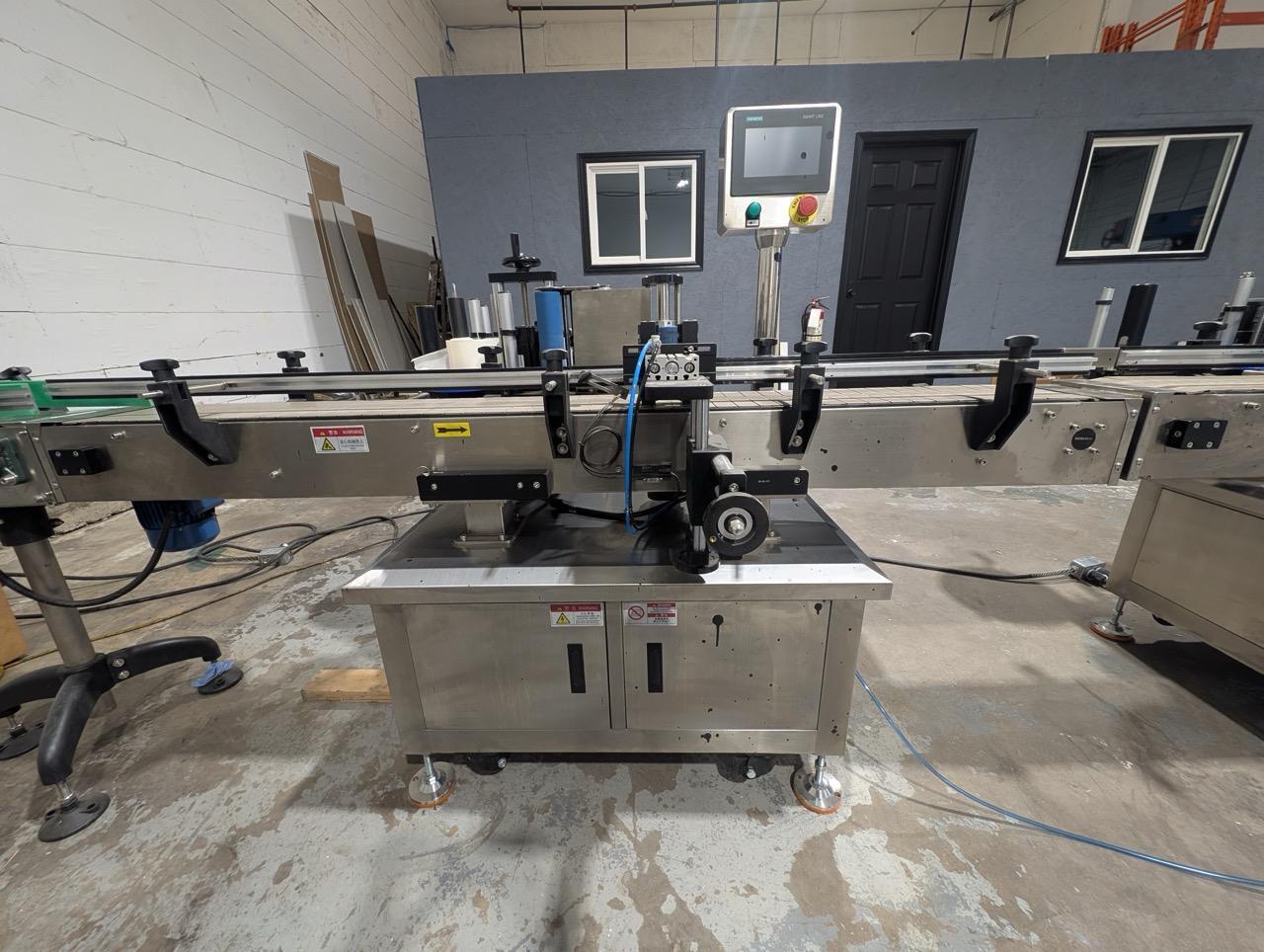

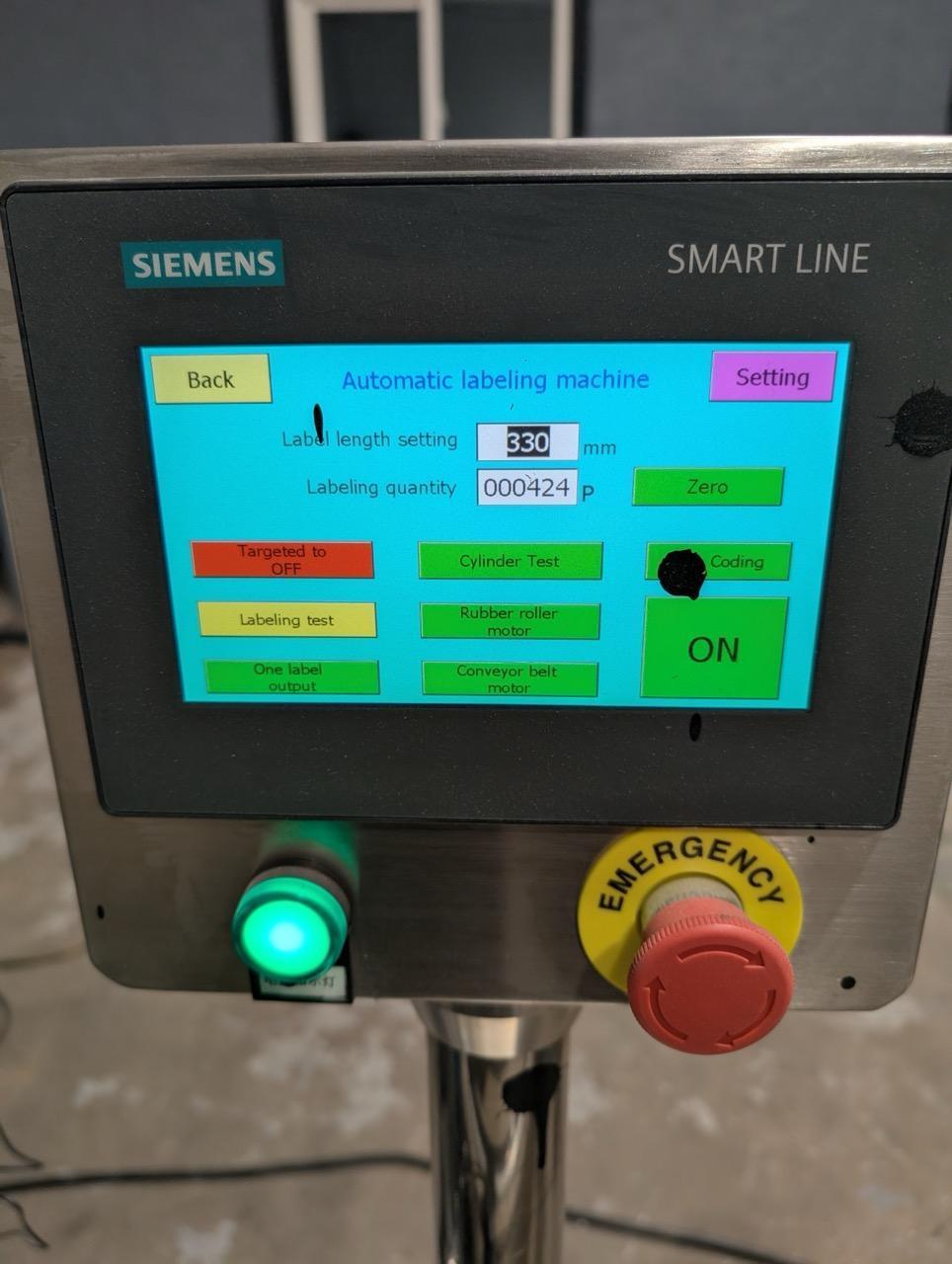

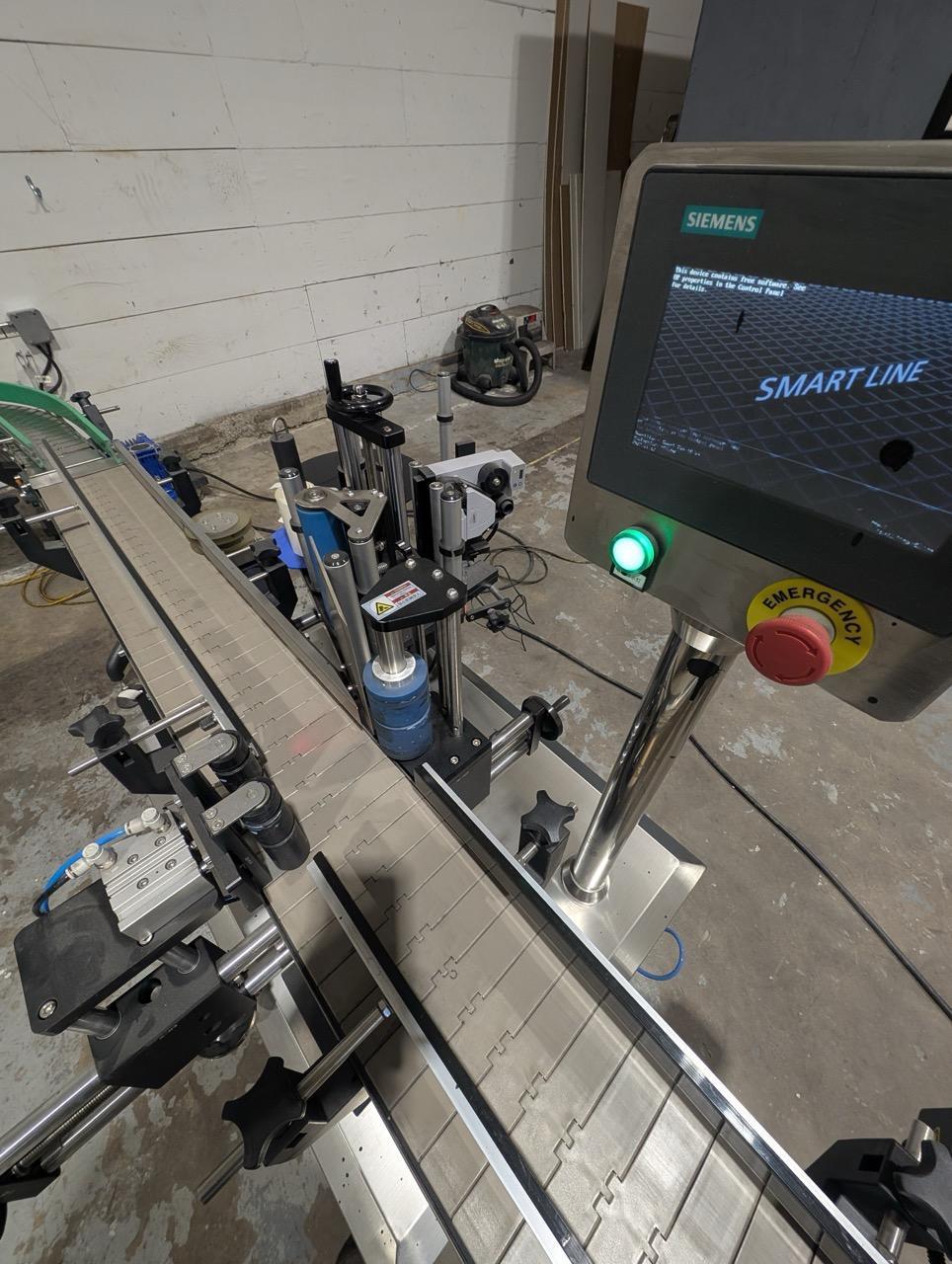

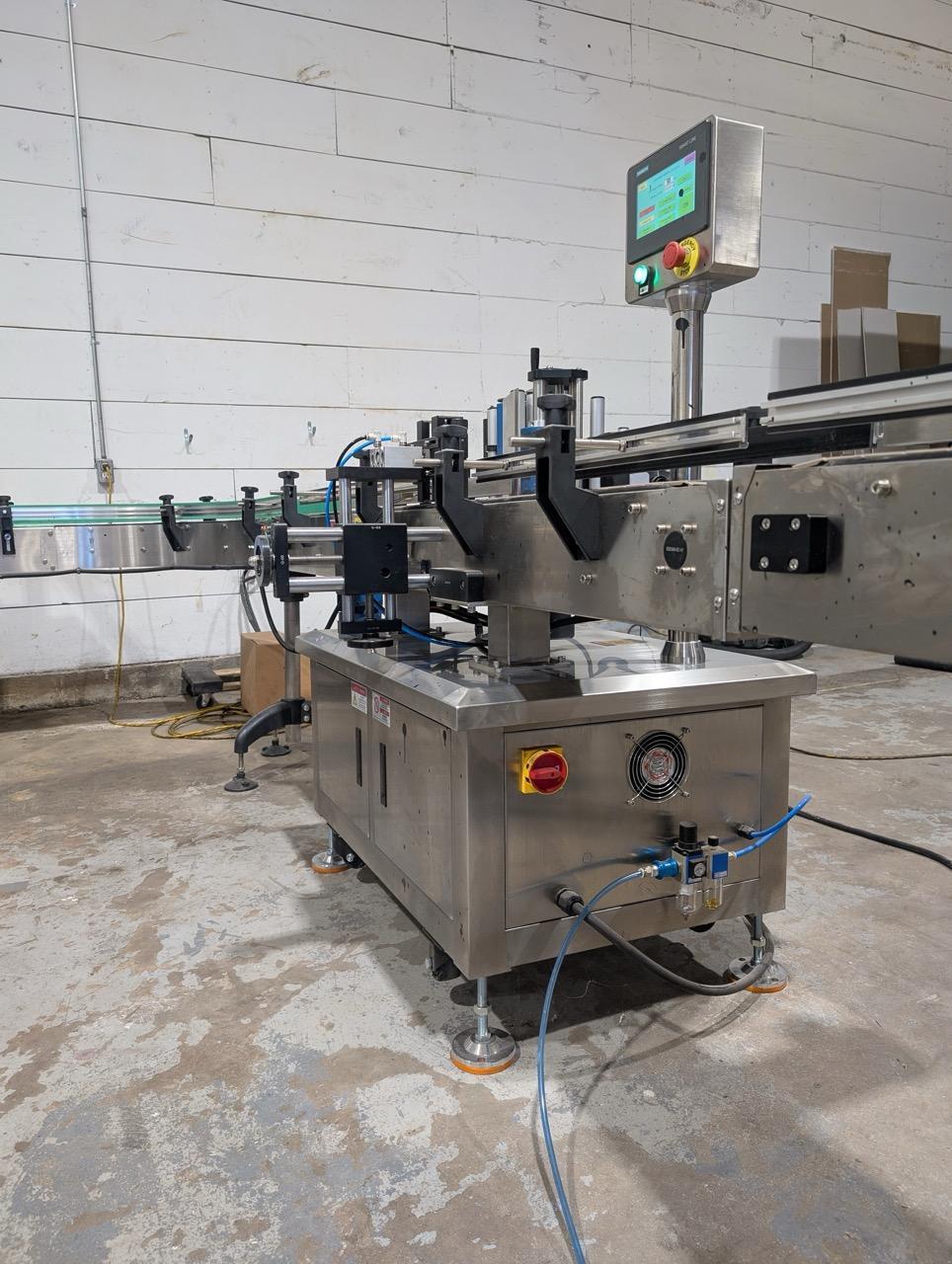

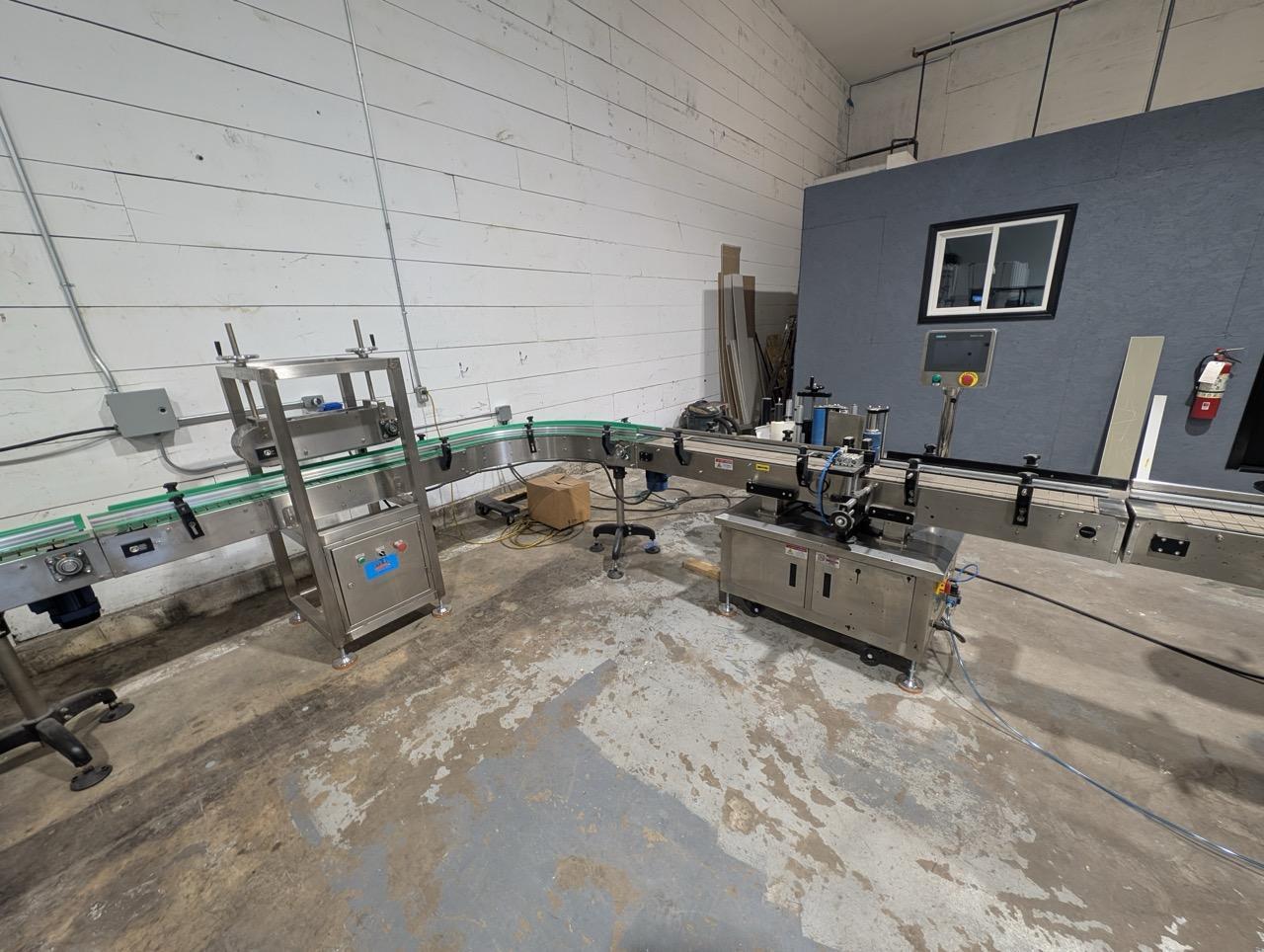

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Automatic Round Bottle / Cylindrical Labeling Machine (with Date Coder): – Compatible with 237 mL Through 1-Gallon Container Sizes – Clamp-Type Positioning for Precise Wrap-Around Labeling – Full or Partial Circumference Labeling – Includes Ribbon Date Coder for Batch and Date Printing – Label Size Range: L 20–200 mm × W 20–130 mm – Labeling Accuracy: ≤ ±1 mm – 110/220 V, 1 kW – Construction: SUS304 and Aluminum Control Components: – PLC: Mitsubishi (Japan) – Label Sensor: Sick (Germany) – Object Sensor: Leuze (Germany) – HMI: INVONACE

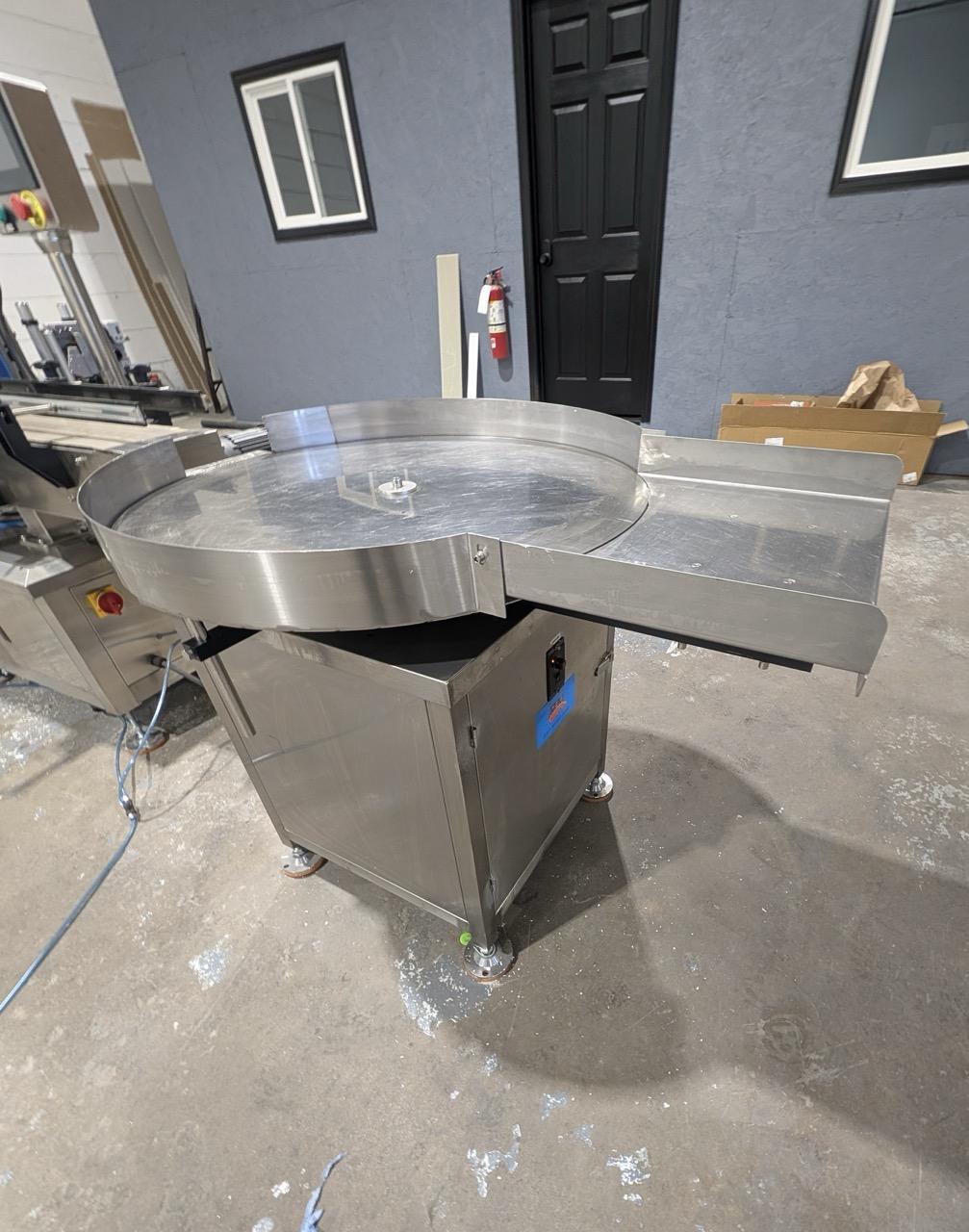

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,BNLP-800 Stainless Steel Outfeed Turntable: – 800 mm Diameter – SUS304 Construction – 220 V, 50/60 Hz – Serves as Final Accumulation and Inspection Area

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,OEM Curved Conveyor Sections: – Factory-Designed Connecting Conveyors – Smooth Transfer From Filler → Capper → Labeler

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Container Compatibility (Based on Prior Use): – 237 mL (8 oz) – 473 mL (Pint) – 947 mL (Quart) – 3.785 L (1 Gallon) – All Stations (Filler, Lid Presser, Labeler, and Conveyors) Support the Full Container Size Range

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Utilities / Requirements: – Voltage: 220 V – Air: ~80 PSI – Construction: SUS304 Stainless Steel Throughout – Footprint: Straight-Line Layout with Modular Stations
